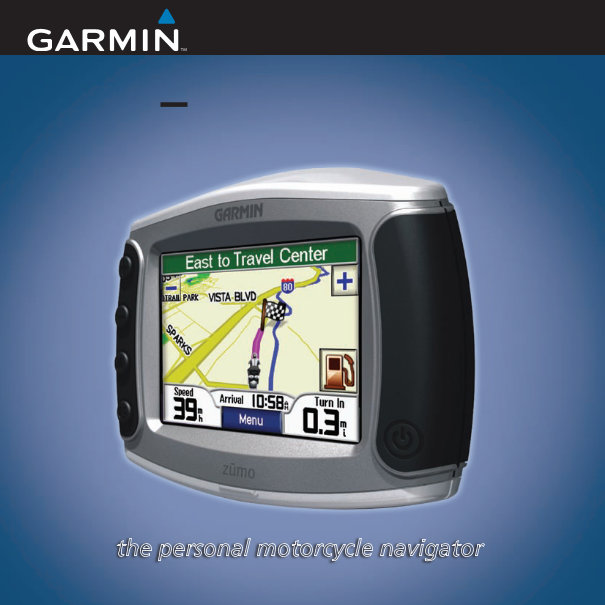

Owner’s Manual ZUMO ™ 500/550 the personal motorcycle navigator

© 2006–2007 Garmin Ltd. or its subsidiaries All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin ® and MapSource ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. zūmo ™ , MyGarmin ™ , Garmin Travel Guide ™ , Garmin TourGuide ™ , Garmin Lock ™ , GTM ™ , and GXM ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Windows ® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac ® and iTunes ® are registered trademarks of Apple Computer, Inc. The Winamp trademark is the property of Nullsoft, Inc. and its parent company, America Online, Inc. Audible. com ® and AudibleReady ® are registered trademarks of Audible, Inc. © Audible, Inc. 1997-2005. SiRF ® , SiRFstar ® and the SiRF logo are registered trademarks of SiRF Technology, Inc. SiRFstarIII ™ and SiRF Powered ™ are trademarks of SiRF Technology, Inc. Google ™ and Google Earth ™ are trademarks of Google Inc. RDS- TMC Trafﬁc Information Services France © ViaMichelin 2006. SaversGuide ® is a registered trademark of Entertainment Publications, Inc. XM ™ is a trademark of XM Satellite Radio Inc. Other trademarks and trade names are those of their respective owners. Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. 913/397.8200 or 800/800.1020 Fax 913/397.8282 Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel.+44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 March 2007 Part Number 190-00697-00 Rev. C

zūmo 500/550 Owner’s Manual  PREFACE PREFACE Thank you for purchasing the Garmin ® zūmo ™ . Manual Conventions When you are instructed to “touch” something, use your ﬁnger to touch an item on the screen. You will see arrows (>) used in the text. They indicate that you should touch a series of items. For example, if you see “touch Where to > Favorites,” you should touch the Where to button, and then touch Favorites. Contact Garmin Contact Garmin if you have any questions while using your zūmo. In the USA, contact Garmin Product Support by phone: 913/397.8200 or 800/800.1020, Monday–Friday, 8 AM–5 PM Central Time; or go to www .garmin.com/support, and click Product Support. In Europe, contact Garmin (Europe) Ltd. at +44 (0) 870.8501241 (outside the UK) or 0808 2380000 (within the UK). myGarmin ™ Go to http://my.garmin.com to access the latest services for your Garmin products. From the myGarmin Web site, you can: • Register your Garmin unit. • Subscribe to online services (see page 55). • Unlock optional maps. Return to myGarmin often for new Garmin product services. About Google Earth ™ Go to http://earth.google.com to download the Google Earth application. With Google Earth installed on your computer, you can view waypoints, tracks, and routes saved in MapSource ® . From the View menu, select View in Google Earth.

 zūmo 500/550 Owner’s Manual PREFACE Preface............................................. i Manual Conventions.......................... i Contact Garmin ................................. i myGarmin .......................................... i About Google Earth ........................... i Important Information ...................... iv Getting Started............................... 1 Looking at Your zūmo ....................... 1 Quick Links ....................................... 2 zūmo Tips and Shortcuts .................. 2 Adjusting the Volume........................ 2 Adjusting the Brightness................... 2 Mounting the zūmo on Your Motorcycle ................................... 3 Configuring Your zūmo ..................... 7 Acquiring Satellites ........................... 7 Using Your zūmo .............................. 7 Finding Your Destination ................. 8 Following Your Route ....................... 9 Adding a Stop ................................... 9 Adding a Detour ............................. 10 Stopping the Route......................... 10 Locking Your zūmo ......................... 10 Where to ....................................... 11 Finding an Address......................... 11 Go Page Options ............................ 11 Go Home ........................................ 12 Finding Points of Interest................ 12 Recently Found Locations .............. 14 Favorites......................................... 14 Creating a Saved Route ................. 16 Finding a Location Using the Map ........................................... 18 Entering Coordinates...................... 19 Expanding Your Search .................. 19 Using the Main Pages ................. 20 Map Page ....................................... 20 Trip Information Page ..................... 21 Turn List Page ................................ 22 Next Turn Page .............................. 22 Compass Page ............................... 22 Using Hands-free Features ......... 23 Pairing Your Device ........................ 23 Getting a Call .................................. 25 Phone Menu ................................... 26 Traffic Information ....................... 30 Traffic in Your Area ......................... 30 Traffic on Your Route ...................... 30 Traffic Codes and Symbols ............ 31 Purchasing Traffic Subscriptions .... 32

zūmo 500/550 Owner’s Manual  PREFACE Using XM ...................................... 33 Listening to XM Radio .................... 33 Managing Files on Your zūmo .... 35 Supported File Types...................... 35 Deleting zūmo Files ........................ 37 Using the Media Player ............... 38 Listening to MP3 Files ................... 38 Listening to Audible Books ............. 39 Customizing the zūmo ................ 41 Changing the Map Settings ............ 41 Changing the System Settings ....... 42 Localizing Your zūmo ..................... 42 Managing User Data ...................... 43 Bluetooth Technology Settings ....... 45 Changing the Navigation Settings ..................................... 46 Customizing the Display ................. 47 Changing the Keyboard.................. 48 Managing Trafﬁc Settings ............... 48 Restoring All Settings ..................... 48 Clearing All User Data .................... 48 Appendix ...................................... 49 zūmo Audio Options ....................... 49 Installing the zūmo in Your Automobile ................................ 50 Charging the zūmo ......................... 52 Resetting the zūmo ........................ 52 Calibrating the Screen ................... 52 Updating the zūmo Software .......... 52 Purchasing and Loading Additional Map Data .................. 53 Optional Accessories ...................... 53 Battery Information ........................ 57 Using a Remote Antenna ............... 58 Caring for Your zūmo ..................... 58 About GPS Satellite Signals ........... 60 Speciﬁcations ................................. 60 zūmo Troubleshooting .................... 62 USB Interface Troubleshooting ...... 63 Index ............................................. 65

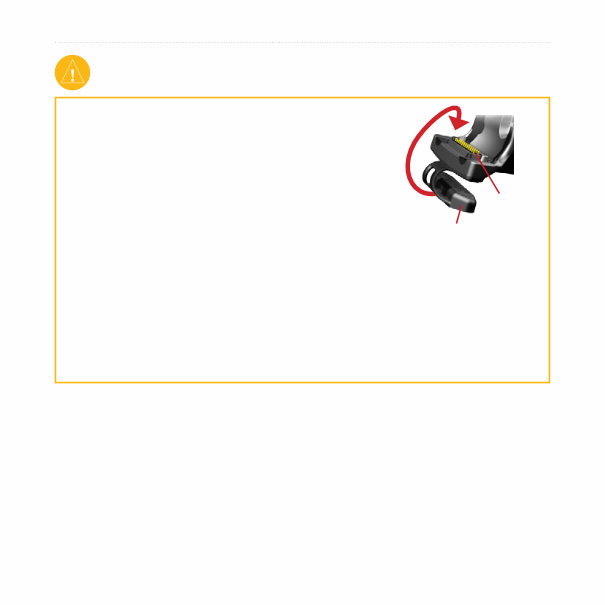

v zūmo 500/550 Owner’s Manual PREFACE Product Warnings When your zūmo is not in the motorcycle mount, use the weather cap to prevent damage to the connector. See the Important Safety and Product Information guide in the product box for product warnings and other important information. Declaration of Conformity Hereby, Garmin declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, see the Garmin Web site for your Garmin product: www.garmin.com/products/zumo500 or www.garmin.com/products/zumo550. Click Manuals, and then click Declaration of Conformity. Important Information Weather cap Connector

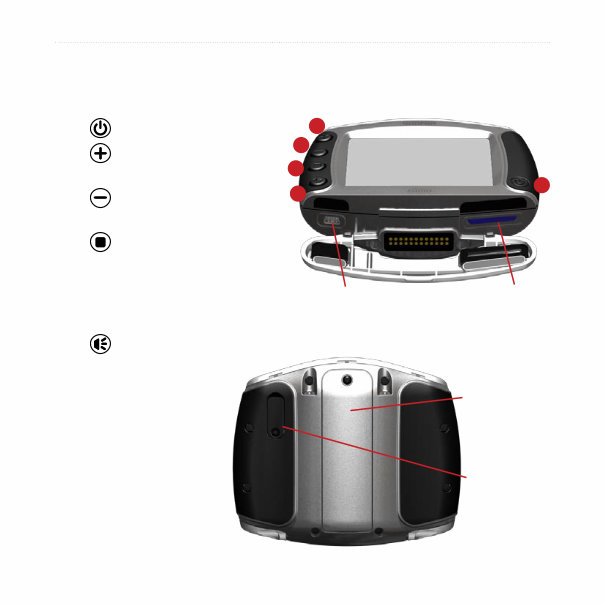

zūmo 500/550 Owner’s Manual  GETTING STARTED GETTING STARTED Looking at Your zūmo A. Power button B. Zoom in, raise volume, or increase brightness. C. Zoom out, lower volume, or decrease brightness. D. Page button—scroll through the Map, Compass, Trip Information, Media Player, and Phone Menu pages. Press and hold to adjust brightness. E. Speak button— press to adjust volume level. Press and hold to announce voice directions. SD card slot Mn-USB port for AC power, USB Mass Storage mode, and updatng software A B C D E MCX connector under weather cap (see page 58) Battery pack (see page 57)

 zūmo 500/550 Owner’s Manual GETTING STARTED zūmo Tips and Shortcuts • Touch and hold to quickly return to the Menu page. • Press to return to the map. • Touch and to see more choices. • Touch to adjust settings such as volume, brightness, language, and keyboard. Adjusting the Volume Press , and then use and to adjust the volume. For advanced volume settings, touch > Volume. Adjusting the Brightness Press and hold , and then use and to adjust the brightness. See page 47 for additional display settings. Quick Links • Finding an address: page 11 • Viewing the map: page 20 • Using hands-free mobile phone features: page 23 • Using the Garmin Lock ™ anti-theft feature: page 10 • Listening to MP3 ﬁles: page 38 • Transferring ﬁles to your zūmo: pages 35–37 • zūmo audio options, see page 49 • Cleaning and storing your zūmo: page 58 • Mounting the zūmo in your automobile: page 50 Fill out the product documentation survey. Go to www.garmin.com/ contactUs, and click Product Documentation Survey.

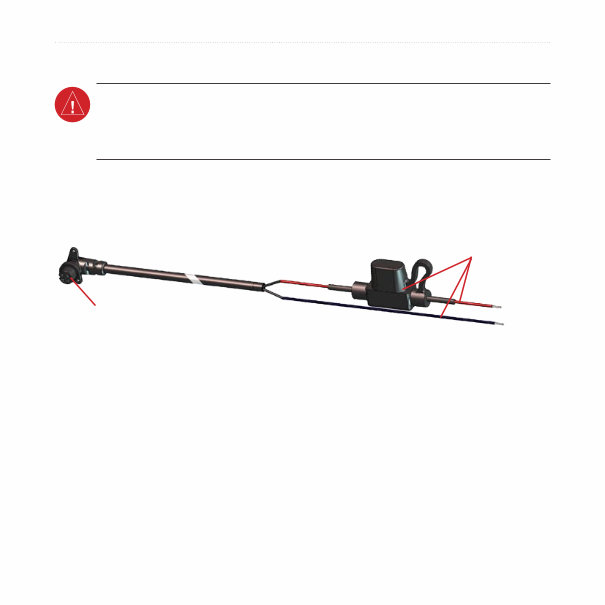

zūmo 500/550 Owner’s Manual  GETTING STARTED Mounting the zūmo on Your Motorcycle WARNING: The terms of the Garmin warranty require that the power cable with bare wire leads be installed by experienced installers having the proper knowledge of automotive electrical systems and skill in the use of special tools or hardware required for installation. 1: Connect Power to the Mount Select a suitable and secure location to mount the zūmo on your motorcycle based on available power sources and safe cable routing. Bare wres wth nlne fuse for power connecton Power connector About Connecting Audio Standard jacks for microphone (2.5 mm) and audio out (3.5 mm) are located on the left side of the mount (under a weather cap). When connecting your audio system to the zūmo, be sure to consider the pathways needed to route the necessary cables. For information about hands-free audio and phone options, see page 23. For additional audio conﬁgurations, see page 49. 2: Install the Handlebar Base The zūmo includes parts for two handlebar installation solutions. Custom mounts can require additional hardware (www.ram-mount.com).

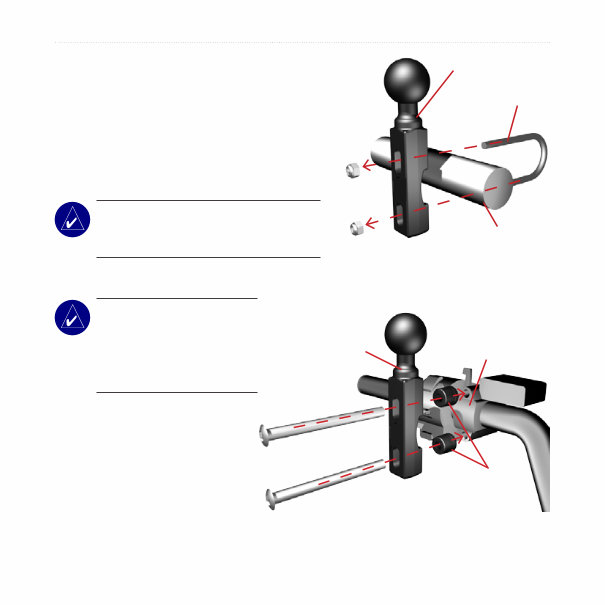

 zūmo 500/550 Owner’s Manual GETTING STARTED A) To install the U-bolt and handlebar base: 1. Place the U-bolt around the handlebar, and thread the ends through the handlebar base. 2. Tighten the nuts to secure the base. Do not overtighten. NOTE: The recommended torque is 50in-lb. Do not exceed maximum torque of 80in-lb. B) To install the handlebar base to the clutch/brake clamp bracket: NOTE: Both 1/4” standard and M6 bolts are included. Match the size of the factory bolts on your clutch/brake clamp bracket. 1. Remove the two factory bolts on your clutch/brake clamp bracket. 2. Thread the new bolts through the handlebar base, spacers, and clamp bracket. 3. Tighten the bolts to secure the base. Handlebar base Handlebar U-bolt Clutch/brake clamp bracket Handlebar base Spacers
