SERVICE GUIDE BOOK SERVICE GUIDE BOOK Model : SP Model : SP - - 300 300 Revision 1.20_November 21st, 2003 Revision 1.20_November 21st, 2003 Roland DG Corporation Roland DG Corporation Downloaded from www.Manualslib.com manuals search engine

Revision Record Revision Record Revision No. Date Description of changes 1.0 2003.10.30 First Edition 1.1 2003.11.13 1-4 Head Cleaning_ Ink consumption list has been revised. 1.2 2003.11.21 1-5 Handling_HEAD WASH SP-300 requires 4 cleaning cartridges for Head Wash. Downloaded from www.Manualslib.com manuals search engine

Chapter 1 : Technology Chapter 1 : Technology Contents . . . 1. Product Information 2. Printing Theory 3. Ink 4. Head Cleaning 5. Handling 6. Features 7. Cutting Function 8. Consumables 9. Periodical Maintenance 10. Sensors Downloaded from www.Manualslib.com manuals search engine

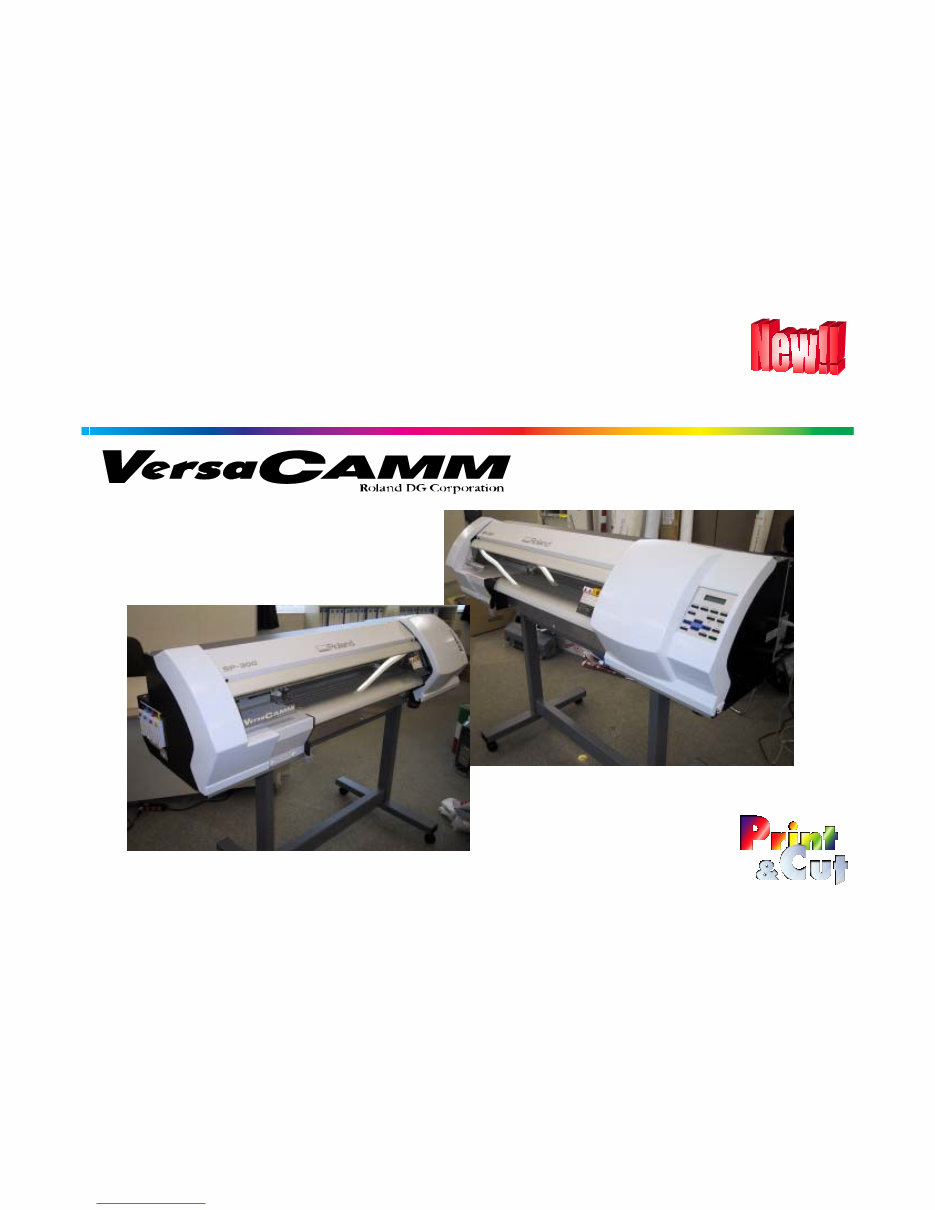

• Appearance SP SP- 300 300 1 1 - - 1 : Product Information 1 : Product Information Dimensions (With stand) 1720 [W] x 770 [D] x 1275 [H] mm (67-3/4 [W] x 30-3/8 [D] x 50-1/4 [H] in.) Downloaded from www.Manualslib.com manuals search engine

SOMETHING GOOD FOR THE EARTH Using SP-300 means saving energy SP-300 is high efficiency product that saves energy and money, and care for the environment. Product Information _ continue Product Information _ continue • Energy-saving product SP-300 is an ENERGY STAR certified product. ENERGY STAR is a government- backed program helping businesses and individuals protect the environment through superior energy efficiency. Downloaded from www.Manualslib.com manuals search engine

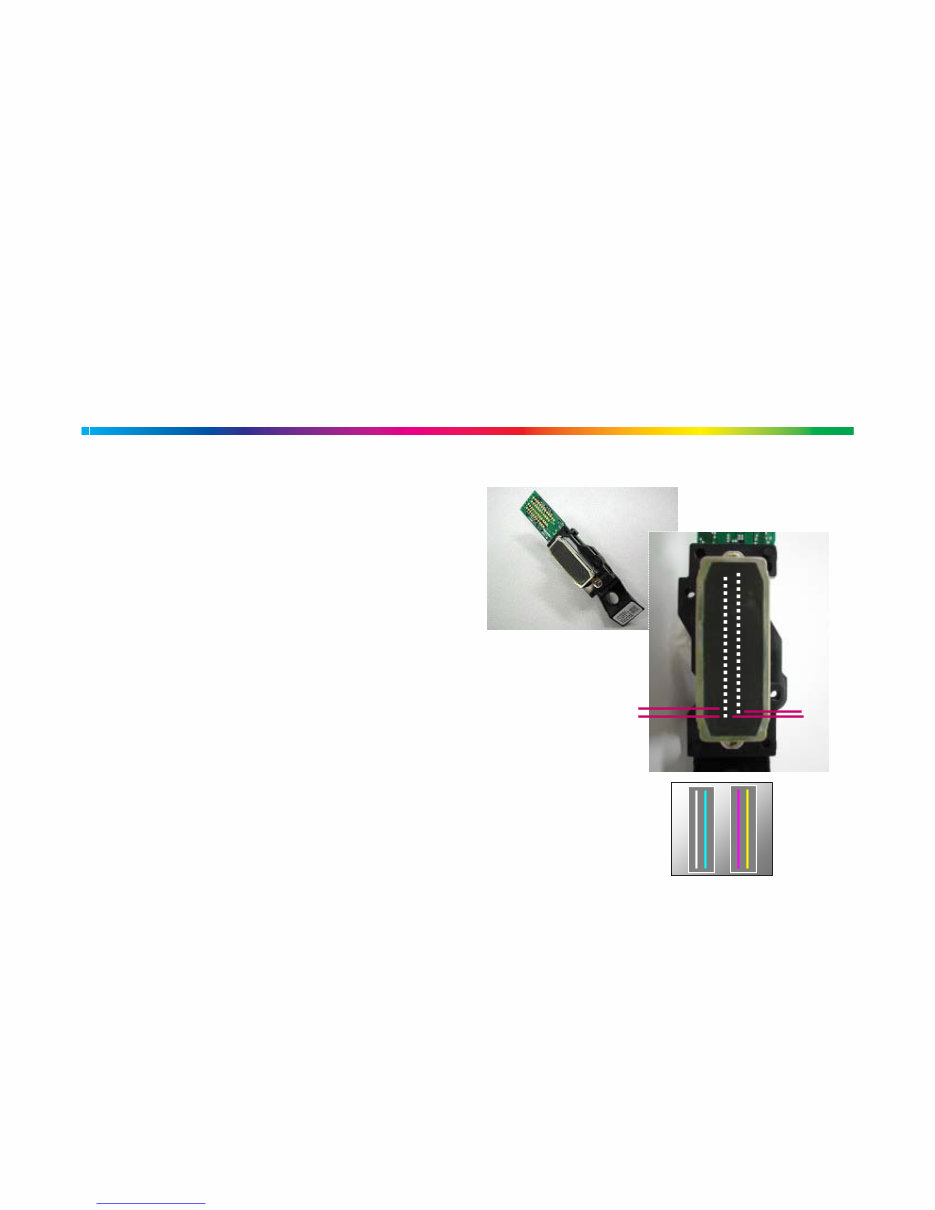

• Head (Same Head as ProII series) • Specification 1. Type : Piezo Inkjet Head 2. 2 Heads / 1 Machine 3. 2 Colors / 1 Head 4. Nozzles : 180 nozzles / 1 line * Number of nozzles is 1.875 X compared to FJ-PRO (96 nozzles) 5. Nozzle Pitch / 1 Color : 180dpi 6. Print Width : Approximately 1 inch K C M Y Chapter 1 Chapter 1 - - 2 : Printing Theory 2 : Printing Theory 180dpi 360dpi Downloaded from www.Manualslib.com manuals search engine

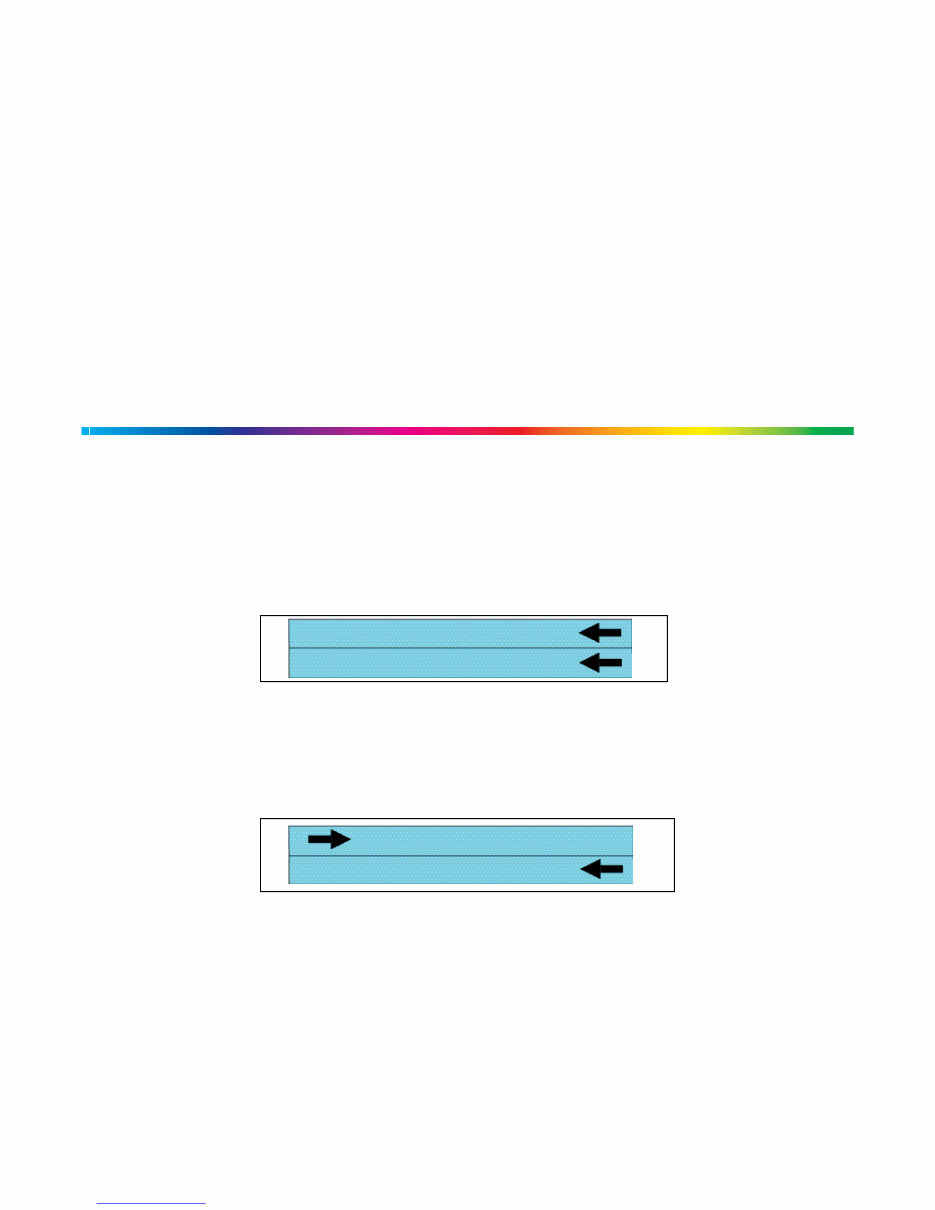

Printing Theory Printing Theory • Printing Direction 1. Uni-direction Head Carriage moves in one way to print. Printing quality is higher because the first pass of dots have enough time to dry up before the second pass of dots are fired, which prevents dots to be mixed. 2. Bi-direction Head Carriage moves in both ways to print. Printing quality is not so good as uni-direction because the color order will be reversed and dots could be mixed to each other by printing the second pass before the first pass dries up. Downloaded from www.Manualslib.com manuals search engine

• Piezo Driving Patterns There are 5 different Piezo Driving Patterns to fire the dots depending on . . . . . . 1. Size of a dot 2. Dot-Printing Method, Fixed sized dot or Variable sized dot. Piezo Driving Patterns • Fixed Sized Dot 1. Small Dot 2. Middle Dot 3. Large Dot • Variable Sized Dots 1. Variable Sized Dots 1 2. Variable Sized Dots 2 Printing Theory Printing Theory Downloaded from www.Manualslib.com manuals search engine

• Printing Control Choose best 2 or 3 modes for each media : High Speed / Standard / High Quality • You can control printing modes through Roland COLORIP & Windows Driver. Roland COLORIP : 3 modes Windows Driver : 2 modes (High Speed / High Quality) • Outputting with the best print quality suited for the media and your purpose • Resolution Max. 1440 dpi Printing Theory Printing Theory Speed priority Speed priority Quality priority Quality priority Downloaded from www.Manualslib.com manuals search engine

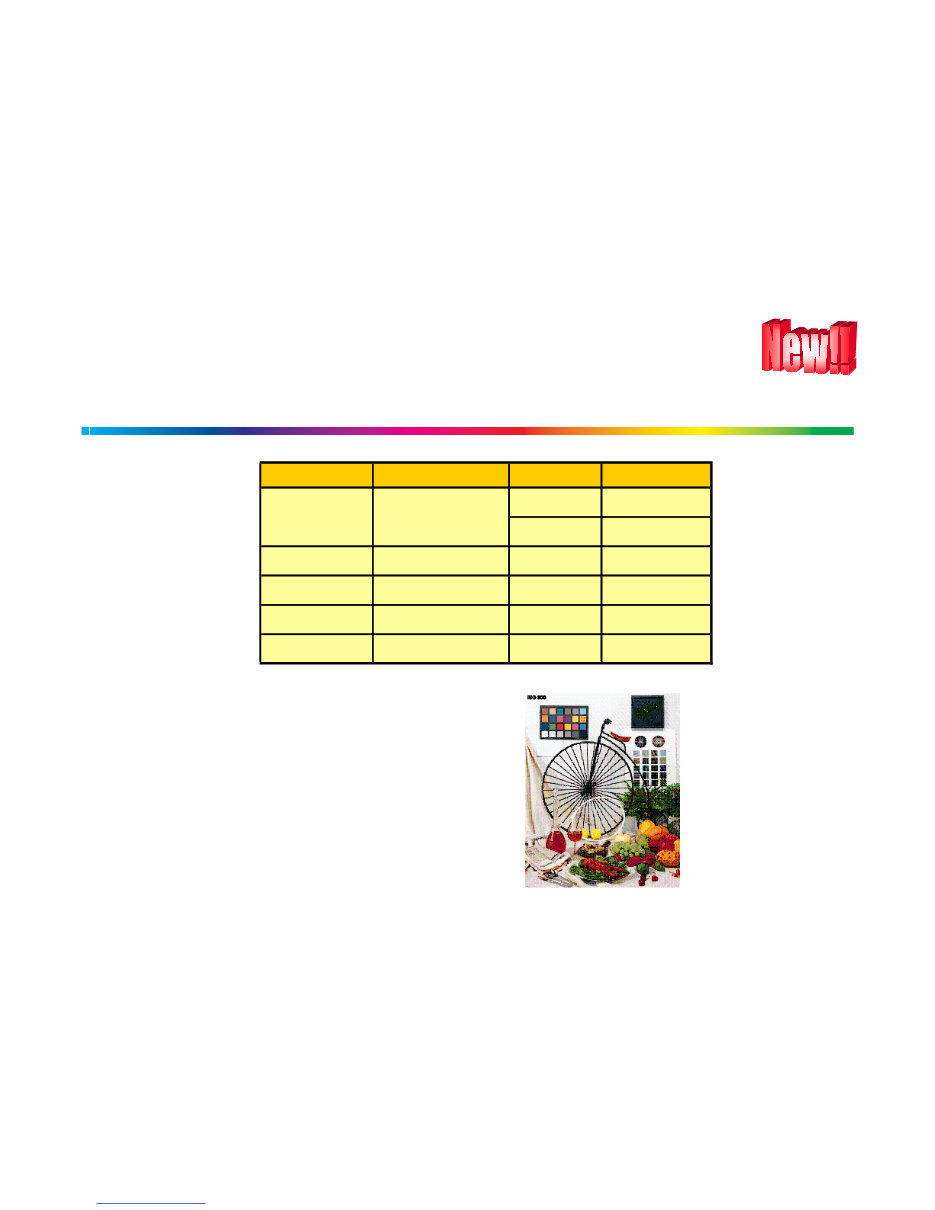

Print Speed : - Test Conditions Data : ISO N5A Size : A2 (593mmx420mm) Software : RCR & Windows Driver Rotation : 90 Others : Carriage moves in full width Printing Theory Printing Theory Resolution Scan speed Direction Print Time Bi 2'33" Uni 5'02" 360x720 500mm/sec Bi 5'28" 720x720 500mm/sec Bi 8'34" 720x1440 500mm/sec Bi 17'07" 720x1440 250mm/sec Bi 39'46" 360x720 1000mm/sec Downloaded from www.Manualslib.com manuals search engine
