PARTS LIST
Published in August 2012
2LVPL070
First Edition
ECOSYS FS-2100D
ECOSYS FS-2100DN
ECOSYS FS-4100DN
ECOSYS FS-4200DN
ECOSYS FS-4300DN
- 1 -
CONTENTS
FIG. 1 Covers ..................................................................... 2
FIG. 2 Frames .................................................................... 4
FIG. 3 Paper Cassette ....................................................... 6
FIG. 4 Paper Feed Section ................................................ 8
FIG. 5 Image Formation Section ...................................... 10
FIG. 6 Developer Section ................................................. 12
FIG. 7 Fuser Section ........................................................ 14
FIG. 8 Exit Section ........................................................... 16
FIG. 9 Drive Section ......................................................... 18
FIG. 10 PT-320 ................................................................... 20
FIG. 11 Maintenance Kits ................................................... 22
• INDEX ................................................................... 23
- 2 -
2L1/2L2/2LV/2MS/2MT

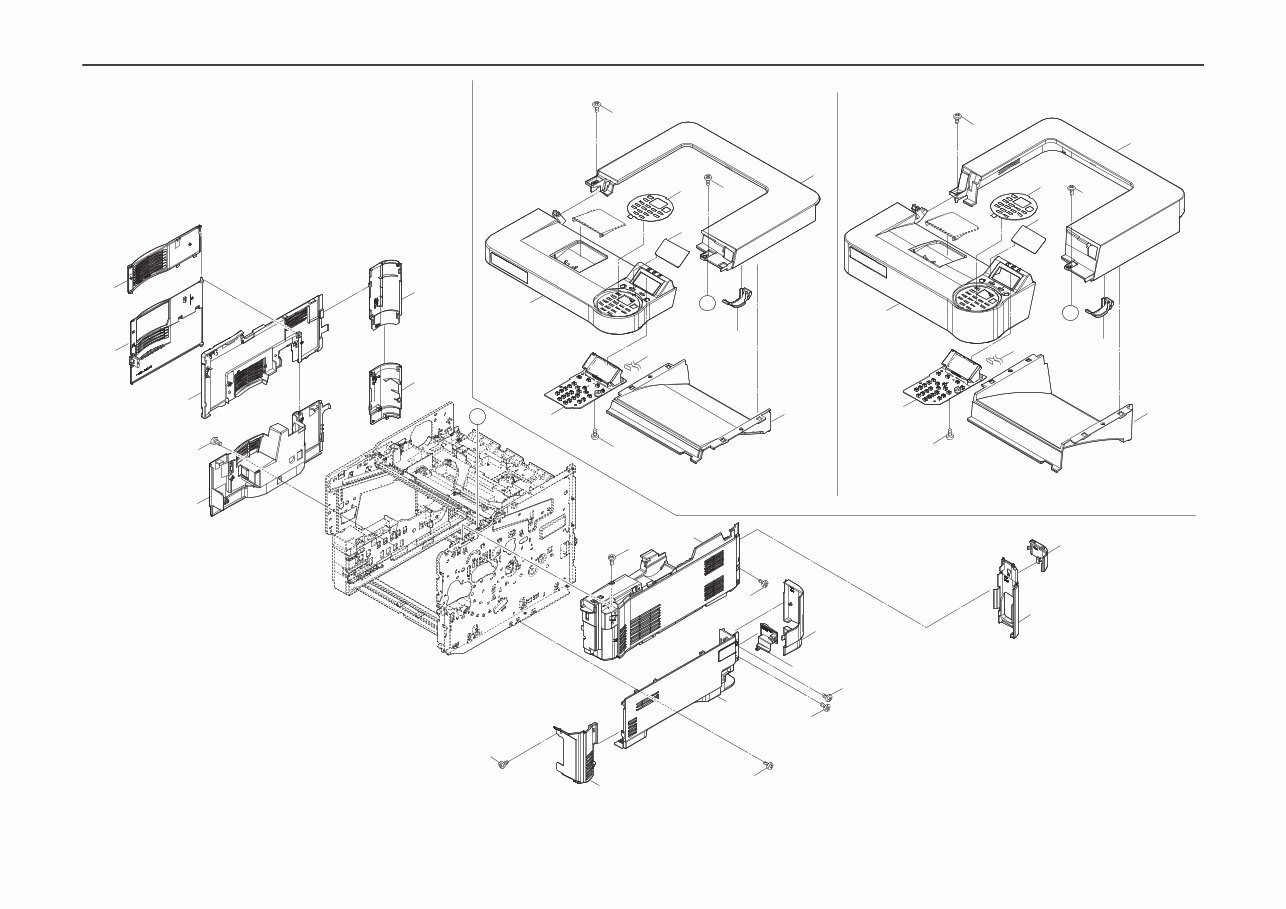

FIG. 1 Covers
101
102
103
102
101
104
102
105
105
105
105
105
105
1
2
3
4
5
6
7
8
9
10
11
12
13
14
22
23
15
24
16
18
18
19
20
19
20
A
A
A
25
17
21
21
45/50/60ppm
40ppm
- 3 -
2L1/2L2/2LV/2MS/2MT
•Parts with Ref.No. indicate maintenance parts and the ones without it
indicate out of the above.
•Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
•Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
FIG. 1 Covers
Ref.
Part.No. Alternative. Description Notes
Quantity
No.
120 230 240
1 302LV04070 2LV04070 COVER RIGHT LOW 1 1 1
2 302LV04080 2LV04080 COVER RIGHT FRONT 1 1 1
3 302LV04270 2LV04270 COVER RIGHT REAR 1 1 1
4 302LV94290 2LV94290 PARTS COVER RIGHT UP ASSY SP 1 1 1
5 302LV04050 2LV04050 COVER LEFT LOW 1 1 1
6 302LV04040 2LV04040 COVER LEFT UP 1 1 1
7 302LV04260 2LV04260 COVER LEFT LOW REAR 1 1 1
8 302LV04250 2LV04250 COVER LEFT UP REAR 1 1 1
9 302LV04190 2LV04190 COVER SIDE LOW 1 1 1
10 302LV04170 2LV04170 COVER SIDE UP 1 1 1
11 302LV04150 2LV04150 COVER CONT LOW 1 1 1
12 302LV04140 2LV04140 COVER CONT MIDDLE 1 1 1
13 302LV04130 2LV04130 COVER CONT UP 1 1 1
14 302L294010 2L294010 PARTS COVER TOP ASSY 40ppm 1 1 1
15 302L294110 2L294110 PARTS TRAY TOP ASSY SP 40ppm 1 1 1
16 302L294020 2L294020 PARTS LID TOP ASSY SP 40ppm without network 1 1 1
16 302MS94010 2MS94010 PARTS LID TOP ASSY SP 40ppm with network 1 1 1
17 302L246080 2L246080 CONN.CORD ASSY S03781 40ppm 1 1 1
18 302LV94050 2LV94050 PARTS PWB ASSY PANEL SP 1 1 1
19 302LV05140 2LV05140 SHEET OPE E 1 1 1
19 302LV05150 2LV05150 SHEET OPE GER 1
19 302LV05160 2LV05160 SHEET OPE FRA 1 1
19 302LV05170 2LV05170 SHEET OPE ITA 1
19 302LV05180 2LV05180 SHEET OPE SPA 1 1
19 302LV05190 2LV05190 SHEET OPE POR 1 1
19 302LV05200 2LV05200 SHEET OPE DUT 1
19 302LV05210 2LV05210 SHEET OPE RUS 1
20 302LV04290 2LV04290 PANEL LCD 1 1 1
21 302LV04280 2LV04280 COVER CABLE 1 1 1
22 302LV94010 2LV94010 PARTS COVER TOP ASSY SP 45/50/60ppm 1 1 1
23 302LV94280 2LV94280 PARTS TRAY TOP ASSY SP 45/50/60ppm 1 1 1
24 302LV94020 2LV94020 PARTS LID TOP ASSY SP 60ppm 1 1 1
24 302L194010 2L194010 PARTS LID TOP ASSY SP 50ppm 1 1 1
24 302MT94010 2MT94010 PARTS LID TOP ASSY SP 45ppm 1 1 1
25 302LV46300 2LV46300 CONN.CORD ASSY S03682 45/50/60ppm 1 1 1
101 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
102 7BB780308H BB111200 +BIND T.T S SCREW 3X8 SR(BLACK)
103 7BB282308H BB111240 +TP-FLAT T.T P SCREW 3X8(BLACK)
104 7BB700312H BB106820 +BIND T.T S SCREW 3X12 SR
105 7BB200308H BB105660 +BIND T.T P SCREW 3X8
- 4 -
2L1/2L2/2LV/2MS/2MT

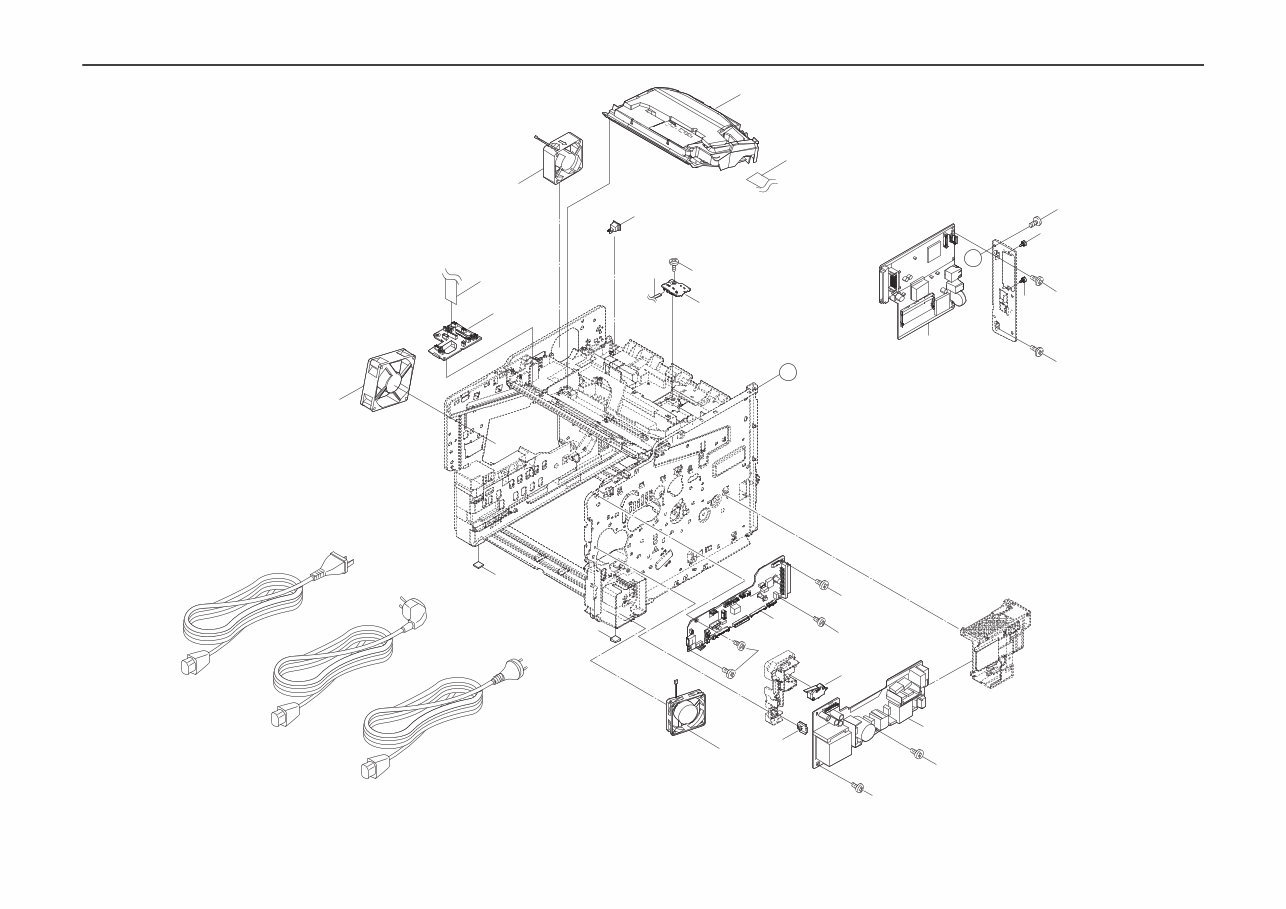

FIG. 2 Frames
101
101
101
101
101
101
101
101
8
7
10
13
9
1
1
2
3
4
5
102
12
11
14
A
17
17
A
16
15
6
20
18
19
- 5 -
2L1/2L2/2LV/2MS/2MT
•Parts with Ref.No. indicate maintenance parts and the ones without it
indicate out of the above.
•Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
•Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
FIG. 2 Frames
Ref.
Part.No. Alternative. Description Notes
Quantity
No.
120 230 240
1 302HN02611 2HN02611 FOOT 2 2 2
2 302LV94190 2LV94190 PARTS PWB ASSY CONNECT-L SP 45/50/60ppm 1 1 1
2 302L294090 2L294090 PARTS PWB ASSY CONNECT-L SP 40ppm 1 1 1
3 302GR44080 2GR44080 FAN LSU 60-25 1 1 1
4 7SP01000006+H01 SP121020 SW.PUSH 45/50/60ppm 1 1 1
5 302LV46140 2LV46140 CONN.CORD ASSY S03666 45/50/60ppm 1 1 1
5 302L246060 2L246060 CONN.CORD ASSY S03720 40ppm 1 1 1
6 302HN44010 2HN44010 FAN MOTOR 1 1 1
7 302LV46420 2LV46420 CONN.CORD ASSY S03737 1 1 1
8 302LV94220 2LV94220 PARTS PWB ASSY TH CONNECT SP 1 1 1
9 302LV94110 2LV94110 PARTS PWB ASSY ENGINE SP 60ppm 1 1 1
9 302L194030 2L194030 PARTS PWB ASSY ENGINE SP 50ppm 1 1 1
9 302MT94020 2MT94020 PARTS PWB ASSY ENGINE SP 45ppm 1 1 1
9 302L294080 2L294080 PARTS PWB ASSY ENGINE SP 40ppm without network 1 1 1
9 302MS94030 2MS94030 PARTS PWB ASSY ENGINE SP 40ppm with network 1 1 1
10 2FB27160 2FB27160 INTER LOCK SWITCH 1 1 1
11 302LV94210 2LV94210 PARTS PWB ASSY SWITCH SP 1 1 1
12 302FZ94420 2FZ94420 PARTS,FAN COOLING CONVEYING SP 45/50/60ppm 1 1 1
12 302FZ94420 2FZ94420 PARTS,FAN COOLING CONVEYING SP 40ppm 1
13 302LV94070 2LV94070 PARTS SWITCHING REGULATOR 230V SP 45/50/60ppm 1 1
13 302LV94080 2LV94080 PARTS SWITCHING REGULATOR 120V SP 45/50/60ppm 1
13 302L294040 2L294040 PARTS SWITCHING REGULATOR 230V SP 40ppm 1 1
13 302L294050 2L294050 PARTS SWITCHING REGULATOR 120V SP 40ppm 1
14 302LV93090 2LV93090 LK-3130 60ppm 1 1 1
14 302MS93060 2MS93060 LK-3100 40/45/50ppm 1 1 1
15 302LV46290 2LV46290 CONN.CORD ASSY S03681 1 1 1
16 302LV94100 2LV94100 PARTS PWB ASSY MAIN SP EU 40/45/50/60ppm with network 1
16 302LV94090 2LV94090 PARTS PWB ASSY MAIN SP 40/45/50/60ppm with network 1 1
16 302L294070 2L294070 PARTS PWB ASSY MAIN SP EU 40ppm without network 1
16 302L294060 2L294060 PARTS PWB ASSY MAIN SP 40ppm without network 1 1
17 302F939082 2F939082 SCREW BOX 2 2 2
18 302FV45020 2FV45020 AC CORD ASSY 1
19 3019527401 19527401 POWER CORD(120) 1
20 302FV45040 2FV45040 AC CORD ASSY 1
101 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
102 7BB200410H BB105700 +BIND T.T P SCREW 4X10
- 6 -
2L1/2L2/2LV/2MS/2MT

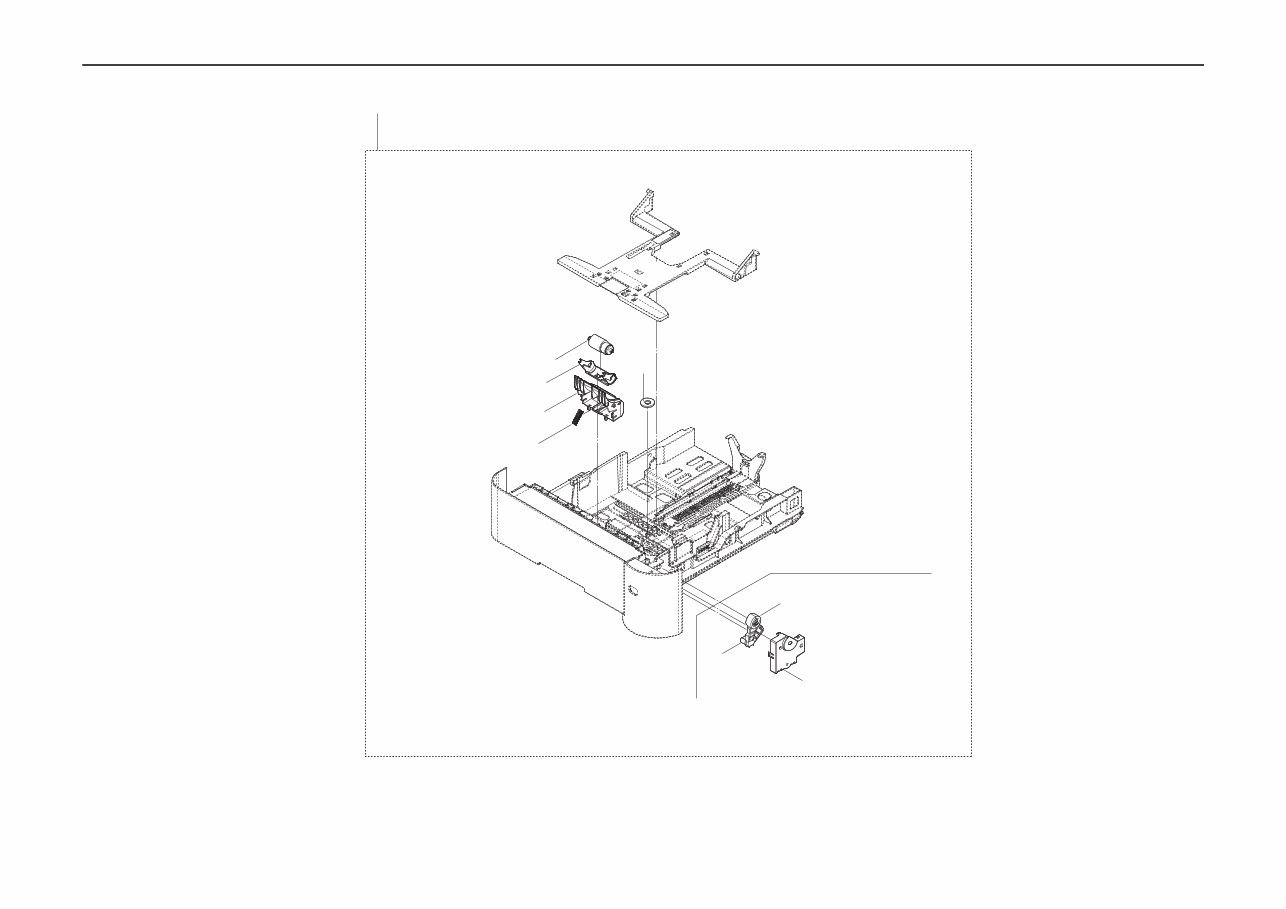

FIG. 3 Paper Cassette
7
8
3
1
4
5
6
2
A01
45/50/60ppm
- 7 -
2L1/2L2/2LV/2MS/2MT
•Parts with Ref.No. indicate maintenance parts and the ones without it
indicate out of the above.
•Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
•Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
FIG. 3 Paper Cassette
Ref.
Part.No. Alternative. Description Notes
Quantity
No.
120 230 240
A01 302LV93030 2LV93030 CT-3130 45/50/60ppm 1 1 1
A01 302MS93010 2MS93010 CT-3100 40ppm 1 1 1
1 •302LV09110 2LV09110 HOLDER RETARD 1 1 1
2 •302LV09120 2LV09120 GUIDE RETARD 1 1 1
3 •302LV09130 2LV09130 SPRING RETARD 1 1 1
4 •302F909171 2F909171 RETARD ROLLER ASSY 1 1 1
5 •5MVG127DN071 2A807050 GEAR CASSETTE /A-49 CASSETTE A4 1 1 1
6 •302LV09240 2LV09240 GEAR Z48S LIFT 45/50/60ppm 1 1 1
7 •302LV09220 2LV09220 GEAR Z15S JOINT 45/50/60ppm 1 1 1
8 •302LV09200 2LV09200 COVER LIFT GEAR 45/50/60ppm 1 1 1
- 8 -
2L1/2L2/2LV/2MS/2MT

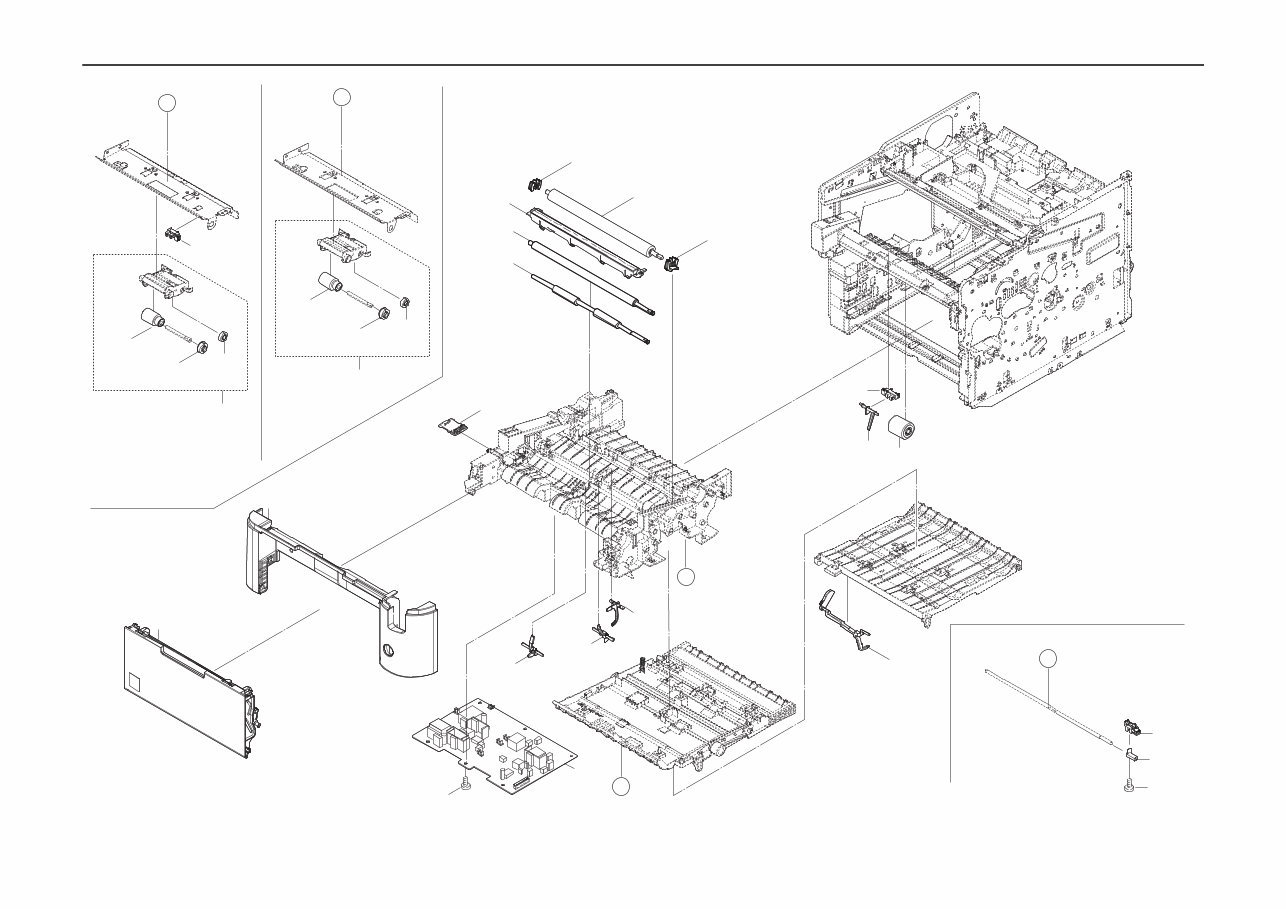

FIG. 4 Paper Feed Section
20
19
101
102
1
11
2
5
4
6
3
8
9
10
A01
16
18
14
A01
18
40ppm
21
17
14
A
A
A
B
B
20
19
13
14
15
12
7
45/50/60ppm
45/50/60ppm
- 9 -
2L1/2L2/2LV/2MS/2MT
•Parts with Ref.No. indicate maintenance parts and the ones without it
indicate out of the above.
•Parts with "•" are component parts or sub-assemblies of the
assembly appearing immediately above them.
•Parts with "• •" are component parts or sub-assembly with "•"
appearing immediately above them.
FIG. 4 Paper Feed Section
Ref.
Part.No. Alternative. Description Notes
Quantity
No.
120 230 240
1 302LV94200 2LV94200 PARTS PWB ASSY DRUM CONNECT SP 1 1 1
2 302LV94170 2LV94170 PARTS ROLLER REGIST LOW SP 1 1 1
3 302LV94180 2LV94180 PARTS ROLLER REGIST UP SP 1 1 1
4 302F924190 2F924190 BUSH TRANSFER R 1 1 1
5 302LV24360 2LV24360 BUSH TRANSFER L 1 1 1
6 302LV94130 2LV94130 PARTS ROLLER TRANSFER SP 1 1 1
7 302LV94260 2LV94260 PARTS GUIDE PAPER CHUTE SP 1 1 1
8 302LV24100 2LV24100 ACTUATOR IMAGE 45/50/60ppm 1 1 1
9 302L224030 2L224030 ACTUATOR REGIST 40ppm 1 1 1
10 302LV24110 2LV24110 ACTUATOR DU 1 1 1
11 302LV94060 2LV94060 PARTS HIGH VOLTAGE UNIT SP 45/50/60ppm 1 1 1
11 302L294030 2L294030 PARTS HIGH VOLTAGE UNIT SP 40ppm 1 1 1
12 302LV94040 2LV94040 PARTS COVER MPF ASSY SP 1 1 1
13 302LV08180 2LV08180 ACTUATOR MPF 1 1 1
14 303M894260 3M894260 PARTS SENSOR OPT SP 45/50/60ppm 3 3 3
14 303M894260 3M894260 PARTS SENSOR OPT SP 40ppm 1 1 1
15 302HS08260 2HS08260 ROLLER M/P ASSY 1 1 1
16 302LV29090 2LV29090 ACTUATOR PE 1 1 1
17 302LV24450 2LV24450 ACTUATOR ENVELOPE 45/50/60ppm 1 1 1
A01 302LV94270 2LV94270 PARTS HOLDER FEED ASSY SP 1 1 1
18 •302F906230 2F906230 PULLEY FEED ASSY 1 1 1
19 •302F906030 2F906030 GEAR FEED Z26H 1 1 1
20 •302F906280 2F906280 GEAR FEED Z30H 1 1 1
21 302LV04160 2LV04160 COVER FRONT 45/50/60ppm 1 1 1
21 302L294120 2L294120 PARTS COVER FRONT ASSY SP 40ppm 1 1 1
101 7BB200412H BB105710 +BIND T.T P SCREW 4X12
102 7BB000304H BB105720 +BIND M SCREW 3X4
