9-2 WorkCentre 6400 Service Manual
Parts List
Serial Number Format
Changes to Xerox products are made to accommodate improved components
as they become available. It is important when ordering parts to include the
following information:
■ Component's part number
■ Product type or model number
■ Serial Number of the printer
The nine-digit serial number has the following format:
■ PPPRSSSSS
■ PPP = Three digit alphanumeric product code
■ R = Single digit numeric revision digit, 0~9. To be rolled when a major product
change occurs and initiated with a change request.
Product Product Code
WorkCentre 6400 (110V) KAA
WorkCentre 6400V (220V) HYX
SSSSS = Five digit numeric serial number based on the following table:
Product
Starting Serial
Number
Ending Serial
Number
Total
WorkCentre 6400 00501 99999 69998
WorkCentre 6400V 00501 99999 69998
www MK-Electronic de
WorkCentre 6400 Service Manual 9-3
Parts List
Example
KAA030001: Xerox Serial Number
KAA: Product Code for the WorkCentre 6400
1 = Revision Level
30001 = Serial Number for 6400

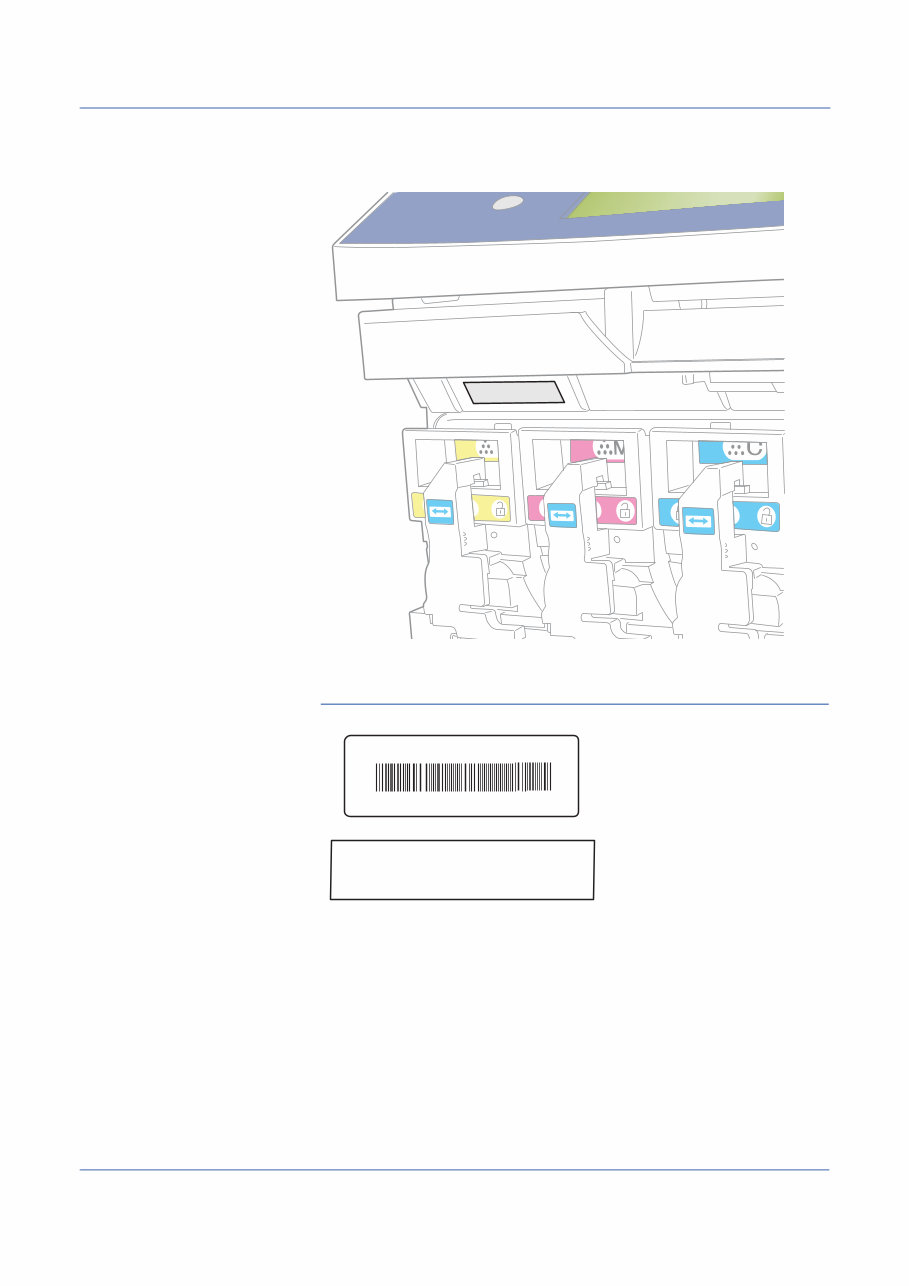

The serial number labels can be found at two locations of the printer.
Label Placement
The Barcode label is applied to the Rear panel on the left side of the printer.

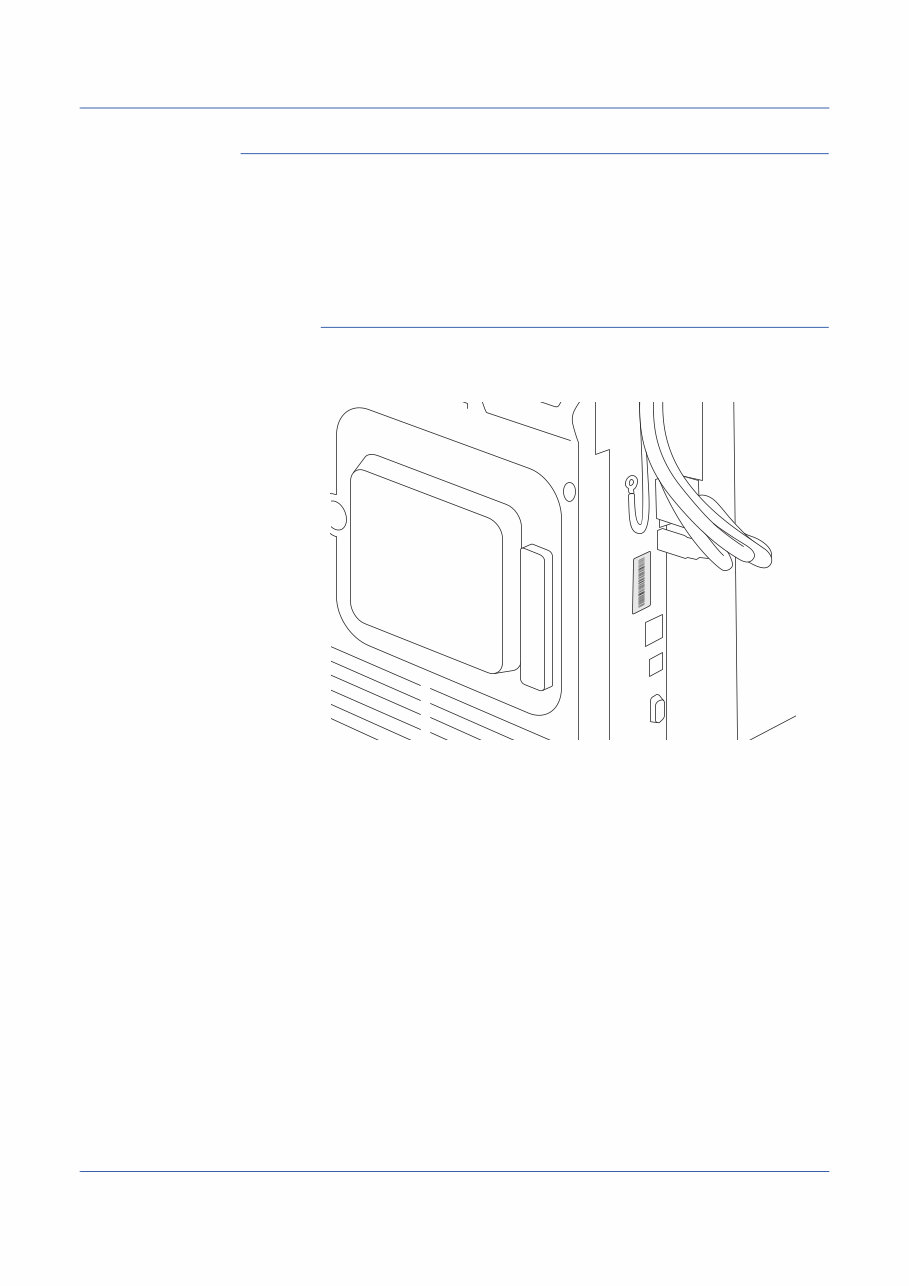

Barcode Label Location
s6400mfp-851
MANUFACTURED: May 2009
S/N: KAA030001
www MK-Electronic de
9-4 WorkCentre 6400 Service Manual
Parts List
The Text-only label is applied to the front of the printer chassis.
Text-Only Label Location
Label Layout Examples
Factory ID: KAA030001
s6400mfp-852
MANUFACTURED: May 2009
S/N: KAA030001
Factory ID: KAA030001
s6400mfp-853
www MK-Electronic de
WorkCentre 6400 Service Manual 9-5
Parts List
Using the Parts List
■ ID No.: The callout number from the exploded part diagram.
■ Name/Description: The name of the part to be ordered and the number
of parts supplied per order.
■ Part Number: The material part number used to order that specific part.
■ Qty: The quantity indicates quantity per engine, not part number.
■ Parts identified throughout this manual are referenced PL#.#; For
example, PL3.10 means the part is item 10 of Parts List 3.1.
■ A black triangle preceding a number followed by a parenthetical statement
in an illustrated parts list means the item is a parent assembly, made up of
the individual parts called out in parentheses.
■ The notation “with X~Y” following a part name indicates an assembly that
is made up of components X through Y. For example, “1 (with 2~4)”
means part 1 consists of part 2, part 3, and part 4.
■ An asterisk (*) following a part name indicates the page contains a note
about this part.
■ The notation “J1<>J2 and P2” is attached to a wire harness. It indicates
that connector Jack 1 is attached to one end of the wire harness and
connector J2 is attached to the other end that is plugged into P2.
Note
Only parts showing part numbers are available for ordering by support.
Parts not showing part numbers are available on the parent assembly.
Abbreviations
Abbreviation Meaning
C C-ring
E E-ring
KL K-clip
S Screw
www MK-Electronic de
9-6 WorkCentre 6400 Service Manual
Parts List

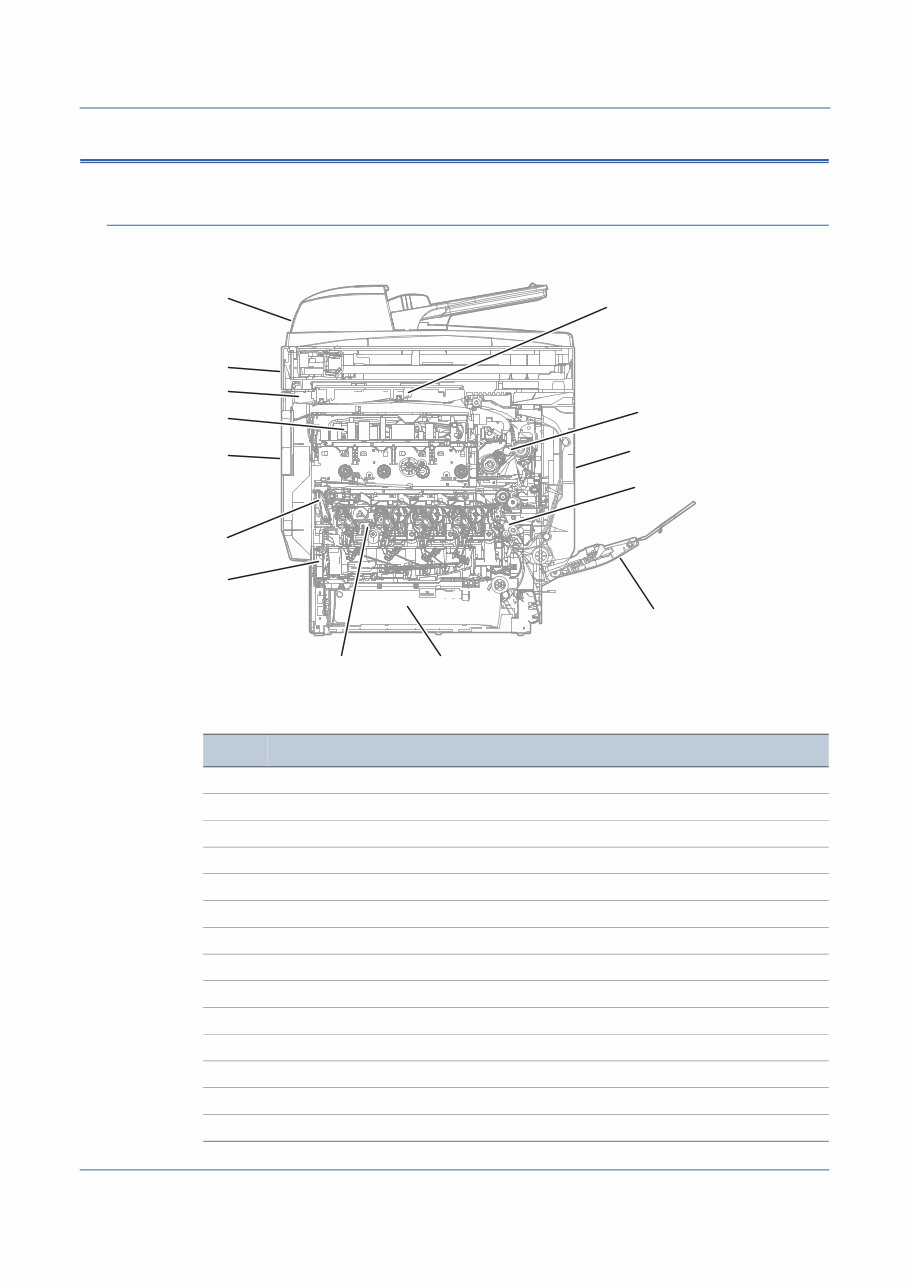

Overview Parts
Parts List - Overview
Item Description
1. Horizontal Transport Unit
2. Fusing Unit
3. Duplex Unit
4. Vertical Transport Unit
5. Tray 1 (Manual Feed)
6. Tray 2
7. Laser Unit Section
8. Waste Toner Transport Section
9. Main Frame Section
10. External Parts
11. LVPS Section
12. Paper Exit Section
13. Scanner (IR Section)
14. DADF Section
s6400mfp-317
8
4
3
9
15
2
5
17 6
14
18
13
12
1
www MK-Electronic de
WorkCentre 6400 Service Manual 9-7
Parts List
Table of Contents
Name/Description Parts List Page
Duplex Automatic Document Feeder Assembly PL 1.0 page 9-9
Scanner Assembly (IR Section) PL 2.0 page 9-11
Covers PL 3.0 page 9-13
Main Frame PL 4.0 page 9-15
Tray 1 (Manual Feed) PL 5.0 page 9-17
Imaging Unit Rail PL 6.0 page 9-19
Imaging Unit Contact PL 7.0 page 9-21
Waste Toner Transport PL 8.0, PL 9.0 page 9-23
LVPS/ Laser Unit PL 10.0 page 9-27
Drive Section (1 of 3) - 2nd Transfer Pressure/ Retraction
Drive Section (2 of 3) - Main Drive
Drive (3 of 3) - Toner Supply (Hopper)
PL 11.0
PL 12.0
PL 13.0
page 9-29
page 9-31
page 9-33
Transfer Belt Unit PL 14.0 page 9-35
Vertical Transport Unit (1 of 2)
Vertical Transport Unit (1 of 2)
PL 15.0
PL 16.0
page 9-37
page 9-39
Horizontal Transport Unit PL 17.0 page 9-41
Fuser Unit PL 18.0 page 9-44
Paper Exit PL 19.0 page 9-45
Electrical Components PL 20.0 page 9-47
500-Sheet Tray PL21.0 page 9-50
Duplex Unit (1 of 2)
Duplex Unit (2 of 2)
PL 22.0
PL 23.0
page 9-52
page 9-54
Wiring (1 of 2)
Wiring (2 of 2)
PL 24.0
PL 25.0
page 9-56
page 9-58
Wiring Accessories PL 26.0 page 9-59
Accessories PL 27.0 page 9-60
Optional 500-Sheet Tray 3/ Tray 4 (1 of 7) PL 28.0 page 9-61
Optional 500-Sheet Tray 3/ Tray 4 (2 of 7) -
Paper Take-Up Section (500-Sheet Feeder)
PL 29.0 page 9-63
Optional 500-Sheet Tray 3/ Tray 4 (3 of 7) -
Drive Section (500-Sheet Feeder)
PL 30.0 page 9-65
Optional 500-Sheet Tray 3/ Tray 4 (4 of 7) -
Paper Feed Tray Section (500-Sheet Feeder)
PL 31.0 page 9-67
Optional 500-Sheet Tray 3/ Tray 4 (5 of 7) -
Paper Feed Tray Section (500-Sheet Feeder)
PL 32.0 page 9-69
Optional 500-Sheet Tray 3/ Tray 4 (6 of 7) -
Wiring Accessories
PL 33.0 page 9-71
Optional 500-Sheet Tray 3/ Tray 4 (7 of 7) -
Accessory Parts (500-Sheet Feeder)
PL 34.0 page 9-72
Option - Finisher, Cover (1 of 2)
Option - Finisher, Cover (2 of 2)
PL 35.0
PL 36.0
page 9-73
page 9-74
Frame (Finisher) PL 37.0 page 9-76
Paper Entrance (Finisher) PL 38.0 page 9-78
www MK-Electronic de
9-8 WorkCentre 6400 Service Manual
Parts List
Paper Transport (1 of 2) (Finisher)
Paper Transport (1 of 2) (Finisher)
PL 39.0
PL 40.0
page 9-80
page 9-82
Alignment (1 of 2) (Finisher)
Alignment (2 of 2) (Finisher)
PL 41.0
PL 42.0
page 9-83
page 9-84
Storage (1 of 2) (Finisher)
Storage (2 of 2) (Finisher)
PL 43.0
PL 44.0
page 9-85
page 9-86
Stapler Unit (Finisher) PL 45.0 page 9-88
Drive (1 of 2) (Finisher)
Drive (2 of 2) (Finisher)
PL 46.0
PL 47.0
page 9-90
page 9-92
Main Tray (Finisher) PL 48.0 page 9-94
Option - Printer Stand PL 49.0 page 9-96
Table of Contents
Name/Description Parts List Page
www MK-Electronic de
WorkCentre 6400 Service Manual 9-9
Parts List
Print Engine Parts

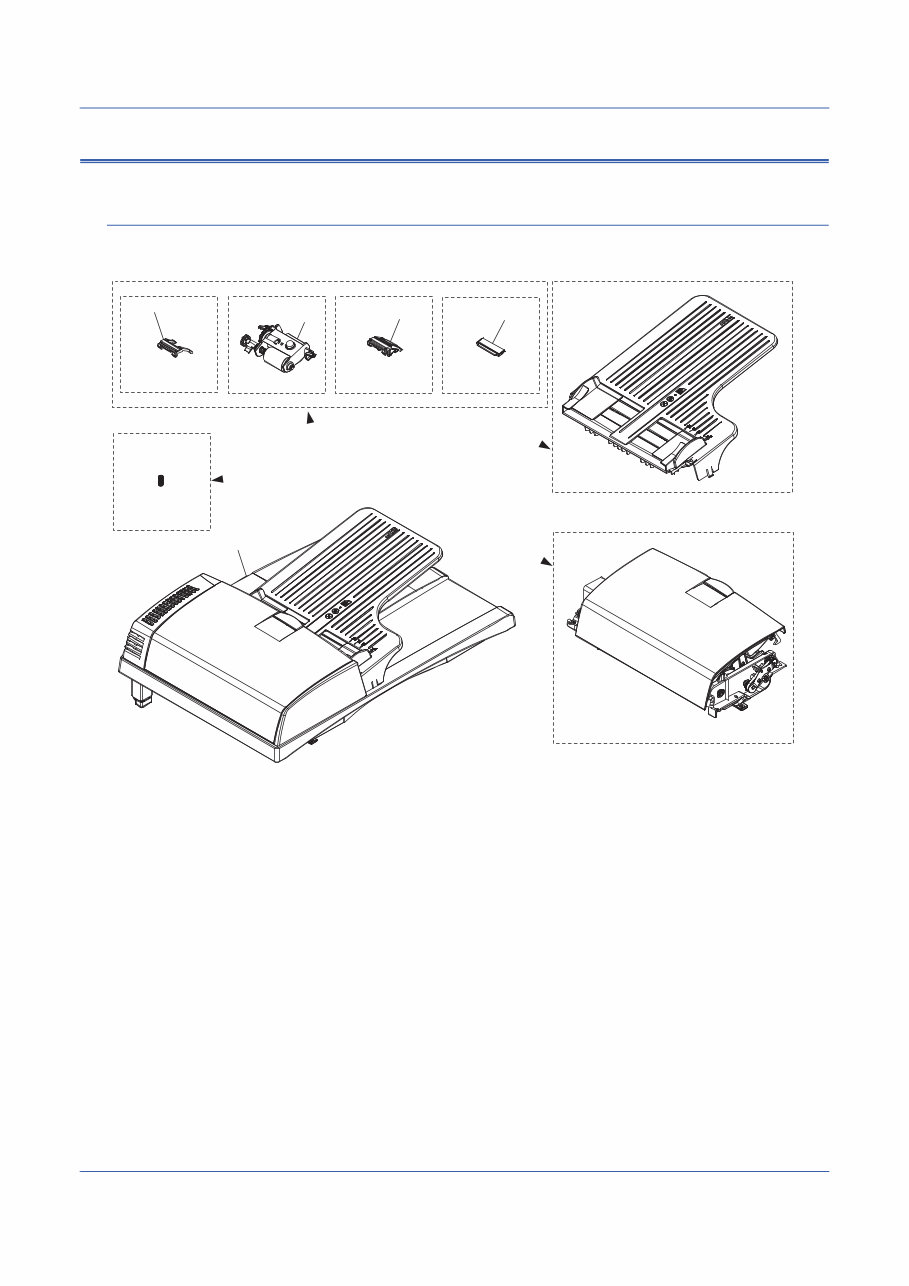

Parts List 1.0 Duplex Automatic Document Feeder Assembly
6
1
2
7 8
3
4
5
9
s6400mfp-422
www MK-Electronic de
