This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
PARTS GUIDE
本書はサービス活動用に作成した資料です｡
一部内容が製品の改良・改善等により予告
なしに変わることがあります。
SHARP CORPORATION
CODE:00ZARM317/013
CONTENTS
1 外装部 1(Exteriors 1)
2 外装部 2(Exteriors 2)
3 排紙ﾄﾚｲ部 (Delivery tray section)
4 ｵﾘｼﾞﾅﾙｶﾊﾞｰﾕﾆｯﾄ (Original cover unit)
(AR-267G/S/317G/S)
5 RSPF 外装部 1(RSPF Exteriors 1)
(AR-267FG/FP/317FG/FP/M257/M317)
6 RSPF 外装部 2(RSPF Exteriors 2)
(AR-267FG/FP/317FG/FP/M257/M317)
7 RSPF 給紙部
(RSPF Paper feeding section)
(AR-267FG/FP/317FG/FP/M257/M317)
8 RSPF 搬送部 1(RSPF Transport section 1)
(AR-267FG/FP/317FG/FP/M257/M317)
9 RSPF 搬送部 2(RSPF Transport section 2)
(AR-267FG/FP/317FG/FP/M257/M317)
F 操作部 (OPE. panel unit)
G ﾌﾚｰﾑ部 (Frame section)
H ﾗﾝﾌﾟﾕﾆｯﾄ (Lump uni)
I 光学ﾌﾚｰﾑ 1(Optical frame 1)
J 光学ﾌﾚｰﾑ 2(Optical frame 2)
K 中間ﾌﾚｰﾑ部 (Middle frame)
L 550 ｶｾｯﾄﾕﾆｯﾄ (550 cassette unit)
M 給紙部 (Paper feed section)
N 搬送部 (Paper transfer section)
O ｻｲﾄﾞﾄﾞｱﾕﾆｯﾄ (Side door unit)
P ﾏﾙﾁ手差しﾄﾚｲﾕﾆｯﾄ
(Multi manual paper feed tray unit)
Q ﾏﾙﾁ手差し給紙ﾕﾆｯﾄ
(Multi manual paper feed unit)
R DV ﾕﾆｯﾄ (DV unit)
S ﾌﾟﾛｾｽﾕﾆｯﾄ (Process unit)
T 定着ﾕﾆｯﾄ 1(Fusing unit 1)
U 定着ﾕﾆｯﾄ 2(Fusing unit 2)
V 駆動ﾕﾆｯﾄ (Drive unit)
W 第一排紙ﾕﾆｯﾄ 1(1st delivery paper unit 1)
X 第一排紙ﾕﾆｯﾄ 2(1st delivery paper unit 2)
Y 第二排紙ﾕﾆｯﾄ (2nd delivery paper unit)
Z 基板部 (PWB section)
[ 後ﾌﾚｰﾑ部 (Rear frame section)
\ 2nd 外装 (2nd exteriors)
] 2nd 550 ｶｾｯﾄﾕﾆｯﾄ (2nd 550 cassette unit)
^ 2nd 給紙部 (2nd paper feed section)
_ 2nd 搬送部 (2nd paper transfer section)
. 2nd 駆動部 (2nd drive section)
a ﾋﾟｯｸｱｯﾌﾟﾓｰﾀｰﾕﾆｯﾄ (Pick up motor unit)
b ｼﾞｮﾌﾞｾﾊﾟﾚｰﾀｰﾕﾆｯﾄ (Job-separater unit)
(AR-267FG/FP/317FG/FP)
c 梱包材及び付属品
(Packing material & accessories)
■ 索引 (Index)
AR-267G/267S/267FG/267FP
AR-317G/317S/317FG/317FP
AR-M256/M257/M258
AR-M316/M317/M318
AR-5625/5631 MODEL
DIGITAL LASER COPIER / PRINTER
AR-267S/AR-267G
AR-317S/AR-317G
AR-M256/AR-M258
AR-M316/AR-M318
AR-5625/AR-5631
AR-267FG/AR-267FP
AR-317FG/AR-317FP
AR-M257/AR-M317
Revised Edition
< 修正パーツガイド活用時の注意 >
・部品の互換性は下表の通り、No1～ 6 で表現しております。
<Note for use of the revised Parts Guide>
・Interchangeability of parts is expressed by No1~6 as shown in the table below.
< 互換性 >
1 新・旧の互換性有り。
2
新の代わりに旧は使用可。
旧の代わりに新は使用不可。
3
新の代わりに旧は使用不可。
旧の代わりに新は使用可。
4
新・旧の互換性無。
5
旧 (a,b,c…) どうし一対、又は
新 (a,b,c…) どうし一対で、 互換性有。
6
その他
< 変更区分 >
新規追加
変 更
廃 止
員数増・その他
員数減
パーツ修正
< 変更時期 >
R / C ランニングチェンジ
<Interchangeability>
1 Interchangeable.
2
Current type can be used in place of new type.
New type cannot be used in place of current type.
3
Current type cannot be used in place of new type.
New type can be used in place of current type.
4 Not interchangeable.
5 Interchangeable if replaced with same types of releted parts in use.
6 Others.
<Change of Division>
New & Addition
Change
Abolition
Q'uantity (increase) /Others
Q'uantity (decrease)
Correction
<Effective Time>
R / C Running Change
・部品の追加・変更・廃止・員数の増減等の変更は下表のマークで表現しております。
・変更時期のランニングチェンジは、R/C として記載しています。
・Running Change of Effective Time is expressed as R/C.
・New & Addition, Change, Abolition, and Quantity change are expressed with the marks shown in the
table below.
– 1 –
補修部品のランク付
市場における補修部品の在庫管理が、適正に運営出来る手助けとなることを、目的とします。
A ランク : メンテナンスパーツ、メンテナンスパーツには入っていないがメンテナンスパーツに近い消耗パーツ。
B ランク :性能・機能パーツ（センサー、クラッチ等の電気パーツ）、消耗パーツ。
E ランク : 基板含むユニットパーツ。
D ランク : 整備パーツ（外装、パッキング、同梱パーツ）。
C ランク : 上記ランク以外のパーツ（基板の子部品を除いたもの）。
DEFINITION
Rank A : Maintenance parts, and consumable parts which are not included in but closely related to maintenance parts
Rank B : Performance/function parts (sensors, clutches, and other electrical parts), consumable parts
Rank E : Unit parts including PWB
Rank D : Preparation parts (External fitting, packing, parts packed together)
Rank C : Parts other than the above (excluding sub components of PWB)
安全性・信頼性確保のため部品は、必ず正規のものをご使用下さい。
! 印の商品は、安全上重要な部品です。交換をする時は、安全及び性能維持のため必ず指定の部品をご使用下さい。
Because parts marked with "!" is indispensable for the machine safety maintenance and operation, it must be replaced with
the parts specific to the product specification.
F 当モデルのサービス資料には、この資料以外にサービスマニュアル ( 回路図含む ) があります。合わせてご利用下さい。
F Other than this Parts Guide, please refer to documents Service Manual(including Circuit Diagram)of this model.
F Please use the 13 digit code described in the right hand corner of front cover of the document, when you place an order.
F For U.S. only-Use order codes provided in advertising literature. Do not order from parts department.
1 外装部 1(Exteriors 1)
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
1 GCAB-0081QSZZ AN EG D Optical left cabinet 光学左ｷｬﾋﾞ
2 GCAB-0080QSZZ AN EQ D Optical right cabinet 光学右ｷｬﾋﾞ
3
CFIX-0013QS06 AN EQ D Glass fixing plate (Japan) ｶﾞﾗｽ押え
CFIX-0013QS05 AN EQ D Glass fixing plate (Except Japan) ｶﾞﾗｽ押え
4 PSHEZ0220QSZ1 AK DX C Shading sheet ｼｪｰﾃﾞｨﾝｸﾞｼｰﾄ
5 LX-BZ0084QSPZ AB DD N C Screw ﾋﾞｽ
6 GCAB-0084QSZZ AV FG D Rear cabinet upper 後ｷｬﾋﾞ上
7
CGIDM0116QS01 AK EB C OR guide unit (Japan) OR ｶﾞｲﾄﾞﾕﾆｯﾄ
CGIDM0116QS02 AK EB C OR guide unit (Except Japan) OR ｶﾞｲﾄﾞﾕﾆｯﾄ
8 LFIX-0011QSZB AP EQ N D
SPF fixing glass
(Except AR-267FG/FP/317FG/FP/M257/M317) OC ｶﾞﾗｽ押え
11 PGLSP0003QSZZ BA FX B Table glass ﾃｰﾌﾞﾙｶﾞﾗｽ
17 LFIX-0012QSZB AK DX D
SPF fixing glass
(AR-267FG/FP/317FG/FP/M257/M317) SPF ｶﾞﾗｽ押え
18 PSHEZ0221QSZZ AC DJ C
White revise sheet
(AR-267FG/FP/317FG/FP/M257/M317) 白補正ｼｰﾄ
19 PGLSP0004QSZZ AX FG B Glass (AR-267FG/FP/318FG/FP/M257/M317) ｶﾞﾗｽ
20 PSHEZ0207QSZZ AC DJ C
SPF glass sheet F
(AR-267FG/FP/317FG/FP/M257/M317) SPF ｶﾞﾗｽｼｰﾄ F
21 PSHEZ0222QSZZ AC DJ C
Glass fixing sheet
(AR-267FG/FP/317FG/FP/M257/M317) ｶﾞﾗｽ固定ｼｰﾄ
22 PCUSS0011QSZZ AB DJ C
Glass cushion
(AR-267FG/FP/317FG/FP/M257/M317) ｶﾞﾗｽｸｯｼｮﾝ
23 PSHEZ0208QSZZ AC DJ C
Glass sheet R
(AR-267FG/FP/317FG/FP/M257/M317) ｶﾞﾗｽｼｰﾄ R
24 PCUSS0027QSZZ AA DJ C
Glass cushion C
(AR-267FG/FP/317FG/FP/M257/M317) ｶﾞﾗｽｸｯｼｮﾝ C
25 PSHEZ0088QSZ1 AD DJ C Table glass sheet F ﾃｰﾌﾞﾙｶﾞﾗｽｼｰﾄ F
26 PMLT-0093QSZZ AB DJ C Rear cabinet upper cushion 後ｷｬﾋﾞ上ﾓﾙﾄ
27 PSHEZ0474QSZZ AD DJ C
Glass fixing sheet
(AR-267FG/FP/317FG/FP/M257/M317) ｶﾞﾗｽ固定ｼｰﾄ
– 2 –

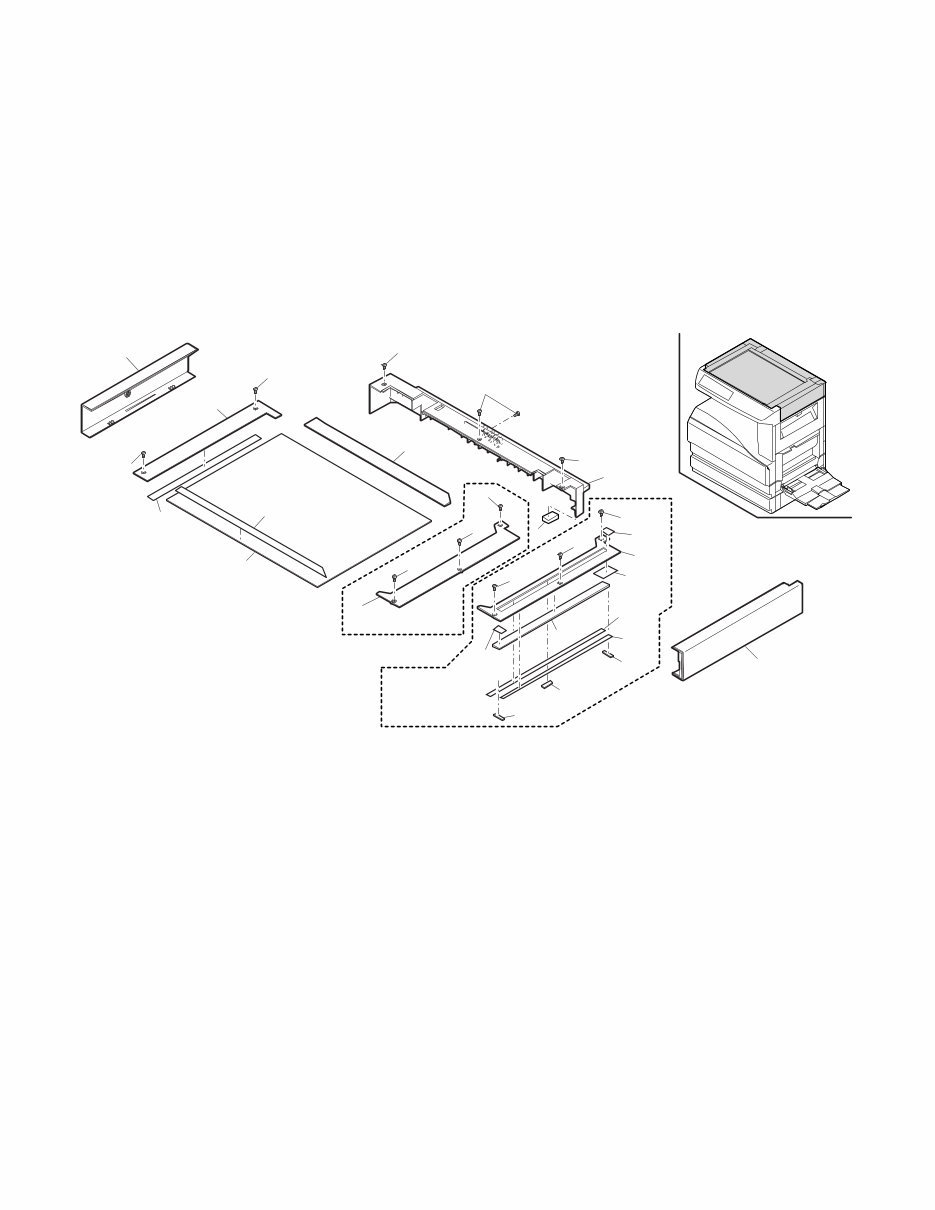

1 外装部 1(Exteriors 1)
3
5
5
5
5
5
6
7
8
5
5
5 11
4
PRP03331
5
17
18
19
20
21
27
22
24
22
23
5
5
1
2
26
25
Original cover only
SPF only
– 3 –
Update : 2008/02/29

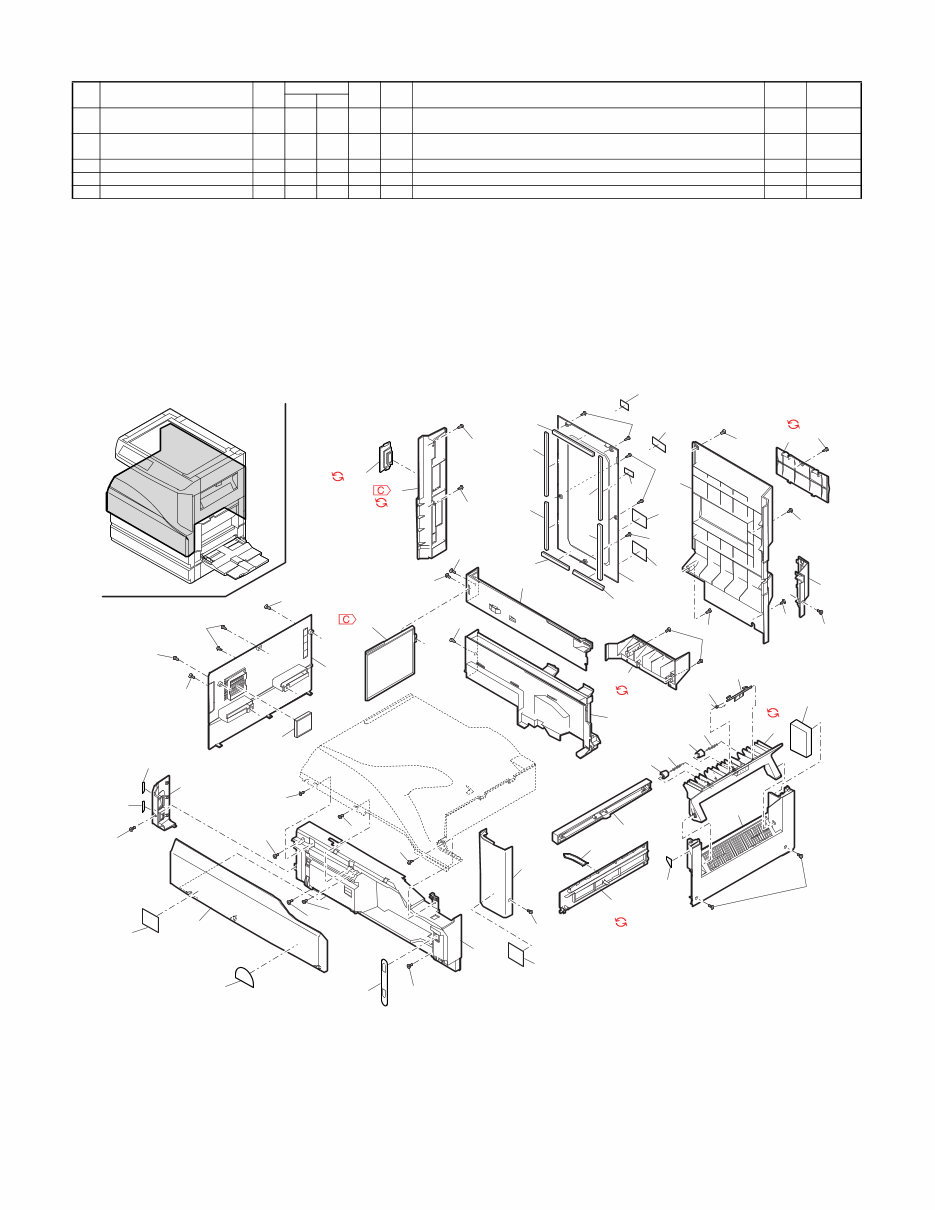

2 外装部 2(Exteriors 2)
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
1
GCAB-0042QSZB AQ EQ D Rear cabinet left (AR-267S/317S) ｳｼﾛｷﾔﾋﾞﾋﾀﾞﾘ
GCAB-0042QSZE 1 AQ EQ D Rear cabinet left (AR-267S/317S) ｳｼﾛｷﾔﾋﾞﾋﾀﾞﾘ
07/09 R/C
GCAB-0042QSZG - AR EQ D
Rear cabinet left [Missing parts code]
(AR-267FG/FP/317FG/FP) ｳｼﾛｷﾔﾋﾞﾋﾀﾞﾘ
07/09 R/C
GCAB-0042QSZC AP EQ D
Rear cabinet left
(Except AR-267FG/FP/S/317FG/FP/S) ｳｼﾛｷﾔﾋﾞﾋﾀﾞﾘ
GCAB-0042QSZF 1 AP EQ D
Rear cabinet left
(Except AR-267FG/FP/S/317FG/FP/S) ｳｼﾛｷﾔﾋﾞﾋﾀﾞﾘ
07/09 R/C
2 XEBS730P12000 AC DD C Screw(3×12) ﾋﾞｽ
3 XHBS730P08000 AB DD C Screw(3×8) ﾋﾞｽ
4 GCOV-0029QSZ1 AR EQ D Delivery rear side cover upper 排紙後ｶﾊﾞｰ上
5 GCOV-0056QSZZ AH DX D Rear cabinet maintenance cover 後ｷｬﾋﾞﾒﾝﾃｶﾊﾞｰ
6
GCAB-0043QSZB AN EQ D Rear cabinet lower 後ｷｬﾋﾞ下
GCAB-0043QSZC 1 AN EQ D Rear cabinet lower 後ｷｬﾋﾞ下
07/09 R/C
7 XEBS740P10000 AA DD C Screw(4×10) ﾋﾞｽ
8 GCAB-0085QSZ1 BA FX N D Rear cabinet right 後ｷｬﾋﾞ右 TLPD
9
GCOV-0034QSZB AK DX D Rear cabinet memory cover 後ｷｬﾋﾞﾒﾓﾘｰｶﾊﾞｰ
GCOV-0034QSZC 1 AK EB D Rear cabinet memory cover 後ｷｬﾋﾞﾒﾓﾘｰｶﾊﾞｰ
07/09 R/C
10
GCOV-0031QSZ2 AK EQ N D
Delivery dummy cover
(Except AR-267FG/FP/317FG/FP) 排紙ﾀﾞﾐｰｶﾊﾞｰ
GCOV-0031QSZ3 1 AK EG D
Delivery dummy cover
(Except AR-267FG/FP/317FG/FP) 排紙ﾀﾞﾐｰｶﾊﾞｰ
07/10 R/C
11 MSPRD0189QSZZ AB DJ C Right cabinet spring 右ｷｬﾋﾞﾈｯﾄｽﾌﾟﾘﾝｸﾞ
12 MLEVP0069QSZZ AD DJ C Right cabinet lever 右ｷｬﾋﾞﾈｯﾄﾚﾊﾞｰ
13
GDOR-0003QSZ2 AP EZ N D Right cabinet door 右ｷｬﾋﾞﾈｯﾄﾄﾞｱ
GDOR-0003QSZ3 1 AP EQ D Right cabinet door 右ｷｬﾋﾞﾈｯﾄﾄﾞｱ
08/03 R/C
14 NROLP1060FCZZ AF DS C U-turn roller U ﾀｰﾝﾛｰﾗｰ
15 MSPRT0229GCAZ AC DJ C FU spring R FU ｽﾌﾟﾘﾝｸﾞ R
16 GCAB-0039QSZB AX FG D Right cabinet 右ｷｬﾋﾞﾈｯﾄ
17 GCOV-0043QSZ1 AS EQ D OP PWB cover OP 基板ｶﾊﾞｰ
18 PFILZ0011QSZ1 AQ EQ B Ozone filter ｵｿﾞﾝﾌｨﾙﾀｰ
19 GCOV-0055QSZ1 - AN EQ D Delivery tray cover [Missing parts code] 排紙ﾄﾚｰｶﾊﾞｰ TLPD
1st lot
20 GCOV-0054QSZ1 AY FQ N D Delivery rear cover lower 排紙後ｶﾊﾞｰ下 TL
21 GCOV-0052QSZZ AY FQ D Power supply cover ﾃﾞﾝｹﾞﾝｶﾊﾞｰ TL
22
GCOV-0053QSZZ AG DX D Power supply switch cover (Japan) ﾃﾞﾝｹ SW ｶﾊﾞｰ TL
GCOV-0053QSZ1 AG DX D Power supply switch cover (Except Japan) ﾃﾞﾝｹ SW ｶﾊﾞｰ TL
23 GCAB-0082QSZZ AN EQ D Front right cabinet 前右ｷｬﾋﾞ TL
24 GCAB-0083QSZ2 AZ FQ D Front cabinet 前ｷｬﾋﾞ TLPD
25 LBNDZ0002QSZZ AC DJ C Band 前ｷｬﾋﾞﾊﾞﾝﾄﾞ TL
26
CCOV-0051QS28 AY FQ N D Front cabinet cover (AR-M257) 前ｶﾊﾞｰ
CCOV-0051QS29 AY FQ N D Front cabinet cover (AR-M317) 前ｶﾊﾞｰ
CCOV-0051QS0A AY FQ N D Front cabinet cover (AR-M256) 前ｶﾊﾞｰ
CCOV-0051QS0B AY FQ N D Front cabinet cover (AR-M316) 前ｶﾊﾞｰ
CCOV-0051QS0E AY FQ N D Front cabinet cover (AR-267G) 前ｶﾊﾞｰ
CCOV-0051QS0F AY FQ N D Front cabinet cover (AR-317G) 前ｶﾊﾞｰ
CCOV-0051QS0G AY FQ N D Front cabinet cover (AR-267S) 前ｶﾊﾞｰ
CCOV-0051QS0H AY FQ N D Front cabinet cover (AR-317S) 前ｶﾊﾞｰ
CCOV-0051QS0J AY FQ N D Front cabinet cover (AR-267FG) 前ｶﾊﾞｰ
CCOV-0051QS0K AY FQ N D Front cabinet cover (AR-317FG) 前ｶﾊﾞｰ
CCOV-0051QS0L AY FQ N D Front cabinet cover (AR-267FP) 前ｶﾊﾞｰ
CCOV-0051QS0M AY FQ N D Front cabinet cover (AR-317FP) 前ｶﾊﾞｰ
CCOV-0051QS0P AY FQ N D Front cabinet cover (AR-5631) 前ｶﾊﾞｰ
27
TLABZ4047FCZZ AC DJ D Enagy star label (U.S.A,Australia,New Zealand) ｴﾅｼﾞｰｽﾀｰﾗﾍﾞﾙ
TLABZ5148FCZZ AC DJ D Enagy star label (Europe) ｴﾅｼﾞｰｽﾀｰﾗﾍﾞﾙ
TLABG0401QSZZ AR EQ D Enagy star label (Hong Kong) ｴﾅｼﾞｰｽﾀｰﾗﾍﾞﾙ
35 XHBS740P10000 AA DD C Screw(4×10) ﾋﾞｽ
37 LX-BZ0084QSPZ AB DD N C Screw ﾋﾞｽ
38 GCOV-0042QSZ1 AK EB N D
Rail dummy cover
(Except AR-267FG/FP/317FG/FP) ﾚｰﾙﾀﾞﾐｰｶﾊﾞｰ
39 TCAUA1069FCZZ AC DJ D Servise caution label ｻｰﾋﾞｽ注意ﾗﾍﾞﾙ
40
TLABG5005FCZZ AC DJ D Class 1 label JP (Japan) ｸﾗｽ 1 ﾗﾍﾞﾙ -JP
TLABH5177FCZZ BD GN D
Class 1 label (SEEG,Greece,Kypros,Turkey,
Poland,Hungar,Czech,Slovakia,Rossiya) ｸﾗｽ 1 ﾗﾍﾞﾙ
TLABZ0058QSZZ AD DJ D
Class 1 label P
(Except U.S.A,Canada,Taiwan,LAG2,Brazil) ｸﾗｽ 1 ﾗﾍﾞﾙ -P
TLABZ5101FCZZ AC DJ D Class 1 label EGI (200V) ｸﾗｽ 1 ﾗﾍﾞﾙ EGI
41 TLABZ5011FCZZ AC DJ D ECP label (Canada) ECP ﾗﾍﾞﾙ
43 TLABH0488QSZZ AC DJ D PS SW label (Japan) 電源 SW ﾗﾍﾞﾙ
44 TLABH0483QSZZ AC DJ D heater label (Japan) 保温ﾋｰﾀｰﾗﾍﾞﾙ
48 PMLT-0088QSZZ AE DS C Right cabinet upper cushion R 右ｷｬﾋﾞ上ﾓﾙﾄ R
49 MARMP0050QSZZ AF DS D Paper fixing arm 用紙押えｱｰﾑ
50
GCOVH0024QSE18 AF DS D FAX connector cover (AR-267FG/FP/317FG/FP) FAX ｺﾈｸﾀｶﾊﾞｰ
GCOVH0024QSE2 1 AF DS N D FAX connector cover (AR-267FG/FP/317FG/FP) FAX ｺﾈｸﾀｶﾊﾞｰ
07/12
51 TLABM0520QSZZ AE DJ D Imager label P2 (USA,Canada) ｲﾒｰｼﾞｬｰﾗﾍﾞﾙ P2
52 TLABH5200FCZZ AB DJ D Plug caution label (Japan) ﾌﾟﾗｸﾞｺｰｼｮﾝ J
53 TCAUH1071FCZZ BC GD D
Servise caution label PO (SEEG,Greece,Kypros,
Turkey,Poland,Hungar,Czech,Slovakia,Rossiya) ｻｰﾋﾞｽ注意ﾗﾍﾞﾙ PO
54 TLABZ5048FCZZ AB DJ D WEEE mark label (U Kingdom,Europe W Africa) WEEE ﾏｰｸﾗﾍﾞﾙ
55 PGSK-0011QSPZ AS EQ C OP PWB cover cushion A (Taiwan) OP PWBｶﾊﾞｰｸｯｼｮﾝA
56 PGSK-0012QSPZ AQ EQ C OP PWB cover cushion B (Taiwan) OP PWBｶﾊﾞｰｸｯｼｮﾝB
3
3
– 4 –
Update : 2008/02/29
2 外装部 2(Exteriors 2)
2 外装部 2(Exteriors 2)
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
57 PGSK-0013QSPZ AP EQ C
OP PWB cover cushion C (Taiwan) OP PWB ｶﾊﾞｰ
ｸｯｼｮﾝ C
58 PGSK-0014QSPZ AM EB C
OP PWB cover cushion D (Taiwan) OP PWB ｶﾊﾞｰ
ｸｯｼｮﾝ D
59 PGSK-0015QSPZ AL DX C OP PWB cover cushion E (Taiwan) OP PWBｶﾊﾞｰｸｯｼｮﾝE
60 PGSK-0016QSPZ AP EQ C OP PWB cover cushion F (Taiwan) OP PWBｶﾊﾞｰｸｯｼｮﾝF
61 PSHEZ0568QSZZ AD DJ C R cabinet sheet (Taiwan) 右ｷｬﾋﾞｼｰﾄ
39
40
17
37
37
37
49
52
53
54
55
55
56
57
59
60
58
3
3
7
7
7 9
3
3
2
21
12
11
15
14
13
16
7
10
3
3
3
7
7
7
7
7
3
5
3
15
14
61
8
6
20
38
4
1
18
22
35
35
35
24
25
3
23
35
26
7
27
PRP03332
41
48
50
43
44
51
19
– 5 –

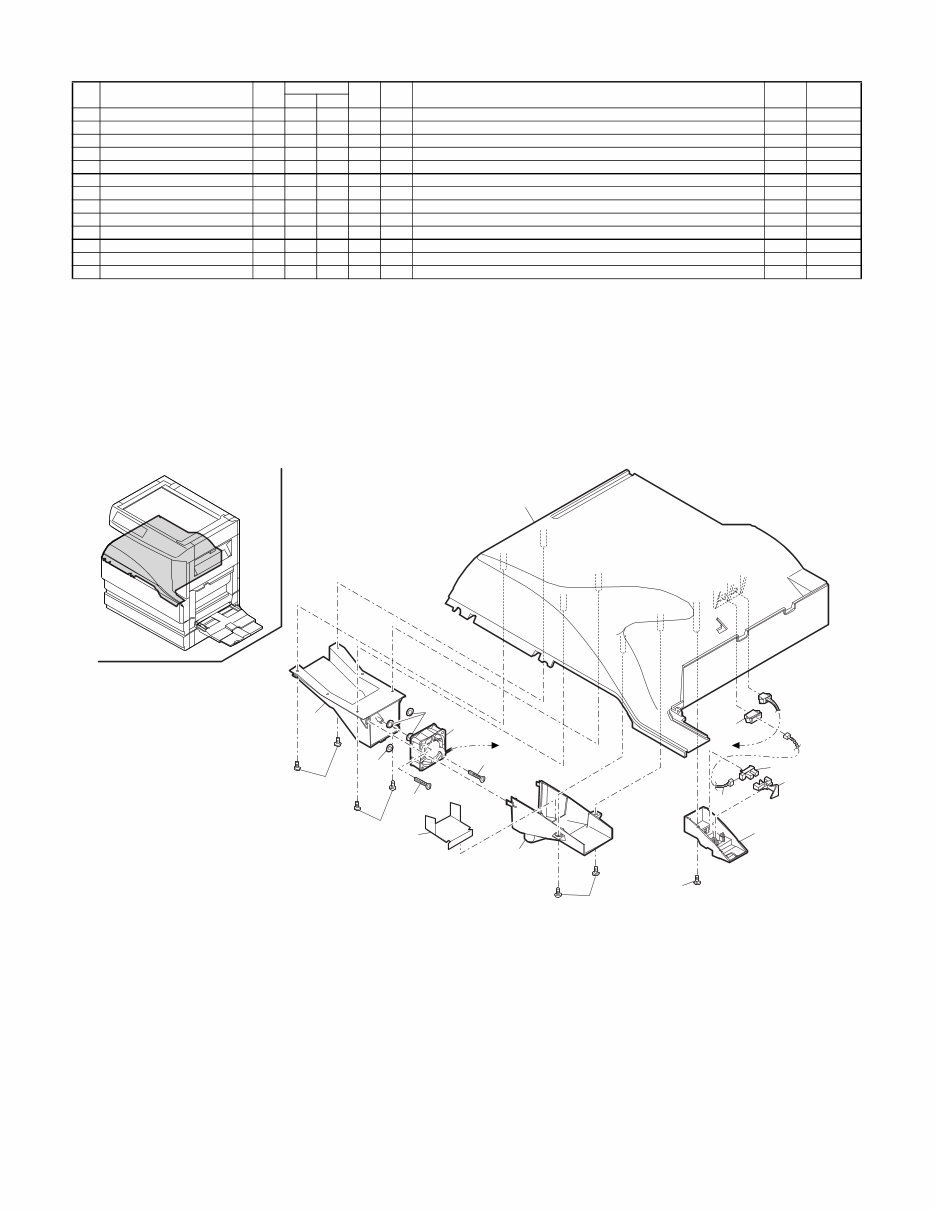

3 排紙ﾄﾚｲ部 (Delivery tray section)
3 排紙ﾄﾚｲ部 (Delivery tray section)
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
3 PBOX-0016QSZ1 AN EQ N C Exhaust fan box 排気ﾌｧﾝﾎﾞｯｸｽ
4 XEBS730P10000 AC DD C Screw(3×10) ﾋﾞｽ
5 NFANP0015QSZZ BA FX B Ozon fan motor ｵｿﾞﾝﾌｧﾝﾓｰﾀｰ
6 PDUC-0004QSZ1 AL EB N C Exhaust fan duct 排気ﾌｧﾝﾀﾞｸﾄ
7 XEBS730P12000 AC DD C Screw(3×12) ﾋﾞｽ
8 PBOX-0006QSZZ AF DS D Delivery sensor BOX 排紙ｾﾝｻｰﾎﾞｯｸｽ
9 VHPGP1S73P+-18 AF DS B Photo sensor(GP1S73P) ﾌｫﾄｾﾝｻｰ
10 MLEVP0068QSZZ AC DJ C Delivery tray actuator 排紙ﾄﾚｲｱｸﾁｭｴｰﾀｰ
11 DHAI-0370QSPZ AF DS C Delivery paper detect sensor harness 排紙紙検知ｾﾝｻｰﾊｰﾈｽ
12 LX-BZ0030QSPZ AC DD C Screw(M3×34P) ﾋﾞｽ
14 LSOU-0040QSZZ BB GD D Delivery tray 排紙ﾄﾚｲ
17 PSHEZ0286QSZZ AE DJ C Exhaust fan sheet 排気ﾌｧﾝｼｰﾄ
20 PSHEZ0283QSZZ AB DJ C Fan motor sheet ﾌｧﾝﾓｰﾀｰｼｰﾄ
4
12
5
3
6
8
9
10
11
11
12
20
20
14
4
4
17
7
PRP03333
– 6 –
Update : 2007/05/31

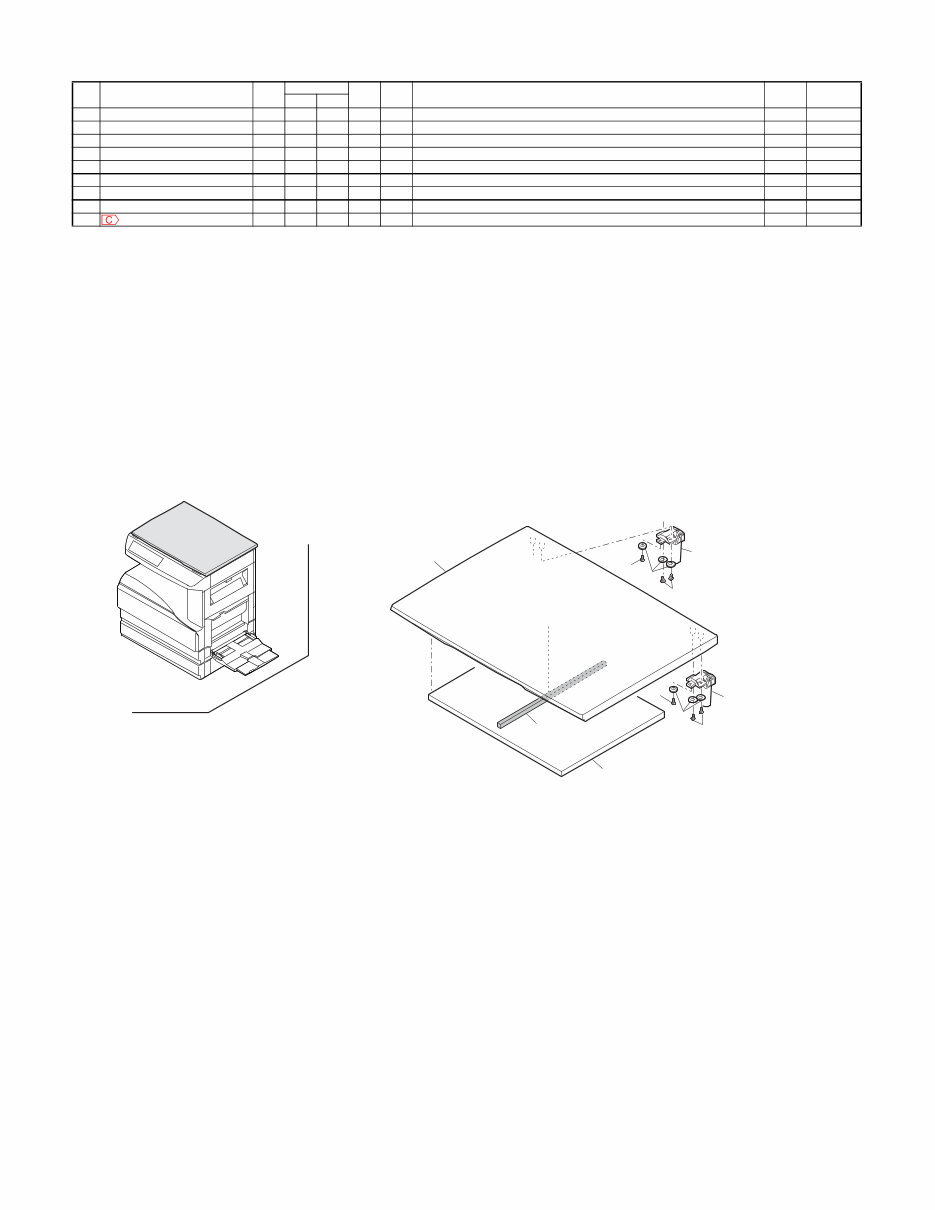

4 ｵﾘｼﾞﾅﾙｶﾊﾞｰﾕﾆｯﾄ (Original cover unit)[AR-267G/S/317G/S]
4 ｵﾘｼﾞﾅﾙｶﾊﾞｰﾕﾆｯﾄ (Original cover unit)[AR-267G/S/317G/S]
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
1 GCOVH0010QSE5 BD GJ D OC cover OC ｶﾊﾞ -
2 PMLT-0039QSZZ AC DJ C OC molt OC ﾓﾙﾄ LPD
3 PCUSS0023QSZ2 AV EZ C OC cushion OC ﾏﾂﾄ LP
4 MHNG-0025QSZZ AU EZ C OC hinge R OC ﾋﾝｼﾞ RTLPD
5 XWVS740-05000 AA DD C Washer ﾜｯｼｬ
6 XEBS740P12000 AA DD C Screw(4×12) ﾋﾞｽ
7 MHNG-0026QSZZ AU EZ C OC hinge L OC ﾋﾝｼﾞ LTLPD
(Unit)
901 CCOVH0010RS57 - BM HR E OC cover unit [Missing parts code] OC ｶﾊﾞｰﾕﾆｯﾄ
1st lot
5
5
6
6
4
7
6
1
2
3
6
PRP03334
– 7 –
Update : 2007/09/28

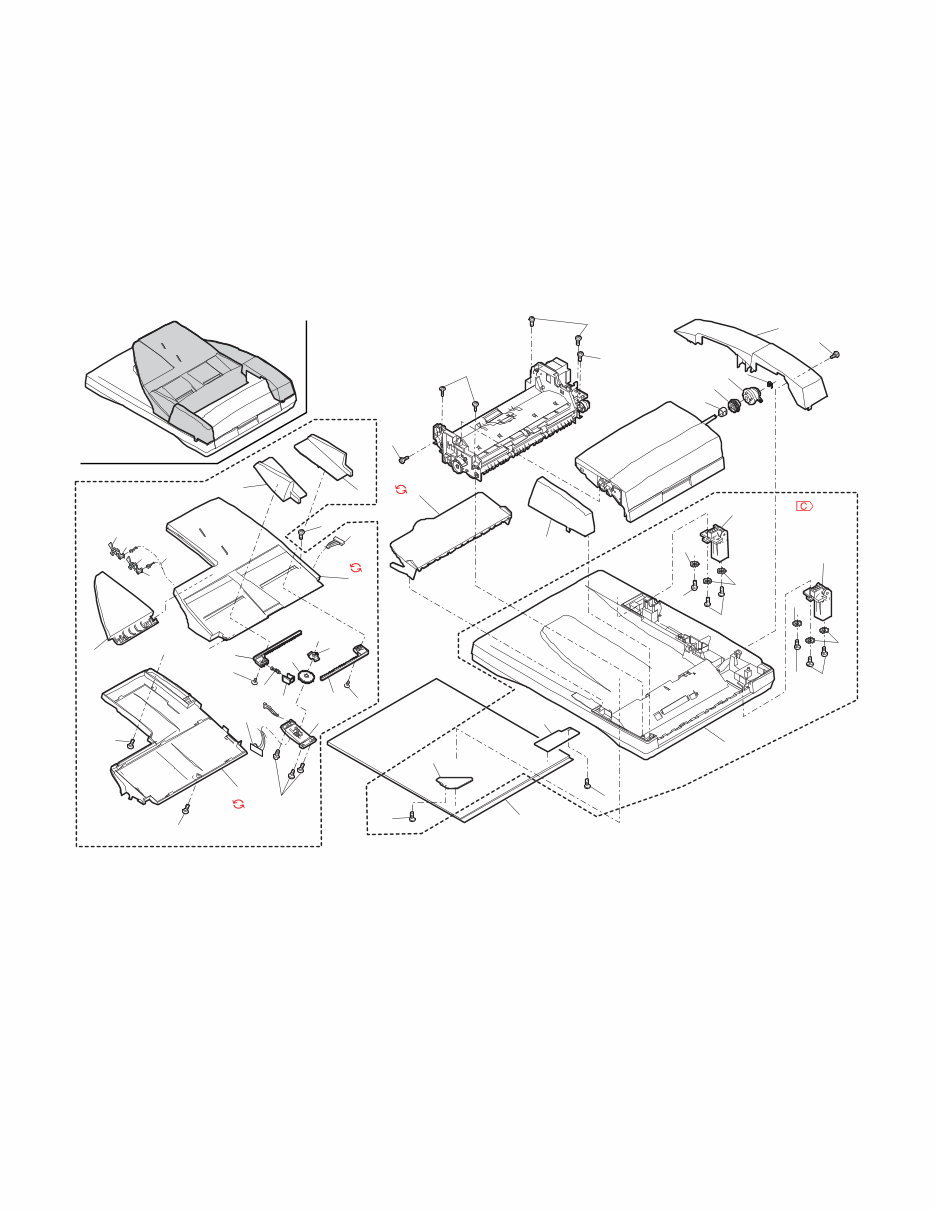

5 RSPF 外装部 1(RSPF Exteriors 1)[AR-267FG/FP/317FG/FP/M257/M317]
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time Ex. Ja.
1 GCAB-0075QSZZ AR EQ D Rear cabinet 後ｷｬﾋﾞﾈｯﾄ
2 XEBS740P12000 AA DD C Screw(4×12) ﾋﾞｽ
3 XHBS730P08000 AB DD C Screw(3×8) ﾋﾞｽ
4 LSTPP0016QSZZ AC DJ C Stopper ｽﾄｯﾊﾟｰ
5 PCLC-0023QSZZ AS EQ N B SPF paper feed clutch SPF 給紙ｸﾗｯﾁ
6 NPLYZ0033QSZZ AD DJ B Coupling pulley(39P) ｶｯﾌﾟﾘﾝｸﾞﾌﾟｰﾘｰ
8 XHBS730P10000 AD DD C Screw(3×10) ﾋﾞｽ
9 GCAB-0074QSZZ AK DX D Front cabinet 前ｷｬﾋﾞﾈｯﾄ
10 MHNG-0021QSZZ AX FG C SPF hinge L SPF ﾋﾝｼﾞ L
11 MHNG-0022QSZZ AX FG C SPF hinge R SPF ﾋﾝｼﾞ R
12 XWVS740-05000 AA DD C Washer ｷｸﾜｯｼｬ
13 NBRGC0018QSZZ AD DJ C Bearing 軸受
14 LSOU-0037QSZZ BE GN C Base tray ﾍﾞｰｽﾄﾚｲ
15 PCUSS0022QSZ2 AW FG C OC mat OC ﾏｯﾄ
16 PSHEZ0413QSZZ AD DJ C OC mat sheet R OC ﾏｯﾄﾏｲﾗｰ R
17 PSHEZ0077QSZ1 AE DJ C OC mat sheet F OC ﾏｯﾄﾏｲﾗｰ F
18 XEBS730P08000 AC DD C Screw(3×8) ﾋﾞｽ
19 LPLTP0321QSZZ AE DS C Sensor plate 幅検知ｾﾝｻｰ取付板
20
GCAB-0078QSZZ AV FG D Original tray lower cabinet 原稿ﾄﾚｲ下ｷｬﾋﾞﾈｯﾄ
GCAB-0078QSZ1 1 AV EG D Original tray lower cabinet 原稿ﾄﾚｲ下ｷｬﾋﾞﾈｯﾄ
07/09 R/C
21 LSOU-0039QSZ1 AN EQ N C Original tray S 原稿ﾄﾚｲ S
22 MLEVP0098QSZZ AC DJ C Original detect actuator 原稿検知ｱｸﾁｭｴｰﾀｰ
23 VHPGP1S73P+-18 AF DS B Photo sensor(GP1S73P) ﾌｫﾄｾﾝｻｰ
24 CPWBF0160QSE1 AS EQ E SPF VR PWB unit SPF VR 基板
25 NGERP0168QSZZ AD DJ C Gear(36T) 幅検知ﾋﾟﾆｵﾝ 36T
26 NGERR0169QSZZ AE DS C Gear 幅検知ﾗｯｸ TLP
27 MSPRC0250QSZZ AC DJ C Tray lock spring ﾄﾚｲﾛｯｸｽﾌﾟﾘﾝｸﾞ
28 PTME-0271FCZZ AD DJ C Tray lock pawl ﾄﾚｲﾛｯｸ爪
29 XEPS730P08X00 AA DD C Screw(3×8X) ﾋﾞｽ
30 MSPRP0315QSZZ AD DJ C Regulation plate spring 規制板ｽﾌﾟﾘﾝｸﾞ
31
LSOU-0038QSZ1 AW FG C Original tray 原稿ﾄﾚｲ
LSOU-0038QSZ2 1 AW FQ C Original tray 原稿ﾄﾚｲ
07/09 R/C
32
LSOU-0041QSZZ AP EQ C Middle tray 中間ﾄﾚｲ
LSOU-0041QSZ1 1 AP EQ C Middle tray 中間ﾄﾚｲ
07/09 R/C
33 LPLTP0319QSZZ AH DX C Regulation plate F 規制板 F
34 LPLTP0320QSZZ AH DX C Regulation plate R 規制板 R
35 DHAI-0468QSZZ AH DX C Original tray harness 原稿ﾄﾚｲﾊｰﾈｽ
501 CSOU-0037RS52 - BR LX E
Base tray unit(Include Block 6-501)
[Missing parts code] ﾍﾞｰｽﾄﾚｲﾕﾆｯﾄ
( ﾌﾞﾛｯｸ 6-501 含む )
1st lot
502 CSOU-0038RS52 BH GX E Original tray unit 原稿ﾄﾚｲﾕﾆｯﾄ
– 8 –
Update : 2007/09/28
5 RSPF 外装部 1(RSPF Exteriors 1)[AR-267FG/FP/317FG/FP/M257/M317]
1
3
4
5
6
2
8
2
2
9
32
33
34
2
22
23
22
23
35
35
31
21
18
18
20
18
19
26
26
29
29
25
27
28
24
30
18
16
15
17
18
14
11
10
12
12
12
12
2
2
2
2
13
PRP03335
502
501
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$26.99
SHARP AR-267G/267S/267FG/267FP, AR-317G/317S/317FG/317FP, AR-M256/M257/M258, AR-M316/M317/M318, AR-5625/5631 LASER COPIE
Viewed 87 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$26.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
This manual is a comprehensive guide for the SHARP AR-267G/267S/267FG/267FP, AR-317G/317S/317FG/317FP, AR-M256/M257/M258, AR-M316/M317/M318, AR-5625/5631 laser copier/printer models. It covers various components and sections, including exteriors, delivery tray section, original cover unit, RSPF exteriors, paper feeding section, transport section, OPE panel unit, frame section, optical frame, cassette unit, paper feed section, paper transfer section, side door unit, multi manual paper feed tray unit, DV unit, process unit, fusing unit, drive unit, delivery paper unit, PWB section, rear frame section, drive section, pick up motor unit, job-separater unit, packing material & accessories, and more.
Model Specification: SHARP AR-267G/267S/267FG/267FP, AR-317G/317S/317FG/317FP, AR-M256/M257/M258, AR-M316/M317/M318, AR-5625/5631
File Format: PDF
Requirements: Adobe Reader
Language: English
Compatibility: All Versions of Windows & Mac, APP ISO, iPhone, iPad, Android, etc.
This manual is in PDF format, providing high-quality and printable content. It offers easy navigation through chapters and allows for selective printing. The detailed step-by-step instructions and illustrations facilitate DIY repairs, saving time and money. Additionally, the instant accessibility eliminates shipping costs and waiting time, as the manual is available for immediate download upon secure payment processing.
