Sony Ericsson K510 Service Repair Manual

Part List Mechanical 13122-2/FEA 209 544/102 J Company Internal © Sony Ericsson Mobile Communications AB Part List Mechanical Applicable for K510 1 Exploded view ................................................................................................................. 2 1.1 Exploded view phone ........................................................................................ 2 2 Part List ........................................................................................................................... 4 2.1 Part list phone .................................................................................................... 4 3 Label Part List................................................................................................................. 5 4 Revision History .............................................................................................................. 6

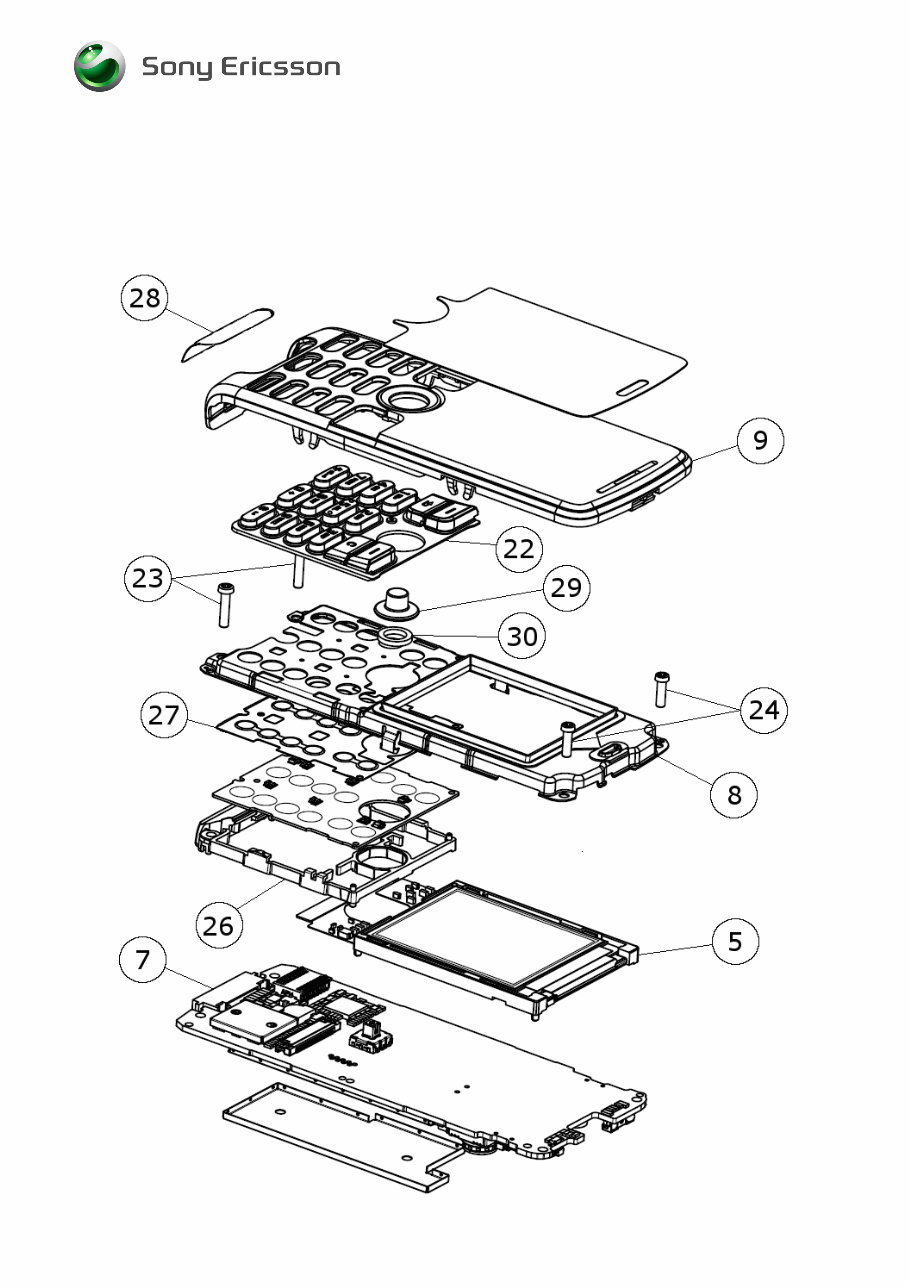

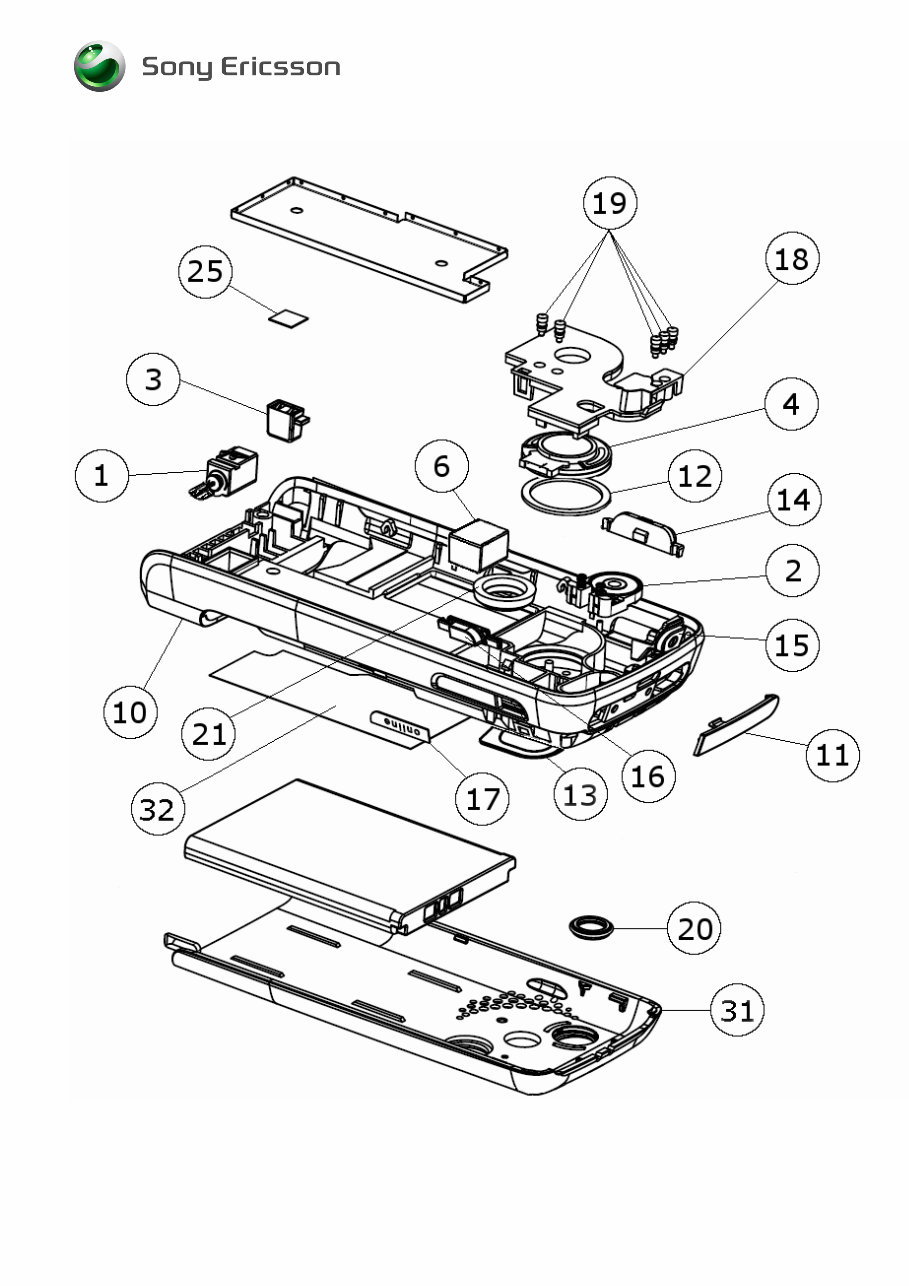

Part List Mechanical 13122-2/FEA 209 544/102 J Company Internal © Sony Ericsson Mobile Communications AB 2(6) 1 Exploded view 1.1 Exploded view phone

Part List Mechanical 13122-2/FEA 209 544/102 J Company Internal © Sony Ericsson Mobile Communications AB 3(6)

Part List Mechanical 13122-2/FEA 209 544/102 J Company Internal © Sony Ericsson Mobile Communications AB 4(6) 2 Part List 2.1 Part list phone This Part List includes all parts possible to replace by using the Mechanical Repair Process. Parts available to order will be found in the Web Shop. Pos. number refers to the Exploded View. Pos. Description Part Number Comments 1 VIBRATOR F/40-78820 2 EARPHONE F/42-80325 3 MICROPHONE F/43-90506 4 SPEAKER F/42-41032 5 Display Module TFT F/37-80412 6 CAMERA MODULE F/44-63481 7 SYSTEM CONNECTOR RNV79936R3 8 METAL FRAME F/52-91672 9 Front Cover / Ppurple F/53-39622 9 Front Cover / Midnight Black F/53-39442 10 FRAME 900 MHz F/53-45762 10 Frame 850 MHz F/53-41160 11 IR WINDOW F/55-28917 12 SPEAKER GASKET F/57-79280 13 SPEAKER DUST NET F/52-41951 14 CAMERA KEY ASSY F/53-42943 15 POWER KEY ASSY F/53-44168 16 OPERATOR KEY ASSY F/53-47316 17 Side label F/80-11153 17 Label orange side key F/80-11142 17 Label CMCC side key F/80-11172 17 Label T-MOBILE Side Key F/80-11114 For K510i 18 AUDIO COVER F/53-69184 19 POGO PIN F/34-54091 20 RF-CAP F/53-56180 21 CAMERA GASKET F/57-51975 22 Key Pad/Latin PP F/65-48438 22 Key Pad/Latin MB F/65-48293 22 Key Pad/Arabic MB F/65-48910 22 Key Pad/Arabic PP F/65-48960 22 Key Pad/Stroke MB F/65-48620 22 Key Pad/Cyrillic MB F/65-48790 22 Key Pad/Cyrillic PP F/65-48210 22 Key Pad/Stroke PP F/65-48108 22 Key Pad/BoPoMoFo MB F/65-48810 22 Key Pad/BoPoMoFo PP F/65-48300 22 Key Pad/Thai MB F/65-48750 22 Key Pad/Thai PP F/65-48150 22 Key Pad/Hindi PP F/65-48490 22 Key Pad/Hindi MP F/65-48890 22 Key Pad/Hebrew MB F/65-48590 22 Key Pad/Hebrew PP F/65-48550 23 SCREW BOTTOM F/51-60834

Part List Mechanical 13122-2/FEA 209 544/102 J Company Internal © Sony Ericsson Mobile Communications AB 5(6) Pos. Description Part Number Comments 24 SCREW TOP F/51-67181 25 Liquide intrusion indicator F/58-35188 26 UI MODULE FRAME F/53-71382 27 DOMESHEET FOIL F/53-76928 28 Label K510a F/80-13027 28 Label K510i F/80-13062 28 Label K510c F/80-13048 28 Label Orange F/80-13083 28 Label O2 F/80-13085 28 Label CMCC F/80-13002 28 Label O2 F/80-13085 28 Label CMCC F/80-13002 28 Label T-MOBILE F/80-13099 28 Label AMENA F/80-13010 28 Label TIM F/80-13057 28 Label FIDO F/80-13050 28 Label VIRGIN F/80-13260 28 Label TELEFONICA F/80-13020 29 JOYSTIC CAP F/53-82264 31 Battery Cover Ppurple F/53-94747 31 Battery Cover Midnight Black F/53-94712 3 Label Part List Pos. Description Part Number Comments 32 KRH Label F/80-26119 Printer Ribbon LZK 102 734/1
