Nikon Coolpix S4 Repair Manual

p ght Nkn p at n ll R ghts R s P nt n apan S pt R RP R NU L

R - S4 - CONTENTS SPECIFICATIONS DISASSEMBLY WARNING REMOVAL OF CAP REMOVAL OF CABINET FRONT LCD REMOVAL OF COVER BATTERY REMOVAL OF HOLDER PLATE BTM REMOVAL OF LENS UNIT REMOVAL OF HOLDER SPEAKER REMOVAL OF SPEAKER REMOVAL OF CABINET BACK LCD REMOVAL OF MICROPHONE REMOVAL OF LCD REMOVAL OF HOLDER MONITOR REMOVAL OF COMPL PWBCP-1 REMOVAL OF HOLDER WIRE REMOVAL OF CABINETBACK LENS DISCHARGE OF MAIN CONDENSER REMOVAL OF LENS ASSEMBLY REMOVAL OF COMPL PWBCA-1 REMOVAL OF CABI FRONT ASSY REMOVAL OF COMPL PWBTB-1 REMOVAL OF JOINT UNIT REMOVAL OF LAMP ASSY ASSEMBLY INSTALLATION OF LAMP ASSY INSTALLATION OF JOINT UNIT INSTALLATION OF COMPL PWBTB-1 INSTALLATION OF CABI FRONT ASSY INSTALLATION OF COMPL PWBCA-1 INSTALLATION OF LENS ASSEMBLY INSTALLATION OF CABINET BACK LENS INSTALLATION OF HOLEDER WIRE INSTALLATION OF COMPL PWBCP-1 INSTALLATION OF HOLDER MONITOR INSTALLATION OF LCD INSTALLATION OF MICROPHONE

R - S4 - INSTALLATION OF CABINET BACK LCD INSTALLATION OF SPEAKER INSTALLATION OF HOLDER SPEAKER INSTALLATION OF LENS UNIT INSTALLATION OF HOLDER PLATE BTM INSTALLATION OF COVER BATTERY INSTALLATION OF CABINET FRONT LCD ADJUSTMENT DISCRIPTION OF CIRCUIT ELECTRICITY OVERALL WIRING CP1 (DMA) CIRCUIT DIAGRAM CP1 (SYA) CIRCUIT DIAGRAM CP1 (PWA) CIRCUIT DIAGRAM CP1 (TCA) CIRCUIT DIAGRAM CA1 CIRCUIT DIAGRAM ST1, TB1 CIRCUTT DIAGRAM OVERALL BLOCK DIAGRAM CCD BLOCK DIAGRAM LENS BLOCK DIAGRAM ASIC BLOCK DIAGRAM SYSTEM CONTROL BLOCK DIAGRAM POWER BLOCK DIAGRAM FUSE ARRENGEMENT (CP1 PCB) INSPECTION STANDARDS TOOL LIST

R Type Compact digital camera Effective pixels 6.0 million CCD Image size (pixels) 1/2.5-in. CCD; total pixels: 6.4 million • 2,816 2,112 (2816 , 2816) • 2,048 1,536 (2048) • 1,024 768 (1024) • 640 480 (640) Lens Focal length Construction f/-number Zoom-Nikkor with 10 optical zoom F=6.3 –63 mm (35-mm [135] camera-format equivalent: 38 –380 mm) 12 elements in 9 groups f/3.5 Digital zoom Up to 4 (35-mm [135] camera-format equivalent: 1520 mm) Focus-area selection AF-assist illuminator Focus range (distance from lens) Autofocus (AF) Center; auto multi AF Class 1 LED product (IEC60825-1 Edition 1.2-2001); max. output: 1400 µW 30 cm (12 in.) – Macro mode: 4 cm (1.6 in.)– (W) Contrast-detect through-the-lens (TTL) AF with AF-assist illuminator Monitor Approximate frame coverage 2.5 in., 110,000-dot, TFT LCD monitor with brightness adjustment Shooting mode: 97% horizontal and 97% vertical Playback: 100% horizontal and 100% vertical Storage Media File system File formats Internal memory (approx.13.5 MB); SD (Secure Digital) memory cards Compliant with Design Rule for Camera File System (DCF) *, Exif 2.2 , and Digital Print Order Format (DPOF) Compressed: JPEG-baseline-compliant Movies: QuickTime Sound fi les: WAV Exposure Metering Exposure control Range 256-segment matrix metering linked to AF area Programmed auto exposure with exposure compensation (–2.0 – +2.0 EV in steps of 1 3 EV) +2.7 – +17.5 EV Shutter Speed Mechanical and charge-coupled electronic shutter 2 – 1/1000 s Range Aperture f/3.5, f/4.0, f/5.6, f/6.8, and f/13.6 Electronically-controlled aperture and ND-fi lter selection ISO Sensitivity Approximately equivalent to ISO 50, 100, 200, 400; Auto Self-timer Approximately 10 seconds Built-in fl ash Range (approx.) Sync method 0.4 – 3.0 m/1 ft. 4 in.–10 ft. Sensor fl ash system I/O terminals Audio/video out; digital IO (USB) Interface USB Video output Can be selected from NTSC and PAL SPECIFICATIONS

R Supported languages Chinese (Simpliﬁ ed and Traditional), Dutch, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Swedish Power sources • Two AA alkaline, oxy-nickel, or lithium batteries • Two rechargeable EN-MH1-B2 NiMH batteries • EH-62B AC adapter kit Battery life Approximately 160 shots with alkaline, 450 shots with lithium, or 290 shots with EN-MH1-B2 batteries * Charging time Approx.two hours Dimensions with lens in storage position 111.5 68.5 37 mm/4.4 2.7 1.4 in. (W H D) Approximate weight 205 g (7.2 oz.) without lens cap, batteries or memory card Operating environment Temperature Humidity 0 +40 C (+32 104 F) Less than 85% (no condensation) * Based on Camera and Imaging Products Association (CIPA) standard for measuring life of camera batteries. Measured at 25 C (77 F); zoom adjusted with each shot, fl ash fi red with every other shot, image mode set to NORMAL. Unless otherwise stated, all fi gures are for a camera with fully-charged EN-MH1-B2 batteries operated at an ambient temperature of 25 C (77 F).

R S Disassembly WARNING There are high voltege parts inside. Be careful of this electric shock, when you remove the cover. You must discharge the main condenser according to the instruction of this repair manual after you remove the cover. ! Points to notice for Lead-free solder products Lead-free solder is used for this product. For soldering work, the special solder and soldering iron are required. Do NOT mix up lead-free solder with traditional solder. Use the special soldering iron respectively for lead-free solder and lead solder. They cannot be used in common. Note : Be sure to remove the SD memory card and batteries before disassembly. When disassembling, make sure to memorize the processing state of wires, screws to be ﬁxed and their types, etc. Because electrical parts are easily damaged by static electricity, make sure that you are well earthed/grounded.

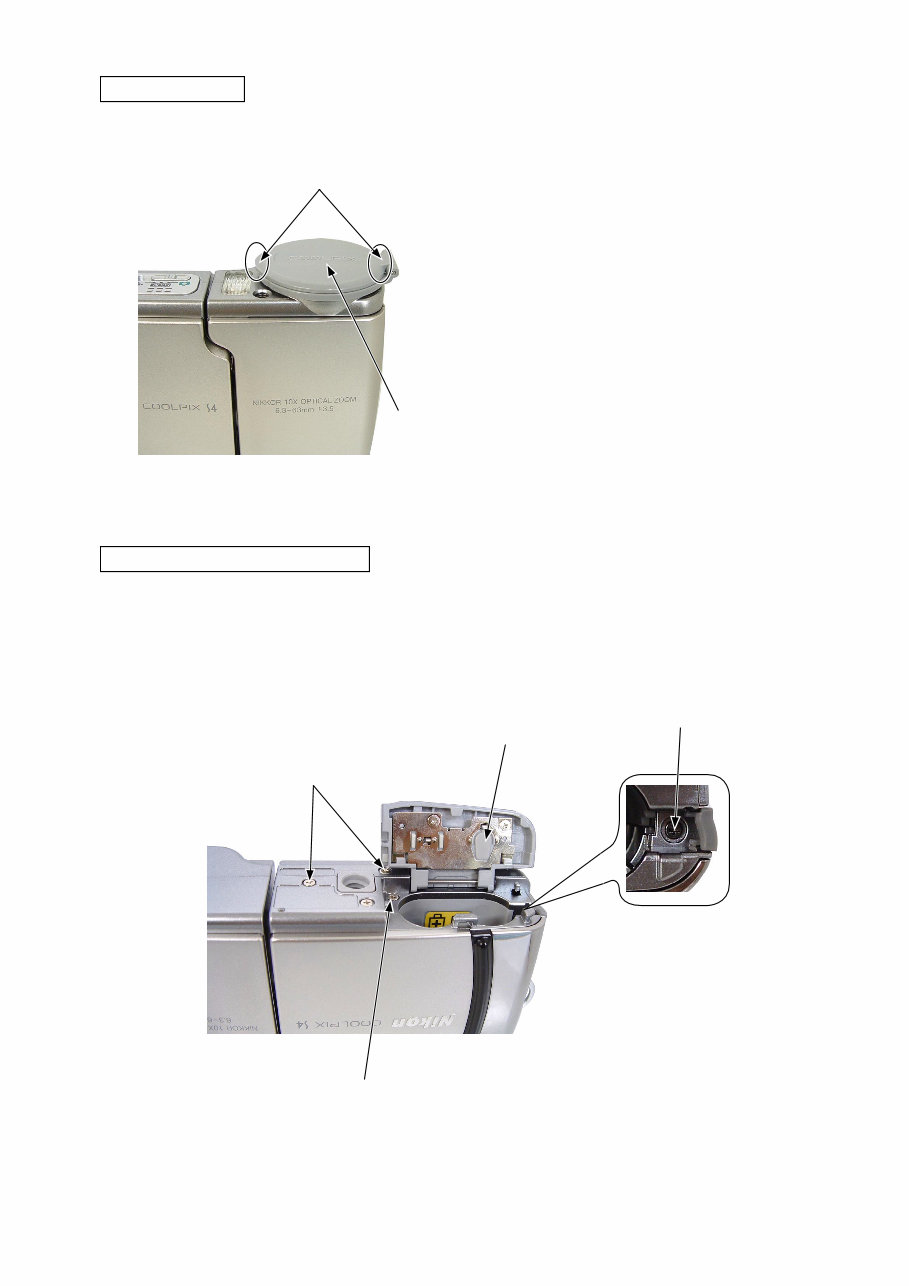

R S Open the cover battery [#006]. Remove the screw A [#202]. Remove the screw [#202] (black). Remove the two screws B [#202]. REMOVAL OF CABINET FRONT LCD Perform unhooking and remove the cap. REMOVAL OF CAP Hook Cap Cover battery [#006] Screw A [#202] Screw B [#202] Screw [#202] (black)

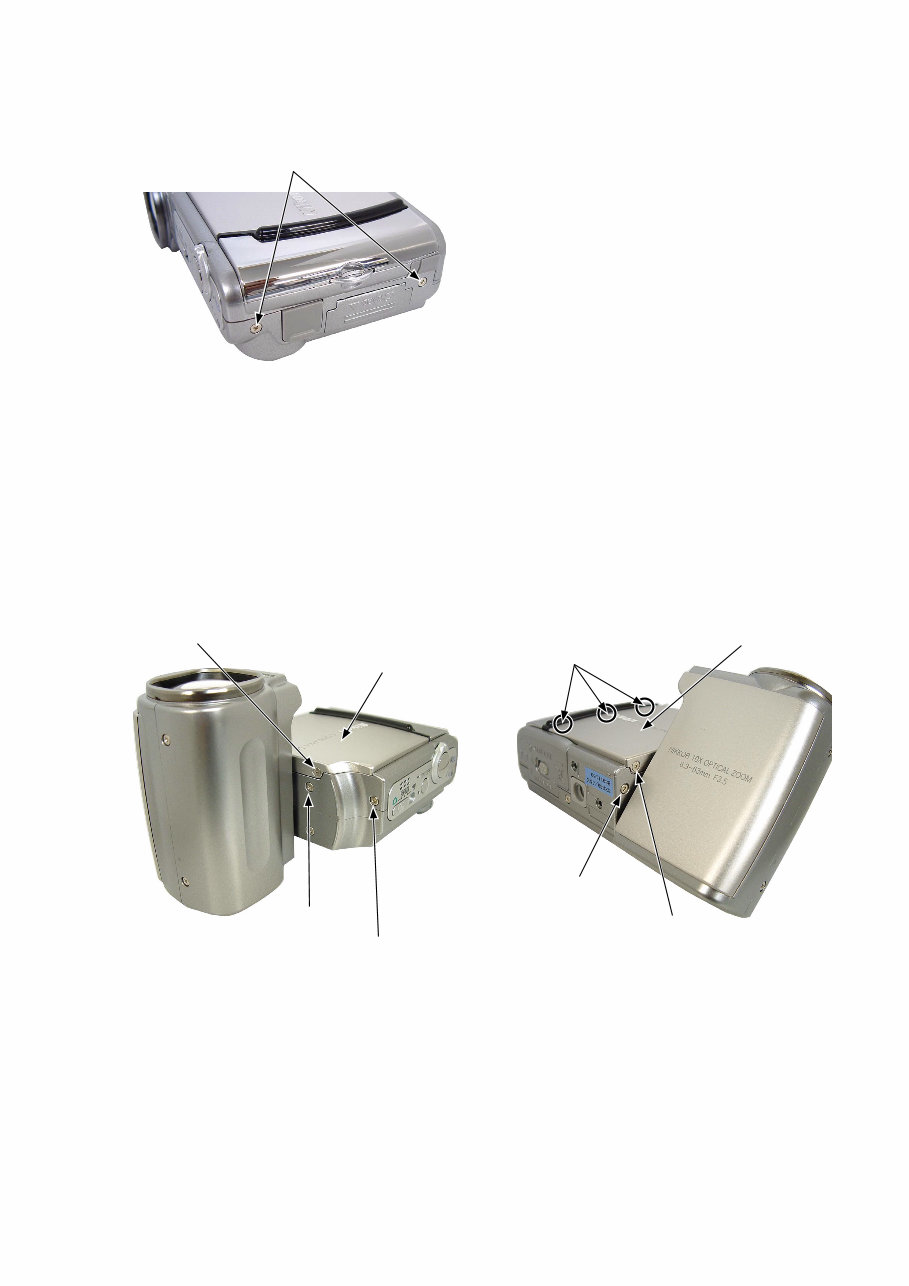

R S Remove the two screws [#206]. Remove the screw [#202]. Remove the two screws [#203]. Remove the two screws [#210]. Remove the DEC PANEL LCD [#010]. Screw [#203] Screw [#210] DEC PANEL LCD [#010] Convex section Screw [#202] Screw [#210] Screw [#203] DEC PANEL LCD [#010] Screw [#206]

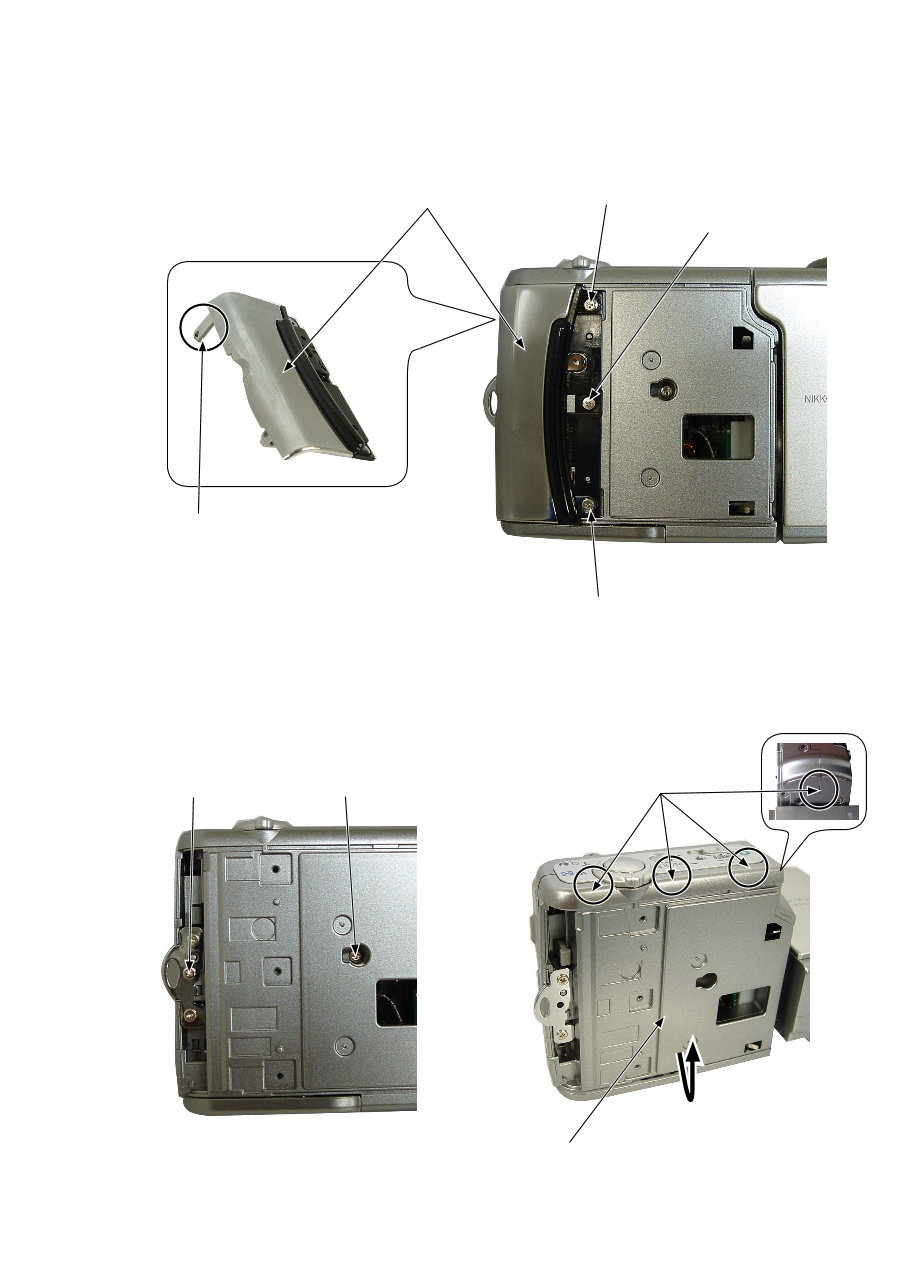

R S Remove the two screws [#205]. Remove the screw [#201]. Remove the DEC FRONT B [#012]. NOTE: Be careful not to fold the convex section. Remove the screw [#206]. Remove the screw [#202]. Convex section Screw [#205] Screw [#201] DEC FRONT B [#012] Screw [#205] Screw [#206] Screw [#202] Open the bottom of the CABINET FRONT LCD [#008] and perform unhooking (upper 4 places). Hook CABINET FRONT LCD [#008]

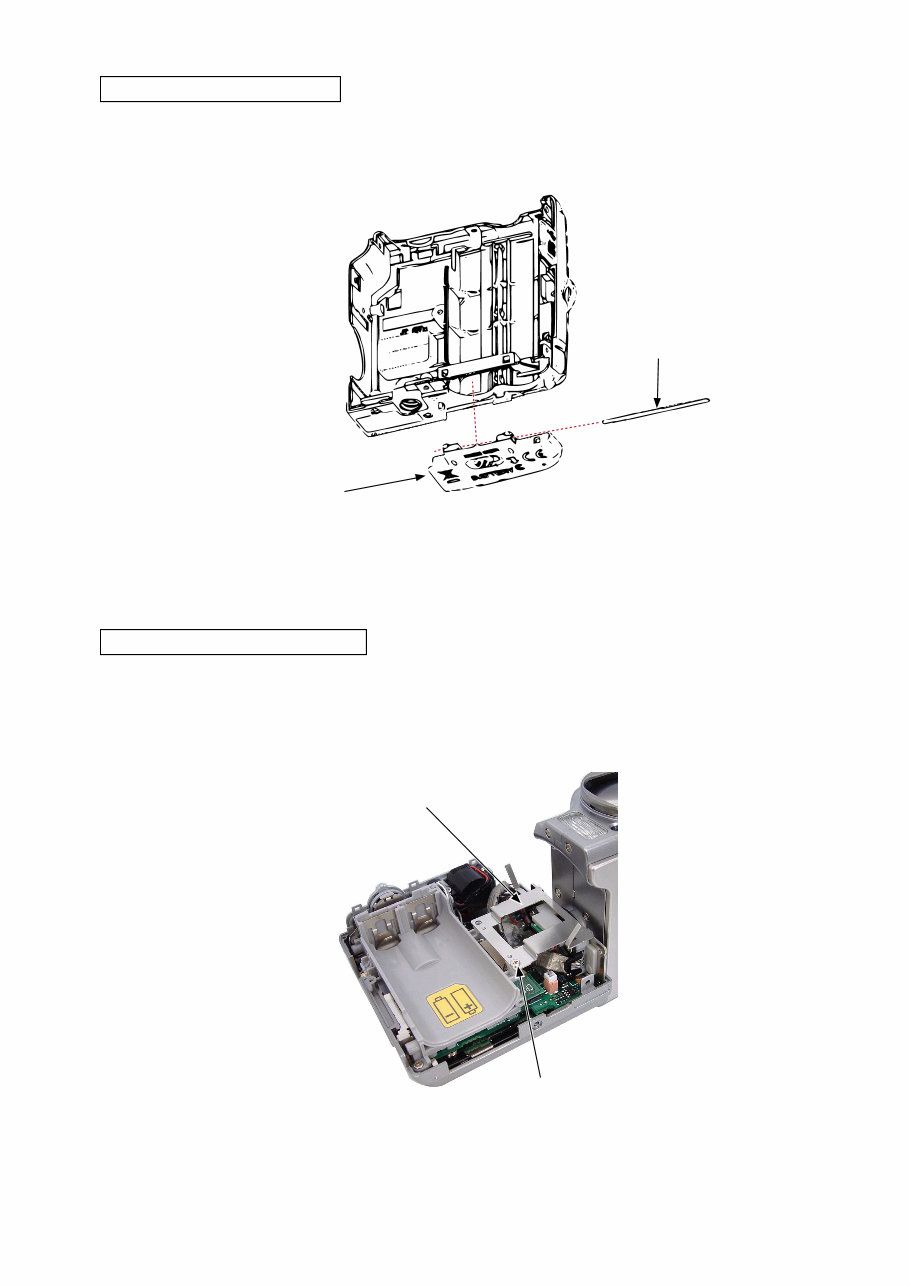

R S Pull out the shaft cover SD [#007]. The cover battery [#006] can be removed. REMOVAL OF COVER BATTERY Remove the screw [#202]. Remove the holder plate BTM [#016]. REMOVAL OF HOLDER PLATE BTM Shaft cover SD [#007] Cover battery [#006] Screw [#202] Holder plate BTM [#016]
