c CANON INC., 2006
PARTS CATALOG
PowerShot A640/A630
R2:CONFIDENTIAL

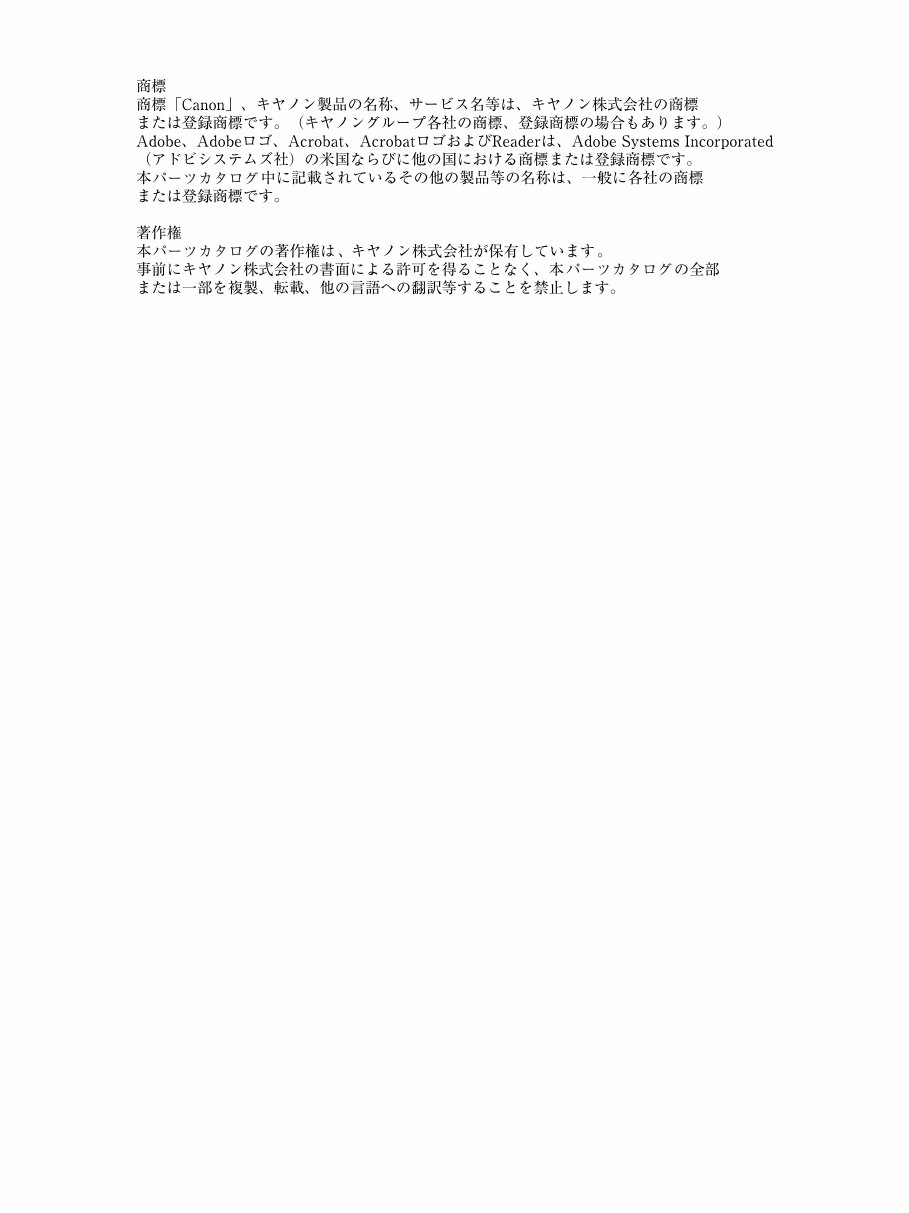

Trademarks:
Canon Inc.’s trademark, logos, product names, service marks and those trademark, logos, product names,
service marks licensed to Canon Inc. by any of its affiliate or subsidiary are registered or unregistered
marks of Canon Inc. or such affiliate or subsidiary in Japan and/or other countries.
Adobe, the Adobe logo, Acrobat, the Acrobat logo and Reader are either registered trademarks or trade-
marks of Adobe Systems Incorporated in the United States of America and/or other countries.
All other trademarks, product names, service marks are generally either registered or unregistered marks
of their respective owners.
Copyright:
All copyrights in the content of this Parts Catalog are owned or controlled by Canon Inc. You are not
permitted to copy, reproduce, download, modify, adapt or translate in any way the content of this Parts
Catalog for any purpose other than the purpose contemplated herein without prior written consent of
Canon Inc.
CONTENTS
PowerShot A640/A630
Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1
Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2
LCD Unit -------------------------------------------------------------------------------------------------------------------------- Pg3
Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg4
Optical Unit ----------------------------------------------------------------------------------------------------------------------- Pg5
Fuse -------------------------------------------------------------------------------------------------------------------------------- Pg6
Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg7
Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg8
Waterproof Case-1 ------------------------------------------------------------------------------------------------------------------- Pg9
Waterproof Case-2 ------------------------------------------------------------------------------------------------------------------ Pg10
Service Tools-1 ---------------------------------------------------------------------------------------------------------------------- Pg11
Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg12

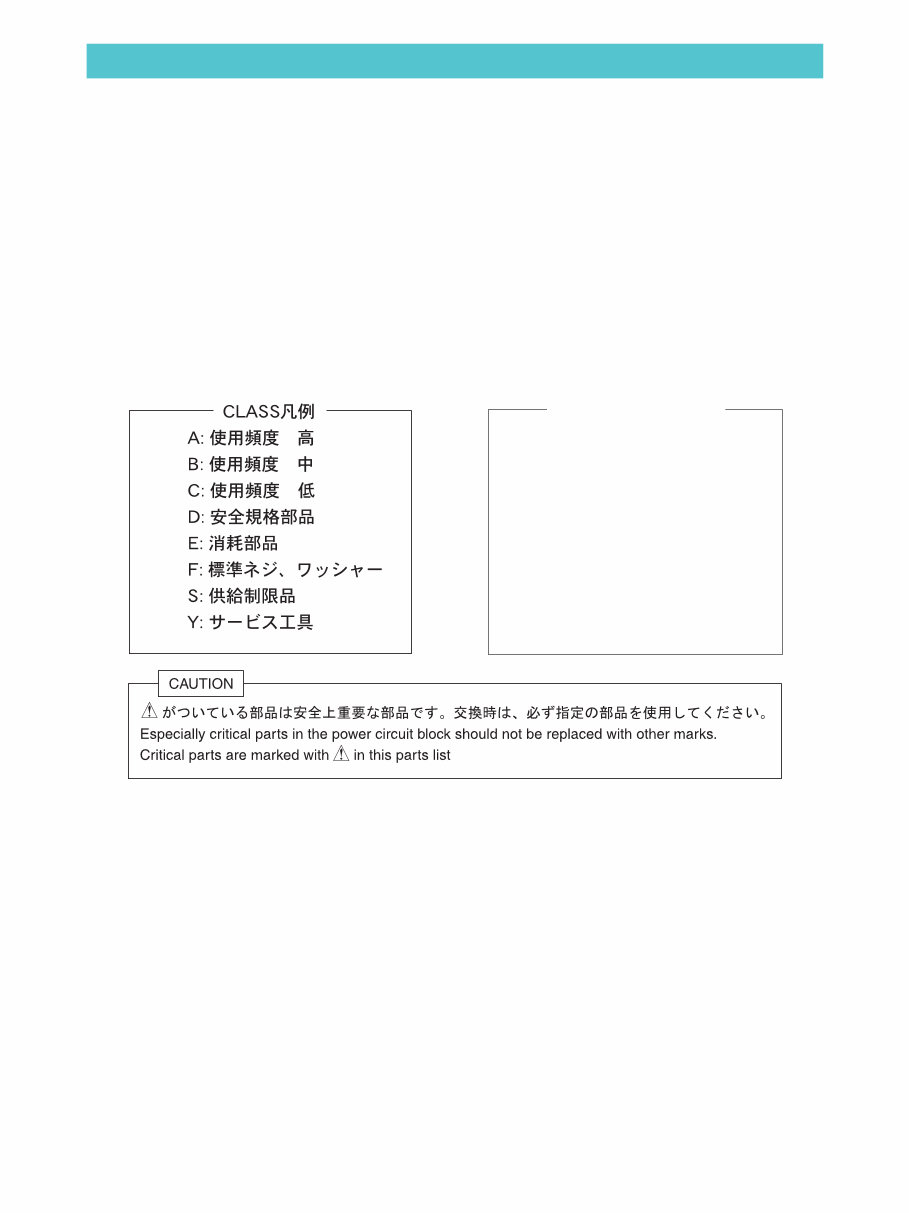

Category of CLASS
A: Frequency of use: High
B: Frequency of use: Middle
C: Frequency of use: Low
D: Safety-related critical parts
E: Consumable parts
F: Standard screws and washers
S: Supply of the parts is limited
Y: Service Tools

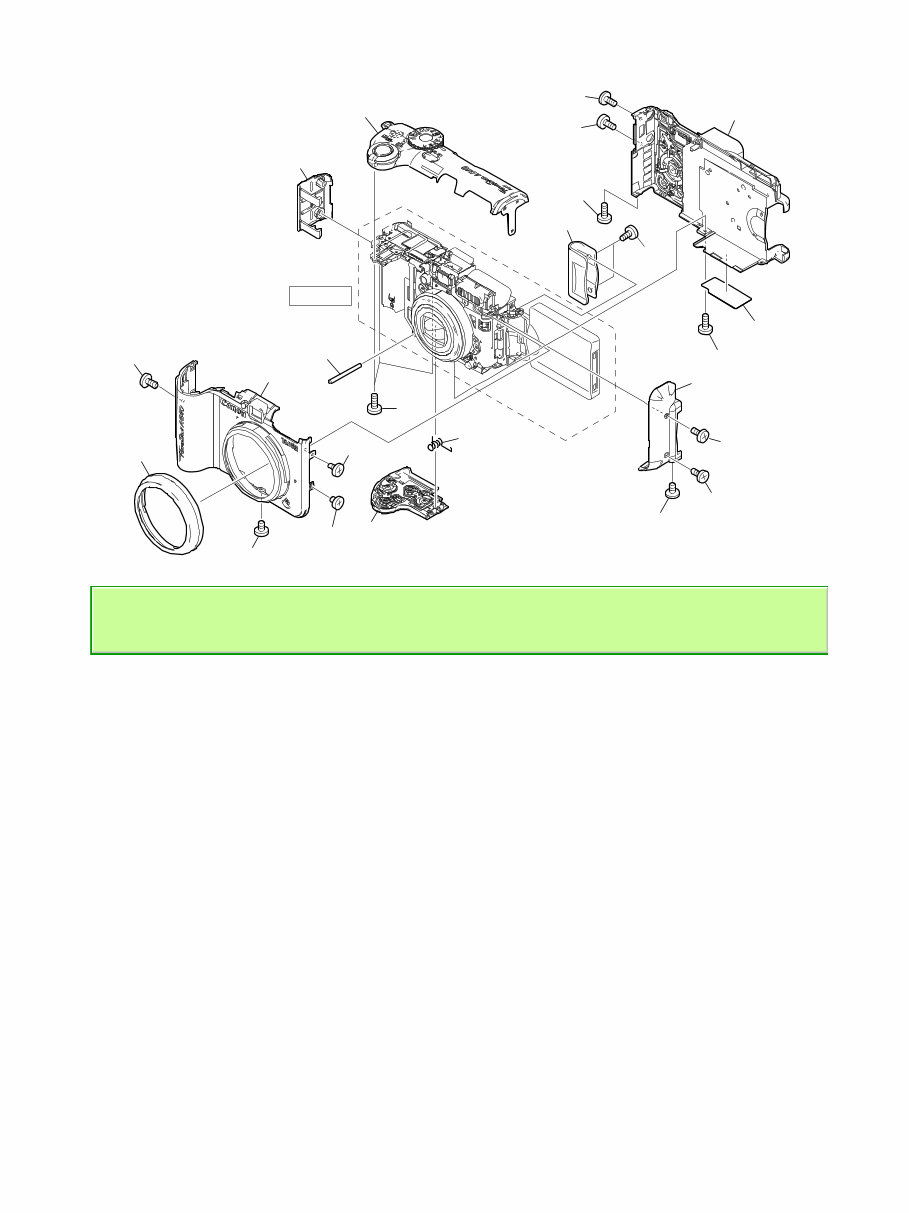

PowerShot A640/A630
Casing Parts
Pg1
11
101
101
104
3
1
2
4
5
6
7 8
10
9
109
103
107
107
102
102
105
106
108
108
See Pg2
NEW SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PARTS LIST
PowerShot A640/A630
*
1 CM1-3608-000 B 1 COVER UNIT, BATTERY PowerShot A630
*
CM1-3705-000 B 1 COVER UNIT, BATTERY PowerShot A640
*
2 CD3-6657-000 C 1 SHAFT, BATTERY COVER
*
3 CD3-6661-000 C 1 SPRING, BATTERY COVER
*
4 CM1-3941-000 B 1 COVER UNIT, FRONT PowerShot A630
*
CM1-3942-000 B 1 COVER UNIT, FRONT PowerShot A640
5 CM1-3210-000 B 1 BAYONET CUP UNIT PowerShot A630
*
CM1-3708-000 B 1 BAYONET CUP UNIT PowerShot A640
*
6 CD3-6675-000 B 1 COVER, JACK
*
7 CM1-3609-000 B 1 COVER UNIT, TOP PowerShot A630
*
CM1-3706-000 B 1 COVER UNIT, TOP PowerShot A640
*
8 CM1-3607-000 B 1 COVER UNIT, REAR PowerShot A630
*
CM1-3704-000 B 1 COVER UNIT, REAR PowerShot A640
*
9 CY1-6566-000 B 1 PLATE, BODY NUMBER PowerShot A640
*
CY1-6567-000 B 1 PLATE, BODY NUMBER PowerShot A630
10 CD3-4134-000 B 1 COVER, HINGE PowerShot A630
*
CD3-6824-000 B 1 COVER, HINGE PowerShot A640
*
11 CD3-6679-000 B 1 COVER, SIDE PowerShot A630
*
CD3-6823-000 B 1 COVER, SIDE PowerShot A640
101 CD3-4127-000 C 2 SCREW
102 CD3-4128-000 C 3 SCREW
103 CD3-4129-000 C 1 SCREW
*
104 CD3-6690-000 C 1 SCREW
105 XA4-5170-357 F 1 SCREW
106 XA1-7170-167 F 1 SCREW
107 XA1-7170-257 F 2 SCREW
108 XA4-9170-357 F 2 SCREW
109 XA4-9170-457 F 3 SCREW
Pg1
PowerShot A640/A630
Internal Parts-1
Pg2
2
102
106
101
102
102
4
3
5
10
12
1
7
104
103
102
105
9
6
6
6
11
101
See Pg3
8
N.S
See Pg4
N.S : N.S Stand for No Stock
NEW SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PARTS LIST
PowerShot A640/A630
1 CK2-2369-000 C 1 FPC, MAIN-FLASH
*
2 CM1-3606-000 C 1 FLASH UNIT PowerShot A630
*
CM1-3702-000 C 1 FLASH UNIT PowerShot A640
3 CK2-2281-000 C 1 WIRE, DC - BATTERY, RED
4 CK2-2282-000 C 1 WIRE, DC - BATTERY, BLACK
*
5 CM1-3640-000 C 1 PCB ASS’Y, DC/OPERATION PowerShot A630
*
CM1-3703-000 C 1 PCB ASS’Y, DC/OPERATION PowerShot A640
*
6 CD3-6830-000 C 3 SHEET, EMI PowerShot A640
*
7 CD3-6671-000 C 1 SHEET, MAIN
8 CD3-4236-000 C 1 SPRING, GND
9 CD3-6662-000 C 1 PLATE,GND
*
10 CM1-3644-000 C 1 FPC ASS’Y, MAIN-DC
*
11 CD3-6692-000 C 1 GASKET
*
12 CM1-3614-000 C 1 FINDER UNIT
101 CD3-1400-000 C 3 SCREW
102 XA1-7170-257 F 5 SCREW
103 XA4-5140-307 F 1 SCREW
104 XA4-5170-307 F 1 SCREW
105 XA4-9170-357 F 1 SCREW
106 XA4-9170-507 F 1 SCREW
Pg2

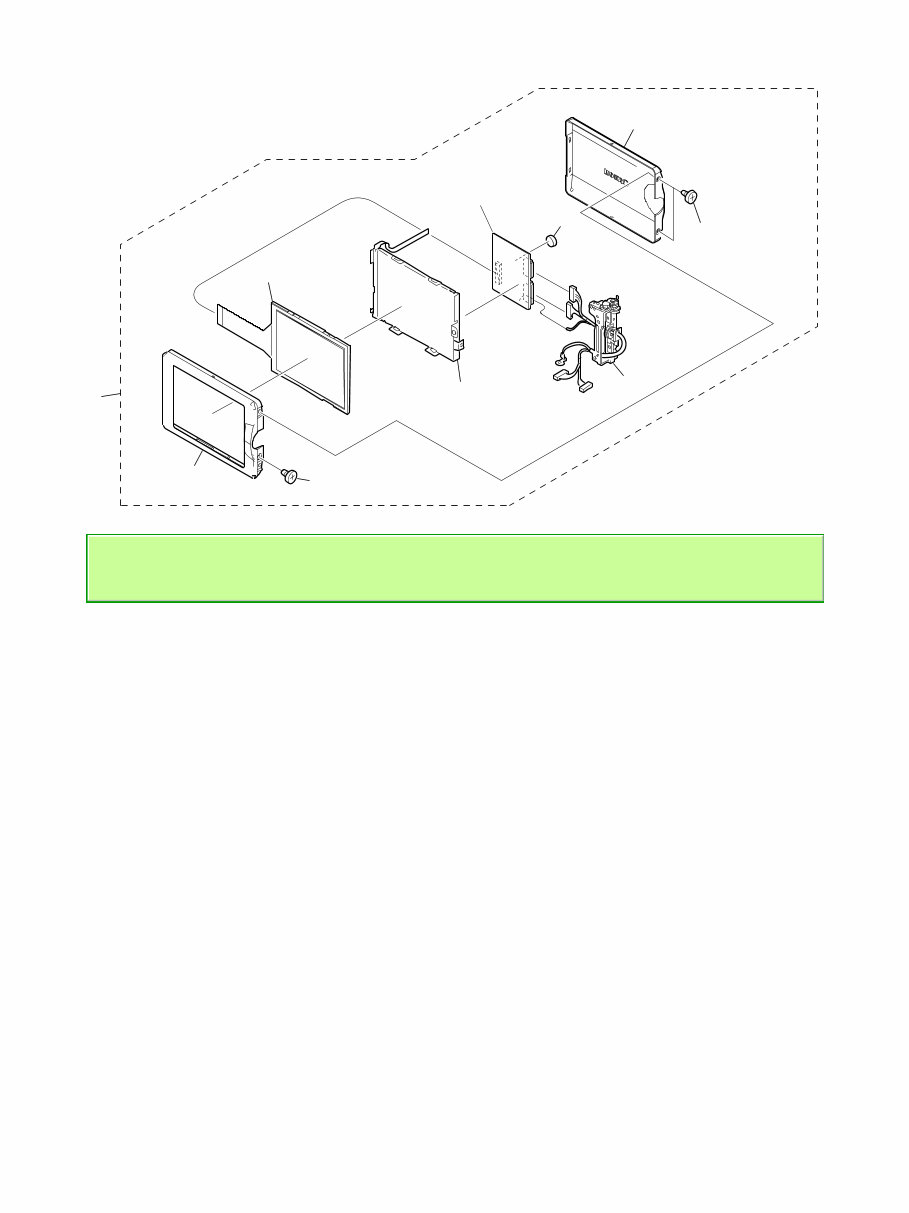

PowerShot A640/A630
LCD Unit
Pg3
3
4
102
5
7
8
101
6
1
2
NEW SYMBOL PARTS NO. CLASS QTY DESCRIPTION REMARKS
PARTS LIST
PowerShot A640/A630
Pg3
*
1 CY1-6568-000 B 1 LCD UNIT (SELECTION) PowerShot A640
*
CY1-6569-000 B 1 LCD UNIT (SELECTION) PowerShot A630
*
2 CD3-6665-000 B 1 COVER, LCD, FRONT PowerShot A630
*
CD3-6815-000 B 1 COVER, LCD, FRONT PowerShot A640
*
3 CM1-3605-000 C 1 LCD HINGE UNIT
*
4 CM1-3603-000 C 1 BACK LIGHT UNIT
5 WK1-5140-000 C 1 BATTERY, LITHIUM-ION
*
6 CK9-1241-000 B 1 PANEL, LCD
*
7 CD3-6666-000 B 1 COVER, LCD, REAR PowerShot A630
*
CD3-6816-000 B 1 COVER, LCD, REAR PowerShot A640
*
8 CM1-3642-000 C 1 PCB ASS’Y, LCD
101 XA1-7170-257 F 1 SCREW
102 XA1-7170-307 F 2 SCREW

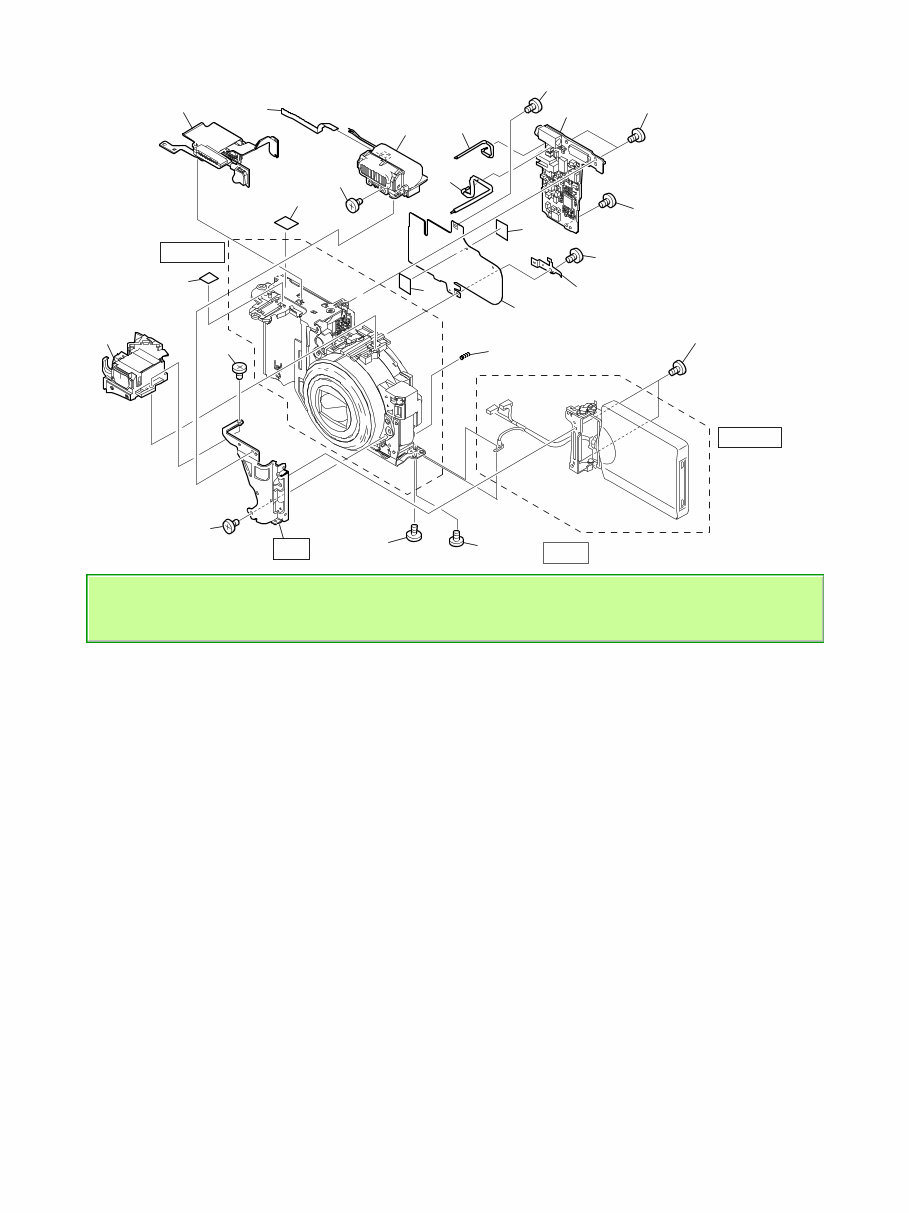

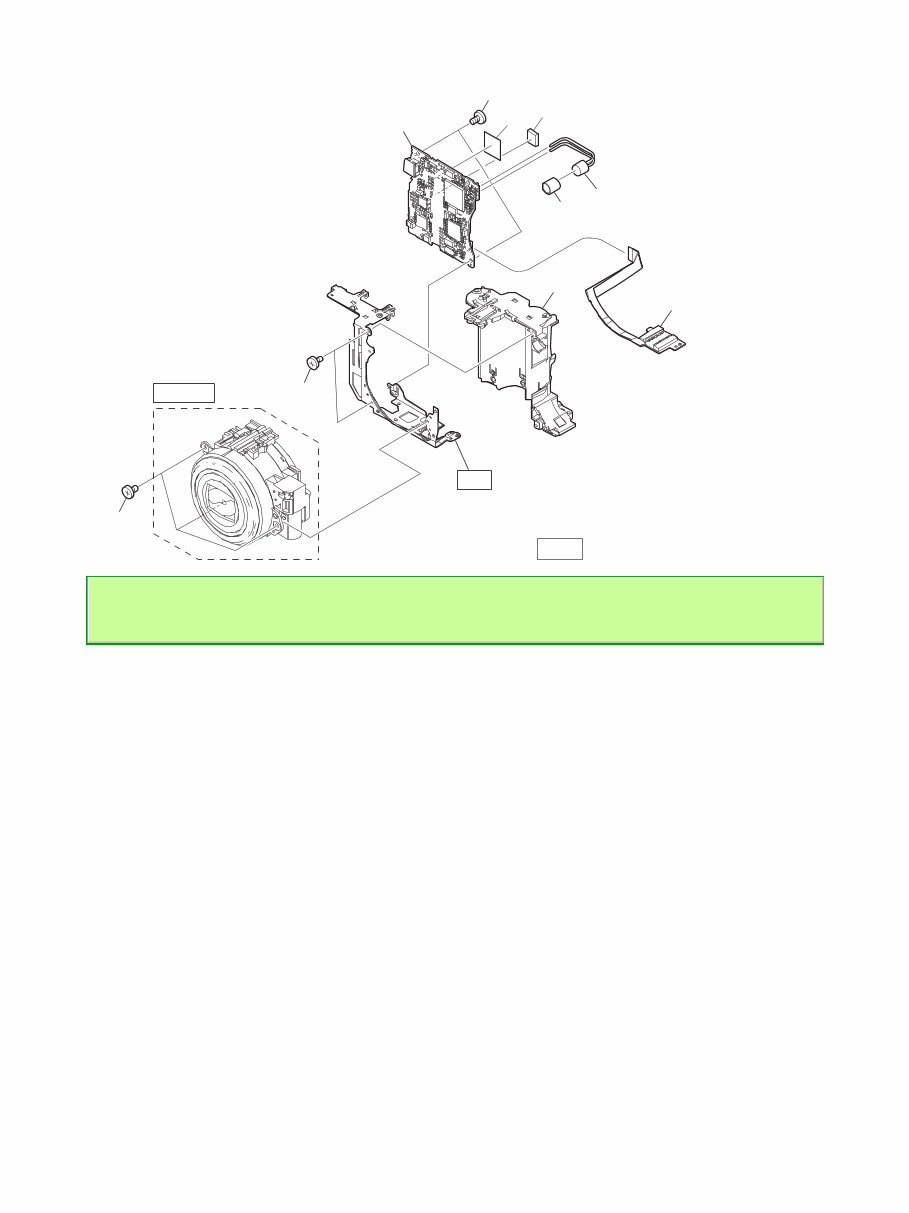

PowerShot A640/A630
Internal Parts-2
Pg4
1
3
4
5
6
N.S
101
102
101
7
2
l N.S : N.S Stand for No Stock
See Pg5
