Canon EOS 350D slr camera service and repair manual

EOS KISS DIGITAL N (SILVER) EOS KISS DIGITAL N (BLACK) EOS DIGITAL REBEL XT (SILVER) EOS DIGITAL REBEL XT (BLACK) EOS 350D DIGITAL (SILVER) EOS 350D DIGITAL (BLACK) SERVICE MANUAL Copyright © 2005 Canon Inc.

PREFACE This manual contains information for servicing the product, and has the following sections: General Information Provides the basic information needed to understand the product. (Operating instructions are not included. Refer to the products instruction book if necessary.) Technical Information Provides technical information about the mechanism and electronics of the product. Repair Information Provides information about ths tools and expendables required for disassembly, reassembly, adjustment and measurement of the product, and their locations and method of use. Adjustments No electrical adjustments for this product. Parts Catalog Circuit Diagrams Software Information Appendix I

General Information Trademarks The product names and company names described in this CD-ROM are the registered trademarks of the individual companies. Copyright Canon Inc. retains the copyright to all data contained on this CD-ROM. Reproduction, publication (including on the World Wide Web) alteration, translation into another language, or other use of the data in whole or part, contained on this CD-ROM without the written consent of Canon Inc., is prohibited. Copyright © 2005 Canon Inc.

General Information I CONTENTS Page General Information 1. FEATURES ..................................................................................................1 1.1 High precision and high image quality..................................................1 1.2 Compact and Lightweight Camera and Classy Design ........................1 1.3 Quick Shooting .....................................................................................1 1.4 User suggestions incorporated for enhanced performance .................2 1.5 EOS DIGITAL REBEL/300D DIGITAL's superior basic features and operation ease retained........................................................................2 1.6 Camera Direct Printing and DPOF .......................................................3 2. OVERVIEW ..................................................................................................4 2.1 EOS D REBEL XT / 350 D body ..........................................................4 2.2 Accessories ........................................................................................15 3. SPECIFICATIONS .....................................................................................16 4. NOMENCLATURE AND DIMENSIONS .....................................................44 4.1 Nomenclature .....................................................................................44 4.2 Dimensions.........................................................................................45 5. VISUAL INDICATORS ...............................................................................46 5.1 Viewfinder Informations ......................................................................46 5.2 LCD Panel Information and Model Dial ..............................................47 5.3 Functional Display Screen..................................................................49 5.4 LCD Monitor Menus ...........................................................................50 6. CUSTOM FUNCTION ................................................................................55 6.1 Custom Function List..........................................................................55 7. PROGRAM DIAGRAMS.............................................................................56 7.1 Program Diagram ...............................................................................56 7.2 E-TTL II Program Diagram .................................................................56 8. SYSTEM ACCESSORIES COMPATIBILITY TABLES ..............................57 8.1 System Accessories ...........................................................................57 8.2 System Accessory Compatibility ........................................................58 9. AGREED ITEMS ........................................................................................59 9.1 Agreed Answers for User Support......................................................59 9.2 EF Lens Compatibility with the Built-in Flash Coverage.....................63 9.3 Cases and Accommodable Lenses ....................................................66

1. FEATURES 1.1 High precision and high image quality  Newly-developed, large, single-plate CMOS sensor 22.2 × 14.8 mm • Effective angle of view: Equivalent to 1.6× normal EF lens focal length  Effective pixels: Approx. 8.00 megapixels for high precision and high image quality  DIGIC II imaging engine for high-precision and natural color reproduction at high speed  Accurate auto white balance  Optimum image-making features • In Basic Zone modes, Parameter 1 is set automatically to produce vivid and sharp images • Three user-settable parameter settings (4 parameters and 5 settings each) and monochrome mode • White balance correction and white balance bracketing provided • Complies to Design rule for Camera File System 2.0 and Exif 2.21 which support Adobe RGB  Noise reduction for long exposures 1.2 Compact and Lightweight Camera and Classy Design  126.5 (W) × 94.2 (H) × 64 (D) mm, 485 g  Stylish and classy form with an air of high reliability • Canon logo embossed and colored  Compact body, yet easy to operate and hold  Powered by a small and lightweight NB-2LH battery • Thanks to its power-saving design, it can still take the same number of shots with the EOS DIGITAL REBEL/300D DIGITAL. 1.3 Quick Shooting  Startup time approx. 0.2 sec.  Wide-area, high-speed, 7-point AF  3 shots/sec. max. continuous shooting speed  Max. burst of approx. 14 shots for JPEG Large/Fine and approx. 5 shots for RAW • With a Canon 512MB CF card  1/4000 sec. - 30 sec., bulb, X-sync at 1/200 sec.  Selectable AF modes and metering modes • Use the cross keys as a short cut to go to the AF mode and metering mode selection screen.  High-speed writing to the CF card  USB 2.0 Hi-Speed General Information 1

 Compatible with all EF lenses including EF-S lenses • Optimum lens is the EF-S18-55mm f/3.5-5.6 USM (equivalent to 29-89mm in 35mm format) • Compatible with all EF lenses with no restrictions 1.4 User suggestions incorporated for enhanced performance [Camera body]  Silver and black models to be available from the sales start [Shooting features]  User-selectable AF modes and metering modes • Use the cross keys as a short cut to go to the AF mode and metering mode selection screen.  Precision Matte focusing screen for easier manual focusing  Flash exposure compensation provided  High-precision, consistent flash exposures with E-TTL II • E-TTL II autoflash control with the built-in flash or EOS-dedicated Speedlite • C.Fn-9-1 enables E-TTL II averaged autoflash  Improved automatic ISO speed setting in Basic Zone modes  Built-in flash covers 17mm lens focal length  Nine Custom Functions (24 settings) [Image-recording features]  RAW+JPEG records separate RAW and Large/Fine JPEG images simultaneously. [Menu and playback features]  Direct Print provided  Single image display: With basic information, shooting information (Info), or without information  Jump button to jump 10 or 100 images forward or back or jump by shooting date  15 menu interface languages [Accessories]  Size-AA battery grip attachable 1.5 EOS DIGITAL REBEL/300D DIGITAL's superior basic features and operation ease retained  Excellent basic shooting and playback features • Compatible with CF card Type I/II with 2GB or larger capacity • Twelve shooting modes (seven Basic Zone modes and five Creative Zone modes) • Three AF modes (One-Shot AF, AI SERVO AF, AI Focus AF) • 35-zone metering sensor and three metering modes (evaluative, partial, centerweighted averaged) • Three drive modes (Single, continuous, self-timer) • Six JPEG recording modes, RAW, RAW+JPEG (Large/Fine) General Information 2

• ISO 100, 200, 400, 800, 1600, ISO auto • Eight white balance modes (Auto, six preset modes, manual) • AE lock, exposure compensation, and AEB provided. Compatible with all features of EX-series Speedlites. • Dioptric adjustment from -3 dpt to +1 dpt, depth-of-field preview, and LCD panel illumination provided • Single image display, 9-image index display, magnified view, and auto play possible • Image rotate, protect, erasing and auto image rotation possible • LCD monitor brightness adjustable to 5 levels (gray chart displayed during adjustment) • Compatible with NTSC/PAL video OUT • Compatible with Wireless Remote Control RC-1/RC-5, and Remote Switch RS- 60E3  Superb basic operation ease and shooting priority retained • Clear and easy operation with the Mode Dial, electronic dial, and cross keys • Camera instantly becomes ready to shoot when you press the shutter button halfway even during menu display or image playback • Camera controls and image display controls are concentrated on the camera back • Menu display and playback-related controls are concentrated on the left of the camera back • Icons for playback-related buttons are printed in blue 1.6 Camera Direct Printing and DPOF  Compatible with PictBridge, CP Direct, and Bubble Jet Direct • Direct Print feature provided • High-speed printing with a PictBridge-compatible BJ printer  Compatible with DPOF printing specification General Information 3

General Information 4 EOS D REBEL XT / 350 D EOS DIGITAL REBEL/300D DIGITAL 8.00 6.30 22.2 × 14.8 22.7 × 15.1 JPEG RAW 7. RAW+L/F 8. RAW 7. RAW (M/F embedded) Separate RAW and JPEG (L/F) images JPEG (M/F) embedded in RAW Large 8.00 6.30 Middle 4.15 2.80 Small 2.00 1.60 RAW 8.00 6.30 sRGB Adobe RGB Yes (Exif2.21) Yes Setting Parameter 1, 2; Set 1 to 3, monochrome Parameter 1, 2; Set 1 to 3 Items Color: Contrast, sharpness, color saturation, color tone Monochrome: Contrast, sharpness, filter effect, toning Contrast, sharpness, color saturation, color tone DIGIC II DIGIC Blue/amber bias: ±9 levels Magenta/green bias: ±9 levels – Amount Blue/amber bias Magenta/green bias Shutter Release Precision Matte New Laser Matte Cross keys/Main dial Main dial Yes – Stroboscopic flash Autofocus 7 EV 0.5 - 18 " • " lights in AF point One-Shot/AI SERVO/AI FOCUS Superimposed Display 10 3 images w ith one shot 95% 0.8 21mm Yes -3 to +1 dpt. AF-assist Beam Type White Balance System Settings WB Correction (Levels) WB Bracketing 1. Auto 2. Daylight 3. Shade 4. Cloudy, tw ilight, sunset 5. Tungsten light 6. White Fluorescent light 7. Flash 8. Custom 9. Color temperature ±3 levels in 1-level increments Blue/amber bias Image sensor 1.6 1. Large/Fine 2. Large/Normal 3. Middle/Fine 4. Middle/Normal 5. Small/Fine 6. Small/Normal Recording Quality Compatible Card Capacity 2 GB and higher Color Space Primary colors Imaging processor Slot Type/Qty CF TypeI, II/1 Specification Image sensor Image sensor Color Filter Type Effective Pixels (Approx. megapixels) Size (mm) Focal Length Conversion Factor CMOS Depth-of-fiield Preview Recording System Compact Flash Recording Media Recorded pixels [Approx. megapixels] Yes Processing Parameters RAW+JPEG Simultaneous Recording View finder Coverage (Approx.) Magnification Eyepoint Dioptric Adjustment Focusing Screen Direction AF Point Selection AF Mode 50 kph predictive AF [EF300mm f/2.8L IS USM, approx. m] Brightness AF Mode Selectable AF Points Table 001 Specifications Comparison of EOS D REBEL XT / 350 D and EOS DIGITAL REBEL/300D DIGITAL (1/2) 2. OVERVIEW 2.1 EOS D REBEL XT / 350 D body The EOS D REBEL XT / 350 D retains the EOS DIGITAL REBEL/300D DIGITAL's basic concept of being compact, lightweight, and easy to use. And now the EOS D REBEL XT / 350 D is even smaller and lighter and also incorporates high-end features that users have wanted. Operation ease has also been greatly improved at the same time. Table 001 compares the EOS D REBEL XT / 350 D and EOS DIGITAL REBEL/300D DIGITAL. (Shaded EOS D REBEL XT / 350 D specifications are superior to EOS DIGITAL REBEL/300D DIGITAL's.) The EOS D REBEL XT / 350 D's improvements over the EOS DIGITAL REBEL/300D DIGITAL are outlined below.

General Information 5 EOS D REBEL XT / 350 D EOS DIGITAL REBEL/300D DIGITAL Yes – Basic Zone Creative Zone ±2 in 1/3- or 1/2-stop inc. ±2 in 1/3- stop inc. ±2 in 1/3- or 1/2-stop inc. ±2 in 1/3- stop inc. Evaluative metering E-TTL I E-TTL Averaged metering Yes (C.Fn-8-1) – Shutter One-Shot AI SERVO JPEG 14 (Large/Fine) 4 RAW 5 4 17 18 ±2 in 1/3- or 1/2-stop inc. – 115,000 115,000 (Total pixels: 118,000) Single image (basic info/info/no info)/Index Single image (basic info/info)/Index 7 (10 images/100 images/Date) Yes (10 images) 15 12 9/24 – 2.0 1.0 2.21 2.2 Yes – 2.0 Hi-Speed 1.1 0.2 2.8 400 (NB-2LH) 400 (BP-511) NB-2LH BP-511A/BP-514/BP-511/BP-512 BG-E1 (Incompatible with size-AA batteries) 126.5 × 94.2 × 64 142 ×99 ×72.4 485 560 LCD Monitor Histogram/Highlight alert FE Lock Pixels displayed (Approx.) Display Modes Playback Image Protection 1.5 × - 10 × Screen Size 100, 200, 400, 800, 1600 1.8 Yes Zoom-in magnification (Approx.) Drive Modes Continuous shooting [fps] Max. Burst Flash Exposure Compensation Yes Image Rotation Yes (90˚, 270˚) Jump display Stainless steel + Plastic Yes Yes (RS-60E3) Yes Yes Plastic Silver/Black Yes Yes Chassis Material Dimensions (W × H × D, mm) Weight [g] Exterior Material Exterior Color LCD Panel Illumination EF-S Lens Compatibility Yes (RC-1, RC-5) CR2016 Power Source Possible Shots (20˚, FA50%) Batteries Battery Grip AC Power Date/Time Backup Battery Exif [Ver.] Custom Functions [Qty/settings] DPOF[Ver.] USB[ Ver.] External Interface Remote Control Terminal Video OUT (NTSC/PAL) Wireless Remote Control Yes Direct Print 1.1 3 3 2.5 2.5 Yes Menu Interface Language Direct Printing/Printing Recording format DCF[Ver.] 1/4000 sec. - 30 sec., bulb, X=1/200 Yes Speeds Startup Time (sec.) Single/Continuous/Self-timer Built-in Flash Guide No. (ISO 100, m) Coverage (Angle of view , mm) 13 Drive EV 1 - 20 Flash metering mode Metering mode selectable Auto 35 1. Full Auto, 2. Portrait, 3. Landscape, 4. Close-up, 5. Sports, 6. Night Portrait, 7. No Flash, 8. Program AE, 9. Shutter speed-priority AE, 10. Aperture-priority AE, 11. Manual, 12. Depth-of-field AE Specification Evaluative, partial at center, centerw eighted averaged Exposure Control Sensor Zones Metering range [EV] Metering Modes Shooting Modes ISO Speed CP/BJ Direct Compatibility PictBridge (PTP) Compatiblity E xposure C ompensati on (increments and range) AEB (increments and range) AE Lock BATTERY GRIP BG-E3 (size-AA batteries compatible) Table 001 Specifications Comparison of EOS D REBEL XT / 350 D and EOS DIGITAL REBEL/300D DIGITAL (2/2)

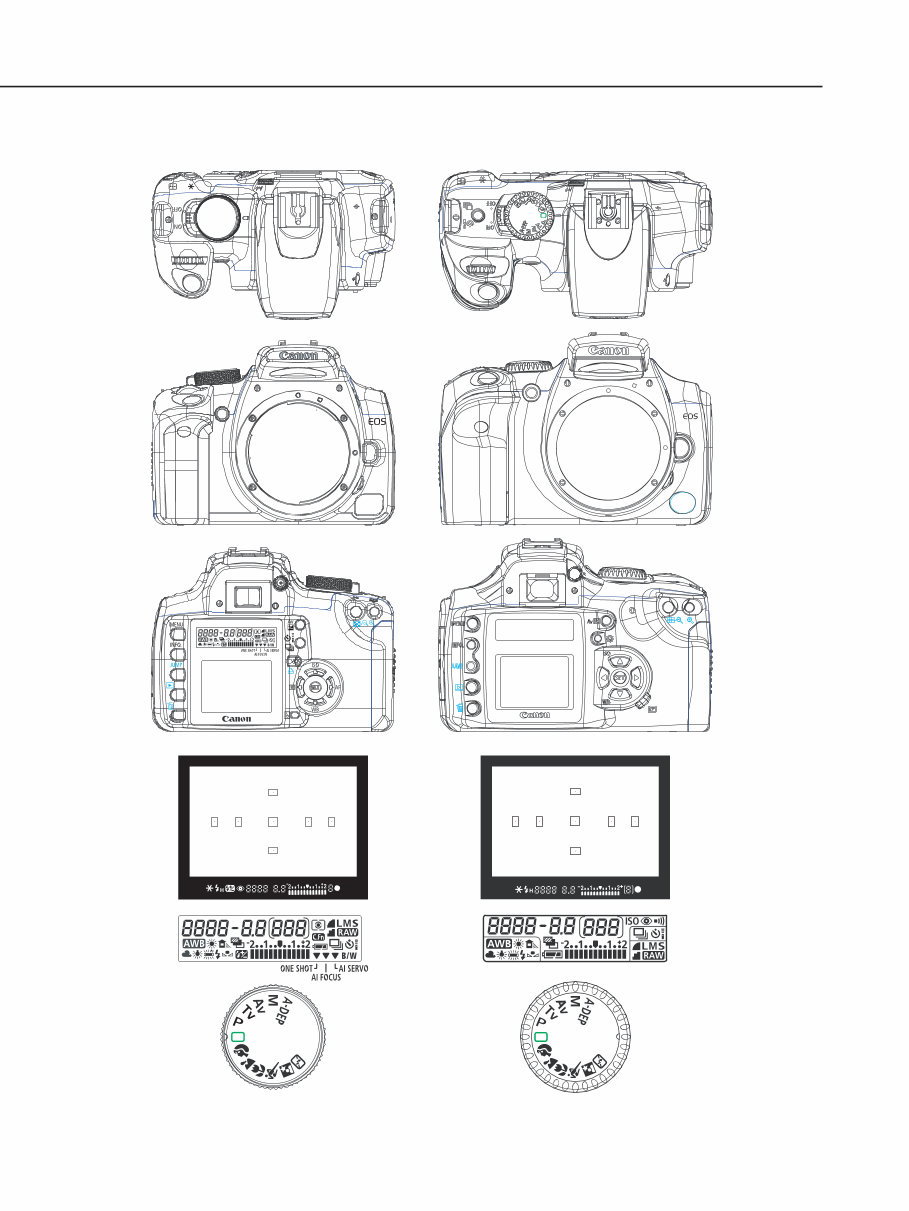

General Information 6 EOS DIGITAL REBEL/300D DIGITAL EOS D REBEL XT / 350 D Fig. 001 EOS D REBEL XT / 350 D exterior comparison with EOS DIGITAL REBEL/300D DIGITAL
