General Information Trademarks The product names and company names described in this CD-ROM are the registered trademarks of the individual companies. Copyright Canon Inc. retains the copyright to all data contained on this CD-ROM. Reproduction, publication (including on the World Wide Web) alteration, translation into another language, or other use of the data in whole or part, contained on this CD-ROM without the written consent of Canon Inc., is prohibited. Copyright © 2003 Canon Inc.

General Information I CONTENTS Page General Information 1. FEATURES .................................................................................................1 1.1 Entry level EOS digital SLR with sufficient digital features ..................1 1.2 Shooting specifications and basic function better than the EOS Kiss 5 ..........................................................................................1 1.3 Compact and Classy Design Performance .........................................1 1.4 Simple and easy operation ..................................................................2 1.5 Compatible with EF-S lenses ..............................................................2 1.6 Camera direct printing and PTP ..........................................................2 2. OVERVIEW .................................................................................................3 2.1 EOS KISS DIGITAL Body ...................................................................3 2.2 Accessories .......................................................................................11 2.3 EOS KISS DIGITAL Software ...........................................................12 3. SPECIFICATIONS ....................................................................................13 4. NOMENCLATURE AND DIMENSIONS ....................................................38 4.1 Nomenclature .....................................................................................38 4.2 Dimensions.........................................................................................39 5. VISUAL INDICATORS ..............................................................................40 5.1 Viewfinder Information........................................................................40 5.2 LCD Panel Information and Model Dial ..............................................41 5.3 LCD Monitor Menus ..........................................................................42 6. PROGRAM DIAGRAMS ............................................................................46 6.1 Program Diagrams .............................................................................46 6.2 E-TTL Program Diagrams ..................................................................47 7. SYSTEM ACCESSORIES COMPATIBILITY TABLES .............................48 7.1 System Accessories ...........................................................................48 7.2 EOS System Accessories .................................................................49 8. AGREED ITEMS .......................................................................................50 8.1 Agreed Answers for User Support .....................................................50 8.2 Built-in Flash and EF Lens Compatibility ...........................................54

General Information 1 1. FEATURES 1.1 Entry level EOS digital SLR with sufficient digital features ! Large, CMOS sensor (22.7 × 15.1 mm) with approx. 6.30 effective megapixels ! High-performance imaging processor (DIGIC) for precise and natural color reproduction ! Four processing parameters with 5 settings each (up to three sets of parameter settings can be used) ! Processing parameter for "vivid and crisp colors" added. ! Two color spaces (sRGB, Adobe RGB) ! White balance bracketing (WB-BKT) • Auto WB, six preset WB modes, custom WB ! ISO auto (for Basic Zone modes) ! Twelve menu display languages ! Compatible with 2 GB and higher CF cards ! Conforms to Exif Version 2.2 (Exif Print) and DPOF Version 1.1 ! ISO 100 - 1600 ! RAW+JPEG (Middle/Fine) simultaneous recording 1.2 Shooting specifications and basic function better than the EOS Kiss 5 ! High-speed AF with 7 AF points for wide coverage • AF speed and predictive AF on par with the EOS 10D • Superimposed illumination (same as EOS KISS 5) for the 7 AF points ! Shutter speed range: 1/4000 - 30 sec., bulb, X-sync at 1/200 sec. ! New metering algorithm and new flash metering algorithm with the 35-zone metering sensor ! Flash-off mode • Eleven AE modes and manual. ! Three drive modes: Single-frame, continuous-shooting, self-timer ! Dioptric adjustment from -3 dpt to +1 dpt. ! Wireless remote control ! Continuous shooting speed: Approx. 2.5 fps TD (Max. burst 4 shots) 1.3 Compact and Classy Design Performance ! Smallest and lightest EOS DIGITAL camera • Compared to the EOS 10D, the width, height, and depth are 7.7 mm, 8.5 mm, and 2.6 mm less respectively. The weight is also 230 g (30%) lighter. ! Simple and smart, and stylish and novel form. ! Titanium gray metallic finish for a high-grade look

1.4 Simple and easy operation ! Cross keys for easier menu selection and playback (magnifying position selection,etc.) operations. ! Tabs for easier menu item selection (Shooting, Playback, and Setting) ! Priority on quick shooting is retained like all other EOS DIGITAL cameras provided. 1.5 Compatible with EF-S lenses ! Compatible with wide-angle zoom EF-S 18-55mm f/3.5-5.6 (28-90mm in 135 format) 1.6 Camera direct printing and PTP ! Direct printing with the camera connected to a BJ-PD or CP-series printer ! With a PTP connection to a computer, view, upload to a computer, or delete an image in the camera • Enabled with Windows XP and Mac OS X. ! Compatible with PictBridge (to be incorporated) General Information 2

2. OVERVIEW 2.1 EOS KISS DIGITAL Body While retaining the same digital specifications as the EOS 10D, the EOS KISS DIGITAL is a lightweight and compact digital AF SLR affordable by ordinary consumers. In the digital EOS lineup, it is ranked lower than the EOS 10D. Table 001 compares the specifications between the EOS KISS DIGITAL and EOS 10D. General Information 3 Table 001 Digital Specifications Comparison 1/2 Image Sensor/Effective Pixels (Approx.) Image Size (mm) Infrared Cut/Low-pass Filter Recording Medium/Slot Type/Qty Recording Quality JPEG Recording in RAW Image Parameters Recording Max. CF card capacity Auto WB/Manual WB Preset WB Modes Color Temperature (Range/Increments in K) WB Bracketing Range Pentaprism Dioptric Adjustment [dpt] Eye Point [mm]/Coverage [%]/Magnification AF Point Superimposition AF Points AF Modes AF Mode Selection Metering Modes Metering Mode Selection Shooting Modes ISO Speed & Increments ISO Auto & Increments AEB/Flash Exposure Compensation Shutter Speed/X-sync Speed Noise Reduction Drive Modes Drive Mode Selection Continuous Shooting Speed (fps) Maximum Burst Battery Grip Guide No. (ISO 100) Flash Coverage [Lens angle covered till : mm] Auto Pop-up Screen Size/Pixels Brightness Adjustment Image Sensor Recording Format White Balance Viewfinder Autofocus Exposure Control Shutter Drive Built-in Flash LCD Monitor CMOS/6.30 megapixels 22.7 × 15.1 mm Reflective and absorption /3 liquld-crystal panels CF card/CF Type I, II/1 Large/Middle/Small/RAW Yes Yes 4/5/3 Up to 2 GB and higher DIGIC Yes/Yes 6 0 - +/-3 -3 - +1 7 One-Shot, Al Servo, Al Focus AF 35-zone evaluative, partial at center, centerweighted average metering P, Shutter-priority AE, Aperture-priority AE, A-DEP, Full Auto, Programmed image Control (6) Yes (1/3 stop) 1/4000 - 30 sec. (bulb), 1/200 sec. None (Unnecessary) Single, continuous, self-timer Auto/Manual 13 (m) / 43 (ft) 18 Yes 1.8 in., 118,000 pixels 5 levels Six JPEG formats selectable Standard - EF/EF-S Pentamirror 21 mm, 95%, 0.8x Illuminated spot in AF point Auto Auto 100 - 1600 (Whole stop) Yes/- 2.5 4 BATTERY GRIP BG-E1 Item EOS KISS DIGITAL EOS 10D Imaging processor Compatible Lenses Middle/Fine always recorded Parameter 1, 2 2800-10000/100 EF Prism 20 mm, 95%, 0.88x AF point illuminated Auto/Manual Auto/Manual 100 - 1600 (Whole stop), H: 3200 Yes/Yes 3 9 BG-ED3 Color Space Set by maker sRGB Adobe RGB Item/Steps/Sets

General Information 4 Table 001 Digital Specifications Comparison 2/2 Shooting (7), Playback (6), Setting 1 (6), Setting 2 (7), Tabs Display Modes Histogram/Highlight Alert Enlarged Display/Scrolling/Magnified Playback Automatic Rotation Image Protect Image Erase Types, Selection method Menu Display Language Exif Ver. 2.2 DPOF Ver. 1.1 Camera Direct (Dye-sublimation, BJ-PD) PictBridge USB & Communications Setting Video Out (NTSC/PAL) Remote Control Terminal Wireless Remote Control Battery Date/Time Backup Battery Material Color LCD Panel Illumination Playback Image Protect/Erase Menus Printing External Interface Power Source Exterior Custom Functions Chassis Material Dimensions W × H × D Weight Operating Temperature/Humidity Single image, Info, 9-image index, Enlarged Yes Zoom/Manual/Yes Yes Single image Single image/All images/Initialize 12 Yes Yes Yes Yes BP-511/512 Yes Stainless steel + Plastic 0 C - 40 C/32 - 104 F, 85% or lower Shooting (8), Playback (4), Setting (14), Scrolling Provided with firmware update Yes - Yes (Standard connection/PTP connection) RS-60E3 RC-1, RC-5 CR2016 Plastic Titanium gray metallic 142 × 99 × 72.4 mm/ 5.6 × 3.9 × 2.9 inch 560g / 19.7oz Yes Yes (None) N3 type - CR2025 Magnesium Black 149.7 × 107.5 × 75 mm/ 5.9 × 4.2 × 3.0 inch 790g / 27.9oz EOS 10D Fig. 001 Size Comparison with EOS 10D

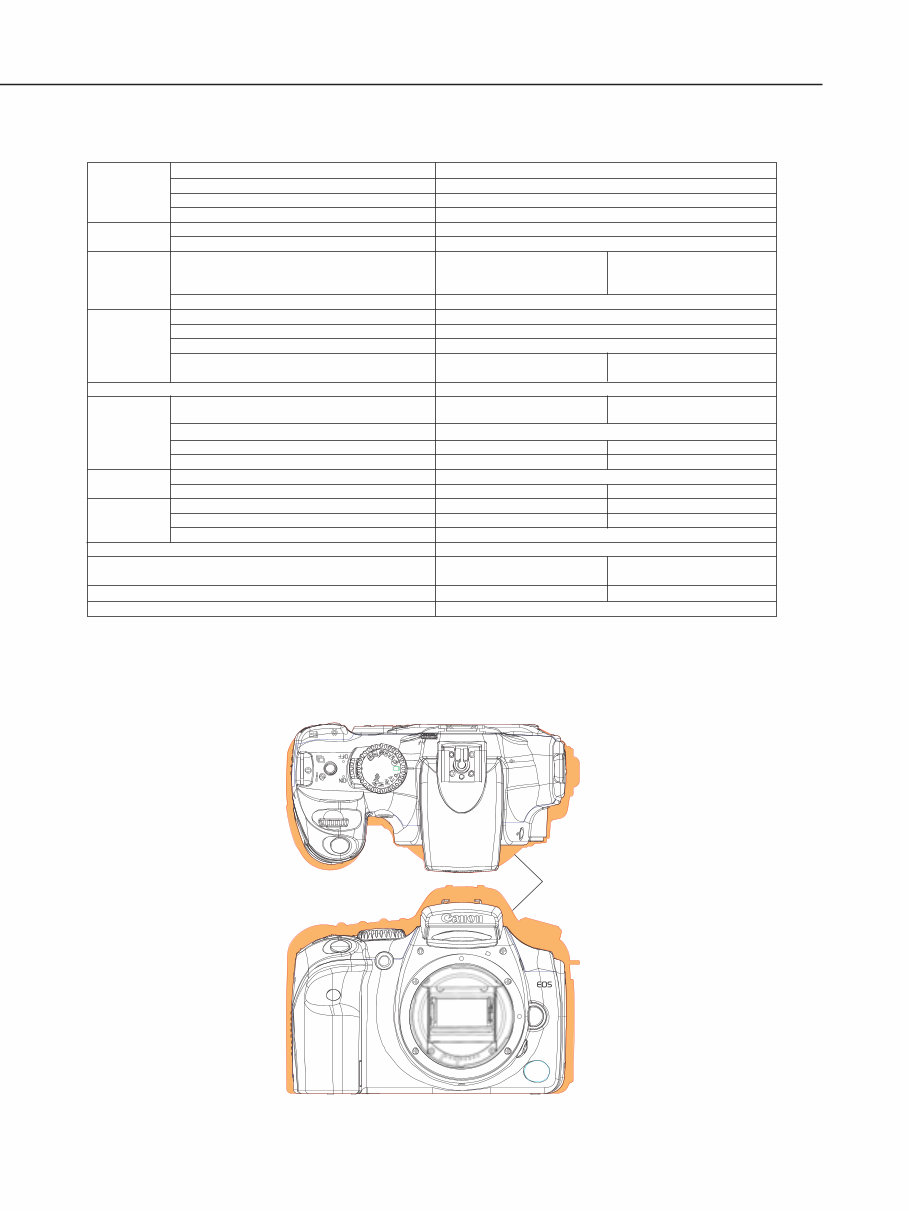

General Information 5 EOS 10D EOS KISS DIGITAL Fig. 002 Comparison of body size, viewfinder, LCD panel, and Mode Dial

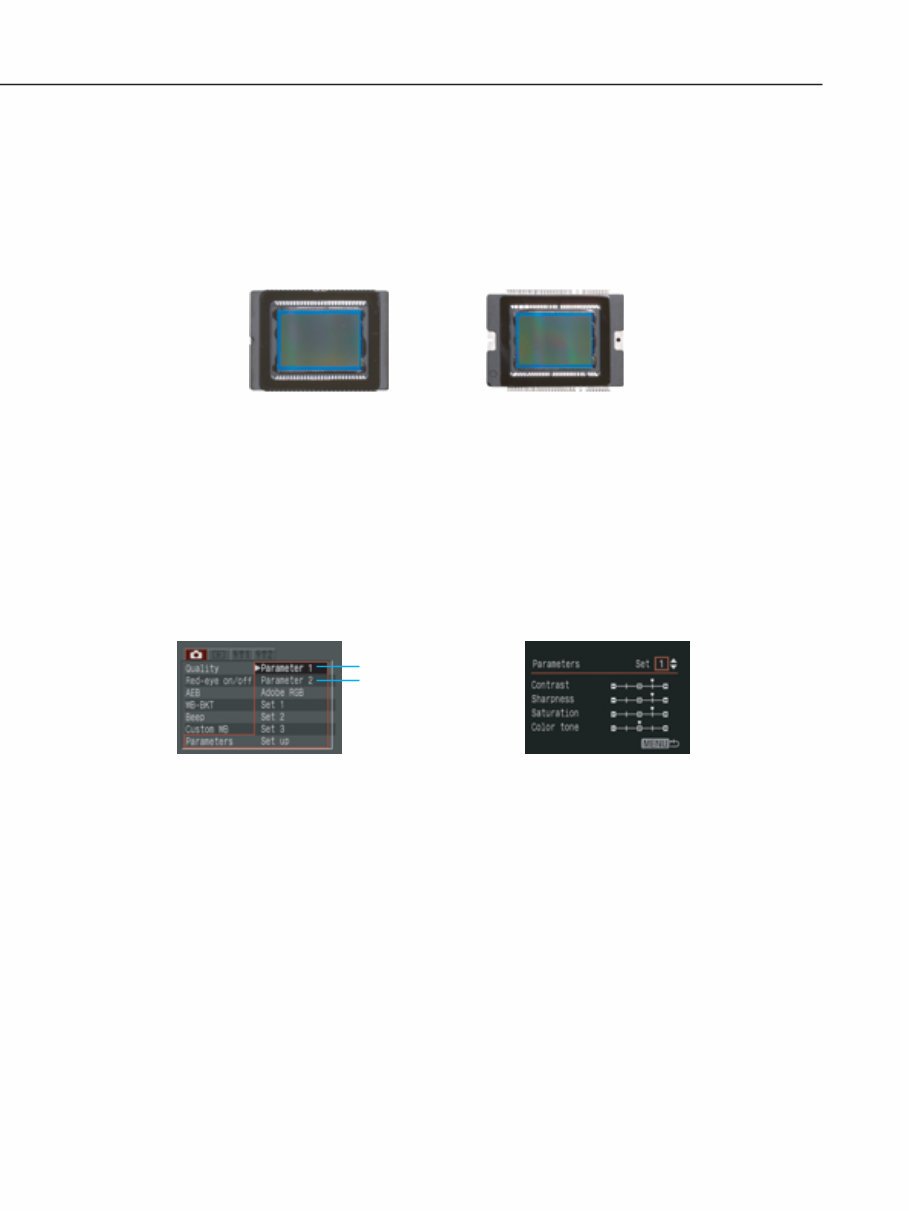

1) Digital features (1) Large, CMOS sensor with approx. 6.30 megapixels Like the EOS 10D, the EOS KISS DIGITAL uses a CMOS sensor having approx. 6.30 effective megapixels (out of a total of 6.50 megapixels). (See Fig. 003) To reduce sensor costs, the chip size has been made smaller without changing the image format. More sensor chips can thus be made from a single wafer. (2) Processing Parameters The processing parameters set by the maker consists of the "Standard" type for the EOS 10D and a new processing parameter type for obtaining vivid and crisp colors. (Fig. 005) In the Basic Zone modes, Parameter 1 is set automatically. This is good for users who know little about setting processing parameters and image editing. Note: Parameter 1 adds one stop to the user setting's processing parameter's contrast, sharpness, and color saturation settings. (The settings themselves cannot be changed.) (3) Recording quality and recordable capacity further expanded Except for the JPEG quality (Middle/Fine only, same as with the EOS D60) in the RAW+JPEG mode, the recording quality and file sizes are the same as with the EOS 10D. Note: With the EOS 10D, a Custom Function enabled the RAW+JPEG mode to be used with all JPEG quality settings. Since the EOS KISS DIGITAL does not have Custom Functions, only the JPEG Middle/Fine setting is possible with RAW. (4) White balance Everything is the same as with the EOS 10D except that the color temperature cannot be set manually. General Information 6 Fig. 004 EOS KISS DIGITAL CMOS Sensor Fig. 003 EOS 10D CMOS Sensor Fig. 005 Processing Parameter Selection Screen Fig. 006 Parameter 1 Setting. Vivid and crisp colors Standard parameters

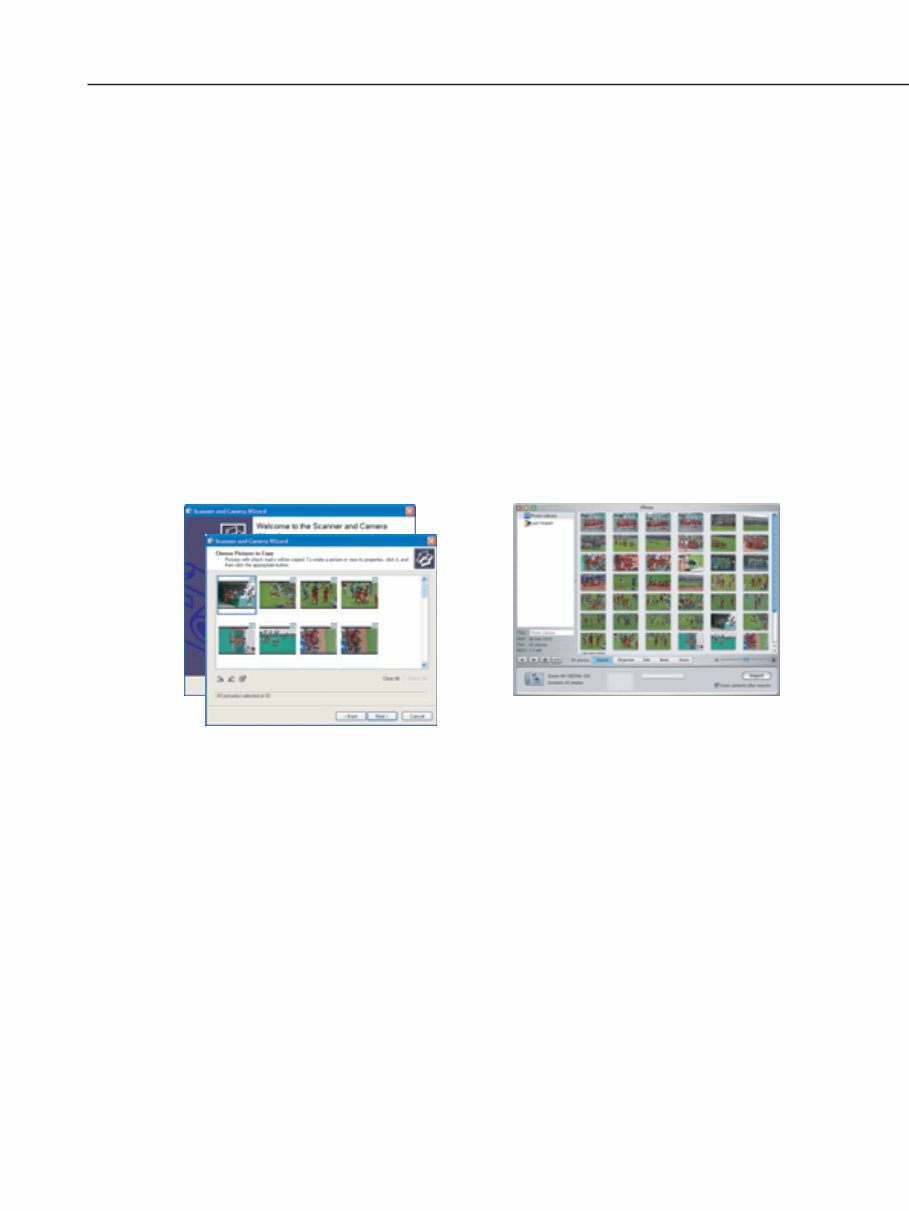

(5) ISO speed In addition to ISO 100, 200, 400, 800, and 1600 is also provided. Note: To reduce costs, the installation of the CMOS sensor is different from the EOS 10D. Since noise at fast ISO speeds will be more than with the EOS 10D, the ISO speed extension feature has not been provided. (6) External interface The USB digital terminal will be compatible with PTP connections and PictBridge. The PTP (Picture Transfer Protocol) connection is already incorporated in the PowerShot G3 (Menu/Communications/PTP). It does not require a dedicated driver, so you can just connect the camera to the personal computer and then view, upload, or delete the images in the camera. It is compatible with Windows XP and Mac OS X. When the OS recognizes the camera, "Scanner and Camera Wizard" starts up automatically in Windows XP or "iPhoto" starts up in Mac OS X. (7) PictBridge PictBridge is a standard that enables direct printing of images from the camera regardless of the brand of the camera and printer. The EOS KISS DIGITAL's PictBridge specifications are basically the same as Canon Camera Direct. The only difference over Canon Camera Direct is that you also can select the paper type (plain paper, pro photo paper, etc.) and Printing Effects (Image optimization). If you connect the camera to a CP-series, PictBridge-compatible Canon printer (wallet-size photo printer), the image will be printed according to Canon Camera Direct specifications (printing speed is faster than PictBridge). Note1: For direct printing via PictBridge, the menu's [Communications setting} must be set to [PTP]. Note2: PictBridge is supported by Canon, Fuji Photo Film, Hewlett-Packard, Olympus, Seiko Epson, and Sony. General Information 7 Fig. 007 Automatic ISO Speed Setting(Windows XP) Fig. 008 Automatic ISO Speed Setting(Mac OS X) Mac OS X iPhoto Windows XP Scanner and Camera Wizard

2) Shooting functions The AF unit, metering sensor, and shutter unit are the same as the EOS 10D's. The AF modes (not user selectable), metering modes, shooting modes, and operation method are the same as the EOS KISS 5's. The exposure can be set in 1/3-stop increments. (1) Compatible with EF-S (Short back focus) lenses The EOS KISS DIGITAL's lens mount is compatible with EF lenses and the newly developed EF-S lens, which optimally matches the sensor size. The EF-S lens has a shorter back focus, and the image circle is also smaller to match the EOS KISS DIGITAL's image format of 22.7 ~ 15.1 mm. This enables the lens to have a shorter overall length and a smaller width even for the wide angle end. The EF-S 18- 55mm f/3.5-5.6 (28-90mm in 135 format) will be marketed at the same time as the camera as the optimum lens. The EOS KISS DIGITAL's main reflex mirror has a rear swing-up mechanism that works while the mirror is up. This is to prevent the mirror from hitting the EF-S lens' rear lens element. If the EF-S lens is used with the EOS 10D or other EOS camera, the main mirror will hit the EF-S lens' rear lens element. Therefore, the EF-S lens has been designed so that it cannot be physically attached to other EOS cameras. The back of the lens will hit the camera lens mount's inner plate (the lens cannot fit into the mount position). The EF-S lens can be mounted on the EOS KISS DIGITAL by aligning it with the dedicated index mark (Fig. 009). Note:Back Focus is the distance between the vertex of the rear lens element surface and the focal plane. The minimum designed back focus for EF lenses is 38 mm, and for EF-S lenses, 33.5 mm. (The back focus of the EF-S 18-55mm f/3.5-5.6 lens is 35 mm.) (2) Built-in Flash The distance between the optical axis to the built-in flash's center is about 86.5 mm, on par with the EOS KISS 5's 87.15 mm. This reduces the chances of red eye occurring and the chances of the attached lens obstructing the flash coverage. General Information 8 EF lens mount index mark. EF-S lens mount index mark. Fig. 009 Lens Mount Index Mark Fig. 010 With the built-in flash popped up.
