SERVICE MANUAL LEVEL 3 Link Link MODEL INFORMATION TABLE PRINTED WIRING BOARDS SCHEMATIC DIAGRAMS REPAIR PARTS LIST Sony EMCS Co. 2007B0800-1 © 2007.02 Published by Kohda TEC 9-852-135-12 Revision History Revision History How to use Acrobat Reader How to use Acrobat Reader DCR-HC27E/HC28/HC28E_L3 Ver 1.2 2007.02 DIGITAL VIDEO CAMERA RECORDER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. N MECHANISM (MDX-N110) US Model Canadian Model AEP Model UK Model East European Model North European Model Russian Model E Model Australian Model Argentine Model Brazilian Model Chinese Model Hong Kong Model Korea Model Photo: DCR-HC28E DCR-HC27E/HC28/HC28E

— 2 — DCR-HC27E/HC28/HC28E_L3 • Abbreviation AR : Argentine model AUS : Australian model BR : Brazilian model CH : Chinese model CND : Canadian model EE : East European model HK : Hong Kong model J : Japanese model JE : Tourist model KR : Korea model NE : North European model RU : Russian model Model information table Model DCR-HC27E DCR-HC28 DCR-HC28E Destination AEP, UK, EE, NE, US, CND, E, AR NE, RU, E, CH, HK RU BR, KR Color system PAL NTSC PAL DV Interface OUT IN/OUT IN/OUT

— 3 — DCR-HC27E/HC28/HC28E_L3 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are "pinched" or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the B+ voltage to see it is at the values specified. 6. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

— 4 — DCR-HC27E/HC28/HC28E_L3 TABLE OF CONTENTS 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-2. Schematic Diagrams ························································ 4-3 4-3. Printed Wiring Boards ··················································· 4-25 4-5. Mounted Parts Location ················································ 4-35 5. REPAIR PARTS LIST 5-2. Electrical Parts List ······················································· 5-14 Section Title P age

DCR-HC27E/HC28/HC28E_L3 Link Link 4-2. SCHEMATIC DIAGRAMS VC-416 BOARD (4/12) (REC/PB AMP) VC-416 BOARD (2/12) (LENS DRIVE, EVR) VC-416 BOARD (1/12) (A/D CONVERTER, TIMING GENERATOR) VC-416 BOARD (5/12) (VIDEO OUT, AUDIO I/O) VC-416 BOARD (3/12) (DV SIGNAL PROCESS, DV INTERFACE) VC-416 BOARD (6/12) (LCD/EVF DRIVE) VC-416 BOARD (8/12) (SERVO) VC-416 BOARD (10/12) (DC IN) VC-416 BOARD (9/12) (HI CONTROL) VC-416 BOARD (7/12) (CAMERA/MECHA CONTROL) VC-416 BOARD (11/12) (DC/DC CONVERTER) VC-416 BOARD (12/12) (CONNECTOR) COMMON NOTE FOR SCHEMATIC DIAGRAMS

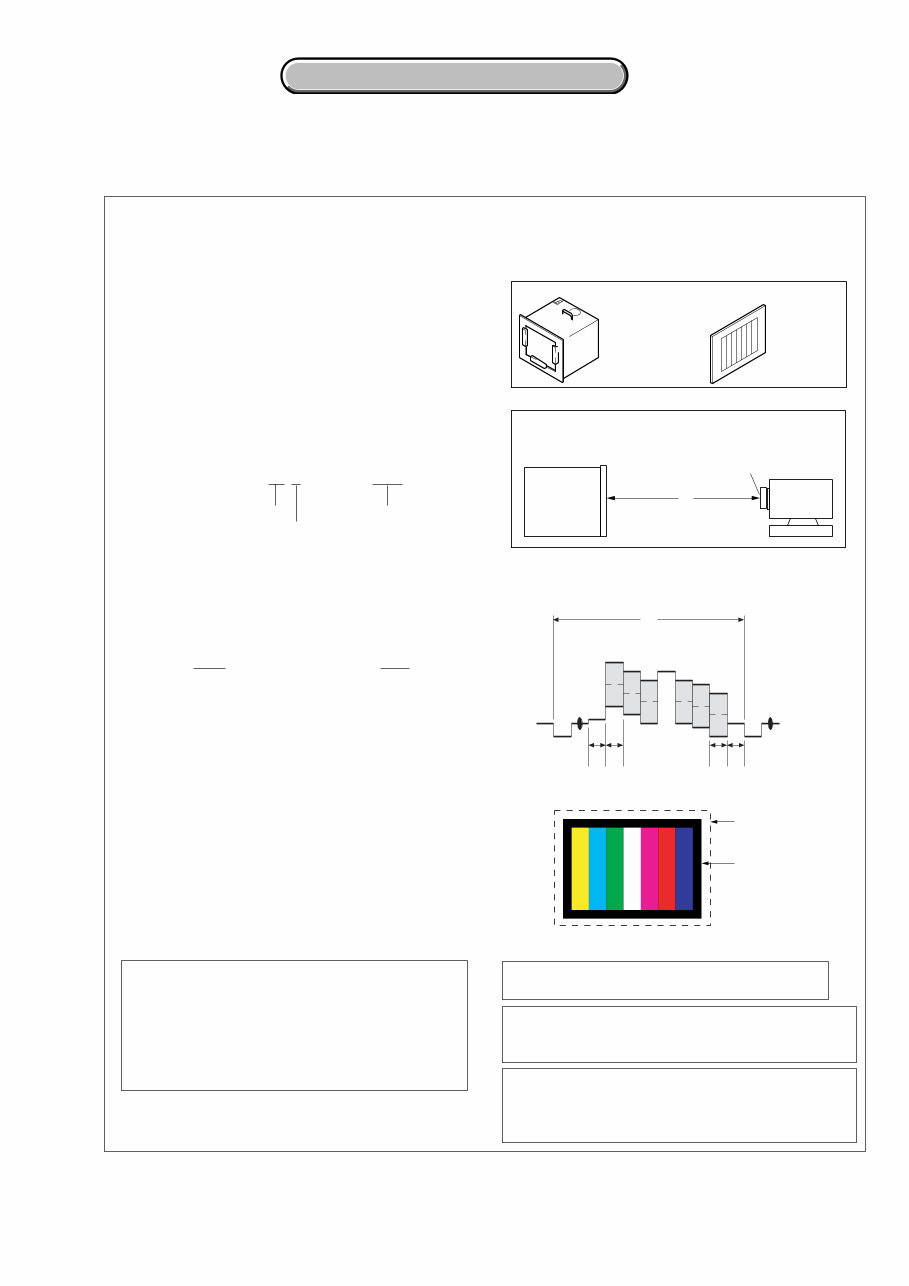

4-3 DCR-HC27E/HC28/HC28E_L3 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 1. Connection 2. Adjust the distance so that the output waveform of Fig. a and the Fig. b can be obtain. When indicating parts by reference number, please include the board name. (For schematic diagrams) • All capacitors are in µF unless otherwise noted. pF : µ µF. 50 V or less are not indicated except for electrolytics and tantalums. • Chip resistors are 1/10 W unless otherwise noted. kΩ=1000 Ω, MΩ=1000 kΩ. • Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, Because it is damaged by the heat. • Some chip part will be indicated as follows. Example C541 L452 22U 10UH T A A 2520 • Constants of resistors, capacitors, ICs and etc with XX indicate that they are not used. In such cases, the unused circuits may be indicated. • Parts with ★ differ according to the model/destination. Refer to the mount table for each function. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • Signal name XEDIT → EDIT PB/XREC → PB/REC • 2: non flammable resistor • 5: fusible resistor • C: panel designation • A: B+ Line • B: B– Line • J : IN/OUT direction of (+,–) B LINE. • C: adjustment for repair. • A: not use circuit (Measuring conditions voltage and waveform) • Voltages and waveforms are measured between the measurement points and ground when camera shoots color bar chart of pattern box. They are reference values and reference waveforms. (VOM of DC 10 MΩ input impedance is used) • Voltage values change depending upon input impedance of VOM used.) Kinds of capacitor Case size External dimensions (mm) Yellow A A B B A=B Fig. a (Video output terminal output waveform) H Cyan Green White Magenta Red Blue Fig.b (Picture on monitor TV) CRT picture frame Electronic beam scanning frame THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) Pattern box Pattern box PTB-450 J-6082-200-A or Small pattern box PTB-1450 J-6082-557-A Color bar chart For PTB-450: J-6020-250-A For PTB-1450: J-6082-559-A Pattern box Front of the lens L = 1 m (PTB-450) L = 40 cm (PTB-1450) L Camera Precautions for Replacement of Imager • If the imager has been replaced, carry out all the adjustments for the camera section. • As the imager may be damaged by static electricity from its structure, handle it carefully like for the MOS IC. In addition, ensure that the receiver is not covered with dusts nor exposed to strong light. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifi és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifie. 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

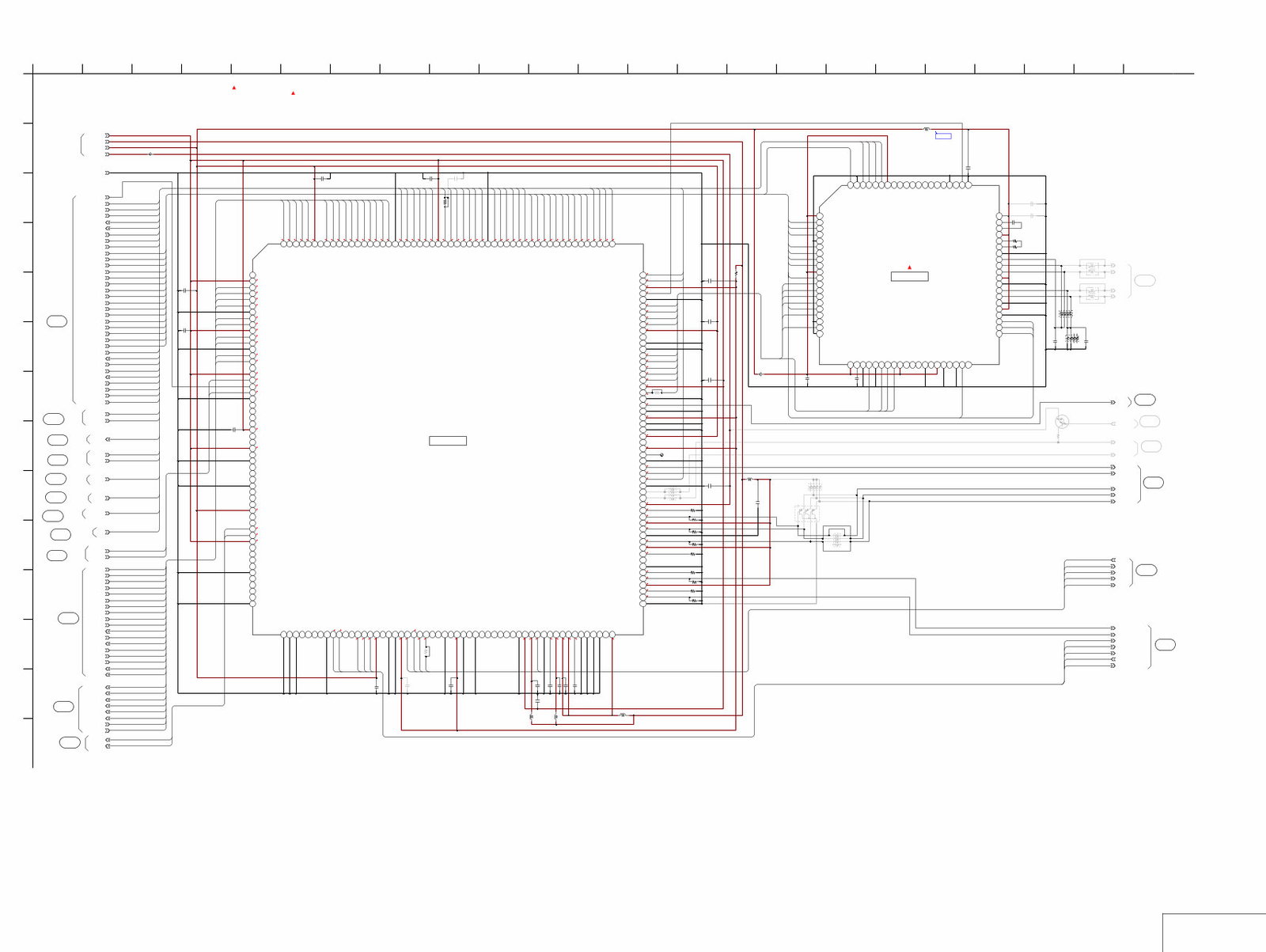

DCR-HC27E/HC28/HC28E_L3 4-6 VC-416 (1/12) XX C3011 C3008 XX R3004 XX R3012 XX XX R3013 XX R3014 XX R3017 XX C3030 XX R3015 XX R3016 XX C3029 XX C3028 XX C3027 NO MARK:REC/PB MODE R:REC MODE P:PB MODE 2.8 0 2.7 2.8 2.8 1.3 1.8 1.5 0 0 2.8 R2.7/P0 1.6 2.8 2.8 2.7 R2.2/P0 R1.7/P0 R1.7/P0 2.8 R1/P0 2.8 2.8 R1.5/P0 R0.9/P0 R0.1/P0 R0.3/P0 R2.0/P0 R0.2/P0 R1.0/P0 R1.1/P0 R1.1/P0 R1.1/P0 R0.4 /P0 2.8 2.8 2.8 R1.7/P0 R1.7/P0 R1.6/P0 R1.4/P0 1.6 0.3 2.8 1.2 1.5 R2.2/P0 R2.7/P0 1.2 2.8 2.9 2.8 2.6 0 2.8 0 R2.8/P0 R1.3/P0 R2.8/P2.7 R2.7/P2.8 R-0.3/P0 R-0.3/P0 R-7/P0 R-7.4/P0.3 R14.7/P0 R-7/P0 R-7.4/P0.3 R2.7/P0 2.5 0 AD0 XCS_TG AD9 FB3004 1u C3020 0.1u C3013 C3004 68p CAM_SCK 0.33u C3002 1u C3005 0.1u C3019 0.33u C3016 AD1 0.1u C3023 AD6 VSP995PTR IC3002 1 DVSS 2 D0 3 D1 4 D2 5 D3 6 D4 7 D5 8 D6 9 D7 10 D8 11 D9 12 DVSS 13 DRVDD 14 DRVSS 15 DVSS 16 ADCLK 17 DVDD 18 DVDD 19 PBLK 20 CLPOB 21 XSHP 22 XSHD 23 CLPDM 24 AVDD 25 AVSS 26 AVSS 27 AVDD 28 L1+ 29 L2+ 30 CCD_IN 31 CCD_GND 32 L 33 AVDD 34 LINE 35 AVSS 36 CHROMA 37 CMLEVEL 38 REFP 39 REFN 40 AVDD 41 AVSS 42 AVSS 43 RSTB 44 LATCHSELECT 45 SYSV 46 XCE 47 SI 48 XSCK CH_SO CAM_DD_ON CAM_15V CAM_SO C3014 0.01u X3001 36MHz C3003 68p 47 R3005 D_2.8V TG_ID R3007 470k 0.1u C3012 AD4 REG_GND AD5 100k R3001 AD3 AD7 TG_ZSG1 1SV329(TPL3) D3001 1u C3007 0.1u C3022 CAM_-7.5V TG_VGAT CH_SCK 0.01u C3001 L3001 10uH TG_ZV1 VCK C3009 0.01u AD2 CXD2444AR-T4 IC3001 1 CLPDM 2 PBLK 3 VSS1 4 OSCI 5 OSCO 6 VSS2 7 CK 8 TEST 9 CHCK 10 VDD1 11 SYSCK 12 VICK(CL) 13 VDD2 14 VSS3 15 XSHP 16 XSHD 17 XRS 18 RG 19 VDD3 20 VDD4 21 H1 22 H2 23 VSS4 24 NC 25 V2 26 V1 27 VH 28 V3 29 VL 30 VM 31 V4 32 NC 33 XSHT 34 XSG1 35 SSO 36 VGAT 37 SSK 38 SSI 39 SEN 40 RST 41 XV1 42 DSGAT 43 VDD5 44 AHD 45 AVD 46 CKCONT2 47 CKCONT1 48 ID XRST_VTR CS_CH AD8 4.7u C3006 TG_AVD A_2.8V FE_CLPOB TG_AHD 0.1u C3021 FB3003 FREQ_AMPOUT CL3001 0.1u C3026 FB3005 1 A CAM_SI 14P CN3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 10u C3024 XRST_VTR AD2 XSHP AD3 AD4 XCS_TG CAM_SO V3 AD4 CAM_SO AD3 AD2 AD8 CH_SCK CH_SO AD7 CS_CH AD6 CH_SCK XRST_VTR XSHD V1 XCS_TG VSHT AD5 XSHP V4 AD5 AD6 CAM_SI XSHD AD7 AD8 AD9 AD9 AD1 CAM_SCK CAM_SCK AD0 AD0 CS_CH AD1 V4 V3 V2 V1 VSHT V2 CAM_SI CH_SO (11/12) (2/12) @001 @002 (7/12) @005 (3/12) @007 (7/12) (11/12) IC3001 TIMING GENERATOR IC3002 S/H.AGC,A/D CONVERTER 08 9 13 2 7 D 4 12 3 A/D CONVERTER,TIMING GENERATOR J K B H I 8 XX MARK:NO MOUNT 6 5 E F VC-416 BOARD (1/12) 10 11 G C 14 H2 GND VSHT VH CCD_OUT GND H1 V3 GND VL RG V2 V1 V4 of LEVEL2 PAGE 4-5 CN101 CD-631 FLEXIBLE FLAT CABLE THROUGH THE (FFC-063) (7/12) (3/12) @003 @004 (3/12) (7/12) (3/12) @006 (7/12) (8/12) (2/12)

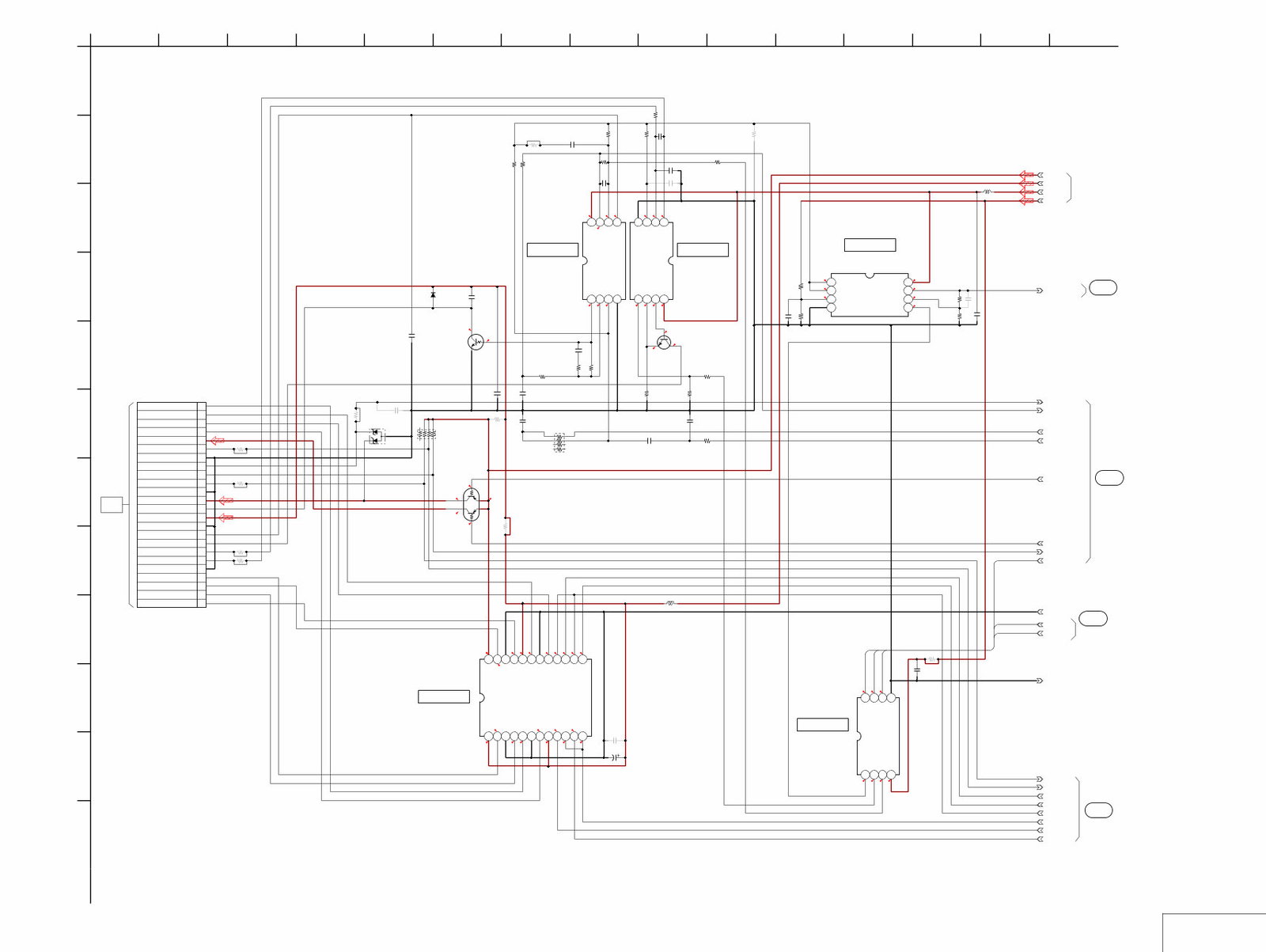

DCR-HC27E/HC28/HC28E_L3 4-7 VC-416 (2/12) XX C3108 XX R3135 XX C3121 XX R3105 R3102 XX XX C3115 XX R3112 XX R3136 XX R3137 XX R3138 XX C3122 XX R3141 R3101 XX XX R9201 LENS BLOCK is replaced as block, so that there PRINTED WIRING BOARD and SCHEMATIC DIAGRAM are omitted. NO MARK:REC/PB MODE R-2.0 /P-1.0 0 2.8 2.8 2.8 4.8 0 0 R1.8/P1.2 R1.6/P1.2 R1.7/P1.2 R0.4/P0 R0.4/P0 R1.8/P1.2 R0.5/P1.4 4.8 0.5 0.5 R0.5/P1.4 4.8 0 0 R0.1/P0 R0.8/P0 R4.0/P4.9 R0.2 /P0 0 0.6 0.6 0.8 0.8 0.8 4.6 1.9 1 1.1 2.8 0 2.6 0 1.1 1 0.2 2.8 4.6 R1.4/P0.2 0.9 0.9 0.8 0.8 1.1 R0.2/P0 R1.4/P0.2 R1.4/P0 0 0 0.6 4.6 4.7u C3118 470p C3107 LD_DIR1A 0.047u C3109 L3101 4.7uH FC_RST 470k R3123 220k R3109 0.1u C3120 NJM12904V(TE2) IC3103 1 A_OUT 2 A_IN- 3 A_IN+ 4 GND 5 B_IN+ 6 B_IN- 7 B_OUT 8 Vcc 1k R3127 ±0.5% 22k R3120 2200 R3107 ZM_RST UPD16877MA-6A5-E2 IC3101 1 VM1 2 OUT 1A 3 PGND 4 OUT2A 5 OUT3A 6 PGND 7 OUT4A 8 VM4 9 IN1 10 EN1 11 IN2 12 EN2 13 IN3 14 EN3 15 IN4 16 EN4 17 OUT4B 18 PGND 19 OUT3B 20 VM23 21 OUT2B 22 PGND 23 OUT1B 24 VDD 4.7u C3104 REG_GND 1k R3128 470k R3111 LD_EN0 Q3102 UP04116008S0 6 2 1 3 5 4 ±0.5% 10k R3121 C3114 0.022u 0.01u C3113 LD_DIR0B XNS_SW 10uH L3102 LD_DIR1B 1k R3116 1M R3106 330 R3115 0.1u C3105 A_4.6V LENS_TEMP_AD 10k R3108 LD_DIR0A 0.1u C3106 15k R3113 A_2.8V 0.0047u C3103 33u 10V C3123 2SC5658T2LQ/R Q3103 ZM_RST_LED 470k R3110 IRIS_PWM 10k R3117 HALL_AD 0.001u C3111 330k R3122 0.0022u C3116 47k R3118 470k R3114 FREQ_AMPOUT 0.022u C3101 FC_RST_LED MA2S111-(K8).SO D3102 LD_EN1 0.47u C3112 IRIS_COM MT_5V 47k RB3101 1 2 3 4 5 6 7 8 RN1119FV(TL3SONY) Q3101 22k RB3102 1 2 3 4 5 6 7 8 CAM_SO CAM_SCK REG_GND NJW5210RB1 IC9201 1 AO1 2 AO2 3 AO3 4 VCC 5 GND 6 DI 7 CLK 8 LD 4.7u C9201 DA_STRB D_2.8V 1 A 24P CN3101 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 DF3A3.3FV(TL3SONY) D3101 3 2 1 NJM12904V(TE2) IC3104 1 A_OUT 2 A_IN- 3 A_IN+ 4 GND 5 B_IN+ 6 B_IN- 7 B_OUT 8 Vcc NJM12904V(TE2) IC3105 1 A_OUT 2 A_IN- 3 A_IN+ 4 GND 5 B_IN+ 6 B_IN- 7 B_OUT 8 Vcc DA_STRB CAM_SCK CAM_SO DA_STRB CAM_SO CAM_SCK HALL REG,XTAL AMP IC3103 IC9201 LENS BLOCK (11/12) (1/12) @001 (MT_GND) @008 (7/12) @003 (1/12) @009 (3/12) EVR (D/A CONVERTER) FOCUS/ZOOM MOTOR DRIVE IC3101 SENSOR SWITCH IRIS DRIVE HALL GAIN CONTROL H C 6 12 2 XX MARK:NO MOUNT 9 14 11 7 G 4 L 10 I 15 08 K 8 VC-416 BOARD (2/12) D F B 13 LENS DRIVE,EVR E 5 J 3 GND FC_B ZM_XA FC_SENS_Vcc FC_XB I_BIAS(+) GND I_DRIVE(-) FC_SENS_OUT I_BIAS(-) ZM_A GND I_HALL(+) ZM_SENS_OUT GND FC_A ZM_B I_DRIVE(+) ZM_SENS_Vcc THERMO_OUT FC_XA I_HALL(-) ZM_XB NightShot_Vcc IRIS DRIVE, IC3104 IC3105 HALL HALL AMP BIAS/GAIN CONTROL (3/12) (7/12)

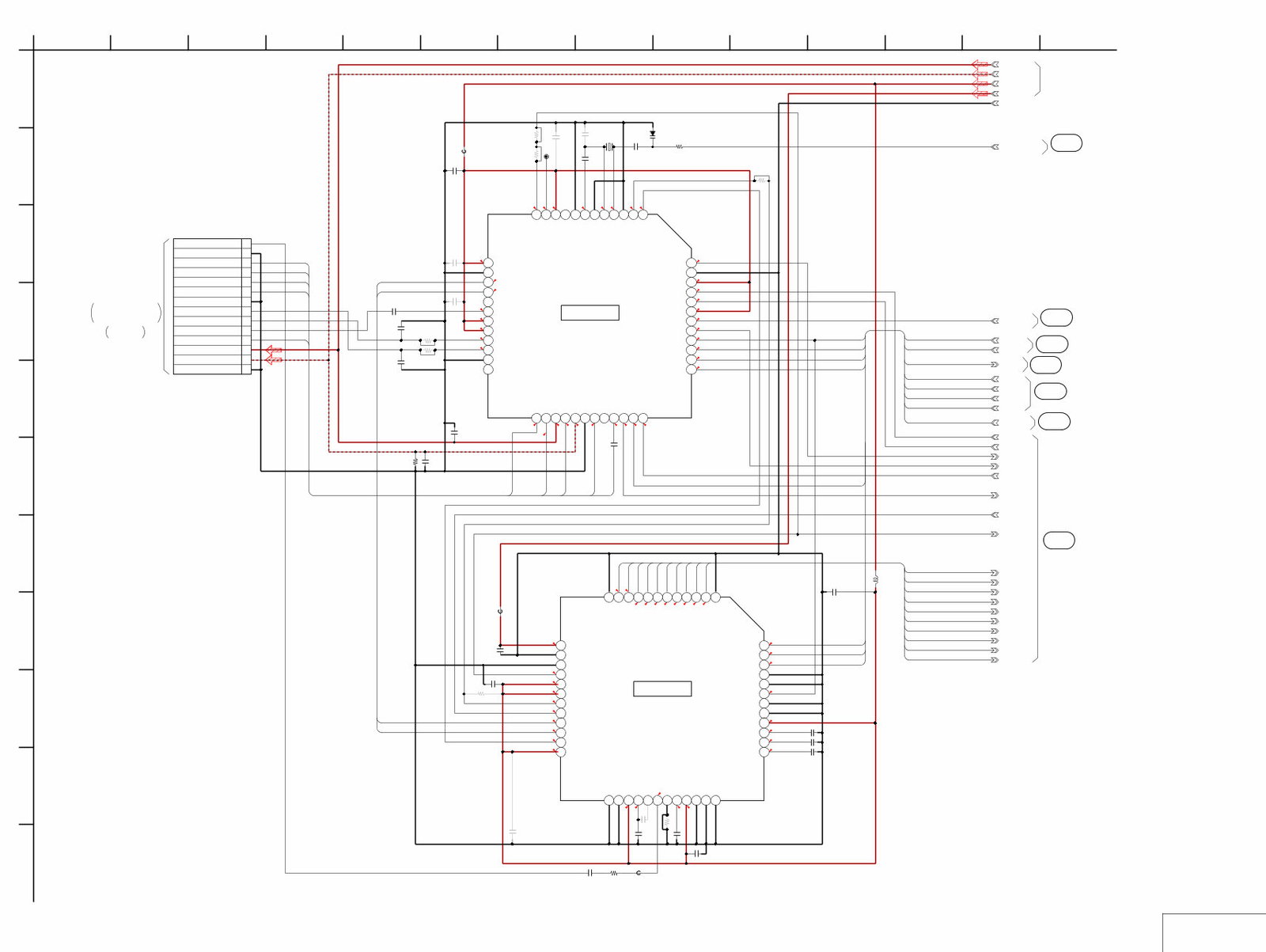

DCR-HC27E/HC28/HC28E_L3 4-8 VC-416 (3/12) Q6003 XX XUSB_ON USB_D+ USB_D- XX R6023 XX C6007 R6005 XX R6002 XX RB6002 XX 1 2 3 4 5 6 7 8 RB6001 XX 1 2 3 4 5 6 7 8 XX Q6001 3 2 4 5 7 6 1 8 C6009 XX XX C6030 XX C6031 LF6001 XX 1 3 4 2 LF6002 XX 1 3 4 2 RB6005 XX 1 2 3 4 5 6 7 8 @019 (7/12) (12/12) @020 TPB+ TPA+ TPB- TPA- (12/12) @017 :Voltage measurment of the CSP ICs and the Transistors with mark,are not possible. NO MARK:REC/PB MODE R:REC MODE P:PB MODE 1.5 1.5 0 0 2.8 2.8 1.5 0.1 2.4 2.6 1.5 1.5 1.5 R2.7/P2.8 R2.5/P2.8 R0.4/P0 R1.1/P0 R0.4/P0 R2.4/P0 R1.4/P2.8 R1.5/P2.8 2.8 1.4 1.4 2.8 1.3 2.8 2.8 2.8 1.3 2.8 2.8 0 2.7 0 2.8 2.8 1.2 2.8 2.8 2.6 2.8 2.8 3.1 1 0.1 2.8 0.1 0.1 2.8 0 0 0.4 2.8 1 0.3 1.5 2.8 1.6 0.1 0 2.8 2.7 0 2.8 2.6 0.1 2.6 2.5 2.6 1.4 2.8 2.7 2.7 2.8 2.8 0 2.5 2.8 0 0.5 1.4 1.4 2.8 2.7 2.2 2.2 2.2 2.8 2.7 2.2 2.2 0.7 2.2 2.2 2.2 0 R1.6/P2.5 R2.7/P0 R1.3/P0 R1.1/P0 R1.1/P0 R1.1/P0 R1.1/P0 R1.1/P0 R1.1/P0 R1.5/P0 R0.4/P0 R0.8/P0 0.7 0.6 1.4 1.4 0.9 2.8 2.8 R2.7/P0 R2.7/P2.8 R1.2/P0 R1.3/P0 2.8 1.4 2.8 R2.6/P1.3 R0/P1.8 R2.8/P0.9 2.8 2.8 2.8 2.8 XRST_VTR VREF VSP_SI PANEL_B 0.01u C6012 REG_GND FB6002 4.7u C6021 ±0.5% 130 R6020 D30A06 XCS_IC6001 IC6002_SLEEP RDX TRRV SFD_BCK XRST_PHY RECCK XRST_LINK OFR SFD_LRCK XVSP_SCK 0.01u C6022 LPS D27A03 WRX D25A01 XCS_VFD ALE IC6001_C_OUT R6014 ±0.5% 470 D26A02 10uH L6006 DATA_TO_SFD DATA_FROM_SFD TRRT PANEL_VD RECA1 SWP 1u C6027 IC6001_Y_OUT RECDT SFD_FCK XCS_IC6002 RECA2 D29A05 220p C6028 PANEL_HD D_2.8V DRP ±0.5% R6021 6200 VSP_SO C6018 0.01u 270 R6012 470 R6013 ±0.5% 680 R6010 D31A07 XCS_SFD PANEL_R DXXA08 D_1.5V PANEL_G DXXA09 FRRV R6015 ±0.5% 470 LINE_OUT_VD XDVCN D24A00 A_2.8V D28A04 USB_3.1V XCS_IC6001-2 CAM_SCK CAM_SO XIRQ_IC6001 AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 TG_ID TG_ZSG1 TG_ZV1 VCK LD_DIR0A LD_DIR0B LD_DIR1A LD_DIR1B LD_EN0 LD_EN1 TG_AVD TG_AHD TG_VGAT FE_CLPOB VD_SO XCS_VD VD_SCK 0.01u C6019 RFIN 10uH L6002 0.1u C6020 4.7u C6011 4.7u C6014 4.7u C6015 ±0.5% R6004 10k R6008 10k R6009 10k R6011 4700 4.7u C6010 4.7u C6006 0.01u C6002 1u C6003 0.01u C6008 0.01u C6004 ATF_LATCH ZM_RST FC_RST XUSB_EN SPCK 4.7u C6017 0.1u C6013 0.1u C6016 10uH L6003 IC6001 CXD3164R 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 44 52 43 51 42 50 41 49 40 48 39 47 38 46 37 45 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 FB6001 C6005 0.01u RB6004 56 1 2 3 4 5 6 7 8 VFO_VD VFO_OE 10uH L6004 CL6001 0.001u C6024 0.1u C6026 4.7u C6025 XX R6003 OSD_V 10uH L6009 SN0306037AZVWR IC6002 1 VDD 2 DA0 3 DA1 4 DA2 5 VSS 6 DA3 7 DA4 8 DA5 9 DA6 10 VDD 11 DA7 12 XACC 13 XPEN 14 FCLR 15 FR 16 0FR 17 IDIR 18 VSS 19 PCLK 20 PMODE 21 VDD 22 REGOUT 23 REGENZ 24 PD0 25 VSS 26 PD1 27 PD2 28 PD3 29 VDD 30 N.C. 31 N.C. 32 N.C. 33 VSS 34 N.C. 35 VDD 36 TM0 37 N.C. 38 MSP100 39 PWD 40 CNC 41 CNA 42 LPS 43 XRESETP 44 VSS 45 VDDA 46 VSSA 47 TPBN 48 TPBP 49 VSSA 50 VDDA 51 TPAN 52 TPAP 53 TPBIAS 54 VSSA 55 R0 56 R1 57 VDDA 58 FILTER0 59 FILTER1 60 VDDPLL 61 VSSPLL 62 XI 63 N.C. 64 VSS 65 N.C. 66 N.C. 67 N.C. 68 N.C. 69 N.C. 70 N.C. 71 N.C. 72 N.C. 73 N.C. 74 VDD 75 ALE 76 XRW 77 XRD 78 XCS 79 VSS 80 XRESETL 1 A RB6006 10k 1 2 3 4 5 6 7 8 4.7 R6024 CAM_SI LPS IC6002_SLEEP XRST_LINK D25A01 D24A00 D26A02 OFR RECDT D27A03 FRRV D29A05 TRRT D30A06 D28A04 SWP D31A07 RECCK RECA1 RECA2 XRST_PHY DRP ALE DATA_FROM_SFD DATA_TO_SFD XDVCN FRRV TRRV TRRT XCS_IC6001-2 CAM_SCK CAM_SO CAM_SI XIRQ_IC6001 VREF TRRV VSP_SI XCS_SFD XCS_VFD ZM_RST FC_RST LD_EN1 LD_EN0 LD_DIR1B LD_DIR1A LD_DIR0B LD_DIR0A TG_AHD TG_AVD VCK TG_ZV1 TG_ZSG1 TG_VGAT TG_ID FE_CLPOB AD9 AD8 AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 FE_CLPOB TG_VGAT TG_ZSG1 TG_ZV1 VCK TG_AVD TG_AHD LD_DIR0A LD_DIR0B LD_DIR1A LD_DIR1B LD_EN0 LD_EN1 FC_RST ZM_RST WRX SFD_FCK SFD_BCK SFD_LRCK DATA_FROM_SFD DATA_TO_SFD OSD_V XCS_IC6001-2 CAM_SCK CAM_SO VD_SCK LBUS0 LBUS1 LBUS2 LBUS3 FRL FCLR DIR XENA XACC WRX RECA1 RECA2 VD_SO TG_ID RFIN ALE SWP DRP XUSB_EN SFD_LRCK SFD_BCK SFD_FCK RFIN AD0 AD9 AD1 AD8 AD7 AD6 AD5 AD4 AD3 AD2 VFO_VD VFO_OE VFO_VD VFO_OE VD_SO VD_SCK RECDT XACC XENA FCLR FRL DIR TRCKO LBUS0 LBUS1 LBUS2 LBUS3 XCS_IC6001 XCS_SFD XCS_VFD XVSP_SCK VSP_SO VSP_SI LINE_OUT_VD VREF ALE WRX XCS_IC6002 D31A07 D30A06 D29A05 D28A04 D27A03 D26A02 D25A01 D24A00 D24A00 D25A01 D26A02 D27A03 D28A04 D29A05 D30A06 D31A07 DXXA09 DXXA08 DXXA08 DXXA09 XRST_LINK OFR IC6002_SLEEP XRST_PHY LPS XDVCN ATF_LATCH RDX RDX XIRQ_IC6001 ATF_LATCH LINE_OUT_VD RDX XCS_IC6002 XCS_IC6001 XCS_IC6002 OSD_V RECCK VSP_SO XVSP_SCK XUSB_EN TRCKO XRST_VTR XRST_VTR CAM_SI DVSS2 PLL VDD2 IOVDD1 RDX ICOVSS XOO TRRT CAM SI MCHA1 CKI54 DACVSS0 IOVDD2 IC TEST XENA ADAVSS PLLVDD1 LD DIR0B DVDD3 MCHA0 USBVDD RAM VSS2 LBUS3 ALE MCDA3 YI1 DIR MSO FROM UCON(VSP SO) CKI135 PCOR REX EVF RAM VSS3 BMOSD4(CPTONE) PNL R DVDD0 TG ID TRCKO ICOVDD REFVDD USBVSS OSD XSCK OSD2 MCCE FE ADIN6 MCDA5 LD SENSE0 FE ADIN5 IOVDD0 TG AVD TG TGCKO EVFOUT SYNCI0 LCKO CAM SCK FE CLPOB PVD RAM VDD2 FRL PNL G OSDHD TG ZV1 MSSCK PLLSW FCLR BMOSD0(CPY) DVDD1 TG AHD BMOSD5(PILOT) BMOSD2(OSDCR) DACVSS YO3 MSI TO UCON(VSP SI) DM VRB DACVSS_1 YO5 YI0 LD DIR1A TP TEST FE CLPDM ADDT5 XOI PLL VDD3 PLLTHROUGH TG ZSG1 BCKO CKO FE ADIN8 REFVSS MCDA6 ADAVDD IOVDD3 ADDT0 YO4 TRRV USB XEN CRCK(20.25MHz) MCDA1 RAM VSS4 TRXOSCIN ADDT1 RFIN PLLVSS1 IOVSS1 ATF LATCH CAM SO PLLVSS3 RECDT PLL MODE0 PCO BMOSD3(OSDY) FE ADIN7 YOUT TG CHCK ADAI2 ADDT2 OSD XSC OSD1 DACVDD1 MCDA4 SYNCI1 TRXOSCOUT IOVSS0 LD IRIS ADAI1 YO7 RAM VSS1 RECCK CO3 SYNCO0(HDO) REX PNL MCDA2 FE ADIN3 YO1 YO6 FE ADIN4 IODSS3 LD EN0 CO1 LBUS2 ADDVDD DP RECA1 RAM VDD3 REX Y ADDT3 SYNCO2(OEO) CO2 LD DIR1B SYNCO1(VDO) LD DIR0A MSCSV PHD WRX YO2 MCVREF LRCKO CAM SYSV IC6001_IRQ RAM VDD0 BMOSD1(OSDCB) SPCKO MSCSS ADAO1 XRST PBCK IODSS2 CI MCDA7 DACVDD CAM XCE DVss0 DVSS1 PLLMSK DACVSS_2 ADAO2 DACVDD_2 LD SENSE1 TG VGAT OSD SI OSD0 COUT CO0 FE ADIN2 POI MCVD RAM VDD1 RECA2 FE ADIN1 FE ADIN9 ADDT4 PNL B LD EN1 PLLVDD4 XACC IOUT PLLVSS2 YO0 FCKO FRRV REX C PLL MODE1 LBUS0 DACVDD_0 SWP MCDA0 PLLVDD0 PLLVSS0 CS IC6001 ADDVSS DRP PLLVSS4 RAM VSS0 SCAN EN DVSS3 RAM VDD4 FE ADIN0 DVDD2 VRT LBUS1 (7/12) @010 @013 (7/12) @015 (6/12) @007 (1/12) (2/12) @009 (7/12) @016 @018 (8/12) (6/12) @021 (4/12) @022 (5/12) @023 19 D F 17 B 13 21 XX MARK:NO MOUNT E 16 5 J 3 20 N VC-416 BOARD (3/12) H C 6 12 2 18 M DV SIGNAL PROCESS,DV INTERFACE 22 9 14 11 7 G 4 L 10 I 15 08 K 8 23 DV SIGNAL PROCESS IC6001 IC6002 DV INTERFACE (11/12) (9/12) (7/12) D_2.8V (5/12) (8/12) @011 (7/12) @012 (7/12) (1/12) @003 (2/12) (7/12) (1/12) @004 (7/12) (8/12) (7/12) @006 (1/12) (4/12) @014 (12/12) (7/12)

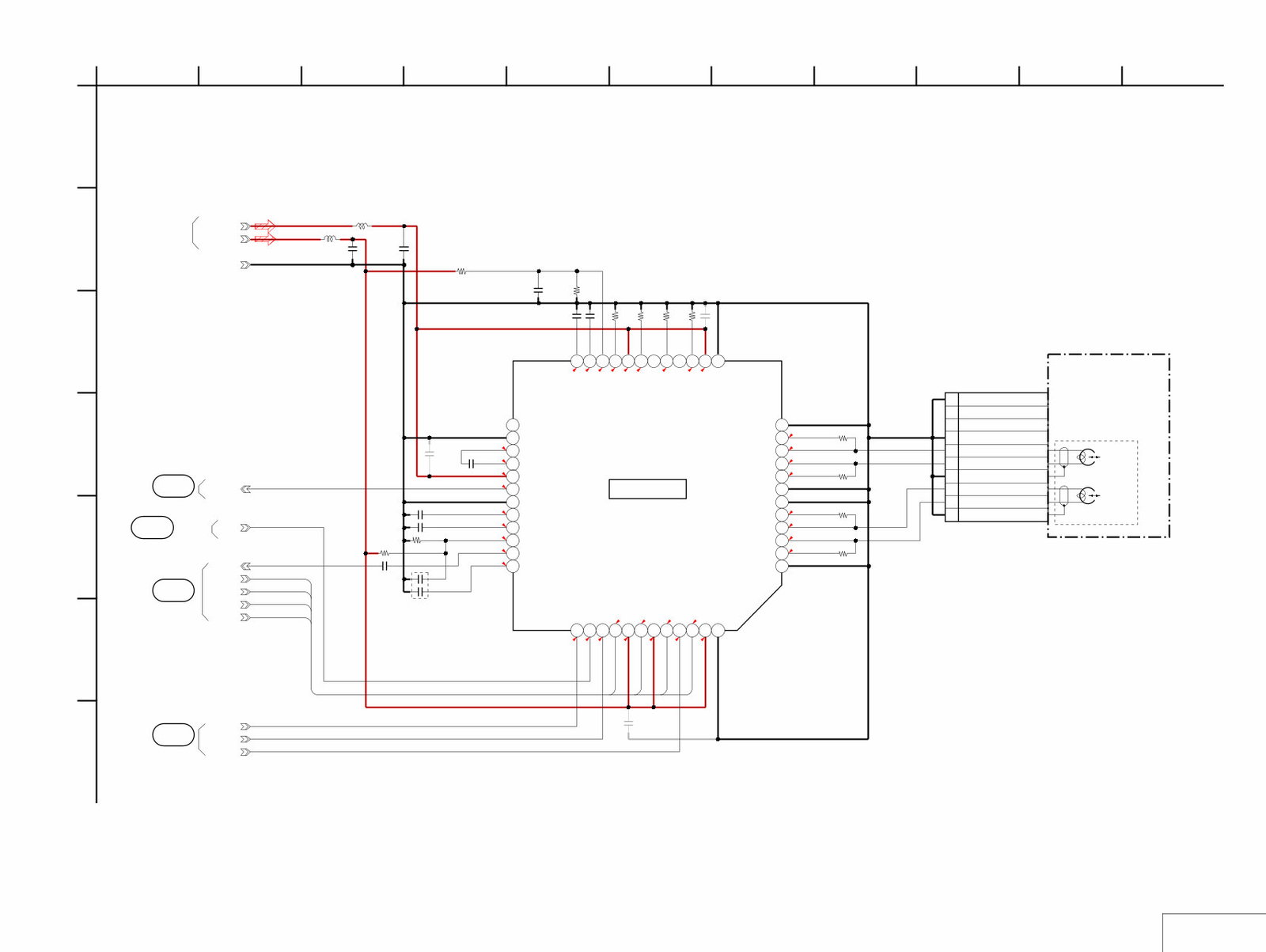

DCR-HC27E/HC28/HC28E_L3 4-9 XX C6514 XX C6504 XX C6513 NO MARK:REC/PB MODE R:REC MODE P:PB MODE R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.9/P1.7 R2.8/P0 1.4 2.8 2.8 2.8 0 2.8 4.5 R3.9/P2.6 2.6 R2.1/P0.7 R3.1/P2.0 R3.1/P2.0 R1.0/P2.2 1.3 0.9 R0/P1.7 2.3 2.3 1.3 4.5 4.5 R2.3/P0 R2.3/P0 R1.2/P0 R2.7/P0 R2.7/P0 R1.2/P0 R1.2/P0 RECDT 6800 R6506 RFIN 0.01u C6509 10k R6505 0.01u C6502 CONT1 RP_2.8V RECCK ALL_PS 180 R6515 0.01u C6510 0.1u C6512 REG_GND 0.1u C6511 ±0.5% 22k R6507 180 R6516 10uH L6501 RP_4.6V 10uH L6502 10k R6501 22k R6502 RECA1 180 R6513 0.47u C6508 CXA3619R-T4 IC6501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 ±0.5% 10k R6510 SW_PS ±0.5% 10k R6508 RF_MON 0.47u C6505 ±0.5% 22k R6512 180 R6514 SWP RECA2 0.01u C6506 1 2 3 4 CN1008 10P 1 2 3 4 5 6 7 8 9 10 4.7u C6503 4.7u C6501 1 A RECDT RECA2 RECCK RECCK RECA1 RECA1 RECA2 RECDT XME/MP CTRL1 TEST D1E REC_IR_MP REC_PEAK_T REC_PEAK_I_MP D2O CTRL0 REC_IR_ME GND VCC_D2.8V CO GND SW_PS REC_DATA CE AGCTC_Ech GND GND LPF_f0 XEVEN MODE2 D1O YE XODD GND GND PB_RF_OUT REC_CLK YO GND TEST_OUT REC_PEAK_I_ME XE AGC_EVR MODE1 GND VCC_PB_4.6V YODD VCC_HEAD GND AGCTC_Och REC_A2 PB_Y_OUT PB_RF_IN YEVEN YSDL(N.C.) VCC_2.8V D2E GND PB_FBDP XSDL(N.C.) VCC_REC_4.6V REC_A1 XO PB_X_OUT PB_IR (MDX-N110) N MECHANISM (1/2) DECK ODD EVEN VIDEO HEAD (11/12) @024 (12/12) (3/12) @022 @025 (7/12) IC6501 REC/PB AMP C 6 2 REC/PB AMP 9 11 7 8 G 4 VC-416 BOARD (4/12) 10 08 XX MARK:NO MOUNT D F B E 5 3 (7/12) @014 (12/12) (3/12) VC-416 (4/12)
