SERVICE MANUAL COPYRIGHT© 2007 Victor Company of Japan, Limited No.YF200 2007/6 HD HARD DISK CAMCORDER YF200 2007 6 SERVICE MANUAL Everio GZ-HD7EK, GZ-HD7EX, GZ-HD7EY COPYRIGHT© 2007 Victor Company of Japan, Limited Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) TABLE OF CONTENTS 1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21 5 TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24 GZ-HD7EK,GZ-HD7EX,GZ-HD7EY[M7H722]

1-2 (No.YF200) SPECIFICATION Camcorder AC Adapter Remote Control Design and specifications subject to change without notice. For General Power supply DC 11 V (Using AC Adapter) DC 7.2 V (Using battery pack) Power consumption Approx. 7.1 W (When using the LCD monitor) Approx. 6.7 W (When using the viewfinder) Approx. 7.7 W (Maximum; when recording) Dimensions (W × H × D) 91 mm × 77 mm ×186 mm Weight Approx. 665 g (incl.strap) Approx. 750 g (incl. battery and strap) Operating temperature 0°C to 40°C Operating humidity 35% to 80% Storage temperature -20°C to 50°C Pickup 1/5" (570,000 pixels) progressive CCD Lens F1.8 to 1.9, f = 3.3 mm to 33.0 mm, 10:1 power zoom lens Filter diameter Ø46.0 mm LCD monitor 2.8" diagonally measured, LCD panel/TFT active matrix system Viewfinder Electronic viewfinder with 0.57" color LCD Speaker Monaural For Video/Audio Format SD-VIDEO Recording/Playback format Video MPEG-2 TS Audio MPEG-1 Layer 2 Signal format 1080/50i Recording mode (video) FHD: VBR, average of 26.6 Mbps SP: VBR, average of 19 Mbps 1440 CBR: CBR, 27 Mbps Recording mode (audio) 48 kHz, 384 kbps For Still image Format JPEG Image size 4 modes (1920 × 1080 / 1440 × 1080 /1024 × 768 / 640 × 480) Picture quality 2 modes (FINE/STANDARD) For connectors HDMI HDMI Ver.1.2a output Component output Y, Pb, Pr component output i.LINK output 4-pin (I.LINK/IEEE1394 compliant) S output Y: 1.0 V (p-p), 75Ω, C: 0.29 V (p-p), 75Ω AV output Video output 1.0 V (p-p), 75 Ω Audio output 300 mV (rms), 1 k Ω USB Mini USB type A and type B, USB 2.0 compliant Microphone Ø3.5mm stereo mini jack Power requirement AC 110 V to 240 V, 50 Hz/60 Hz Output DC 11 V, 1 A Power supply DC 3 V Battery life Approx. 1 year (depending on the frequency of use) Operating distance Within 5 m Operating temperature 0°C to 40°C Dimensions (W × H × D) 42 mm × 14.5 mm × 91 mm Weight Approx. 30 g (incl. battery)

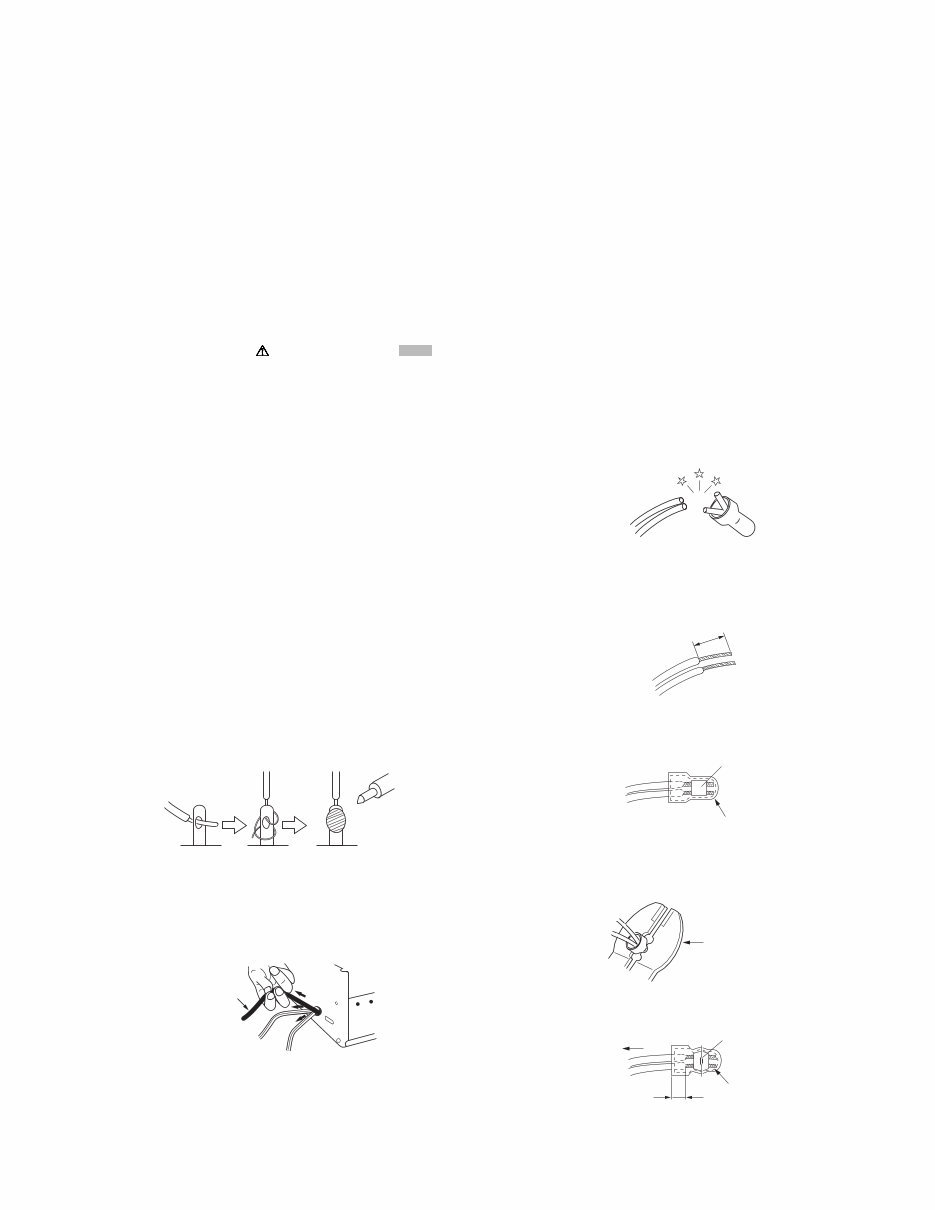

(No.YF200)1-3 SECTION 1 PRECAUTIONS 1.1 SAFTY PRECAUTIONS Prior to shipment from the factory, JVC products are strictly inspected to conform with the recognized product safety and electrical codes of the countries in which they are to be sold.However,in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced. 1.1.1 Precautions during Servicing (1) Locations requiring special caution are denoted by labels and inscriptions on the cabinet, chassis and certain parts of the product.When performing service, be sure to read and comply with these and other cautionary notices appearing in the operation and service manuals. (2) Parts identified by the symbol and shaded ( ) parts are critical for safety. Replace only with specified part numbers. NOTE : Parts in this category also include those specified to comply with X-ray emission standards for products using cathode ray tubes and those specified for compliance with various regulations regarding spurious radiation emission. (3) Fuse replacement caution notice. Caution for continued protection against fire hazard. Replace only with same type and rated fuse(s) as specified. (4) Use specified internal wiring. Note especially: • Wires covered with PVC tubing • Double insulated wires • High voltage leads (5) Use specified insulating materials for hazardous live parts. Note especially: • Insulation Tape • PVC tubing • Spacers • Insulation sheets for transistors • Barrier (6) When replacing AC primary side components (transformers, power cords, noise blocking capacitors, etc.) wrap ends of wires securely about the terminals before soldering. Fig.1-1-1 (7) Observe that wires do not contact heat producing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.) (8) Check that replaced wires do not contact sharp edged or pointed parts. (9) When a power cord has been replaced, check that 10-15 kg of force in any direction will not loosen it. Fig.1-1-2 (10) Also check areas surrounding repaired locations. (11) Products using cathode ray tubes (CRTs)In regard to such products, the cathode ray tubes themselves, the high voltage circuits, and related circuits are specified for compliance with recognized codes pertaining to X-ray emission. Consequently, when servicing these products, replace the cathode ray tubes and other parts with only the specified parts. Under no circumstances attempt to modify these circuits.Unauthorized modification can increase the high voltage value and cause X-ray emission from the cathode ray tube. (12) Crimp type wire connectorIn such cases as when replacing the power transformer in sets where the connections between the power cord and power trans former primary lead wires are performed using crimp type connectors, if replacing the connectors is unavoidable, in order to prevent safety hazards, perform carefully and precisely according to the following steps. • Connector part number :E03830-001 • Required tool : Connector crimping tool of the proper type which will not damage insulated parts. • Replacement procedure a) Remove the old connector by cutting the wires at a point close to the connector.Important : Do not reuse a connector (discard it). Fig.1-1-3 b) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors. Fig.1-1-4 c) Align the lengths of the wires to be connected. Insert the wires fully into the connector. Fig.1-1-5 d) As shown in Fig.1-1-6, use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool. Fig.1-1-6 e) Check the four points noted in Fig.1-1-7. Fig.1-1-7 Power cord cut close to connector 15 mm Connector Metal sleeve 1.25 2.0 5.5 Crimping tool Not easily pulled free Crimped at approx. center of metal sleeve Conductors extended Wire insulation recessed more than 4 mm

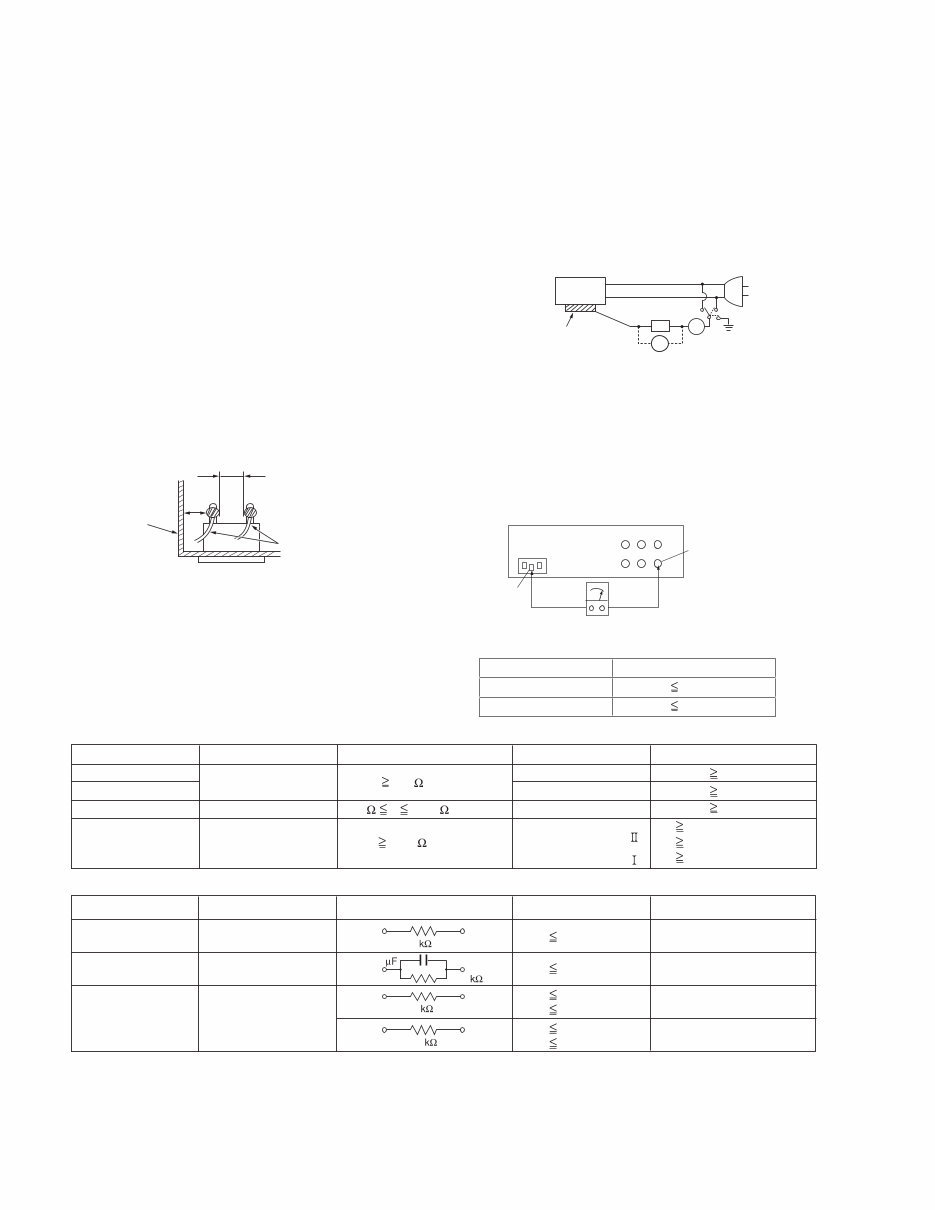

1-4 (No.YF200) 1.1.2 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions, Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards. (1) Insulation resistance test Confirm the specified insulation resistance or greater between power cord plug prongs and externally exposed parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.).See table 1 below. (2) Dielectric strength test Confirm specified dielectric strength or greater between power cord plug prongs and exposed accessible parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). See Fig.1-1-11 below. (3) Clearance distance When replacing primary circuit components, confirm specified clearance distance (d), (d') between soldered terminals, and between terminals and surrounding metallic parts. See Fig.1-1-11 below. Fig.1-1-8 (4) Leakage current test Confirm specified or lower leakage current between earth ground/power cord plug prongs and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). Measuring Method : (Power ON)Insert load Z between earth ground/power cord plug prongs and externally exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig.1-1-9 and following Fig.1-1-12. Fig.1-1-9 (5) Grounding (Class 1 model only) Confirm specified or lower grounding impedance between earth pin in AC inlet and externally exposed accessible parts (Video in, Video out, Audio in, Audio out or Fixing screw etc.).Measuring Method: Connect milli ohm meter between earth pin in AC inlet and exposed accessible parts. See Fig.1-1-10 and grounding specifications. Fig.1-1-10 Fig.1-1-11 Fig.1-1-12 NOTE : These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality. Chassis Power cord primary wire d' d a b c V A Externally exposed accessible part Z Exposed accessible part Grounding Specifications AC inlet Region USA & Canada Europe & Australia Grounding Impedance (Z) Z 0.1 ohm Z 0.5 ohm Earth pin MIlli ohm meter AC Line Voltage Region Japan Europe & Australia R 1 M /500 V DC USA & Canada 1 M R 12 M /500 V DC R 10 M /500 V DC Insulation Resistance (R) Dielectric Strength Clearance Distance (d), (d') 100 V 100 to 240 V 110 to 130 V 110 to 130 V 200 to 240 V AC 1 kV 1 minute AC 1.5 kV 1 minute AC 1 kV 1 minute (Class ) (Class ) AC 3 kV 1 minute AC 1.5 kV 1 minute d, d' 3 mm d, d' 4 mm d, d' 3.2 mm d' 8 m m (Power cord) d' 6 mm (Primary wire) d 4 mm AC Line Voltage Region Japan Europe & Australia USA & Canada Load Z Leakage Current (i) a, b, c 100 V 110 to 130 V 110 to 130 V 220 to 240 V i 1 mA rms i 0.5 mA rms i 0.7 mA peak i 2 mA dc i 0.7 mA peak i 2 mA dc Exposed accessible parts Exposed accessible parts Antenna earth terminals Other terminals 1 1.5 2 50 0.15

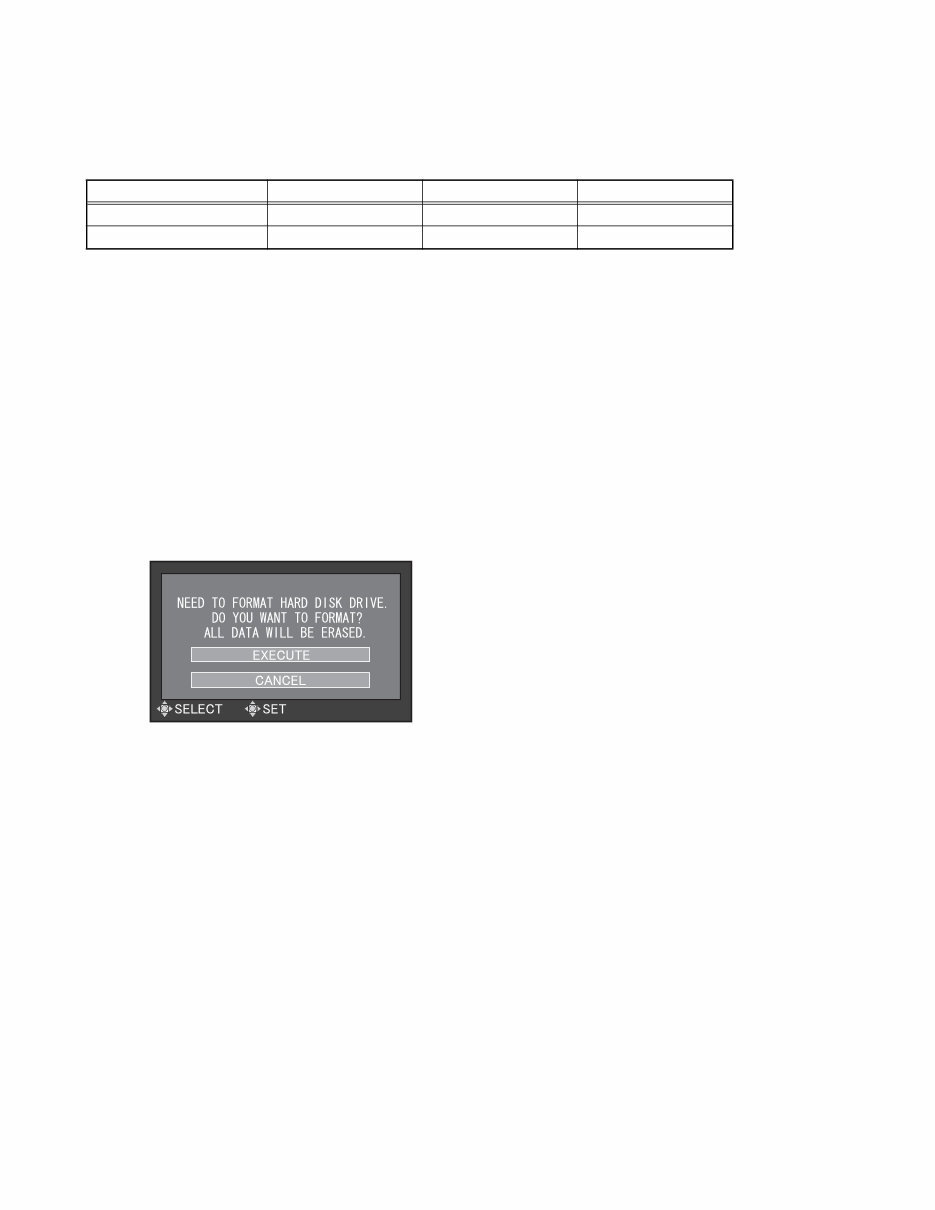

(No.YF200)1-5 SECTION 2 SPECIFIC SERVICE INSTRUCTIONS 2.1 DIFFERENCE LIST The following table indicate main different points between models GZ-HD7EK, GZ-HD7EX and GZ-HD7EY. 2.2 Replacing HDD NOTE1) After HDD replacement, format the HDD first. When the power is turned on after the HDD replacement, the below "Warning screen" is displayed. Be sure to format the HDD following the messages. Be sure to turn off the power once after the formatting. If the HDD recording is started without being turned off the power, normal recording cannot be performed although the recording will start. NOTE2) Although the demonstration still image data is written in the original HDD, the data is not written in the replaced HDD. If the HDD recording is started without being turned off the power, normal recording cannot be performed although the recording will start. MODEL NAME GZ-HD7EK GZ-HD7EX GZ-HD7EY AC ADAPTER AP-V17E AP-V17E AP-V14E AC CORD NO NO YES(BS)

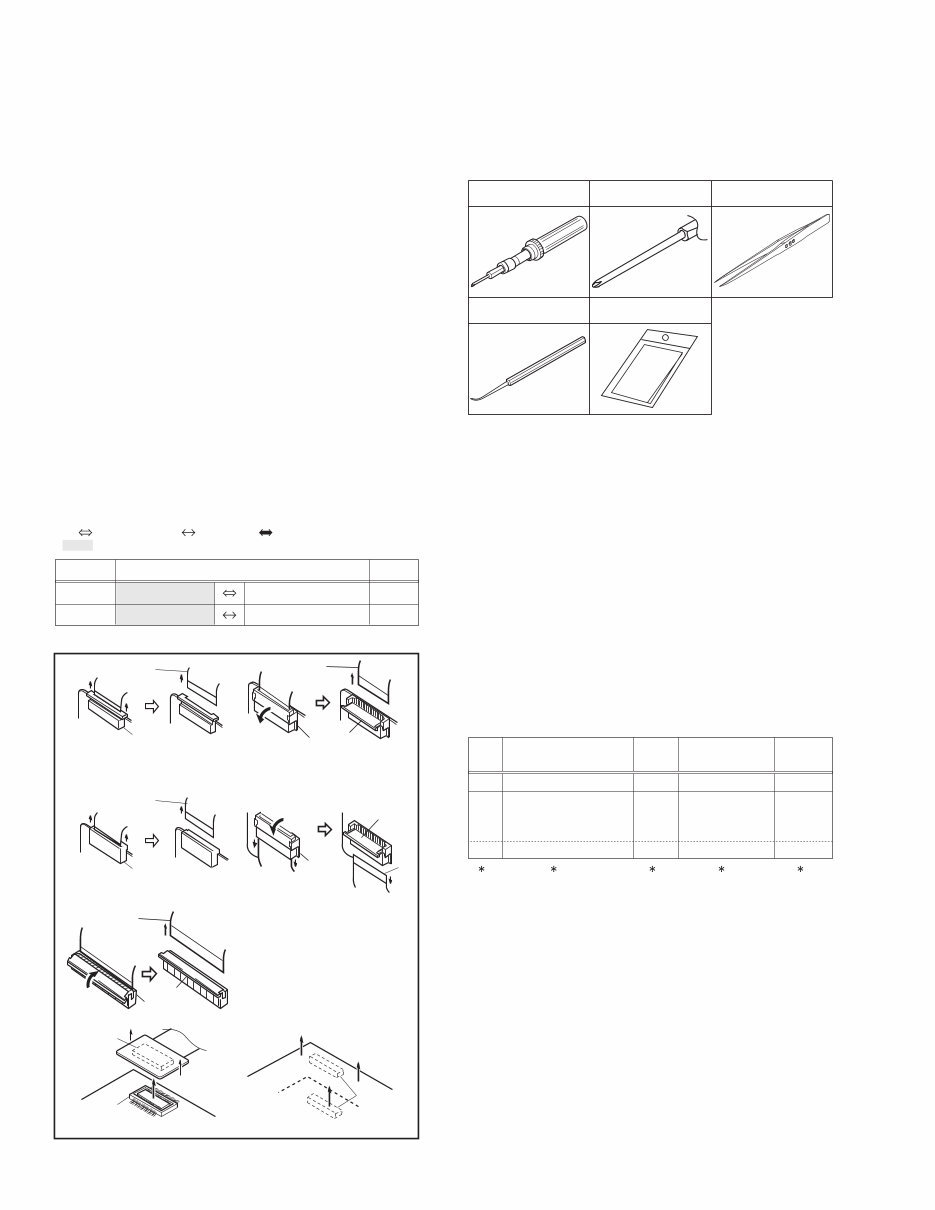

1-6 (No.YF200) SECTION 3 DISASSEMBLY 3.1 BEFORE ASSEMBLY AND DISASSEMBLY 3.1.1 Precautions • Be sure to disconnect the power supply unit prior to mounting and soldering of parts. • Prior to removing a component part that needs to disconnect its connector(s) and its screw(s), first disconnect the wire(s) from the connector(s), and then remove the screw(s). • When connecting/disconnecting wires, pay enough attention not to damage the connectors. • When inserting the flat wire to the connector, pay attention to the direction of the flat wire. • Be careful in removing the parts to which some spacer or shield is attached for reinforcement or insulation. • When replacing chip parts (especially IC parts), first remove the solder completely to prevent peeling of the pattern. • Tighten screws properly during the procedures. Unless otherwise specified, tighten screws at a torque of 0.078N·m (0.8kgf·cm). However, as this is a required value at the time of production, use the value as a measuring stick when proceeding repair services. (See "SERVICE NOTE" as for tightening torque.) 3.1.2 Destination of connectors 3.1.3 Disconnection of connectors (Wires) Fig.3-1-1 3.1.4 Tools required for disassembly and assembly Fig.3-1-2 • Torque driver Be sure to use to fastening the mechanism and exterior parts because those parts must strictly be controlled for tightening torque. • Bit This bit is slightly longer than those set in conventional torque drivers. • Tweezers To be used for removing and installing parts and wires. • Chip IC replacement jig To be used for replacement of IC. • Cleaning cloth Recommended cleaning cloth to wipe down the video heads, mechanism (tape transport system), optical lens surface. 3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS 3.2.1 Assembly and disassembly When reassembling, perform the step(s) in reverse order. (∗1) Order of steps in Procedure When reassembling, preform the step(s) in the reverseorder. These numbers are also used as the identification (location) No. of parts Figures. (∗2) Part to be removed or installed. (∗3) Fig. No. showing Procedure or Part Location. (∗4) Identification of part to be removed, unhooked, unlocked, released, unplugged, unclamped or unsoldered. S = Screw L = Lock, Release, Hook SD = Solder CN = Connector [Example] • 4 (S1a) = Remove 4 S1a screws. • 3 (L1a) = Disengage 3 L1a hooks. • 2 (SD1a) = Unsolder 2 SD1a points. • CN1a = Remove a CN1a connector. (∗5) Adjustment information for installation. CN2a CN2b MAIN CN101 MAIN CN103 40 10 CONN. No. PIN No. CONNECTOR Two kinds of double-arrows in connection tables respectively show kinds of connector/wires. : The connector of the side to remove : Wire : Flat wire : Board to board (B-B) MONI BW CN761 MINI BW CN762 FPC Connector Wire FPC Connector Wire Wire FPC Connector Lock Wire FPC Connector Lock Wire FPC Connector Lock B-B Connector B-B Connector B-B Connector · Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector. · Pull both ends of the connector in the arrow direction, remove the lock and disconnect the flat wire. · Pull the both ends of the board in the direction of the arrow, and remove the Connector. · Extend the locks in the direction of the arrow for unlocking and then pull out the wire. After removing the wire, immediately restore the locks to their original positions because the locks are apt to come off the connector. · Extend the locks in the direction of the arrow for unlocking and then pull out the wire. After removing the wire, immediately restore the locks to their original positions because the locks are apt to come off the connector. · Extend the locks in the direction of the arrow for unlocking and then pull out the wire. After removing the wire, immediately restore the locks to their original positions because the locks are apt to come off the connector. Cleaning cloth KSMM-01 Torque driver YTU94088 Bit YTU94088-003 Chip IC replacement jig PTS40844-2 Tweezers P-895 ( 4) ( 5) ( 2) ( 3) ( 1) TOP COVER ASSY UPPER ASSY (Inc. VF ASSY, SPEAKER/MONITOR) E.VF UNIT(B/W) C1 C2-1 C2-2 4(S1a), 3(L1a),CN1a (S2a),2(S2b),3(S2c) 2(SD1a), L2,CN2a,b 2(S8),L8,CN8a - - NOTE 8 [1] [2] [8] STEP No. PART NOTE Fig. No. POINT

(No.YF200)1-7 3.2.2 ASSEMBLY/DISASSEMBLY OF CABINET PARTS AND ELECTRICAL PARTS Disassembly procedure NOTE1: Remove the HOOD(ACC) ASSY by turning it to the direction of the arrow. NOTE2: During the procedure, be careful in handling the adhesive tape. NOTE5a: When removing, pull out the GRIP BELT from the hook first. NOTE5b: During the procedure, leave the J.COVER (AV) removed or released. NOTE7: When removing, be careful in handling as the GEL may be stuck to. NOTE8a: During the procedure, be careful in handling the parts. Pay special attention not to give any external shock to the HDD. NOTE8b: When the HDD is replaced, be sure to refer to 2.2 Replacing HDD in "SECTION2 SPECIFIC SERVICE INSTRUCTIONS" for the procedure after HDD replacement. NOTE8c: Be careful as the GELS at the four corners are easily come off when the HDD is removed from the main unit. If the GELS come off, be sure to attach them in the correct direction shown in the figure. Attach the GELS with their HOLES on the same side of the connector. NOTE8d: In this procedure, the FPC connected to the HDD connector is not removed. If the FPC is removed due to broken wire, be careful in attachment direction. Be sure to connect the STOPPER side to the HDD. Pay attention as wrong attachment could damage the HDD. NOTE13a: During the procedure, be careful in handling the parts. Pay special attention to the electrode terminals of the battery as they are easily bent. NOTE13b: Refer to [27] OPE BOARD ASSY and afterward for the disassembly of UPPER ASSY. NOTE14: Refer to 3.2.3 DISASSEMBLY OF [14] VF ASSY of E VF AS- SY. NOTE15: During the procedure, do not touch the terminals (elec- trodes). NOTE16: During the procedure, do not touch the terminals (elec- trodes). NOTE17a: During the procedure, be careful with the wiring . NOTE17b: Refer to [22] MIC BOARD ASSY and afterward for the disassembly of FRONT ASSY. [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] 3-2-1 3-2-2 3-2-3 3-2-4 3-2-5 3-2-6 3-2-7 3-2-8 3-2-9 3-2-10 3-2-11 3-2-12 3-2-13 3-2-14 3-2-15 3-2-16 3-2-17 3-2-18 3-2-19 3-2-20-1,2 3-2-21 3-2-22 NOTE1 NOTE2 - - NOTE5a,b - NOTE7 NOTE8a,b,c,d - - - - NOTE13a,b NOTE14 NOTE15 NOTE16 NOTE17a,b - - - NOTE21 NOTE22a,b - - NOTE25 - NOTE27a,b,c NOTE28 - NOTE30a,b STEP No. PART NAME Fig. No. POINT NOTE 3(L1) S2,L2a,2(L2b) 2(S3a),6(S3b),4(L3) 4 GRIP BELT J.COVER(AV)ASSY,2(S5),4(L5) S6a,S6b,L6 S7,L7a,b,c CN8 4(S9),L9a,2(L9b) 2(S10) S11a,S11b CN12,S12a,S12b,L12 CN13,S13a,4(S13b),L13a,b CN14,3(S14) 2(S15a),2(S15b),L15 2(S16),L16,CN16a,b CN17a,b,3(S17),L17 CN18a,b,2(S18),L18a,b CN19a,2(S19), SHIELD(DIGITAL),CN19b 5(S20),HEAT SINK CN20,3(S20),2(L20) 2(S21),BKT(FRONT), 3(S21),L21a,b S22a,S22b,BKT(MIC),2(L22a), 2(S22b)S22b,COVER(MIC), HOLDER(MIC) CN23,2(S23),2(L23) 2(L24) 4(S25) 2(S26),FRONT ASSY CN27a,b,4(S27), 2(L27),CN27c S28,L28a,b 3(S29),L29a,b, COVER(REAR) ASSY 2(S30),COVER(UPPER) HOOD(ACC) ASSY EYE CUP BOTTOM COVER ASSY DOOR(SD)ASSY GRIP COVER ASSY WINDOW COVER HDD COVER ASSY HDD CASE(HDD) ASSY SHOE ASSY TOP COVER ASSY OPE UNIT UPPER ASSY VF ASSY REAR COVER ASSY REG BOARD ASSY FRONT ASSY ANALOG BOARD ASSY DIGITAL BOARD ASSY CDS BOARD ASSY OP BLOCK ASSY MIC FRONT BOARD ASSY COVER(SD) ASSY FOCUS RING ASSY HOOD ASSY OPE. BOARD ASSY SPEAKER SW BOARD ASSY MONITOR ASSY

1-8 (No.YF200) NOTE21: Refer to 3.2.4 DISASSEMBLY OF [21] OP BLOCK ASSY/ CCD BOARD ASSY of OP BLOCK ASSY. NOTE22a: During the procedure, be careful with the wiring . NOTE22b: When attaching, insert the BLACKET by sliding it to fix the COVER (MIC). NOTE25: During the procedure, be careful with the wiring . NOTE27a: When removing, remove the screw No.70 first to release the FPC, and then pull out the FPC from the connector. NOTE27b: During the procedure, be careful not to damage the parts. NOTE27c: When attaching, be careful with the wiring . NOTE28: When attaching, be careful with the wiring . NOTE30a: During the procedure, be careful in wiring and handle the wire with care. NOTE30b: Refer to 3.2.5 DISASSEMBLY OF [30] MONITOR ASSY of MONITOR ASSY. Destination of connectors CN. No. PIN No. CONNECTOR CN8 DIGITAL CN104 HDD - 40 CN12 ANALOG CN201 OPERATION - 15 CN13 DIGITAL CN107 OPE CN601 38 CN14 ANALOG CN202 VF BL CN802 20 CN16a DIGITAL CN105 REG CN6001 50 CN16b DIGITAL CN106 REG CN6002 4 CN17a DIGITAL CN108 FRONT CN901 8 CN17b ANALOG CN204 MIC(INT) - 4 CN18a ANALOG CN205 DIGITAL CN101 73 CN18b ANALOG CN203 OP BLOCK ASSY - 45 CN19a DIGITAL CN102 CDS CN4101 73 CN19b DIGITAL CN103 CDS CN4102 4 CN20 CDS CN5001 CCD CN5501 50 CN23 FRONT CN902 FOCUS RING - 6 CN27a OPE CN602 MONI-BL CN703 26 CN27b OPE CN603 SW CN606 6 CN27c OPE CN604 SPEAKER - 2

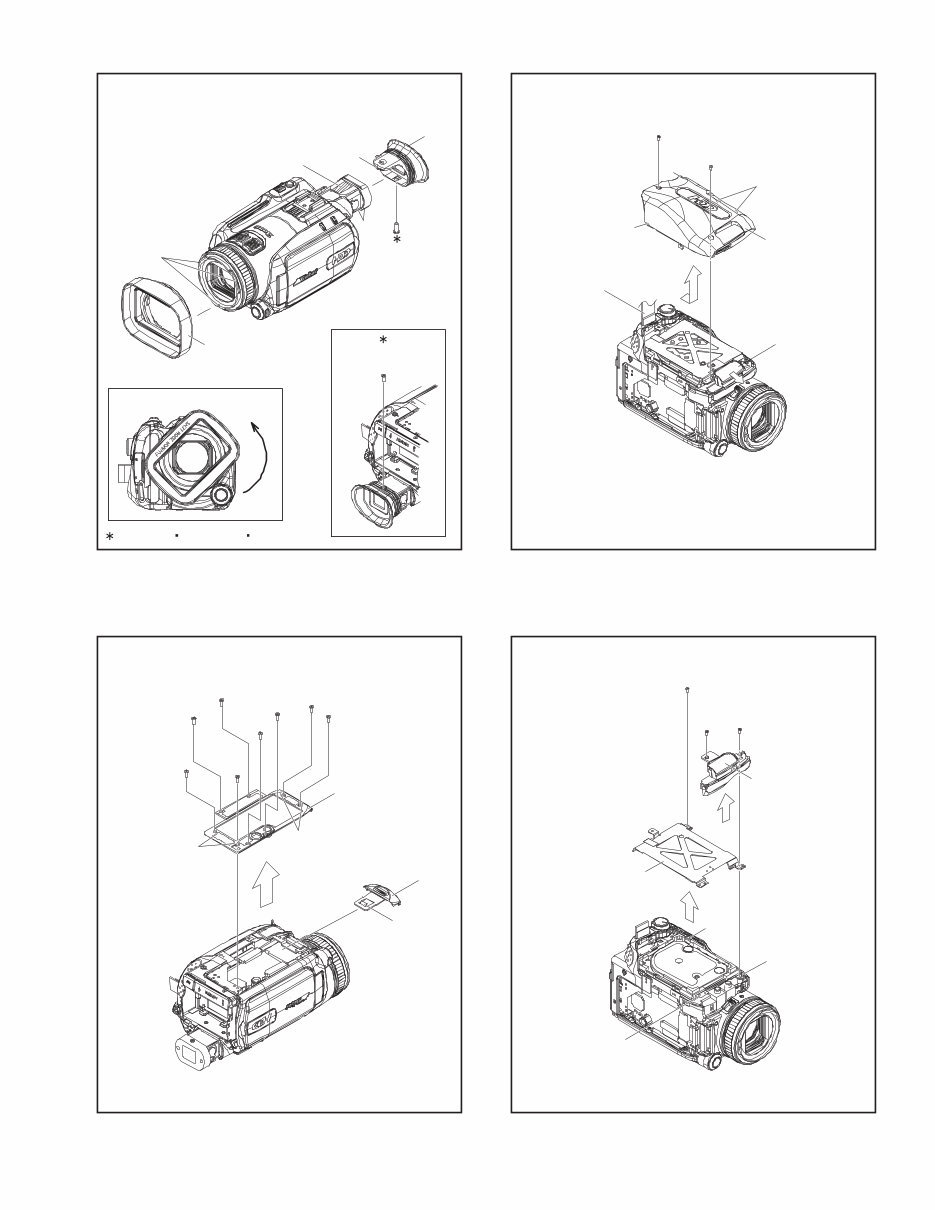

(No.YF200)1-9 Fig.3-2-1 Fig.3-2-2 Fig.3-2-3 Fig.3-2-4 [1] [2] 1 (S2) 1 (S2) L2b L1 L2a NOTE2 NOTE1 NOTE1 :0.059 N m (0.6kgf cm) 5 (S3b) 4 (S3b) 6 (S3b) 7 (S3b) 9 (S3b) 8 (S3b) 3 (S3a) 2 (S3a) L3 L3 L4 [4] [3] 11 (S5) L5 L5 L5 10 (S5) [5] NOTE5a NOTE5b GRIP BELT J.COVER(AV) ASSY [6] [7] 12 (S6a) 13 (S6b) 14 (S7) L6,L7a L7c L7b NOTE7

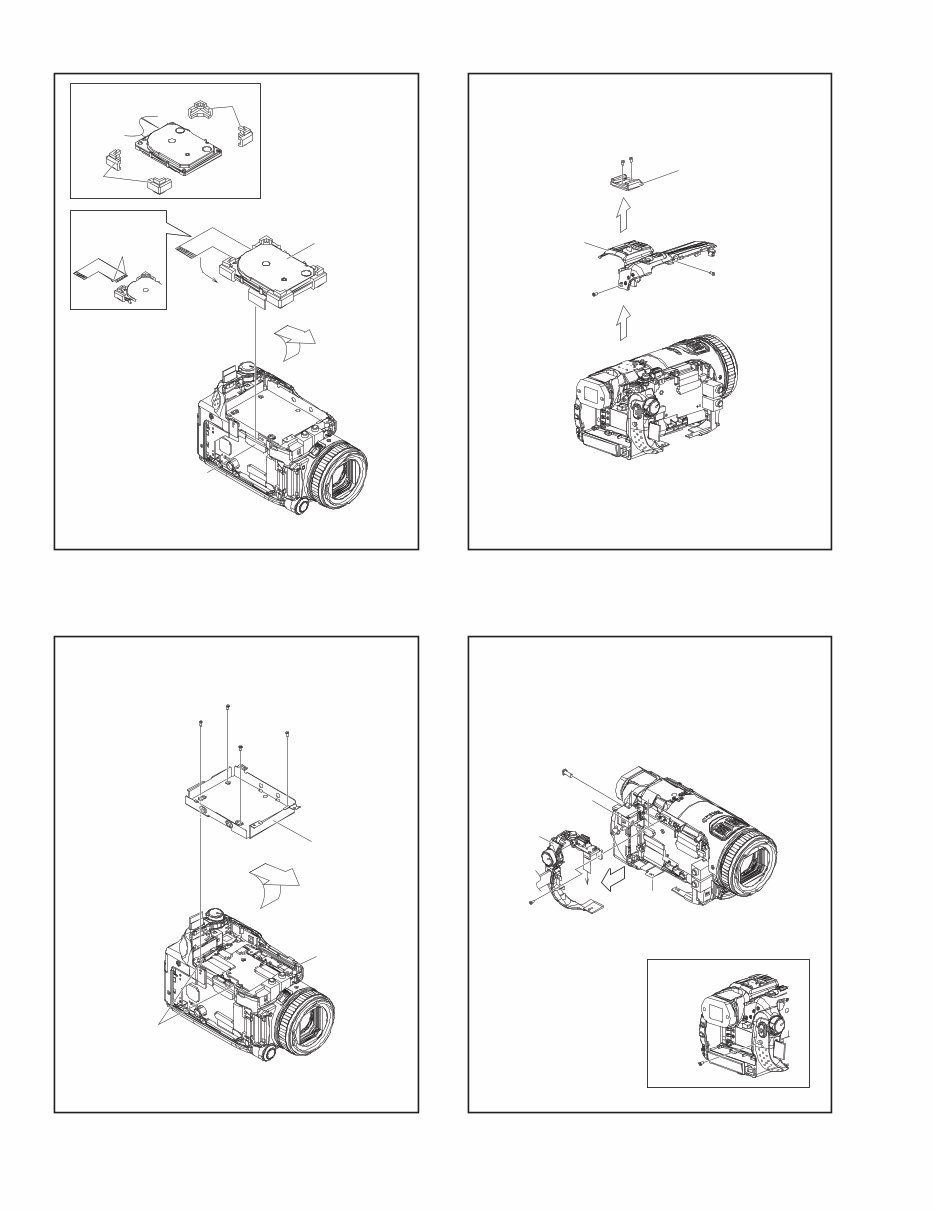

1-10 (No.YF200) Fig.3-2-5 Fig.3-2-6 Fig.3-2-7 Fig.3-2-8 CN8 STOPPER GEL GEL NOTE8c NOTE8d NOTE8a,b [8] [9] 16 (S9) L9a L9b 17 (S9) 15 (S9) 18 (S9) [10] [11] 19 (S10) 20 (S10) 21 (S11a) 22 (S11b) a a 24 (S12b) 23 (S12a) 23 (S12a) CN12 L12 a [12]
