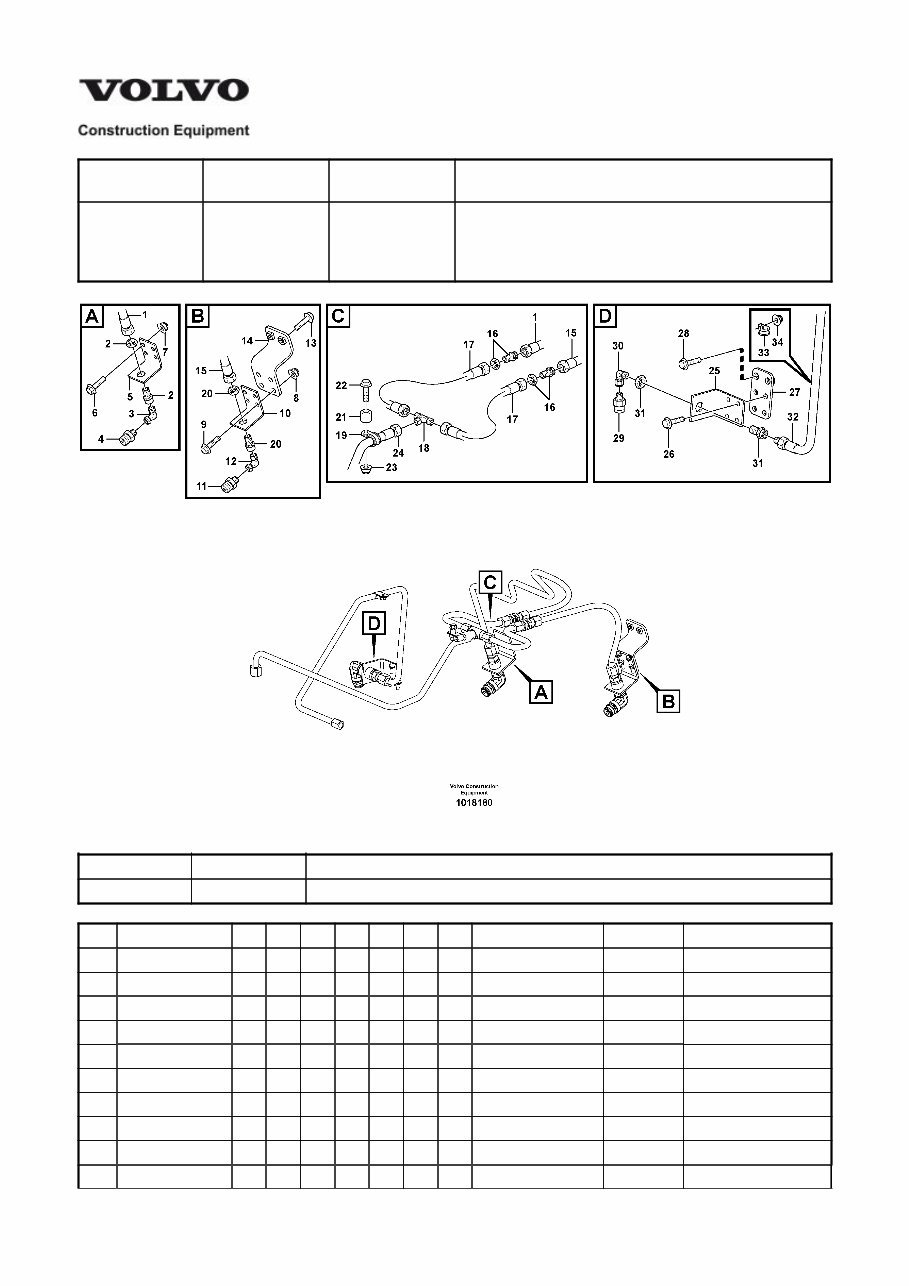

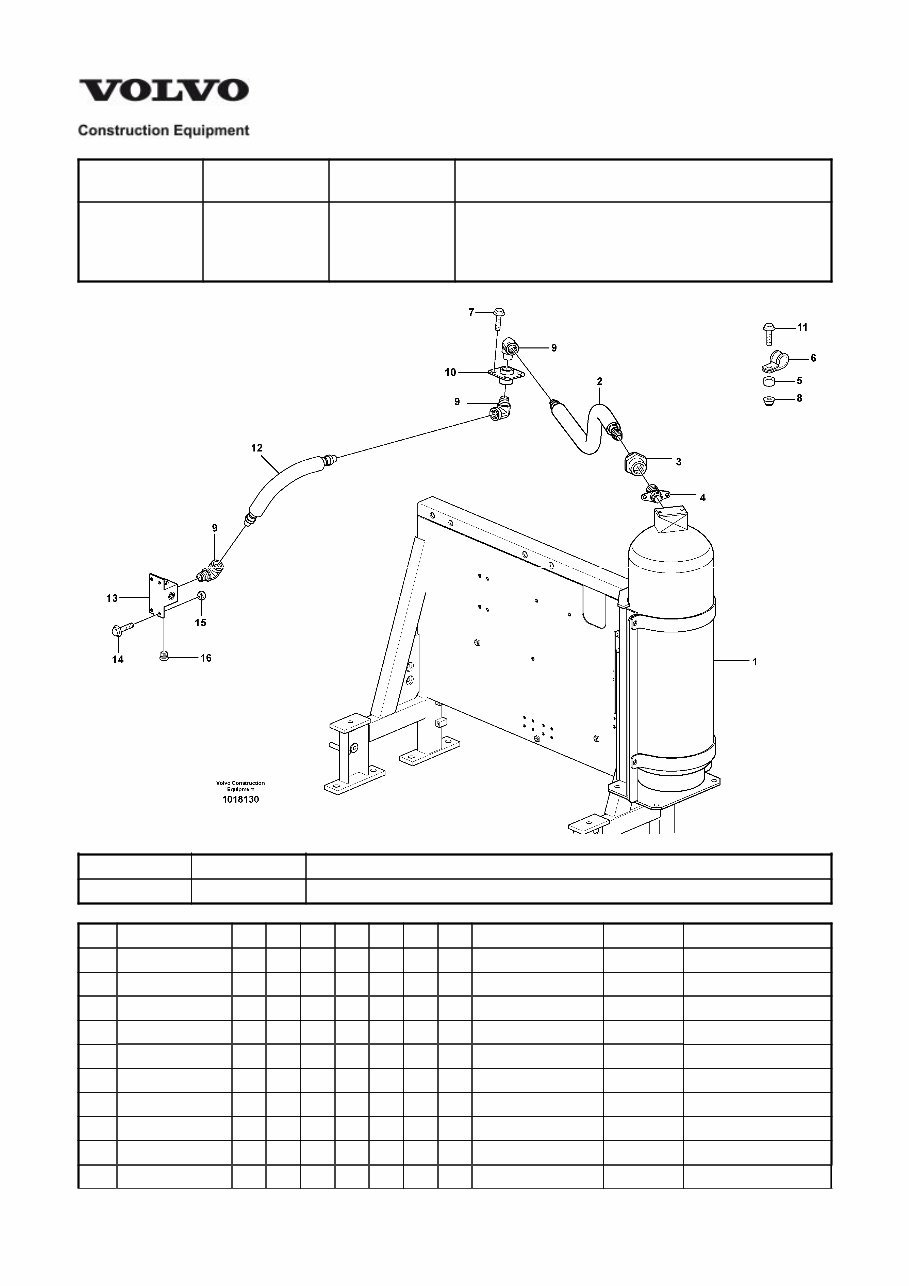

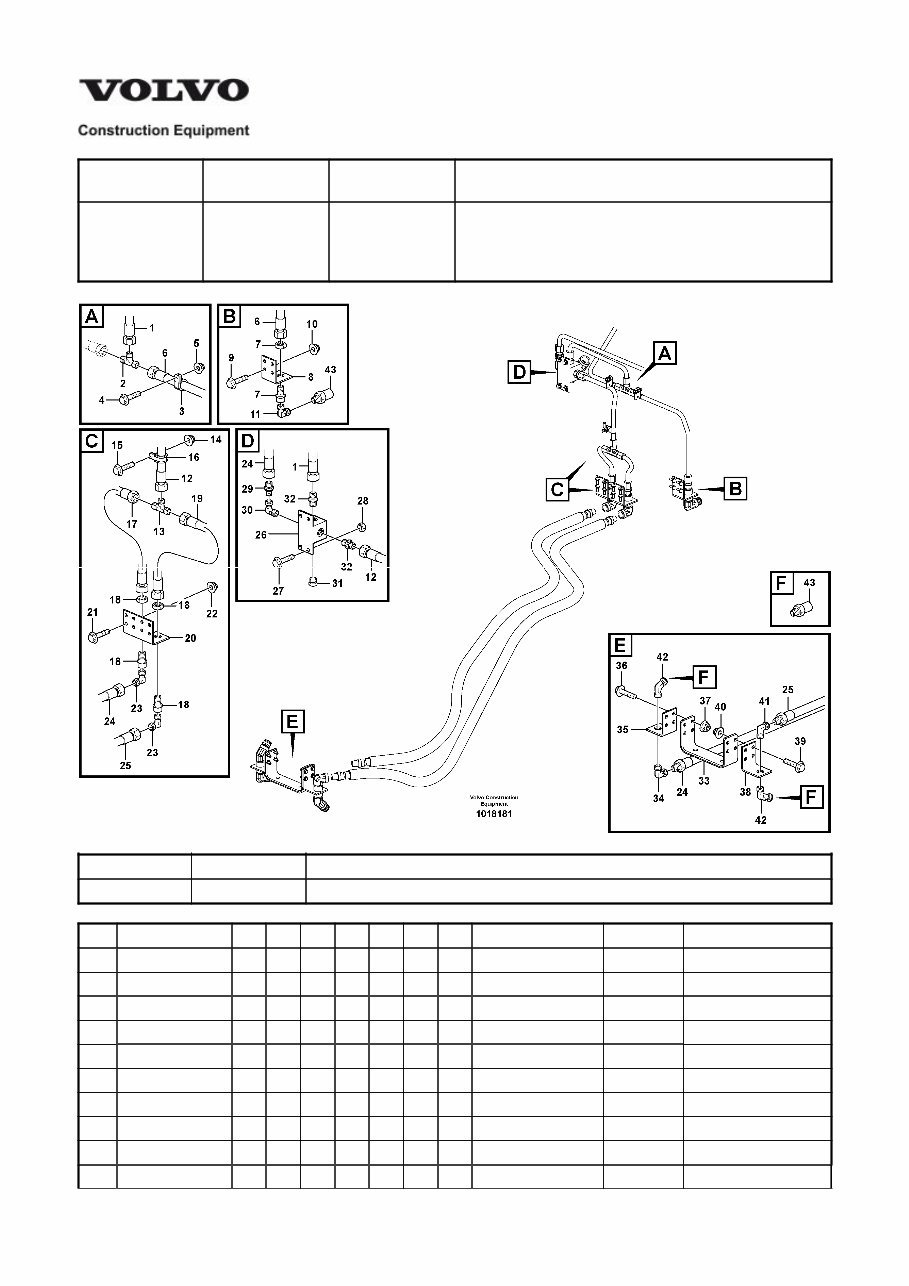

Date:
2014/2/19
Image id:
1018130
Catalogue:
20007
Model:
L90E
Brand:
Volvo
Serial:
20001-22957,
66001-67953,
70801-71269
Group/Section:
992/100
Title:
Fire suppression system 82594
Section option Kit Option description
VOE82594 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 1 Tank See ref 992/250
2 VOE11301779 1 Hose assembly L = 898 MM
3 VOE11301772 1 Clutch
4 VOE11301771 1 Fitting
5 VOE930417 1 Spacer ring
6 VOE981656 1 Clamp
7 VOE13945444 4 Screw
8 VOE948645 1 Flange lock nut
9 VOE11301774 3 Elbow
10 VOE11301777 1 Bracket
11 VOE946671 1 Flange screw
12 VOE11301781 1 Hose assembly L = 350 MM
13 VOE11301784 1 Block
14 VOE13945444 4 Screw
15 VOE948645 4 Flange lock nut
16 VOE479956 1 Plug
Date:
2014/2/19
Image id:
1018181
Catalogue:
20007
Model:
L90E
Brand:
Volvo
Serial:
20001-22957,
66001-67953,
70801-71269
Group/Section:
992/150
Title:
Fire suppression system 82594
Section option Kit Option description
VOE82594 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11301981 1 Tube
2 VOE11301898 1 Fitting
3 VOE13949746 1 Clamp
4 VOE13945444 1 Screw
5 VOE948645 1 Flange lock nut
6 VOE11301983 1 Tube
7 VOE11301813 2 Fitting
8 VOE11301783 2 Bracket
9 VOE13946544 8 Screw
10 VOE13949278 8 Flange lock nut
11 VOE11301799 2 Elbow
12 VOE11301980 1 Tube
13 VOE11301898 1 Fitting
14 VOE948645 2 Flange lock nut
15 VOE13945444 2 Screw
16 VOE13949746 2 Clamp
17 VOE11301979 1 Tube
18 VOE11301813 2 Fitting
19 VOE11301978 1 Tube
20 VOE11301783 1 Bracket
21 VOE13946544 4 Screw
22 VOE13949278 4 Flange lock nut
23 VOE11301799 2 Elbow
24 VOE11301977 1 Hose assembly
25 VOE11301976 1 Hose assembly
26 VOE11301784 1 Block
27 VOE946440 4 Flange screw
28 VOE948645 4 Flange lock nut
29 VOE11301813 1 Fitting
30 VOE11301799 1 Elbow
31 VOE479956 1 Plug
32 VOE11301813 2 Fitting
33 VOE11302018 1 Anchorage
34 VOE11301799 1 Elbow
35 VOE11301783 2 Bracket
36 VOE13946934 4 Screw
37 VOE13949278 4 Flange lock nut
38 VOE11301783 1 Bracket
39 VOE13946934 4 Screw
40 VOE13949278 4 Flange lock nut
41 VOE11301799 1 Elbow
42 VOE11301801 2 Elbow
43 VOE11301769 2 Nozzle
Date:
2014/2/19
Image id:
1018180
Catalogue:
20007
Model:
L90E
Brand:
Volvo
Serial:
20001-22957,
66001-67953,
70801-71269
Group/Section:
992/200
Title:
Fire suppression system 82594
Section option Kit Option description
VOE82594 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11302731 1 Tube
2 VOE11301813 1 Fitting
3 VOE11301799 1 Elbow
4 VOE11301769 1 Nozzle
5 VOE11301783 1 Bracket
6 VOE13946544 4 Screw
7 VOE13949278 4 Flange lock nut
8 VOE13949278 4 Flange lock nut
9 VOE13946544 4 Screw
10 VOE11301783 1 Bracket
