Date:
2013/11/13
Image id:
1020245
Catalogue:
20040
Model:
L35B
Brand:
Volvo
Serial:
1863000-1869999,
1873000-1879999,
1883000-1889999,
1893000-1899999
Group/Section:
210/100

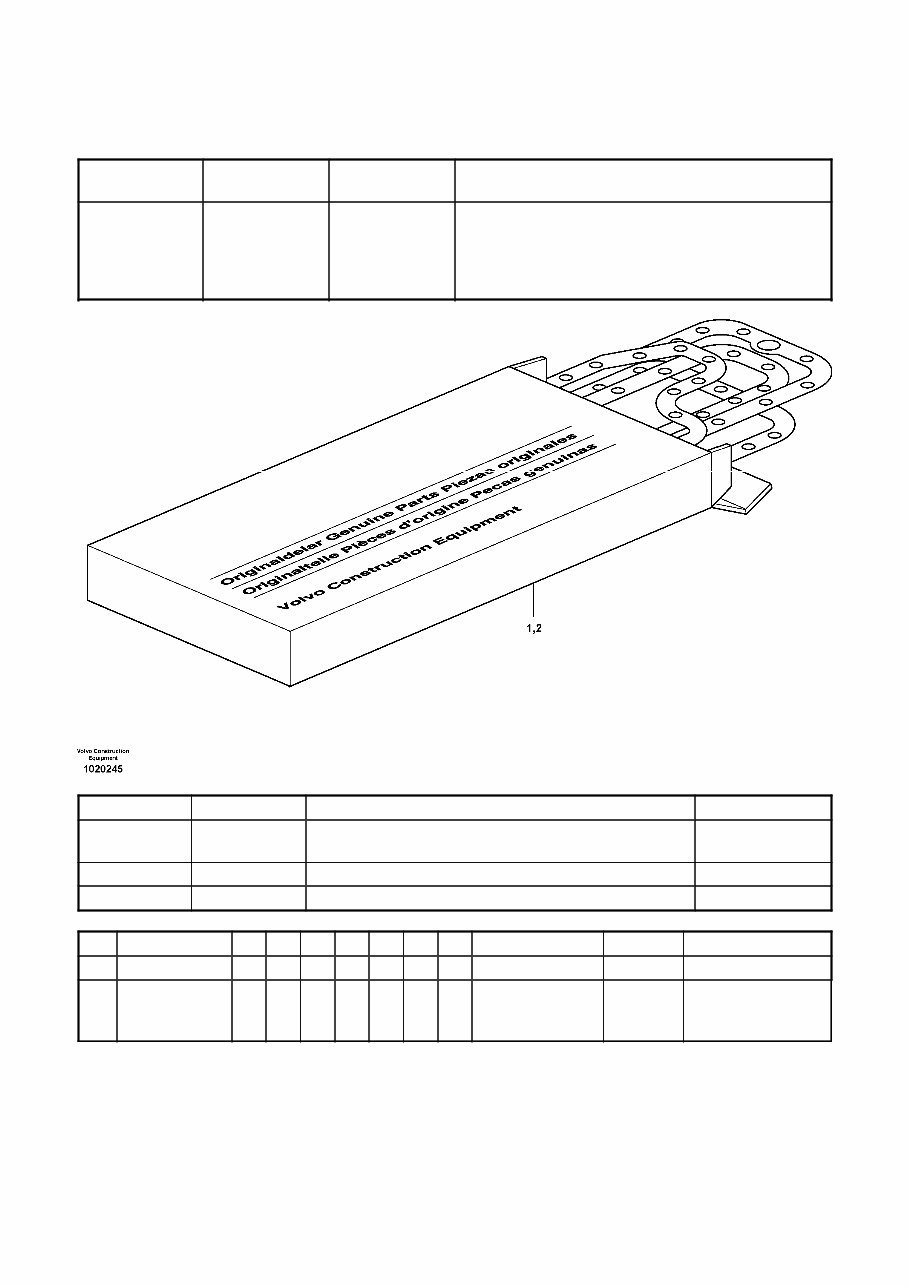

Title:
Repair kits for engine
Q1-Q5 Option Option description
Q1 11306228
11309261
Q2 11308624
Q3 15211728
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11370599 1 Sealing kit
2 VOE11370597 1 1 1 SS Sealing kit cylinder head gasket
not included order
separately
Date:
2013/11/13
Image id:
1052913
Catalogue:
20040
Model:
L35B
Brand:
Volvo
Serial:
1863000-1869999,
1873000-1879999,
1883000-1889999,
1893000-1899999
Group/Section:
211/100

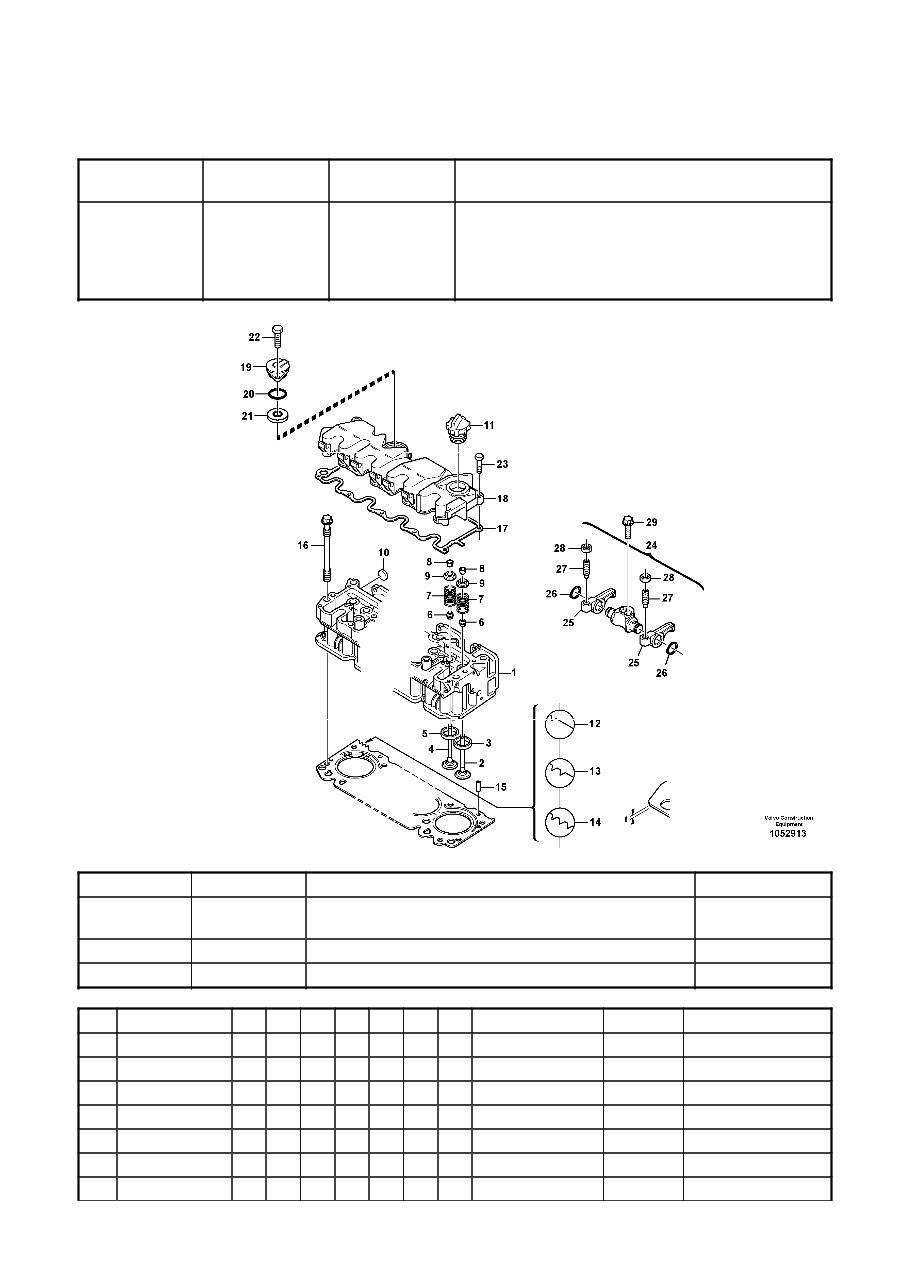

Title:
Cylinder head, timing gears
Q1-Q5 Option Option description
Q1 11306228
11309261
Q2 11308624
Q3 15211728
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11715744 1 Cylinder head
1 VOE15052891 1 1 Cylinder head
2 VOE11715747 4 4 4 •Inlet valve
3 VOE15052905 4 •Valve seat (VOE11715746)
3 VOE15052905 4 4 •Valve seat
4 ZM2908492 4 4 4 •Exhaust Valve
5 VOE11370184 4 SS •Valve seat ring 37,07 mm
5 ZM2290500 REQ •Valve seat ring 37,27 mm
5 VOE15052901 4 4 •Valve seat
6 VOE20459855 8 8 8 •Valve seal (ZM2904368)
7 ZM2904091 8 8 8 •Pressure spring
8 VOE20459857 16 16 16 •Valve sleeve
9 VOE15053220 8 8 8 •Washer
10 ZM2906743 3 3 3 •Cover
11 ZM2904064 1 1 1 Filler cap
12 VOE11715533 1 SS Cylinder head
gasket
THICK = 1,48 MM
12 VOE15052907 1 1 Cylinder head
gasket
THICK = 1,47 MM
13 VOE11715534 1 Cylinder head
gasket
THICK = 1,55 MM
13 VOE15052909 1 1 Cylinder head
gasket
THICK = 1,52 MM
14 VOE11715536 1 Cylinder head
gasket
THICK = 1,60 MM
14 VOE15052899 1 1 Cylinder head
gasket
THICK = 1,57 MM
15 VOE21033924 2 2 2 Guide pin
16 ZM2904092 10 10 10 Cylinder head screw
17 VOE15163264 1 1 1 Valve cover gasket (VOE11370601)
18 VOE11715742 1 1 1 Valve cover
19 VOE11370605 1 1 1 •Release valve
20 ZM2904066 1 1 1 ••O-ring
21 VOE15154076 1 1 1 •Oil separator
22 VOE11370258 1 1 1 •Hexagon screw
23 ZM2908485 10 10 10 Screw
24 ZM2290529 4 4 4 Valve rocker
support
25 ZM2290526 2 2 2 •Rocker Arm
26 ZM7094952 2 2 2 •Safety ring 18x1,2
27 ZM2290527 2 2 2 •Adjusting screw
28 VOE11700373 2 2 2 •Nut
29 VOE20459853 8 8 8 Screw
Date:
2013/11/13
Image id:
1048598
Catalogue:
20040
Model:
L35B
Brand:
Volvo
Serial:
1863000-1869999,
1873000-1879999,
1883000-1889999,
1893000-1899999
Group/Section:
212/100

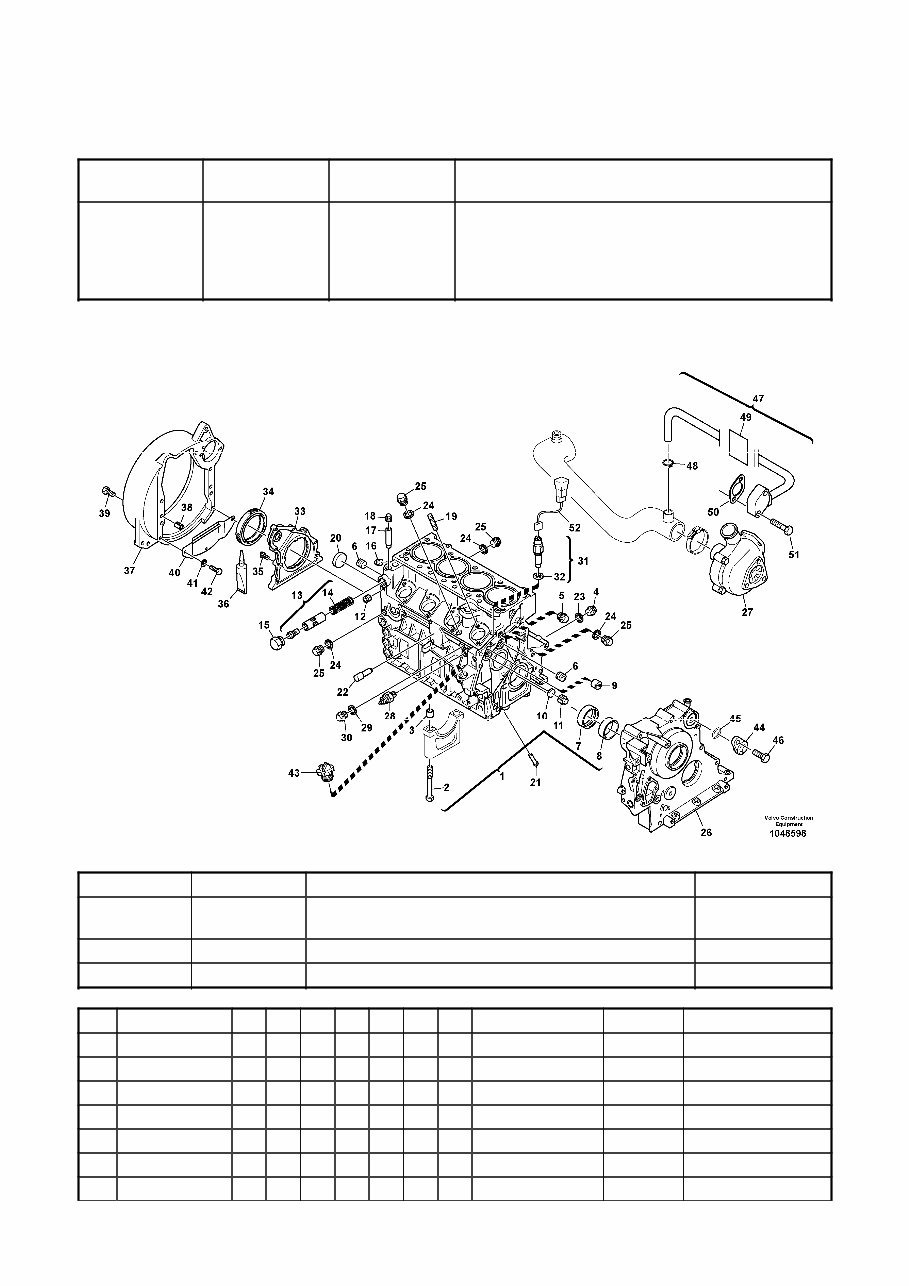

Title:
Engine casing, Ventilation
Q1-Q5 Option Option description
Q1 11306228
11309261
Q2 11308624
Q3 15211728
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11370613 1 Crankcase
1 VOE15053275 1 SS Cylinder block
2 ZM2290540 10 10 •Hexagon screw
3 ZM4010300 10 10 •Bushing
4 VOE20459941 1 1 •Plug
5 ZM2904050 1 1 •Screw plug
6 ZM2908480 2 2 •Screw plug
7 ZM2904048 2 2 •Bearing bush
8 VOE20795762 3 3 •Bearing Bushing
9 VOE15053296 2 2 •Guide sleeve
10 VOE11370177 1 •Plug
11 ZM2905346 1 •Screw plug
11 VOE15053810 1 •Plug
12 VOE20860215 1 1 •Screw (ZM2905340)
13 ZM2904169 1 1 •Thermostat
14 ZM2904053 1 1 ••Pressure spring
15 ZM2905345 1 1 •Screw plug
16 VOE20459853 1 •Screw
16 VOE20405718 1 •Plug
17 ZM2904051 1 1 •Tube
18 ZM2905344 1 1 •Screw plug
19 VOE11715739 8 8 •Stud
20 VOE11370179 1 1 •Cover
21 ZM2904056 8 8 •Piston cooling jet
22 ZM2904057 1 1 •Pin
23 VOE20460061 1 1 •Sealing ring
24 VOE11700631 4 4 Sealing ring (ZM7099530)
25 VOE960628 4 4 Plug
26 1 1 Front cover
27 1 1 Turbocharger
28 ZM2905379 1 1 Oil pressure switch
29 VOE13947624 1 1 Plane gasket
30 VOE11305512 1 1 Lock plug AM18x1,5
31 ZM2904059 1 Temperature
transmitter
(VOE11715605)
31 VOE15054496 1 Sensor
32 VOE13947621 1 •Plane gasket (ZM7099503)A14x18
32 VOE15051423 1 •Sealing ring
33 ZM15020566 1 1 Cover rear
34 ZM2292220 1 1 •Radial seal
35 ZM2290455 8 8 Screw
36 ZM4084070 REQ Sealant
37 ZM2905335 1 1 Intermediate
housing
38 ZM2290547 2 2 Bushing
39 VOE20554683 4 4 Screw (ZM8096638)
40 ZM2290561 1 1 Cover plate
41 VOE973494 3 3 Washer (VOE20459183)
42 VOE20459986 3 3 Screw (ZM7098752)
43 ZM2904064 1 1 Filler cap
44 ZM2904065 1 1 Valve
45 ZM2904066 1 1 O-ring
46 VOE11370258 1 1 Hexagon screw
47 VOE11715740 1 1 Air vent pipe
