Date:
2013/11/13
Image id:
00014002
Catalogue:
07518
Model:
L35B
Brand:
Volvo
Serial:
1862201-1862999,
1872201-1872999,
1882201-1882999,
1892201-1892999
Group/Section:
810/100
Title:

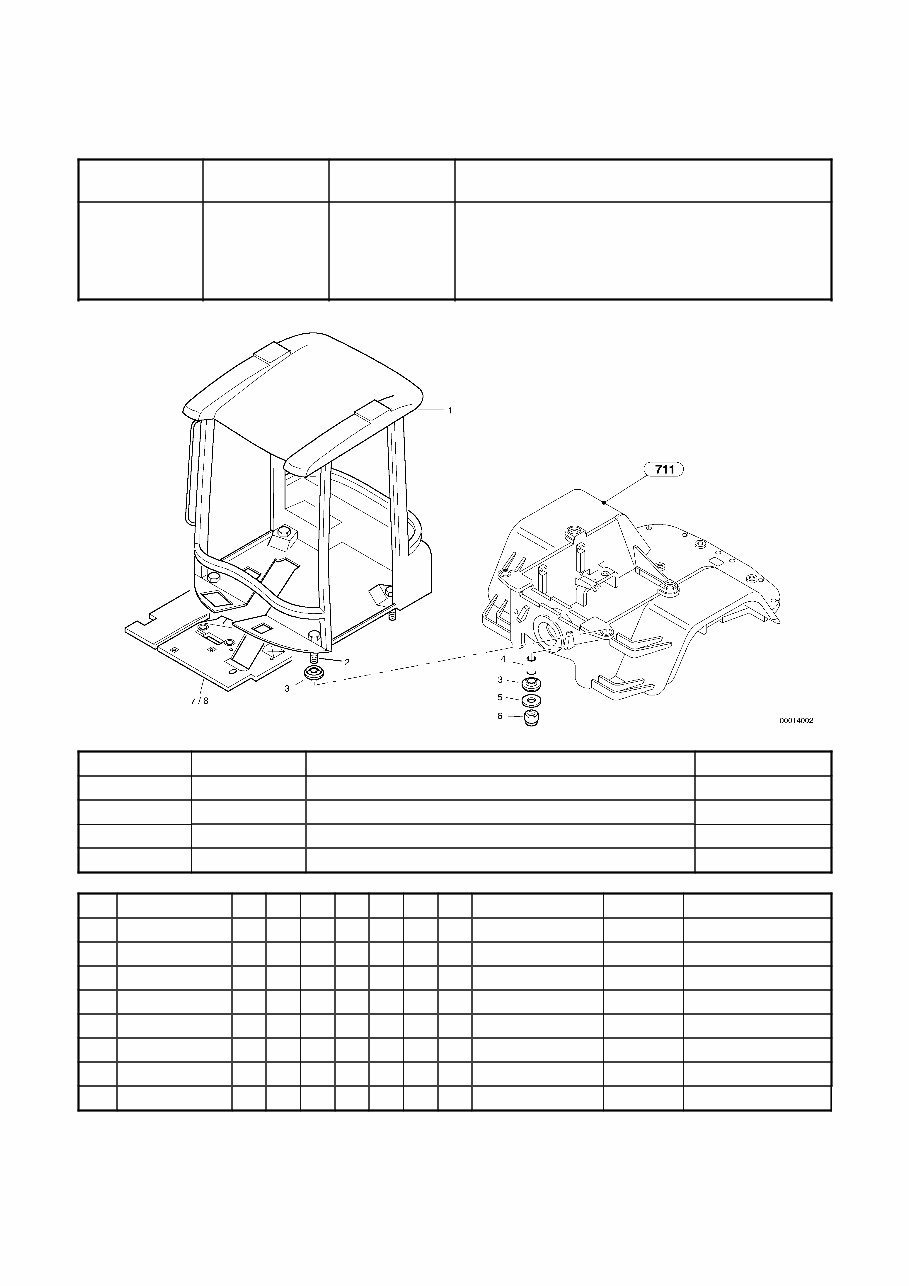

Cab frame
Q1-Q5 Option Option description
Q1 1862201-
Q2 1872201-
Q3 1882201-
Q4 1892201-
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 ZM2906698 1 1 1 1 Cab frame
2 ZM7097263 4 4 4 4 Screw M20x1,5x110
3 ZM2811225 8 8 8 8 Buffer
4 ZM2812436 4 4 4 4 Tube
5 ZM2812435 4 4 4 4 Washer
6 VOE11306512 4 4 4 4 Lock nut (ZM4334154)M20x1,5
7 ZM2813977 1 1 1 1 Damper mat
8 VOE11306039 10 10 10 10 Clip (ZM4340113)
Date:
2013/11/13
Image id:
1002443
Catalogue:
07518
Model:
L35B
Brand:
Volvo
Serial:
1862201-1862999,
1872201-1872999,
1882201-1882999,
1892201-1892999
Group/Section:
818/100
Title:

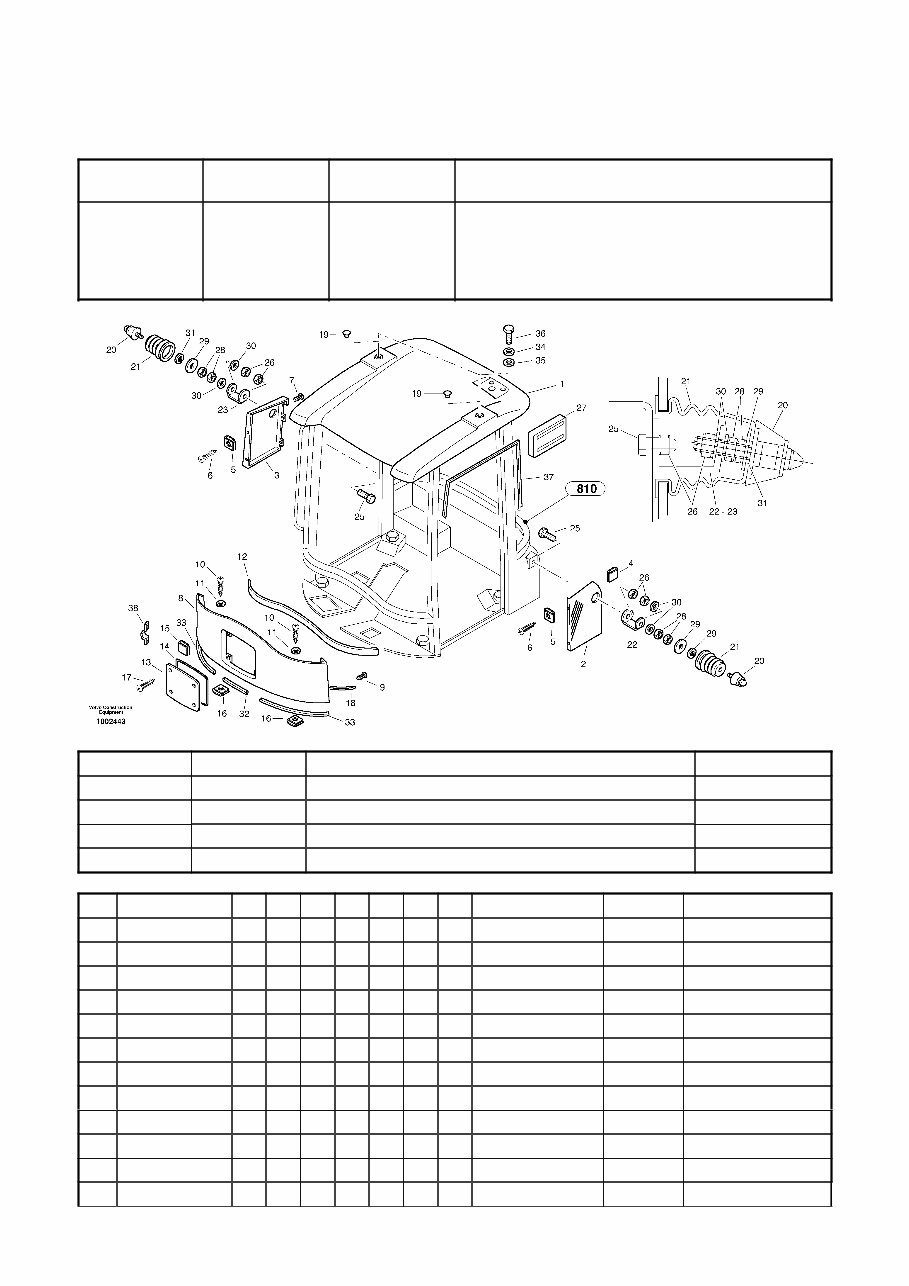

Driver's cabin
Q1-Q5 Option Option description
Q1 1862201-
Q2 1872201-
Q3 1882201-
Q4 1892201-
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 ZM2907106 1 1 1 1 Roof
2 ZM2907107 1 1 1 1 Casing rear, left
2 VOE11370020 1 1 1 1 Cover panel CANOPY
3 ZM2907108 1 1 1 1 Cover
3 VOE11370021 1 1 1 1 Cover panel CANOPY
4 ZM2906716 2 2 2 2 Clamp
5 ZM2906639 4 4 4 4 Nut
6 ZM2907095 4 4 4 4 SS Screw 4,2x20
7 ZM2906710 2 2 2 2 Rivet
8 ZM2907109 1 1 1 1 Front panel
8 VOE11370022 1 1 1 1 Cover panel CANOPY
9 ZM2906710 4 4 4 4 Rivet
10 VOE13955272 4 4 4 4 Screw (ZM8095062)M6x20
11 VOE955892 4 4 4 4 Washer (ZM7098752)B6,4
12 ZM2908993 1 1 1 1 Sealing strip (ZM2907110)
12 VOE11370026 1 1 1 1 Edge protection CANOPY
13 ZM2907111 1 1 1 1 Side Panel
14 ZM2907112 REQ REQ REQ REQ Gasket
15 ZM2906716 2 2 2 2 Clamp
16 ZM2906639 2 2 2 2 Nut
17 ZM2907095 2 2 2 2 SS Screw 4,2x20
18 ZM2908141 2 2 2 2 Sealing strip
18 VOE11370023 2 2 2 2 OP Profile CANOPY
19 ZM2907114 2 2 2 2 Plug
20 ZM2907119 2 2 2 2 Locking Pin
21 ZM2907118 2 2 2 2 Bellow
22 ZM2907117 1 1 1 1 Angle Bracket
23 ZM2907116 1 1 1 1 Angle Bracket
25 VOE983242 2 2 2 2 Hexagon screw M8x20
26 ZM5241125 4 4 4 4 Nut M8
27 ZM2906652 1 1 1 1 SS Adhesive - Repair
set
(ZM2907698)
28 ZM7098010 4 4 4 4 Nut M8
29 VOE11307560 2 2 2 2 Washer (ZM7099092)B8,4
30 ZM7098750 4 4 4 4 SS Washer B 8,4
31 ZM7098303 2 2 2 2 Spring Ring 8
32 ZM2908991 1 1 1 1 Sealing moulding (ZM2908140)
33 ZM2908141 2 2 2 2 Sealing strip
34 ZM2910006 2 2 2 2 Washer
35 ZM2910007 2 2 2 2 Gasket
36 VOE961299 2 2 2 2 Hexagon screw
37 VOE11370554 2 2 2 2 Edge protection (VOE11370025)
CANOPY
38 VOE11370027 2 2 2 2 Clip CANOPY
Date:
2013/11/13
Image id:
00052001
Catalogue:
07518
Model:
L35B
Brand:
Volvo
Serial:
1862201-1862999,
1872201-1872999,
1882201-1882999,
1892201-1892999
Group/Section:
821/100
Title:

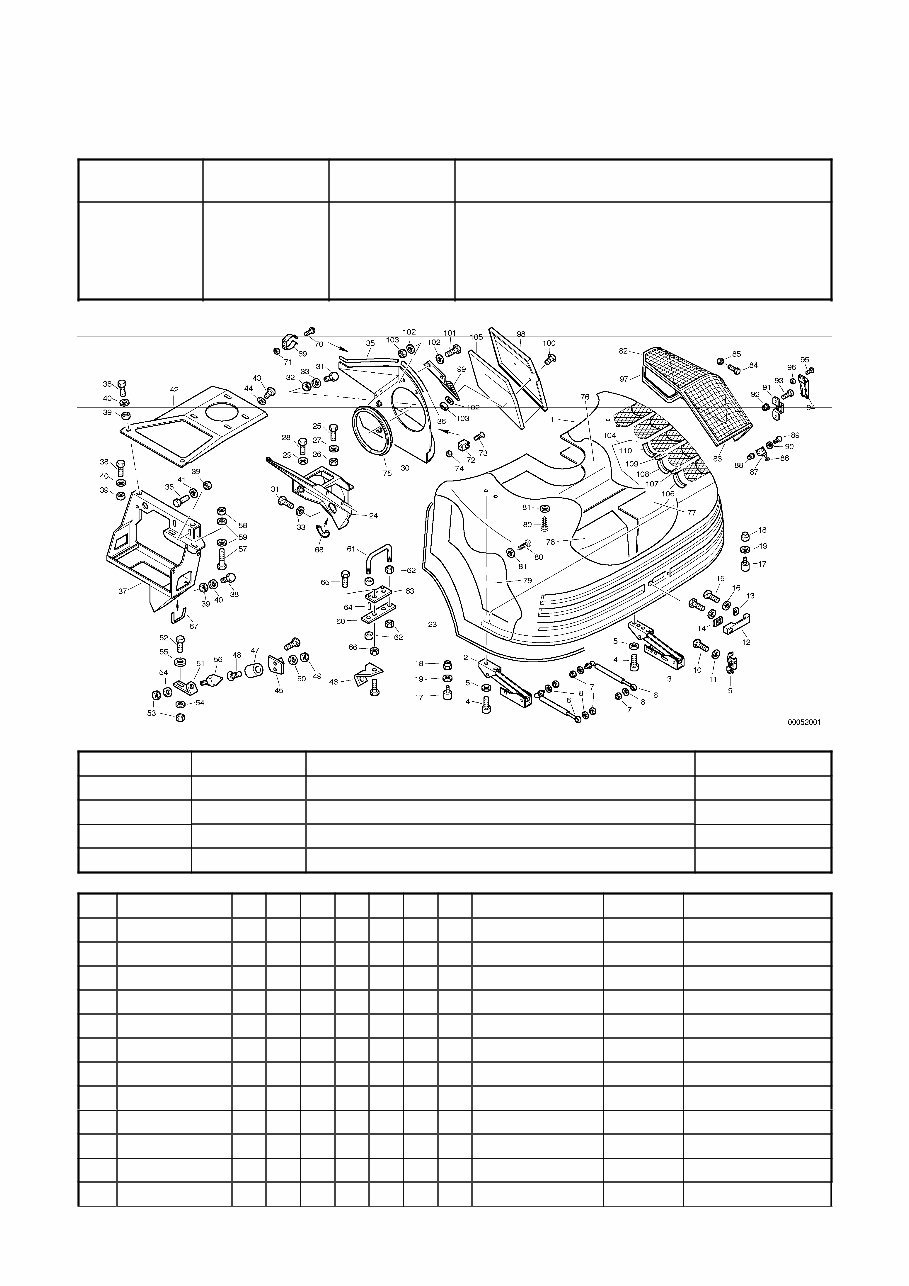

Engine hood
Q1-Q5 Option Option description
Q1 1862201-
Q2 1872201-
Q3 1882201-
Q4 1892201-
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 ZM2906640 1 1 1 1 Engine hood
2 ZM2812684 1 1 1 1 Bonnet hinge
3 ZM2812685 1 1 1 1 Bonnet hinge
4 VOE11305614 4 4 4 4 Allen screw (ZM7096545)M10x30
5 ZM7090941 4 4 4 4 Washer 10,5
6 ZM2811584 1 1 1 1 Gas spring
7 ZM4334182 4 4 4 4 Nut VM8
8 ZM7098750 4 4 4 4 SS Washer B 8,4
9 ZM2906643 1 1 1 1 Lock
10 VOE13955272 2 2 2 2 Screw (ZM8095062)M6x20
11 VOE955892 2 2 2 2 Washer (ZM7098752)B6,4
12 ZM2906644 1 1 1 1 Handle
13 ZM2906645 1 1 1 1 Base
14 ZM2906646 2 2 2 2 Base
15 VOE13955272 3 3 3 3 Screw (ZM8095062)M6x20
16 VOE955892 3 3 3 3 Washer (ZM7098752)B6,4
17 VOE11370096 2 2 2 2 Rubber stop (ZM2906648)
18 ZM8098397 4 4 4 4 Nut M8
19 ZM7098750 2 2 2 2 SS Washer B 8,4
23 VOE11370553 1 1 1 1 Sealing moulding (VOE11715297)
24 ZM2812418 1 1 1 1 Support
25 VOE983251 3 3 3 3 Hexagon screw (ZM7094813)M10x25
26 VOE983304 3 3 3 3 Hexagon nut M10
27 VOE960148 3 3 3 3 Washer (ZM7098741)B10,5
28 VOE983242 1 1 1 1 Hexagon screw M8x20
29 VOE11307560 1 1 1 1 Washer (ZM7099092)B8,4
30 ZM2812426 1 1 1 1 Bulkhead
31 VOE983242 6 6 6 6 Hexagon screw M8x20
32 ZM7098010 2 2 2 2 Nut M8
33 VOE11307560 6 6 6 6 Washer (ZM7099092)B8,4
35 ZM2813826 1 1 1 1 Edge protection L = 400MM
36 ZM2813828 1 1 1 1 Sealing moulding L = 1600MM
37 ZM2812430 1 1 1 1 Battery support
38 VOE983251 11 11 11 11 Hexagon screw (ZM7094813)M10x25
39 VOE983304 11 11 11 11 Hexagon nut M10
40 VOE960148 7 7 7 7 Washer (ZM7098741)B10,5
41 ZM7090941 4 4 4 4 Washer 10,5
42 ZM2812423 1 1 1 1 Support
43 VOE983242 2 2 2 2 Hexagon screw M8x20
44 VOE11307560 2 2 2 2 Washer (ZM7099092)B8,4
45 ZM2907188 1 1 1 1 Bracket
46 ZM2907189 1 1 1 1 Bracket
47 ZM2810946 2 2 2 2 Sliding sleeve
48 VOE969817 2 2 2 2 Screw (ZM8096468)M6x20
49 ZM7098000 2 2 2 2 Nut M6
50 ZM7099093 2 2 2 2 Washer B6,4
51 ZM2813282 2 2 2 2 Holder
52 VOE983242 4 4 4 4 Hexagon screw M8x20
53 ZM7098010 6 6 6 6 Nut M8
54 ZM7098750 6 6 6 6 SS Washer B 8,4
55 VOE11307560 4 4 4 4 Washer (ZM7099092)B8,4
56 ZM2813283 2 2 2 2 Bolt
57 ZM7094828 4 4 4 4 Screw M10x60
58 VOE14370970 4 4 4 4 Lock nut (ZM8098394)M10
59 ZM7090941 4 4 4 4 Washer 10,5
60 ZM2813274 1 1 1 1 Holder
61 ZM2813273 1 1 1 1 Brace
62 VOE983304 4 4 4 4 Hexagon nut M10
63 ZM2813272 1 1 1 1 Clamping Plate
