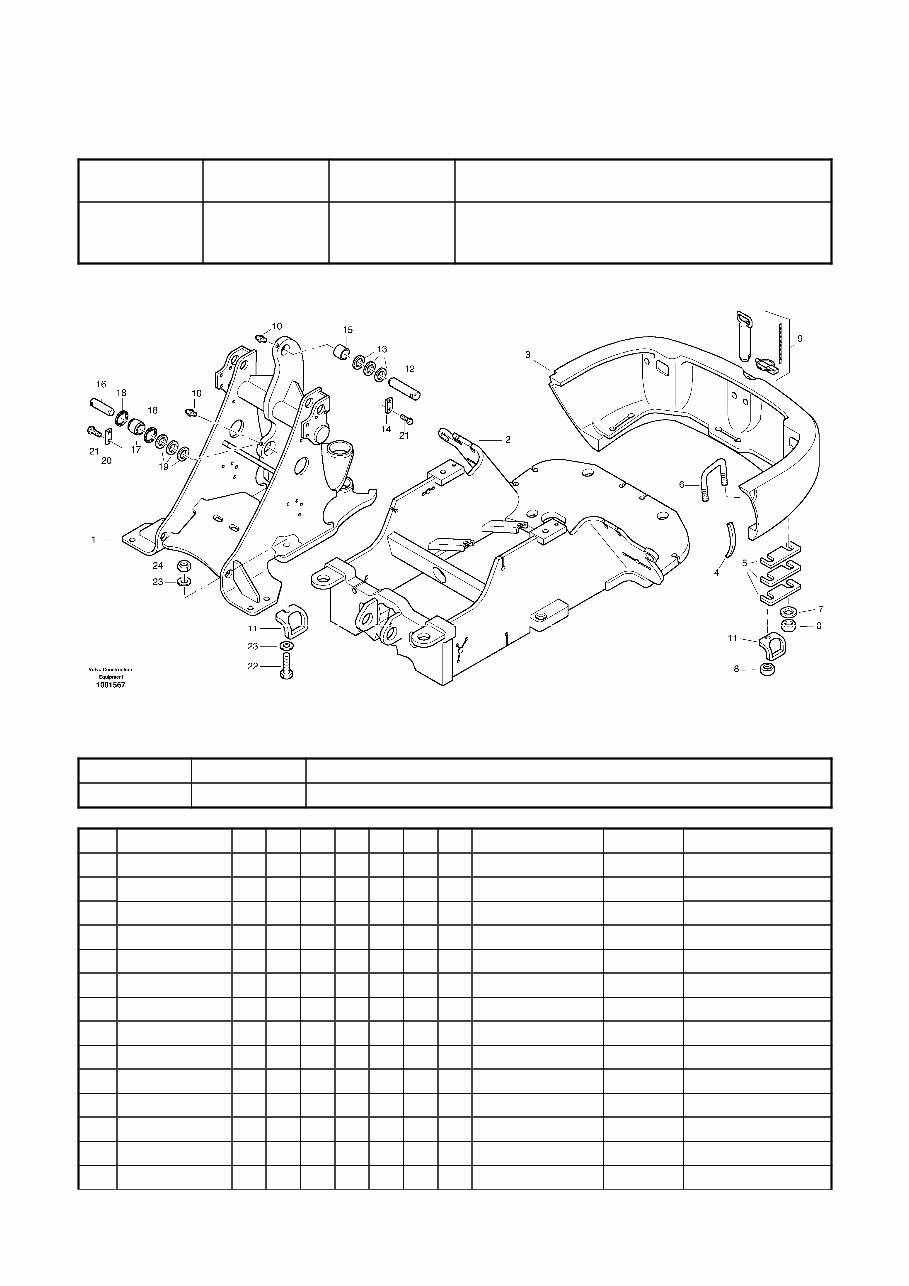

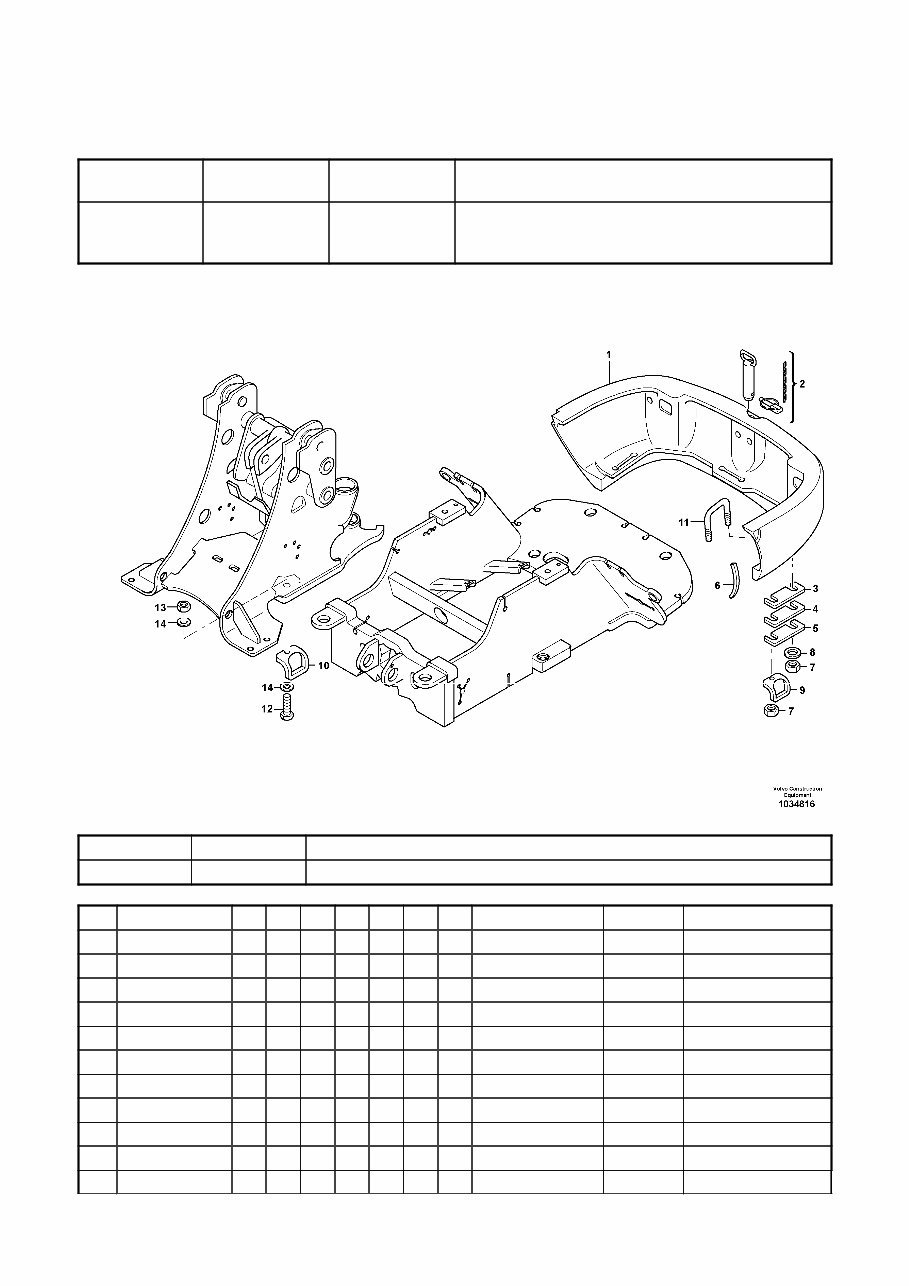

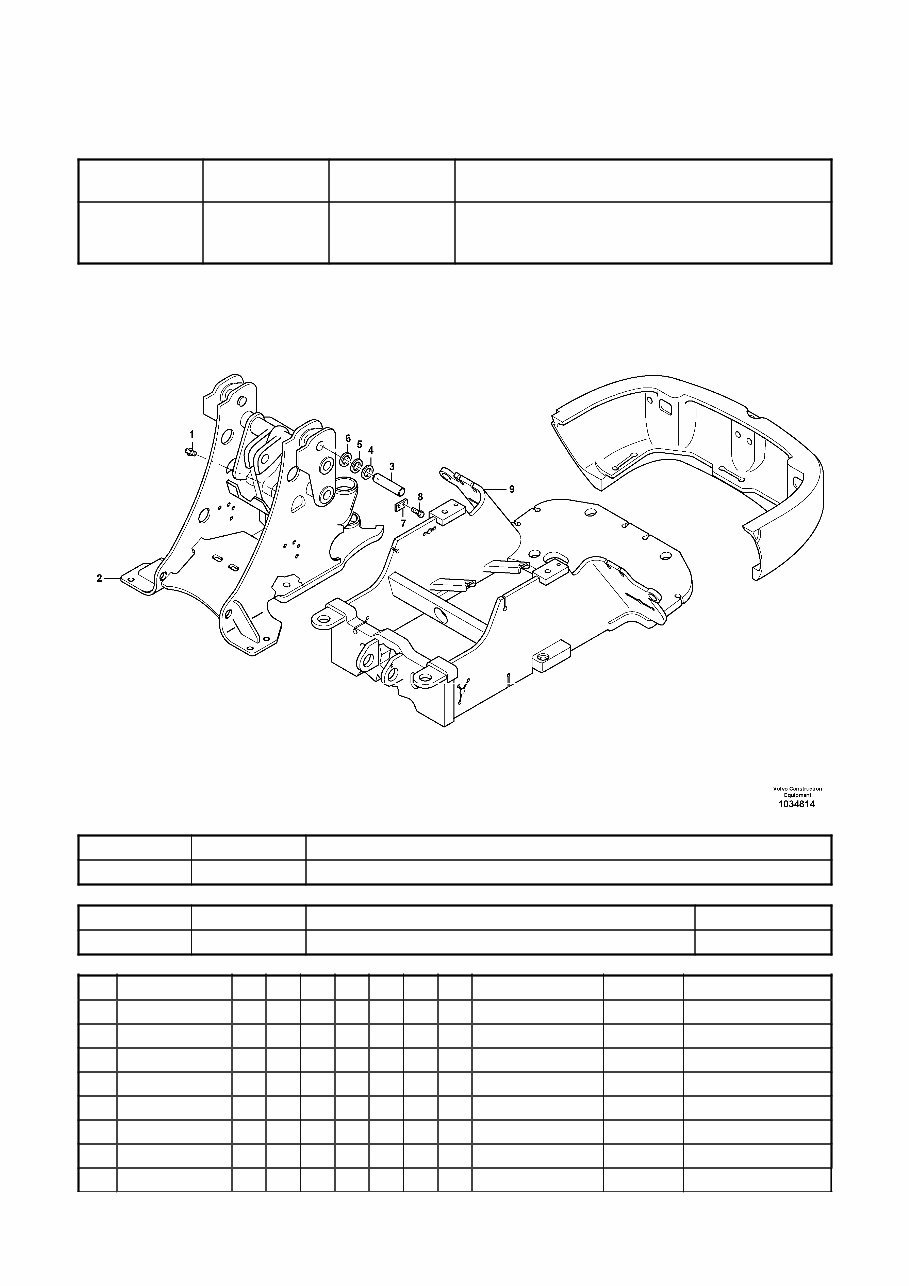

Date:
2013/11/5
Image id:
1001567
Catalogue:
20038
Model:
L25B
Brand:
Volvo
Serial:
1750500-1755000,
1760001-1765000
Group/Section:
711/100
Title:
Frame 11390001
Section option Kit Option description
VOE11390001 Wheel loader L25B
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11308015 1 Front frame (ZM2817411)
2 ZM2817412 1 Rear frame s/n -1750864
2 VOE11307311 1 NS Rear frame s/n 1750865-
3 VOE15211672 1 Counterweight (ZM2817007)
4 ZM2812113 2 Sealing strip (VOE11305162)
5 ZM2812842 REQ Plate 1,0 mm
5 ZM2812843 REQ Plate 2,0 mm
5 ZM2812844 REQ Plate 3,0 mm
6 VOE11305822 3 Attaching brace
7 VOE11306201 6 Washer
8 VOE13967934 6 Flange lock nut (VOE967934)
9 ZM2816989 1 Towing pin
10 VOE14023568 2 Lubricating nipple
11 VOE11305623 4 Load anchorage
12 ZM2802617 1 Bolt
13 VOE11305195 REQ Washer
13 VOE11305196 REQ Washer
13 VOE11305197 REQ Washer
14 VOE11305011 1 Retainer
15 ZM2808030 1 Bushing
16 ZM2802617 1 Bolt
17 VOE184062 1 Spherical plain
bearing
18 VOE914538 2 Retaining ring
19 VOE11305195 REQ Washer
19 VOE11305196 REQ Washer
19 VOE11305197 REQ Washer
20 VOE11305011 1 Retainer
21 VOE983251 4 Hexagon screw
22 VOE965197 2 Flange screw (VOE13965197)
23 VOE13960145 4 Washer
24 VOE13971096 2 Flange nut
Date:
2013/11/5
Image id:
1034814
Catalogue:
20038
Model:
L25B
Brand:
Volvo
Serial:
1750500-1755000,
1760001-1765000
Group/Section:
711/200
Title:
Frame 11390012
Section option Kit Option description
VOE11390012 Wheel loader L25B
Q1-Q5 Option Option description
Q1 1760001 -
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE14023568 2 Lubricating nipple
2 VOE15203381 1 Front frame
3 VOE15201493 2 Bolt
4 VOE11306272 2 Washer
5 VOE14370919 2 Washer
6 VOE11306270 2 Washer
7 ZM2801815 2 Striker plate
8 VOE978932 4 Hexagon screw
9 VOE11307307 1 NS Rear frame
Date:
2013/11/5
Image id:
1034816
Catalogue:
20038
Model:
L25B
Brand:
Volvo
Serial:
1750500-1755000,
1760001-1765000
Group/Section:
716/100
Title:
Counterweight 11390012
Section option Kit Option description
VOE11390012 Wheel loader L25B
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE15211672 1 1 Counterweight
2 ZM2816989 1 1 Towing pin
3 ZM2812842 2 Plate
4 ZM2812843 2 Plate
5 ZM2812844 1 Plate
6 ZM2812113 2 Sealing strip (VOE11305162)
7 VOE13967934 6 Flange lock nut
8 VOE11306201 4 Washer
9 VOE11305623 2 Load anchorage
10 VOE11305623 2 Load anchorage
11 VOE11305074 3 Attaching brace
