Date:
2014/3/5
Image id:
AU417
Catalogue:
97786
Model:
L150C
Brand:
Volvo
Serial:
2768-10000,
60701-70000
Group/Section:
993/550
Title:

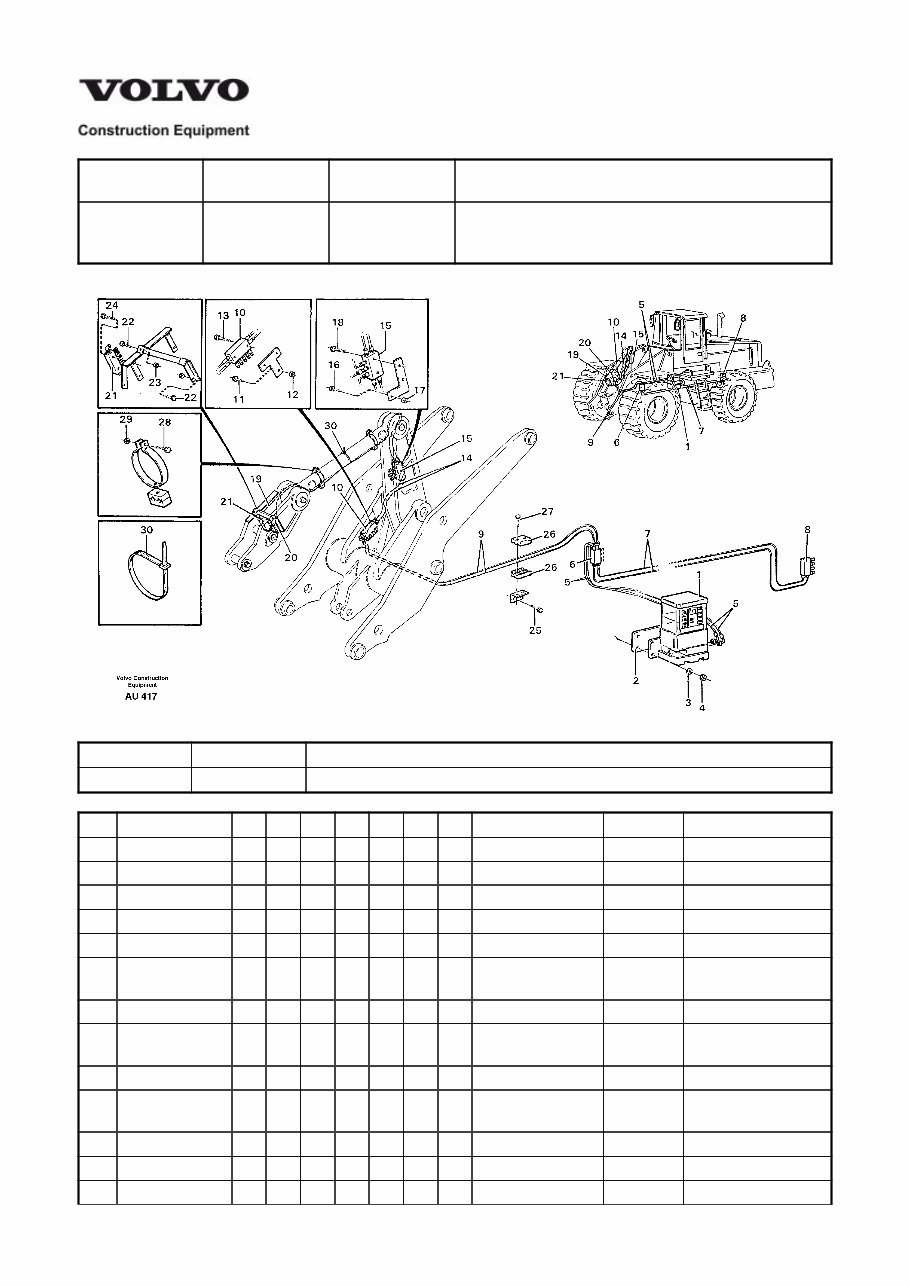

Central lubrication. 94803
Section option Kit Option description
VOE94803 VOE11701772 Automatic greasing system
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11702291 1 Pump See ref 993/900
2 1 NS Bracket
3 VOE13955894 4 Washer (VOE 955894)
4 VOE963106 4 Lock nut
5 VOE11702417 2 SS Lubricant line
6 VOE11702427 1 Distribution block 9 ports / portar Block
B2 See ref 993/650
7 VOE11702418 2 SS Lubricant line
8 VOE11702410 1 Distribution block 9 ports / portar Block
B1 See ref 993/700
9 VOE11702419 2 SS Lubricant line
10 VOE11702413 1 Distribution block 6 ports / portar Block
B3 See ref 993/750
11 VOE13970956 1 Hexagon screw (VOE 970956)
12 VOE13971089 1 Lock nut (VOE 971089)
13 VOE959207 2 Allen Hd Screw
14 VOE11702420 2 SS Lubricant line
15 VOE11702415 1 Distribution block 3 ports / portar Block
B4 See ref 993/800
16 VOE13970954 1 Hexagon screw (VOE 970954)
17 VOE13971089 1 Lock nut (VOE 971089)
18 VOE959207 2 Allen Hd Screw
19 VOE11702421 1 SS Lubricant line
20 VOE11702422 1 SS Lubricant line
21 VOE11702416 1 Distribution block 4 ports / portar Block
B5 See ref 993/850
22 VOE13955295 1 Screw L = 20 MM
VOE940132 1 Hexagon screw L = 35 MM
23 VOE963106 2 Lock nut
24 VOE959207 2 Allen Hd Screw
25 VOE13970944 3 Hexagon screw (VOE 970944)
26 VOE11701854 10 Clamp
27 VOE940326 3 Allen Hd Screw L = 20 MM
VOE942314 6 Allen Hd Screw L = 25 MM
28 VOE955297 2 Hexagon screw
29 VOE963106 2 Lock nut
30 VOE4881440 REQ Cable tie
Date:
2014/3/5
Image id:
AU418
Catalogue:
97786
Model:
L150C
Brand:
Volvo
Serial:
2768-10000,
60701-70000
Group/Section:
993/600
Title:

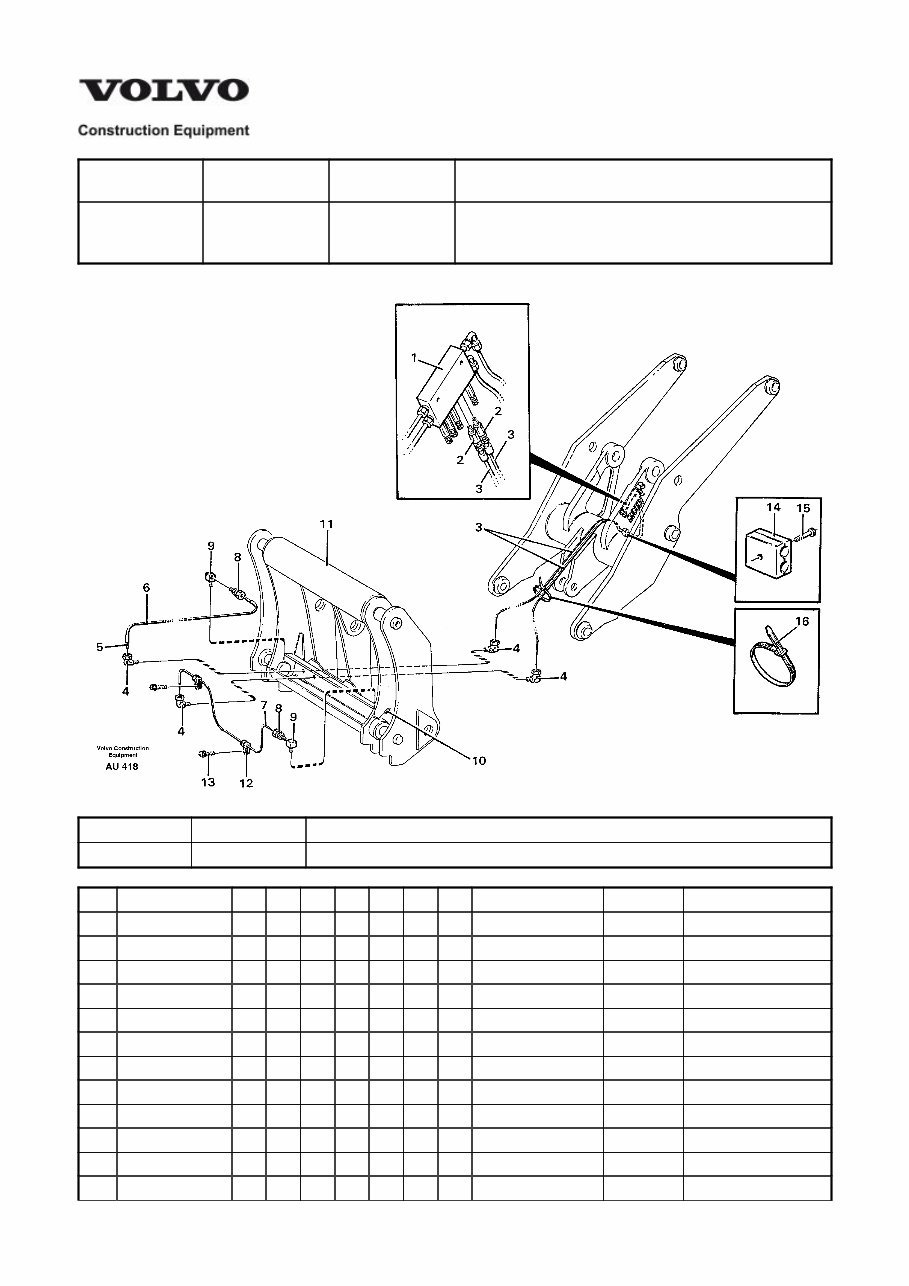

Central lubrication for tool bar. 94804
Section option Kit Option description
VOE94804 VOE11701773 Automatic greasing system for Att. bracket
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 1 Distribution block See ref 993/550
2 VOE11702155 2 Dosage valve NO 8
3 VOE11702414 2 SS Lubricant line L = 2300 MM
4 VOE11701837 4 Connector
5 VOE11701833 REQ Lubricant line L = 1000 x 2 MM
6 VOE192598 REQ Hose L = 300 MM
7 VOE192598 REQ Hose L = 900 MM
8 VOE11701843 2 Connector
9 VOE11701845 2 Connector
10 VOE11701827 2 Plug
11 1 Atch bracket See ref 924/150
12 VOE952624 2 Clamp
13 VOE13948745 2 Screw (VOE 948745)
14 VOE11702369 1 Clamp
15 VOE940326 1 Allen Hd Screw
16 VOE4881440 REQ Cable tie
Date:
2014/3/5
Image id:
AU419
Catalogue:
97786
Model:
L150C
Brand:
Volvo
Serial:
2768-10000,
60701-70000
Group/Section:
993/650
Title:

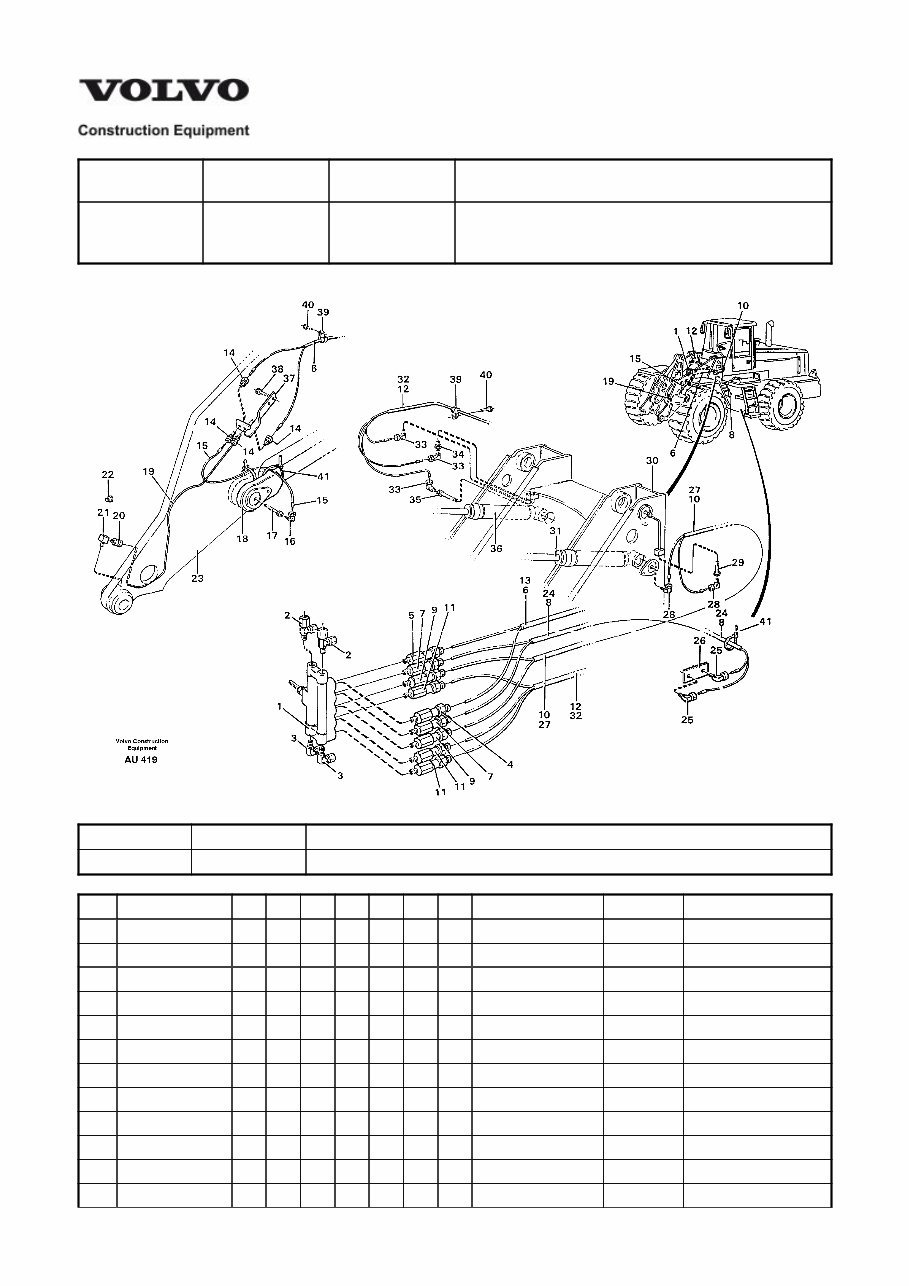

Distribution block, B2. 94803
Section option Kit Option description
VOE94803 VOE11701772 Automatic greasing system
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11702427 1 Distribution block 9 ports / portar
1 1 NS •Distribution block
2 VOE11997273 2 •Tee
3 VOE11997272 2 •Elbow union
4 VOE11702370 1 •Dosage valve NO 6
5 VOE11702154 1 •Dosage valve NO 9
6 VOE11701834 REQ •Lubricant line L = 4000 MM
7 VOE11702371 2 •Dosage valve NO 1
8 VOE11701834 REQ •Lubricant line L = 2000 MM
9 VOE11702152 2 •Dosage valve NO 3
10 VOE11701834 REQ •Lubricant line L = 3000 MM
11 VOE11702152 3 •Dosage valve NO 3
