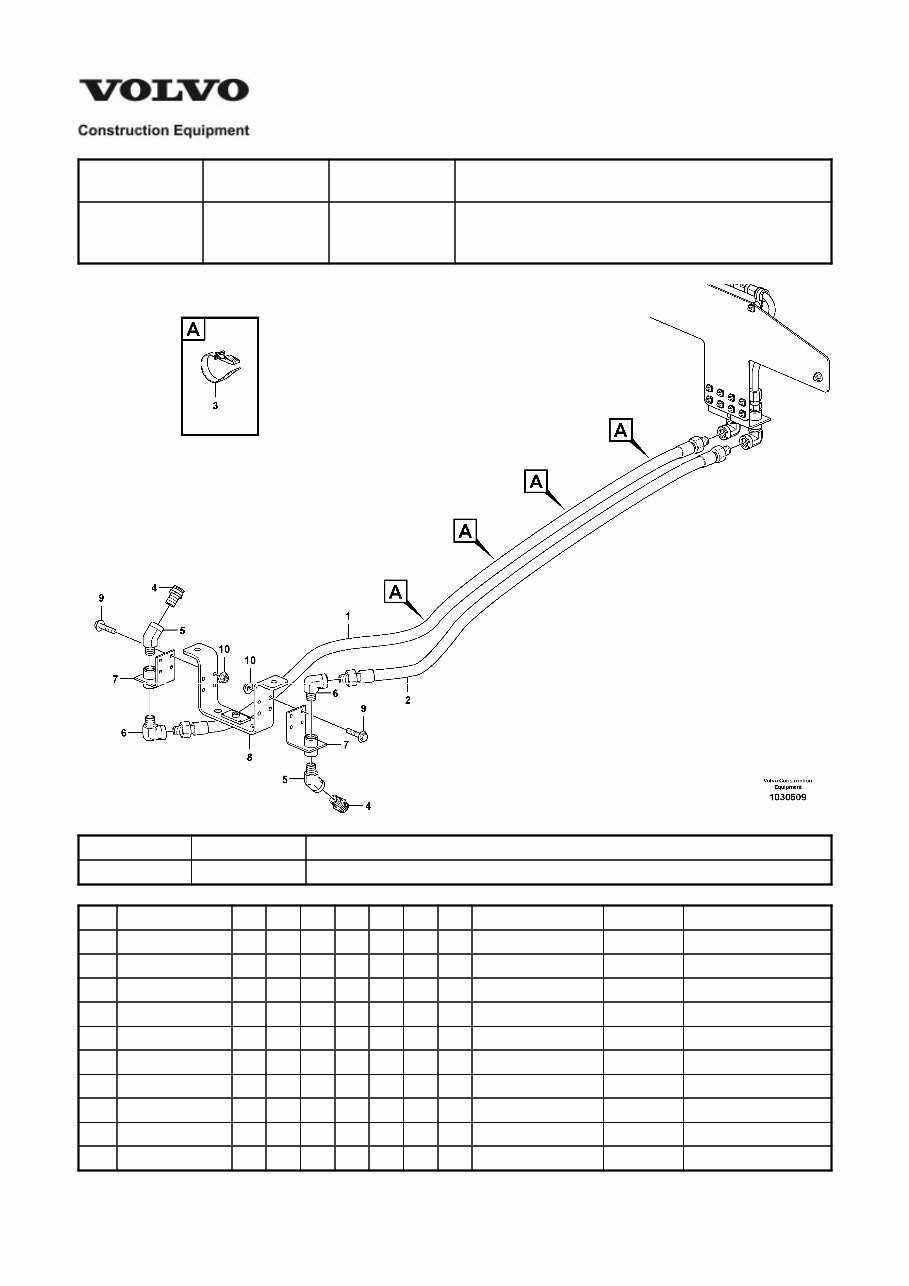

Date:
2014/2/27
Image id:
1032178
Catalogue:
20086
Model:
L120E
Brand:
Volvo
Serial:
19804-, 66001-,
71401-

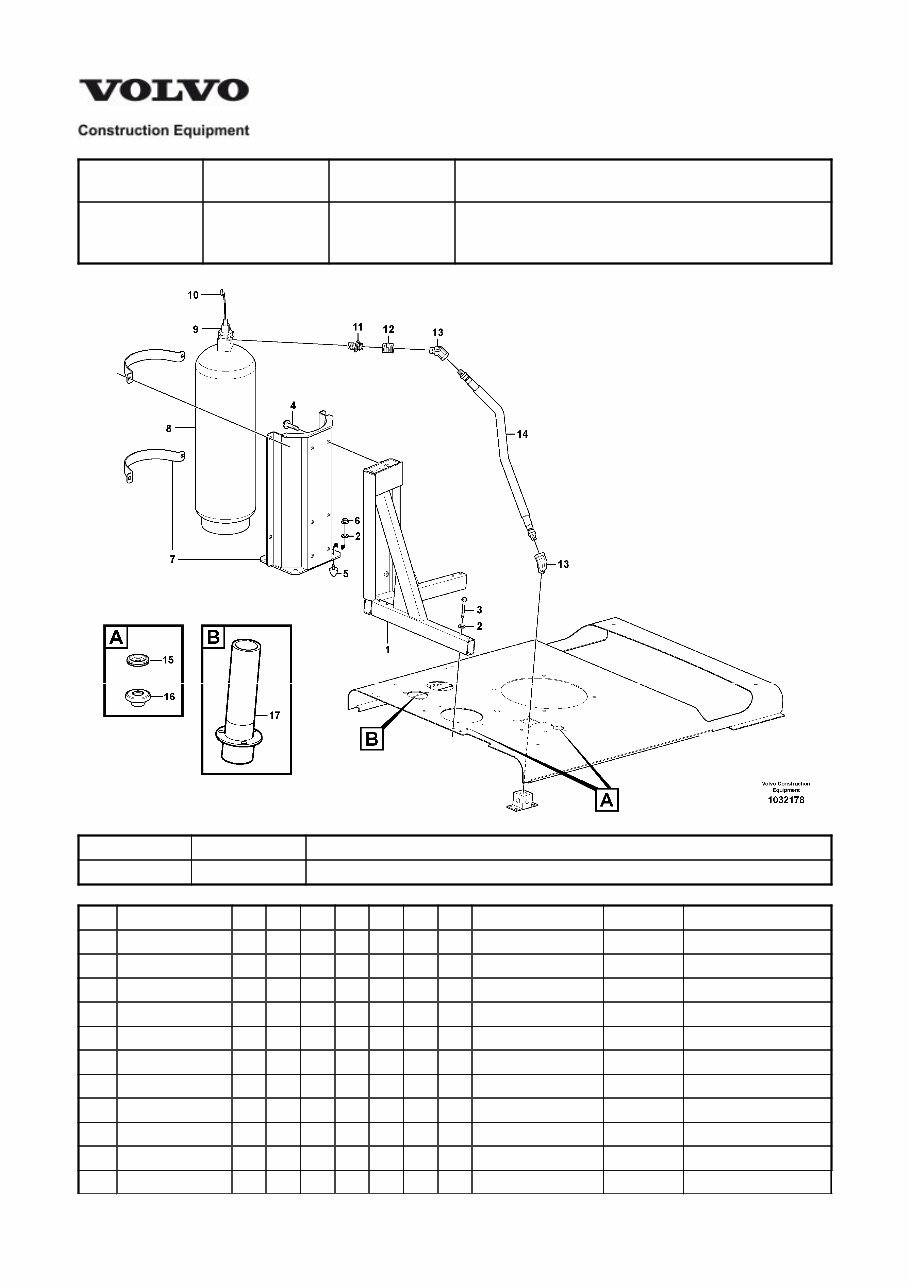

Group/Section:
992/125
Title:
Fire suppression system 83411
Section option Kit Option description
VOE83411 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11436065 1 Frame
2 VOE11117464 13 Washer (VOE13960141)
3 VOE13965182 6 Screw
4 VOE13965192 6 Screw
5 VOE4881758 1 Rubber stop
6 VOE948645 4 Flange lock nut
7 VOE11301767 1 Bracket
8 VOE11301765 1 Tank
9 1 Contact See ref 371/1850
10 1 Actuator See ref 371/1850
11 VOE11301771 1 Fitting
12 VOE11301772 1 Clutch
13 VOE11301775 2 Elbow
14 VOE11435520 1 Hose assembly
15 VOE943920 1 Plug
16 VOE13974682 8 Plug
17 VOE11435346 1 Hose connection
Date:
2014/2/27
Image id:
1032097
Catalogue:
20086
Model:
L120E
Brand:
Volvo
Serial:
19804-, 66001-,
71401-
Group/Section:
992/150
Title:
Fire suppression system 83411
Section option Kit Option description
VOE83411 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11301898 3 Fitting
2 VOE13946173 9 Screw
3 VOE11301813 9 Fitting
4 VOE479956 1 Plug
5 VOE11301784 1 Block
6 VOE11301801 4 Elbow
7 VOE11436076 2 NS Retaining Plate
8 VOE13965180 4 Screw
9 VOE11117464 5 Washer
10 VOE13949746 6 Clamp
11 VOE930431 4 Spacer ring
12 VOE946671 4 Flange screw
13 VOE948645 4 Flange lock nut
14 VOE946544 24 Flange screw
15 VOE11301815 1 Fitting
16 VOE11435998 1 NS Attaching Plate
17 VOE11436070 1 NS Plate
18 VOE11301783 6 Bracket
19 VOE11301799 4 Elbow
20 VOE11301769 4 Nozzle
21 1 Hose assembly See ref 992/200
22 1 Hose assembly See ref 992/200
23 VOE13946934 2 Screw
24 VOE13949278 2 Flange lock nut
25 VOE11436072 1 NS Attaching Plate
26 VOE11436074 1 NS Attaching Plate
Date:
2014/2/27
Image id:
1030609
Catalogue:
20086
Model:
L120E
Brand:
Volvo
Serial:
19804-, 66001-,
71401-
Group/Section:

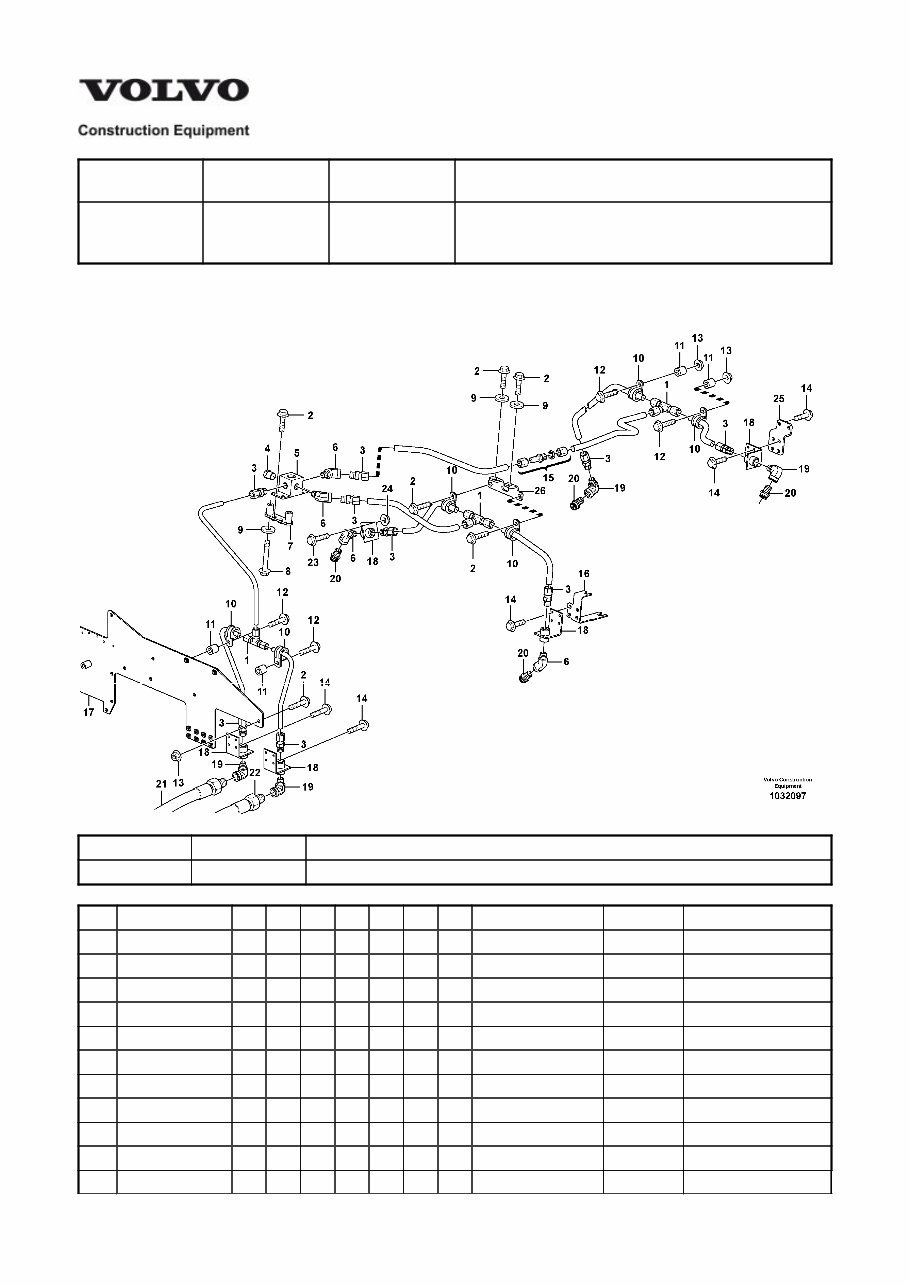

992/200
Title:
Fire suppression system 83411
Section option Kit Option description
VOE83411 Fire suppression system USA
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE11301977 1 Hose assembly
2 VOE11301976 1 Hose assembly
3 VOE11104606 4 Retaining strap
4 VOE11301769 2 Nozzle
5 VOE11301801 2 Elbow
6 VOE11301799 2 Elbow
7 VOE11301783 2 Bracket
8 VOE11301900 1 Attachment
9 VOE13946934 8 Screw
10 VOE13949278 8 Flange lock nut
