Date:
2013/11/16
Image id:
20341
Catalogue:
97671
Model:
L30
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
21/25

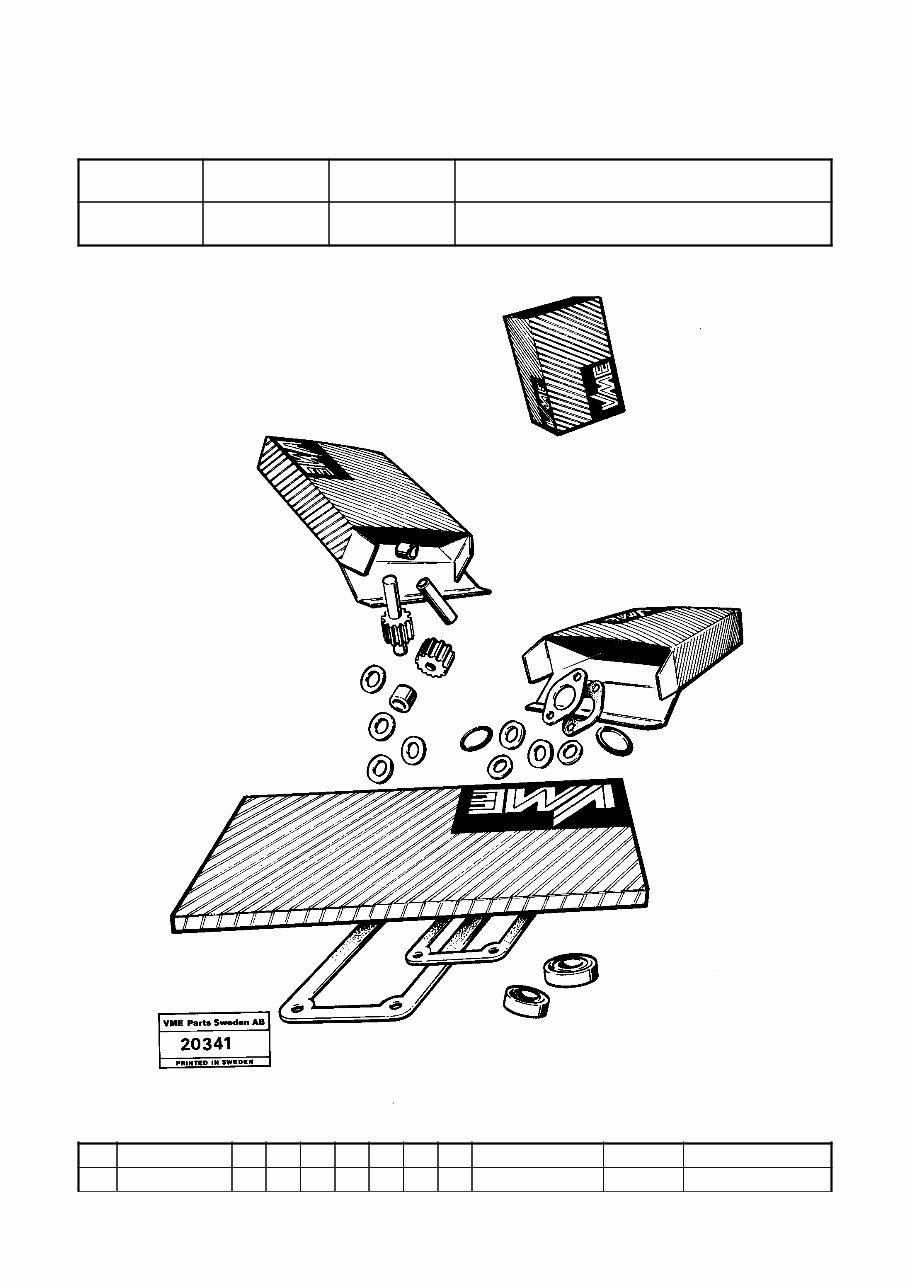

Title:
Repair kits for engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11707747 1 OP Gasket kit (VOE11998337)
••For cyl.block
4 Piston ring kit See ref 21/150
1 Big end bearing kit See ref 21/150
1 Mn bearing kit See ref 21/150
1 Thrust washer kit See ref 21/150
VOE6212979 1 SS Gasket kit See footnote 999)
••For cyl.head
VOE11996112 1 OP Gasket kit See footnote 1000)
••For cyl.head
1 Repair kit See ref 26/150
••For water pump
999) Ser No - 71114
1000) Ser No 71115 -
Date:
2013/11/16
Image id:
19249A
Catalogue:
97671
Model:
L30
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
21/50

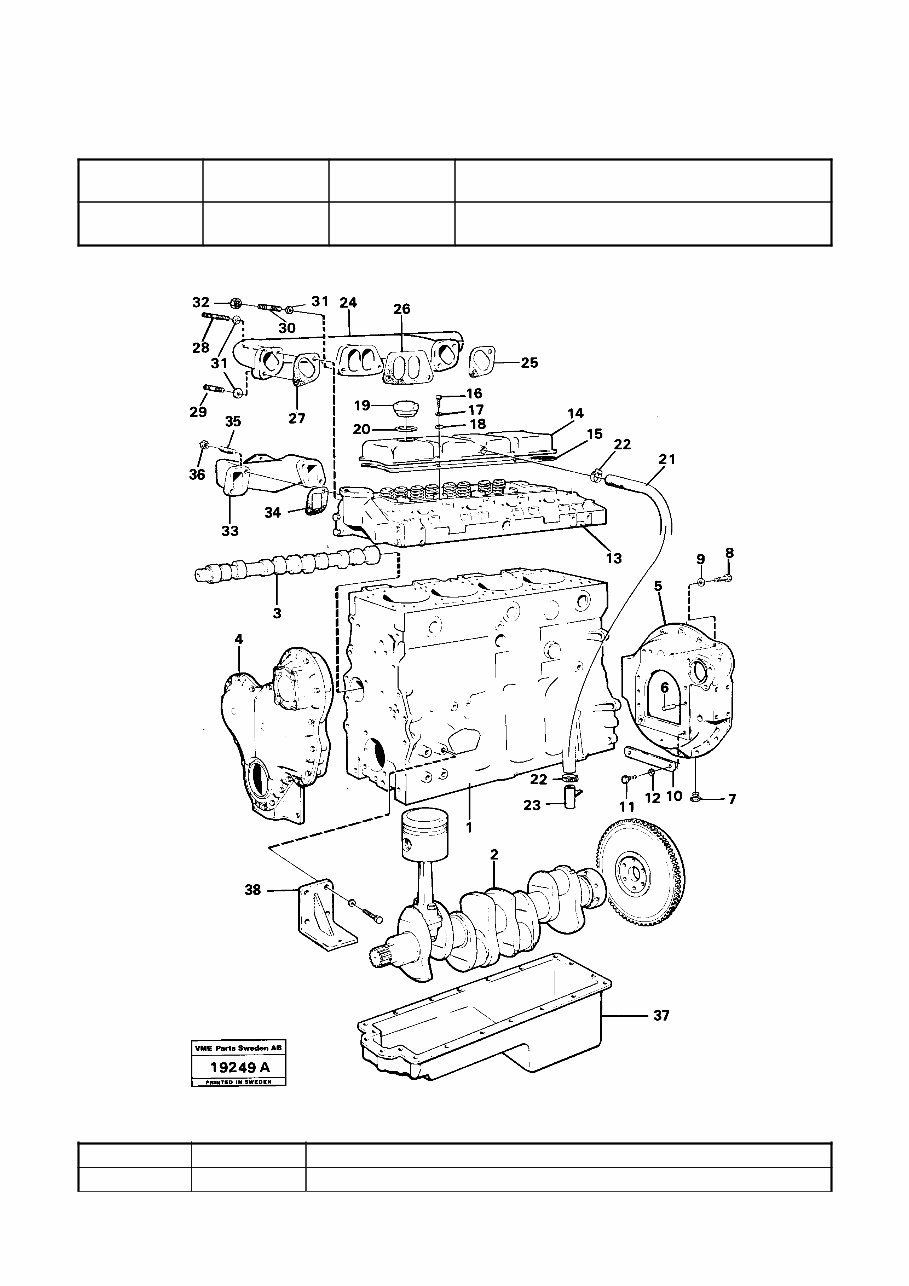

Title:
Engine with fitting parts
Section option Kit Option description
VOE11001232
VOE11086018 Engine D39c, Perkins 4.236 L30, SER NO 71115 -
Q1-Q5 Option Option description
Q1 11001232 VOE11001232
Q2 11086018 VOE11086018 Engine D39c, Perkins 4.236 L30, SER NO 71115 -
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11001232 1 SS Engine D39B 4.236 SER NO -
71114
VOE11086018 1 OP Engine D39C 4.236 SER NO
71115 -
1 1 1 •Cylinder block See ref 21/100
2 1 1 •Crankshaft See ref 21/150
3 1 1 •Camshaft See ref 21/200
4 1 1 •Timing gear casing See ref 21/250
5 VOE11991785 1 1 OP •Flywheel housing
6 VOE483449 1 1 •Pin (VOE7483449)
7 VOE952358 1 1 OP •Plug
8 VOE102056 6 6 •Screw
9 VOE13942336 6 6 •Spring washer (VOE942336)
10 VOE11991786 1 1 OP •Cover
11 VOE955637 2 2 •Hexagon screw
12 VOE13941906 2 2 •Washer (VOE941906)
13 1 1 •Cylinder head See ref 21/300
14 VOE11991758 1 1 OP •Cover
15 VOE11702989 1 •Gasket (VOE6212558)
VOE11702989 1 •Gasket (VOE11996106)
16 VOE483644 4 4 •Screw (VOE7483644)
17 VOE13941906 4 4 •Washer (VOE941906)
18 VOE955893 4 4 •Washer
19 VOE11991759 1 1 OP •Cover
20 1 1 NS ••Gasket
21 VOE11991807 1 1 OP •Hose
22 VOE13943474 2 2 •Hose clamp (VOE11991753)
23 VOE6646940 1 1 OP •Tube
24 VOE11991766 1 1 OP •Inlet pipe
25 VOE11993160 1 1 •Gasket (VOE6648908)
26 VOE11993158 1 1 •Gasket (VOE7483374)
27 VOE11993159 1 1 •Gasket (VOE7483375)
28 VOE11994089 2 2 OP •Stud
29 VOE6637411 2 2 •Screw (VOE11994090)
30 VOE11994091 2 2 OP •Stud
31 VOE13942336 6 6 •Spring washer (VOE942336)
32 VOE13955848 6 6 •Nut
33 VOE483617 1 1 •Exhaust manifold (VOE7483617)
34 VOE11998073 2 •Gasket (VOE7483333)
VOE11996037 2 OP •Gasket
35 VOE6616662 4 4 •Stud
36 VOE11996049 4 4 •Nut
37 1 1 •Oil sump See ref 21/350
38 2 2 •Engine suspension See ref 21/400
