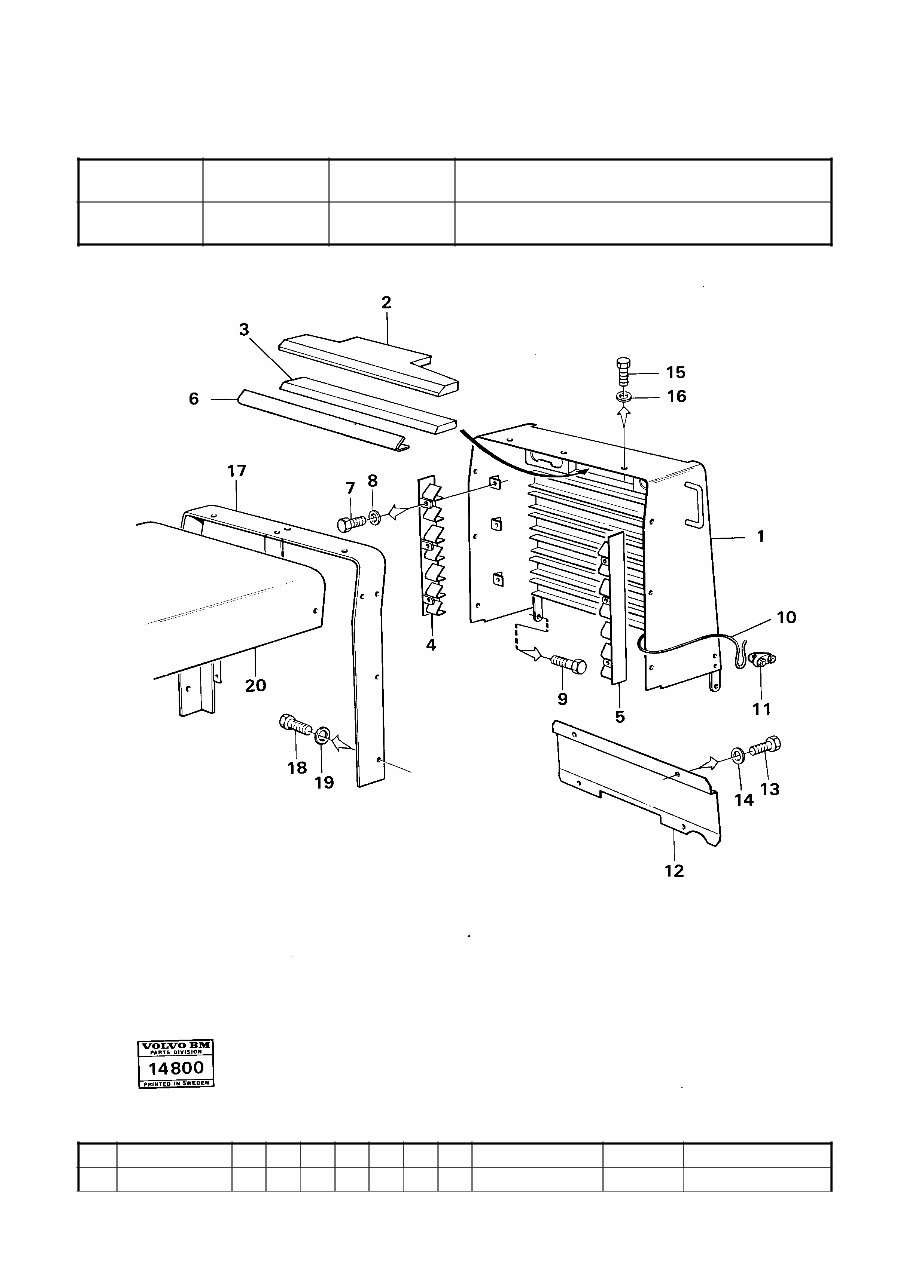

Volvo BM 4200 Wheel Loader Service Parts Catalogue Manual INSTANT SN: 1-10000
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual

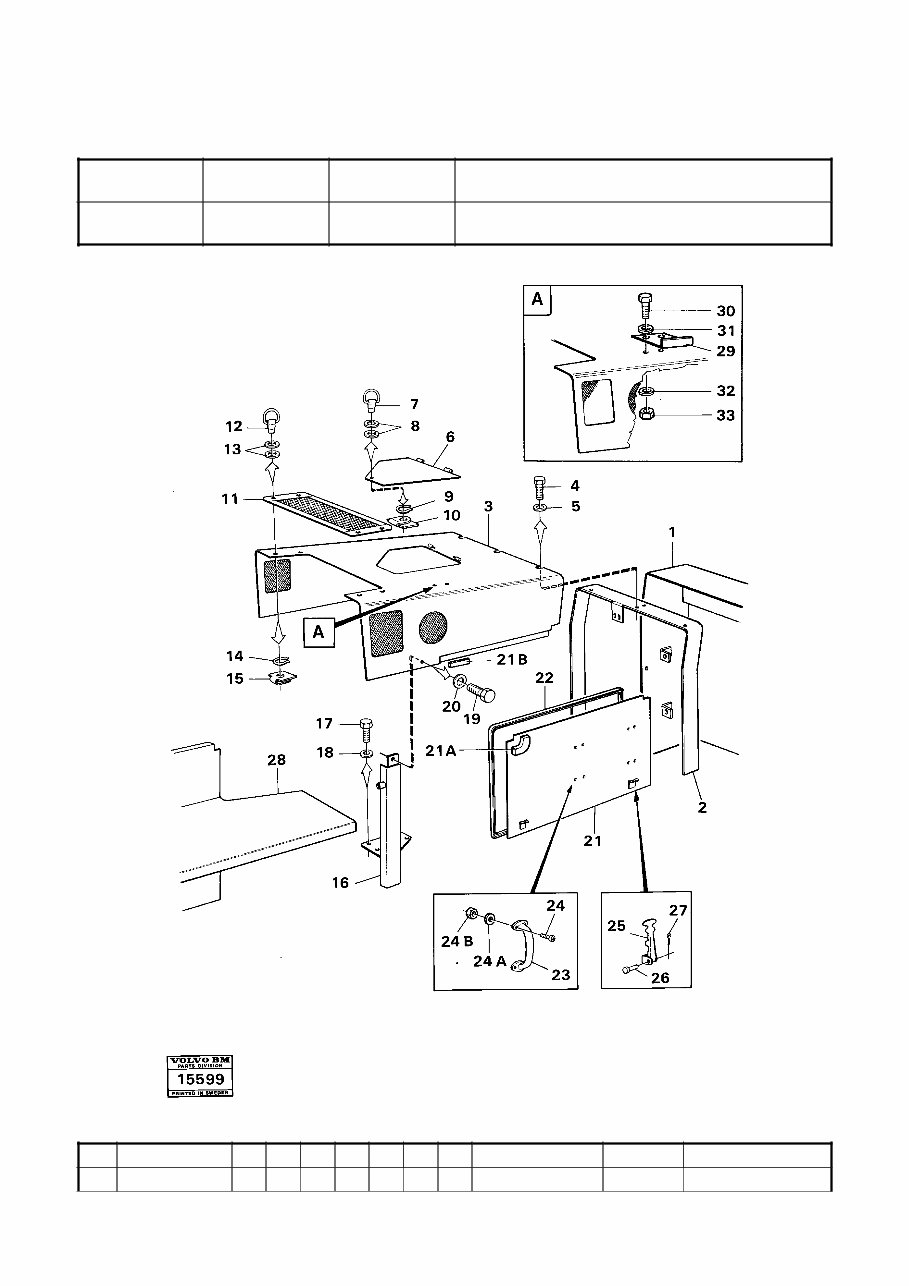

Date:
2014/1/21
Image id:
14800
Catalogue:
97214
Model:
4200
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
81/50
Title:
Radiator casing
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE4927596 1 OP Radiator casing
2 VOE4927603 1 SS Sound Absorber
3 VOE4927489 6 SS Sound Absorber
4 VOE4927597 1 OP Attaching Plate
5 VOE4927598 1 OP Attaching Plate
6 VOE4927624 7 OP Retainer
7 VOE13955295 6 Screw (VOE955295)
8 VOE13941907 6 Washer (VOE941907)
9 VOE4928057 2 OP Screw with pin
10 VOE795810 1 OP Cable
11 VOE4880425 2 Cable clamp (VOE4703123)
12 VOE4928065 1 OP Cover Plate
13 VOE955269 4 Hexagon screw
14 VOE955892 4 Washer
15 VOE13955294 7 Screw (VOE955294)
16 VOE13955894 7 Washer (VOE955894)SER NO
-1100
VOE976944 7 Washer (VOE960141)SER NO
1101-
17 VOE4927592 1 OP Brace
18 VOE970945 4 Hexagon screw (VOE955315)
19 VOE976945 4 Washer (VOE960148)
20 Engine plates See ref 81/100
Date:
2014/1/21
Image id:
15599
Catalogue:
97214
Model:
4200
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
81/100
Title:
Engine plates tillv nr - 2937
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 1 Radiator shell See ref 81/50
2 1 Yoke See ref 81/50
3 VOE4928053 1 SS Cover
VOE4932249 1 OP Cover SER NO - 2425
VOE4779094 1 OP Cover SER NO 2426 -
4 VOE13955294 5 Screw (VOE955294)
5 VOE13955894 5 Washer (VOE955894)TILL NR
-1100
VOE976944 5 Washer (VOE960141)SER NO
1101-
6 VOE4779096 1 OP Hatch
SER NO - 2425
VOE4779096 1 OP Hatch SER NO 2426 -
7 VOE4780141 1 Pin
8 VOE784180 2 Attaching ring
9 VOE13951669 1 Retaining ring (VOE951669)
10 VOE4780956 1 Spring plate
11 VOE4927637 1 OP Grille
12 VOE4780141 4 Pin
13 VOE784180 8 Attaching ring
14 VOE13951669 4 Retaining ring (VOE951669)
15 VOE4780956 4 Spring plate
16 VOE4927593 1 OP Bracket V
VOE4927594 1 OP Bracket H
17 VOE970945 4 Hexagon screw (VOE955315)
18 VOE976945 4 Washer (VOE960148)
19 VOE13955294 2 Screw (VOE955294)
20 VOE13955894 2 Washer (VOE955894)SER NO
-1100
VOE976944 2 Washer (VOE960141)SER NO
1101-
21 VOE4928060 1 SS Inspection Lid V
VOE4928617 1 OP Inspection lid H
1 NS Door VOE98567
21A VOE4786044 190 Sealing strip VOE98567 (VOE4785415)
21B VOE4786044 100 Sealing strip VOE98567 (VOE4785415)
22 VOE4786044 460
0
Sealing strip
VOE4786044 215
0
Sealing strip VOE98567
23 VOE795451 4 Handle
VOE795451 2 Handle VOE98567
24 VOE955153 16 OP Cross recessed sunk
screw
SER NO -1045
VOE956164 16 Cross recessed sunk
screw
SER NO 1046-
VOE956164 8 Cross recessed sunk
screw
VOE98567
24A VOE13941904 16 Washer (VOE941904)SER NO
1046-
VOE13941904 8 Washer VOE98567 (VOE941904)
24B VOE955779 16 Hexagon nut SER NO 1046-
VOE955779 8 Hexagon nut VOE98567
25 VOE309042 4 Strap (VOE795446)
26 VOE952709 4 Clevis pin
27 VOE907822 4 Cotter Pin
28 1 Mudguard See ref 81/150
29 1 NS Hook VOE98567
30 VOE13955295 2 Screw VOE98567 (VOE955295)
31 VOE13955894 2 Washer VOE98567 (VOE955894)
32 VOE976944 2 Washer VOE98567 (VOE960141)
33 VOE955782 2 Hexagon nut VOE98567

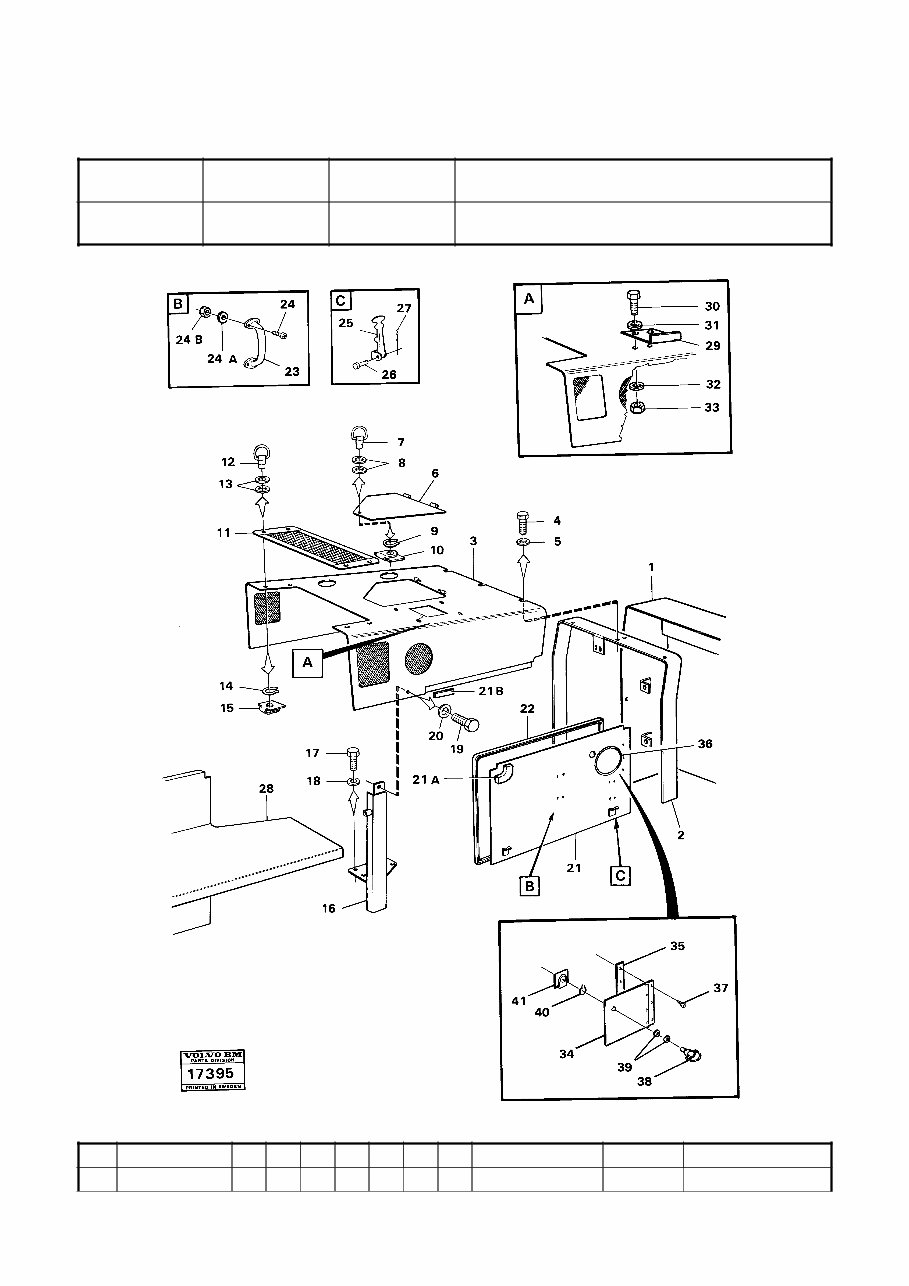

Date:
2014/1/21
Image id:
17395
Catalogue:
97214
Model:
4200
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
81/125
Title:
Engine plates tillv nr 2938-
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 1 Radiator shell See ref 81/50
2 1 Yoke See ref 81/50
3 VOE4779094 1 OP Cover
4 VOE13955294 5 Screw (VOE955294)
5 VOE976944 5 Washer (VOE960141)
6 VOE4779096 1 OP Hatch
7 VOE4780141 1 Pin
8 VOE784180 2 Attaching ring
9 VOE13951669 1 Retaining ring (VOE951669)
10 VOE4780956 1 Spring plate
11 VOE4927637 1 OP Grille
12 VOE4780141 4 Pin
13 VOE784180 8 Attaching ring
14 VOE13951669 4 Retaining ring (VOE951669)
15 VOE4780956 4 Spring plate
16 VOE4927593 1 OP Bracket V
VOE4927594 1 OP Bracket H
17 VOE970945 4 Hexagon screw (VOE955315)
18 VOE976945 4 Washer (VOE960148)
19 VOE13955294 2 Screw (VOE955294)
20 VOE976944 2 Washer (VOE960141)
21 VOE4939131 1 OP Inspection lid VOE98567 V
VOE4928617 1 OP Inspection lid H
21A VOE4785415 REQ Sealing strip VOE98567 L=190
21B VOE4785415 REQ Sealing strip VOE98567 L=100
22 VOE4786044 REQ Sealing strip L=4350
VOE4786044 REQ Sealing strip L=1900
VOE4786044 REQ Sealing strip VOE98567 L=2030
23 VOE795451 4 Handle
24 VOE956164 16 Cross recessed sunk
screw
24A VOE13941904 16 Washer (VOE941904)
24B VOE955779 16 Hexagon nut
25 VOE309042 4 Strap (VOE795446)
26 VOE952709 4 Clevis pin
27 VOE907822 4 Cotter Pin
28 1 Mudguard See ref 81/150
29 1 NS Hook VOE98567
30 VOE13955295 2 Screw VOE98567 (VOE955295)
31 VOE13955894 2 Washer VOE98567 (VOE955894)
32 VOE976944 2 Washer VOE98567 (VOE960141)
33 VOE955782 2 Hexagon nut VOE98567
34 VOE4932722 1 OP Hatch
35 VOE4939129 1 OP Spacer
36 VOE4785436 REQ Protecting moulding
37 VOE955137 3 Cross recessed
screw
38 VOE11058775 1 Pin (VOE4787939)
39 VOE784180 2 Attaching ring
40 VOE13951669 1 Retaining ring (VOE951669)
41 VOE4780956 1 Spring plate
Date:
2014/1/21
Image id:
15673A
Catalogue:
97214
Model:
4200
Brand:
Volvo BM
Serial:
1-10000
Group/Section:
81/150
Title:
Mudguards and ladder mounting
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE4927685 1 OP Mudguard V
VOE4927686 1 OP Mudguard H
2 VOE13970970 6 Hexagon screw (VOE955340)
VOE13970972 6 Hexagon screw VOE99272 (VOE955342)
3 VOE13955897 6 Washer (VOE955897)
4 VOE4927775 2 OP Baffle
5 2 NS Plate
6 VOE940142 6 Hexagon screw
6A VOE13955894 12 Washer (VOE955894)
7 VOE955782 6 Hexagon nut
8 VOE4928206 2 OP Foot step
9 VOE13970947 8 Hexagon screw (VOE955317)
10 VOE976945 8 Washer (VOE960148)
11 VOE4928205 2 OP Foot step
12 VOE970945 8 Hexagon screw (VOE955315)
13 VOE976945 8 Washer (VOE960148)
14 VOE971071 8 Hexagon nut (VOE955783)
15 VOE4927667 1 OP Mudguard
attachment
V
VOE4927669 1 OP Mudguard
attachment
H
16 VOE13970969 4 Hexagon screw (VOE955339)
17 VOE13955897 8 Washer (VOE955897)
18 VOE13971072 4 Hexagon nut (VOE955784)
19 VOE13970974 2 Hexagon screw (VOE955344)
20 VOE13955897 4 Washer (VOE955897)
21 VOE13971072 2 Hexagon nut (VOE955784)
22 VOE4927676 1 OP Mudguard V
VOE4927677 1 OP Mudguard H
23 VOE4927704 2 OP Ferrule
24 8 NS Rivet
25 VOE960137 8 Washer
26 VOE4786044 REQ Sealing strip L=2X890
27 VOE13970969 4 Hexagon screw (VOE955339)
28 VOE13955897 4 Washer (VOE955897)
29 VOE13970972 4 Hexagon screw (VOE955342)
30 VOE13955897 4 Washer (VOE955897)
31 VOE13970970 2 Hexagon screw (VOE955340)
32 VOE13955897 4 Washer (VOE955897)
33 VOE13971072 2 Hexagon nut (VOE955784)
34 VOE734510 2 OP Key VOE98735
35 VOE4741806 2 OP Anchorage VOE98735
36 VOE6617683 4 •Eccentric lock
37 VOE13955295 4 Screw VOE98735 (VOE955295)
38 VOE13941907 4 Washer VOE98735 (VOE941907)
39 VOE955782 4 Hexagon nut VOE98735
