PARTS BOOK
WHEEL LOADER
WA80-3
S/N 10001-Up
3
FOREWORD
When ordering a spare part, specify the part number, part name, and quantity required, and also
specify yoyr machine model code, machine serial number, engine serial number and the service
meter reading.
This Prts Book describes not only standard items but also optional equipment and attachments.
To order a part, please contact your nearest Komatsu distributor.
This Parts Book contains the infomation and special symbols:
Figure and list When you open this Parts Book, you will find an illustlation on the left page
(even-numbered page) for the spare parts group. Each individual part in the
group is given an index number.
On the right page, the component parts of the group are listed in the order of
the index numbers shown on the illustlation page. The part number, part
name, and applicable machine serial number are given for each part.
FIG. No. The FIG. No. is the number of the illustration shown on the page. It is not the
spare part number. The numbers are not always continuous.
INDEX This is the same as the index number in the illustration. The Parts are listed in
index number order.
PART No. The numver given in the PART No. column is the part number for the part
shown. it is the code used when ordering that part. It is important that there be
no mistake in this code number when ordering.
DESCRIPTOIN This gives the name of part that has the part number listed. The mark "." is
put in front of part name of an assembly part and the item is entered following
the assembly. If a part marked with "." is a sub assembly, its components are
marked with "..".
Example: ELEMENT ASSEMBLY, AIR CLEANER
.ELEMENT ASSEMBLY, OUTER
..ELEMENT, OUTER
..NUT, WING
..WASHER
Q'TY (Quantity) This specifies the number of pices used for one machine. However, if a part is
included in the assembly and / or component, the quantity per such assembly
and / or component is specified.
SERIAL No. Applicable engine serial number is indicated for the engine volume. In the
chassis volume,this indicates the machine serial number in which the part is
used.
Symbols Symbols and codes are used in the PART No. and DESCRIPTION columns,
and codes and represent the following'
T The Part specified in the line above can be used instead of this
part.
4
Symbols Y This part can be used instead of the part specified in th line
and codes immediately above.
(Cont'd)
u This part and the part specified in the immediately above are
interchangeable.
t The part specified in the DESCRIPTION column can be used
instead of this part if it is used as a set
y This shows discontinued part. The part specified in the above
line is supplied instead.
r This shows discontinued part. The part specified in the
DESCRIPTION column is supplied instead as set.
A This part cannot be supplied as an individual part. It is supplied
as an assembly.
a This part cannot be supplied as an individual part. It is supplied
as an assembly. However, it is supplied as an individual part by
authorized distributors only.
W This indicates a part group. The part makrked with this symbol is
not considered a supply part.
==== The parts surrounded by this line are components of the part
group specified in the above line.
G-1, G-2 These indicate categories of part groups.
KIT This indicates kit parts. For kit parts, refer to the service kit
tables provieded in this Parts Book
E This indicates a part supplied as semi-finished. It requires addi-
tional work before installetion.
PAINT(1) This indecates parts shippied painted with undercoat.
PAINT(2) This indicates parts supplied with different colors from the origi-
nal color of your machine.
(A) This code indicates special parts for cold weather "A" specifica-
tion (-30°) machines
(B) This indicates special parts for cold weather "B" specification
(-50°) machines
WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE RELATED PARTS
Reference: Page:030000
Item Part Name Qty
10 ENGINE (AIR CLEANER AND RELATED PARTS)(#10001-11086) 1
20 ENGINE (ENGINE HARNESS)(#10001-11086) 1
30 ENGINE MOUNTING PARTS(#10001-12000) 1
40 ENGINE MOUNTING PARTS(#12001-) 1
50 ENGINE MOUNTING PARTS (WITH AIR CONDITIONER)(#12001-) 1
60 ENGINE (AIR CLEANER AND RELATED PARTS)(#11087-12000) 1
70 ENGINE (AIR CLEANER AND RELATED PARTS)(#12001-) 1
80 ENGINE (AIR CLEANER AND RELATED PARTS) (FOR AIR
INTAKE EXTENSION AND EXTENSION WITH
PRE-CLEANER)(#12001-)
1
90 ENGINE (ENGINE HARNESS)(#11087-12000) 1
100 ENGINE (ENGINE HARNESS)(#12001-) 1
110 ENGINE (ENGINE HARNESS) (FOR AIR INTAKE EXTENSION
AND EXTENSION WITH PRE-CLEANER)(#12001-)
1
120 ENGINE (ENGINE CONTROL AND ENGINE OIL DRAIN)(#12001-) 1
130 AIR CLEANER(#12001-) 1
140 AIR CLEANER (FOR AIR INTAKE EXTENSION AND EXTENSION
WITH PRE-CLEANER)(#12001-)
1
150 EXHAUST PIPE 1
160 DAMPER 1
WA80-3 S/N 10001-UP (Cab Spec.)

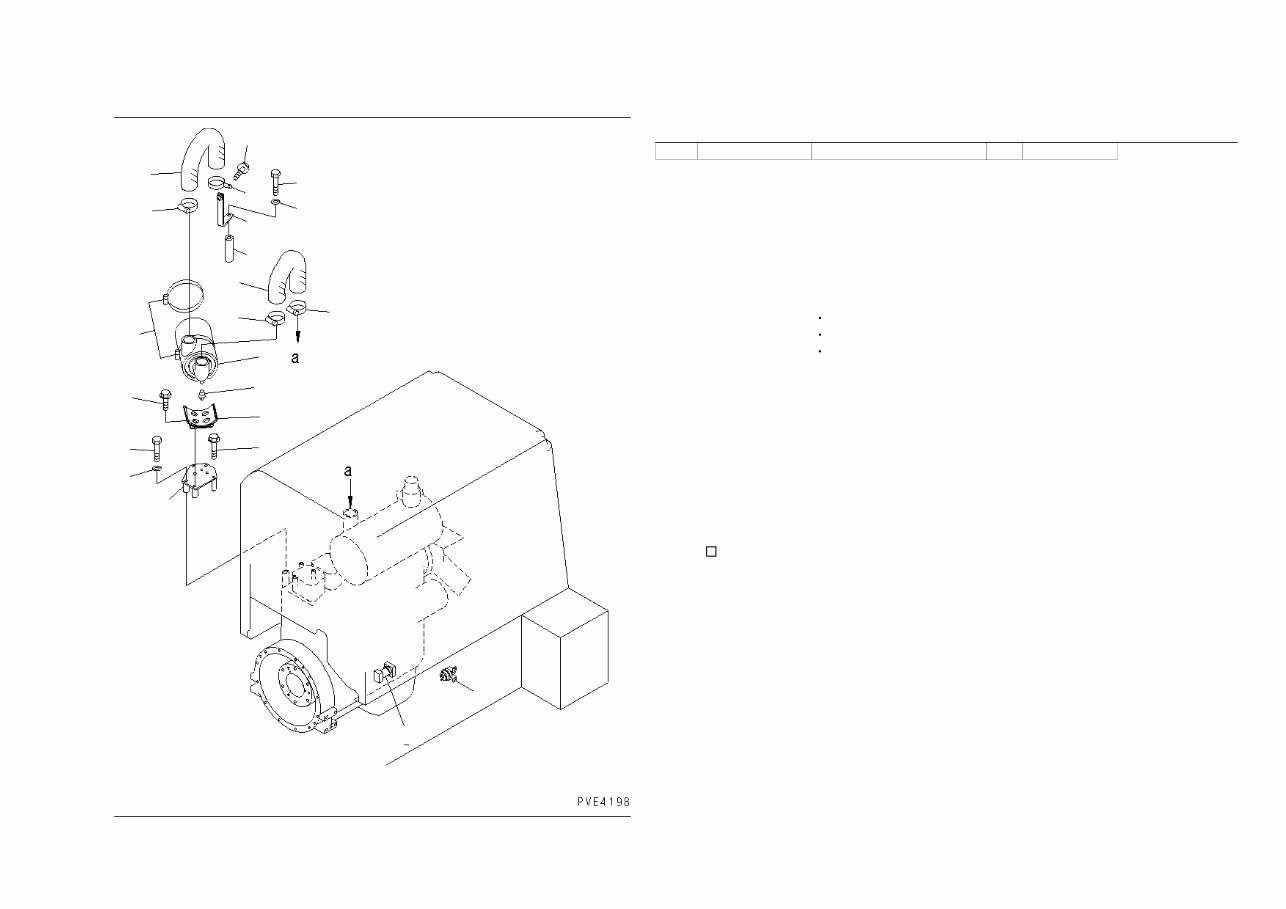

@@E4198@
Ref. B0000-01A0 Page 030010
1
2
3
4 5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE (AIR CLEANER AND RELATED
PARTS)(#10001-11086)
Reference:B0000-01A0 Page:030010
Item Part No. Part Name Qty Serial No.
1 600-815-2170 SWITCH 1 10001-11453
2 203-06-59320 SWITCH,SAFETY RELAY 1 10001-11453
3 6731-11-9110 BRACKET 1 10001-11453
4 01435-00895 BOLT 2 10001-11453
5 01011-81200 BOLT 2 10001-11453
6 01643-31232 WASHER 2 10001-11453
7 6731-11-9120 BRACKET 1 10001-11453
8 01435-01025 BOLT 4 10001-11453
9 6731-81-7100 ELEMENT ASS'Y 1 10001-11453
6731-81-7110 BODY ASS'Y 1 10001-11453
600-181-6340 ELEMENT ASS'Y 1 10001-11453
600-181-9890 VALVE 1 10001-11453
10 07281-01589 CLAMP 2 10001-11453
11 6731-11-4410 HOSE 1 10001-11453
12 07289-00070 CLAMP 2 10001-11453
13 07042-70108 PLUG 1 10001-11453
14 415-01-22111 HOSE 1 10001-11453
15 07281-00809 CLAMP 1 10001-11453
16 415-01-22130 BRACKET 1 10001-11453
17 415-S62-2380 COLLAR 1 10001-11453
18 01011-81010 BOLT 1 10001-11453
19 01643-31032 WASHER 1 10001-11453
20 415-01-21190 CLIP 1 10005-11453
415-01-11130 CLIP 1 10001-10004
21 01435-01020 BOLT 1 10001-11453
WA80-3 S/N 10001-UP (Cab Spec.)

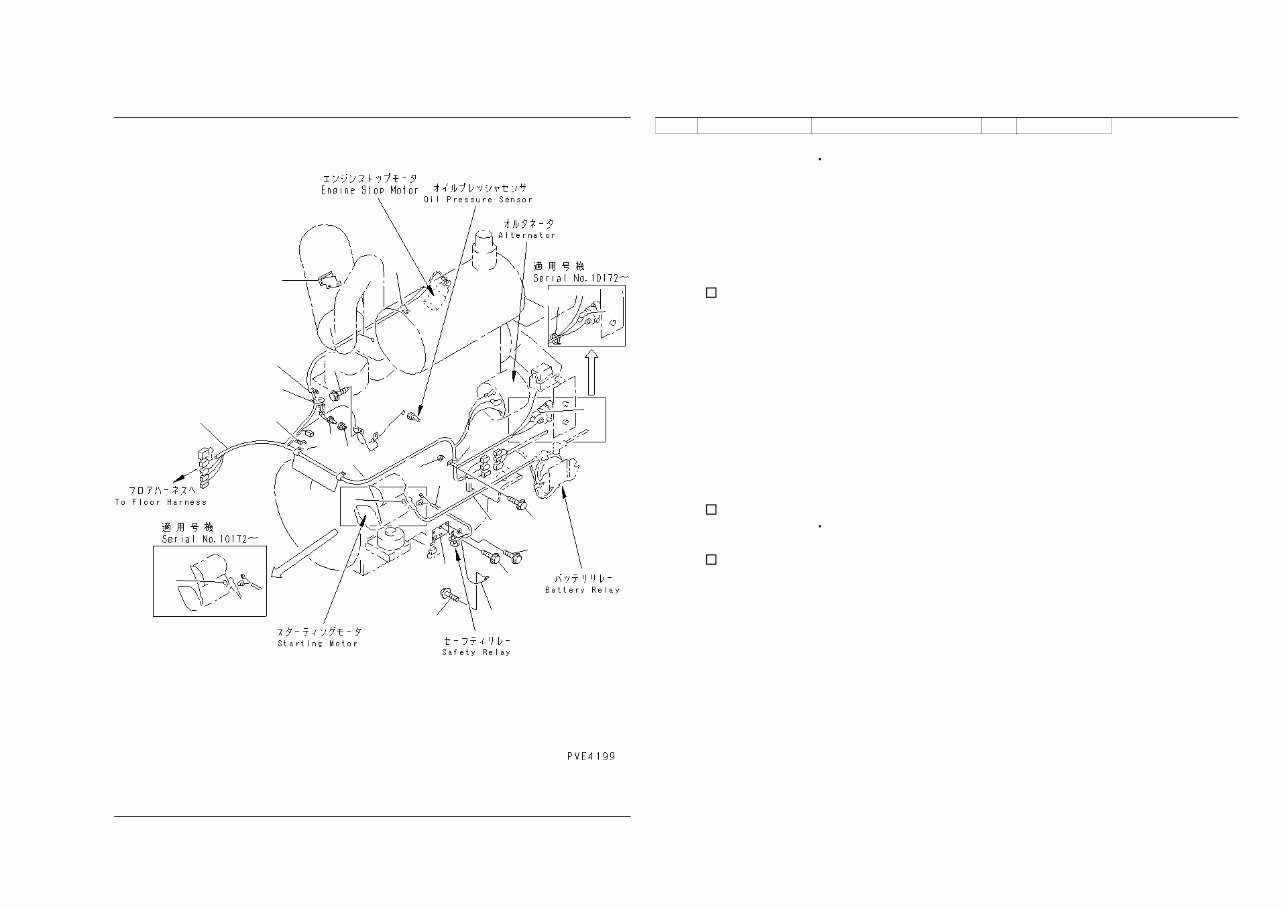

@@E4199@
Ref. B0000-02A0 Page 030020
1
2
2
2
2A
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE (ENGINE HARNESS)(#10001-11086)
Reference:B0000-02A0 Page:030020
Item Part No. Part Name Qty Serial No.
1 415-06-22153 WIRING HARNESS 1 10001-11086
08020-10000 DIODE 3 10001-11086
2 08038-02025 CAP 2 10172-11086
08038-02027 CAP 3 10001-10171
2A 08038-06031 CAP 1 10172-11086
3 08036-03014 CLIP 3 10001-11086
4 01435-01235 BOLT 1 10172-11086
01435-01225 BOLT 1 10001-10171
5 424-54-11350 SPACER 1 10172-11086
424-54-14230 SPACER 1 10001-10171
6 08053-00912 CLIP 1 10001-11086
7 08036-01014 CLIP 3 10001-11086
8 08036-01814 CLIP 1 10001-11086
9 01435-01216 BOLT 1 10001-11086
10 417-06-12420 WIRE 1 10001-11086
11 01435-01216 BOLT 1 10001-11086
12 232-06-52410 SENSOR,THERMOSTAT 1 10001-11086
13 416-06-21220 ADAPTER 1 10001-11086
14 415-06-22231 PLATE 1 10001-11086
15 01435-01220 BOLT 2 10001-11086
16 01435-00812 BOLT 2 10001-11086
17 418-06-21122 WIRE 1 10172-11086
418-06-21121 WIRE 1 10001-10171
08038-02027 CAP 3 10001-11086
18 415-06-22193 WIRE 1 10082-11086
415-06-22192 WIRE 1 10001-10081
19 08034-20519 BAND 5 10172-11086
08034-20519 BAND 4 10001-10171
20 415-01-22121 PLATE 1 10001-11086
WA80-3 S/N 10001-UP (Cab Spec.)
@@E4056@
Ref. B0100-01A0 Page 030030
1
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
14
15
16
16
17
18
18
19
19
WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE MOUNTING PARTS(#10001-12000)
Reference:B0100-01A0 Page:030030
Item Part No. Part Name Qty Serial No.
1 415-01-21121 BRACKET 2 10001-12000
2 01010-81235 BOLT 8 10001-12000
3 01643-31232 WASHER 8 10001-12000
4 415-01-21230 BRACKET,L.H. 1 10001-12000
5 01010-81235 BOLT 3 10001-12000
6 01643-31232 WASHER 3 10001-12000
7 415-01-21240 BRACKET,R.H. 1 10001-12000
8 01010-81235 BOLT 3 10001-12000
9 01643-31232 WASHER 3 10001-12000
10 01016-51040 BOLT 4 10001-12000
11 01584-01008 NUT 4 10001-12000
415-01-21170 CUSHION ASS'Y 2 10001-12000
12 415-01-21180 CUSHION 1 10001-12000
13 415-01-11430 CUSHION 1 10001-12000
14 22T-01-12140 PLATE 4 10001-12000
15 01011-61620 BOLT 2 10115-12000
01011-81620 BOLT 2 10001-10114
16 01643-31645 WASHER 4 10001-@
17 01580-01613 NUT 2 10115-@
01580-11613 NUT 2 10001-10114
18 20S-01-71330 CUSHION 2 10001-12000
19 01594-01008 NUT 4 10001-@

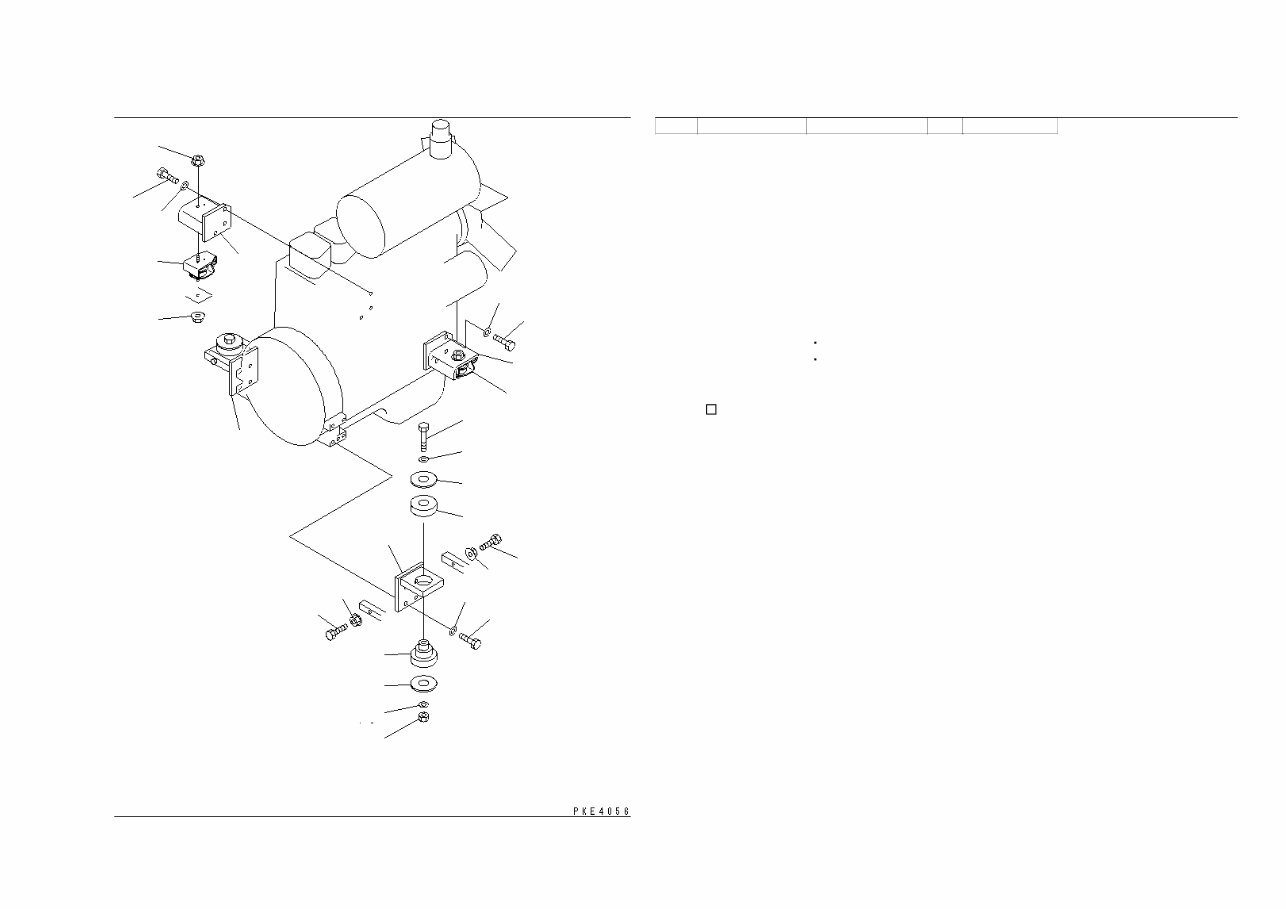

WA80-3 S/N 10001-UP (Cab Spec.)
00021451
Ref. B0100-01A0A Page 030040
1
2
3
3
4
4
5 6
7
8
9
10
11
12
13
14
14
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
21
21
21
21
21
21
22
22
22
22
WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE MOUNTING PARTS(#12001-)
Reference:B0100-01A0A Page:030040
Item Part No. Part Name Qty Serial No.
1 21W-01-41180 BRACKET,L.H. 1 12001-
2 21W-01-38190 BRACKET,R.H. 1 12001-
3 01010-81265 BOLT 8 12001-
4 21W-01-31460 WASHER 8 12001-
5 415-01-21280 BRACKET,L.H. 1 12001-
6 01010-81035 BOLT 4 12001-
7 01643-31032 WASHER 4 12001-
8 01643-31032 WASHER 4 12055-
9 415-01-21270 BRACKET,R.H. 1 12001-
10 01010-81235 BOLT 4 12001-
11 01643-31232 WASHER 4 12001-
12 01643-31032 WASHER 4 12055-
13 6144-81-6580 SPACER 4 12001-
14 04020-01228 PIN 4 12001-
15 201-01-71250 CUSHION 4 12001-
16 203-01-61160 STOPPER 4 12001-
17 01011-81635 BOLT 2 12001-
18 01643-31645 WASHER 2 10001-
19 01580-11613 NUT 2 10001-
20 20S-01-71331 CUSHION 2 12001-
21 01580-11008 NUT 4 12013-
01594-01008 NUT 4 10001-12012
22 01643-31032 WASHER 4 12013-

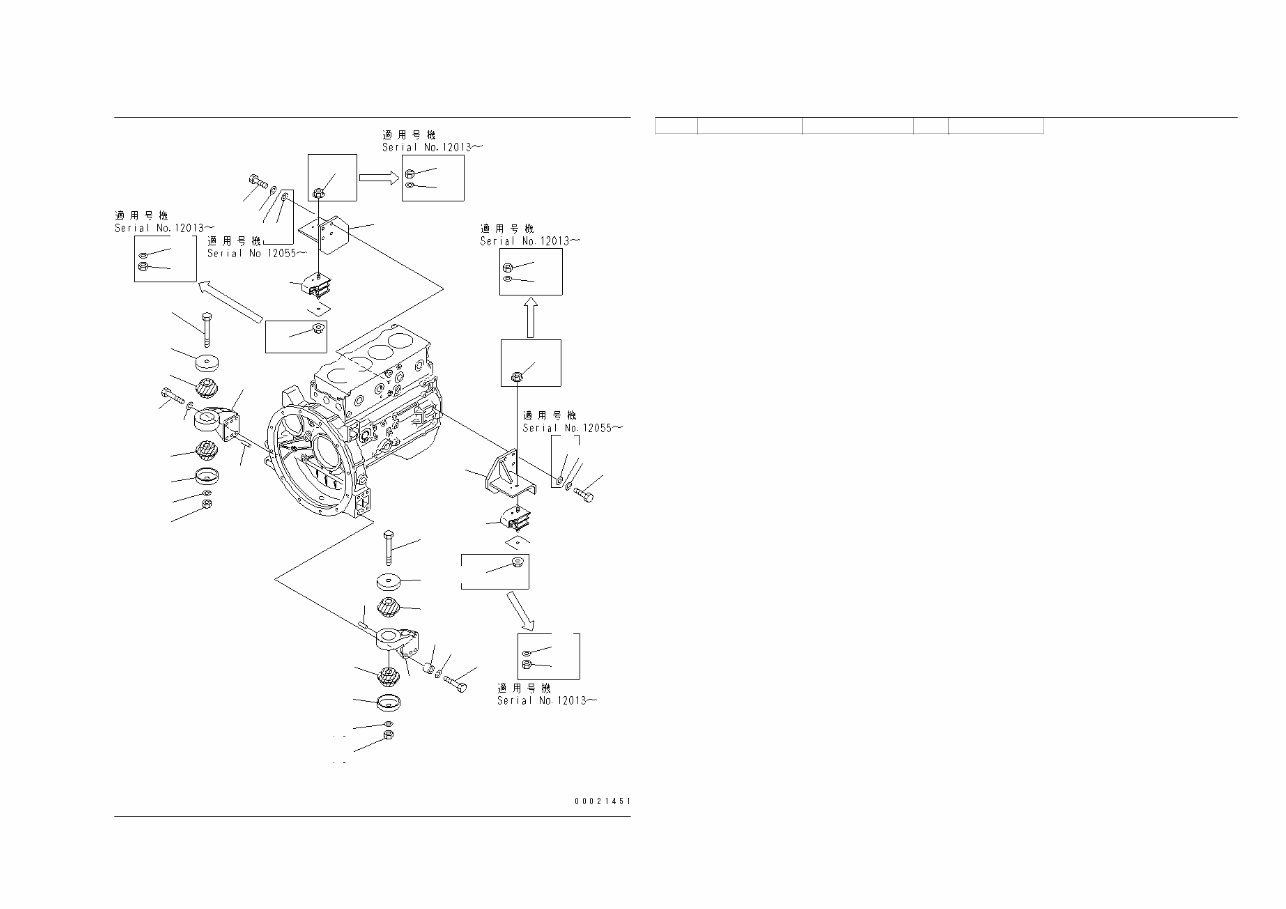

WA80-3 S/N 10001-UP (Cab Spec.)
00021452
Ref. B0100-01A1 Page 030050
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
15
15
15
16
16
16
16
17
17
18
18
19
19
20
20
21
21
21
21 21
21
21
21
22
22
22
22

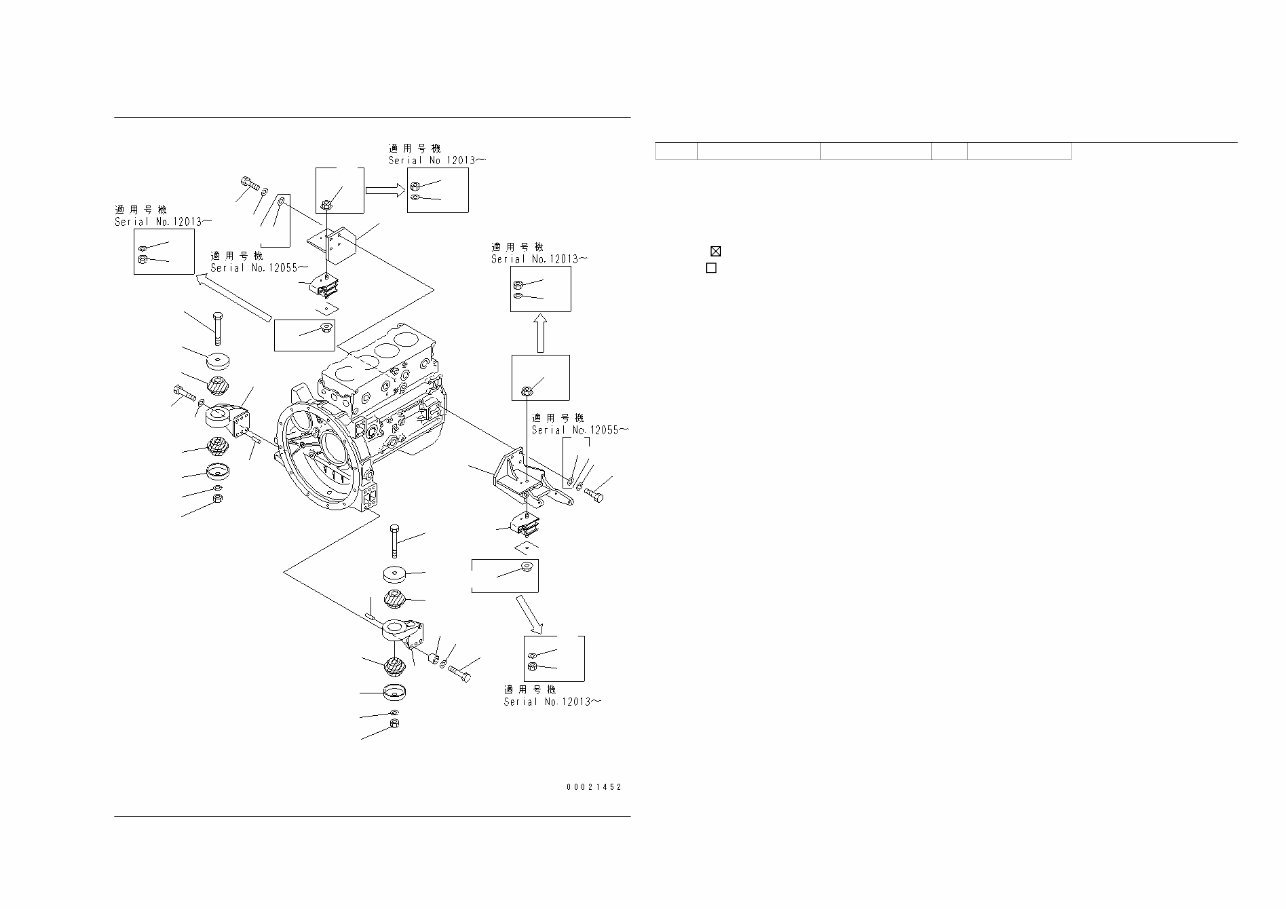

WA80-3 S/N 10001-UP (Cab Spec.)
ENGINE MOUNTING PARTS (WITH AIR
CONDITIONER)(#12001-)
Reference:B0100-01A1 Page:030050
Item Part No. Part Name Qty Serial No.
1 21W-01-41180 BRACKET,L.H. 1 12001-
2 21W-01-38190 BRACKET,R.H. 1 12001-
3 01010-81265 BOLT 8 12001-
4 21W-01-31460 WASHER 8 12001-
5 415-03-21610 BRACKET,L.H. 1 12018-
( 415-01-21262) BRACKET,L.H. 1 (12018-13234)
415-01-21261 BRACKET,L.H. 1 12001-12017
6 01010-81035 BOLT 4 12001-
7 01643-31032 WASHER 4 12001-
8 01643-31032 WASHER 4 12055-
9 415-01-21270 BRACKET,R.H. 1 12001-
10 01010-81235 BOLT 4 12001-
11 01643-31232 WASHER 4 12001-
12 01643-31032 WASHER 4 12055-
13 6144-81-6580 SPACER 4 12001-
14 04020-01228 PIN 4 12001-
15 201-01-71250 CUSHION 4 12001-
16 203-01-61160 STOPPER 4 12001-
17 01011-81635 BOLT 2 12001-
18 01643-31645 WASHER 2 12001-
19 01580-11613 NUT 2 12001-
20 20S-01-71331 CUSHION 2 12001-
21 01580-11008 NUT 4 12013-
01594-01008 NUT 4 12001-12012
22 01643-31032 WASHER 4 12013-
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$27.99
WA80-3 parts manual
Viewed 88 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$27.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
This .PDF manual provides detailed information on the WA80-3 parts, serial numbers 10001 and up. It is a valuable resource for professional mechanics and DIY enthusiasts alike, offering comprehensive guidance for repair and maintenance.
