FIG. NO: 000000 WA470-5 TABLE OF CONTENTS
000000 WA470_5
FIG. NO: 000000
000000
DESCRIPTION FIG PAGE SERIAL NO.
01 ENGINE, ENGINE MOUNTING 01 01
02 COOLING SYSTEM 02 02
03 ELECTRIC SYSTEM 03 03
04 TRANSMISSION, UNIVERSAL JOINT 04 04
05 REAR AXLE 05 05
06 DISC WHEEL, CHAIN 06 06
07 STEERING 07 07
08 FRONT AXLE 08 08
09 BRAKE SYSTEM 09 09
10 FRAME 10 10
11 DRIVERS CAB 11 11
12 TOOLS, ACCESSORY, LETTERING 12 12
13 HYDRAULIC SYSTEM 13 13
14 BOOM, THRUST FRAME - ARM 14 14
15 EQUIPMENT 15 15
FIG. NO: 000000 WA470-5 TABLE OF CONTENTS
000000 WA470_5
FIG. NO: 000000
000000
DESCRIPTION FIG PAGE SERIAL NO.
01 ENGINE, ENGINE MOUNTING 01 01
02 COOLING SYSTEM 02 02
03 ELECTRIC SYSTEM 03 03
04 TRANSMISSION, UNIVERSAL JOINT 04 04
05 REAR AXLE 05 05
06 DISC WHEEL, CHAIN 06 06
07 STEERING 07 07
08 FRONT AXLE 08 08
09 BRAKE SYSTEM 09 09
10 FRAME 10 10
11 DRIVERS CAB 11 11
12 TOOLS, ACCESSORY, LETTERING 12 12
13 HYDRAULIC SYSTEM 13 13
14 BOOM, THRUST FRAME - ARM 14 14
15 EQUIPMENT 15 15

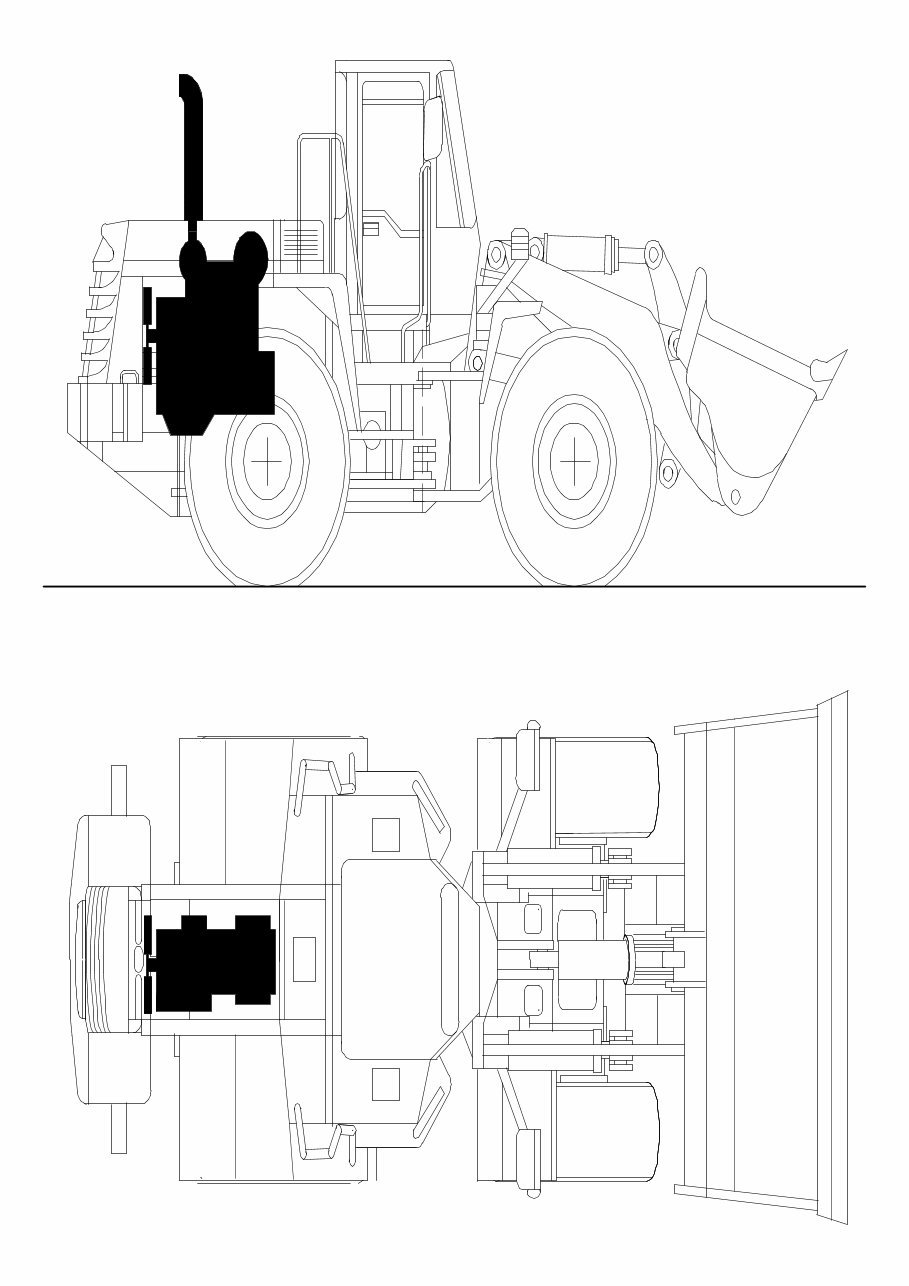

FIG. NO: 01 01 ENGINE, ENGINE MOUNTING
01 WA470_5
FIG. NO: 01
01
DESCRIPTION FIG PAGE SERIAL NO.
00 MAINTENANCE KIT mp 01-00
01 ENGINE, ENGINE MOUNTING GJ2K2645 01-01
02 CYLINDER BLOCK AND ATTACHING PARTS GJ2K2646 01-02
03 GASKET KIT, CYLINDER BLOC GJ2k2648 01-03
04 CRANK ASSEMBLY GJ2K2649 01-04
05 CYLINDER HEAD AND ATTACHING PARTS GJ2K2650 01-05
06 GASKET KIT, CYLINDER BLOC GJ2k2651 01-06
07 CYLINDER HEAD COVER, ATTACHING PARTS GJ2K2652 01-07
08 TIMING GEAR CASE AND FLYWHEEL HOUSING GJ2k2653 01-08
09 ENGINE TIMING GEAR GJ2K2654 01-09
10 ENGINE LUBRICATION GJ2K2655 01-10
14 OIL FILTER GJ2K2656 01-14
15 WATER PUMP GJ2K2657 01-15
16 JOINT KIT, WATER PUMP GJ2K2658 01-16
17 FAN, BELT TENSIONER GJ2K2673 01-17
19 COOLING SYSTEM GJ2K2659 01-19
20 INJECTION SYSTEM GJ2k2660 01-20
28 FUEL SYSTEM, PRE FILTER GJ2K2681 01-28
28 FUEL TANK (FILTER) D0100-05A0 01-28
28 FUEL TANK (WATER SEPERATOR) D0100-05A1 01-28
28 FUEL TANK (WATER SEPERATOR INNER PARTS) D0100-51A0 01-28
31 FUEL FILTER THREAD 1-1/4 GJ2K2664 01-31 SN:310001--316946
47 INTAKE MANIFOLD, TURBOCHARGER GJ2K2665 01-47
48 TURBOCHARGER TO ENGINE SERIAL NO. 311362 GJ2K2666 01-48
48 TURBOCHARGER INNER PARTS TO ENGINE SERIAL NO. 311362 A1530-B3J4 01-48
48 TURBOCHARGER FROM ENGINE SERIAL NO. 311363 A1530-A3K3 01-48
48 TURBOCHARGER INNER PARTS FROM ENGINE SERIAL NO. 311363 A1530-B3K3 01-48
48 TURBOCHARGER AFTERCOOLER GJ2K2676 01-48
49 AIR FILTER SYSTEM, STANDARD GJ2K2667 01-49
54 AIR CLEANER GJ2K3049 01-54
57 EXHAUST SYSTEM GJ2K2668 01-57
60 ENGINE CONTROL GJ2K2669 01-60
FIG. NO: MP
INDEX
NO.
PART NO. DESCRIPTION Q.TY SERIAL NO.
1 421-99-H0P03 MAINTENANCE KIT 1
2 6150-11-8820 SEAL 24
3 6156-11-8810 GASKET 6
4 600-211-1340 ELEMENT 1
5 600-311-3110 FUEL FILTER 1
6 07063-01383 FILTER 1
7 07000-15210 O-RING 1
8 07000-12010 O-RING 1
9 714-07-28711 ELEMENT 1
10 421-43-27920 ELEMENT 1
11 07002-15234 O-RING 1
12 600-411-1151 FILTER 1
13 600-185-5100 ELEMENT ASSEMBLY 1

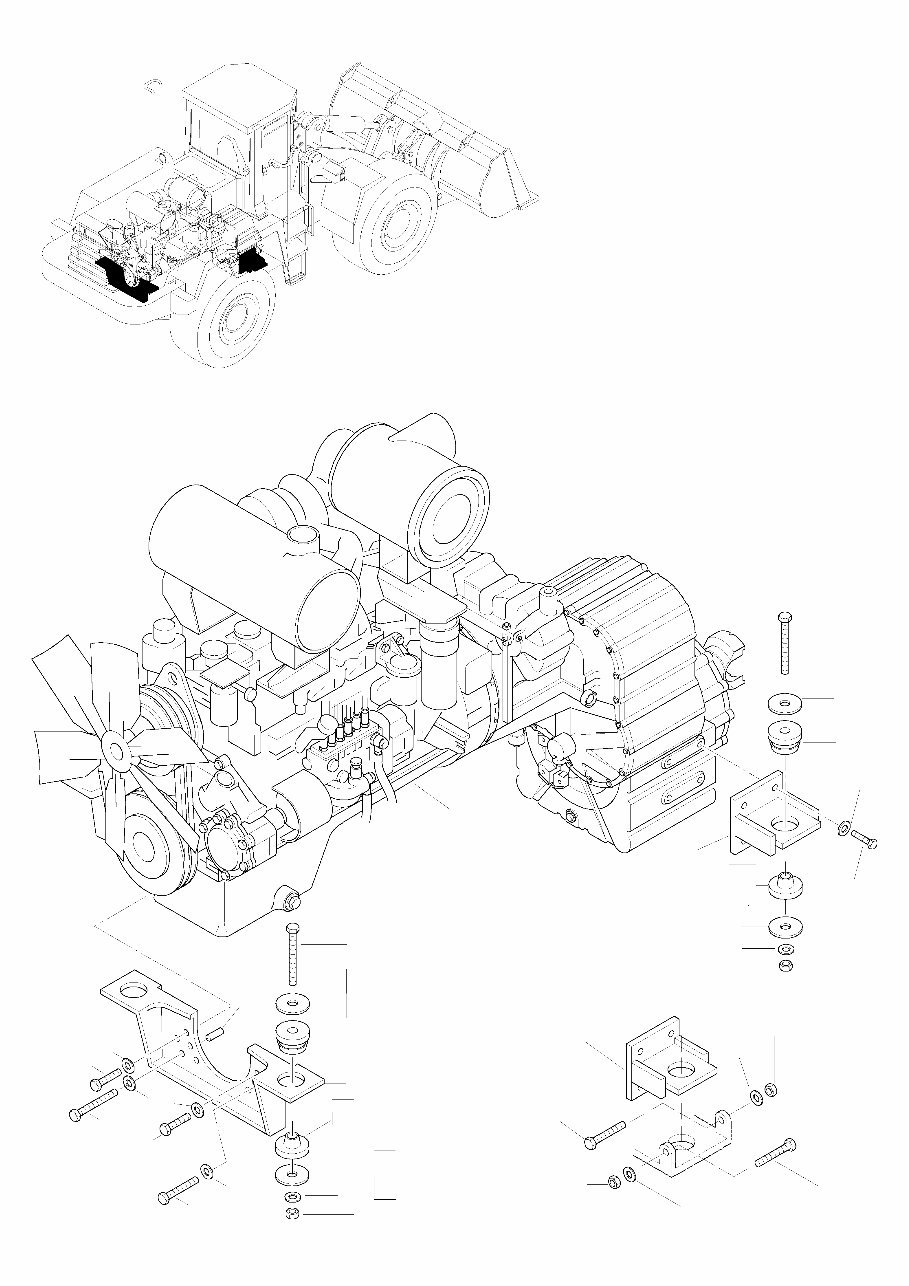

FIG. NO: GJ2K2645 ENGINE, ENGINE MOUNTING
01-01 WA470_5
6A
2A 4A
13A
6A
7
6
5
3
1
2
4
6
7
9
8
6
16
11
2 12 14 18
20
15
18
13
10
17
20
6
11
18
9 10
19
8 12
FIG. NO: GJ2K2645
INDEX
NO.
PART NO. DESCRIPTION Q.TY SERIAL NO.
1 6159-01-HH01 ENGINE 1
SAA6D125E-3A
2 421-01-31110 BRACKET 2
2A 01010-51650 SCREW 8
3 01643-31645 PLAIN WASHER 8
4 424-01-11310 BUFFER 2
4A 424-01-11320 BUFFER 1
5 424-01-11330 BUFFER 1
6 424-01-11220 PLAIN WASHER 8
6A 421-01-H2220 PLAIN WASHER AR
THICKNESS 2,00 MM
7 01011-62450 SCREW 4
8 01580-02419 NUT 4
9 424-01-21130 PLAIN WASHER 4
10 01016-52090 SCREW 4
11 01580-12016 NUT 4
12 01643-32060 PLAIN WASHER 4
13 424-01-11310 BUFFER 2
13A 424-01-11320 BUFFER 1
14 424-01-11330 BUFFER 1
15 421-01-21110 MOUNTING 1
16 04020-01228 DOWEL 2
17 01011-81005 SCREW 4
18 01643-31032 PLAIN WASHER 8
19 01011-81010 SCREW 2
20 01010-81050 SCREW 2

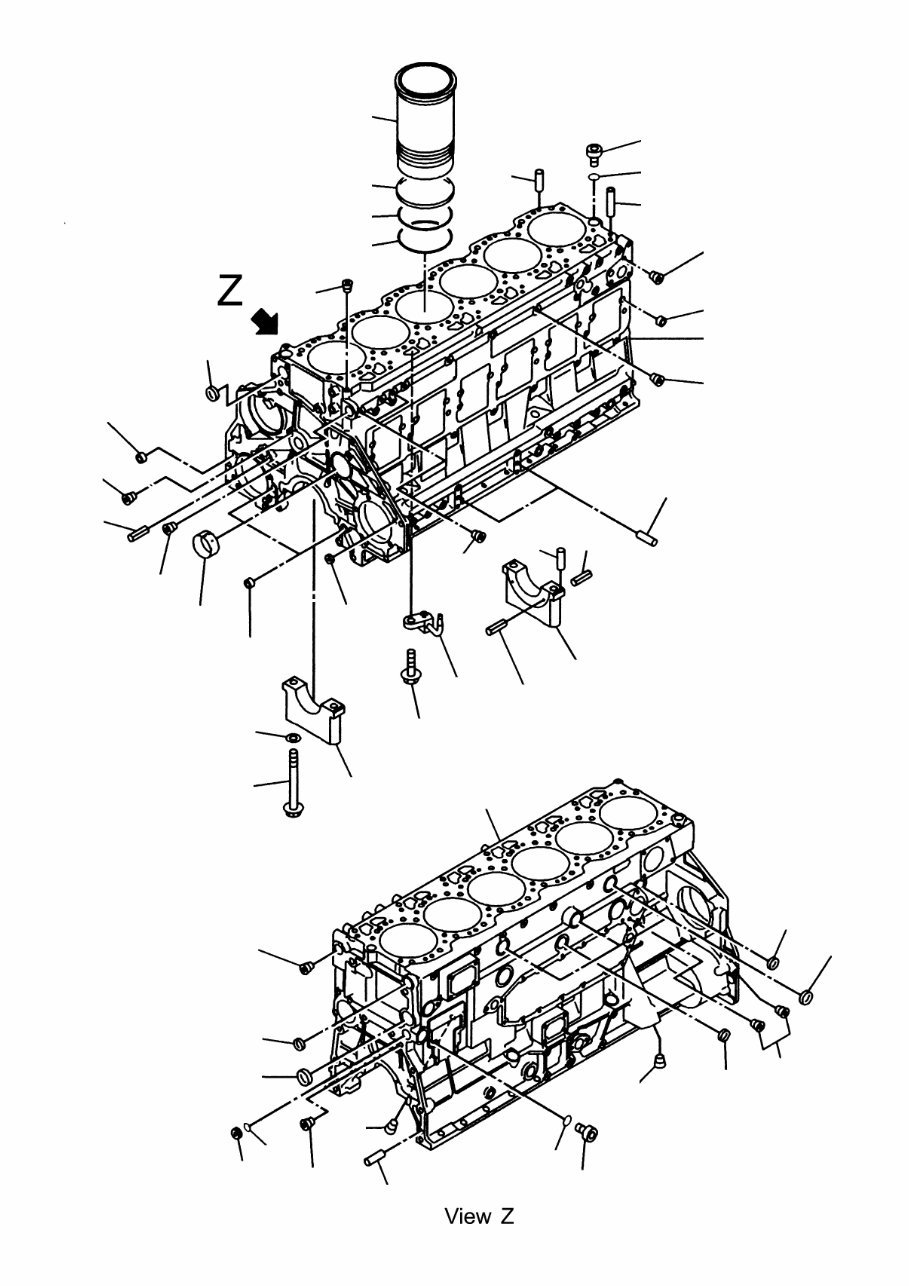

FIG. NO: GJ2K2646 CYLINDER BLOCK AND ATTACHING PARTS
01-02|a WA470_5
29
11
14
20
32
21
31
30
8
8
26
1
19
8
22
9
27
28
24
5
8
10
2 20
23
4
33
24
34
7
3 6
1
15
19
10
15
8
16
17
9
10
18
13
17
10
12
25
