SAA4D102E-2G-4 S/N 26277757-UP
SAA4D102E-2G-4 S/N 26277757-UP
Reference: Page:|000000
Item Part Name
AA ENGINE
SAA4D102E-2G-4 S/N 26277757-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
10 CYLINDER HEAD 1
20 WATER TEMPERATURE SENSOR(#26320387-) 1
30 FRONT HANGER(#26304081-) 1
40 REAR HANGER(#26317765-) 1
50 HEAD COVER(#26317765-) 1
60 AIR CONNECTOR(#26317765-) 1
70 AIR INTAKE HEATER 1
80 AIR INTAKE COVER 1
90 AIR CLEANER(#26317765-) 1
100 EXHAUST CONNECTOR CLAMP 1
110 EXHAUST MANIFOLD GASKET AND BOLT 1
120 EXHAUST MANIFOLD 1
130 TURBOCHARGER OIL PIPING(#26317765-) 1
140 TURBOCHARGER MOUNTING 1
150 HEAT SHIELD (FOR JAPAN)(#26317765-) 1
160 HEAT SHIELD(#26317765-) 1
170 MUFFLER AND MOUNTING(#26317765-) 1
180 MUFFLER AND MOUNTING (SUPER NOISE SUPPRESSION SPEC.)(#26337371-) 1
190 THERMOSTAT HOUSING(#26317765-26340256) 1
200 THERMOSTAT HOUSING(#26340257-) 1
210 THERMOSTAT(#26296957-) 1
220 OIL PRESSURE SWITCH(#26317765-) 1
230 CYLINDER BLOCK 1
240 DUST SEAL 1
250 FRONT COVER(#26274903-) 1
260 CAM FOLLOWER COVER 1
270 BREATHER HOSE(#26320001-) 1
280 CYLINDER BLOCK COVER (OIL FILLER)(#26317765-) 1
290 OIL PAN BOLT 1
300 OIL GAUGE AND REMOTE OIL DRAIN(#26317765-) 1
310 OIL PAN AND SUCTION TUBE(#26317765-) 1
320 OIL LEVEL GAUGE(#26317765-) 1
330 FLYWHEEL HOUSING(#26319926-) 1
340 FLYWHEEL(#26317765-) 1
350 CRANKSHAFT 1
360 DAMPER 1
370 PISTON 1
380 ROCKER ARM 1
390 TAPPET 1
400 CAMSHAFT 1
410 FRONT GEAR TRAIN COVER 1
420 FAN PULLEY 1
430 TACHOMETER DRIVE COVER 1
440 TACHOMETER ADAPTER(#26317765-) 1
450 UNDER PLATE 1
460 OIL PUMP 1
470 OIL COOLER AND OIL FILTER(#26317765-) 1
480 FUEL INJECTION PUMP(#26317765-) 1
490 FUEL INJECTION PUMP (SUPER NOISE SUPPRESSION SPEC.)(#26337371-) 1
500 FUEL INJECTION PUMP (PUMP) (1/2) (INNER PARTS)(#26317765-) 1
510 FUEL INJECTION PUMP (PUMP) (1/2) (SUPER NOISE SUPPRESSION SPEC.) (INNER PARTS)(#26337371-) 1
520 FUEL INJECTION PUMP (PUMP) (2/2) (INNER PARTS)(#26317765-) 1
530 FUEL INJECTION PUMP (PUMP) (2/2) (SUPER NOISE SUPPRESSION SPEC.) (INNER PARTS)(#26337371-) 1
540 FUEL INJECTION PUMP (GOVERNOR) (1/3) (INNER PARTS)(#26317765-) 1
550 FUEL INJECTION PUMP (GOVERNOR) (1/3) (SUPER NOISE SUPPRESSION SPEC.) (INNER
PARTS)(#26337371-)
1
560 FUEL INJECTION PUMP (GOVERNOR) (2/3)(INNER PARTS)(#26317765-) 1
570 FUEL INJECTION PUMP (GOVERNOR) (2/3) (SUPER NOISE SUPPRESSION SPEC.) (INNER
PARTS)(#26337371-)
1
580 FUEL INJECTION PUMP (GOVERNOR) (3/3) (INNER PARTS)(#26317765-) 1
590 FUEL INJECTION PUMP (GOVERNOR) (3/3) (SUPER NOISE SUPPRESSION SPEC.) (INNER
PARTS)(#26337371-)
1
600 FUEL INJECTION PUMP (FEED PUMP) (INNER PARTS)(#26317765-) 1
610 FUEL INJECTION PUMP (FEED PUMP) (SUPER NOISE SUPPRESSION SPEC.) (INNER PARTS)(#26337371-) 1
620 BOOST TUBE(#26317765-) 1
630 FUEL INLET AND OUTLET JOINT CAP 1
SAA4D102E-2G-4 S/N 26277757-UP
ENGINE
Reference: Page:030000
Item Part Name Qty
640 FUEL INJECTION PUMP MOUNTING(#26317765-) 1
650 FUEL INJECTION PUMP MOUNTING (FOR TACHOMETER)(#26317765-) 1
660 FUEL FILTER PIPING(#26360280-) 1
670 FUEL FILTER PIPING(#26317765-26360279) 1
680 FUEL PIPING 1
690 CYLINDER BLOCK BLIND COVER(#26304081-) 1
700 INJECTION NOZZLE 1
710 FUEL JOINT 1
720 STOP SOLENOID(#26317765-) 1
730 WATER PUMP(#26300902-) 1
740 WATER PUMP(#26302312-) 1
750 WATER CONNECTOR(#26300902-) 1
760 WATER CONNECTOR (FOR 90A ALTERNATOR)(#26314444-) 1
770 WATER CONNECTOR PLUG 1
780 WATER PUMP(#26274903-) 1
790 FAN DRIVE PULLEY(#26302312-) 1
800 COOLING FAN BOLT(#26302312-) 1
810 FAN PILOT SPACER(#26302312-) 1
820 WATER TEMPERATURE SENSOR(#26302312-) 1
830 ALTERNATOR (90A)(#26317765-) 1
840 ALTERNATOR (35A) (SHIELD ALTERNATOR) (STOCKBREEDING SPEC.) 1
850 ALTERNATOR (35A)(#26304081-) 1
860 ALTERNATOR (60A)(#26304081-) 1
870 ALTERNATOR (60A) (SANDY AND DUSTY SPEC.) (STOCKBREEDING SPEC.)(#26357042-) 1
880 ALTERNATOR (90A) (INNER PARTS)(#26317765-) 1
890 ALTERNATOR (35A) (SHIELD ALTERNATOR) (STOCKBREEDING SPEC.) (INNER PARTS) 1
900 ALTERNATOR (35A) (INNER PARTS)(#26304081-26320746) 1
910 ALTERNATOR (60A) (INNER PARTS)(#26304081-) 1
920 ALTERNATOR (60A) (SANDY AND DUSTY SPEC.) (STOCKBREEDING SPEC.) (INNER PARTS)(#26357042-) 1
930 ALTERNATOR (35A) (INNER PARTS)(#26320747-26320753) 1
940 ALTERNATOR (35A) (INNER PARTS)(#26320754-) 1
950 BELT TENSIONER (FOR 35A AND 60A ALTERNATOR) (HARDENING PULLEY)(#26317765-) 1
960 BELT TENSIONER (FOR 35A AND 60A ALTERNATOR)(#26317765-) 1
970 BELT TENSIONER (FOR 90A ALTERNATOR)(#26317765-) 1
980 BELT TENSIONER (FOR 35A AND 60A ALTERNATOR) (STOCKBREEDING SPEC.)(#26335635-) 1
990 BELT TENSIONER (FOR 35A?60A ALTERNATOR) (SANDY AND DUSTY SPEC.)(#26385089-) 1
1000 ALTERNATOR SUPPORT (FOR 90A ALTERNATOR)(#26317765-) 1
1010 ALTERNATOR SUPPORT (FOR 35A AND 60A ALTERNATOR)(#26317765-) 1
1020 ALTERNATOR MOUNTING (FOR 35A AND 60A ALTERNATOR) (SANDY AND DUSTY SPEC.)
(STOCKBREEDING SPEC.)(#26333745-)
1
1030 BELT GUARD(#26317765-) 1
1040 ALTERNATOR COVER (FOR 35A AND 60A ALTERNATOR) (SANDY AND DUSTY SPEC.)(#26333745-) 1
1050 ALTERNATOR COVER (FOR 90A ALTERNATOR)(#26317765-) 1
1060 ALTERNATOR COVER (FOR 35A ALTERNATOR)(#26317765-) 1
1070 ALTERNATOR COVER (FOR 60A ALTERNATOR)(#26317765-) 1
1080 STARTING MOTOR (5.5KW)(#26274903-) 1
1090 STARTING MOTOR (5.5KW) (INNER PARTS)(#26200467-) 1
1100 STARTING MOTOR MOUNTING (5.5KW)(#26274903-) 1
1110 REPAIR PARTS (1/4) (CYLINDER HEAD) 1
1120 REPAIR PARTS (2/4) (CYLINDER BLOCK) 1
1130 REPAIR PARTS (3/4) (CRANKSHAFT) 1
1140 REPAIR PARTS (4/4) (PISTON) 1
1150 CYLINDER HEAD GASKET KIT 1
1160 CYLINDER BLOCK GASKET KIT 1
1170 CAUTION PLATE (ENGLISH)(#26280116-26284483) 1
1180 CAUTION PLATE (ENGLISH)(#26422346-) 1
1190 CAUTION PLATE(#26300902-) 1
1200 CAUTION PLATE(#26317765-26332215) 1
1210 CAUTION PLATE(#26332216-) 1
1220 CAUTION PLATE (FOR REGULATION OF EPA)(#26425315-) 1
1230 HEATER SWITCH(#26274903-) 1
1240 GLOW TIMER(#26302312-) 1
1250 WATER SEPARATOR(#26302312-) 1
1260 SPARE PARTS(#26317765-) 1
1270 HEAT SHIELD(#26320387-) 1
SAA4D102E-2G-4 S/N 26277757-UP
@@6C370@
Ref. A1009-01A0 Page 030010
1
2
3
4
5
5
5
6
7
7
8
9
10
11
12
12
13
13
14
15
16
SAA4D102E-2G-4 S/N 26277757-UP

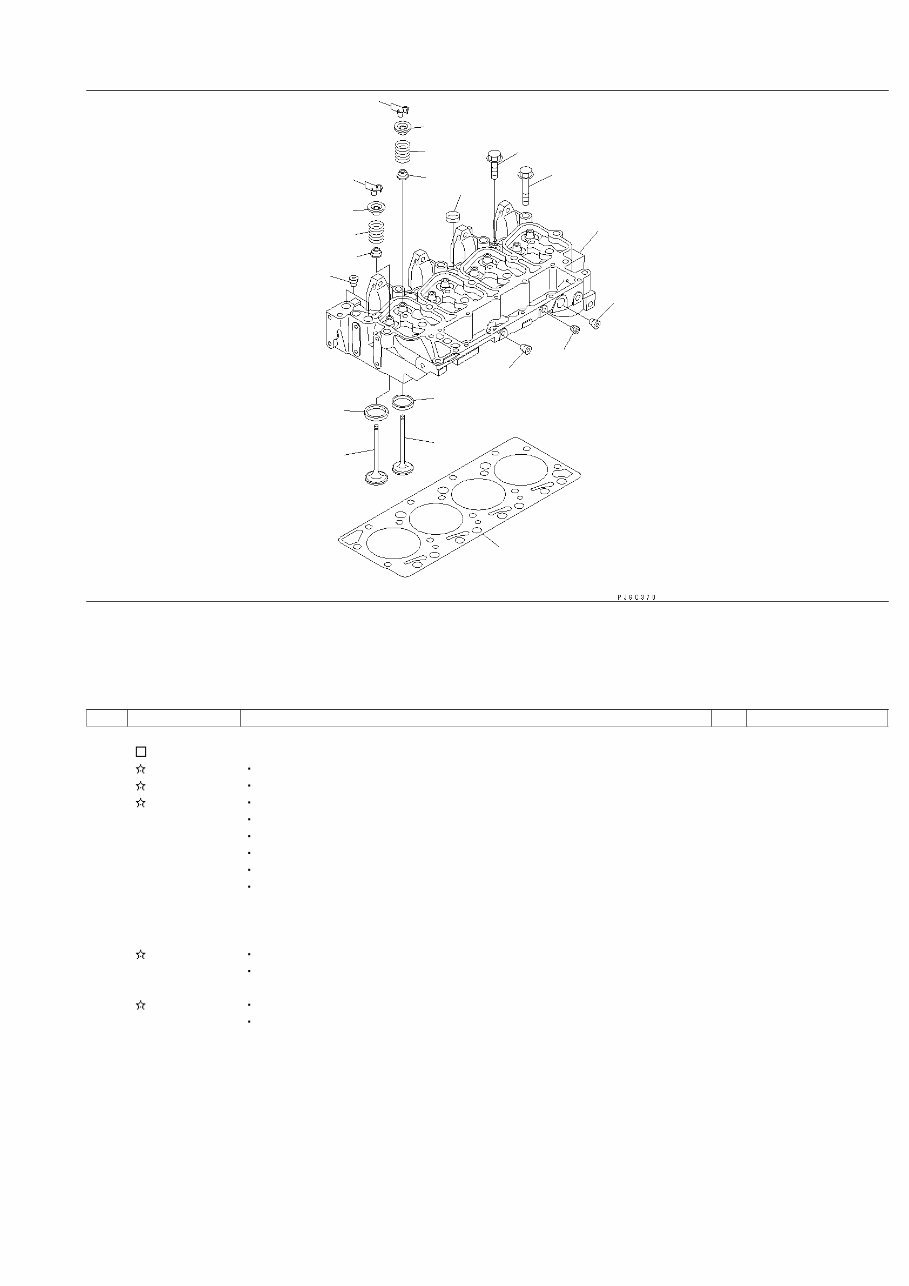

CYLINDER HEAD
Reference:A1009-01A0 Page:030010
Item Part No. Part Name Qty Serial No.
6732-11-1011 HEAD ASS'Y 1 26317765-
6732-11-1010 HEAD ASS'Y 1 26277757-26317764
1 HEAD 1 26317765-
HEAD 1 26281447-26317764
HEAD 1 26277757-26281446
2 6736-11-1150 PLUG 3 26277757-
3 6732-11-1170 INSERT,EXHAUST 4 26277757-
4 6732-11-1180 INSERT,INTAKE 4 26277757-
5 6732-11-1910 PLUG 5 26277757-
6 6732-11-1930 PLUG 2 26277757-
7 6732-41-4541 SEAL,INTAKE (K1) 8 26317765-
6732-41-4540 SEAL,INTAKE (K1) 8 26277757-26317764
6736-41-4110 INTAKE VALVE ASS'Y 4 26277757-
8 VALVE 1 26277757-
9 6732-41-4520 COTTER 2 26277757-
6736-41-4210 EXHAUST VALVE ASS'Y 4 26277757-
10 VALVE 1 26277757-
11 6732-41-4520 COTTER 2 26277757-
12 6732-41-4410 SPRING 8 26277757-
13 6731-41-4511 RETAINER 8 26317765-
6731-41-4510 RETAINER 8 26277757-26317764
14 6732-11-1610 BOLT 4 26277757-
15 6732-11-1620 BOLT 10 26277757-
16 6732-11-1151 GASKET (K1) 1 26277757-
REFER TO FIG. NOS. OF REPAIR PARTS FOR O.S., U.S., AND
SERVICE PARTS.
SAA4D102E-2G-4 S/N 26277757-UP
00023148
Ref. A1010-01D1 Page 030020
1
2
3
SAA4D102E-2G-4 S/N 26277757-UP

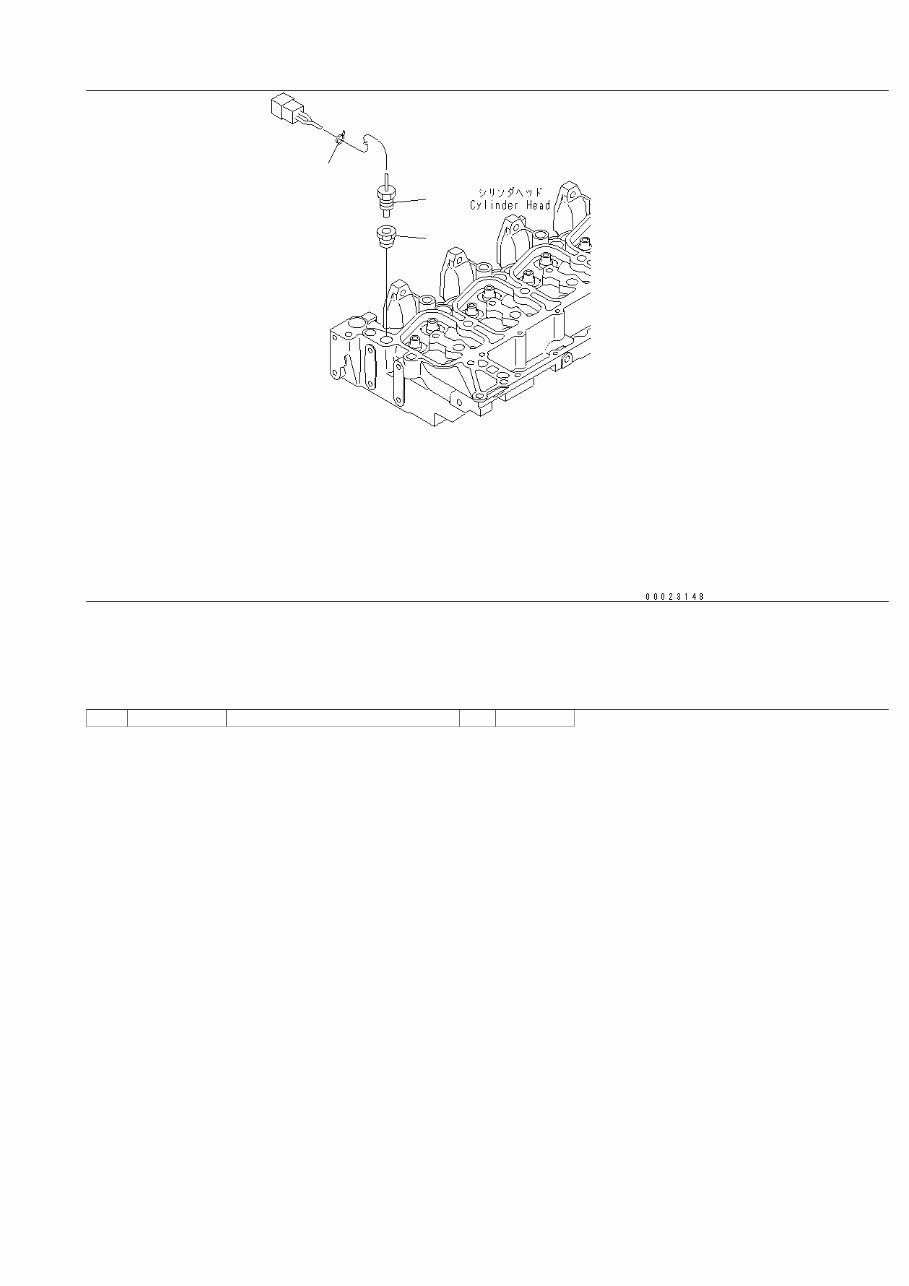

WATER TEMPERATURE SENSOR(#26320387-)
Reference:A1010-01D1 Page:030020
Item Part No. Part Name Qty Serial No.
1 7861-92-3320 SENSOR,WATER TEMPERATURE 1 26320387-
2 565-06-13212 ADAPTER 1 26320387-
3 08034-40521 BAND 1 26320387-
