S4D102E-1H-SN S/N 26200163-UP
KOMATSU S4D102E-1H-SN S/N 26200163-UP
Ref. |000000 Page
Item Description Page
AA ENGINE 030000
S4D102E-1H-SN S/N 26200163-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
10 CYLINDER HEAD(#26200163-26238878) 1 030010
20 CYLINDER HEAD(#26238879-) 1 030020
30 WATER VALVE AND WATER TEMPERATURE SENSOR(#26200912-) 1 030030
40 FRONT HANGER(#26200912-) 1 030040
50 REAR HANGER(#26200912-) 1 030050
60 HEAD COVER(#26200912-26203666) 1 030060
70 HEAD COVER(#26203667-) 1 030070
80 AIR INTAKE HEATER 1 030080
90 AIR CLEANER(#26200912-) 1 030090
100 AIR CLEANER (FOR AIR INTAKE EXTENSION)(#26200912-) 1 030100
110 EXHAUST CONNECTOR CLAMP 1 030110
120 EXHAUST MANIFOLD AND AIR CONNECTOR(#26200912-26217089) 1 030120
130 EXHAUST MANIFOLD AND AIR CONNECTOR(#26217090-) 1 030130
140 TURBOCHARGER OIL PIPING(#26200912-26239666) 1 030140
150 TURBOCHARGER OIL PIPING(#26239667-) 1 030150
160 TURBOCHARGER MOUNTING(#26200912-26232527) 1 030160
170 TURBOCHARGER MOUNTING(#26232528-) 1 030170
180 HEAT SHIELD(#26200912-26254100) 1 030180
190 HEAT SHIELD(#26254101-) 1 030190
200 MUFFLER(#26200912-26236455) 1 030200
210 MUFFLER(#26236456-) 1 030210
220 THERMOSTAT HOUSING(#26200912-) 1 030220
230 THERMOSTAT(#26295763-) 1 030230
240 THERMOSTAT(#26200163-26281220) 1 030240
250 THERMOSTAT(#26281221-26295762) 1 030250
260 OIL PRESSURE SWITCH AND WATER TEMPERATURE SENSOR(#26200912-26226524) 1 030260
270 OIL PRESSURE SWITCH AND WATER TEMPERATURE SENSOR (WITH 90A
ALTERNATOR)(#26202592-26226524)
1 030270
280 OIL PRESSURE SWITCH AND WATER TEMPERATURE SENSOR (WITH 90A
ALTERNATOR)(#26226525-)
1 030280
290 OIL PRESSURE SWITCH AND WATER TEMPERATURE SENSOR(#26226525-) 1 030290
300 CYLINDER BLOCK(#26200163-26221675) 1 030300
310 CYLINDER BLOCK(#26221676-) 1 030310
320 FRONT COVER(#26200163-26238938) 1 030320
330 FRONT COVER(#26238939-) 1 030330
340 CAMFOLLOWER COVER(#26200163-26226524) 1 030340
350 CAMFOLLOWER COVER(#26226525-) 1 030350
360 BREATHER HOSE(#26200912-26206197) 1 030360
370 BREATHER HOSE(#26206198-) 1 030370
380 OIL FILLER(#26200912-) 1 030380
390 OIL PAN BOLT 1 030390
400 OIL GAUGE AND REMOTE OIL DRAIN(#26200912-) 1 030400
410 OIL PAN AND SUCTION TUBE(#26200912-) 1 030410
420 FLYWHEEL HOUSING PLUG 1 030420
430 FLYWHEEL HOUSING PLUG(#26200163-26246657) 1 030430
440 FLYWHEEL HOUSING PLUG(#26246658-26266120) 1 030440
450 FLYWHEEL HOUSING(#26200912-26223998) 1 030450
460 FLYWHEEL HOUSING(#26223999-26238938) 1 030460
470 FLYWHEEL HOUSING(#26238939-26253812) 1 030470
480 FLYWHEEL HOUSING(#26253813-) 1 030480
490 FLYWHEEL(#26200912-26213470) 1 030490
500 FLYWHEEL(#26213471-) 1 030500
510 CRANKSHAFT 1 030510
520 PISTON 1 030520
530 CRANK PULLEY 1 030530
540 ADDITIONAL PULLEY (AIR CONDITIONER PULLEY)(#26200912-) 1 030540
550 ROCKER ARM 1 030550
560 TAPPET 1 030560
570 CAMSHAFT 1 030570
580 FRONT GEAR TRAIN COVER(#26200163-26264932) 1 030580
590 FRONT GEAR TRAIN COVER(#26264933-) 1 030590
S4D102E-1H-SN S/N 26200163-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
600 TACHOMETER DRIVE COVER 1 030600
610 TACHOMETER(#26200912-) 1 030610
620 UNDER PLATE 1 030620
630 OIL PUMP(#26200163-26276328) 1 030630
640 OIL PUMP(#26276329-) 1 030640
650 OIL COOLER AND OIL FILTER(#26200278-) 1 030650
660 FUEL INJECTION PUMP AND OIL PIPING(#26200912-) 1 030660
670 FUEL INJECTION PUMP (PUMP) (1/2) (INNER PARTS)(#26200912-26207728) 1 030670
680 FUEL INJECTION PUMP (PUMP) (1/2) (INNER PARTS)(#26207729-) 1 030680
690 FUEL INJECTION PUMP (PUMP) (2/2) (INNER PARTS)(#26200912-26207728) 1 030690
700 FUEL INJECTION PUMP (PUMP) (2/2) (INNER PARTS)(#26207729-) 1 030700
710 FUEL INJECTION PUMP (GOVERNOR) (1/2) (INNER PARTS)(#26200912-26207728) 1 030710
720 FUEL INJECTION PUMP (GOVERNOR) (1/2) (INNER PARTS)(#26207729-) 1 030720
730 FUEL INJECTION PUMP (GOVERNOR) (2/2) (INNER PARTS)(#26200912-26207728) 1 030730
740 FUEL INJECTION PUMP (GOVERNOR) (2/2) (INNER PARTS)(#26207729-) 1 030740
750 FUEL INJECTION PUMP (FEED PUMP) (INNER PARTS)(#26200912-26207728) 1 030750
760 FUEL INJECTION PUMP (FEED PUMP) (INNER PARTS)(#26207729-) 1 030760
770 BOOST TUBE(#26200912-26239444) 1 030770
780 BOOST TUBE(#26239445-) 1 030780
790 FUEL INLET AND OUTLET JOINT(#26200912-) 1 030790
800 FUEL INJECTION PUMP MOUNTING 1 030800
810 FUEL INJECTION PUMP MOUNTING (SNOW REMOVING SPEC.)(#26282139-) 1 030810
820 FUEL FILTER(#26200912-) 1 030820
830 FUEL FILER PIPING(#26200912-26203201) 1 030830
840 FUEL FILER PIPING(#26203202-) 1 030840
850 INJECTION PIPING(#26200912-26203201) 1 030850
860 INJECTION PIPING(#26203202-26225775) 1 030860
870 INJECTION PIPING(#26225776-) 1 030870
880 FUEL SYSTEM ACCESSORY(#26200912-) 1 030880
890 INJECTION NOZZLE(#26200912-) 1 030890
900 FUEL RETURN(#26200912-26202778) 1 030900
910 STOP SOLENOIDE(#26200278-) 1 030910
920 WATER PUMP(#26200912-26279303) 1 030920
930 WATER PUMP(#26279304-) 1 030930
940 WATER CONNECTOR 1 030940
950 WATER CONNECTOR (FOR 90A ALTERNATOR)(#26226525-) 1 030950
960 WATER CONNECTOR PLUG 1 030960
970 WATER CONNECTOR (FOR 50A AND 90A ALTERNATOR)(#26202592-26226524) 1 030970
980 FAN DRIVE PULLEY(#26200912-) 1 030980
990 FAN DRIVE PULLEY (STD AND STOCKBREEING SPEC.)(#26203202-) 1 030990
1000 COOLING FAN(#26200912-) 1 031000
1010 ALTERNATOR (50A)(#26200278-26240594) 1 031010
1020 ALTERNATOR (35A SHIELD)(#26200912-26239444) 1 031020
1030 ALTERNATOR (90A)(#26202592-) 1 031030
1040 ALTERNATOR (35A SHIELD)(#26239445-) 1 031040
1050 ALTERNATOR (50A)(#26240595-) 1 031050
1060 ALTERNATOR (50A) (INNER PARTS)(#26200278-26240594) 1 031060
1070 ALTERNATOR (35A SHIELD) (INNER PARTS)(#26200912-26239444) 1 031070
1080 ALTERNATOR (90A) (INNER PARTS)(#26202592-) 1 031080
1090 ALTERNATOR (35A SHIELD) (INNER PARTS)(#26239445-) 1 031090
1100 ALTERNATOR (50A) (INNER PARTS)(#26240595-) 1 031100
1110 BELT TENSIONER (FOR 35A?0A ALTERNATOR)(#26200912-) 1 031110
1120 BELT TENSIONER (FOR 90A ALTERNATOR)(#26202592-) 1 031120
1130 BELT TENSIONER (STD AND STOCKBEEING SPEC.) (FOR 35A?0A ALTERNATOR) (TBG
SPEC.)(#26246658-)
1 031130
1140 BELT TENSIONER (FOR 90A ALTERNATOR)(#26262814-) 1 031140
1150 ALTERNATOR SUPPORT (FOR 35A?50A ALTERNATOR)(#26200912-) 1 031150
1160 ALTERNATOR SUPPORT (FOR 90A ALTERNATOR)(#26202592-26225756) 1 031160
1170 ALTERNATOR SUPPORT (FOR 90A ALTERNATOR)(#26225757-) 1 031170
1180 ALTERNATOR COVER (WITH 50A AND 90A ALTERNATOR)(#26202592-) 1 031180
1190 STARTING MOTOR (4.5KW) 1 031190
S4D102E-1H-SN S/N 26200163-UP
ENGINE
Ref. |030000 Page 030000
Item Description Qty Page
1200 STARTING MOTOR (4.5KW) (INNER PARTS) 1 031200
1210 STARTING MOTOR MOUNTING(#26200163-26236431) 1 031210
1220 STARTING MOTOR MOUNTING(#26236432-) 1 031220
1230 REPAIR PARTS (1/4) (CYLINDER HEAD) 1 031230
1240 REPAIR PARTS (2/4) (CYLINDER BLOCK) 1 031240
1250 REPAIR PARTS (3/4) (CRANKSHAFT) 1 031250
1260 REPAIR PARTS (4/4) (PISTON) 1 031260
1270 CAUTION PLATE (JAPANESE-ENGLISH)(#26200912-26259807) 1 031270
1280 CAUTION PLATE (JAPANESE)(#26259808-) 1 031280
1290 SAFETY RELAY (FORWARDED INDIVIDUALLY PARTS)(#26269621-) 1 031290
1300 CAUTION PLATE (JAPANESE-ENGLISH)(#26259808-) 1 031300
S4D102E-1H-SN S/N 26200163-UP
Ref. A1009-01A0 Page 030010
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
S4D102E-1H-SN S/N 26200163-UP

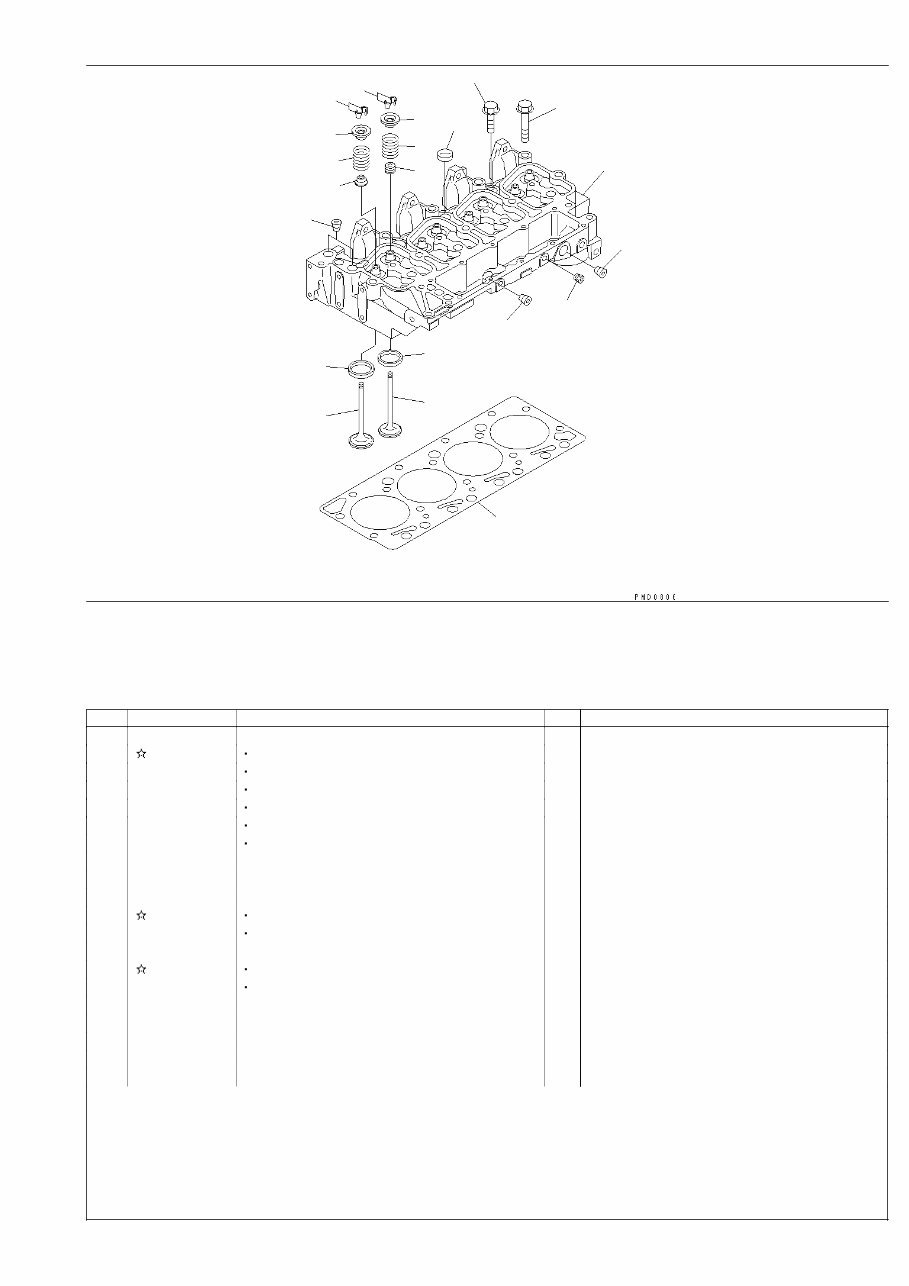

CYLINDER HEAD(#26200163-26238878)
Ref. A1009-01A0 Page 030010
Item Part No. Description Qty Options
6732-11-1010 HEAD ASS'Y 1 SN:26200163--@
1 HEAD 1 SN:26200163--@
2 6736-11-1150 PLUG 3 SN:26200163--@
3 6732-11-1170 INSERT,EXHAUST 4 SN:26200163--@
4 6732-11-1180 INSERT,INTAKE 4 SN:26200163--@
5 6732-11-1910 PLUG 5 SN:26200163--@
6 6732-11-1930 PLUG 2 SN:26200163--@
7 6732-41-4530 SEAL,EXHAUST 4 SN:26200163--@
8 6732-41-4540 SEAL,INTAKE 4 SN:26200163--@
6736-41-4110 INTAKE VALVE ASS'Y 4 SN:26200163--@
9 VALVE 1 SN:26200163--@
10 6732-41-4520 COTTER 2 SN:26200163--@
6736-41-4210 EXHAUST VALVE ASS'Y 4 SN:26200163--@
11 VALVE 1 SN:26200163--@
12 6732-41-4520 COTTER 2 SN:26200163--@
13 6732-41-4410 SPRING 8 SN:26200163--@
14 6732-41-4510 RETAINER 8 SN:26200163--@
15 6732-11-1610 BOLT 4 SN:26200163--@
16 6732-11-1620 BOLT 10 SN:26200163--@
17 6732-11-1150 GASKET 1 SN:26200163--26238878
REFER TO FIG. NOS. OF REPAIR PARTS FOR O.S.?U.S.?AND SERVICE PARTS.
