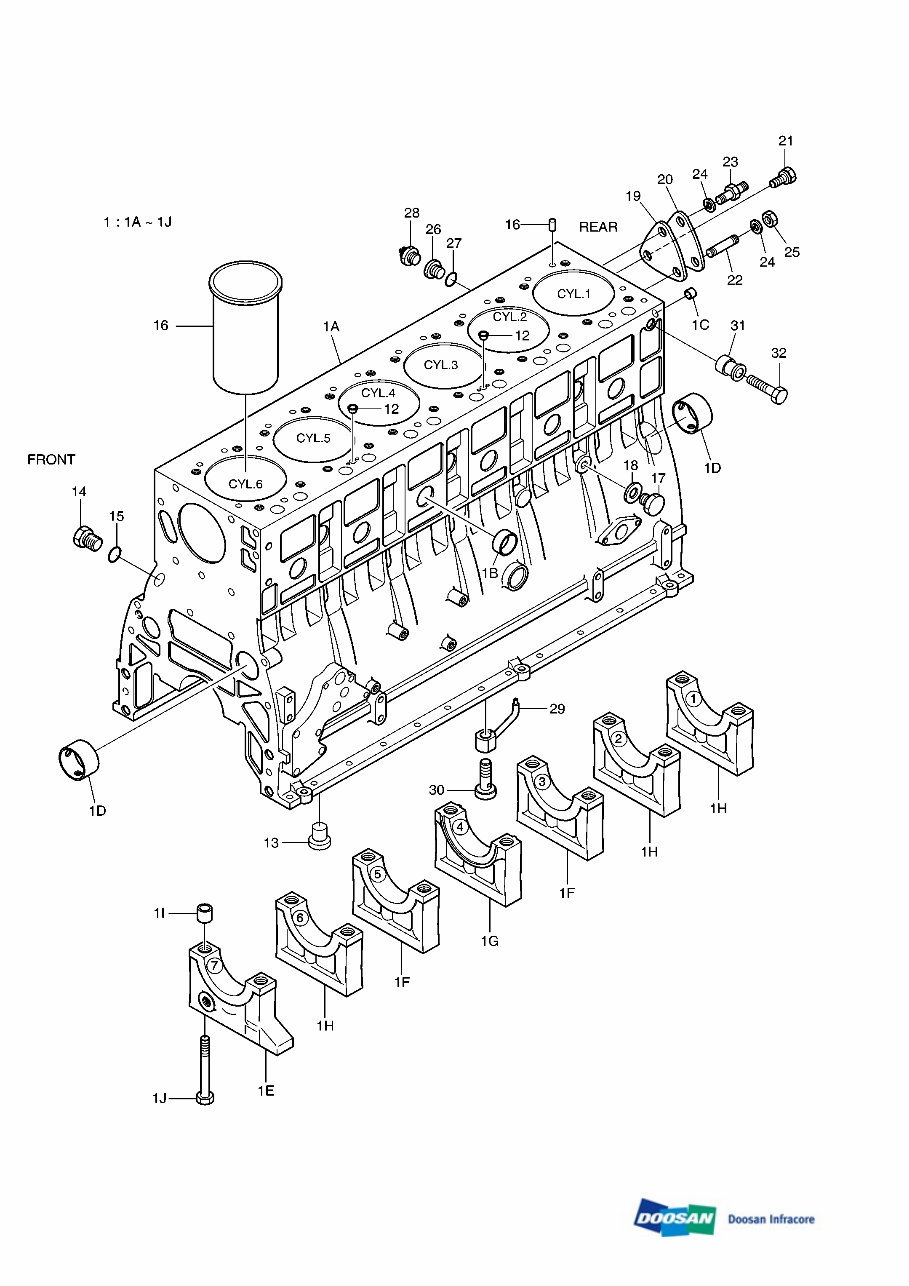

Fig. 011 CYLINDER BLOCK
MEGA 300-V (S/N 2001~)
Fig. 011 CYLINDER BLOCK
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01101-6040E CYLINDER BLOCK ASS'Y 1 ~030730 Y 65.01101-6040G 1
1 65.01101-6040G CYLINDER BLOCK ASS'Y 1 ~040209 Y 65.01101-6040H 1
1 65.01101-6040H CYLINDER BLOCK ASS'Y 1 ~040726 Y 65.01101-6040I 1
1 65.01101-6040I CYLINDER BLOCK ASS'Y(T/C) 1 ~080529 Y 65.01101-6040N 1
1 65.01101-6040N CYLINDER BLOCK ASS'Y 1 080530~
1A 65.01101-0040L BLOCK;CYLINDER 1 D ~040726
1A 65.01101-0040N BLOCK;CYLINDER(T/C) 1 D ~080529
1A 65.01101-0040R BLOCK;CYLINDER 1 D 080530~
1B 06.15091-0326 PLUG;CORE 9 ~040209 I 65.91606-0037 9
1B 65.91606-0037 PLUG;CORE 9 040210~
1C 06.15091-0313 PLUG;CORE 2
1D 65.04410-0017 BUSH;CAM SHAFT 4 B
1E 65.01105-1164D CAP;BEARING NO.7 1 D ~030730
1E 65.01105-1164E BEARING;CAP NO7 1 D ~080529
1E 65.01105-1175C BEARING;CAP NO7 1 D 080530~
1F 65.01105-1160E CAP;BEARING NO.3.5 2 D ~030730
1F 65.01105-1160F BEARING;CAP NO.3.5 2 D 030731~
1G 65.01105-1156C CAP;BEARING THRUST 1 D ~030730
1G 65.01105-1156D CAP BEARING;THRUST 1 D 030731~
1H 65.01105-1172A CAP;BEARING NO.1.2.6 3 D ~030730
1H 65.01105-1172B BEARING;CAP NO.1.2.6 3 D 030731~
1I 65.91710-0035 RING;LOCATING 14 ~030428 Y 65.91710-0035B 14
1I 65.91710-0035B RING;LOCATING 14 030429~
1J 65.90020-0035B BOLT;BEARING CAP 14
12 65.91001-0002 PLUG 2
13 65.91020-0013 PLUG;CORE 1
14 65.90310-0048 SCREW;PLUG M10X1.5 6
15 06.56180-0714 RING;SEAL 6
16 65.01201-0050 LINER;CYLINDER 6
17 65.90310-0091 SCREW;PLUG M12X1.5X20 1
18 06.56190-0704 RING;SEAL 1
19 65.96601A0042 GASKET;END COVER 1
20 65.91605-0006B COVER;END 1
21 06.01913-3114 BOLT ASS'Y M8X22 1
22 06.06225-0704 BOLT;STUD M8X20 1
23 65.90201-0075 BOLT;SPACER 1
1
MEGA 300-V (S/N 2001~)
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
24 06.16731-2107 WASHER 2
25 06.11063-8214 NUT 1
26 65.98130-0194 ADAPTER 1
27 06.56180-0714 RING;SEAL 1
28 65.27441-7007 SWITCH;OIL PRESSURE 1
29 65.01601-6003 OIL SPRAY NOZZLE ASS'Y 6
30 65.05405-6001 RELIEF VALVE ASS`Y 6
31 65.91701-0148 SPACER 1
32 06.01283-7524 BOLT;HEX. M16X65 1
2
MEGA 300-V (S/N 2001~)

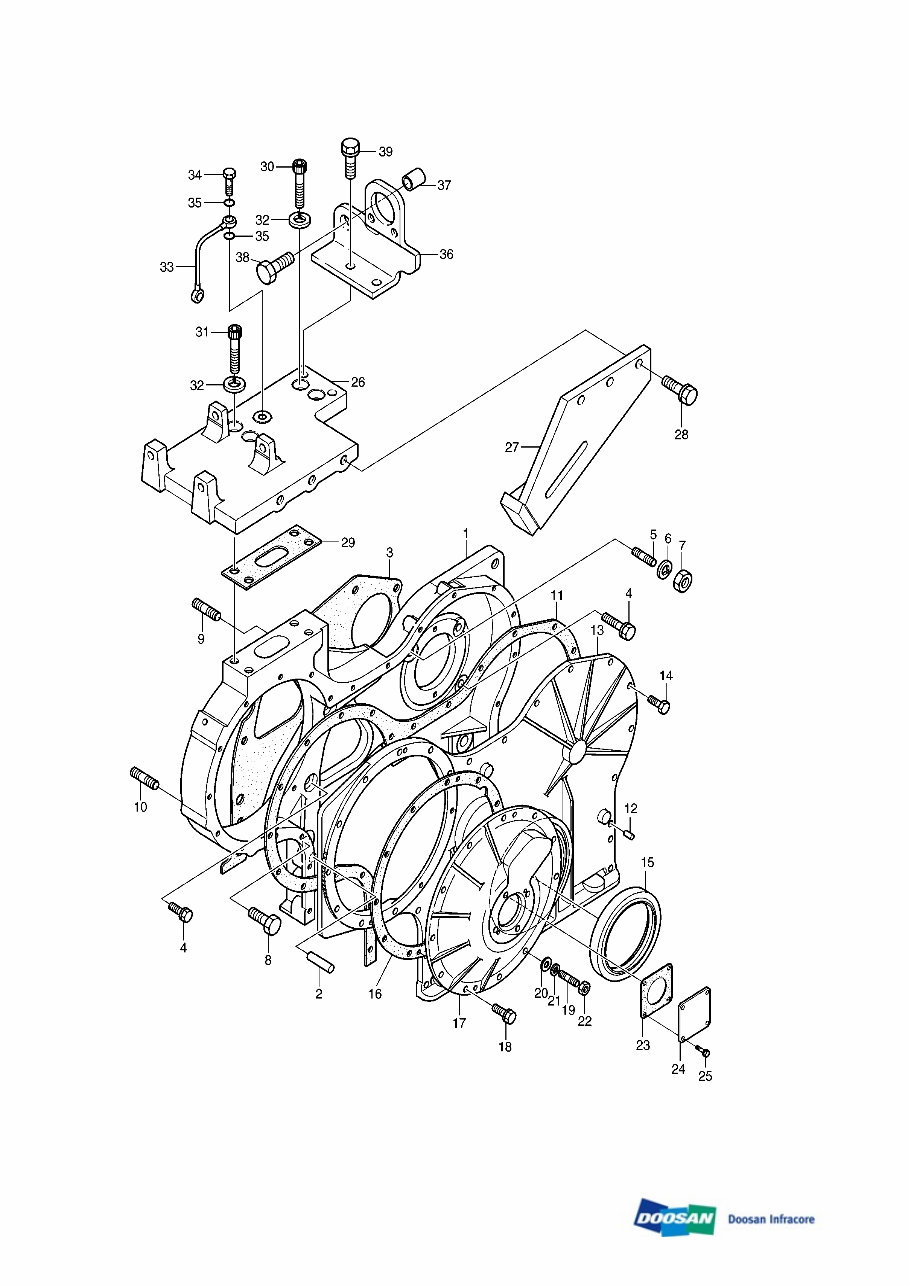

Fig. 012 TIMING GEAR CASE
MEGA 300-V (S/N 2001~)
Fig. 012 TIMING GEAR CASE
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01304-0010N CASE;TIMING GEAR 1
2 06.22022-1013 PIN;DOWEL 2
3 65.01903C0021 GASKET;TIMING GEAR CASE 1
4 06.01913-3113 BOLT ASS'Y M8X20 5
5 06.06225-0704 BOLT;STUD M8X20 1
6 06.16731-2107 WASHER 1
7 06.11063-8214 NUT 1
8 06.01943-3317 BOLT ASS`Y M12X1.5X30 4
9 65.90201-0048 BOLT;STUD 1
10 06.06225-0809 BOLT;STUD M10X35 6
11 65.01903B0113 GASKET;T.G.C COVER 1
12 06.22022-0907 PIN;DOWEL 6M6X10 2
13 65.01305-5028C COVER;TIMING GEAR CASE 1
14 06.01923-2914 BOLT ASS`Y M6X22 13
15 65.01510-0157 SEAL;OIL 1
16 65.01903B0029 GASKET;COVER 1
17 65.01307-5009 TIMING GEAR CASE COVER 1
18 06.01923-2918 BOLT ASS`Y M6X35 9
19 65.90201-0146 BOLT;STUD M6X16 2
20 06.15010-2309 WASHER;PLAIN 2
21 06.16731-2105 WASHER 2
22 06.11063-8212 NUT 2
23 65.27901-0005B GASKET 1
24 65.91605-0009 COVER;END 1
25 06.01913-2911 BOLT ASS'Y M6X16 4
26 65.54302-0021 PLATE;AIR COMPRESSOR 1
27 65.95840-0033 BRACKET;IDLE PULLEY 1
28 06.01913-3213 BOLT ASS`Y M10X20 3
29 65.54903A0013 GASKET 1
30 06.02090-0511 BOLT;SOCKET M10X22 2
31 06.02090-0513 BOLT;SOCKET 2
32 06.16731-2108 WASHER;SPRING 4
33 65.05701-5266 OIL PIPE ASS'Y 1
34 65.98150-0056 SCREW;HOLLOW 1
35 06.56180-0712 RING;SEAL 2
36 65.54306-0003 ANGLE;BRACKET 1
1
MEGA 300-V (S/N 2001~)
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
37 65.91701-0273 RING;SPACER 1
38 06.01013-9517 BOLT;HEX M16X60 1
39 06.01913-3215 BOLT ASS'Y M10X25 2
2
MEGA 300-V (S/N 2001~)

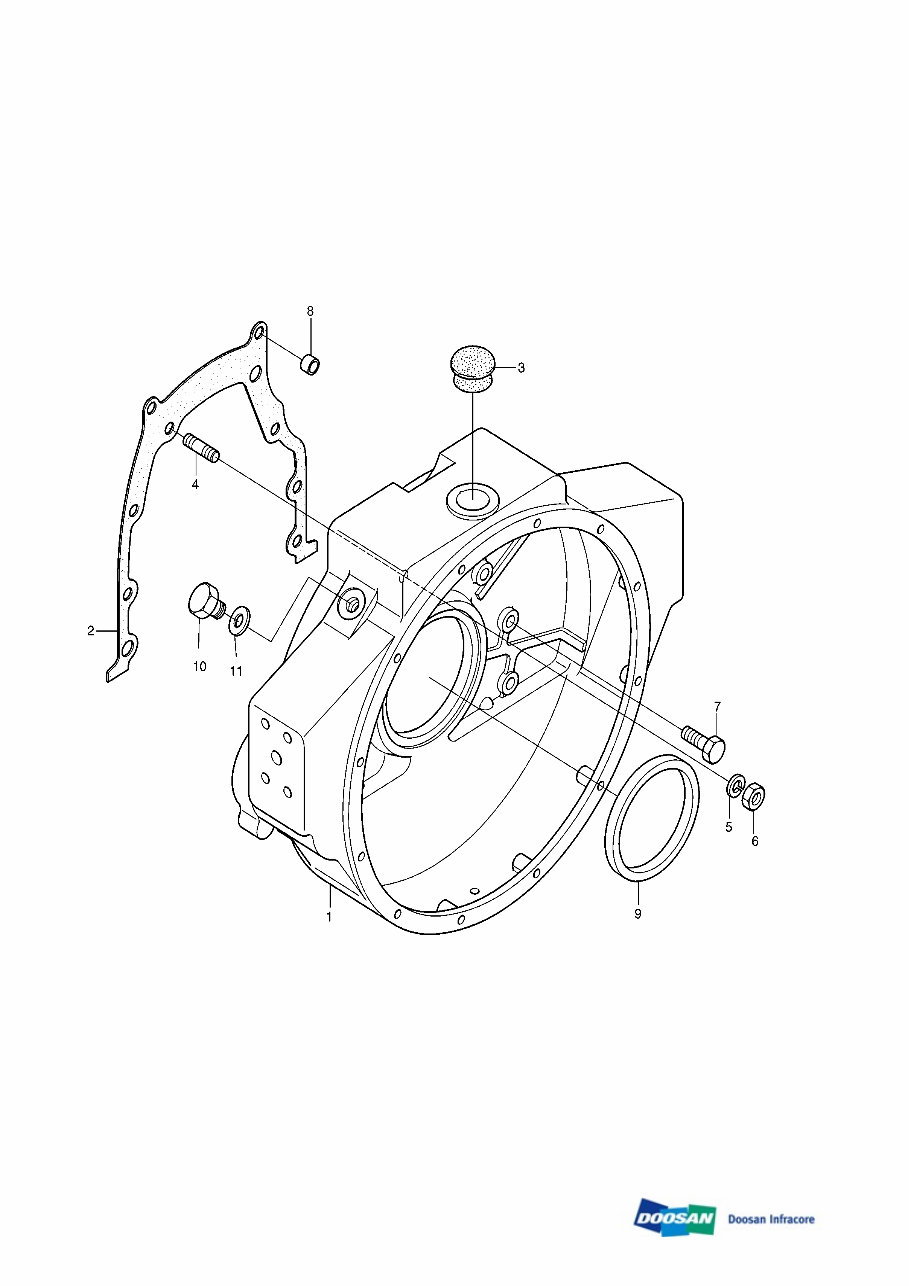

Fig. 013 FLYWHEEL HOUSING
MEGA 300-V (S/N 2001~)
Fig. 013 FLYWHEEL HOUSING
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.01401-0295 HOUSING;FLY WHEEL 1 ~031024 Y 65.01401-0295A 1
1 65.01401-0295A HOUSING;FLY WHEEL 1 ~040304 Y 65.01401-0295B 1
1 65.01401-0295B HOUSING;FLY WHEEL 1 040305~
2 65.01903A0178 GASKET;FLYWHEEL HOUSING 1
3 65.96002-0003 PLUG;RUBBER 1
4 06.06176-8309 BOLT,STUD 1
5 06.16731-2109 WASHER;SPRING A12 1
6 06.11063-9216 NUT;HEX. M12X1.5 1
7 06.01943-3319 BOLT ASS'Y M12X1.5X40 9
8 65.91710-0023 RING;INTERMEDIATE 2
9 65.01510-0037 SEAL;OIL REAR 1
10 06.08092-2405 PLUG SCREW M16 X 1.5 1
11 06.56190-0709 SEAL;RING 1
1
MEGA 300-V (S/N 2001~)

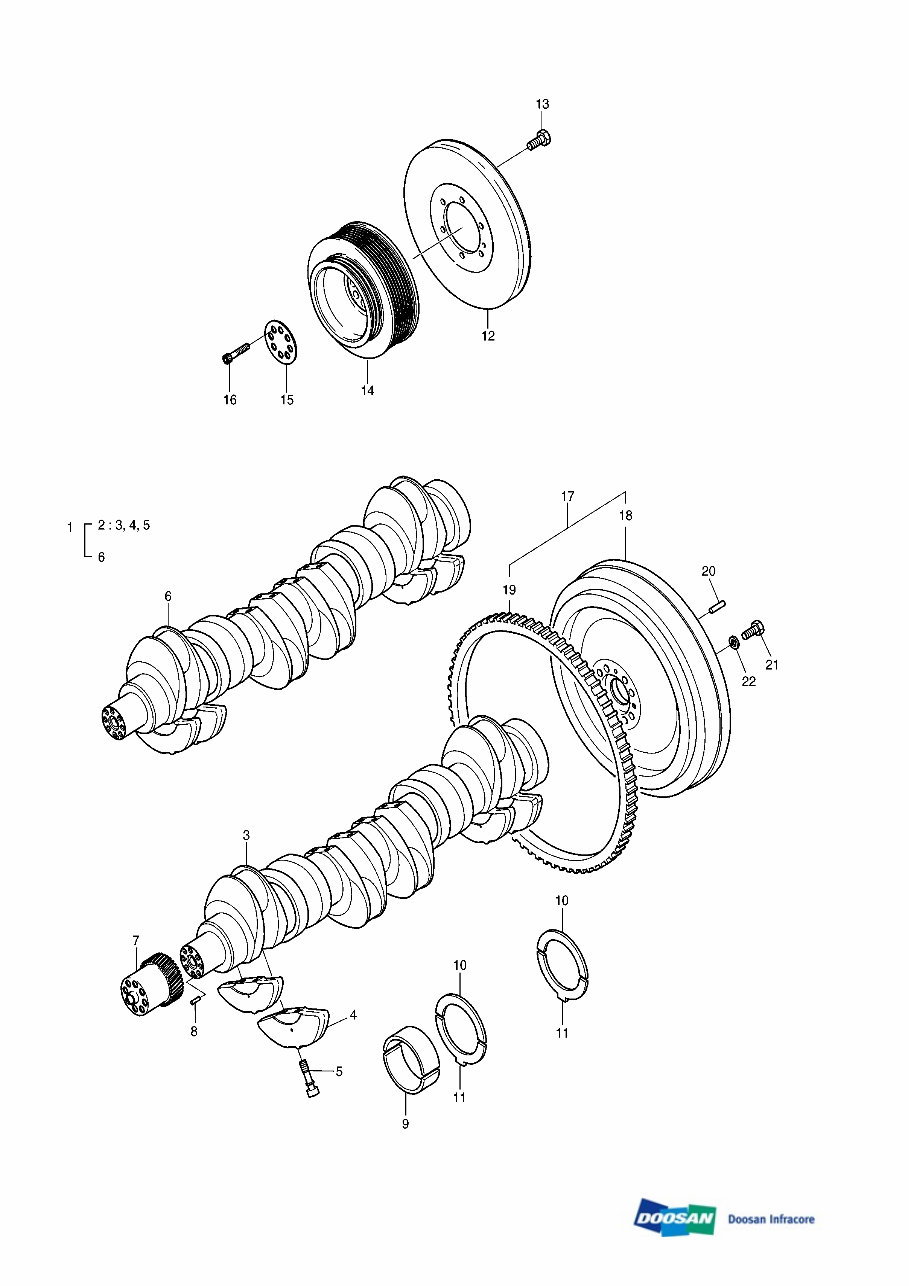

Fig. 014 CRANK SHAFT
MEGA 300-V (S/N 2001~)
Fig. 014 CRANK SHAFT
Key No Part No Description Qty S.C Serial No ICA Replacable Qty
1 65.02101-7540 CRANK SHAFT ASS'Y 1 D ~020830 Y 65.02101-7540A 1
1 65.02101-7540A CRANKSHAFT ASS'Y 1 D 020831~
2 65.02101-7024 CRANK SHAFT ASS'Y 1 ~020830 Y 65.02101-7024C 1
2 65.02101-7024C CRANKSHAFT ASS'Y 1 020831~
3 65.02101-0024 SHAFT;CRANK 1 D
4 65.02110-0011 WEIGHT;BALANCE 6 D
5 65.90430-0014B BOLT;CRANK SHAFT 12
6 65.02101-0056 CRANK SHAFT ASS'Y 1 ~020830 Y 65.02101-0056A 1
6 65.02101-0056A SHAFT;CRANK 1 020831~
7 65.02115-0040K GEAR;CRANK SHAFT 1
8 06.22022-0912 PIN;DOWEL 1
9 65.01110-6351 METAL;MAIN STD 7
9 65.01110-6352 METAL;MAIN 0.25 7 US
9 65.01110-6353 METAL;MAIN 0.50 7 US
10 65.01150-0015 WASHER;THRUST(UPPER) 2
10 65.01150-0019 WASHER;THRUST(0.25) 2
10 65.01150-0020 WASHER;THRUST(0.50) 2
11 65.01150-0016A WASHER;THRUST(LOWER) 2
11 65.01150-0023A WASHER;THRUST(0.25) 2 OS
11 65.01150-0024A WASHER;THRUST(0.50) 2 OS
12 65.02201-7032 DAMPER;VIBRATION 1
13 06.01914-3215 BOLT ASS'Y M10X25 6 ~040701 I 65.90020-0062B 6
13 65.90020-0062B BOLT;HEX M10X20 6 040702~
14 65.02601-0168 PULLEY;V-BELT 1
15 65.90701-0088 WASHER 1
16 06.02106-0619 BOLT;SOCKET HEAD 8
17 65.02301-5120A FLYWHEEL ASS'Y 1
18 65.02301-0264A FLYWHEEL 1
19 65.02310-0010A GEAR;STARTER RING 1
20 06.22022-1010 PIN;DOWEL 1
21 65.90001-0084 BOLT;HEX. M14X1.5X40 6
22 06.16731-2110 WASHER;SPRING 6
1
MEGA 300-V (S/N 2001~)
