DAEWOO DOOSAN DL250-3 WHEELED Loader Service Parts Catalogue Manual

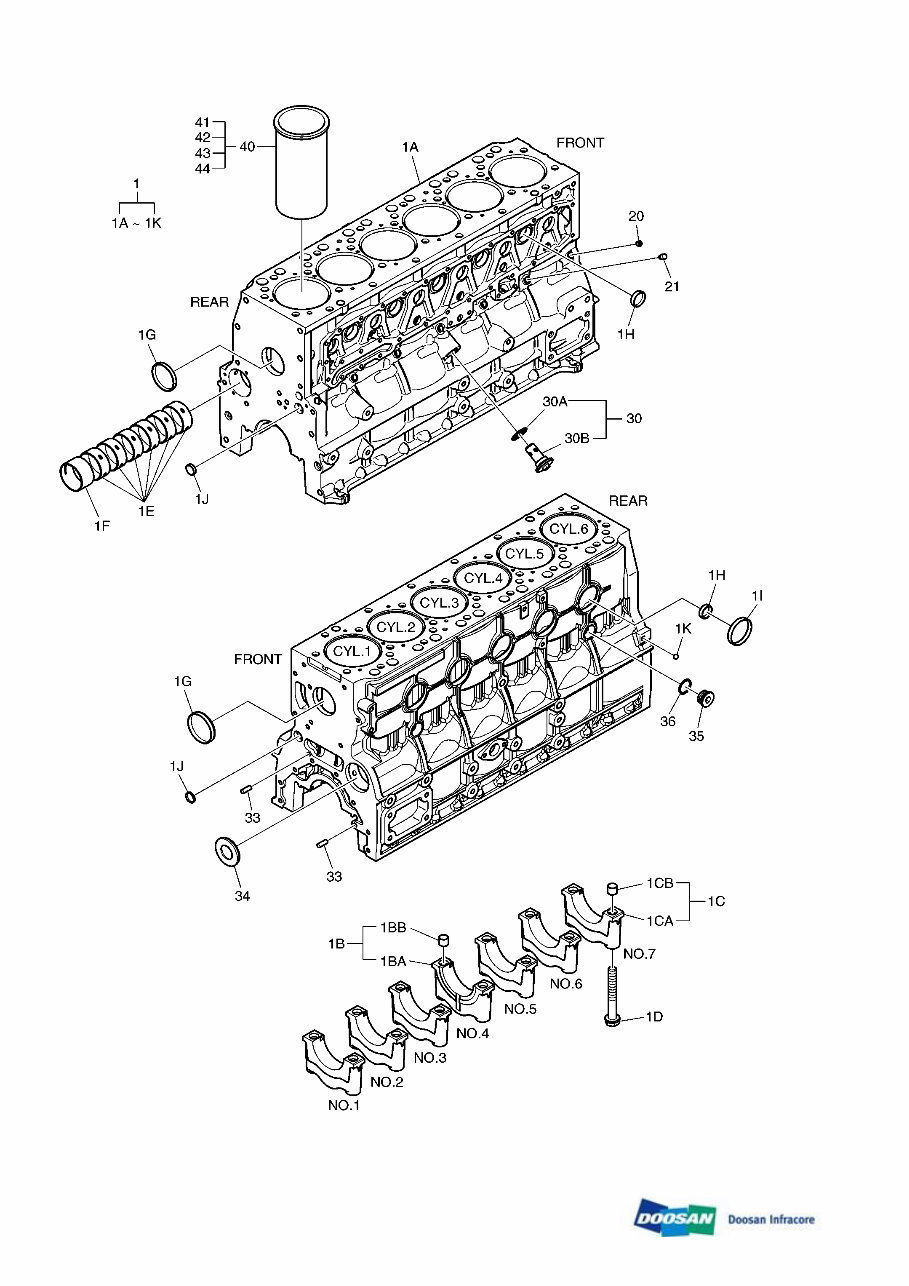

Fig. 001 CYLINDER BLOCK DL250-3

Fig. 001 CYLINDER BLOCK Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1 150102-00004A CYLINDER BLOCK ASS'Y 1 1A - CYLINDER BLOCK 1 D 1B - THRUST BEARING CAP ASS'Y 1 D 1BA - BEARING CAP;THRUST 1 D 1BB 65.91710-0001 RING;STOPPER 2 1C - BEARING CAP ASS'Y 6 D 1CA - BEARING CAP 1 D 1CB 65.91710-0001 RING;STOPPER 2 1D 65.90020-0066A BOLT;BRG CAP 14 1E 65.04410-0021A BUSH;CAMSHAFT 6 B 1F 65.04410-0022 BUSH;CAMSHAFT 1 B 1G 65.90302-0009 PLUG;CORE 2 1H 65.90302-0042 PLUG;CORE 8 1I 65.90302-0034 PLUG;CORE 5 1J 65.91606-0041 PLUG;CORE 2 1K 06.31641-0618 BALL;STEEL 1 20 65.90320-0022 PLUG SCREW PT1/8 1 21 65.91001-0013A PIN;CORE 6 30 410127-00088 RELIEF VALVE ASS'Y 1 30A 06.56021-0102 O-RING 1 30B - RELIEF VALVE 1 D 33 06.22022-1063 PIN 2 34 65.91605-0002 COVER;CORE HOLE 1 35 65.90310-0134 SCREW;PLUG 2 36 06.56190-0732 SEAL;RING 2 40 65.01201-0075A CYLINDER LINER-GRADE 6 D 41 65.01201-0076 LINER;CYLINDER-1A 6 42 65.01201-0077 LINER;CYLINDER-1B 6 43 65.01201-0078 LINER;CYLINDER-2A 6 44 65.01201-0079 LINER;CYLINDER-2B 6 1 DL250-3

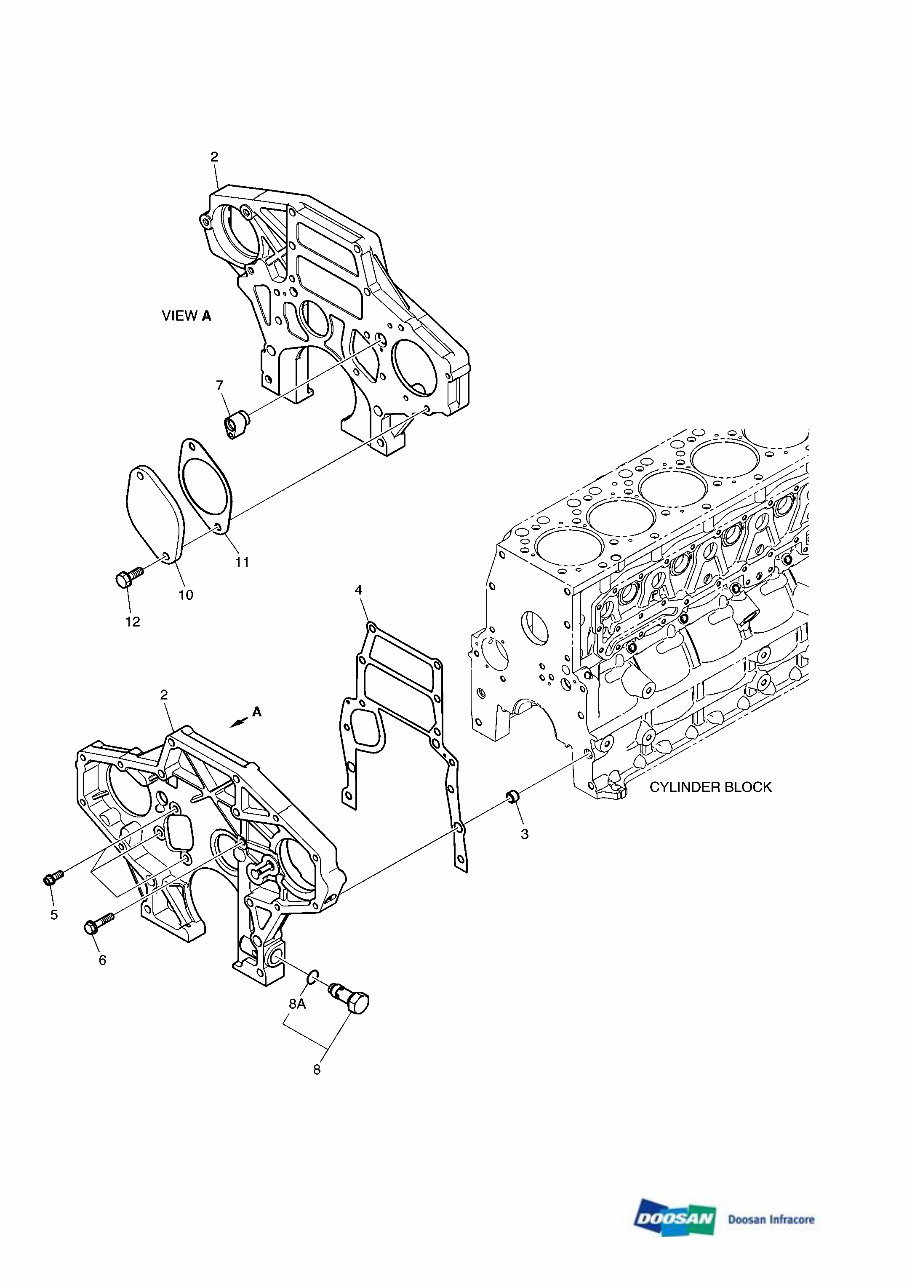

Fig. 002 TIMING GEAR CASE DL250-3

Fig. 002 TIMING GEAR CASE Key No Part No Description Qty S.C Serial No ICA Replacable Qty 2 130405-00027A CASE;TIMING GEAR 1 3 65.91710-0016 RING;STOPPER 2 4 65.01903-0034 GASKET 1 5 65.90020-0063B BOLT;HEX M10X25 3 6 65.90020-0080 BOLT;COLLARED HEX. 1 7 65.98130-0241 ADAPTER 1 8 410127-00040 RELIEF VALVE ASS'Y 1 8A 65.96501-0074 O-RING 1 10 65.91601-0011 COVER 1 11 65.38901-0018A GASKET;PTO 1 12 06.01943-3318 BOLT ASS'Y M12X1.5X35 2 1 DL250-3

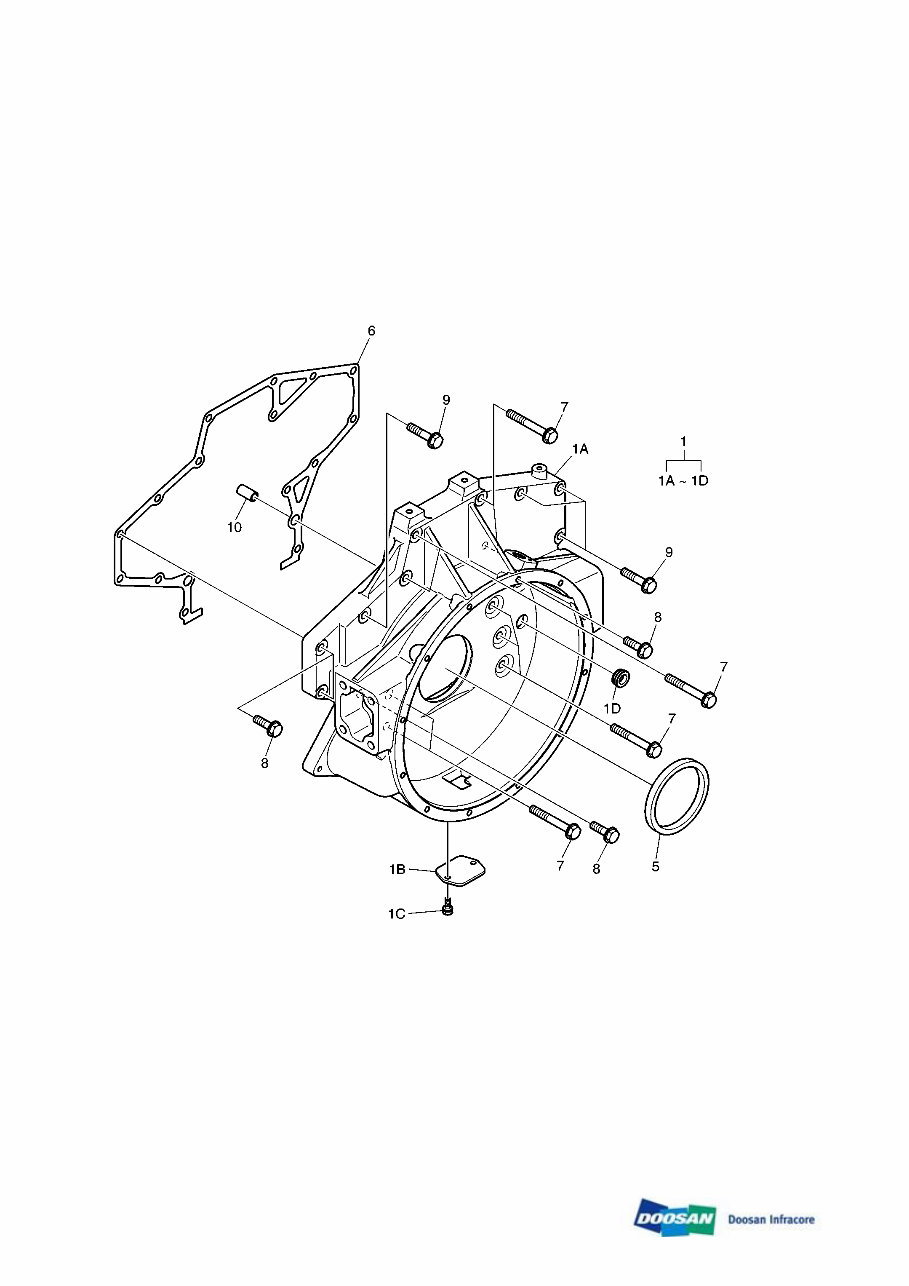

Fig. 003 FLYWHEEL HOUSING DL250-3

Fig. 003 FLYWHEEL HOUSING Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1 150114-00098A FLYWHEEL HOUSING ASS'Y 1 1A 150114-00142 HOUSING,FLYWHEEL 1 1B 65.01414-0004A COVER 1 1C 06.01923-3111 BOLT, M8X16 2 1D 65.96401-0014 CAP;RUBBER 1 5 65.01510-0040 SEAL;OIL 1 6 400613-00006 GASKET;F.W.H 1 7 65.90020-0100 BOLT, 103mm 9 8 65.90020-0101 BOLT, 57mm 4 9 65.90020-0105 BOLT, 67mm 4 10 65.91710-0009 RING;STOPPER 2 1 DL250-3

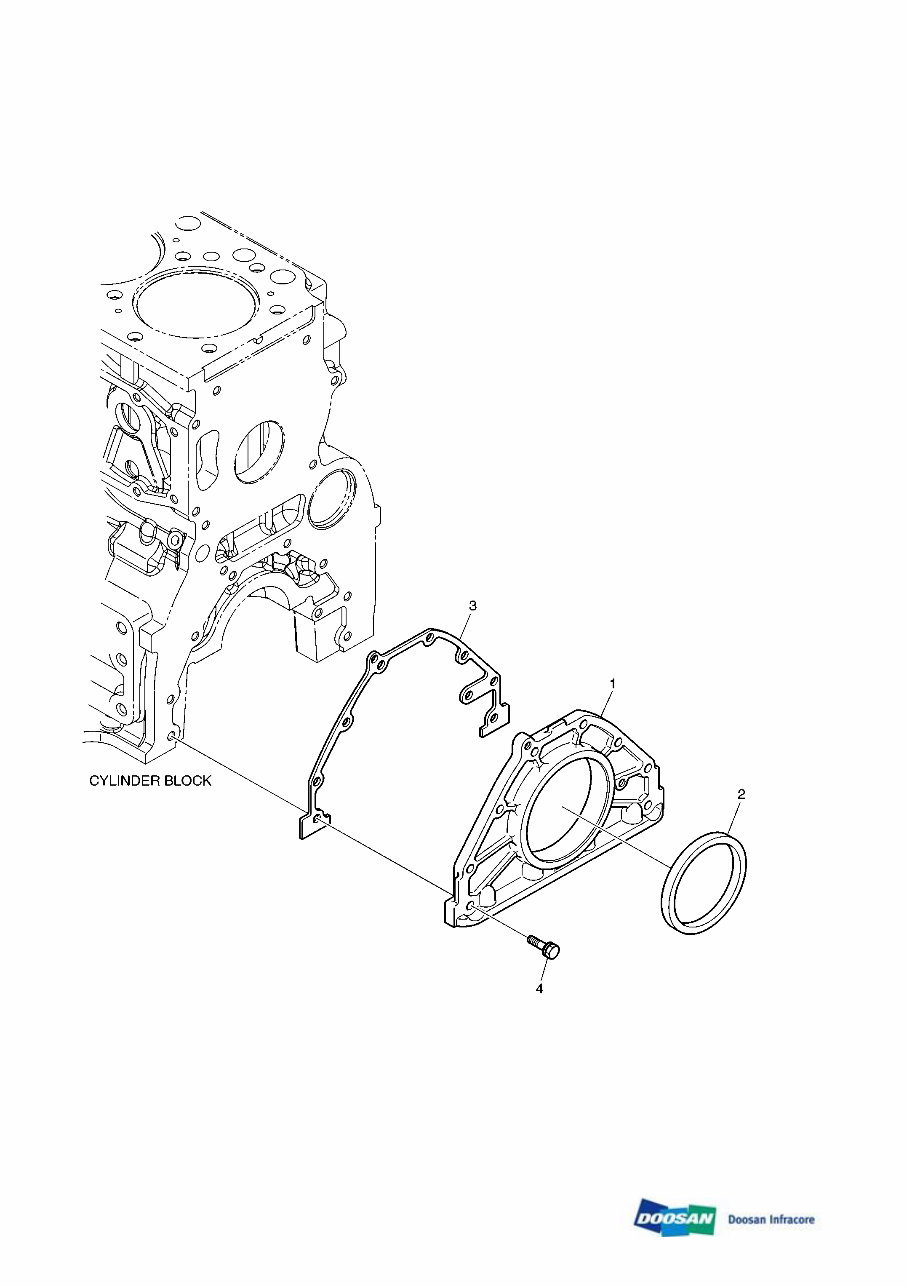

Fig. 004 OIL SEAL DL250-3

Fig. 004 OIL SEAL Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1 65.01501-5003A COVER;SEALING 1 2 65.01510-0157 SEAL;OIL 1 3 65.01905-0009 GASKET 1 4 06.01923-3116 BOLT ASS'Y M8X28 8 1 DL250-3

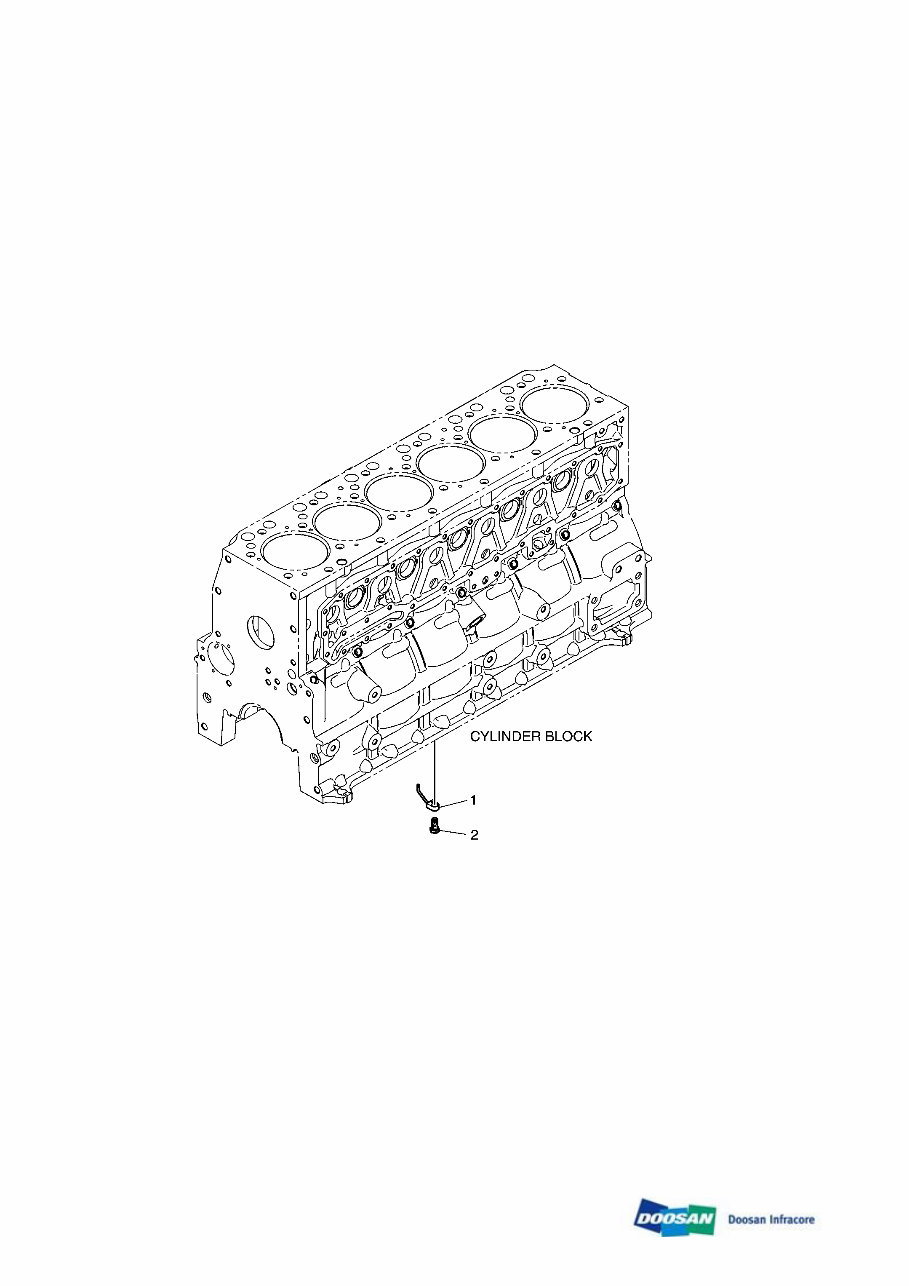

Fig. 005 OIL SPRAY NOZZLE DL250-3

Fig. 005 OIL SPRAY NOZZLE Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1 65.01601-5020 OIL SPRAY NOZZLE ASS'Y 6 2 65.05401-5031 RELIEF VALVE ASS'Y 6 1 DL250-3
