Case 1221F Parts Catalog

Parts Catalog Print No. 47525797 Issued 11/2014 1221F WHEEL LOADER TIER 4

GENERAL INFORMATION 1. Whenever the terms left and right are used, it should be understood to mean from a position facing in direction of travel. 2. Throughout this manual you may find common hardware not illustrated, but listed in the description column. The service part immediately preceding a hardware listing is the part using these particular items for mounting purposes. This hardware is not included with the service part or assembly when ordered as a replacement. 3. The illustrations show typical assemblies plus individual parts but in all cases may not show the exact shape or detail of parts required. However, the purpose for the illustrations is to identify parts performing like functions. Whenever possible, illustrations are located at the beginning of each section or immediately adjacent to the applicable text. 4. CNH America LLC is continually striving to improve its products. We must, therefore, reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously. CNH America LLC, Racine, WI 53404 U.S.A.

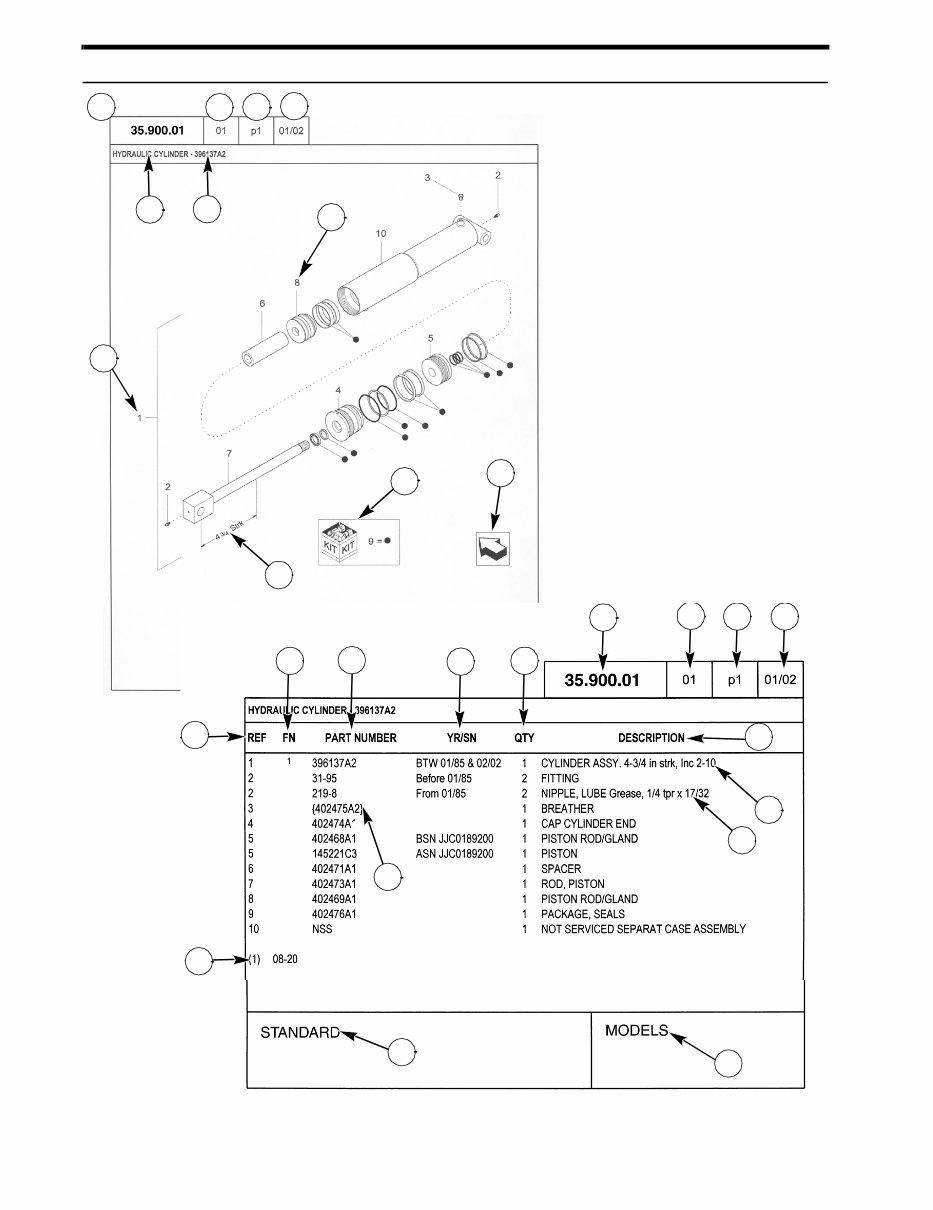

How to Use Your Parts Catalog 1 2 3 4 9 7 11 5 6 8 10 14 19 18 20 10 17 12 13 15 1 2 3 4 8 12 16

How to Use Your Parts Catalog 1. Figure Number 2. Sequence code within the Figure Number 3. Page number within the Sequence Code 4. Date of Printing (month / year) 5. Figure Description 6. General information regarding the figure 7. Parts supplied in repair kits per symbol reference 8. Figure call-out of the part number (REF) 9. Technical Specifications relating to the part indicated 10. Figure call-out includes bracketed items, the included items may also be listed in the additional description area 11. Orientation - Arrow indicates front of the machine 12. Footnote - Additional information relating to the part number. In this example, 08-20 equals another figure that this part is shown on. 13. Part Number NSS = Non-serviced parts Bracketed numbers = not available as service parts in this market 14. Not Available as service part in this market 15. YR/SN Year Before 01/85 = Part valid for production January 1985 and before From 01/85 = Part valid for production from January 1985 and after BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002. Serial Number (P.I.N.) BSN JJC0268800 = Part valid for serial number JJC0268800 and below ASN JJC0268800 = Part valid for serial number JJC0268800 and above BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000 16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications: AR = quantity as required X = as required 17. Part Description 18. Additional description of the part to help confirm identification 19. Figure Notes 20. Model Number(s)

Explanation of Abbreviations Abbreviation Meaning adj adjustable amp ampere AR As required ASN Serial number and after / P.I.N. and after barb barb blkhd bulkhead boss boss BSN before serial number / before P.I.N BTW between cc cubic centimetre chain chain cl class cp pt cup point CRS Chrome Alloy Steel CST Carbon Steel cu yd cubic yard deg degree dia diameter dr type drive type dry dry fc face fc sl face seal fem female fem PT female pipe thread fl flare ft feet (or foot) gal gallon(s) gr grade hd head hp horsepower ID inside diameter in inch(es) Inc. includes inv fl inverted flare K kilo kg kilogram L litre lb pound(s) lg long LH left hand LH thd left hand thread links links M (prefix) metric thread size m metre male male mm millimetre NF National Fine No. number NS National Super Fine OD outside diameter ohm electrical unit of resis- tance Or O-ring orifice orifice P pitch piece piece psi pounds per square inch PT pipe thread rd round rd holes round holes RH right hand RH thd right hand thread rpm revolutions per minute Abbreviation Meaning

Dimensions Metric and U.S. hardware dimensions do not show the numeric designations of standard coarse threads. A number following a semi colon (;) is the class or grade of hardware. A comma (,) represents the decimal point (.) used in U.S. dimensions. sl self locking slat slat spool spool sq square SST Stainless Steel st self tapping stem stem strk stroke sw swivel T teeth Teflon Teflon thin thin thk thick tpr taper Abbreviation Meaning tube tube type type V volt(s) W watt(s) way way wide wide X as required yd yard Abbreviation Meaning Explanation of Abbreviations

TABLE OF CONTENTS 00.000.00 PICTORIAL INDEX - MAIN SECTIONS 00.000.10 PICTORIAL INDEX - ENGINE 00.000.21 PICTORIAL INDEX - TRANSMISSION 00.000.25 PICTORIAL INDEX - FRONT AXLE SYSTEM 00.000.27 PICTORIAL INDEX - AXLE AND WHEELS, PICTORIAL INDEX - AXLE AND WHEELS 00.000.27 PICTORIAL INDEX - REAR DRIVE AXLE 00.000.33 PICTORIAL INDEX - BRAKES & CONTROLS 00.000.35 PICTORIAL INDEX - HYDRAULIC SYSTEMS 00.000.39 PICTORIAL INDEX - FRAMES, 00.000.41 PICTORIAL INDEX - STEERING 00.000.50 PICTORIAL INDEX - CAB CLIMATE CONTROL 00.000.55 PICTORIAL INDEX - ELECTRICAL SYSTEMS 00.000.71 PICTORIAL INDEX - PLUMBING 00.000.82 PICTORIAL INDEX - FRONT LOADER 00.000.84 PICTORIAL INDEX - ATTACHMENTS/HEADERS 00.000.88 PICTORIAL INDEX - ACCESSORIES 00.000.90 PICTORIAL INDEX - PLATFORM, CAB, BODYWORK AND DECAL 05.100.00 SECTION INDEX - ISL 05.100.01 INITIAL STOCKING LIST, LIST A 05.100.02 INITIAL STOCKING LIST, LIST B 05.100.03 01 FILTERS 10.000.00 SECTION INDEX - ENGINE 10.001.AK ENGINE MOUNT 10.202.AB AIR INTAKE 10.216.AI FUEL TANK 10.254.AD EXHAUST SYSTEM MOUNTING PARTS 10.400.BE RADIATOR ASSEMBLY 10.400.BE 01 RADIATOR 10.501.AD DIESEL OXIDATION CATALYST 21.000.00 SECTION INDEX - TRANSMISSION 21.105.AS FILTER (SUCTION) 21.105.AS 01 FILTER, FILTER HEAD 21.109.AD TRANSMISSION COOLING SYSTEM LINE

TABLE OF CONTENTS 21.109.AL OIL LINE 21.110.AB CLUTCH 21.110.AB 01 CLUTCH 21.110.AB 02 CLUTCH 21.112.AF NECK FILLER, DIPSTICK 21.113.AD TRANSMISSION MOUNTING PARTS 21.113.AD 01 DRIVE, LINE 21.113.AS COVER AND INPUT FLANGE 21.113.AT INPUT SHAFT AND HOUSING 21.115.AH CONTROL VALVE ASSEMBLY 21.120.AB TRANSMISSION HOUSING AND GEARBOX 21.126.AB GEARSHIFT 21.126.AB 01 GEARSHIFT 21.135.AQ SAFETY VALVE 21.135.AX DIFFERENTIAL LOCK HYDRAULIC LINES 21.135.AX 01 TRANSMISSION, POWER TAKE OFF 21.135.AX 02 TRANSMISSION, POWER TAKE OFF 21.135.AX 03 TRANSMISSION, POWER TAKE OFF 21.140.AM DRIVE, GROUP 21.155.AH GEAR/RING AND LAYSHAFT 21.155.AY TRANSMISSION, OUTPUT SHAFT AND FLANGE 21.155.BA OUTPUT SHAFT, DUAL SPEED 21.155.BA 01 OUTPUT SHAFT, DUAL SPEED 21.155.BA 02 OUTPUT SHAFT, DUAL SPEED 21.200.AB INPUT, FLANGE 21.700.AA TORQUE CONVERTER 25.000.00 SECTION INDEX - WHEEL AND AXLES 25.100.AD FRONT AND REAR AXLE MOUNTING 25.100.AD 01 AXLE HOUSING 25.100.AD 02 AXLE HOUSING PLUGS 25.102.AD FRONT AXLE DIFFERENTIAL, LOCKING 25.310.AI AXLE HOUSING, GROUP 27.106.AC REAR, DIFFERENTIAL, ASSEMBLY 27.500.AL WHEEL

TABLE OF CONTENTS 33.000.00 SECTION INDEX - BRAKES AND CONTROLS 33.110.BA PARKING BRAKE ASSEMBLY 33.202.AK BRAKE ASSEMBLY 33.202.AX BRAKE, HYDRAULIC LINE 33.202.AX 01 BRAKE, HYDR LINES 33.300.AE DIRECTIONAL CONTROL VALVE 35.000.00 SECTION INDEX - HYDRAULIC SYSTEMS 35.000.AA ATTACHMENT, HYDRAULIC LINES 35.106.AD MAIN, PUMP 35.204.BL REMOTE CONTROL, LEVER 35.300.AD TANK, HYDRAULIC SYSTEM 35.300.AD 01 TANK, HYDRAULIC SYSTEM 35.322.AM PRESSURE, OIL PUMP 35.353.AC BRAKE VALVE 35.353.AC 01 BRAKE VALVE, DUAL 35.355.AC JOYSTICK, , HYDRAULIC STEERING 35.357.AC HYD. LINE, PILOT, 35.359.AA CUT OFF , VALVE 35.359.AQ PROPORTIONAL, VALVE 35.359.BB CONTROL VALVE 35.359.BB 01 CONTROL VALVE 35.360.AL STOP, VALVE 35.525.AA HYD. LINE 1 35.525.AA 01 HYD. LINE, 2 35.600.AI FLUID, AMPLIFIER 35.701.AA ACCUMULATOR 35.701.BQ RIDE CONTROL SWITCH, 35.701.BR RIDE CONTROL SWITCH 35.733.AA AXLE, OIL COOLER, PUMP 35.733.AC AXLE COOLING SYSTEM LINES 35.736.AA BOOM, CYLINDER 35.738.AA BOOM, CYLINDER 35.752.AC FAN, MOTOR 35.752.AD FAN AND , BRAKE VALVE
