PARTS CATALOGUE
WHEEL LOADER
821E
Tier 3
821E WHEEL LOADER - TIER III NA/EU (8/06- )

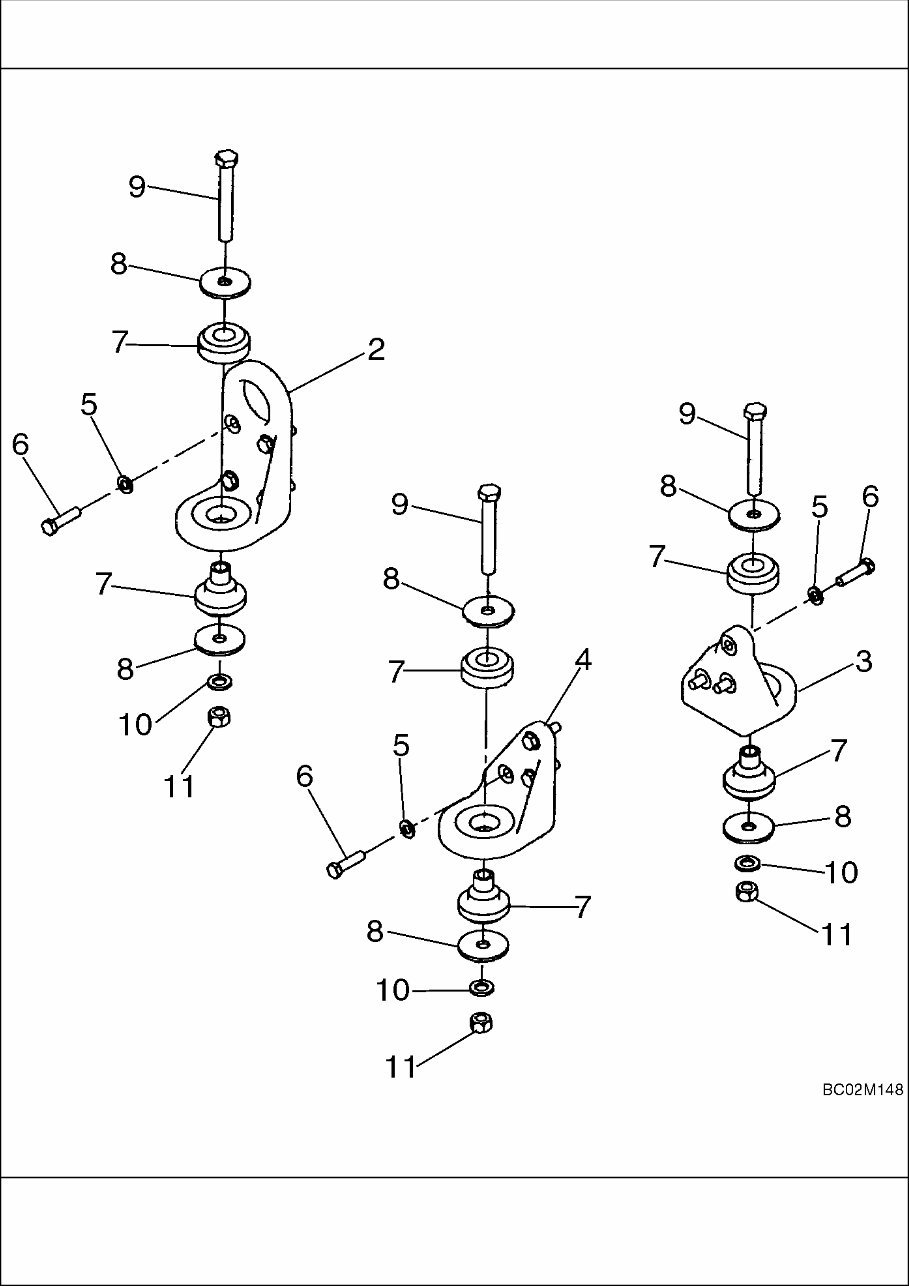

02-01 MOUNTING, ENGINE
Ref Part Number Qty Description
821E WHEEL LOADER - TIER III NA/EU (8/06- )
02-01 MOUNTING, ENGINE
2 8602302 2 MOUNT, ENGINE, Front
3 8602303 1 MOUNT, ENGINE, Right Rear
4 8602304 1 MOUNT, ENGINE, Left Rear
5 896-11012 14 WASHER, M13.5 x 24.5 x 3, HT,
6 627-12045 14 BOLT, Hex, M12 x 45, 10.9, Full Thd,
7 361811A1 4 ISOLATOR, Rear
8 496-81025 8 WASHER, 21/32" x 2 1/2" x .188", HDN,
9 827-16120 4 BOLT, Hex, M16 x 120, 10.9,
11 832-10416 4 NUT, LOCK, M16 x 2, Cl 8,
821E WHEEL LOADER - TIER III NA/EU (8/06- )

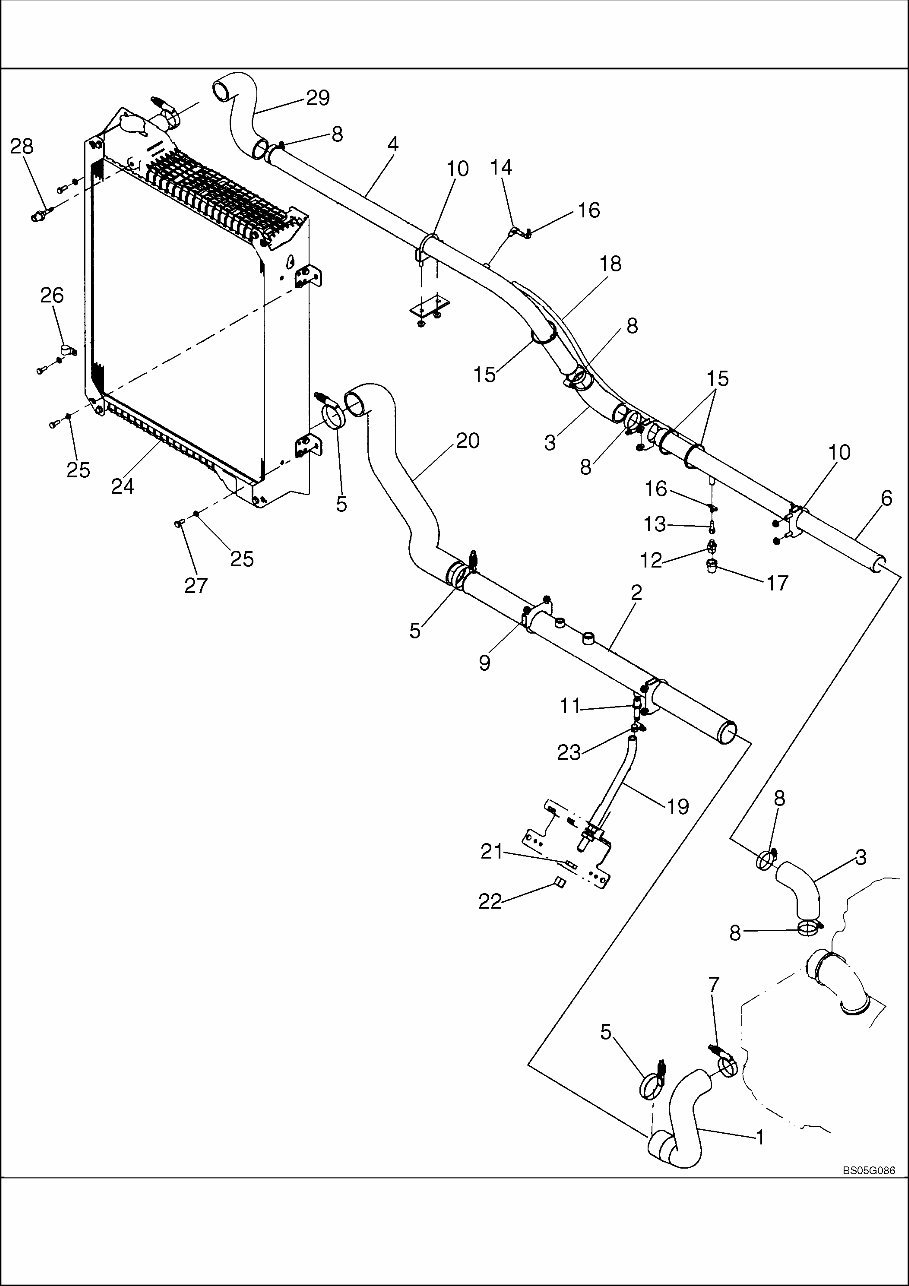

02-02 RADIATOR - MOUNTING
Ref Part Number Qty Description
821E WHEEL LOADER - TIER III NA/EU (8/06- )
02-02 RADIATOR - MOUNTING
1 8500084 1 HOSE, 235 mm ( 9 1/4 in.); Bottom
2 87325208 1 TUBE, Bottom; Coolant
3 381232A1 2 HOSE, 86 mm ( 3 3/8 in.); Elbow
4 87304062 1 TUBE, Top Coolant
5 L115548 3 CLAMP,
6 87446950 1 TUBE, Top Coolant Engine
7 254026A1 2 CLAMP,
8 214-1436 5 CLAMP, HOSE, #36, 1.81/2.75 Type F Worm,
9 393632A1 2 CLAMP,
10 382189A1 3 CLAMP,
11 217-152 1 FITTING, 1/2" Hose X 3/8" NPTF Beaded,
12 J911901 1 VALVE, CHECK,
13 217-191 1 FITTING, 1/4" Hose x 1/8" NPTF, Fem, Barbed,
14 217-292 1 FITTING, 90Ñ”, 1/4" Hose x 1/8" NPTF, Barbed,
15 L11541 3 STRAP,
16 214-1704 2 CLAMP, HOSE, #4, 0.25/0.62 Type M Worm,
17 217-1035 1 REDUCER, 1/2"-14 Male NPTF x 3/8"-18 Female NPTF,
18 320374A1 1 HOSE, 925 mm ( 36 7/16 in.); Coolant Breather
19 87536091 1 HOSE ASSY., 330mm (13 in.); Replaces 8500085 318 mm (12 1/2 in.) Hose Used On Some Models
20 87323393 1 HOSE Bottom; Formed
21 218-1255 1 NUT, LOCK, Blkhd, 3/4"-16,
22 218-755 1 CAP, 37Ñ”, 3/4"-16,
23 214-1410 1 CLAMP, HOSE, #10, 0.56/1.06 Type F Worm,
24 87310988 1 RADIATOR, RADIATOR
25 892-11008 4 WASHER, LOCK, M8,
26 515-22190 1 CLAMP, 3/4", Insul, 5/16" Bolt,
27 627-8020 1 BOLT, Hex, M8 x 20, 10.9,
28 419792A2 1 SENSOR, Coolant Level
29 8500083 1 HOSE, 165 mm (6 1/2 in.); Top
821E WHEEL LOADER - TIER III NA/EU (8/06- )

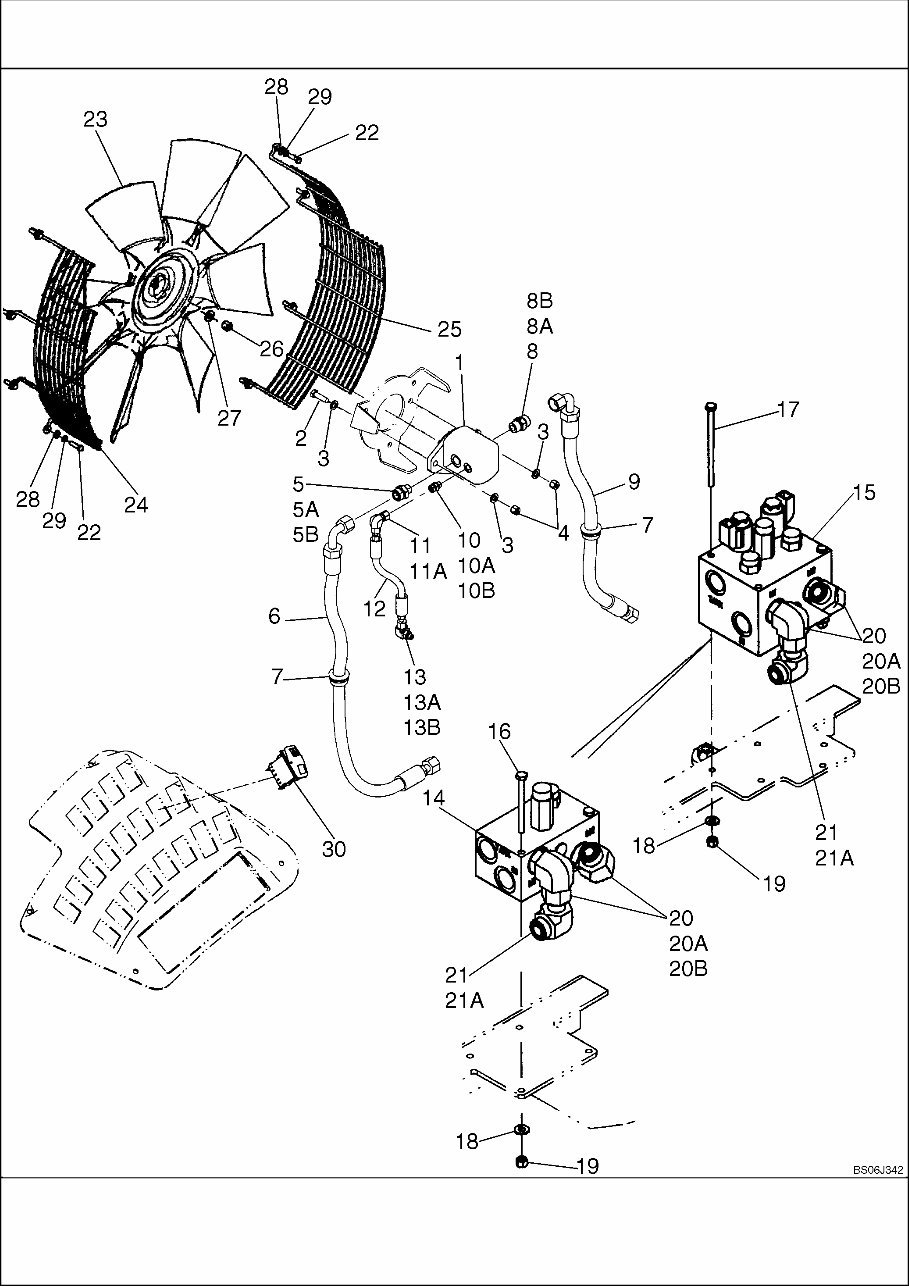

02-03 FAN DRIVE
Ref Part Number Qty Description
821E WHEEL LOADER - TIER III NA/EU (8/06- )
02-03 FAN DRIVE
1 8500105 1 MOTOR, HYDRAULIC, Reversible Fan; Incl. 2
86991683 1 KIT, Seal; Not Illustrated
2 627-12040 2 BOLT, Hex, M12 x 40, 10.9, Full Thd,
3 896-11012 4 WASHER, M13.5 x 24.5 x 3, HT,
4 832-10412 2 NUT, LOCK, M12 x 1.75, Cl 8,
5 700-107 1 CONNECTOR, HYD., 1 3/16"-12 ORFS x M22 x 1.5 ORB, Incl. 5A, 5B
5A 238-6018 1 O-RING, -018, 90 Duro, .739" ID x .070" Thk, Face Seal
5B 637-63193 1 O-RING, Cl 6, 19.3MM ID x 2.2 Thk, Boss Seal
6 87362183 1 HOSE ASSY., 1254mm ( 49-1/3 in ); Fan Forward
7 8500186 2 GROMMET,
8 700-104 1 CONNECTOR, HYD., 1 3/16"-12 ORFS x M27 x 2 ORB, Incl. 8A, 8B
8A 238-6018 1 O-RING, -018, 90 Duro, .739" ID x .070" Thk, Face Seal
8B 637-64236 1 O-RING, Cl 6, 23.6MM ID x 2.9 Thk, Boss Seal
9 87362184 1 HOSE ASSY., 998 mm ( 39-1/4 in ); Fan Reverse
10 700-101 1 CONNECTOR, HYD., 11/16"-16 ORFS x M14 x 1.5 ORB, Incl. 10A, 10B
10A 238-6012 1 O-RING, -012, 90 Duro, .364" ID x .070" Thk, Face Seal
10B 637-63113 1 O-RING, Cl 6, 11.3MM ID x 2.2 Thk,
11 701-319 1 ELBOW, 90Ñ”, 11/16"-16 ORFS x 11/16"-16 Fem Sw, Incl. 26
11A 238-6012 1 O-RING, -012, 90 Duro, .364" ID x .070" Thk, Face Seal
12 8500183 1 HOSE, FLEXIBLE, 309 mm (12 3/16 in ); Drain
13 700-304 1 ELBOW, 90Ñ”, 11/16"-18 ORFS x M14 x 1.5 ORB, Incl. 13A, 13B
13A 238-6012 1 O-RING, -012, 90 Duro, .364" ID x .070" Thk, Face Seal
13B 637-63113 1 O-RING, Cl 6, 11.3MM ID x 2.2 Thk,
14 8500562 1 VALVE, HYDRAULIC, Fan Relief; If Used; See Figure 08-33
15 8500565 1 VALVE, HYDRAULIC, Fan Reverser; If Used; See Figure 08-33
16 827-8100 2 BOLT, Hex, M8 x 100, 10.9,
17 814-8140 2-3 BOLT, Hex, M8 x 140, 8.8,
18 895-15008 2-3 WASHER, M8 x 20 x 1.6,
19 832-10408 2-3 NUT, LOCK, M8 x 1.25, Cl 8,
20 700-307 2 ELBOW, 90Ñ”, 1 3/16"-12 ORFS x M27 x 2 ORB, Incl. 20A, 20B
20A 637-64236 1 O-RING, Cl 6, 23.6MM ID x 2.9 Thk, Boss End
20B 238-6018 1 O-RING, -018, 90 Duro, .739" ID x .070" Thk, Face End
21 701-342 1 ELBOW, 90Ñ”, 1 3/16"-12 ORFS x 1 3/16"-12 Fem Sw, Incl. 21A
21A 238-6018 1 O-RING, -018, 90 Duro, .739" ID x .070" Thk, Face End
22 627-8030 8 BOLT, Hex, M8 x 30, 10.9,
23 8500471 1 FAN,
24 87347864 1 GUARD, GUARD Fan
25 87347865 1 GUARD, GUARD Fan
26 232-2448 1 NUT, LOCK, 1/2"-20, GC,
27 496-21053 1 WASHER, 17/32" x 1 1/6" x .134",
28 895-15008 8 WASHER, M8 x 20 x 1.6,
29 892-11008 8 WASHER, LOCK, M8,
30 87350049 1 SWITCH, Fan Reverser; If Used
821E WHEEL LOADER - TIER III NA/EU (8/06- )

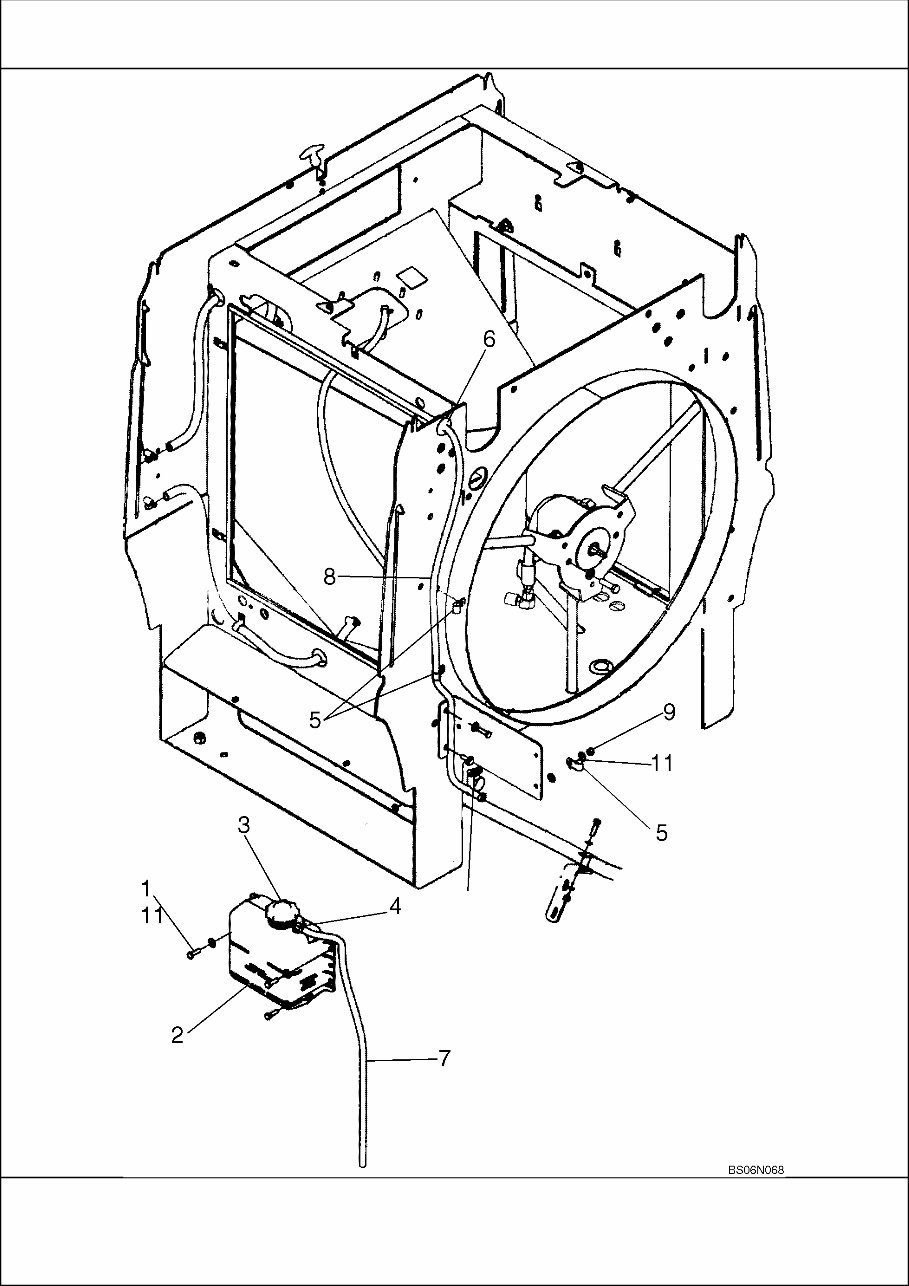

02-04 COOLANT RECOVERY SYSTEM
Ref Part Number Qty Description
821E WHEEL LOADER - TIER III NA/EU (8/06- )
02-04 COOLANT RECOVERY SYSTEM
1 627-8025 5 BOLT, Hex, M8 x 25, 10.9,
2 A184395 1 RESERVOIR,
3 1547924C1 1 CAP,
4 A171099 2 CLAMP, HOSE,
5 515-23143 3 CLAMP, 9/16", Insul, 3/8" Bolt,
6 198824C1 1 GROMMET, 1/2 ID
7 87541330 1 HOSE (METRES), 695mm (27-1/3 IN); Cut From 31-2855; Reservoir, Drain
8 307149A1 1 HOSE (METRES), 1676 mm (66 in); Cut From 31-2855; Coolant Recovery
9 832-10408 5 NUT, LOCK, M8 x 1.25, Cl 8,
10 87354483 1 PLATE,
11 895-15008 8 WASHER, M8 x 20 x 1.6,
12 515-23317 2 CLAMP, 1 1/4", Insul, 3/8" Bolt,
13 895-11008 4 WASHER, M8 x 16 x 1.6,
821E WHEEL LOADER - TIER III NA/EU (8/06- )

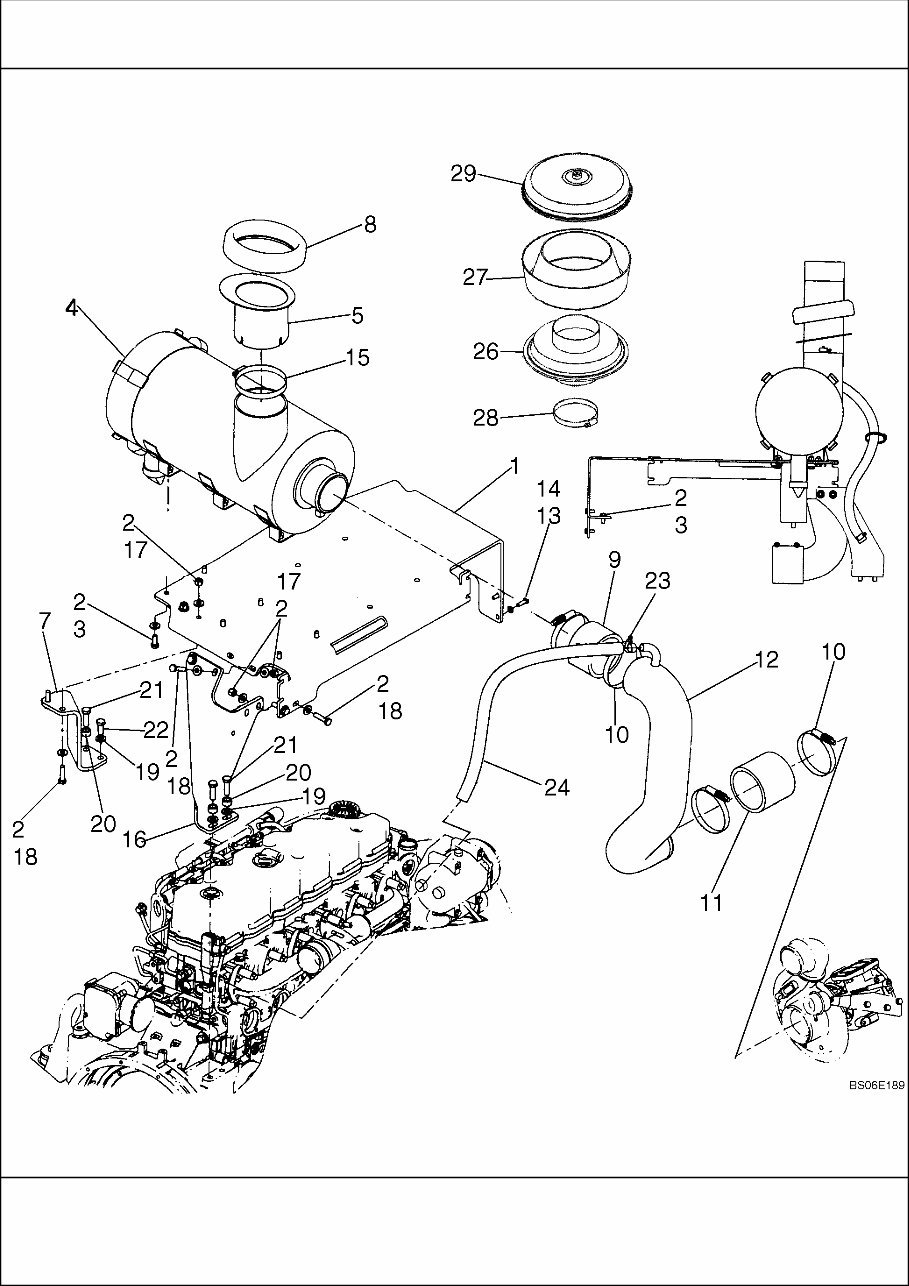

02-05 AIR CLEANER - AIR INTAKE PARTS
