PARTS CATALOGUE
WHEEL LOADER
721D
EUROPE
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )

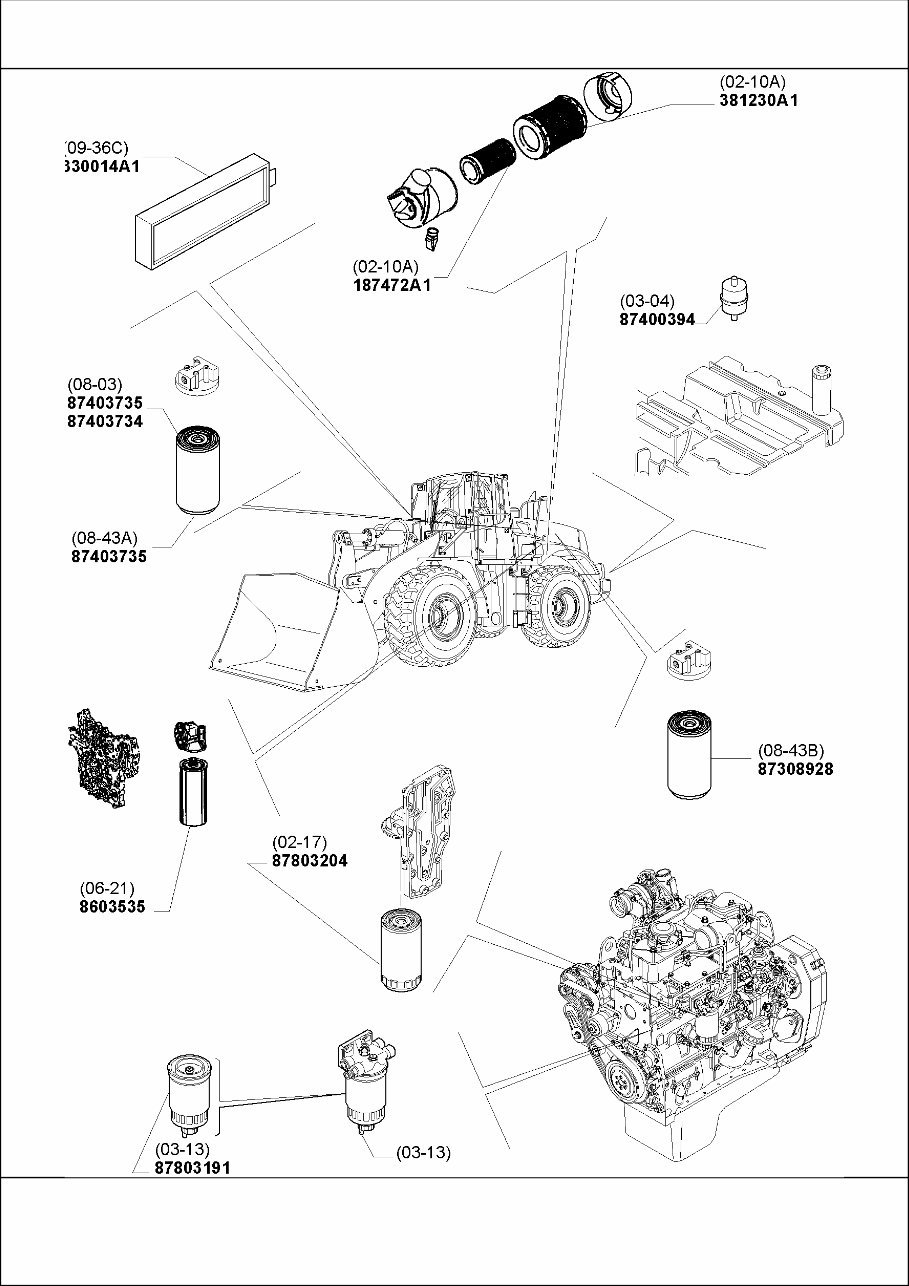

0 - FILTERS(00) MAINTENANCE PARTS
Ref Part Number Qty Description
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )
0 - FILTERS(00) MAINTENANCE PARTS
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )

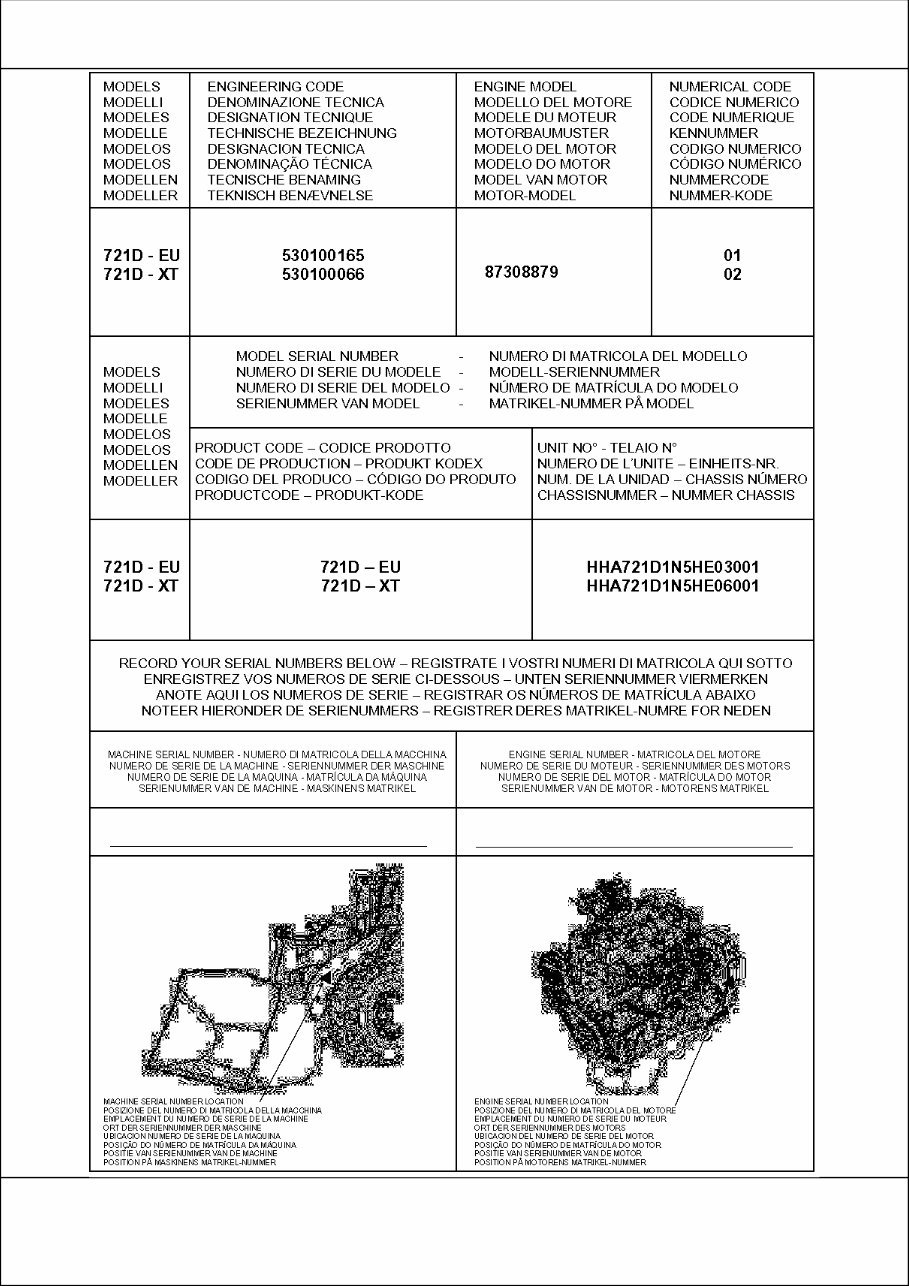

0 - VERSION(00) IDENTIFICATION AND VERSION LIST
Ref Part Number Qty Description
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )
0 - VERSION(00) IDENTIFICATION AND VERSION LIST
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )

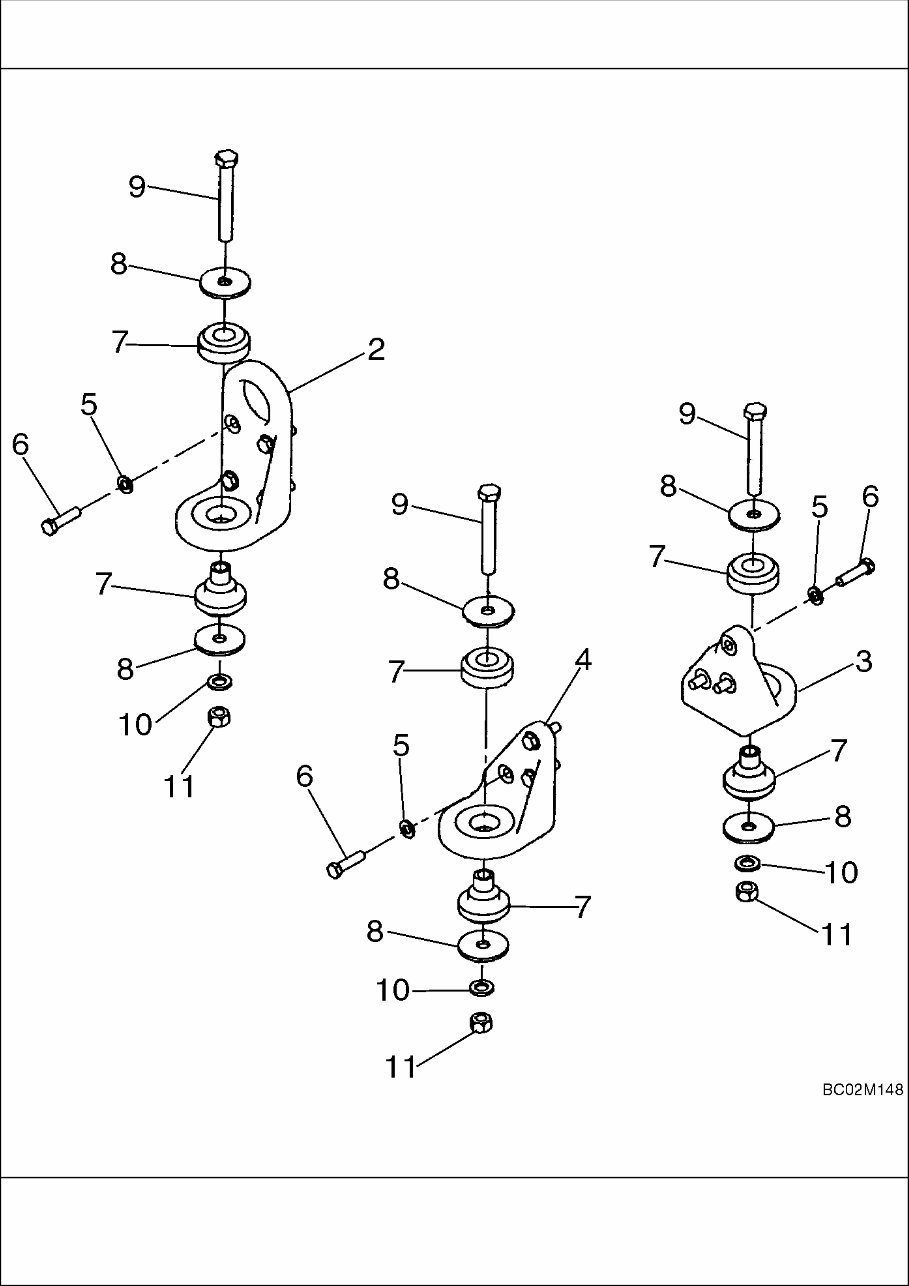

02-01 MOUNTING, ENGINE
Ref Part Number Qty Description
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )
02-01 MOUNTING, ENGINE
2 8602302 2 MOUNT, ENGINE, 17,5 x 30 x 4 mm; Front
3 8602303 1 MOUNT, ENGINE, Right Rear
4 8602304 1 MOUNT, ENGINE, M16 x 110; 10.9; Left Rear
5 896-11012 14 WASHER, M13.5 x 24.5 x 3, HT, 13,5 x 24 x 3 mm
6 627-12045 14 BOLT, Hex, M12 x 45, 10.9, Full Thd, M12 x 45; 10.9
7 361811A1 4 ISOLATOR, Rear
8 496-81025 8 WASHER, 21/32" x 2 1/2" x .188", HDN, ,656 x 2,5 x ,188
9 827-16120 4 BOLT, Hex, M16 x 120, 10.9, M16 x 120; 10.9
10 896-11016 4 WASHER, M17.5 x 30 x 4, HT, 17,5 x 16,7 x 4,8 mm
11 829-1416 4 NUT, M16, Cl 10, M16; No Longer Used For This Application
11 832-10416 4 NUT, LOCK, M16 x 2, Cl 8, M16
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )

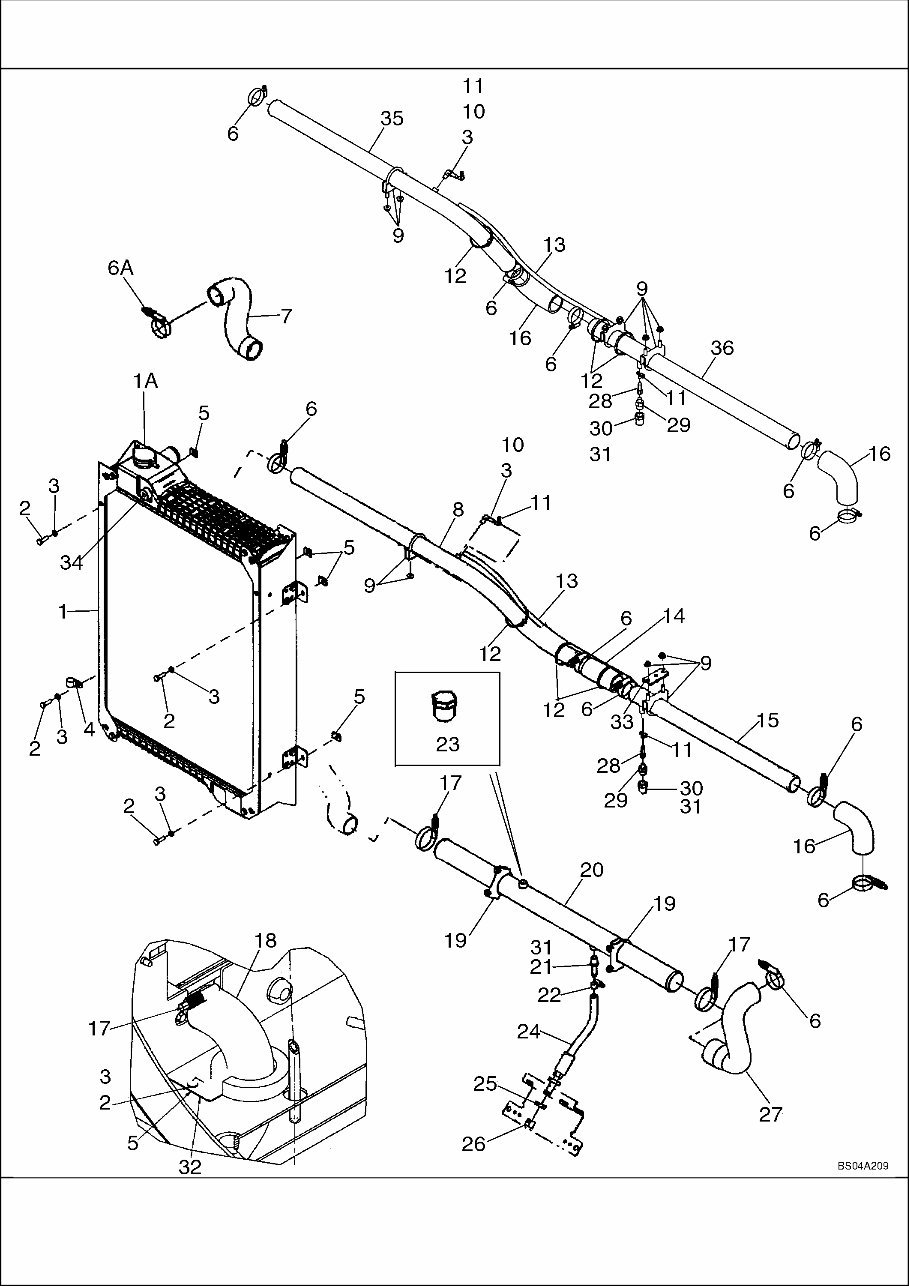

02-02 RADIATOR - MOUNTING
Ref Part Number Qty Description
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )
02-02 RADIATOR - MOUNTING
1 8602421 1 RADIATOR,
1A A170241 1 CAP, RADIATOR,
3 892-11008 X WASHER, LOCK, M8, M8
4 515-22190 1 CLAMP, 3/4", Insul, 5/16" Bolt,
5 833-40408 5 NUT, M8, U, M8
6 214-1436 5 CLAMP, #36, 1.81/2.75 Type F Worm,
6A 254026A1 1 CLAMP,
7 8500083 1 HOSE, 165 mm (6 1/2 in.); Top
8 8602655 1 TUBE, Top; If Used
9 382189A1 3 CLAMP,
10 217-292 1 ELBOW, 90є, 1/4" Hose x 1/8" NPTF, Barbed, 90 deg
11 214-1704 2 CLAMP, #4, 0.25/0.62 Type M Worm,
12 L18331 3 STRAP,
13 320374A1 1 HOSE, 925 mm ( 36 7/16 in.); Coolant Breather
14 8501025 1 HOSE, 110 mm (4 3/8 in.); If Used
15 8602661 1 TUBE, Top
16 381232A1 2 HOSE, 86 mm ( 3 3/8 in.); Elbow
17 L115548 3 CLAMP,
18 8500907 1 HOSE, 300 mm ( 11 7/8 in.); Bottom
19 393632A1 2 CLAMP,
20 8500079 1 TUBE, Bottom; Coolant
21 217-152 1 FITTING, 1/2" Hose X 3/8" NPTF Beaded,
22 214-1410 1 CLAMP, #10, 0.56/1.06 Type F Worm,
23 217-407 1 PLUG, Hex Hd, 3/8"-18, Used On Models Without Heater
24 8500085 1 HOSE, 318 mm ( 12 1/2 in.); Remote Coolant Drain
25 218-1255 1 NUT, LOCK, Blkhd, 3/4"-16, BHD Lock; 3/4-16; 1/2 Tube
26 218-755 1 CAP, 37є, 3/4"-16, 37 deg Flare; 1/2 Tube
27 8500084 1 HOSE, 235 mm ( 9 1/4 in.); Bottom
28 217-191 1 FITTING, 1/4" Hose x 1/8" NPTF, Fem, Barbed,
29 J911901 1 VALVE, CHECK,
30 217-1035 1 FITTING, 1/2"-14 Male NPTF x 3/8"-18 Female NPTF, Bushing 1/2 NPTF Male x 3/8 NPTF Female
31 345-87 X LOCTITE, Sealant 592; Used With Items 21, 30
32 8500820 1 PLATE, Radiator Drain Back
33 382188A2 1 PLATE, Spacer; If Used
34 419792A2 1 SENSOR, Coolant Level
35 87446948 1 TUBE, Top
36 87446950 1 TUBE, Top
2 627-8025 5 BOLT, Hex, M8 x 25, 10.9, M8 x 25; 10.9
721D CASE WHEEL LOADER - EUROPE (N6HE03001- / XT N6HE06001-) (1/06- )

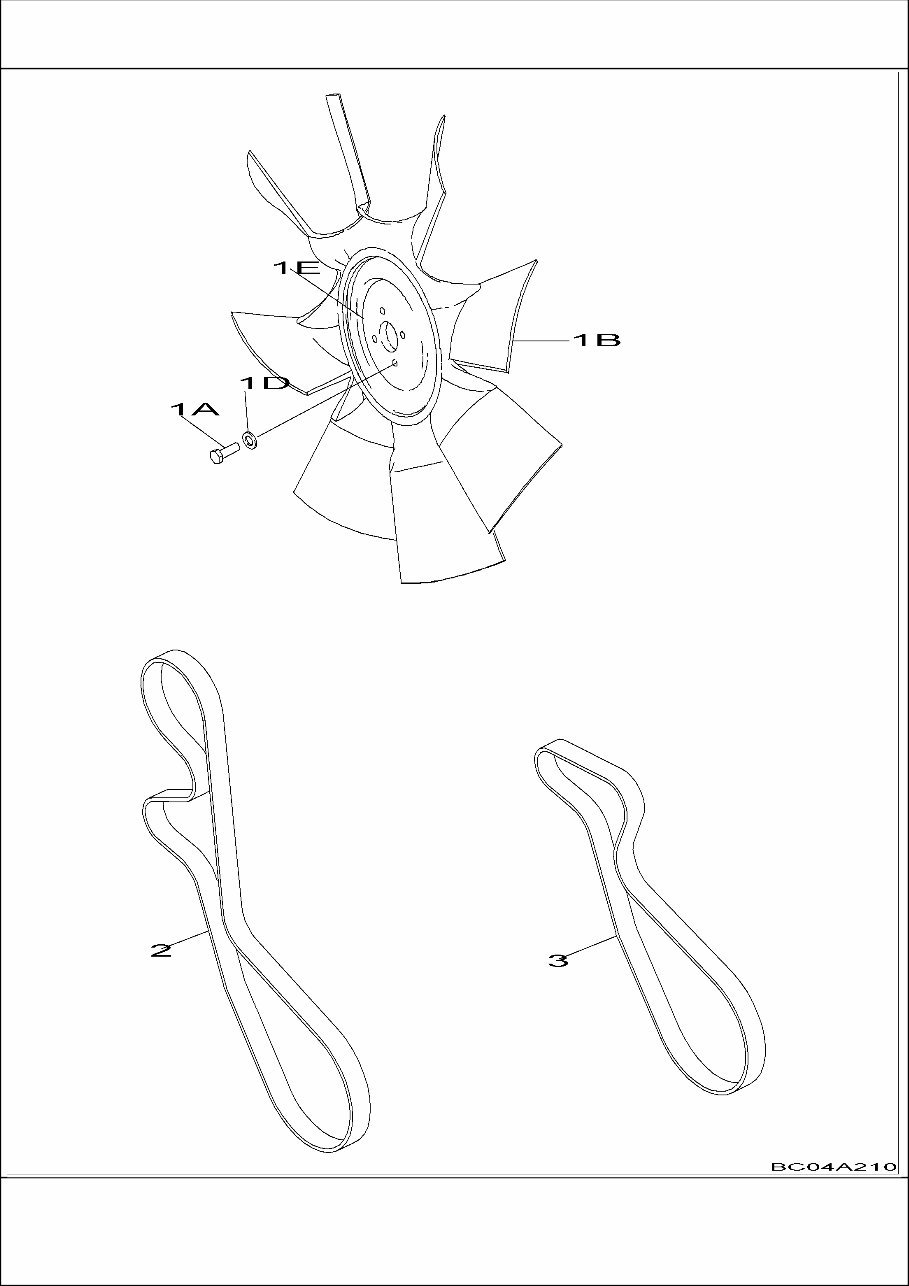

02-03 FAN - BELT
