PT-80 (Sunbelt)
Part Number: 2046-340
Printed (10-10)
Master Part Manual
Compact Track Loader
1. Cab (R.O.P.S.) Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 1-A
2. Cab Interior Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . 2-A
3. Cab Door Assembly (Optional)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 3-A
4. Enclosed Cab (R.O.P.S.) Assembly (Optional)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 4-A
5. Chassis Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 5-A
6. Hood Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 6-A
7. Radiator/Oil Cooler Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 7-A
8. Hydraulic Reservoir Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 8-A
9. Hydraulic Control Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 9-A
10. Lift Arm Control Valve Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 10-A
11. Hyd. Drive/Auxiliary Pump Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 11-A
12. Pilot Generation Block
Serial # DTI 01310-Current* . . . . . . . . . . . . . 12-A
13. Engine Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 13-A
14. Intake/Exhaust Assemblies
Serial # DTI 01310-Current* . . . . . . . . . . . . . 14-A
15. Fuse Panel Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 15-A
16. Torsion Axle Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 16-A
17. Undercarriage Assembly (RT)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 17-A
18. Undercarriage Assembly (LT)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 18-A
19. Drive Table Assembly (RT)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 19-A
20. Drive Table Assembly (LT)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 20-A
21. Lift Arm Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 21-A
22. Lift Arm Tubes and Fittings
Serial # DTI 01310-Current* . . . . . . . . . . . . . 22-A
23. Quick Attach Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 23-A
24. Hydraulic Quick Attach Assembly
Serial # DTI 01310-Current* . . . . . . . . . . . . . 24-A
25. Air Conditioning Assemblies (Optional)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 25-A
26. Cab Heater Assembly (Optional)
Serial # DTI 01310-Current* . . . . . . . . . . . . . 26-A
* Current refers to the machines being produced at
the time this manual was printed. See manual
cover for print date.
Table of Contents
I
GENERAL SERVICE ITEMS & LUBRICANTS
ITEM MANUFACTURER/DESCRIPTION PART NUMBER
-Engine Oil Filter
-Primary Air Filter
-Secondary Air Filter
-Diesel Fuel Filter
-Fan Belt
-A/C Belt
-Antifreeze/Coolant (1 gal.)
-Antifreeze/Coolant (Case/6 gal.)
-Engine Oil (1 qt.)
-Engine Oil (Case/12 qt.)
-Engine Oil (1 gal.)
-Engine Oil (Case/6 gal.)
-Grease (1 Tube)
-Grease (Box/10 Tubes)
-Grease (Case/40 Tubes)
Perkins (MP10169)
Donaldson (P601437)
Donaldson (P601476)
Perkins (MP10326)
Perkins (MP10209)
Gates (9390HD)
Ethylene Glycol (long life)
Ethylene Glycol (long life)
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Purpose Lithium
Multi-Purpose Lithium
Multi-Purpose Lithium
2045-752
0403-003
0403-004
2045-218
2045-751
2045-793
0300-766
0402-841
0300-767
0402-838
0402-839
0402-840
0300-769
0402-844
0402-834
HYDRAULIC SERVICE ITEMS & LUBRICANTS
ITEM DESCRIPTION PART NUMBER
-Hydraulic Oil Filter (2)
-Case Drain Oil FIlter
-Hydraulic Oil (5 gal.)
-Hydraulic Oil (55 gal.)
Hydraulic filter
Lenz (CP-752-10)
All Season MV
All Season MV
0307-921
2046-286
0400-253
0402-833
O-RING PART NUMBER
-# 4, Flat Face Type
-# 6, Flat Face Type
-# 8, Flat Face Type
-# 10, Flat Face Type
-# 12, Flat Face Type
-# 16, Flat Face Type
-# 20, Flat Face Type
-# 24, Flat Face Type
-# 4, ORB Type
-# 6, ORB Type
-# 8, ORB Type
-# 10, ORB Type
-# 12, ORB Type
-# 16, ORB Type
-# 20, ORB Type
2055-196
0310-285
0310-286
0310-287
0310-288
0310-289
0310-290
0201-479
0314-366
0310-619
0307-353
0310-620
0310-621
0307-354
0310-832
II
III
ITEM MANUFACTURER/DESCRIPTION PART NUMBER
-Kit,Seal,Bucket/Tilt Cylinder
-Wlmt,Tube,Bucket/Tilt Cylinder
-Wlmt,Tube,Bucket/Tilt Cylinder
-Rod,Bucket/Tilt Cylinder
-Rod,Bucket/Tilt Cylinder
-Piston
-End Gland,Bucket/Tilt Cylinder
-Nut,Bucket/Tilt Cylinder
-Bushing,Tube Pivot
-Bushing,Rod Pivot
-Kit,Seal,Lift Arm Cylinder
-End Gland,Lift Arm Cylinder
-Wlmt,Tube,Lift Arm Cylinder
-Rod,Lift Arm Cylinder
-Piston
-Nut,Lift Arm Cylinder
-Bushing,Tube Pivot
-Bushing,Rod Pivot
-Plug,Zero-leak
-Block,Stroke
-Kit,Seal,Q/A Cylinder
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968)
FIts Cylinder (P/N:0201-969)
FIts Cylinder (P/N:0201-968)
FIts Cylinder (P/N:0201-969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:0201-970/971)
0003-059
0003-077
0003-076
0003-057
0003-061
0003-075
0003-058
0003-037
0003-052
0003-053
0003-062
0003-066
0003-071
0003-065
0003-072
0003-037
0003-054
0003-055
0003-074
0003-073
0003-063
• LH-Bucket/Tilt P/N: 0201-968
• RH-Bucket/Tilt P/N: 0201-969
• Lift-Arm P/N: 2045-195
• LH-Q/A P/N: 0201-971
• RH-Q/A P/N: 0201-970
CYLINDER SERVICE ITEMS
PT-80
Current Hydraulic Cylinders

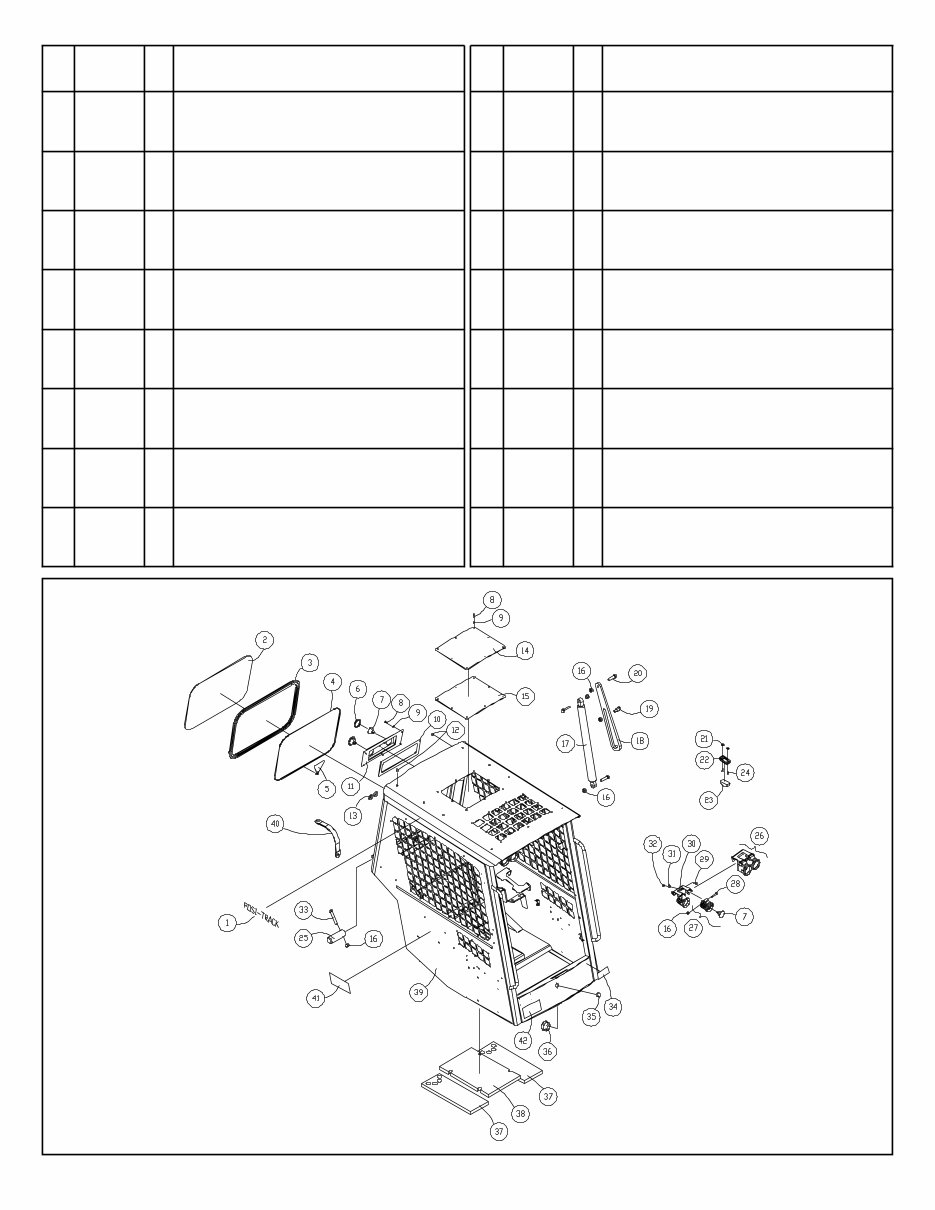

CAB ASSEMBLY (R.O.P.S. CANOPY) (Serial #: DTI 01310-Current)
Section 1
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2030-334 2 DECAL, POSI-TRACK
2 2045-815 1 WINDOW REAR
3 0090-113 1 SEAL .125 OFFSET WINDOW LOCKING W/ZI
4 0090-114 1 SEAL FILLER STRIP
5 0201-748 1 ASSY,TAG,EMERGENCY EXIT
6 0201-742 2 BEZEL,RUBBER,LIGHT
7 2045-756 6 LIGHT 35W W/BEZEL
8 8102-040 20 CAPSCREW,HH,1/4-20 UNCx.75,GD8
9 8051-212 14 WASHER,SPRING LOCK,1/4,ZN
10 2045-544 1 SEAL REAR ACCESS
11 2045-730 1 WLMT BRACKET LIGHT
12 2045-817 8 PLUG FINISHING .5
13 2045-510 2 PLUG HOLE 1.375"
14 2045-541 1 COVER A/C REAR ACCESS
15 2045-542 1 SEAL A/C TOP ACCESS
16 8040-426 18 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
17 2045-620 2 SHOCK LIFT CAB
18 2045-624 1 ROD PROP SLOTTED
19 0090-015 1 BOLT SHOULDER 3/8 x3 /8 GR 8
20 8102-134 5 CAPSCREW,HH,5/16-18UNCx1.25GD8
21 0310-231 2 NUT-U,10-32
22 2045-501 1 BASE LIGHT CAB
23 2045-500 1 LIGHT CAB
24 0090-014 2 SCREW FH PH #10-32 x .875
25 0201-482 2 PIN,1.00x2.88
26 2045-426 2 ASSY LIGHT
27 2045-428 4 ASSY LIGHT SINGLE
28 8011-137 4 BOLT,CARRIAGE,5/16-18 UNCx2.0,
29 8011-132 4 BOLT,CARRIAGE,5/16-18 UNCx1.0,
30 2045-427 2 BRKT MTG DUAL LIGHT
31 8050-277 4 WASHER,WROUGHT,3/8,SAE,ZN
32 8040-456 4 NUT,HEX,NYLOCK,5/16-24 UNF,ZN
33 8102-137 2 CAPSCREW,HH,5/16-18UNCx2.0 GD8
34 2045-727 1 DECAL CAUTION HOOD DAMAGE
35 2045-829 1 PLUG FINISHING 1.00
36 2045-536 1 PLUG FINISHING PLASTIC 2.500"
37 2045-701 2 FOAM SOUND
38 2045-700 1 FOAM SOUND
39 2075-119 1 ROPS SR SERIES
40 0300-546 1 CABLE,GROUND,ENGINE
41 2030-602 2 DECAL SKIN OIL INJECTION
42 2030-597 1 DECAL 3 POINT
Page 1A

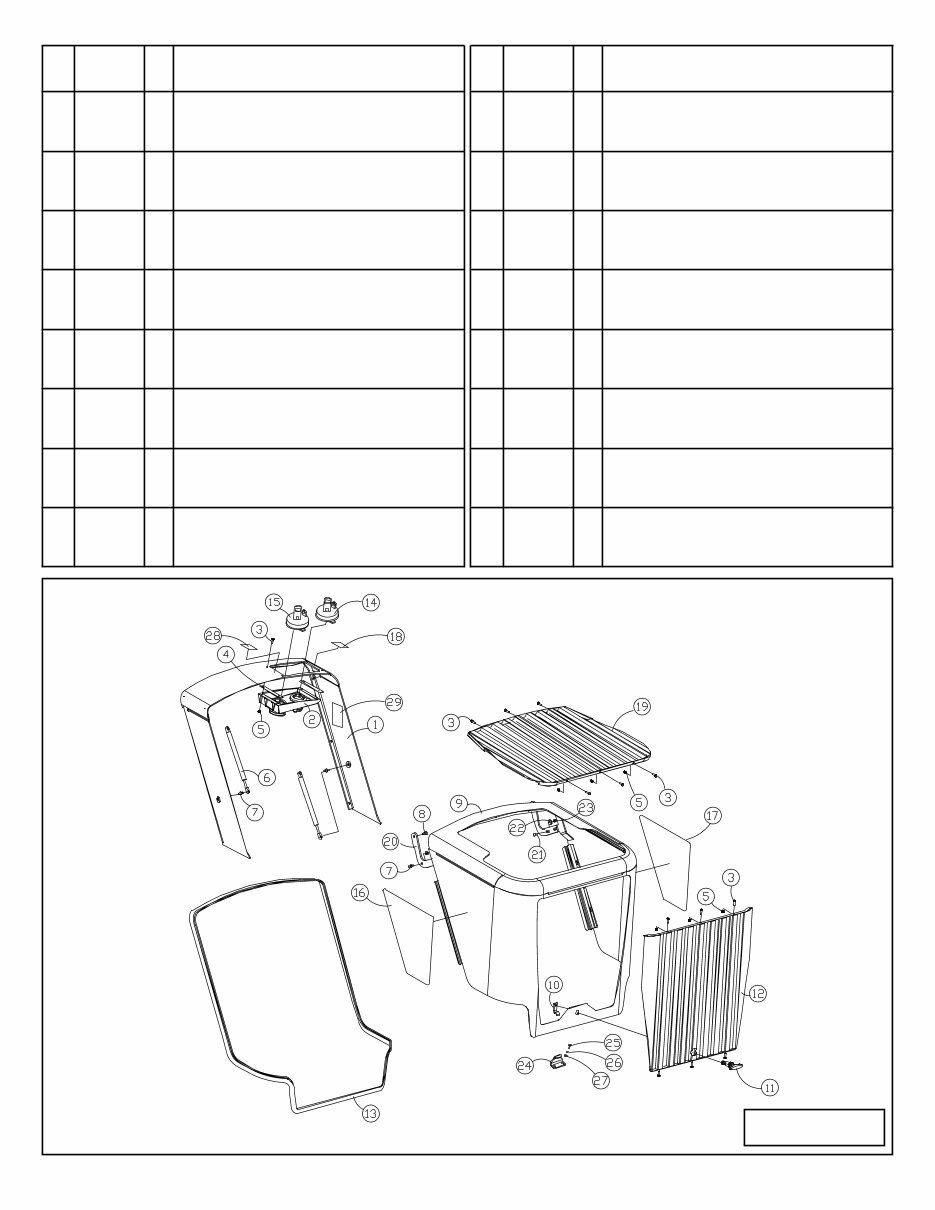

CAB INTERIOR (Serial #: DTI 01310-Current)
Section 2
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2075-104 1 COVER POST LH
2 0090-163 23 NUT U 10-24 UNC SS
3 2075-090 1 MOUNT SWITCH LH
4 0310-138 2 PLUG
5 2045-413 1 SWITCH LOCKING PARK
6 2046-007 1 DECAL SWITCHES LT
7 2046-149 1 DECAL CONTROL DRIVE PT 70-80
8 8102-040 6 CAPSCREW,HH,1/4-20 UNCx.75,GD8
9 2046-300 1 DECAL ROLLOVER / FALL
10 2075-105 1 COVER POST RH
11 2075-091 1 MOUNT SWITCH RH
12 0200-252 2 SWITCH,3 POSITION,LOCKING
13 2046-006 1 DECAL SWITCHES RT
14 2046-299 1 DECAL READ O&M / FALL / FIRE
15 2075-102 1 COVER FUSE PANEL
16 0090-084 2 CLIP RETAINING
17 0090-075 2 SEAL FUSE PANEL SHIELD
18 0304-381 2 SCREW,MACH,PH PAN HD 10-24X0.5
19 2075-342 1 WLMT FUSE PANEL SHIELD
20 2075-095 1 PANEL FRONT RH
21 2045-380 1 GAUGE,TACHOMETER
22 2045-381 1 GAUGE,WARNING,INDICATION
23 0200-600 2 MNTS JOYSTICK (RH & LH)
24 8102-222 4 CAPSCREW,HH,3/8-16 UNCx1.0,GD8
25 8051-242 4 WASHER,SPRING LOCK,5/16,ZN
26 2075-109 2 WLMT ARM REST MOUNT
27 2045-337 2 PAD ARM REST
28 2075-093 1 PANEL REAR RH
29 2045-829 1 PLUG FINISHING 1”
30 0310-136 2 FRAME,END
31 0310-126 1 SWITCH,LIGHT
32 0304-662 1 HARNESS,SWITCH,SEAT
33 2010-127 1 SWITCH,SEAT (NEW STYLE)
34 2045-792 1 COVER KEY IGNITION
35 2045-432 1 KEY IGNITION
36 0304-028 1 SWITCH,IGNITION,RC
37 8040-426 4 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
38 8050-262 4 WASHER,WROUGHT,5/16,STD,ZN
39 8040-606 4 NUT,HEX,NYLOCK,1/2-13 UNC,ZN
40 2075-163 2 MOUNT SEAT BELT LOWER
41 8102-402 4 CAPSCREW,HH 1/2-13 UNCx1.0 GD8
42 2051-913 1 SEAT BLACK W/O ARMRESTS
43 0090-012 7 WASHER FINISHING #10 SS
44 2075-234 1 PANEL BACK GRAY
45 2045-414 1 OUTLET POWER
46 2045-757 1 PAN CARGO
47 0090-164 11 CAPSCREW OH PH 10-24 UNC X 1.25 SS
48 0090-012 13 WASHER FINISHING #10 SS
49 2045-636 1 NET CARGO
50 2075-236 1 PANEL ROOF GRAY
51 0090-019 4 CLIP TREE
52 2075-092 1 PANEL REAR LH
53 2075-222 1 PLUG HEATER VENT
54 2046-005 1 DECAL PT 70-80 HEATER MP1
55 2045-502 1 METER HOUR
56 2045-657 1 PLUG HOLE .375
57 2075-094 1 PANEL FRONT LH
58 0090-117 6 CAPSCREW TH PH 10-24 X .75 SS
59 2045-378 1 GAUGE,ENGINE,TEMP
60 2045-379 1 GAUGE,INSTRUMENT,4IN1
61 0090-051 6 SCREW TH PH #8 x .75, SS
62 2075-125 2 NET CARGO
63 2046-081 1 DECAL IGNITION
64 2046-148 1 DECAL CONTROL LOADER PT70-80
65 0090-165 12 CAPSCREW TH PH 10-24 X 1.0 SS
66 0090-128 6 SCREW TH PH 10-24 x 5 SS
67 8102-220 4 CAPSCREW,HH,3/8-16x0.75",GD8
68 8051-272 4 WASHER,SPRING LOCK,3/8,ZN
69 0201-481 1 SWITCH,PUSH BUTTON
70 2045-452 1 SEAT,SUSP,60MM
71 8102-311 2 CAPSCREW HH 7/16-14UNC x 7/8 GD8
72 2045-481 2 TETHER,SEAT
73 8040-546 2 NUT,HEX,NYLOCK,7/16-14 UNC,ZN
74 0090-050 6 NUT SPEED #8
75 2045-499 1 ASSY BELT
Page 2A
Optional
Suspension Seat

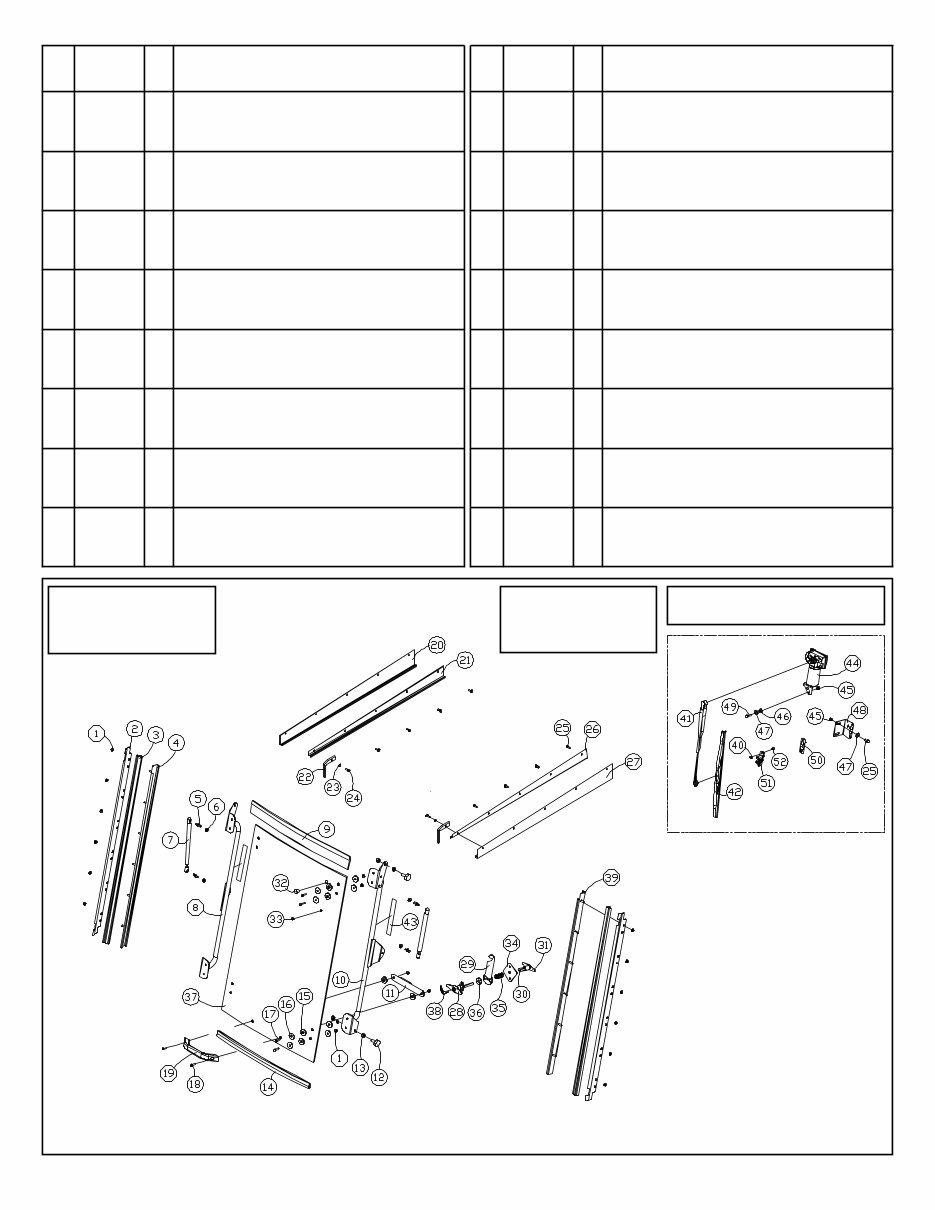

CAB DOOR ASSEMBLY (OPTIONAL) (Serial #: DTI 01310-Current)
Section 3
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 0090-007 20 NUT,FLANGE, 1/4-20 UNC
2 2045-529 2 MOUNT,SEAL,SIDE
3 2045-531 2 SEAL,DOOR,SIDE
4 2045-519 1 SIDE FRAME,RH
5 0304-495 4 STUD,BALL,10MM
6 0090-006 4 NUT,FLANGE, 5/16-18 UNC
7 2045-528 2 SPRING,GAS ASSIST,DOOR
8 2045-524 1 HANDLE,DOOR,RH
9 2045-530 1 SEAL,DOOR,TOP
10 2045-523 1 HANDLE,DOOR,LH
11 2045-526 1 STRIKE,LATCH
12 2045-537 4 ROLLER,DOOR
13 0090-008 8 NUT,JAM LOCKING 7/16-14 UNC
14 2045-532 1 SEAL,DOOR,BOTTOM
15 2045-522 10 WASHER,MOUNTING,DOOR HANDLE
16 0301-033 8 WASHER,FENDER,1/4 x 1 1/4,STL,
17 8102-044 8 CAPSCREW,HH,1/4-20UNCx1.25,GD8
18 8008-582 2 SCREW,MACH,SL,TR HD,1/4-20 UNC
19 2045-525 1 HANDLE,GRAB,DOOR
20 2045-517 1 TOP FRAME,LOWER,RH
21 2045-515 1 TOP FRAME, UPPER,RH
22 2045-527 1 RETAINER,DOOR
23 8051-212 2 WASHER,SPRING LOCK,1/4,ZN
24 8102-040 2 CAPSCREW,HH,1/4-20 UNCx.75,GD8
25 8102-039 8 CAPSCREW,HH,1/4-20UNCx.625,GD8
26 2045-514 1 TOP FRAME, UPPER, LH
27 2045-516 1 TOP FRAME, LOWER, LH
28 2045-534 1 T-HANDLE, LATCH DOOR
29 2045-533 1 LATCH, DOOR
30 2045-635 1 SPACER, INSIDE T-HANDLE
31 2045-634 1 T-HANDLE, INSIDE, DOOR
32 2045-674 1 PLUG FINISH PLASTIC 11/16"
33 2045-657 1 PLUG HOLE .375
34 2045-794 1 MOUNT PLATE, HANDLE
35 2045-795 1 SPRING, .688” X 2.50”
36 8050-320 5 WASHER,WROUGHT,7/16,SAE,ZN
37 2045-521 1 WINDOW, DOOR (GLASS)
38 0304-816 1 KEY,DOOR
39 2045-518 1 SIDE FRAME,LH
40 8040-276 4 NUT,HEX,NYLOCK,10-32 UNF,ZN
41 0402-243 1 ARM,WIPER,15-19"
42 2045-593 1 WIPER BLADE 16"
43 2046-227 2 DECAL,DOOR HANDLE
44 0403-341 1 MOTOR,WIPER,65^
45 8040-366 3 NUT,HEX,NYLOCK,1/4-20 UNC,ZN
46 0090-046 1 WASHER RUBBER .688 OD x .31 ID
47 8050-222 3 WASHER,WROUGHT,1/4,STD,ZN
48 2045-623 1 PLATE MOUNTING WIPER CONTACT
49 8102-042 1 CAPSCREW, HH 1/4-20UNC 1" GD8
50 2045-621 1 CONTACT WIPER
51 2045-622 1 CONTACT SPRING WIPER
52 0310-475 4 SCREW,10-32x.5,TRUSSHEAD
Page 3A
LEXAN DOOR (OPTIONAL)
ITEM #14: 2045-884
ITEM #17: 8102-045
ITEM #37: 2045-883
WIPER KIT (OPTIONAL)
P/N: 0403-340
Door Handle Braces
(mount between items 8 & 10)
Upper: 2046-039
Lower: 2046-036

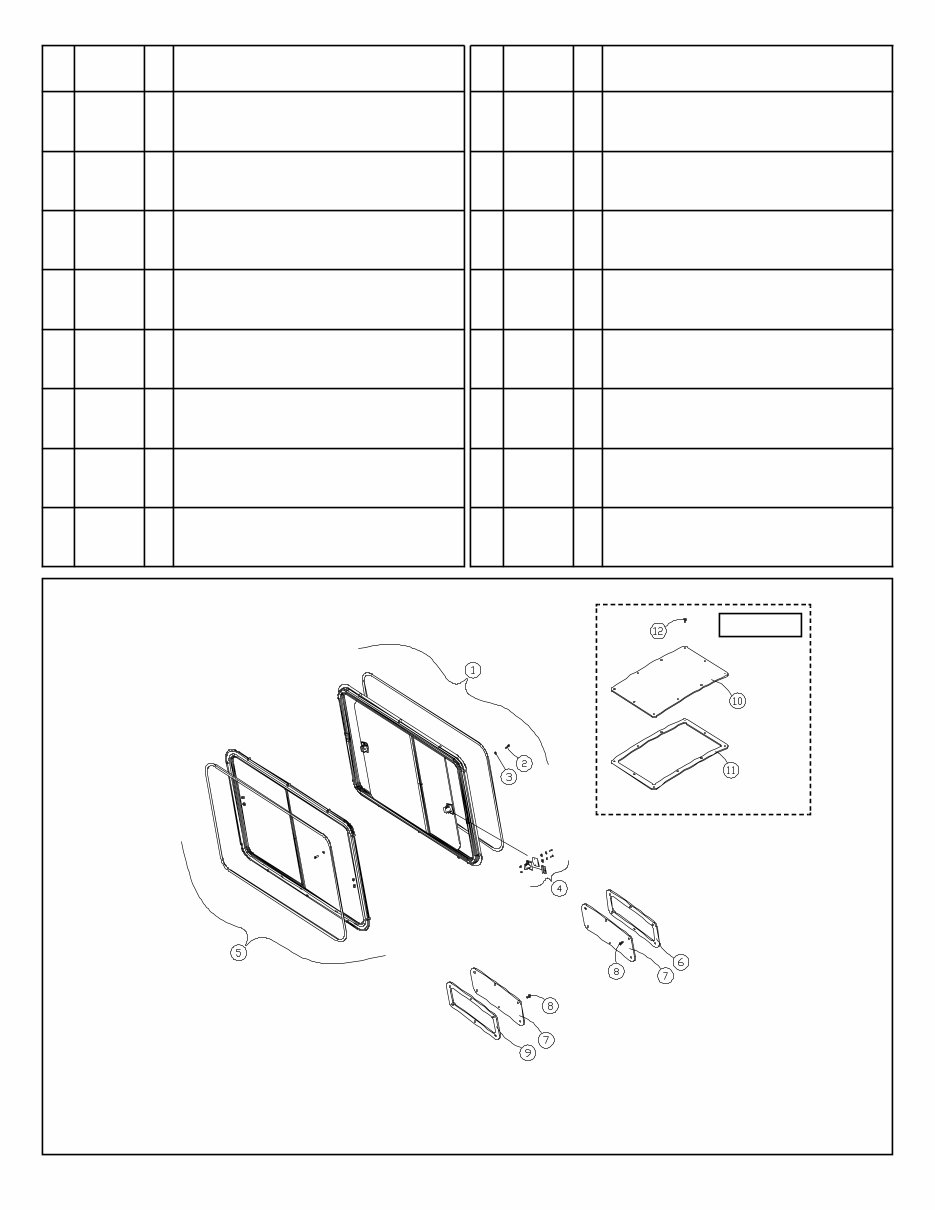

ENCLOSED CAB (OPTIONAL) (Serial #: DTI 01310-Current)
Section 4
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-965 1 WINDOW SLIDING LH
2 0305-011 20 CAPSCREW,HH,M6x1.0x20mm,ZN
3 8050-157 20 WASHER,WROUGHT,3/16,STD,ZN
4 2045-923 2 LATCH WINDOW
5 2045-966 1 ASSY WINDOW RH SR NON LATCH
6 2045-956 1 SEAL LOWER WINDOW LH
7 2045-955 1 PANEL LEXAN LOWER WINDOW
8 0090-092 12 SCREW TH PH 1/4-20 x .75 ZN
9 2045-957 1 SEAL LOWER WINDOW RH
10 0200-606 1 PANEL ROOF LEXAN
11 0200-607 1 SEAL PANEL ROOF
12 0090-109 10 SCREW TH PH 1/4-20 x 1.00 ZN
Page 4A
STANDARD
CHASSIS ASSEMBLY (Serial #: DTI 01310-Current)
Section 5
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-251 1 WLMT CHASSIS TAPERED
2 2045-464 1 WLMT,LOCK,LOADER
3 2045-562 1 SEAL CAB RH
4 2045-561 1 SEAL CAB LH
5 0300-686 1 CLAMP,HOSE,2.0,#32
6 2045-144 1 HOSE FILLER FUEL
7 0300-687 1 CLAMP,HOSE,1.5,#24
8 0301-125 8 CLAMP,HOSE,#6
9 2045-652 1 HOSE FUEL VENT
10 2045-143 1 TANK FUEL PLASTIC
11 0090-023 5 SCREW PH 10-32 x 1.25 ZN
12 2045-654 1 UNIT SENDER INTELLISENSOR FUEL
13 8051-242 3 WASHER,SPRING LOCK,5/16,ZN
14 8102-130 3 CAPSCREW,HH 5/16-18x3/4,GR8
15 8102-405 6 CAPSCREW,HH,1/2-13 UNCx1.5,GD8
16 8051-332 12 WASHER,SPRING LOCK,1/2,ZN
17 2045-347 1 PLATE MNT FUEL TANK
18 0201-483 4 BOLT,PLOW,1/2-13x2.00"
19 0201-066 2 PLATE,BOLT
20 8040-606 4 NUT,HEX,NYLOCK,1/2-13 UNC,ZN
21 2045-174 1 PLATE SKID FRONT
22 2045-173 1 PLATE SKID MID
23 8102-222 20 CAPSCREW,HH,3/8-16 UNCx1.0,GD8
24 8051-272 18 WASHER,SPRING LOCK,3/8,ZN
25 8050-282 14 WASHER,WROUGHT,3/8,STD,ZN
26 2045-175 1 PLATE SKID REAR
27 8102-040 7 CAPSCREW,HH,1/4-20 UNCx.75,GD8
28 8051-212 6 WASHER,SPRING LOCK,1/4,ZN
29 2045-062 2 COVER ACCESS
30 0090-030 2 CAPSCREW TAPERED 1/2-13 x 1.5" GD8
31 8050-347 6 WASHER,WROUGHT,1/2,STD,ZN
32 0090-028 2 CAPSCREW TAPERED 1/2-13 x 5.00" GD8
33 8050-277 6 WASHER,WROUGHT,3/8,SAE,ZN
34 2045-603 1 WLMT FOOTWELL
35 8102-230 1 CAPSCREW,HH 3/8-16UNCx2.75 GD8
36 2045-678 1 WASHER LEATHER
37 2045-662 1 SPRING 2.0" x 1/2" ID 1140 LBF
38 0310-465 1 CLAMP,WIRE,5/8
39 8040-486 2 NUT,HEX,NYLOCK,3/8-16 UNC,ZN
40 2045-571 1 WLMT PEDAL THROTTLE
41 2045-666 1 COVER THROTTLE PEDAL MACHINED
42 0090-029 2 CAPSCREW TAPERED 1/2-13 x 3.75" GD8
43 2045-698 1 FOAM SOUND
44 2045-699 1 FOAM SOUND
45 2045-641 1 MAT FLOOR
46 2045-089 1 BUMPER REAR
47 0090-027 2 CAPSCREW TAPERED 1/2-13 x 6.00" GD8
48 2030-594 1 DECAL LOADER LOCK (NO TEXT)
49 2030-593 2 DECAL RUN OVER
50 0310-197 4 DECAL,TIE DOWN
51 0090-106 1 HOSE FUEL 1/2" x 36"
52 8040-366 1 NUT,HEX,NYLOCK,1/4-20 UNC,ZN
53 2030-592 2 DECAL LOADER CRUSH
54 0090-039 2 PIN SNAP LOCK 5/16 x 3.5"
55 0090-101 1 GROMMET RUBBER LG 1/2" FUEL
56 2045-992 1 HOSE FUEL REAR
57 2045-952 1 TUBE PICKUP FUEL
58 2045-993 1 HOSE FUEL FRONT
59 0090-102 1 ADAPTER INSERT 1/2" 90*
Page 5A
HOOD ASSEMBLY (Serial #: DTI 01310-Current)
Section 6
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-953-grn 1 WLMT COWL (GREEN)
1 2045-953-wht 1 WLMT COWL (WHITE)
2 2045-148 1 GUARD SPILL DUAL CAP
3 8102-040 16 CAPSCREW,HH,1/4-20 UNCx.75,GD8
4 2045-760 2 FOAM,ADHESIVE BACK,.75 X 1 (6” LENGTH)
5 8040-366 16 NUT,HEX,NYLOCK,1/4-20 UNC,ZN
6 2045-582 2 SPRING GAS HOOD
7 0304-495 4 STUD,BALL,10MM STUD
8 0090-015 2 BOLT SHOULDER 3/8 x3 /8 GR 8
9 2045-954-grn 1 WLMT HOOD (GREEN)
9 2045-954-wht 1 WLMT HOOD SR (WHITE)
10 0090-033 1 PAWL HOOD
11 0090-031 1 LATCH T-HANDLE LOCKING
12 2045-281 1 WLMT SCREEN REAR
13 2045-696 1 SEAL HOOD PERIMETER 153"
14 4046-088 1 CAP FUEL YELLOW
15 2045-408 1 CAP OIL BLACK
16 2046-232 1 DECAL HOOD LEFT TEREX PT70/80
17 2046-231 1 DECAL HOOD RIGHT TEREX PT70/80
18 4046-078 1 DECAL CE DIESEL FUEL ONLY
19 2045-284 1 WLMT,SCREEN,TOP
20 2045-945 2 HINGE HOOD
21 8111-224 4 BOLT,CARRIAGE,3/8-16UNCX1.25,G
22 8050-282 4 WASHER,WROUGHT,3/8,STD,ZN
23 8040-486 4 NUT,HEX,NYLOCK,3/8-16 UNC,ZN
24 0090-032 1 CATCH HOOD
25 8102-134 2 CAPSCREW,HH 5/16
26 8051-242 2 WASHER,SPRING LOCK,5/16,ZN
27 8050-222 2 WASHER,WROUGHT,1/4,STD,ZN
28 4046-079 1 DECAL CE HYDRAULIC OIL ONLY
29 2030-603 1 DECAL BATTERY EXPLOSION
Page 6A
KEY (HOOD)
P/N: 0304-816
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
Viewed 79 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
This is a comprehensive manual for the Terex PT-80 Rubber Track Loader Master Parts, providing detailed instructions and diagrams for maintenance and repair tasks. It is designed for both professional mechanics and DIY enthusiasts, offering step-by-step guidance for efficient completion of the required jobs.
- Cab (R.O.P.S.) Assembly
- Cab Interior Assembly
- Cab Door Assembly (Optional)
- Enclosed Cab (R.O.P.S.) Assembly (Optional)
- Chassis Assembly
- Hood Assembly
- Radiator/Oil Cooler Assembly
- Hydraulic Reservoir Assembly
- Hydraulic Control Assembly
- Lift Arm Control Valve Assembly
- Hyd. Drive/Auxiliary Pump Assembly
- Pilot Generation Block
- Engine Assembly
- Intake/Exhaust Assemblies
- Fuse Panel Assembly
- Torsion Axle Assembly
- Undercarriage Assembly (RT)
- Undercarriage Assembly (LT)
- Drive Table Assembly (RT)
- Drive Table Assembly (LT)
- Lift Arm Assembly
- Lift Arm Tubes and Fittings
- Quick Attach Assembly
- Hydraulic Quick Attach Assembly
- Air Conditioning Assemblies (Optional)
- Cab Heater Assembly (Optional)
- And MORE
File Format: PDF
Compatibility: All Versions of Windows & Mac
Language: English
Requirements: Adobe Reader & Win
All pages are printable, allowing for cost-effective access to the manual without waiting for shipping. The Terex PT-80 Rubber Track Loader Master Parts Manual is a valuable resource for maintaining the proper functioning of your vehicle.
