ASV Posi-Track SR 70 Track Loader Master Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Master Parts Manual
SR-70
Rubber Track Loader
Part Number: 2046-024
Printed (9/07)
1. Cab (R.O.P.S.) Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 1-A
2. Cab Interior Assembly
Serial # SSA 00101-Current* . . . . . . . . . . . . 2-A
Serial # SSB 00101-Current* . . . . . . . . . . . . 2A-A
3. Cab Door Assembly (Optional)
Serial # SSA/SSB 00101-Current* . . . . . . . . 3-A
4. Enclosed Cab (R.O.P.S.) (Optional)
Serial # SSA 00101-00552 . . . . . . . . . . . . . . 4-A
Serial # SSA 00553-Current* . . . . . . . . . . . . 4-B
Serial # SSB 00101-Current* . . . . . . . . . . . . 4-B
5. Chassis Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 5-A
6. Hood Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 6-A
7. Radiator/Oil Cooler Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 7-A
8. Hydraulic Reservoir Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 8-A
9. Hydraulic Control Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 9-A
10. Lift Arm Control Valve Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 10-A
11. Hyd. Drive/Auxiliary Pump Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 11-A
12. Pilot Generation Block
Serial # SSA/SSB 00101-Current* . . . . . . . . 12-A
13. Engine Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 13-A
14. Intake/Exhaust Assemblies
Serial # SSA/SSB 00101-Current* . . . . . . . . 14-A
15. Fuse Panel Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 15-A
16. Torsion Axle Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 16-A
17. Undercarriage Assembly (RT)
Serial # SSA/SSB 00101-Current* . . . . . . . . 17-A
18. Undercarriage Assembly (LT)
Serial # SSA/SSB 00101-Current* . . . . . . . . 18-A
19. Drive Table Assembly (RT)
Serial # SSA/SSB 00101-Current* . . . . . . . . 19-A
20. Drive Table Assembly (LT)
Serial # SSA/SSB 00101-Current* . . . . . . . . 20-A
21. Lift Arm Assembly
Serial # SSA/SSB 00101-Current* . . . . . . . . 21-A
22. Lift Arm Tubes and Fittings
Serial # SSA/SSB 00101-Current* . . . . . . . . 22-A
23. Quick Attach
Serial # SSA/SSB 00101-Current* . . . . . . . . 23-A
24. Hydraulic Quick Attach (Optional)
Serial # SSA/SSB 00101-Current* . . . . . . . . 24-A
25. Air Conditioning Assemblies (Optional)
Serial # SSA/SSB 00101-Current* . . . . . . . . 25-A
26. Cab Heater Assembly (Optional)
Serial # SSA/SSB 00101-Current* . . . . . . . . 26-A
* Current refers to the machines being produced at
the time this manual was printed. See manual
cover for print date.
Table of Contents
I
GENERAL SER VICE ITEMS & LUBRICANTS
ITEM MANUF ACTURER/DESCRIPTION ASV P/N
-Engine Oil Filter
-Primary Air Filter
-Secondary Air Filter
-Diesel Fuel Filter
-Fan Belt
-A/C Belt
-Antifreeze/Coolant (1 gal.)
-Antifreeze/Coolant (Case/6 gal.)
-Engine Oil (1 qt.)
-Engine Oil (Case/12 qt.)
-Engine Oil (1 gal.)
-Engine Oil (Case/6 gal.)
-Grease (1 Tube)
-Grease (Box/10 Tubes)
-Grease (Case/40 Tubes)
Perkins (MP10169)
Donaldson (P601437)
Donaldson (P601476)
Perkins (MP10326)
Perkins (MP10209)
Gates (9390HD)
Ethylene Glycol (long life)
Ethylene Glycol (long life)
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Grade 10W-30
Multi-Purpose Lithium
Multi-Purpose Lithium
Multi-Purpose Lithium
2045-752
0403-003
0403-004
2045-218
2045-751
2045-793
0300-766
0402-841
0300-767
0402-838
0402-839
0402-840
0300-769
0402-844
0402-834
HYDRAULIC SER VICE ITEMS & LUBRICANTS
ITEM DESCRIPTION ASV P/N
-Hydraulic Oil Filter (2)
-Case Drain Oil FIlter
-Hydraulic Oil (5 gal.)
-Hydraulic Oil (55 gal.)
ASV hydraulic filter
Lenz (CP-752-10)
All Season MV
All Season MV
0307-921
0302-853
0400-253
0402-833
O-RING ASV P/N
-# 4, Flat Face Type
-# 6, Flat Face Type
-# 8, Flat Face Type
-# 10, Flat Face Type
-# 12, Flat Face Type
-# 16, Flat Face Type
-# 20, Flat Face Type
-# 24, Flat Face Type
-# 4, ORB Type
-# 6, ORB Type
-# 8, ORB Type
-# 10, ORB Type
-# 12, ORB Type
-# 16, ORB Type
-# 20, ORB Type
2055-196
0310-285
0310-286
0310-287
0310-288
0310-289
0310-290
0201-479
0314-366
0310-619
0307-353
0310-620
0310-621
0307-354
0310-832
II
III
ITEM MANUF ACTURER/DESCRIPTION ASV P/N
-Kit,Seal,Bucket/Tilt Cylinder
-Wlmt,Tube,Bucket/Tilt Cylinder
-Wlmt,Tube,Bucket/Tilt Cylinder
-Rod,Bucket/Tilt Cylinder
-Rod,Bucket/Tilt Cylinder
-Piston
-End Gland,Bucket/Tilt Cylinder
-Nut,Bucket/Tilt Cylinder
-Bushing,Tube Pivot
-Bushing,Rod Pivot
-Kit,Seal,Lift Arm Cylinder
-End Gland,Lift Arm Cylinder
-Wlmt,Tube,Lift Arm Cylinder
-Rod,Lift Arm Cylinder
-Piston
-Nut,Lift Arm Cylinder
-Bushing,Tube Pivot
-Bushing,Rod Pivot
-Plug,Zero-leak
-Block,Stroke
-Kit,Seal,Q/A Cylinder
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968)
FIts Cylinder (P/N:0201-969)
FIts Cylinder (P/N:0201-968)
FIts Cylinder (P/N:0201-969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:0201-968/969)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:2045-195)
FIts Cylinder (P/N:0201-970/971)
0003-059
0003-077
0003-076
0003-057
0003-061
0003-075
0003-058
0003-037
0003-052
0003-053
0003-062
0003-066
0003-071
0003-065
0003-072
0003-037
0003-054
0003-055
0003-074
0003-073
0003-063

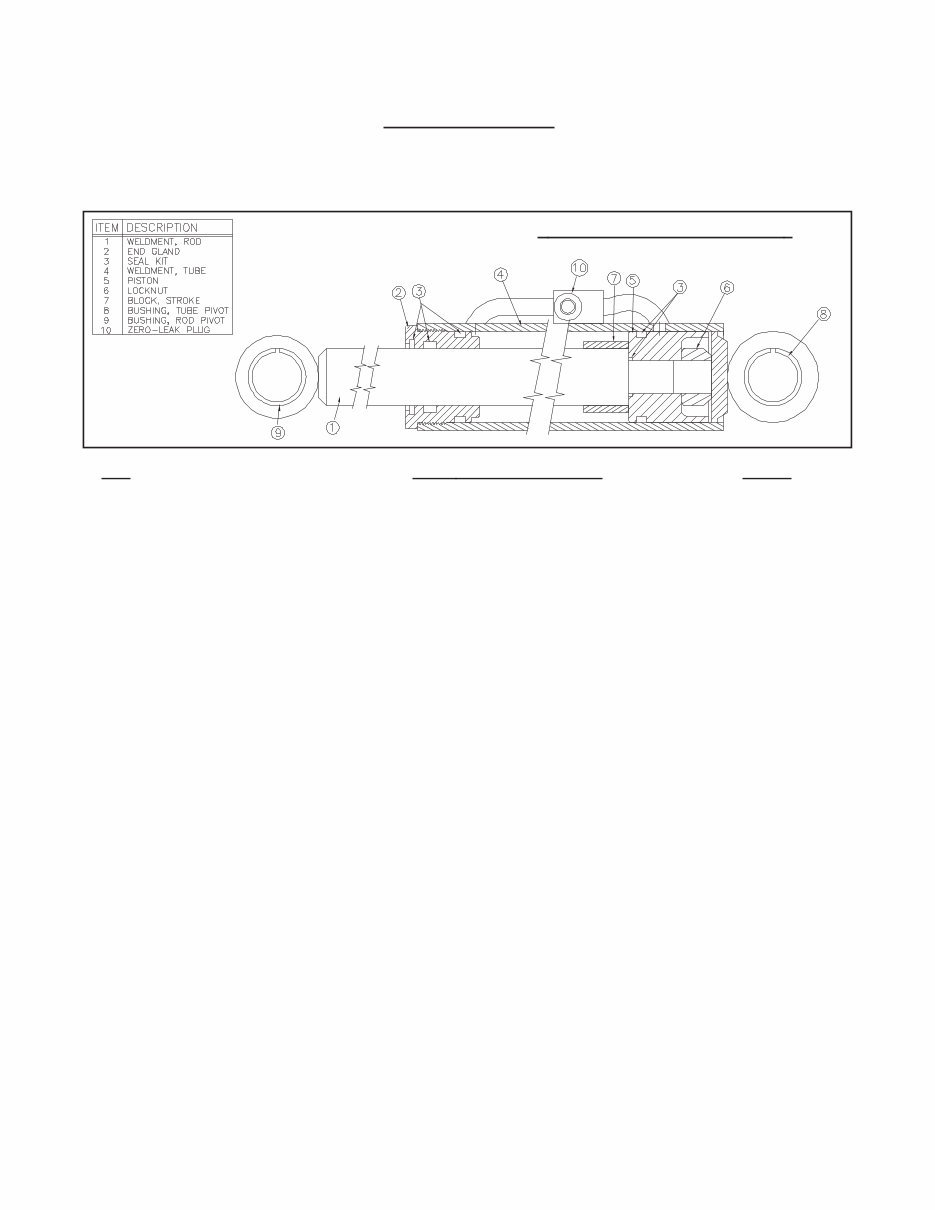

T ypical Cylinder Component s
• LH-Bucket/Tilt P/N: 0201-968
• RH-Bucket/Tilt P/N: 0201-969
• Lift-Arm P/N: 2045-195
• LH-Q/A P/N: 0201-971
• RH-Q/A P/N: 0201-970
CYLINDER SERVICE ITEMS
SR-70
Hydraulic Cylinders
WIRE HARNESSES
SR-70 SSA/MP-2 Machines
HARNESS MACHINE SERIAL NUMBER ASV P/N
RH Pillar
LH Pillar
LH Pillar
RH Lap Bar
LH Lap Bar
RH Console
Fuel Sender
Pilot Generation Block
Engine
Main w/fuse panel
Main w/fuse panel
Auxiliary (on lift arm)
SSA 00101-Current
SSA 00101-00297
SSA 00298-Current
SSA 00101-Current
SSA 00101-Current
SSA 00101-Current
SSA 00101-Current
SSA 00101-Current
SSA 00101-Current
SSA 00101-00297
SSA 00298-Current
SSA 00101-Current
2045-484
2045-483
2045-942
2045-488
2045-487
2045-486
2045-697
2045-485
2045-769
2045-770
2045-941
2045-482
SR-70 SSB/MP-1 Machines
HARNESS MACHINE SERIAL NUMBER ASV P/N
RH Pillar
LH Pillar
RH Lap Bar (guages)
LH Lap Bar (guages)
RH Console
Fuel Sender
Pilot Generation Block
Engine
Main w/fuse panel
Auxiliary (on lift arm)
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
SSB 00101-Current
2045-979
2045-980
2045-488
2045-487
2045-981
2045-697
2016-017
2045-769
2045-982
2046-016

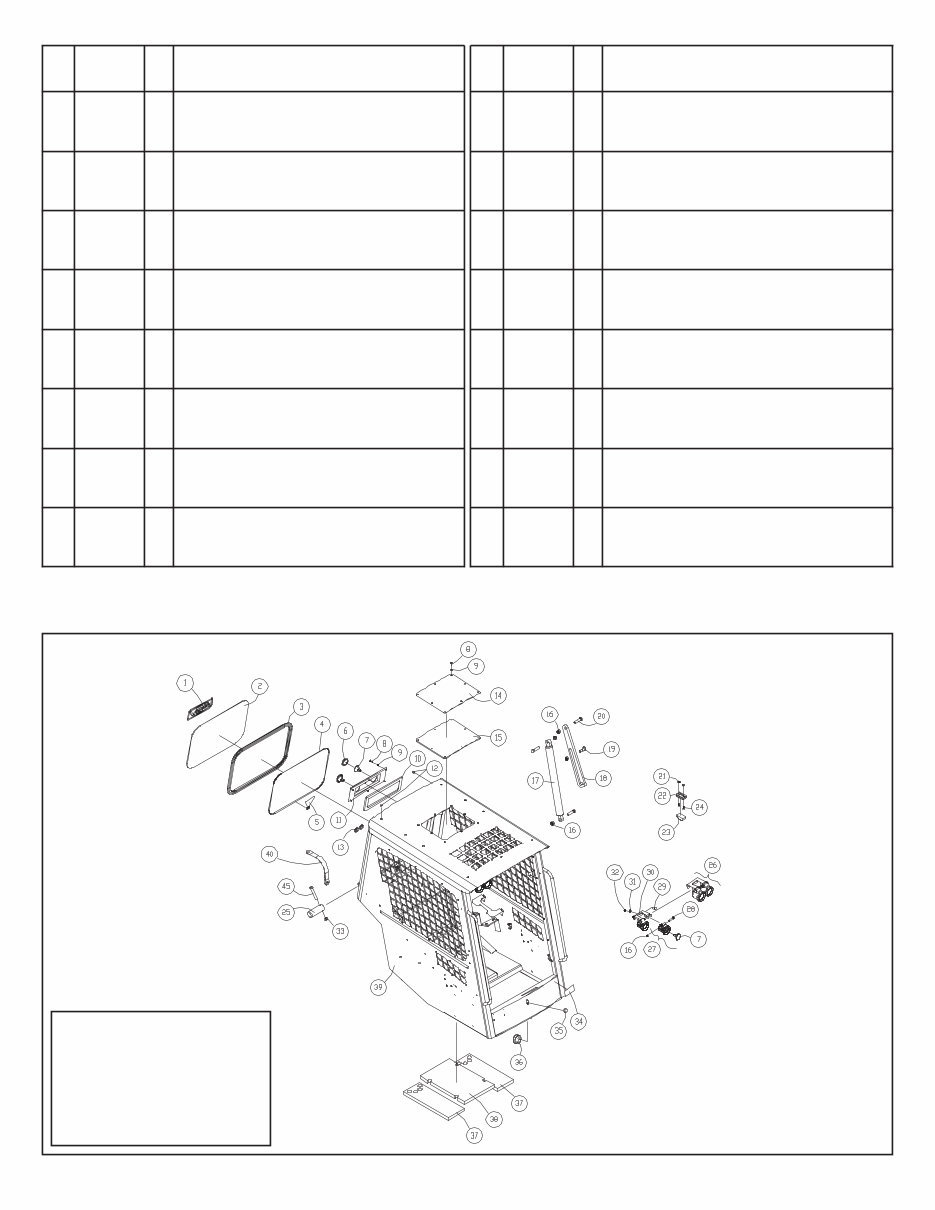

CAB ASSEMBLY (R.O.P.S. CANOPY) (Serial #: SSA/SSB 00101-Current)
Section 1
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-291 1 DECAL LOGO ASV WHITE OUTLINE
2 2045-815 1 WINDOW REAR
3 0090-113 1 SEAL .125 OFFSET WINDOW LOCKING W/ZI
4 0090-114 1 SEAL FILLER STRIP
5 0201-748 1 ASSY,TAG,EMERGENCY EXIT
6 0201-742 2 BEZEL,RUBBER,LIGHT
7 2045-756 6 LIGHT 35W W/BEZEL
8 8102-040 20 CAPSCREW,HH,1/4-20 UNCx.75,GD8
9 8051-212 14 WASHER,SPRING LOCK,1/4,ZN
10 2045-544 1 SEAL REAR ACCESS
11 2045-730 1 WLMT BRACKET LIGHT
12 2045-817 8 PLUG FINISHING .5
13 2045-510 2 PLUG HOLE 1.375"
14 2045-541 1 COVER A/C REAR ACCESS
15 2045-542 1 SEAL A/C TOP ACCESS
16 8040-426 18 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
17 2045-620 2 SHOCK LIFT CAB
18 2045-624 1 ROD PROP SLOTTED
19 0090-015 1 BOLT SHOULDER 3/8 x3 /8 GR 8
20 8102-134 5 CAPSCREW,HH,5/16-18UNCx1.25GD8
21 0310-231 2 NUT-U,10-32
22 2045-501 1 BASE LIGHT CAB
23 2045-500 1 LIGHT CAB
24 0090-014 2 SCREW FH PH #10-32 x .875
25 0201-482 2 PIN,1.00x2.88
26 2045-426 2 ASSY LIGHT
27 2045-428 4 ASSY LIGHT SINGLE
28 8011-137 4 BOLT,CARRIAGE,5/16-18 UNCx2.0,
29 8011-132 4 BOLT,CARRIAGE,5/16-18 UNCx1.0,
30 2045-427 2 BRKT MTG DUAL LIGHT
31 8050-277 4 WASHER,WROUGHT,3/8,SAE,ZN
32 8040-456 4 NUT,HEX,NYLOCK,5/16-24 UNF,ZN
33 8102-137 2 CAPSCREW,HH,5/16-18UNCx2.0 GD8
34 2045-727 1 DECAL CAUTION HOOD DAMAGE
35 2045-829 1 PLUG FINISHING 1.00
36 2045-536 1 PLUG FINISHING PLASTIC 2.500"
37 2045-701 2 FOAM SOUND
38 2045-700 1 FOAM SOUND
39 2045-958 1 ROPS SR SERIES
40 0300-546 1 CABLE,GROUND,ENGINE
Page 1A
Note: On SSA machines S/N: 101-552,
the ROPS (2045-545) differs slightly from
current (2045-958).
• The side and roof windows are
not interchangeable (see section 4).
• If your machine is equipped with lap
bars, see section 2 for additional
parts information.
All other items are intechangable.

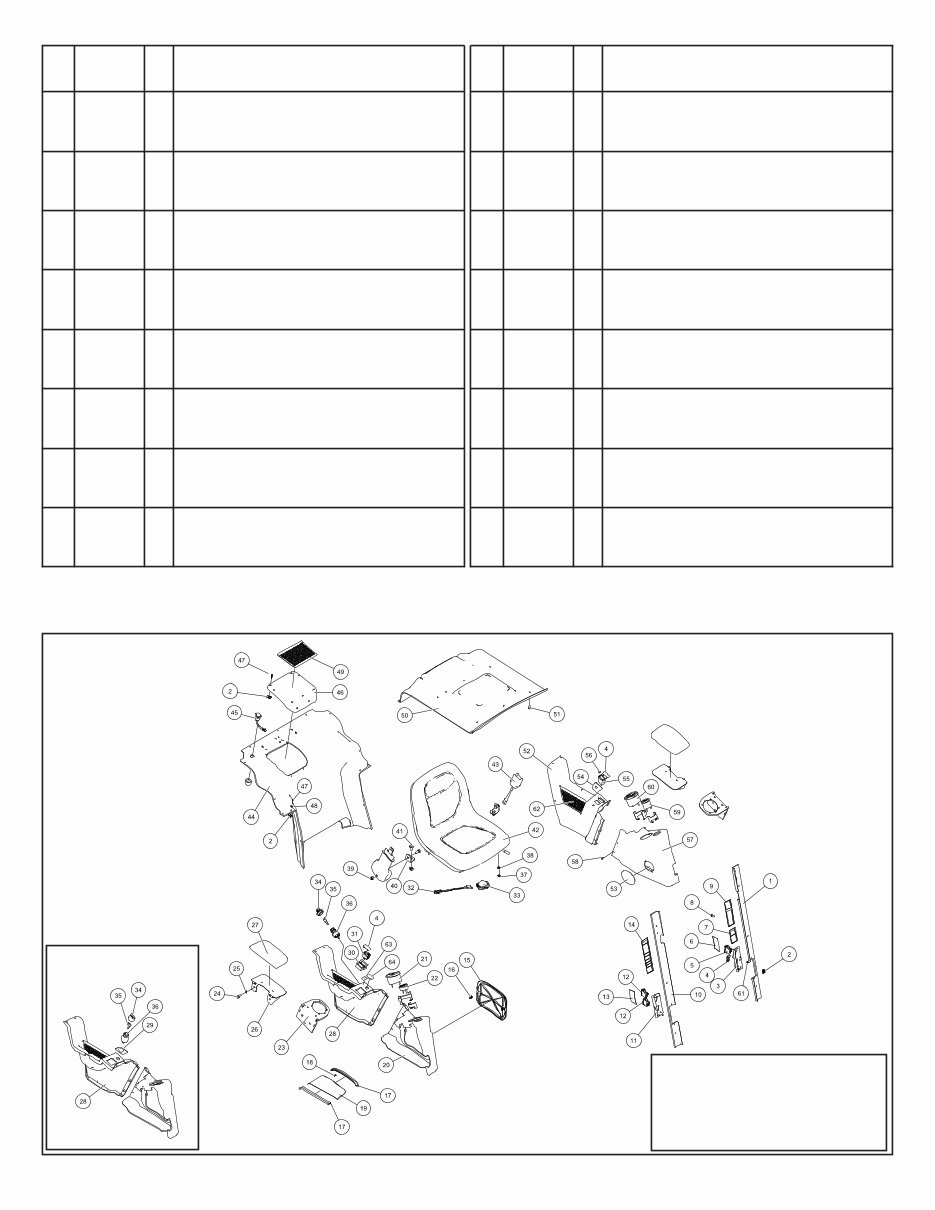

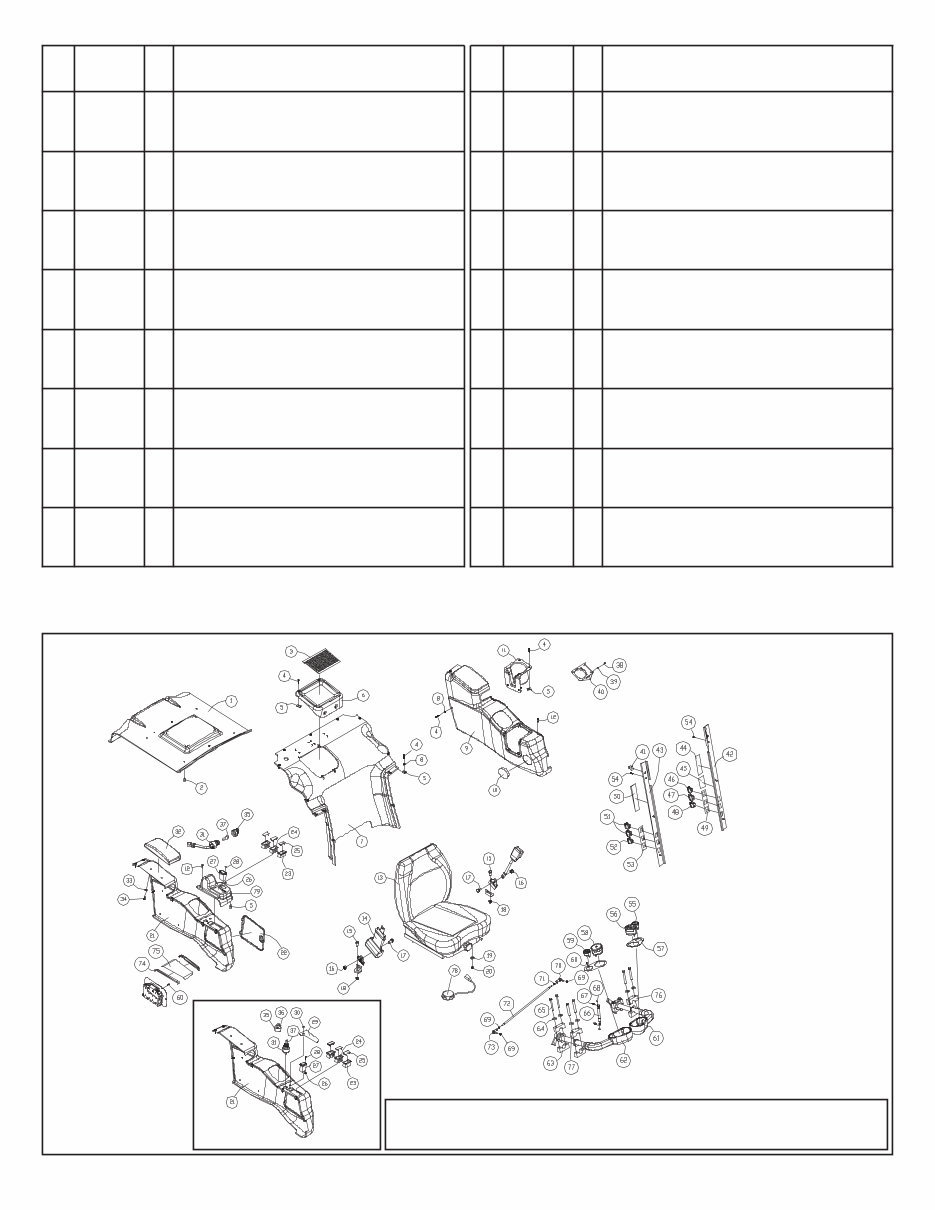

CAB INTERIOR (MP-2) (Serial #: SSA 00101-Current)
Section 2
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-395 1 HEADLINER
2 0090-019 6 CLIP TREE
3 2045-636 1 NET CARGO
4 0090-011 21 SCREW OH PH #10 x 1.25 SS
5 0090-010 26 NUT SPEED #10
6 2045-757 1 PAN CARGO
7 2045-333 1 PANEL INTERIOR LOWER
8 0090-012 13 WASHER FINISHING #10 SS
9 2045-329 1 PANEL SIDE LH
10 2045-475 1 PLUG HOLE 3.00"
11 2045-336 1 PANEL ACCESS CUPHOLDER
12 0090-068 5 SCREW TH PH #10 x 1.0 SS
13 2045-452 1 SEAT,SUSP,60MM
14 2045-499 1 ASSY BELT
15 8102-311 2 CAPSCREW HH 7/16-14UNC x 7/8 GD8
16 8040-606 2 NUT,HEX,NYLOCK,1/2-13 UNC,ZN
17 8102-402 2 CAPSCREW,HH 1/2-13 UNCx1.0 GD8
18 8040-546 2 NUT,HEX,NYLOCK,7/16-14 UNC,ZN
19 8050-262 4 WASHER,WROUGHT,5/16,STD,ZN
20 8040-426 4 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
21 2045-330 1 PANEL SIDE RH
22 2045-335 1 COVER FUSE PANEL
23 0310-136 2 FRAME,END
24 0310-137 1 FRAME,MID
25 0310-138 3 PLUG
26 8040-186 2 NUT,NYLOCK 8-32
27 2045-502 1 METER HOUR
28 0090-038 2 SCREW MACHINE PH 8-32 x .625 SS
29 2045-791 1 DECAL PRE-HEAT SR
30 2045-657 1 PLUG HOLE .375
31 0304-028 1 SWITCH,IGNITION,RC
32 2045-337 2 PAD ARM REST
33 8050-222 4 WASHER,WROUGHT,1/4,STD,ZN
34 8102-039 4 CAPSCREW,HH,1/4-20UNCx.625,GD8
35 2045-792 1 COVER KEY IGNITION
36 0304-551 1 RING,KEY
37 2045-432 1 KEY IGNITION
38 8102-220 6 CAPSCREW,HH,3/8-16x0.75",GD8
39 8051-272 6 WASHER,SPRING LOCK,3/8,ZN
40 2045-637 2 MNT JOYSTICK
41 0201-481 1 SWITCH,PUSH BUTTON
42 2045-547 1 COVER POST LH
43 2045-548 1 COVER POST RH
44 2045-468 1 DECAL WARNING BRUSHCUTTER 2-SPOOL
45 2045-472 1 DECAL DANGER OPERATING POSITION
46 2045-413 1 SWITCH LOCKING PARK
47 0310-126 1 SWITCH,LIGHT
48 2045-477 1 SWITCH SELF LEVELER (optional)
49 2045-470 1 DECAL SWITCH PANEL LH
50 2045-469 1 DECAL WARNING LIST RH
51 0200-252 2 SWITCH,3 POSITION,LOCKING
52 2045-725 1 SWITCH 2 POSITION LOCKING W/ RED BUTTON (optional)
53 2045-471 1 DECAL SWITCH PANEL RH
54 8102-040 20 CAPSCREW,HH,1/4-20 UNCx.75,GD8
55 2045-378 1 GAUGE,ENGINE,TEMP
56 2045-379 1 GAUGE,INSTRUMENT,4IN1
57 2045-377 2 PLATE GAUGE
58 2045-380 1 GAUGE,TACHOMETER
59 2045-381 1 GAUGE,WARNING,INDICATION
60 0304-381 15 SCREW,MACH,PH PAN HD 10-24X0.5
61 2045-994 1 LAPBAR LH
62 2045-995 1 LAPBAR RH
63 2045-326 8 BLOCK PIVOT LAPBAR
64 8050-347 8 WASHER,WROUGHT,1/2,STD,ZN
65 8102-414 8 CAPSCREW,HH,1/2-13UNCx4.0,GD8,
66 2045-503 1 SPRING GAS ASSIST
67 0304-495 2 STUD,BALL,10MM STUD
68 0200-545 2 CLIP,SAFETY,GAS SPRING
69 0301-654 3 NUT,JAM,3/8-24 UNF
70 2045-556 1 CONNECTOR ROD END LH
71 0090-009 1 NUT JAM 3/8-24 UNF LH THREAD
72 2045-328 1 ROD THREADED
73 2045-327 1 CONNECTOR ROD END RH
74 0090-075 2 SEAL FUSE PANEL SHIELD
75 2045-880 1 WLMT FUSE PANEL SHIELD
76 2046-002 1 PIVOT BLOCK LH
77 2046-003 1 BLOCK PIVOT RH
78 0304-515 1 SWITCH,SEAT
79 2046-088 1 MOUNT,IGNITION - MP2
Page 2A
Note: On machines S/N: 101-552, the ROPS (2045-545) differs slightly from current (2045-958).
• If the lap bar(s) (items 61, 62) need to be replaced, they must be updated in pairs.
They require items 76 and 77 to function properly. All other items are intechangable.
Original
Configuration
CAB INTERIOR (MP-1) (Serial #: SSB 00101-Current)
Section 2A
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2075-104 1 COVER POST LH
2 0090-010 29 NUT SPEED #10
3 2075-090 1 MOUNT SWITCH LH
4 0310-138 2 PLUG
5 2045-413 1 SWITCH LOCKING PARK
6 2046-007 1 DECAL LH SWITCHES SR NO LAP BAR
7 2045-472 1 DECAL DANGER OPERATING POSITION
8 8102-040 6 CAPSCREW,HH,1/4-20 UNCx.75,GD8
9 2045-468 1 DECAL WARNING BRUSHCUTTER 2-SPOOL
10 2075-105 1 COVER POST RH
11 2075-091 1 MOUNT SWITCH RH
12 0200-252 2 SWITCH,3 POSITION,LOCKING
13 2046-006 1 DECAL RH SWITCHES SR NO LAP BAR
14 2046-001 1 DECAL WARNING LIST SR NO LAP BAR
15 2075-102 1 COVER FUSE PANEL
16 0090-084 2 CLIP RETAINING
17 0090-075 2 SEAL FUSE PANEL SHIELD
18 0304-381 2 SCREW,MACH,PH PAN HD 10-24X0.5
19 2075-342 1 WLMT FUSE PANEL SHIELD
20 2075-095 1 PANEL FRONT RH
21 2045-380 1 GAUGE,TACHOMETER
22 2045-381 1 GAUGE,WARNING,INDICATION
23 0200-600 1 MNTS JOYSTICK (RH & LH)
24 8102-222 4 CAPSCREW,HH,3/8-16 UNCx1.0,GD8
25 8051-242 4 WASHER,SPRING LOCK,5/16,ZN
26 2075-109 2 WLMT ARM REST MOUNT
27 2045-337 2 PAD ARM REST
28 2075-093 1 PANEL REAR RH
29 2046-004 1 DECAL IGNITION SR NO LAP BAR
30 0310-136 2 FRAME,END
31 0310-126 1 SWITCH,LIGHT
32 0304-662 1 HARNESS,SWITCH,SEAT
33 2010-127 1 SWITCH,SEAT (NEW STYLE)
34 2045-792 1 COVER KEY IGNITION
35 2045-432 1 KEY IGNITION
36 0304-028 1 SWITCH,IGNITION,RC
37 8040-426 4 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
38 8050-262 4 WASHER,WROUGHT,5/16,STD,ZN
39 8040-606 4 NUT,HEX,NYLOCK,1/2-13 UNC,ZN
40 2075-163 2 MOUNT SEAT BELT LOWER
41 8102-402 4 CAPSCREW,HH 1/2-13 UNCx1.0 GD8
42 2051-913 1 SEAT BLACK W/O ARMRESTS
43 2045-499 1 ASSY BELT
44 2075-234 1 PANEL BACK GRAY
45 2045-414 1 OUTLET POWER
46 2045-757 1 PAN CARGO
47 0090-011 17 SCREW OH PH #10 x 1.25 SS
48 0090-012 13 WASHER FINISHING #10 SS
49 2045-636 1 NET CARGO
50 2075-236 1 PANEL ROOF GRAY
51 0090-019 4 CLIP TREE
52 2075-092 1 PANEL REAR LH
53 2075-222 1 PLUG HEATER VENT
54 2046-005 1 DECAL HEATER SR NO LAP BAR
55 2045-502 1 METER HOUR
56 2045-657 1 PLUG HOLE .375
57 2075-094 1 PANEL FRONT LH
58 0090-117 6 CAPSCREW TH PH 10-24 X .75 SS
59 2045-378 1 GAUGE,ENGINE,TEMP
60 2045-379 1 GAUGE,INSTRUMENT,4IN1
61 0090-068 10 SCREW TH PH #10 x 1.0 SS
62 2075-125 2 NET CARGO
63 2046-081 1 DECAL IGNITION MP-1
64 2045-829 1 PLUG FINISHING 1”
Page 2A-A
MP-1 Optional (suspension) Seat
Notes:
MP-1 equipped machines come standard
with rigid style seat. A suspension seat is
available as an option. (see page 2A,
items 13-20)
Original Key position
ASV Serial #: 101-575

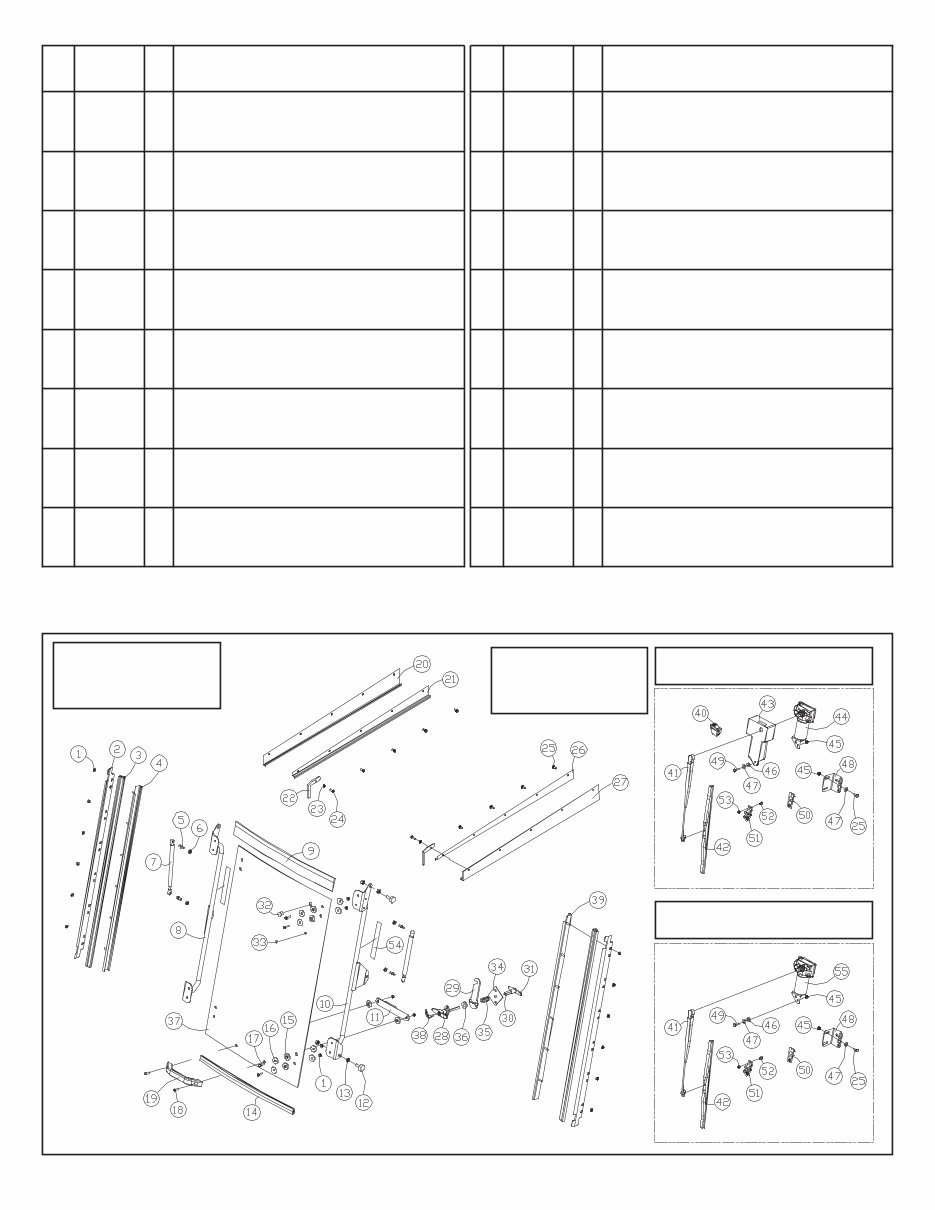

CAB DOOR ASSEMBLY (OPTIONAL) (Serial #: SSA/SSB 00101-Current)
Section 3
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 0090-007 20 NUT,FLANGE, 1/4-20 UNC
2 2045-529 2 MOUNT,SEAL,SIDE
3 2045-531 2 SEAL,DOOR,SIDE
4 2045-519 1 SIDE FRAME,RH
5 0304-495 4 STUD,BALL,10MM
6 0090-006 4 NUT,FLANGE, 5/16-18 UNC
7 2045-528 2 SPRING,GAS ASSIST,DOOR
8 2045-524 1 HANDLE,DOOR,RH
9 2045-530 1 SEAL,DOOR,TOP
10 2045-523 1 HANDLE,DOOR,LH
11 2045-526 1 STRIKE,LATCH
12 2045-537 4 ROLLER,DOOR
13 0090-008 4 NUT,JAM LOCKING 7/16-14 UNC
14 2045-532 1 SEAL,DOOR,BOTTOM
15 2045-522 10 WASHER,MOUNTING,DOOR HANDLE
16 0301-033 8 WASHER,FENDER,1/4 x 1 1/4,STL,
17 8102-044 8 CAPSCREW,HH,1/4-20UNCx1.25,GD8
18 8008-582 2 SCREW,MACH,SL,TR HD,1/4-20 UNC
19 2045-525 1 HANDLE,GRAB,DOOR
20 2045-517 1 TOP FRAME,LOWER,RH
21 2045-515 1 TOP FRAME, UPPER,RH
22 2045-527 1 RETAINER,DOOR
23 8051-212 2 WASHER,SPRING LOCK,1/4,ZN
24 8102-040 2 CAPSCREW,HH,1/4-20 UNCx.75,GD8
25 8102-039 8 CAPSCREW,HH,1/4-20UNCx.625,GD8
26 2045-514 1 TOP FRAME, UPPER, LH
27 2045-516 1 TOP FRAME, LOWER, LH
28 2045-534 1 T-HANDLE, LATCH DOOR
29 2045-533 1 LATCH, DOOR
30 2045-635 1 SPACER, INSIDE T-HANDLE
31 2045-634 1 T-HANDLE, INSIDE, DOOR
32 2045-674 1 PLUG FINISH PLASTIC 11/16"
33 2045-657 1 PLUG HOLE .375
34 2045-794 1 MOUNT PLATE, HANDLE
35 2045-795 1 SPRING, .688” X 2.50”
36 8050-320 5 WASHER,WROUGHT,7/16,SAE,ZN
37 2045-521 1 WINDOW, DOOR (GLASS)
38 0304-816 1 KEY,DOOR
39 2045-518 1 SIDE FRAME,LH
40 0304-123 1 SWITCH,ON/OFF,WIPER
41 0402-243 1 ARM,WIPER,15-19"
42 2045-593 1 WIPER BLADE 16"
43 2045-584 1 COVER WIPER MOTOR
44 0402-242 1 MOTOR,WIPER,65^
45 8040-366 3 NUT,HEX,NYLOCK,1/4-20 UNC,ZN
46 0090-046 1 WASHER RUBBER .688 OD x .31 ID
47 8050-222 3 WASHER,WROUGHT,1/4,STD,ZN
48 2045-623 1 PLATE MOUNTING WIPER CONTACT
49 8102-042 1 CAPSCREW, HH 1/4-20UNC 1" GD8
50 2045-621 1 CONTACT WIPER
51 2045-622 1 CONTACT SPRING WIPER
52 0310-475 4 SCREW,10-32x.5,TRUSSHEAD
53 8040-276 4 NUT,HEX,NYLOCK,10-32 UNF,ZN
54 2045-931 2 DECAL,DOOR HANDLE, SR
55 0403-341 1 MOTOR,WIPER,65^
Page 3A
LEXAN DOOR (OPTIONAL)
ITEM #14: 2045-884
ITEM #17: 8102-045
ITEM #37: 2045-883
MP-2 WIPER KIT (OPTIONAL)
ASV P/N: 0402-992
MP-1 WIPER KIT (OPTIONAL)
ASV P/N: 0403-340
Door Handle Braces
(mount between items 8 & 10)
Upper: 2046-039
Lower: 2046-036

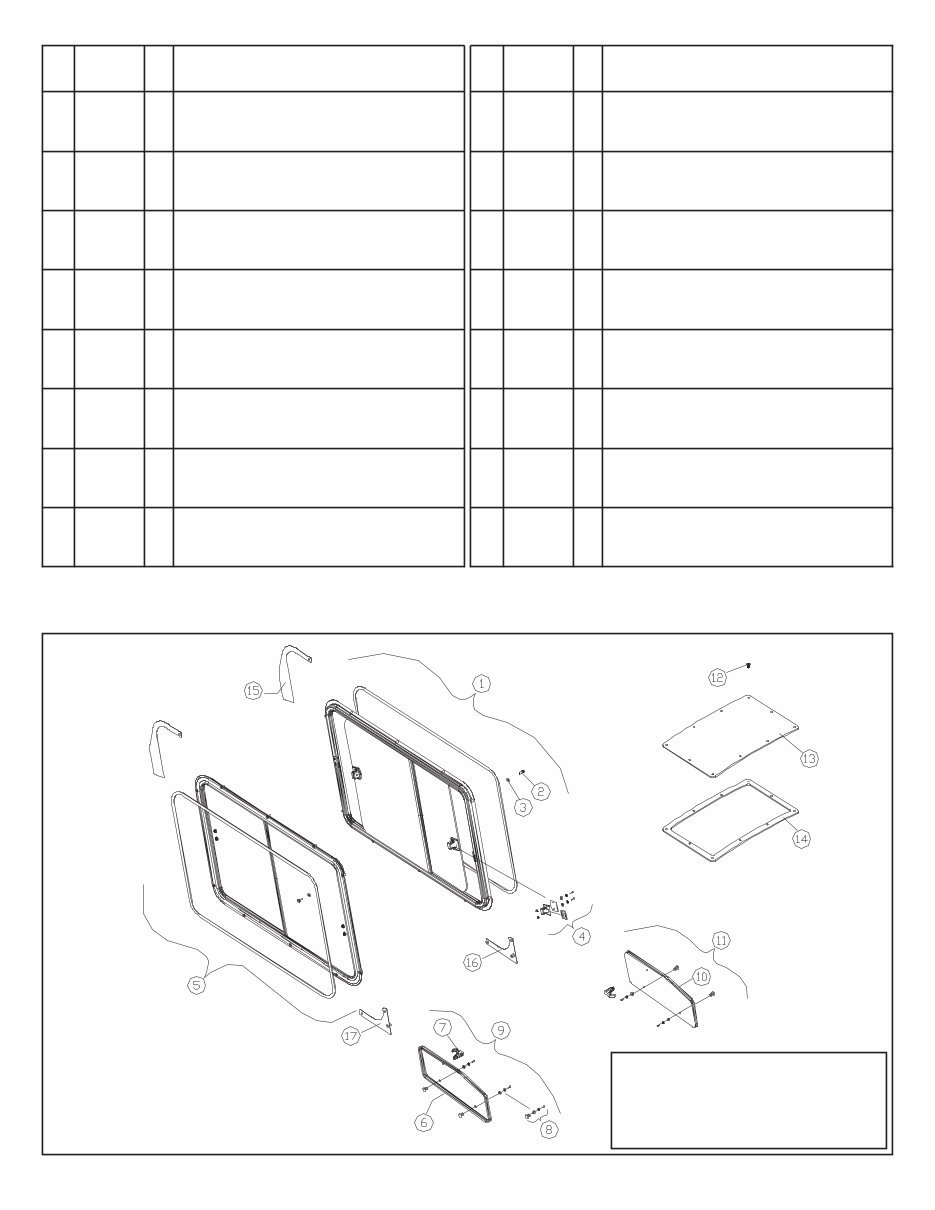

ENCLOSED CAB (OPTIONAL) (Serial #: SSA 00101-00552)
Section 4
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
REF.
NO.
PART
NUMBER
QTY. DESCRIPTION
1 2045-965 1 WINDOW SLIDING LH
2 0305-011 20 CAPSCREW,HH,M6x1.0x20mm,ZN
3 8050-157 20 WASHER,WROUGHT,3/16,STD,ZN
4 2045-923 2 LATCH WINDOW
5 2045-966 1 ASSY WINDOW RH SR NON LATCH
6 2045-919 1 PANEL LOWER RIGHT
7 2045-825 3 LATCH ROOF PANEL
8 2045-922 4 CATCH LOWER WINDOW PANEL
9 2045-694 1 WINDOW LOWER RH
10 2045-918 1 PANEL LOWER LEFT
11 2045-693 1 WINDOW LOWER LH
12 0090-109 10 SCREW TH PH 1/4-20 x 1.00 ZN
13 0200-606 1 PANEL ROOF LEXAN
14 0200-607 1 SEAL PANEL ROOF
15 2045-970 2 PATCH WINDOW REAR
16 2045-971 1 ASSY WINDOW PATCH FRONT LEFT
17 2045-972 1 PATCH WINDOW FRONT RIGHT
Page 4A
Non-Current Window Configurations
Earlier versions of the side windows and the roof
panel are no longer available. If parts are need-
ed or if existing windows are damaged beyond
repair, you must purchase the current design
parts for replacement purposes as neccessary.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
Viewed 14 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
The ASV Posi-Track SR 70 Track Loader Master Parts Manual is a comprehensive resource designed to provide all the necessary information for repairing and maintaining your equipment. Whether you are a professional mechanic or a DIY enthusiast, this manual offers easy-to-read text sections accompanied by high-quality diagrams and instructions.
The Service Repair Manual covers a wide range of components including the Cab (R.O.P.S.) Assembly, Chassis Assembly, Engine Assembly, Undercarriage Assembly, Drive Table Assembly, Lift Arm Assembly, Quick Attach, and various optional assemblies such as Cab Door, Enclosed Cab, Air Conditioning, and Cab Heater.
File Format: PDF
Compatibility: All Versions of Windows & Mac
Language: English
Requirements: Adobe Reader
Having the right repair manual for your ASV Posi-Track SR 70 Track Loader is essential for saving time and money. This manual is a valuable resource that will enable you to perform the job with confidence and gain a deeper understanding of your ASV Posi-Track SR 70 Track Loader for long-term maintenance.
Make the most of this manual as all pages are printable, ensuring convenient access to the information you need.
