MODEL 2800
MODEL 2810
PARTS MANUAL
PART #0308-383
Posi-Track
TABLE OF CONTENTS
SEAT ASSEMBLY–------------------------------------------2
ROLLCAGE ASSEMBLY–--------------------------------------4
FUEL TANK ASSEMBLY---–----------------------------------6
TOWER ASSEMBLIES----------------------------------------8
BATTERY ASSEMBLY---------------------------------------10
MAIN CONSOLE ASSEMBLY----------------------------------12
AUXILIARY CONSOLE ASSEMBLY-----------------------------14
TRANSMISSION LINKAGE-----------------------------------16
HOSES: NEUT. LOCK,CHARGE REL.,BRAKES-------------------18
HYDRAULICS: TRANSMISSION & GEAR PUMPS------------------20
HYDRAULICS: HOSES & FILTERS----------------------------22
TURBO ENGINE ASSEMBLY----------------------------------24
ENGINE ASSEMBLY----------------------------------------26
CHASSIS ASSEMBLY-------–-------------------------------28
WIND SCREEN ASSEMBLY--–--------------------------------30
SUSPENSION AXLE & TRACK ASSEMBLY-----------------------32
LS DRIVE ASSEMBLY--------------------------------------34
RS DRIVE ASSEMBLY--------------------------------------36
RS UNDERCARRIAGE ASSEMBLY------------------------------38
LS UNDERCARRIAGE ASSEMBLY------------------------------40
CARRIAGE ASSEMBLY--------------------------------------42
AXLE ASSEMBLY (0307-927)-------------------------------44
AXLE ASSEMBLY (0307-929)-------------------------------46
AXLE ASSEMBLY (0307-931)-------------------------------48
LOADER ASSEMBLY----------------------------------------50
ELECTRICAL SCHEMATIC (RELAY PANEL)---------------------52
ELECTRICAL SCHEMATIC (ISUZU ENGINE)--------------------53
ELECTRICAL SCHEMATIC (MAIN CONSOLE)--------------------54
ELECTRICAL SCHEMATIC (ROLL CAGE)-----------------------55
ELECTRICAL SCHEMATIC (RESERVOIR)-----------------------56
ELECTRICAL SCHEMATIC (FILTER MANIFOLD)-----------------57
ELECTRICAL SCHEMATIC (AUXILIARY CONSOLE)---------------58
HYDRAULIC SCHEMATIC------------------------------------59
SERVICE ITEMS-------------------------------------------1
OCTOBER 2001
SERVICE ITEMS
DESCRIPTION MANUFACTURER NUMBER ASV PART NO.
Diesel Engine Oil Filter Isuzu, 8-94428-9310 0301-349
Charge Pressure Filter Caterpillar 102-2828 0307-921
Aux. Hyd. Oil Filter Caterpillar 102-2828 0307-921
Primary Air Filter Donaldson P18-1052 0302-302
Diesel Fuel Filter Isuzu, 8-94143-4790 0301-348
Antifreeze (1 gal.) Permanent Type - Ethylene Glycol 0300-766
Engine Oil (1 qt.) Multi-Grade 10W-30 0300-767
Hydraulic Oil (5 gal.) AMOCO Rykon MV 0400-253
Grease (1 tube) Phillips Poly-Tach 0300-769
Turbo Oil Filter 8-94430-983-0 0301-934
Turbo Fuel Filter 8-94369299-2 0301-935
Hi-Flo Hyd. Filter Caterpillar 102-2828 0307-921
PAGE 1
PART
NUMBER
ASV, Inc.
GRAND RAPIDS, MN.
PAGE 2
REF.
NO.
QTY DESCRIPTION DESCRIPTION QTY
PART
NUMBER
REF.
NO.

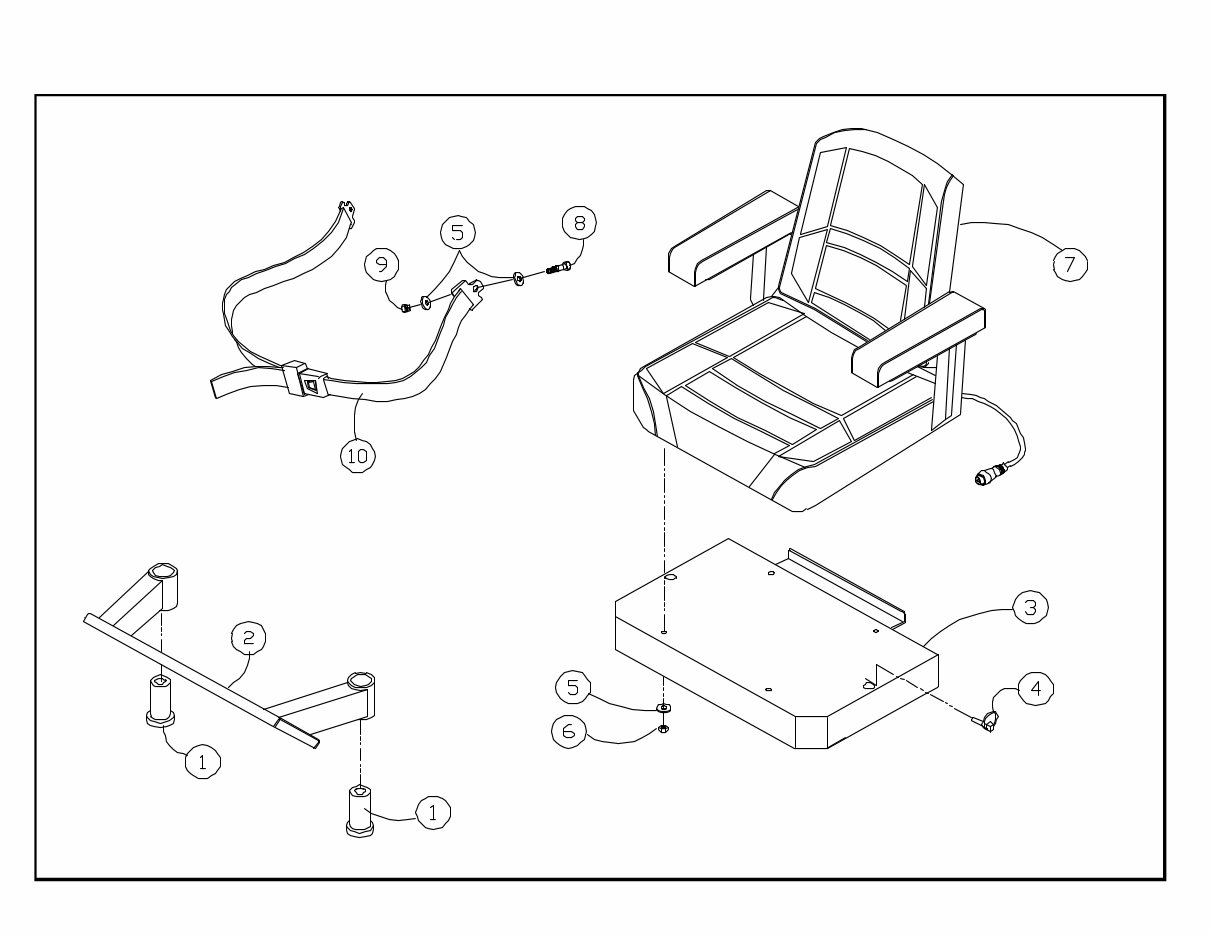

1 0302-097 2 ISOLATOR,FOOTREST
2 0302-089 1 FOOTREST
3 0307-719 1 WELDMENT,BASE,SEAT
4 0302-382 2 PIN,LYNCH,5/16
5 8050-247 8 WASHER,WROUGHT,5/16,SAE,ZN
6 8040-426 4 NUT,HEX,NYLOCK,5/16-18 UNC,ZN
7 0307-250 1 SEAT,907-18 W/CABLE ASSY
8 8003-222 2 CAPSCREW,HH,3/8-24 UNFx1.0,GD2
9 8040-516 2 NUT,HEX,NYLOCK,3/8-24 UNF,ZN
10 0300-459 1 BELT,SEAT
SEAT ASSEMBLY
PAGE 3
PART
NUMBER
ASV, Inc.
GRAND RAPIDS, MN.
PAGE 4
REF.
NO.
QTY DESCRIPTION DESCRIPTION QTY
PART
NUMBER
REF.
NO.

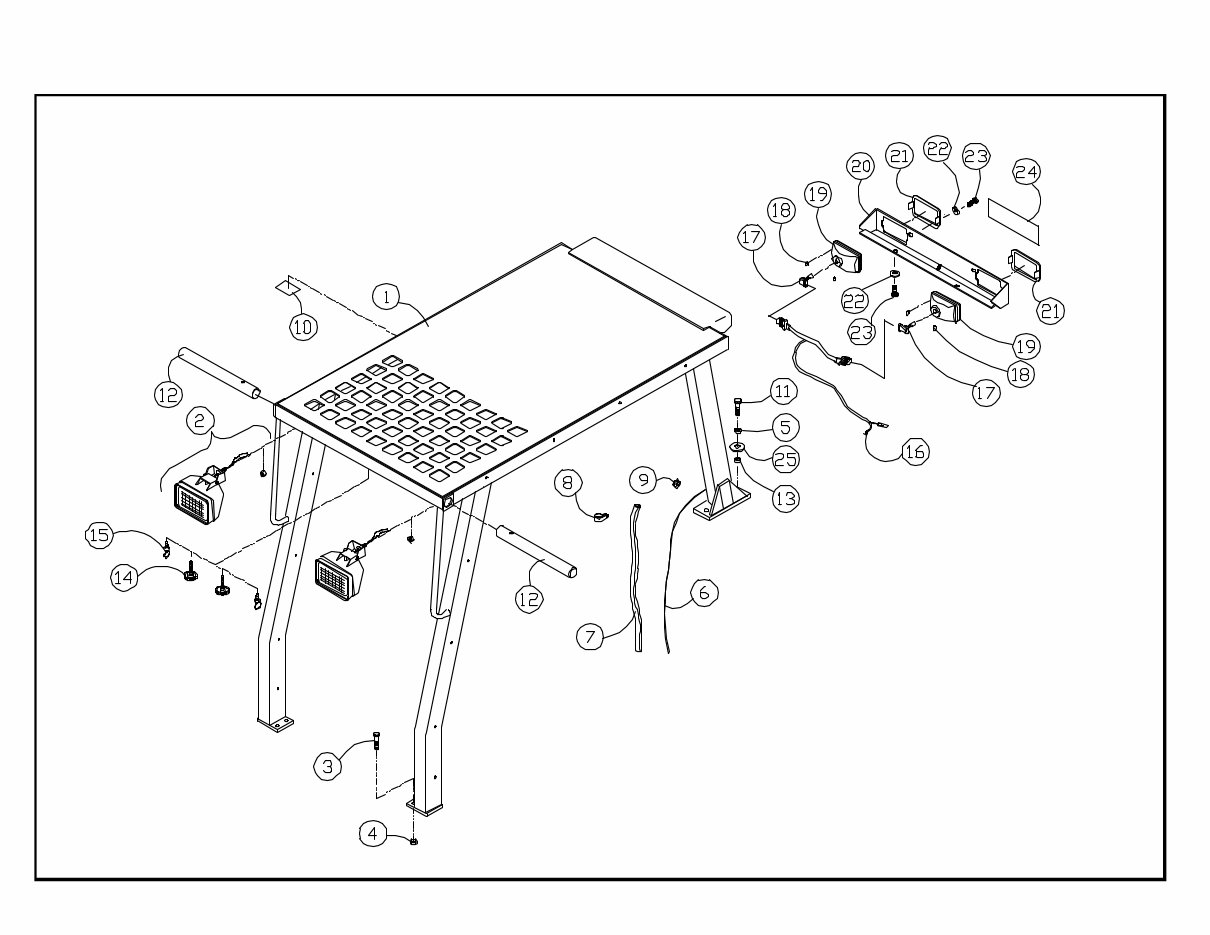

1 0307-320 1 WLMT,ROPS (ROLLCAGE)
2 0300-671 2 FLOODLIGHT,REAR
3 8002-407 4 CAPSCREW,HH,1/2-13 UNCx2.0,GD5
4 8040-606 4 NUT,HEX,NYLOCK,1/2-13 UNC,ZN
5 8051-332 4 WASHER,SPRING LOCK,1/2,ZN
6 0302-983 1 WIRE,HEADLIGHT
7 0302-984 1 LOOM,WIRE,HEADLIGHT
8 0301-792 2 CLAMP,LOOM,1/2"
9 0301-637 3 GROMMET (1840)
10 0307-696 1 DECAL,ROPS/FOPS,HD
11 8002-406 4 CAPSCREW,HH,1/2-13 UNCx1.75,GD5,ZN
12 0303-061 2 SHAFT,STOP,LOADER
13 0308-061 4 SPACER,1/2 ID x.625 OD
14 0309-529 2 KNOB,POLY,3/8-16NCx2.0
15 0307-948 2 PULL-RING,STUBBY,1/2-13NC
16 0302-710 1 HARNESS,HEADLIGHT
17 0302-112 2 BULB,HEADLIGHT,MODEL 800
18 0302-111 4 RETAINER,BEZEL,HEADLIGHT,U-TYP
19 0302-109 2 HEADLIGHT,HALOGEN,MODEL 800
20 0307-580 1 WLMT,HOUSING,MTG,HEADLIGHT
21 0302-110 2 BEZEL,HEADLIGHT,MODEL 800
22 8050-262 4 WASHER,WROUGHT,5/16,STD,ZN
23 8013-130 4 CAPSCREW,HH,5/16-24 UNFx.75,NY
24 0307-404 1 DECAL,LOGO,ASV,3.5" x 9.0"
25 8050-347 4 WASHER,FLAT 1/2"WROUGHT,ZN
ROLLCAGE ASSEMBLY
PAGE 5
PART
NUMBER
ASV, Inc.
GRAND RAPIDS, MN.
PAGE 6
REF.
NO.
QTY DESCRIPTION DESCRIPTION QTY
PART
NUMBER
REF.
NO.

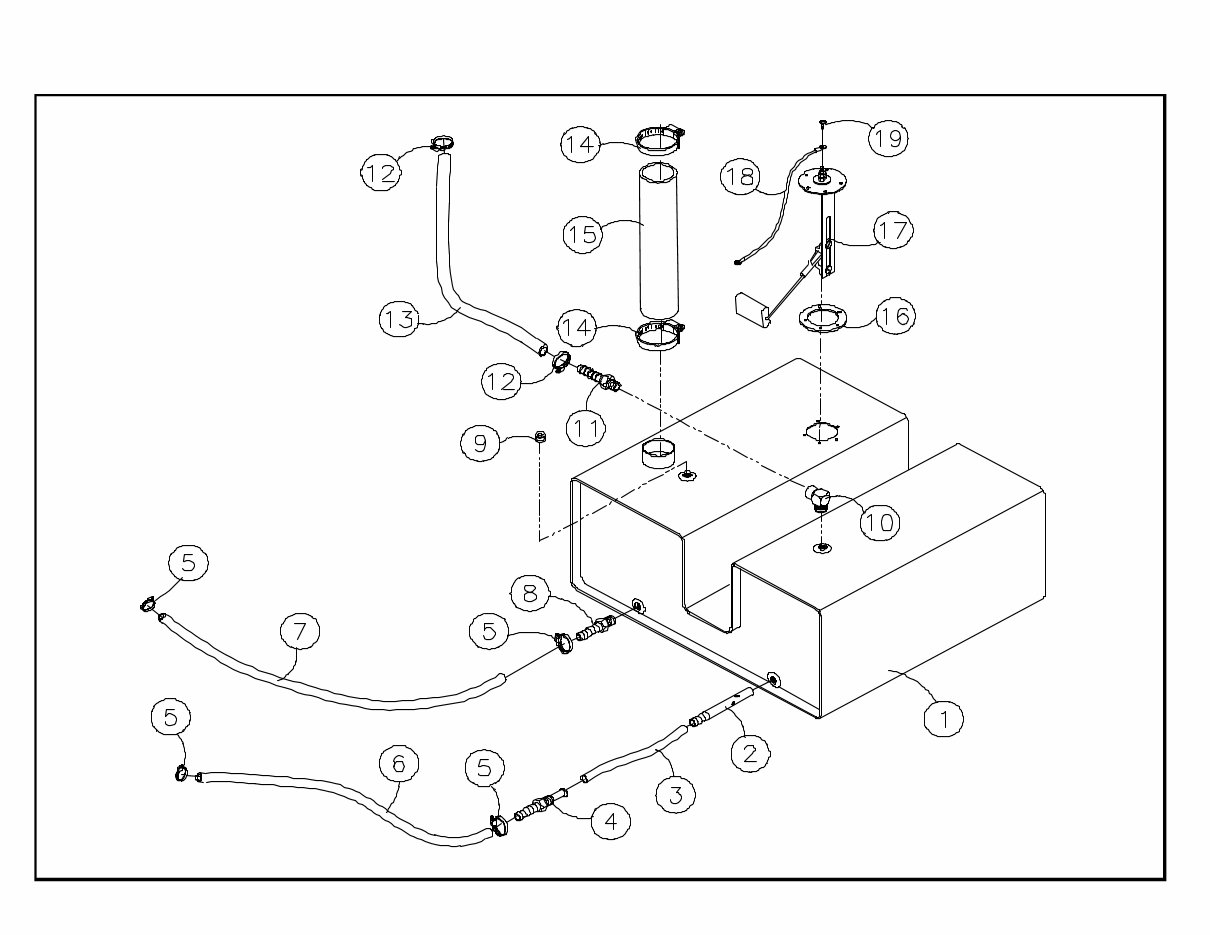

FUEL TANK ASSEMBLY
1 0302-014 1 TANK,FUEL
2 0301-375 1 WEIGHT,IN-TANK
3 0301-376 1 HOSE,IN-TANK,12"
4 0301-377 1 ADAPTER,3/8 NPT (DUAL HOSE)
5 0300-732 4 CLAMP,HOSE,#4
6 0302-357 1 HOSE,FUEL,SUPPLY
7 0302-358 1 HOSE,FUEL,RETURN
8 0301-374 1 ADAPTER,3/8 NPT,3/8 HOSE
9 0301-103 1 PLUG,3/8-18 NPT,SOCKET HD
10 0302-355 1 ADAPTER,PIPE STREET L 90^ (6-6
11 0302-354 1 ADAPTER,PIPE TO HOSE (6-8)
12 0301-125 2 CLAMP,HOSE,#6
13 0308-106 1 HOSE,VENT,FUEL
14 0300-686 2 CLAMP,HOSE,2.0,#32
15 0308-105 1 HOSE,FILLER,FUEL
16 0300-733 1 GASKET,SENDING UNIT
17 0302-670 1 SENDING UNIT,FUEL
18 0302-353 1 WIRE,GROUND,TANK,FUEL
19 0300-734 5 SCREW,INSULATED
PAGE 7
PART
NUMBER
ASV, Inc.
GRAND RAPIDS, MN.
PAGE 8
REF.
NO.
QTY DESCRIPTION DESCRIPTION QTY
PART
NUMBER
REF.
NO.
TOWER ASSEMBLIES
1 0307-404 2 DECAL,LOGO,ASV,3.5" x 9.0"
2 0308-384 2 DECAL,2800,8.0x2.5
3 0308-385 2 DECAL,2810,8.0x2.5
4 0300-407 2 DECAL,TRACK,WARNING
5 0300-447 1 CAP,GAS
6 0301-416 1 DECAL,FUEL-ONLY,DIESEL
7 8060-615 6 RIVET,BLIND,.19x1.0
8 0301-608 2 SCREW,MACHINE,PH,#10-32x1.0
9 0308-088 1 WLMT,INLET,FUEL
10 0302-354 1 ADAPTER,PIPE TO HOSE (6-8)
11 8040-276 2 NUT,HEX,NYLOCK,10-32 UNF,ZN
12 8002-413 12 CAPSCREW,HH,1/2-13 UNCx3.5,GD5
13 8043-513 8 NUT,HEX,1/2-13 UNC LOCK,ZN
14 0308-236 2 ADAPTER,BULKHEAD (12-12)45^
15 0400-258 5 COVER,DUST,MALE,BLACK
16 0401-732 5 COUPLER,QUICK,FEMALE,BLKHD,1/2
17 0400-259 1 COVER,DUST,FEMALE,BLACK
18 0401-731 1 COUPLER,QUICK,MALE,BLKHD,1/2
19 0308-167 1 WLMT,TOWER,LH
20 0308-045 1 FUEL FILLER MNT,MD2800
21 0308-168 1 WLMT,TOWER,RH
