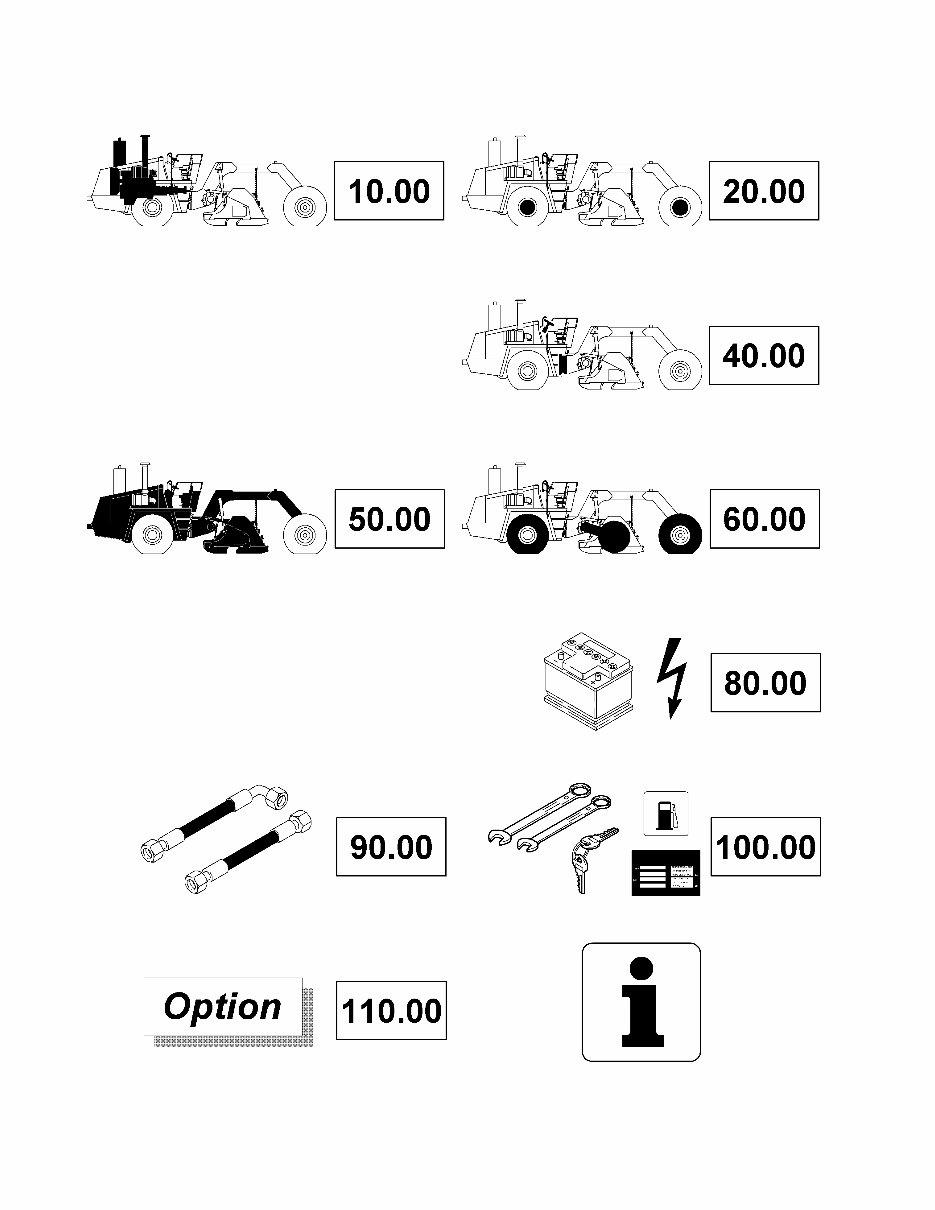

MPH 122-2 101590061004 -> 101590069999 (00818727) MPH 122-2 BS Description Assembly group Engine / Fitting Parts 10.00 Power Transmission / Actuation 20.00 Steering System 40.00 Frame with Attachment Parts 50.00 Drum / Tyres 60.00 Electrical System 80.00 Hydraulic 90.00 Accessories 100.00 Special Equipment 110.00 Frequently used parts VT Page 2 from 2
11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS Page 1 from 12

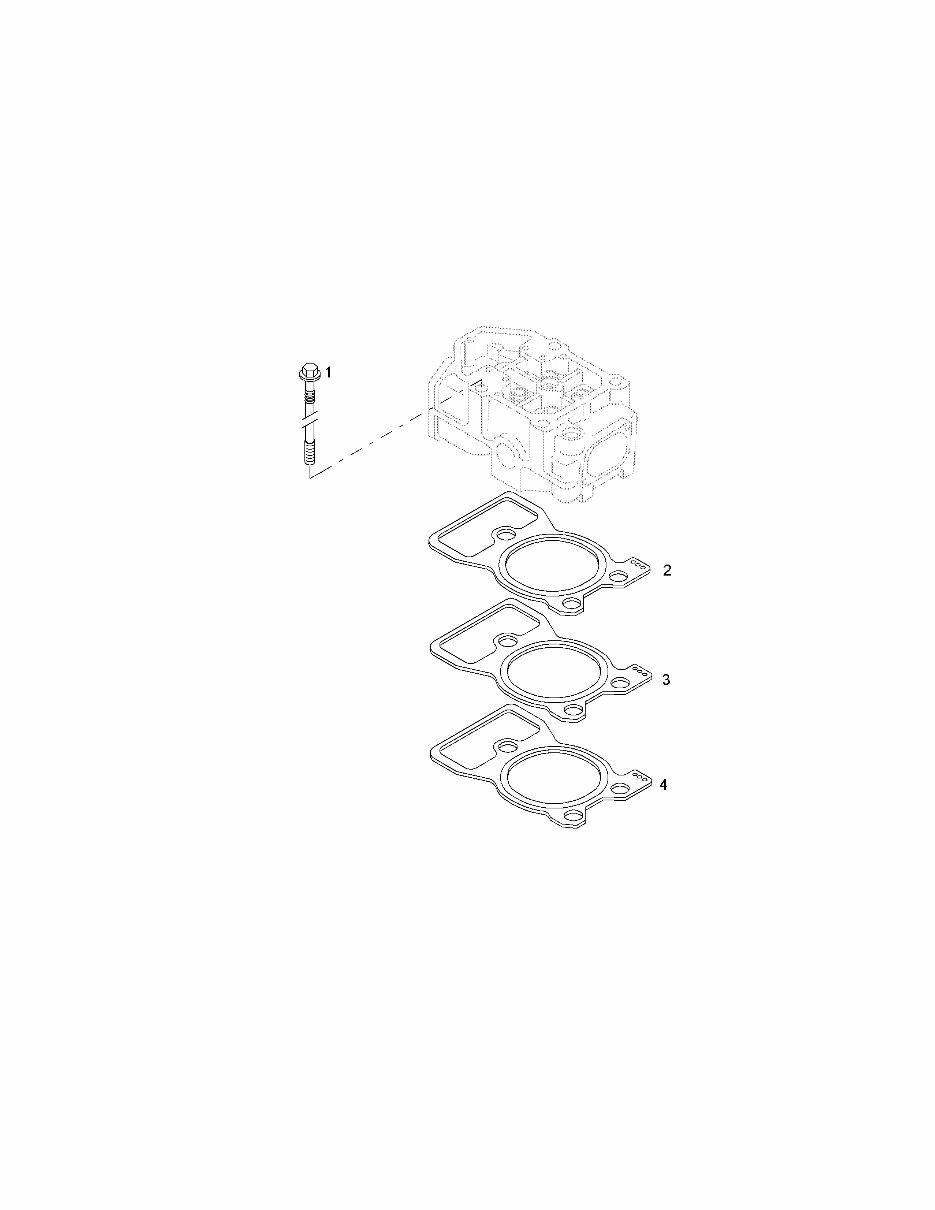

11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 05711840 Cylinder head bolt 4 Re pa ir pa rt 2 001 05711699 Cylinder head gasket 1 001 1,4mm Re pa ir pa rt 3 001 05711761 Cylinder head gasket 1 001 1,6mm Re pa ir pa rt 4 001 05720353 Cylinder head gasket 1 Page 2 from 12
11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS Page 3 from 12

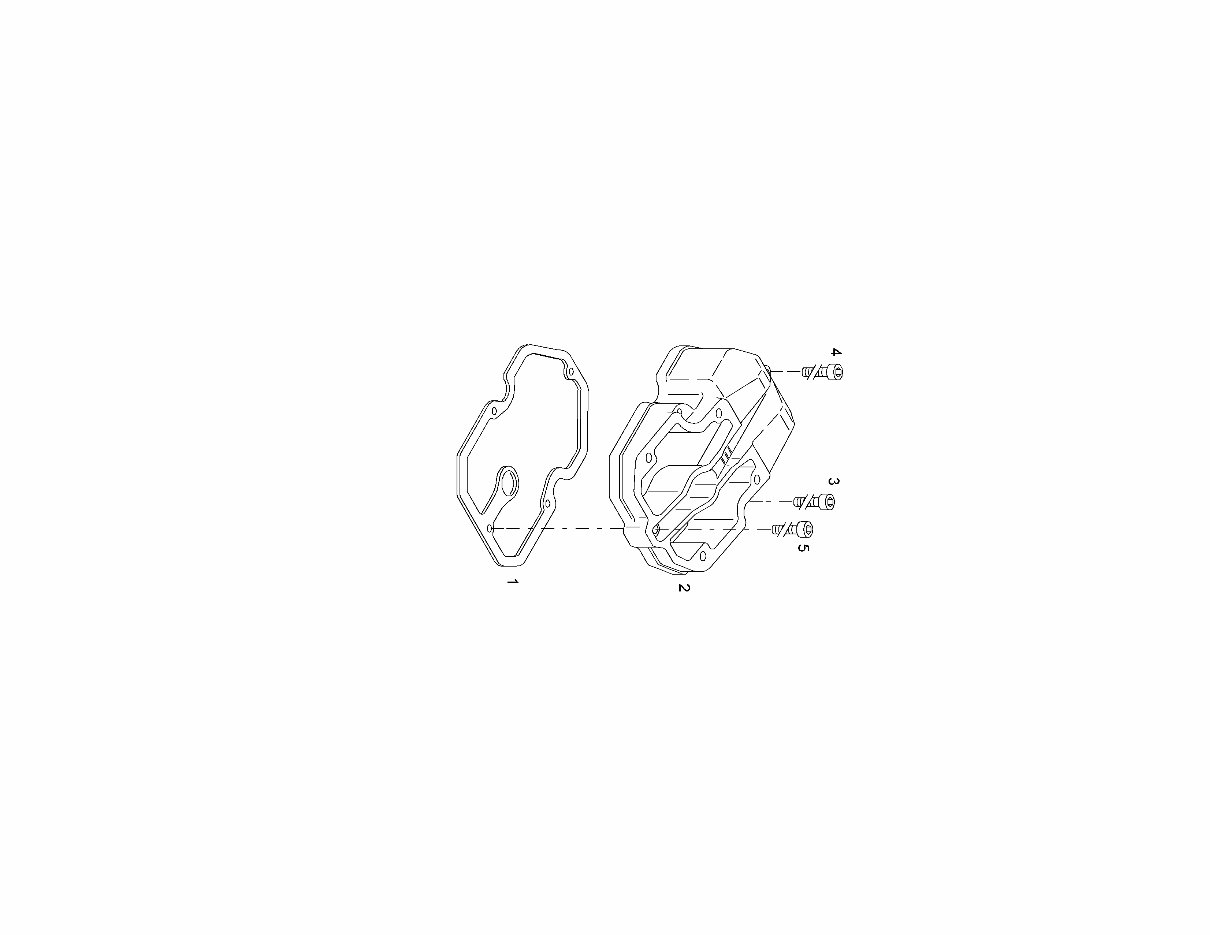

11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS M Ite m No. Pag e Part No. Description Quant. Uni t Remarks Re pa ir pa rt 1 002 05711696 Gasket 1 2 002 05713426 Cylinder head cover 1 3 002 05719133 Socket-head cap screw 2 4 002 05719134 Socket-head cap screw 1 5 002 07230822 Socket-head cap screw 1 Page 4 from 12
11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS Page 5 from 12

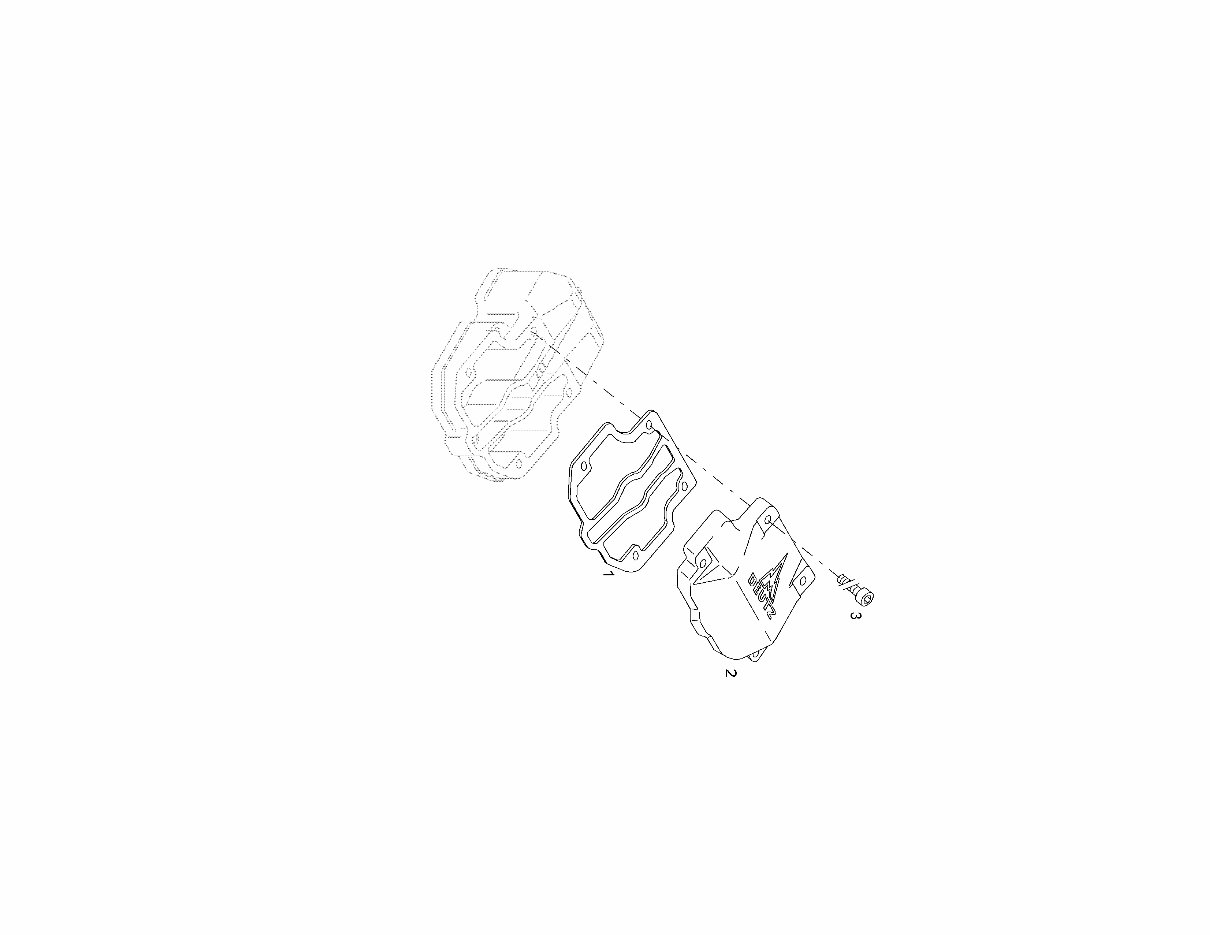

11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS M Ite m No. Pag e Part No. Description Quant. Uni t Remarks M ai ne te na nc e pa rt 1 003 05713429 Valve cover gasket 1 2 003 05713430 Cylinder head cover 1 3 003 07230822 Socket-head cap screw 4 Page 6 from 12
11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS Page 7 from 12

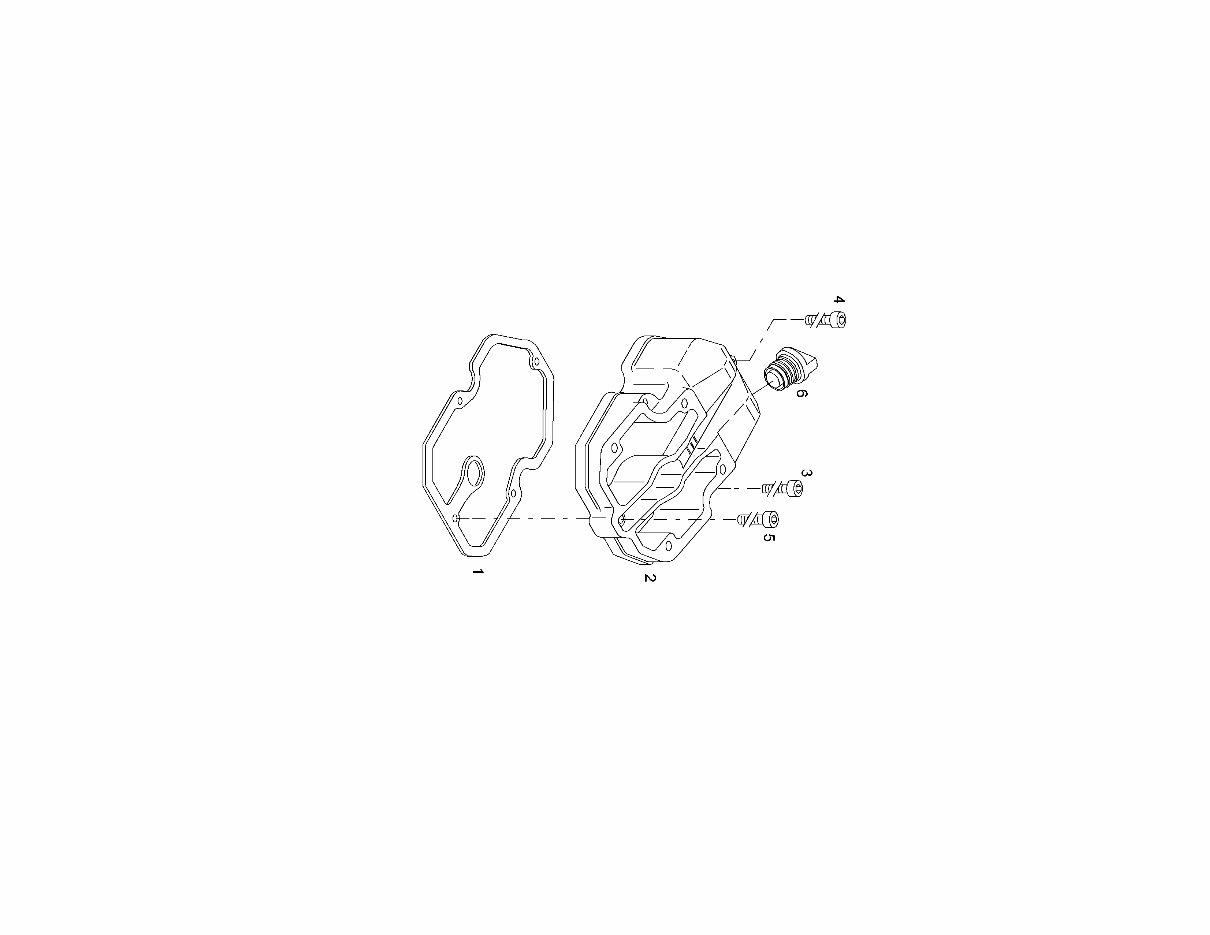

11.08 09179093 09182174 05702575 Cylinder Head MPH 122-2 BS M Ite m No. Pag e Part No. Description Quant. Uni t Remarks Re pa ir pa rt 1 004 05711696 Gasket 1 2 004 05713427 Cylinder head cover 1 3 004 05719133 Socket-head cap screw 2 4 004 05719134 Socket-head cap screw 1 5 004 07230822 Socket-head cap screw 1 6 004 05713428 Filler cap 1 Page 8 from 12
This Service Parts Manual is an essential resource for the maintenance and repair of the Bomag MPH122-2 soil stabilizer. Whether you are a professional mechanic or a DIY enthusiast, this manual provides comprehensive technical data and diagrams, offering a complete list of parts for the Bomag MPH122-2 soil stabilizer.
The manual covers a wide range of components including Engine/Fitting Parts, Power Transmission/Actuation, Frame with Attachment Parts, Drum/Tyres, Electrical System, Hydraulic, Accessories, and Special Equipment.
It is available in PDF format, compatible with all versions of Windows and Mac, and is presented in English. You can easily access the manual using Adobe Reader. With this manual, you can confidently perform your own repairs, saving time and money. The step-by-step instructions are designed to be user-friendly, catering to all skill levels.
