New Holland LS180 Skid Steer Loader Parts Catalog

How To Use Figure Search 1). Locate the figure list index at the beginning of manual examples: 01A01 FRONT WHEEL ASSEMBLY - 2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140 01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400, 4500, 4410, 5100, 5200, 5190, 7100, 7200 01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550 01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110 01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140 Use the “search” feature in adobe to jump to the figure number. Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the “search” feature in Adobe Acrobat. Then simply type in the figure number you wish to locate, and press enter. Adobe takes you immediately to that page!

Figure Search for LS180 SKID STEER LOADER (9/99- ) 00.00 MAIN SECTIONS PICTORIAL INDEX 00.01 ENGINE PICTORIAL INDEX 00.02 ENGINE ATTACHING EQUIPMENT PICTORIAL INDEX 00.03 HYDROSTATIC DRIVE PICTORIAL INDEX 00.06 ELECTRICAL PICTORIAL INDEX 00.07 HYDRAULIC SYSTEM PICTORIAL INDEX 00.08 SHEET METAL / DECALS PICTORIAL INDEX 00.09 BOOM & BUCKET COMPONENTS PICTORIAL INDEX 00.10 CAB, OPERATOR'S PLATFORM & CONTROLS PICTORIAL INDEX 00.11 WHEELS & TIRES PICTORIAL INDEX 00.12 CHASSIS PICTORIAL INDEX 00.18 ACCESSORIES & KITS PICTORIAL INDEX 00.19 ATTACHMENTS PICTORIAL INDEX 01.00 ENGINE PICTORIAL INDEX 01.02 ENGINE, CYLINDER BLOCK, HEAD & RELATED PARTS 01.03 BLOCK HEATER KIT 01.07 CAMSHAFT, ROCKER ARMS, VALVES & RELATED PARTS 01.08 CRANKSHAFT, FLYWHEEL & RELATED PARTS 01.09 PISTONS & CONNECTING RODS 01.11 TURBOCHARGER, MANIFOLDS & RELATED PARTS 01.14 OIL PAN & PUMP 01.18 INJECTION PUMP & LINES 01.20 WATER PUMP 02.00 ENGINE ATTACHING EQUIPMENT PICTORIAL INDEX 02.01 MOUNTS, ALTERNATOR & FLYWHEEL 02.03 STARTER 02.04 ALTERNATOR, MAGNETTI-MARELLI 02.06 AIR CLEANER, MUFFLER, STARTER & FAN 02.07 AIR CLEANER 02.09 RADIATOR 02.10 FUEL TANK 02.11 ELECTRIC LIFT PUMP & FUEL FILTER 03.00 HYDROSTATIC DRIVE PICTORIAL INDEX 03.01 FINAL DRIVE 03.01.01 GEARBOX, LH & RH 03.02 TRANSMISSION CENTERING 03.03.01 2-SPEED DRIVE 03.03.03 CARTRIDGE VALVE & HYDRAULIC CYLINDER, 2-SPEED 03.04 HYDROSTATIC PUMPS & MOTORS 03.04.01 HYDROSTATIC CASE DRAIN 03.06.01 SERVO-PUMP, LH 03.06.02 SERVO-PUMP, RH 03.07.01 HYDROSTATIC MOTOR, 1-SPEED 03.07.02 HYDROSTATIC VARIABLE SPEED MOTOR 03.08.01 PARKING BRAKE 03.08.02 BRAKE, ON-ROAD, EUROPE 06.00 ELECTRICAL PICTORIAL INDEX 06.01 MAIN ELECTRIC 06.01.01 ELECTRIC POWER KIT 06.02.01 CAB ELECTRIC, NORTH AMERICA 06.02.02 CAB ELECTRIC, EUROPE

Figure Search for LS180 SKID STEER LOADER (9/99- ) 06.03.01[01] HORN & TURN SIGNAL, BSN 06.03.01[02] HORN & TURN SIGNAL, ASN 06.03.03 4-WAY FLASHERS 06.03.05 BEACON KIT & MISCELLANEOUS PARTS, ON-ROAD 06.03.07 REAR LIGHT BAR, ON-ROAD, EUROPE 06.03.08 FRONT HEADLAMP, ON-ROAD, EUROPE 06.04 ELECTRIC, CHASSIS 06.04.01 BACK-UP ALARM 06.05 ELECTRIC, ENGINE 06.06 HYDRAULIC MOUNTING PLATE ELECTRICAL COMPONENTS 07.00 HYDRAULIC SYSTEM PICTORIAL INDEX 07.01.01 BUCKET HYDRAULICS, STANDARD 07.01.02 BUCKET HYDRAULICS, HIGH FLOW 07.01.03 BOOM HYDRAULICS, STANDARD 07.01.04 BOOM HYDRAULICS, HIGH FLOW 07.01.05 CONNECT UNDER PRESSURE COUPLERS 07.02.01 BUCKET CYLINDER 07.02.02 BOOM CYLINDER 07.03 HYDRAULIC GEAR PUMP 07.04.01 CONTROL VALVE HYDRAULICS 07.04.02[01] HIGH FLOW HYDRAULICS, TOGGLE SWITCH BEHIND LH HYDROSTATIC HANDLE 07.04.02[02] HIGH FLOW HYDRAULICS, ROCKER SWITCH ON IGNITION PANEL 07.04.03 CONTROL VALVE 07.04.04 SELECTOR VALVE, HIGH FLOW 07.05 HYDRAULIC RESERVOIR, FILTER & OIL COOLER 07.06.01 OIL COOLER, STANDARD 07.06.02 OIL COOLER, HIGH-PERFORMANCE 07.07.03 HIGH FLOW HYDRAULICS KIT, SELECTOR VALVE MOUNTING 07.07.04 HIGH FLOW HYDRAULICS KIT, GEAR PUMP & HOSES 07.07.05 HIGH FLOW HYDRAULICS KIT, GEAR PUMP 07.07.06 HIGH FLOW HYDRAULICS KIT, BOOM MANIFOLD BLOCK 07.07.07 HIGH FLOW HYDRAULICS KIT, CASE DRAIN HOSE ATTACHMENT 07.07.08 HIGH FLOW HYDRAULICS KIT, ELECTRICAL 07.07.09 HIGH FLOW HYDRAULICS KIT, COMPLETING PARTS 07.08.01 2ND FRONT AUXILIARY HYDRAULICS 07.08.02 REAR AUXILIARY HYDRAULICS 07.08.03[01] SECONDARY CONTROL VALVE, EATON 07.08.03[02] SECONDARY CONTROL VALVE, EATON/VICKERS 07.09.01 ENHANCED BOOM FLOAT KIT 07.09.02 BUCKET CIRCUIT CHECK VALVE 07.10.01 HYDRAULIC MOUNTING PLATE 07.10.02 HYDRAULIC MOUNTING PLATE CYLINDER 07.10.03 HYDRAULIC MOUNTING PLATE VALVE 07.10.04 HYDRAULIC MOUNTING PLATE BOOM HYDRAULICS 08.00 SHEET METAL / DECALS PICTORIAL INDEX 08.01 REAR HOOD 08.01.01 GRILLE GUARD KIT 08.02 FENDERS 08.02.01 REAR FENDERS 08.03 SLOW MOVING VEHICLE EMBLEM KIT 08.04.01 DECALS, PART 1

Figure Search for LS180 SKID STEER LOADER (9/99- ) 08.04.02 DECALS, PART 2 08.04.03 DECALS, PART 3 08.04.04 DECALS, PART 4 08.05 ACOUSTICAL EQUIPMENT, EUROPE 09.00 BOOM & BUCKET PICTORIAL INDEX 09.01 BOOM 09.02 BOOM, ON-ROAD, EUROPE 09.03 BOOM LOCK 09.04 MOUNTING PLATE 10.00 CAB, OPERATOR'S PLATFORM & CONTROLS PICTORIAL INDEX 10.01 CAB 10.01.01 FIRE EXTINGUISHER & MIRROR KITS 10.02.01 HEADLINER 10.02.02 HEADLINER, NEW STYLE (8/02-) 10.02.03 HEADLINER, CAB HEATER 10.02.04 HEADLINER, CAB HEATER, NEW STYLE (8/02-) 10.03 CAB HEATER 10.03.01 HEATER KIT 10.04.01 THRESHOLD & REAR WINDOW, NORTH AMERICA 10.04.02 THRESHOLD & CAB WINDOWS, EUROPE 10.05.01 CAB ENCLOSURE KIT, FLOOR PLATE & WINDOWS 10.05.02 CAB ENCLOSURE KIT, DOOR ATTACHING & WIRING 10.05.03 CAB ENCLOSURE KIT, DOOR & DOOR WIPER MOTOR 10.07 CAB DOOR KIT 10.08 DEMOLITION DOOR KIT 10.08.01 DEMOLITION DOOR KIT, LESS DOOR 10.09 THROTTLE CONTROL 10.10 FOREARM REST 10.11.01 SEAT, STANDARD 10.11.01[A] SEAT, STANDARD 10.11.02 SEAT, SUSPENSION 10.11.02[A] SEAT, SUSPENSION 10.11.03 SEATBELTS, OPTIONAL 10.11.04 ARM PAD & ARMREST KIT, STANDARD SEAT 10.12.01 BOOM & BUCKET FOOT CONTROL, HYDROSTATIC LEVERS 10.12.02 BOOM & BUCKET FOOT CONTROL KICK PANEL, LH 10.12.03 BOOM & BUCKET FOOT CONTROL KICK PANEL, RH 10.15.01 BOOM & BUCKET FOOT CONTROL PEDALS 10.15.02 BOOM & BUCKET HAND CONTROL PEDALS 10.16.01 BOOM & BUCKET HAND CONTROL, HYDROSTATIC LEVERS 10.16.02 BOOM & BUCKET HAND CONTROL, KICK PANEL, LH & RH 10.16.04 BOOM & BUCKET HAND CONTROL, TUNNEL COMPONENTS 10.19 BOOM & BUCKET HAND CONTROL KIT 10.20.01 MULTI-FUNCTION HANDLE, LH 10.20.02 MULTI-FUNCTION HANDLE, RH 10.21 MULTI-FUNCTION HANDLE CONTROL BOX 11.00 TIRES & WHEELS PICTORIAL INDEX 11.01 TIRES & WHEELS 12.00 CHASSIS PICTORIAL INDEX 12.01 CHASSIS 12.02 COUNTERWEIGHT KIT

Figure Search for LS180 SKID STEER LOADER (9/99- ) 12.03 REAR BUMPER KIT 18.00 ACCESSORIES & KITS PICTORIAL INDEX 18.01 CAB JACK KIT 18.02 TOOLS, THREADED INSERT 19.00 ATTACHMENTS PICTORIAL INDEX 19.01 BUCKETS & DIRT TOOTH KIT 19.02 UTILITY FORK & UNIVERSAL MOUNTING PLATE 19.03 TOOTH BARS 19.04 PALLET FORK & 2 PIECE MOUNTING ASSEMBLY 19.05 PALLET FORK & 1 PIECE MOUNTING ASSEMBLY 19.06 EUROPEAN ATTACHMENTS AAA[01] RECOMMENDED INITIAL PARTS STOCK LIST FOR 5 MACHINES AAA[02] PAINT

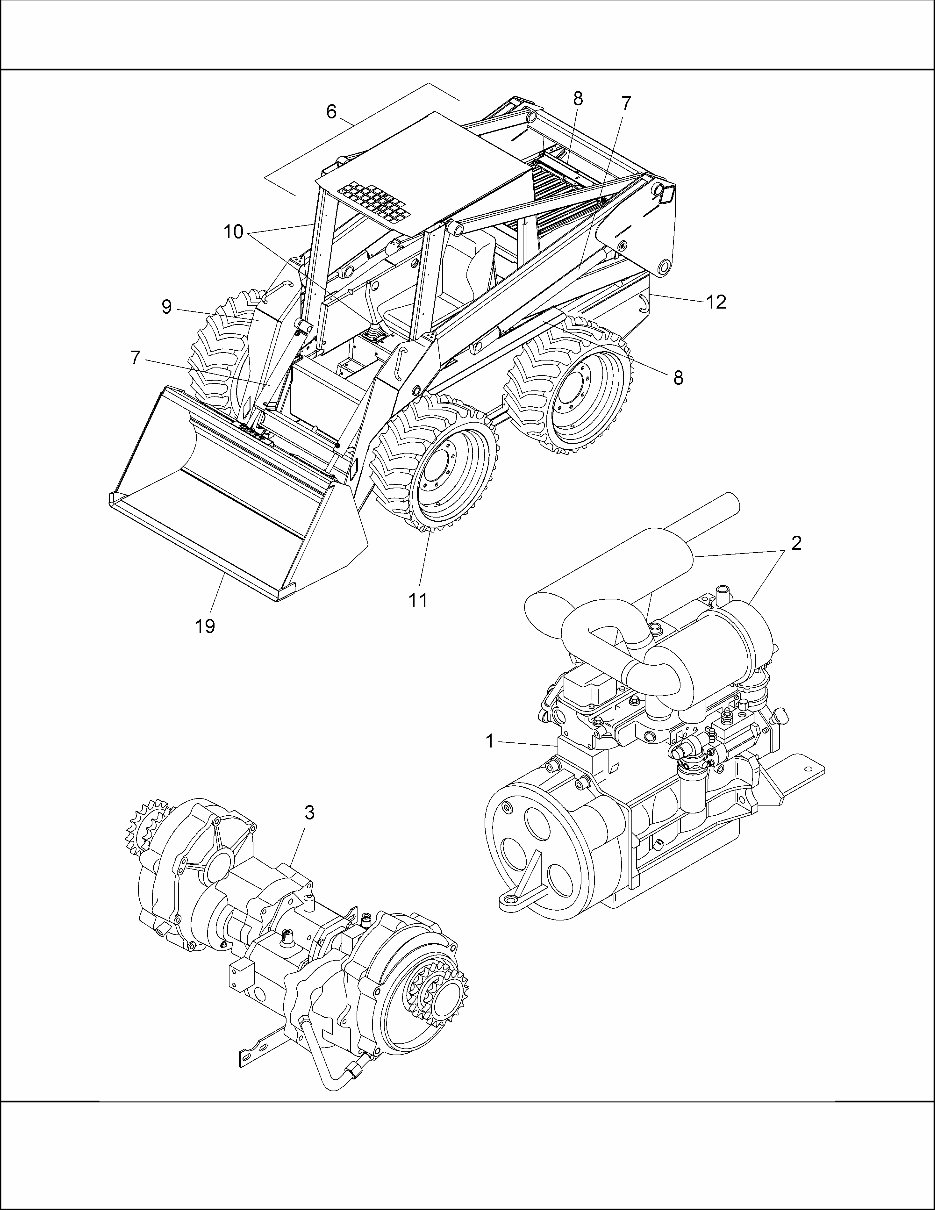

LS180 SKID STEER LOADER (9/99- ) 00.00 MAIN SECTIONS PICTORIAL INDEX

Ref Part Number Qty Description LS180 SKID STEER LOADER (9/99- ) 00.00 MAIN SECTIONS PICTORIAL INDEX

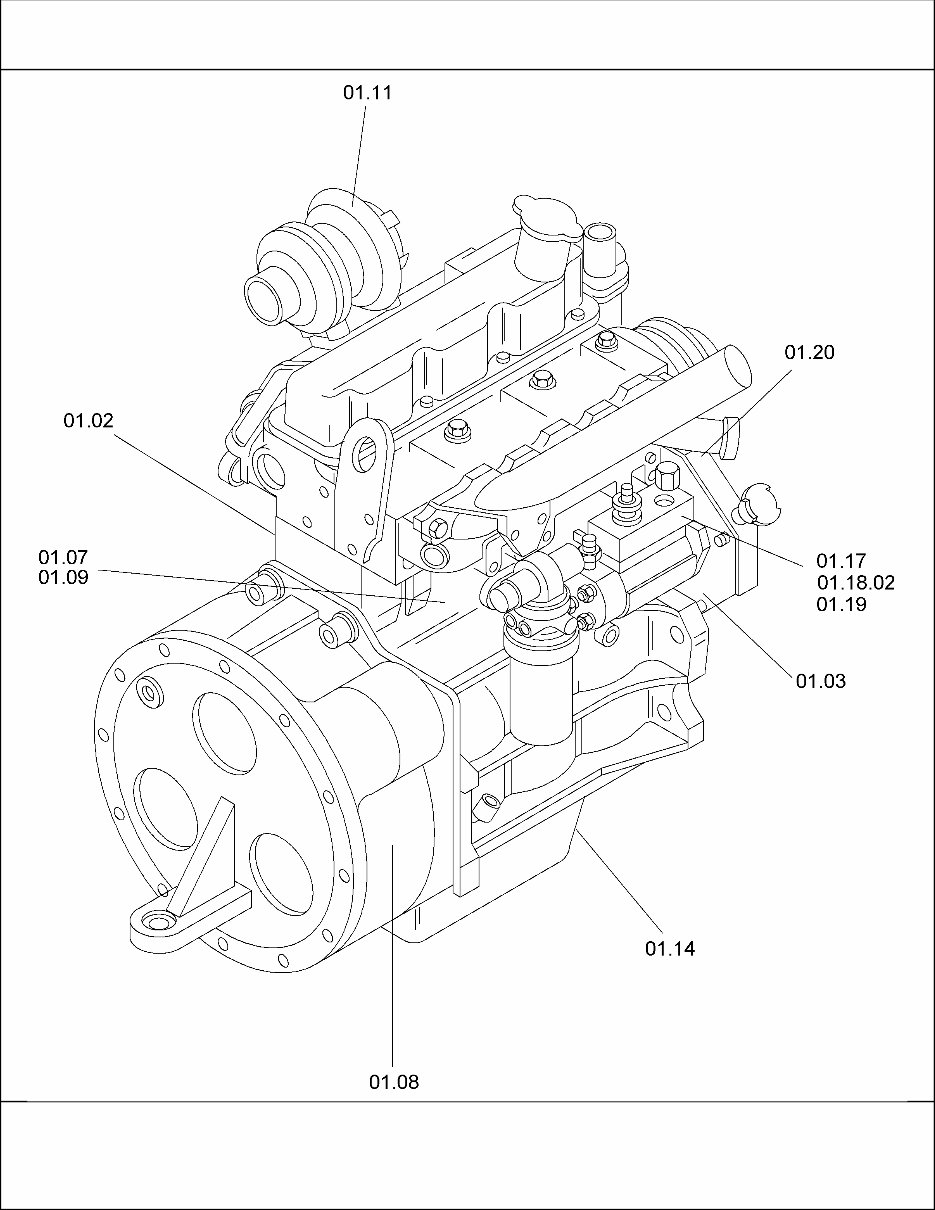

LS180 SKID STEER LOADER (9/99- ) 00.01 ENGINE PICTORIAL INDEX

Ref Part Number Qty Description LS180 SKID STEER LOADER (9/99- ) 00.01 ENGINE PICTORIAL INDEX
