Cat 216 226 228 236 246 248 Wiring Electrical Schematics Manual

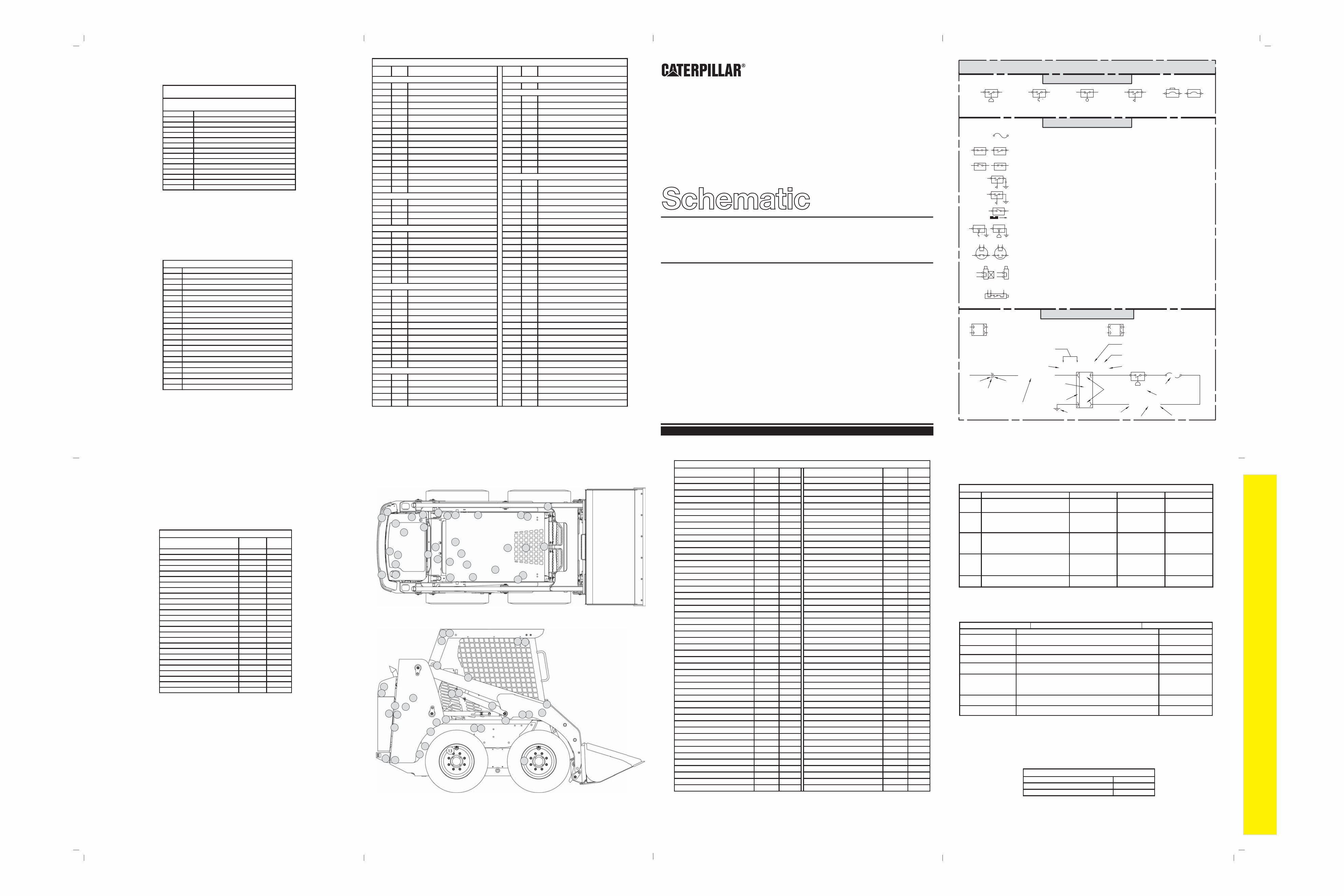

RENR2863-03 16 Page, (Dimensions: 34 inches x 24 inches) 1 2 200-L32 BK-14 AG-C4 111-7898 L-C12 3E-5179 C-C4 130-6795 9X-1123 Component Part Number Single Wire Connector Socket Pin AG-C3 130-6795 Pin or Socket Number Wire, Cable, or Harness Assembly Identification: Includes Harness Identification Letters and Harness Connector Serialization Codes Harness Connector Serialization Code: The "C" stands for "Connector" and the number indicates which connector in the harness. (C1, C2, C3, .....) Part Number For Connector Recepticle Part Number for Connector Plug Harness Identification Letter(s): (A, B, C, ..., AA, AB, AC, ...) Plug Ground Connection 325-AG135 PK-14 Circuit Identification Number Wire Color Wire Gauge Harness identification code: This example indicates wire 135 in harness "AG". Receptacle Pressure Symbol T Temperature Symbol Level Symbol Flow Symbol Circuit Breaker Symbol Harness and Wire Symbols 1 1 2 2 Sure-Seal connector: Typical representation of a Sure-Seal connector. The plug and receptacle contain both pins and sockets. Deutsch connector: Typical representation of a Deutsch connector. The plug contains all sockets and the receptacle contains all pins. Symbols Symbols and Definitions Harness And Wire Electrical Schematic Symbols Fuse (5 Amps) 5A Fuse: A component in an electrical circuit that will open the circuit if too much current flows through it. Switch (Normally Open): A switch that will close at a specified point (temp, press, etc.). The circle indicates that the component has screw terminals and a wire can be disconnected from it. Switch (Normally Closed): A switch that will open at a specified point (temp, press, etc.). No circle indicates that the wire cannot be disconnected from the component. Ground (Wired): This indicates that the component is connected to a grounded wire. The grounded wire is fastened to the machine. Ground (Case): This indicates that the component does not have a wire connected to ground. It is grounded by being fastened to the machine. Reed Switch: A switch whose contacts are controlled by a magnet. A magnet closes the contacts of a normally open reed switch; it opens the contacts of a normally closed reed switch. Sender: A component that is used with a temperature or pressure gauge. The sender measures the temperature or pressure. Its resistance changes to give an indication to the gauge of the temperature or pressure. T Relay (Magnetic Switch): A relay is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current flows through it. The electromagnet can open or close the switch part of the relay. Magnetic Latch Solenoid: A magnetic latch solenoid is an electrical component that is activated by electricity and held latched by a permanent magnet. It has two coils (latch and unlatch) that make electromagnet when current flows through them. It also has an internal switch that places the latch coil circuit open at the time the coil latches. Solenoid: A solenoid is an electrical component that is activated by electricity. It has a coil that makes an electromagnet when current flows through it. The electromagnet can open or close a valve or move a piece of metal that can do work. RENR2863-03 December 2008 216, 226, 228, 236, 246, and 248 Electrical System 216: 4NZ1-2499 226: 5FZ1-5199 246: 5SZ1-3999 248: 6LZ1-999 228: 6BZ1-699 236: 4YZ1-3999 Skid-Steer Loader © 2008 Caterpillar All Rights Reserved Printed in U.S.A. 16 18 23 17 24 27 28 13 14 15 20 21 22 25 26 33 1 2 3 4 5 6 7 8 9 10 11 12 19 29 30 31 32 34 19 26 32 33 34 1 2 3 4 5 6 7 8 9 10 11 12 14 15 20 21 29 30 31 16 17 18 24 25 27 28 22 23 Machine Harness Connector And Components Locations Connector Location Connector Number Schematic Location Machine Location CONN 1 A - 7 30 CONN 2 B - 7 1 CONN 3 Datalink D - 7 1 CONN 4 E - 7 31 CONN 5 E - 6 10 CONN 6 A - 6 3 CONN 7 A - 6 3 CONN 8 A - 6 3 CONN 9 B - 6 13 CONN 10 E - 5 10 CONN 11 E - 6 11 CONN 12 D - 6 11 CONN 13 C - 6 11 CONN 14 C - 6 11 CONN 15 A - 6 3 CONN 16 A - 6 3 CONN 17 E - 5 19 CONN 18 C - 3 14 CONN 19 C - 3 14 CONN 20 D - 2 11 CONN 21 B - 3 15 CONN 22 B - 2 17 CONN 23 D - 2 18 CONN 24 E - 2 23 CONN 25 E - 2 24 CONN 26 Tool E - 1 16 The connectors shown in this chart are for harness to harness connectors. Connectors that join a harness to a component are generally located at or near the component. See the Component Location Chart. Related Electrical Service Manuals Form Number RENR2893 RENR2864 Title Operator Interlock Control System Aux Hyd Control System Resistor, Sender and Solenoid Specifications Part No. Component Description Resistance (Ohms)¹ 142-8824 (For 216, 226, 228) Empty : 240 to 265 Full : 20 to 35 144-1644 6.36 ± 0.4 152-1123 9.4 154-3988 (For 236, 246, 248) Empty : 240 to 265 Full : 20 to 35 159-0748 10.5 167-7801 390 ± 19.5 169-5778 2.2 ± 0.2 ¹ At room temperature unless otherwise noted. Solenoid - High Flow Valve Sender - Fuel Level Solenoid - Implement Pilot Solenoid - Parking Brake Solenoid - Pressure Release Solenoid - Transmission Solenoid - Valve Group Implement Detent Resistor Sender - Fuel Level Solenoid - A1 Solenoid - A2 Component Identifiers (CID¹) Module Identifier (MID²) Auxiliary Hydraulic Control (MID No. 106) CID Component 0070 Parking Brake Limit Switch 0168 Electrical System Voltage 1180 No. 1 Auxiliary Modulating Valve 1181 No. 2 Auxiliary Modulating Valve 1182 No. 1 High Flow Solenoid Valve 1183 No. 2 High Flow Solenoid Valve 1184 Auxiliary Solenoid Valve 1185 High Flow Solenoid Valve 1186 High Flow Switch 1187 Continuous Flow Switch 1188 Interlock Override Switch 1189 Auxiliary Switch 1190 Armrest/Seat Switch 1228 Attachment Lockout Switch ¹ The CID is a diagnostic code that indicates which component is faulty. ² The MID is a diagnostic code that indicates which electronic control module diagnosed the fault. Wire Description Wire Number Wire Color Description Wire Number Wire Color Description Power Circuits Accessory Circuits (Continued) 101 RD Bat (+) C576 BU Stop Lamp Relay 102 BU Lighting Circuit Lighting Circuits 105 BR Key SW 603 PK Beacon 109 OR Alt Output (+) Term 604 OR Stop Lamp 110 GN Charger Pressure SW 605 YL Turn Lamp Left 112 PU Main Power Relay Output 606 GY Turn Lamp Right 114 GN Warning Horn (Forward) 608 GN Flood Lamp Rear 118 GY Wiper Power 610 OR Flood Lamp Front 120 YL Backup Alarm Power 614 PU Dash Lamps 122 BU Hour Meter Power 617 BR Tail / Marker Left 123 WH Fuel Level Gauge Power 618 YL Tail / Marker Right 124 GN Heater Power 619 GN Roading Lamp Low 126 PK Interlock Control Power 674 BU Parking Brake Lamp Relay Coil 127 OR Cold Start SW / Hyd Filter Lamp Relay Power 676 PU Armrest Lamp Relay Coil 128 PK Aux Hyd Control Power Control Circuits 144 GN Beacon SW / Rear Working Lamp SW Power 781 PK C1 Relay Coil 197 GN 4th Function Power 782 GY C2 Relay Coil Ground Circuits A751 YL Tool SW Power 200 BK Main Chassis A752 BR Tool Power 201 BK Operator Interlock Control (-) F780 PK Parking Brake SW 202 BK Relay Return 877 YL Cold Start Relay Output 203 BK Frame Ground 944 OR Data Link (+) Basic Machine Circuits 945 BR Data Link (-) 304 WH Starter Relay Output 975 WH Implement Detent Sol 306 GN Starter Relay Coil A958 WH Parking Brake Sol 307 OR Key SW To Interlock Control E917 WH Implement Lock Out SW 308 YL Main Power Relay Coil F905 YL Auto Leveler Sol 321 BR Backup Alarm / Backup Pressure SW G982 PK Interlock Override SW 322 GY Warning Horn SW G983 GN Armrest SW N/O 327 PK Fuel Shutdown Sol G984 PK Armrest SW N/C A309 GY Fuel Enable G985 PU Seat Switch Monitoring Circuits L987 WH Start Aid SW 403 GN Alternator (R) Term L998 OR A Sol Source 404 YL Hyd Oil Temp SW L999 GN Hi Flow Sol Source 405 GY Engine Oil SW M901 YL Interlock Override Lamp 406 PU Coolant Temp SW M903 GN Not Used 436 OR Hyd Filter Lamp M906 BU C1 Relay Output 439 YL Armrest Lamp M907 GY C2 Relay Output 442 GY Hyd Filter Bypass SW P978 GN A1 Sol 447 PK Fuel Level Sender P979 YL A2 Sol C444 YL Alternator Indicator Lamp P980 OR H1 Sol C457 BU Stop Pressure SW1 And SW2 P981 PU H2 Sol H416 GN Transmission Sol P982 BU Proportional SW H417 OR Parking Brake P983 GN Control SW H1 Accessory Circuits P984 YL Control SW H2 500 BR Wiper - Front (Park) P988 OR Implement Pilot Sol 501 GN Wiper - Front (Low) P993 OR Continuous Flow SW 506 PU Washer - Front P994 BU A2 Switch 536 WH Hazard / Turn SW P996 GN Proportional Signal 537 GN Turn Signal SW / Flasher P997 BR Proportional Sensor Return Failure Mode Identifiers (FMI)¹ FMI No. Failure Description 0 Data valid but above normal operational range 1 Data valid but below normal operational range 2 Data erratic, intermittent, or incorrect 3 Voltage above normal or shorted high 4 Voltage below normal or shorted low 5 Current below normal or open circuit 6 Current above normal or grounded circuit 7 Mechanical system not responding properly 8 Abnormal frequency, pulse width, or period 9 Abnormal update 10 Abnormal rate of change 11 Failure mode not identifiable 12 Bad device or component 13 Out of calibration 14 Parameter failures 15 Parameter failures 16 Parameter not available 17 Module not responding 18 Sensor supply fault 19 Condition not met 20 Parameter failures ¹The FMI is a diagnostic code that indicates what type of failure has occurred. Off Machine Switch Specification Part No. Function Actuate Deactuate Contact Position 142-9804 Hydraulic Oil Temperature 102 ± 3 °C (215.6 ± 37.4 °F) 90 °C MIN (194 °F) Normally Open ¹ 173-3837 Charger Pressure 1103 + 34.5 kPa 1103 - 69.0 kPa (160 + 5 psi) (160 - 10 psi) 827.5 kPa MIN (120 psi MIN) Normally Open ¹ 184-1564 Stop Pressure SW1 Stop Pressure SW2 375.9 + 37.8 kPa 375.9 - 58.6 kPa (54.5 + 5.5 psi) (54.5 - 8.5 psi) 263 kPa MIN (38.1 psi MIN) Normally Closed ¹ 192-0836 Backup Pressure 517.0 + 41.4 kPa 517.0 - 68.9 kPa (75.0 + 6.0 psi) (75.0 - 10.0 psi) 386.1 + 41.4 kPa 386.1 - 68.9 kPa (56.0 + 6.0 psi) (56.0 - 10.0 psi) Normally Open ¹ 7X-8549 Filter Bypass 110.3 to 137.9 kPa (16 to 20 psi) 86.2 to 103.4 kPa (12.5 to 15 psi) Normally Open ¹ Contact position at the contacts of the harness connector. Component Location Component Schematic Location Machine Location Component Schematic Location Machine Location Alarm - Backup E - 7 31 Relay - Armrest Lamp A - 5 1 Alternator B - 7 5 Relay - C1 A - 5 1 Arc Suppressor A - 4 20 Relay - C2 A - 4 1 Battery A - 7 2 Relay - Cold Start C - 7 1 Beacon D - 4 34 Relay - Hyd Filter Lamp A - 5 1 Breaker - Lighting C - 7 1 Relay - Main Power C - 7 1 Breaker - Main B - 6 1 Relay - Parking Brake Lamp A - 5 1 Control - Aux Hyd Hardware C - 2 28 Relay - Start B - 7 1 Control - Operator Interlock C - 5 20 Relay - Stop Lamp A - 6 1 Filter - Hour Meter E - 3 23 Resistor C - 2 28 Flasher C - 7 1 Sender - Fuel Level E - 6 12 Fuses - 10A, 15A, 20A B - 5 21 Solenoid - Auto Leveler B - 6 8 Gauge - Fuel Level A - 3 22 Solenoid - A1 D - 6 14 Glow Plugs C - 7 9 Solenoid - A2 D - 6 14 Ground - Cab D - 4 19 Solenoid - Fuel Shutdown B - 7 8 Ground - Engine C - 5 7 Solenoid - High Flow D - 6 14 Ground - Lower Frame C - 6 13 Solenoid - Implement Pilot E - 6 14 Ground - Lower Frame 2 13 Solenoid - Park Brake E - 6 14 Ground - Upper Frame D - 6 D - 6 10 Solenoid - Pressure Rel D - 6 14 Ground - Upper Frame 2 D - 4 10 Solenoid - Transmission E - 6 14 Handle - Horn LH D - 2 18 Starter A - 7 7 Handle - LH D - 2 10 Switch - Armrest B - 3 26 Handle - RH B - 2 17 Switch - Auto Leveler D - 3 23 Handle - RH Proportional B - 2 17 Switch - Backup Press D - 2 18 Heater Unit B - 3 24 Switch - Beacon A - 3 22 Heater - Water Jacket D - 7 20 Switch - Charge Pressure B - 7 29 Horn - Front E - 5 4 Switch - Cold Start D - 2 23 Hour Meter E - 2 23 Switch - Continuous Flow D - 3 23 Hour Meter Filter E - 3 23 Switch - Coolant Temp B - 7 5 Jumper - Rear LH E - 7 10 Switch - Engine Oil Pressure B - 7 4 Jumper - Rear RH A - 7 2 Switch - Filter Bypass B - 6 6 Lamp - Dome A - 3 22 Switch - Front Working Lamp A - 2 22 Lamp - GP 2 E - 3 23 Switch - Hazard A - 3 22 Lamp - GP Fault E - 3 23 Switch - High Flow E - 2 23 Lamp - GP Function B - 3 22 Switch - Hyd Oil Temp E - 6 11 Lamp - LH Flood E - 2 23 Switch - Implement Lockout A - 3 22 Lamp - LH Head / Turn D - 1 23 Switch - Interlock Override D - 2 23 Lamp - LH Rear Flood E - 5 32 Switch - Key Start D - 3 23 Lamp - Rear LH E - 7 31 Switch - Parking Brake D - 2 23 Lamp - Rear RH A - 7 30 Switch - Rear Working Lamps B - 2 22 Lamp - Rear Stop / Tail / Turn LH E - 7 31 Switch - Roading Lamp A - 2 22 Lamp - Rear Stop / Tail / Turn RH A - 7 30 Switch - Seat B - 3 27 Lamp - RH Flood B - 2 22 Switch - Stop Press (SW1) A - 6 3 Lamp - RH Head / Turn B - 1 22 Switch - Stop Press (SW2) A - 6 3 Lamp - RH Rear Flood A - 5 33 Switch - Tool D - 3 23 Motor - Washer E - 1 24 Switch - Turn Signal A - 2 22 Motor - Wiper E - 1 24 Switch - Wiper / Washer E - 1 24 Power Junction B - 4 20 Valve - Implement Detent B - 2 17 Relay - Fuel Shutdown B - 7 1 Water Pump E - 6 5 Machine locations are repeated for components located close together.

RENR2863-03 16 Page, (Dimensions: 34 inches x 24 inches) THIS SCHEMATIC IS FOR THE 216, 226, 228, 236, 246, and 248 SKID-STEER LOADER PART NUMBER: 152-1271, CHANGE: 04, VERSION: - Components are shown installed on a fully operable machine. Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations. A B C D E 1 2 3 4 5 6 7 A B C D E 1 2 3 4 5 6 7 SYMBOL DESCRIPTION BLADE, SPADE, RING OR SCREW TERMINAL CIRCUIT CONNECTED CIRCUIT NOT CONNECTED ELECTRICAL CONNECTION TO MACHINE STRUCTURE INTERNAL ELECTRICAL CONNECTION TO SURFACE OF COMPONENT CONNECTOR ATCH WIRE, CABLE, COMPONENT CIRCUIT CONNECTED SPLICE CIRCUIT GROUPING DESIGNATION H# ABBREV RD WH OR YL PK BK GY PU BR GN BU COLOR RED WHITE ORANGE YELLOW PINK BLACK GRAY PURPLE BROWN GREEN BLUE COLOR ABBREVIATIONS WIRE GROUP COLOR DESCRIPTIONS GROUND CIRCUIT WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS OFF WIRES THAT HAVE SYSTEM VOLTAGE WHEN THE KEY SWITCH IS ON STARTING CIRCUIT START AID CIRCUIT MONITOR CIRCUIT OPERATOR INTERLOCK CONTROL CIRCUIT TURN SIGNAL / WIPER WASHER CIRCUIT CAT DATA LINK AUXILIARY HYDRAULIC CONTROL CIRCUIT OTHER COLOR DESCRIPTIONS HIGHWAYS FUSES 113-8490 - 10A 113-8491 - 15A 113-8492 - 20A 606-H7 GY-18 200-H10 BK-18 200-H1 200-H1 BK-18 605-H4 YL-18 605-H4 YL-18 606-H7 GY-18 200-H5 123-F93 WH-18 123-F93 WH-18 201-F91 BK-18 201-F91 BK-18 112-A36 PU-6 447-A15 PK-18 404-A3 YL-18 404-A3 YL-18 447-A15 PK-18 605-H4 YL-18 606-H7 GY-18 200-H10 BK-18 BK-18 200-F99BK-16 614-F3 PU-18 614-F5 PU-18 614-F7 PU-18 614-F9 PU-18 614-F11 PU-18 614-F13 PU-18 200-F4 BK-18 200-F6 BK-18 200-F8 BK-18 200-F10 BK-18 200-F12 BK-18 200-F14 BK-18 200-F15 BK-18 614-F16 PU-18 614-F2 PU-18 614-F19 PU-18 200-F1 BK-18 200-F20 BK-18 200-F20 BK-18 614-F2 PU-18 200-F1 BK-18 614-F19 PU-18 200-F21 BK-18 610-F22 OR-18 610-F22 OR-18 610-F23 OR-18 610-F23 OR-18 200-F21 BK-18 610-F23 OR-18 200-F21 BK-18 619-F25 GN-18 619-F26 GN-18 619-F26 GN-18 606-F32 GY-18 606-F32 GY-18 606-F30 GY-18 606-F30 GY-18 610-F22 OR-18 619-F25 GN-18 610-F22 OR-18 614-F19 PU-18 619-F25 GN-18 610-F22 OR-18 619-F25 GN-18 619-F25 GN-18 536-F33 WH-18 614-F16 PU-18 200-F15 BK-18 619-F26 GN-18 606-F32 GY-18 614-F43 PU-18 614-F45 PU-18 614-F47 PU-18 614-F49 PU-18 614-F51 PU-18 200-F44 BK-18 200-F46 BK-18 200-F48 BK-18 200-F50 BK-18 200-F52 BK-18 200-F53 BK-18 614-F54 PU-18 605-F40 YL-18 605-F40 YL-18 605-F40 YL-18 605-F40 YL-18 605-F40 YL-18 610-F29 OR-18 610-F29 OR-18 610-F29 OR-18 619-F37 GN-18 605-F41 YL-18 605-F41 YL-18 605-F41 YL-18 200-F99 BK-16 200-F59 BK-18 200-F59 BK-18 200-F59 BK-18 200-F59 BK-18 614-F78 PU-18 614-F78 PU-18 203-F55 BK-18 203-F57 BK-18 203-F57 BK-18 203-F57 BK-18 203-F57 BK-18 123-F64 WH-18 123-F64 WH-18 123-F64 WH-18 123-F65 WH-18 123-F65 WH-18 123-F65 WH-18 123-F65 WH-18 123-F65 WH-18 123-F66 WH-18 123-F66 WH-18 123-F66 WH-18 123-F66 WH-18 123-F66 WH-18 200-F20 BK-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 608-F69 GN-18 603-F71 PK-18 603-F71 PK-18 603-F71 PK-18 603-F71 PK-18 144-F72 GN-16 144-F72 GN-16 144-F72 GN-16 144-F72 GN-16 144-F72 GN-16 102-F73 RD-18 102-F73 RD-18 102-F73 RD-18 102-F73 RD-18 102-F73 RD-18 102-F73 RD-18 537-F74 GN-18 537-F74 GN-18 537-F74 GN-18 537-F74 GN-18 537-F74 GN-18 122-F75 RD-18 122-F75 RD-18 122-F75 RD-18 122-F75 RD-18 C444-F76 YL-18 C444-F76 YL-18 C444-F76 YL-18 C444-F76 YL-18 C444-F76 YL-18 C444-F76 YL-18 436-F28 OR-18 436-F28 OR-18 436-F28 OR-18 436-F28 OR-18 436-F28 OR-18 436-F28 OR-18 447-F79 PK-18 447-F79 PK-18 447-F79 PK-18 447-F79 PK-18 447-F79 PK-18 447-F79 PK-18 200-F80 BK-18 200-F80 BK-18 200-F80 BK-18 200-F81 BK-16 200-F81 BK-16 200-F81 BK-16 200-F81 BK-16 200-F82 BK-16 200-F82 BK-16 200-F82 BK-16 200-F82 BK-16 606-F83 GY-18 606-F83 GY-18 606-F83 GY-18 606-F83 GY-18 200-F60 BK-18 200-F60 BK-18 200-F60 BK-18 200-F60 BK-18 200-F58 BK-18 200-F58 BK-18 200-F58 BK-18 A751-F86 YL-16 A751-F86 YL-16 A751-F86 YL-16 A751-F86 YL-16 A751-F86 YL-16 A752-F87 BR-16 A752-F87 BR-16 A752-F87 BR-16 A752-F87 BR-16 P983-F88 GN-18 P983-F88 GN-18 P983-F88 GN-18 P983-F88 GN-18 P983-F88 GN-18 P984-F89 YL-18 P984-F89 YL-18 P984-F89 YL-18 P984-F89 YL-18 G982-F90 PK-18 G982-F90 PK-18 G982-F90 PK-18 G982-F90 PK-18 G982-F90 PK-18 G982-F90 PK-18 L987-F94 WH-18 L987-F94 WH-18 F780-F95 PK-18 F780-F95 PK-18 F780-F95 PK-18 F780-F95 PK-18 F780-F95 PK-18 F780-F95 PK-18 118-F96 GY-18 118-F96 GY-18 118-F96 GY-18 118-F96 GY-18 F905-F97 YL-18 F905-F97 YL-18 F905-F97 YL-18 F905-F97 YL-18 F905-F97 YL-18 105-F98 RD-18 105-F98 RD-18 105-F98 RD-18 105-F98 RD-18 105-F98 RD-18 307-F100 OR-18 307-F100 OR-18 307-F100 OR-18 307-F100 OR-18 307-F100 OR-18 308-F102 YL-18 308-F102 YL-18 308-F102 YL-18 308-F102 YL-18 308-F102 YL-18 H417-F77 OR-18 H417-F77 OR-18 H417-F77 OR-18 H417-F77 OR-18 H417-F77 OR-18 439-F103 YL-18 439-F103 YL-18 439-F103 YL-18 439-F103 YL-18 439-F103 YL-18 405-F61 GY-18 405-F61 GY-18 405-F61 GY-18 405-F61 GY-18 405-F61 GY-18 122-F107RD-18 122-F107 RD-18 122-F75 RD-18 122-F104 RD-18 122-F104 RD-18 122-F104 RD-18 122-F104 RD-18 M901-F67 YL-18 M901-F67 YL-18 M901-F67 YL-18 M901-F67 YL-18 M903-F105 GN-18 M903-F105 GN-18 M903-F105 GN-18 M903-F105 GN-18 M903-F105 GN-18 404-F106 YL-18 404-F106 YL-18 404-F106 YL-18 404-F106 YL-18 404-F106 YL-18 406-F108 PU-18 406-F108 PU-18 406-F108 PU-18 406-F108 PU-18 406-F108 PU-18 118-F68 GY-14 118-F68 GY-14 118-F109 GY-18 118-F109 GY-18 118-F109 GY-18 118-F109 GY-18 403-F110 GN-18 403-F110 GN-18 403-F110 GN-18 403-F110 GN-18 403-F110 GN-18 200-F111 BK-18 200-F111 BK-18 200-F111 BK-18 200-F111 BK-18 200-F112 BK-18 200-F112 BK-18 200-F112 BK-18 614-F19 PU-18 614-F19 PU-18 E917-F85 WH-18 E917-F85 WH-18 E917-F85 WH-18 201-F91 BK-18 201-F56 BK-18 201-F56 BK-18 201-F56 BK-18 201-F56 BK-18 201-F63 BK-18 203-F57 BK-18 200-F42 BK-18 200-F42 BK-18 126-C41 PK-18 126-C41 PK-18 126-C41 PK-18 403-C2 GN-18 403-C2 GN-18 406-C3 PU-18 406-C3 PU-18 406-C3 PU-18 403-C2 GN-18 404-C5 YL-18 404-C5 YL-18 404-C5 YL-18 M901-C7 YL-18 M901-C7 YL-18 M901-C7 YL-18 405-C8 GY-18 405-C8 GY-18 405-C8 GY-18 439-C9 YL-18 439-C9 YL-18 H417-C10 OR-18 308-C12 YL-18 200-C11 BK-16 105-C14 RD-18 105-C14 RD-18 105-C14 RD-18 F905-C15 YL-18 F905-C15 YL-18 F905-C15 YL-18 118-C16 GY-14 118-C16 GY-14 118-C16 GY-14 F780-C17 PK-18 F780-C17 PK-18 G982-C21 PK-18 G982-C21 PK-18 G982-C21 PK-18 P984-C22 YL-18 P984-C22 YL-18 P984-C22 YL-18 P983-C23 GN-18 P983-C23 GN-18 P983-C23 GN-18 A752-C24 BR-16 A752-C24 BR-16 A752-C24 BR-16 A751-C25 YL-16 A751-C25 YL-16 A751-C25 YL-16 606-C28 GY-18 606-C28 GY-18 606-C28 GY-18 200-C29 BK-16 200-C30 BK-16 447-C31 PK-18 447-C31 PK-18 447-C31 PK-18 436-C32 OR-18 436-C32 OR-18 436-C32 OR-18 C444-C33 YL-18 144-C37 GN-16 144-C37 GN-16 144-C37 GN-16 608-C40 GN-18 200-C47 BK-18 608-C57 GN-18 608-C58 GN-18 608-C58 GN-18 608-C58 GN-18 200-C45 BK-18 200-C45 BK-18 200-C45 BK-18 124-C50 GN-14 124-C50 GN-14 124-C50 GN-14 200-C44 BK-14 200-C44 BK-14 G984-C48 PK-18 G984-C48 PK-18 G984-C48 PK-18 G984-C48 PK-18 G985-C49 PU-18 G985-C49 PU-18 G985-C49 PU-18 G985-C49 PU-18 201-C51 BK-18 201-C51 BK-18 201-C52 BK-18 201-C52 BK-18 975-C53 WH-18 975-C53 WH-18 975-C53 WH-18 975-C53 WH-18 307-C13 OR-18 307-C13 OR-18 307-C13 OR-18 H416-C54 GN-18 H416-C54 GN-18 H416-C54 GN-18 H416-C54 GN-18 P988-C55 OR-18 P988-C55 OR-18 P988-C55 OR-18 P988-C55 OR-18 A958-C56 WH-18 A958-C56 WH-18 A958-C56 WH-18 A958-C56 WH-18 306-C60 GN-18 306-C60 GN-18 306-C60 GN-18 306-C60 GN-18 202-C59 BK-18 202-C59 BK-18 202-C59 BK-18 126-C41 PK-18 110-C65 GN-18 110-C65 GN-18 110-C65 GN-18 110-C65 GN-18 120-C66 YL-18 120-C66 YL-18 120-C66 YL-18 120-C66 YL-18 128-C67 PK-18 128-C67 PK-18 128-C67 PK-18 128-C67 PK-18 200-C42 BK-18 200-C42 BK-18 112-C82 PU-10 112-C83 PU-12 112-C84 PU-10 112-C85 PU-10 112-C86 PU-10 118-C16 GY-14 120-C66 YL-18 126-C41 PK-18 124-C50 GN-14 144-C37 GN-16 A751-C25 YL-16 105-C14 RD-18 436-C32 OR-18 782-C92 GY-18 782-C92 GY-18 782-C92 GY-18 781-C93 PK-18 781-C93 PK-18 781-C93 PK-18 M906-C94 BU-16 M906-C94 BU-16 M906-C94 BU-16 M906-C94 BU-16 M906-C94 BU-16 M907-C95 GY-16 M907-C95 GY-16 M907-C95 GY-16 M907-C95 GY-16 M907-C95 GY-16 442-C96 GY-18 442-C96 GY-18 442-C96 GY-18 442-C96 GY-18 442-C96 GY-18 128-J1PK-18 203-J2 BK-18 203-J2 BK-18 P981-J3 PU-18 P981-J3 PU-18 P980-J5 OR-18 P980-J5 OR-18 M901-J4 YL-18 L999-J6 GN-18 L999-J6 GN-18 P984-J7 YL-18 P984-J7 YL-18 P983-J8 GN-18 P983-J8 GN-18 P978-J9 GN-18 P978-J9 GN-18 L998-J10 OR-18 L998-J10 OR-18 P996-J11 GN-18 P996-J11 GN-18 P979-J12 YL-18 P979-J12 YL-18 P997-J13 BR-18 P997-J13 BR-18 G982-J14 PK-18 G982-J14 PK-18 P982-J15 BU-18 P982-J15 BU-18 G985-J16 PU-18 G985-J16 PU-18 G984-J17 PK-18 G984-J17 PK-18 P982-A49 BU-18 P982-A49 BU-18 P982-A49 BU-18 P996-A47 GN-18 P996-A47 GN-18 P996-A47 GN-18 P994-A48 BU-18 P994-A48 BU-18 P994-A48 BU-18 112-A36 PU-6 782-A32 GY-18 782-A32 GY-18 782-A32 GY-18 782-A32 GY-18 781-A33 PK-18 781-A33 PK-18 781-A33 PK-18 781-A33 PK-18 197-A30 GN-18 197-A30 GN-18 197-A30 GN-18 197-A30 GN-18 614-F38 PU-18 614-F38 PU-18 614-F38 PU-18 614-F38 PU-18 605-F31 YL-18 605-F31 YL-18 605-F31 YL-18 605-F31 YL-18 605-C38 YL-18 605-C38 YL-18 605-C38 YL-18 201-C97 BK-18 605-A8 YL-18 605-A8 YL-18 605-A8 YL-18 617-A31 BR-18 617-A31 BR-18 617-A31 BR-18 403-A1 GN-18 403-A1 GN-18 403-A1 GN-18 406-A2 PU-18 406-A2 PU-18 406-A2 PU-18 M901-A5 YL-18 M901-A5 YL-18 M901-A5 YL-18 M901-A5 YL-18 405-A6 GY-18 405-A6 GY-18 405-A6 GY-18 308-A7 YL-18 308-A7 YL-18 308-A7 YL-18 G982-A10 PK-18 G982-A10 PK-18 G982-A10 PK-18 G982-A10 PK-18 P984-A11 YL-18 P984-A11 YL-18 P984-A11 YL-18 P984-A11 YL-18 P983-A12 GN-18 P983-A12 GN-18 P983-A12 GN-18 P983-A12 GN-18 606-A16 GY-18 606-A16 GY-18 606-A16 GY-18 C444-A17 YL-18 C444-A17 YL-18 C444-A17 YL-18 442-A18 GY-18 442-A18 GY-18 H416-A20 GN-18 H416-A20 GN-18 P988-A21 OR-18 P988-A21 OR-18 P988-A21 OR-18 A958-A22 WH-18 A958-A22 WH-18 306-A23 GN-18 306-A23 GN-18 306-A23 GN-18 202-A24 BK-18 202-A24 BK-18 202-A24 BK-18 110-A25 GN-18 128-A27 PK-18 128-A27 PK-18 128-A27 PK-18 975-A37 WH-18 975-A43 WH-18 975-A19 WH-18 975-A19 WH-18 975-A19 WH-18 975-A37 WH-18 A958-A22 WH-18 A752-A13 BR-16 A752-A13 BR-16 L998-A41 OR-18 L998-A42 OR-18 L999-A39 GN-18 L999-A40 GN-18 404-A3 YL-18 447-A15 PK-18 A752-A13 BR-16 A958-A22 WH-18 H416-A20 GN-18 975-A19 WH-18 P988-A21 OR-18 110-A25 GN-18 308-A7 YL-18 C444-A17 YL-18 403-A1 GN-18 406-A2 PU-18 405-A6 GY-18 306-A23 GN-18 202-A24 BK-18 112-A36 PU-6 605-A8 YL-18 617-A31 BR-18 606-A16 GY-18 442-A18 GY-18 P983-A12 GN-18 M901-A5 YL-18 197-A30 GN-18 782-A32 GY-18 781-A33 PK-18 G982-A10 PK-18 P984-A11 YL-18 128-A27 PK-18 M906-A34 BU-16 M906-A34 BU-16 M906-A34 BU-16 M907-A35 GY-16 M907-A35 GY-16 M907-A35 GY-16 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L999-A46 GN-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 L998-A67 OR-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P978-A50 GN-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P979-A51 YL-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P980-A52 OR-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 P981-A53 PU-18 G985-A56 PU-18 G985-A56 PU-18 G985-A56 PU-18 G985-A56 PU-18 G985-A56 PU-18 G984-A57 PK-18 G984-A57 PK-18 G984-A57 PK-18 G984-A57 PK-18 G984-A57 PK-18 203-A55 BK-18 203-A55 BK-18 322-A63 GY-18 322-A63 GY-18 322-A63 GY-18 322-A63 GY-18 322-A63 GY-18 322-A63 GY-18 322-A63 GY-18 200-A66 BK-18 200-A68 BK-16 200-A69 BK-16 200-A70 BK-18 200-A71 BK-16 200-A71 BK-16 200-A71 BK-16 200-A71 BK-16 200-A72 BK-18 200-A72 BK-18 200-A72 BK-18 200-A72 BK-18 F905-A74 YL-18 F905-A74 YL-18 F905-A74 YL-18 F905-A74 YL-18 200-A75 BK-18 200-A75 BK-18 200-A75 BK-18 200-A75 BK-18 G983-C98 GN-18 123-F62 WH-18 123-F62 WH-18 123-F62 WH-18 123-F62 WH-18 120-A26 YL-18 120-A26 YL-18 120-A26 YL-18 120-A26 YL-18 120-A26 YL-18 E917-C99 WH-18 E917-C99WH-18 P988-A28 OR-18 P988-A28 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 P988-A44 OR-18 H417-C10 OR-18 H417-C10 OR-18 H417-C10 OR-18 439-C9 YL-18 439-C9 YL-18 201-C75 BK-18 201-C27 BK-18 201-C27 BK-18 201-C27 BK-18 674-C106 BU-18 674-C106 BU-18 674-C106 BU-18 674-C106 BU-18 674-C106 BU-18 676-C105 PU-18 676-C105 PU-18 676-C105 PU-18 676-C105 PU-18 676-C105 PU-18 G984-C102 PK-18 G985-C103 PU-18 G984-C104 PK-18 G984-C104 PK-18 G984-C104 PK-18 G984-C104 PK-18 G985-C100 PU-18 G985-C100 PU-18 G985-C100 PU-18 G985-C100 PU-18 200-C73 BK-18 200-C73 BK-18 E917-C4 WH-18 E917-C4 WH-18 E917-C6 WH-18 E917-C6 WH-18 E917-C6 WH-18 F780-C43 PK-18 F780-C43 PK-18 F780-C72 PK-18 F780-C72 PK-18 F780-C72 PK-18 202-C71 BK-18 202-C71 BK-18 202-C81 BK-18 202-C81 BK-18 202-C81 BK-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 975-A38 WH-18 202-A103 BK-18 202-A103 BK-18 202-A103 BK-18 F780-A101 PK-18 F780-A101 PK-18 F780-A101 PK-18 F780-A101 PK-18 F780-A101 PK-18 E917-A100 WH-18 E917-A100 WH-18 E917-A100 WH-18 E917-A100 WH-18 E917-A100 WH-18 200-A92 BK-18 200-A92 BK-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 944-A59 OR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 945-A98 BR-18 203-A93 BK-18 203-A93 BK-18 203-A93 BK-18 203-A93 BK-18 128-A99 PK-18 128-A99 PK-18 128-A99 PK-18 128-A99 PK-18 128-A99 PK-18 128-A99 PK-18 128-A99 PK-18 321-L7 BR-18 120-L6 YL-18 114-L4 RD-18 322-L5 GY-18 197-L3GN-18 781-L2 PK-18 782-L1 GY-18 P997-M1 BR-14 P997-M3 BR-18 P997-M4 BR-18 975-M2 WH-18 P988-M8 OR-18 P996-M7 GN-18 P994-M6 BU-18 P982-M5 BU-18 F780-J20 PK-18 F780-J20 PK-18 E917-J21 WH-18 E917-J21 WH-18 944-J18 OR-18 945-J22 BR-18 112-A36 PU-6 112-A36 PU-6 112-A36 PU-6 112-A36 PU-6 109-A4 RD-6 109-A4 RD-6 109-A4 RD-6 945-A98 BR-18 944-A59 OR-18 203-A93 BK-18 128-A99 PK-18 112-A36 PU-6 109-A4 RD-6 101-A54 RD-12 101-A54 RD-12 101-A54 RD-12 101-A54 RD-12 308-A62 YL-14 308-A58 YL-18 308-A58 YL-18 200-A92 BK-18 200-A94 BK-18 200-A94 BK-18 200-A94 BK-18 200-A60 BK-18 200-A60 BK-18 200-A60 BK-18 537-A78 GN-18 537-A78 GN-18 537-A78 GN-18 537-A78 GN-18 537-A78 GN-18 618-A79 YL-18 618-A79 YL-18 618-A79 YL-18 618-A79 YL-18 109-A80 RD-18 109-A80 RD-18 109-A80 RD-18 109-A80 RD-18 109-A80 RD-18 109-A81 RD-18 109-A81 RD-18 109-A81 RD-18 109-A81 RD-18 109-A81 RD-18 101-E1 RD-4 308-E2 YL-18 202-E3 BK-18 306-E12 GN-18 200-E13 BK-18 200-E13 BK-18 308-E2 YL-18 200-E13 BK-18 200-E14 BK-18 200-E14 BK-18 110-E15 GN-18 110-E15 GN-18 406-E16 PU-18 406-E16 PU-18 406-E16 PU-18 405-E17 GY-18 405-E17 GY-18 405-E17 GY-18 403-E5 GN-18 403-E5 GN-18 C444-E4 YL-18 C444-E4 YL-18 109-E10 RD-6 CBL-CA1 BK-00 200-A87 BK-16 200-A87 BK-16 200-A87 BK-16 102-A95 RD-18 102-A95 RD-18 102-A95 RD-18 102-A95 RD-18 128-A88 PK-18 203-A89 BK-18 114-C70 RD-18 114-C70 RD-18 114-C70 RD-18 197-C80 GN-16 197-C80 GN-16 197-C80GN-16 197-C36GN-16 197-C36 GN-16 197-C36 GN-16 197-C34GN-16 197-C34 GN-16 197-C34 GN-16 197-C35GN-16 197-C35 GN-16 197-C35 GN-16 127-C61 OR-18 127-C61 OR-18 127-C61OR-18 127-C39OR-18 127-C39 OR-18 127-C46OR-18 127-C46 OR-18 127-C46 OR-18 109-C74 RD-18 109-C74 RD-18 109-C74 RD-18 109-C74 RD-18 109-C74 RD-18 109-C76 RD-18 109-C76 RD-18 109-C76 RD-18 109-C76 RD-18 109-C76 RD-18 122-C78 RD-18 122-C78 RD-18 122-C78 RD-18 122-C78 RD-18 201-C79 BK-18 201-C79 BK-18 201-C79 BK-18 123-C1 WH-18 123-C1 WH-18 123-C1WH-18 123-C87WH-18 123-C87 WH-18 123-C87 WH-18 123-C88WH-18 123-C88 WH-18 109-A86 RD-18 109-A86 RD-18 109-A86 RD-18 109-A86 RD-18 109-A86 RD-18 109-C68 RD-18 109-C68 RD-18 109-C68 RD-18 109-C68 RD-18 109-C68 RD-18 102-C18 RD-18 102-C18 RD-18 102-C18 RD-18 537-C69 GN-18 537-C69 GN-18 537-C69 GN-18 128-C67 PK-18 614-C20 PU-18 614-C20 PU-18 614-C20 PU-18 614-C20 PU-18 112-C89 PU-12 617-C91 BR-18 617-C91 BR-18 617-C91 BR-18 617-C91 BR-18 617-C91 BR-18 618-C90 YL-18 618-C90 YL-18 618-C90 YL-18 618-C90 YL-18 197-L9 GN-18 197-L8 GN-18 203-F57 BK-18 203-F55 BK-18 P983-F88 GN-18 P984-F89 YL-18 P984-F89 YL-18 L987-F94 WH-18 114-A29 RD-18 114-A29 RD-18 114-A29 RD-18 114-A29 RD-18 114-A29 RD-18 200-A61 BK-18 200-A61 BK-18 606-F30 GY-18 606-F30 GY-18 606-F30 GY-18 102-A73 RD-18 304-E9 WH-10 618-H8 YL-18 618-H8 YL-18 617-H3 BR-18 617-H3 BR-18 617-H3 BR-18 321-H11 BR-18 321-H11 BR-18 321-H11 BR-18 200-H6 BK-18 200-H6 BK-18 BK-18 200-A87 BK-16 200-A92 BK-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 321-A45 BR-18 L987-A64 WH-18 L987-A64 WH-18 L987-A64 WH-18 L987-A64 WH-18 200-A76 BK-18 200-A77 BK-18 P994-J19 BU-18 P994-J19 BU-18 P997-A96 BR-18 P997-A96 BR-18 P997-A96 BR-18 A752-F87 BR-16 201-F63 BK-18 201-F63 BK-18 201-F63 BK-18 E917-F85 WH-18 E917-F85 WH-18 E917-F85 WH-18 E917-F85 WH-18 L987-C116 WH-18 L987-C116 WH-18 L987-F92 WH-18 L987-F92 WH-18 L987-F92 WH-18 L987-F92 WH-18 203-C101 BK-18 203-C101 BK-18 203-C101 BK-18 200-F101 BK-18 200-F101 BK-18 200-F101 BK-18 200-F101 BK-18 102-F73 RD-18 610-F22 OR-18 614-F19 PU-18 537-F74 GN-18 537-F74 GN-18 144-F70 GN-18 144-F70 GN-18 144-F70 GN-18 144-F70 GN-18 144-F70 GN-18 127-F39 OR-18 127-F39 OR-18 127-F39 OR-18 127-F39 OR-18 127-F39 OR-18 127-F39 OR-18 308-C115 YL-18 308-C115 YL-18 114-C70 RD-18 114-C70 RD-18 200-C109 BK-18 200-C110 BK-18 200-C114 BK-18 200-C113 BK-18 200-C110 BK-18 200-C114 BK-18 781-C93 PK-18 781-C64 PK-18 781-C63 PK-18 781-C63 PK-18 782-C112 GY-18 782-C111 GY-18 782-C111 GY-18 604-H2 OR-18 604-H2 OR-18 604-H2 OR-18 604-H9 OR-18 604-H9 OR-18 604-H9 OR-18 308-C107 YL-18 308-C107 YL-18 109-A9 RD-10 877-A90 YL-10 200-N1 BK-16 200-N8 BK-16 A752-N2 BR-16 M906-N3 BU-16 M907-N4 GY-16 CBL-CG1 RD-00 537-C69 GN-18 605-C38 YL-18 406-C3 PU-18 403-C2 GN-18 404-C5 YL-18 M901-C7 YL-18 405-C8 GY-18 102-C18 RD-18 F905-C15 YL-18 L987-C116 WH-18 G982-C21 PK-18 P984-C22 YL-18 P983-C23 GN-18 A752-C24 BR-16 606-C28 GY-18 447-C31 PK-18 203-C101 BK-18 308-C115 YL-18 308-C107 YL-18 608-C58 GN-18 308-C12 YL-18 608-C40 GN-18 608-C57 GN-18 122-C78 RD-18 E917-C4 WH-18 F780-C17 PK-18 H417-C10 OR-18 439-C9 YL-18 105-C14 RD-18 118-C16 GY-14 A751-C25 YL-16 436-C32 OR-18 127-C39 OR-18 144-C37 GN-16 123-C88 WH-18 614-C20 PU-18 307-C13 OR-18 200-C44 BK-14 200-C45 BK-18 200-C42 BK-18 200-C73 BK-18 201-C27 BK-18 201-C79 BK-18 201-C51 BK-18 201-C52 BK-18 201-C97 BK-18 200-C30 BK-16 200-C29 BK-16 200-C11 BK-16 200-C47 BK-18 321-A45 BR-18 128-A99 PK-18 945-A98 BR-18 944-A59 OR-18 975-A38 WH-18 L999-A46 GN-18 L998-A67 OR-18 P978-A50 GN-18 P979-A51 YL-18 P980-A52 OR-18 P981-A53 PU-18 322-A63 GY-18 P988-A44 OR-18 109-A9 RD-10 109-A9 RD-10 200-A76 BK-18 537-A78 GN-18 102-A73 RD-18 200-A77 BK-18 109-A9 RD-10 200-E14 BK-18 110-E15 GN-18 109-E11 RD-10 F905-A82 YL-18 200-A84 BK-18 200-A85 BK-18 F905-A83 YL-18 308-A58 YL-18 C444-A17 YL-18 403-A1 GN-18 308-A62 YL-14 200-A72 BK-18 405-A6 GY-18 406-A2 PU-18 202-A24 BK-18 306-A23 GN-18 200-A92 BK-18 447-A15 PK-18 404-A3 YL-18 200-A66 BK-18 975-A43 WH-18 203-A97 BK-18 203-A97 BK-18 203-A97 BK-18 203-A55 BK-18 200-A94 BK-18 200-A94 BK-18 200-A61 BK-18 200-A60 BK-18 203-A55 BK-18 203-A97 BK-18 E917-C6 WH-18 F780-C72 PK-18 202-C81 BK-18 202-C59 BK-18 975-C53 WH-18 H416-C54 GN-18 A958-C56 WH-18 P988-C55 OR-18 306-C60 GN-18 442-C96 GY-18 M907-C95 GY-16 781-C93 PK-18 M906-C94 BU-16 112-A36 PU-6 109-C68 RD-18 197-C80 GN-16 109-C74 RD-18 109-C76 RD-18 114-C70 RD-18 618-C90 YL-18 128-C67 PK-18 120-C66 YL-18 110-C65 GN-18 782-C92 GY-18 617-C91 BR-18 G984-C104 PK-18 G985-C100 PU-18 200-C45 BK-18 614-C20 PU-18 118-C16 GY-14 200-C42 BK-18 608-C58 GN-18 105-C14 RD-18 144-C37 GN-16 200-C44 BK-14 201-C51 BK-18 436-C32 OR-18 H417-C10 OR-18 127-C39 OR-18 439-C9 YL-18 122-C78 RD-18 201-C79 BK-18 A751-C25 YL-16 201-C27 BK-18 123-C88 WH-18 308-C107 YL-18 200-C73 BK-18 307-C13 OR-18 201-C52 BK-18 F780-C17 PK-18 E917-C4 WH-18 202-C81 BK-18 202-C59 BK-18 975-C53 WH-18 H416-C54 GN-18 A958-C56 WH-18 P988-C55 OR-18 306-C60 GN-18 442-C96 GY-18 M907-C95 GY-16 781-C93 PK-18 M906-C94 BU-16 112-A36 PU-6 109-C68 RD-18 197-C80 GN-16 109-C74 RD-18 109-C76 RD-18 114-C70 RD-18 618-C90 YL-18 128-C67 PK-18 120-C66 YL-18 110-C65 GN-18 782-C92 GY-18 617-C91 BR-18 G984-C104 PK-18 G985-C100 PU-18 200-C45 BK-18 122-C78 RD-18 A751-C25 YL-16 614-C20 PU-18 118-C16 GY-14 200-C42 BK-18 608-C58 GN-18 105-C14 RD-18 144-C37 GN-16 200-C44 BK-14 201-C51 BK-18 436-C32 OR-18 H417-C10 OR-18 127-C39 OR-18 439-C9 YL-18 201-C27 BK-18 123-C88 WH-18 308-C107 YL-18 200-C73 BK-18 674-C106 BU-18 676-C105 PU-18 G984-C48 PK-18 126-C41 PK-18 G985-C49 PU-18 G985-C49 PU-18 126-C41 PK-18 G984-C48 PK-18 676-C105 PU-18 674-C106 BU-18 307-C13 OR-18 201-C52 BK-18 F780-C17 PK-18 E917-C4 WH-18 E917-C6 WH-18 F780-C72 PK-18 201-C79 BK-18 782-C92 GY-18 781-C63 PK-18 782-C112 GY-18 781-C64 PK-18 200-C109 BK-18 200-C113 BK-18 200-C114 BK-18 782-C111 GY-18 200-C110 BK-18 112-A36 PU-6 201-F63 BK-18 201-F63 BK-18 201-F63 BK-18 200-F42 BK-18 200-F101 BK-18 200-F58 BK-18 200-F60 BK-18 POWER JUNCTION 114-4516 200-F112 BK-18 A752-F87 BR-16 G982-F90 PK-18 L987-F92 WH-18 DATALINK CONN 3 RECEPTACLE CAP(8C-6354) P997-A96 BR-18 P982-A49 BU-18 P996-A47 GN-18 P994-A48 BU-18 128-A88 PK-18 203-A89 BK-18 608-F69 GN-18 200-F14 BK-18 614-F13 PU-18 614-F13 PU-18 200-F14 BK-18 610-F22 OR-18 614-F19 PU-18 614-F11 PU-18 200-F12 BK-18 200-F12 BK-18 200-F14 BK-18 614-F11 PU-18 614-F13 PU-18 536-F33 WH-18 606-F30 GY-18 605-F40 YL-18 619-F25 GN-18 537-F35 GN-18 536-F33 WH-18 536-F34 WH-18 536-F34 WH-18 537-F35 GN-18 537-F36 GN-18 603-F71 PK-18 144-F70 GN-18 536-F33 WH-18 536-F33 WH-18 537-F36 GN-18 537-F36 GN-18 537-F36 GN-18 CBL-CG1 RD-00 442-A18 GY-18 304-E9WH-10 614-F51 PU-18 200-F52 BK-18 F780-F95 PK-18 200-F52 BK-18 200-F53 BK-18 200-F112 BK-18 200-F53 BK-18 614-F54 PU-18 614-F54 PU-18 200-F53 BK-18 200-F112 BK-18 118-F109 GY-18 200-F59 BK-18 200-F52 BK-18 L987-F92 WH-18 614-F51 PU-18 200-F50 BK-18 200-F48 BK-18 203-F55 BK-18 118-C16 GY-14 120-C66 YL-18 126-C41 PK-18 123-C1 WH-18 144-C37 GN-16 127-C61 OR-18 112-C86 PU-10 614-C20 PU-18 A751-C25 YL-16 197-C36 GN-16 112-C89 PU-12 109-C68 RD-18 109-C74 RD-18 114-C70 RD-18 122-C78 RD-18 128-C67 PK-18 112-C82 PU-10 112-C83 PU-12 112-C84 PU-10 112-C85 PU-10 127-C46 OR-18 781-C63 PK-18 200-C110 BK-18 197-C35 GN-16 M907-C95 GY-16 197-C34 GN-16 M906-C94 BU-16 201-C77 BK-18 676-C105 PU-18 439-C9 YL-18 201-C79 BK-18 200-C47 BK-18 608-C57 GN-18 G983-C98 GN-18 619-F25 GN-18 619-F37 GN-18 619-F37 GN-18 619-F37 GN-18 NOTE A NOTE B NOTE A: THE FOLLOWING WIRE PAIR MUST BE TWISTED AT LEAST 1 TURN PER 25 MM: (944-OR, 945-BR) NOTE B: ALL TERMINALS INSIDE BOX ARE CONNECTED TO A COMMON STUD. 614-F27 PU-18 614-F27 PU-18 614-F27 PU-18 200-F112 BK-18 614-F27 PU-18 614-F27 PU-18 118-U1 GY-18 200-U2 BK-18 614-U3 PU-18 200-U6 BK-18 501-U4 GN-18 118-U7 GY-18 500-U8 BR-18 501-U4 GN-18 200-U2 BK-18 200-U6 BK-18 614-U3 PU-18 118-U7 GY-18 118-U1 GY-18 500-U8 BR-18 501-U4 GN-18 118-U7 GY-18 500-U8 BR-18 200-U10 BK-18 200-U9 BK-18 506-U5 PU-18 200-U9 BK-18 200-U10 BK-18 506-U5 PU-18 506-U5 PU-18 102-F24 RD-16 102-F24 RD-16 102-F24 RD-16 102-F24 RD-16 102-F24 RD-16 102-F24 RD-16 102-F24 RD-16 123-F17 WH-18 123-F17 WH-18 123-F17 WH-18 123-F17 WH-18 123-F17 WH-18 123-F17 WH-18 102-F24 RD-16 102-F73 RD-18 118-U11 GY-18 118-U11 GY-18 118-U7 GY-18 118-U1 GY-18 500-U8 BR-18 118-U7 GY-18 500-U8 BR-18 118-U1 GY-18 A751-F86 YL-16 A751-F86 YL-16 203-F57 BK-18 F780-F95 PK-18 P983-F88 GN-18 P984-F89 YL-18 G982-F90 PK-18 201-F56 BK-18 L987-F92 WH-18 127-F39 OR-18 P993-A102 OR-18 P993-A102 OR-18 P993-A102 OR-18 P993-A102 OR-18 P993-A102 OR-18 P993-C62 OR-18 L987-C116 WH-18 P993-C62 OR-18 P993-C62 OR-18 200-F60 BK-18 610-F29 OR-18 102-F73RD-18 610-F29 OR-18 614-F78 PU-18 610-F29 OR-18 614-F78 PU-18 NOTE B NOTE B NOTE B P993-F18 OR-18 CONN 17 P993-J23 OR-18 P993-F18 OR-18 P993-F18 OR-18 P993-F18 OR-18 203-F84 BK-18 203-F84 BK-18 203-F84 BK-18 203-F84 BK-18 203-F84 BK-18 123-F64 WH-18 M901-F67 YL-18 M901-J27 YL-18 P980-J5 OR-18 L999-J6 GN-18 P984-J7 YL-18 P983-J8 GN-18 P978-J9 GN-18 L998-J10 OR-18 P997-J13 BR-18 P996-J11 GN-18 P979-J12 YL-18 G982-J14 PK-18 P982-J15 BU-18 G985-J16 PU-18 G984-J17 PK-18 945-J22 BR-18 P993-J23 OR-18 944-J18 OR-18 128-J1PK-18 M901-J4 YL-18 P994-J19 BU-18 F780-J20 PK-18 E917-J21 WH-18 M901-J26 YL-18 128-J24 PK-18 128-J25 PK-18 128-J24 PK-18 128-J25 PK-18 203-J2 BK-18 M901-J26 YL-18 M901-J27 YL-18 P981-J3 PU-18 P993-J23 OR-18 945-J22 BR-18 944-J18 OR-18 614-F114 PU-18 614-F114 PU-18 614-F114 PU-18 614-F114 PU-18 614-F114 PU-18 614-F114 PU-18 102-F115 RD-16 102-F115 RD-16 102-F116 RD-18 102-F116 RD-18 200-A77 BK-18 102-A95 RD-18 877-A90 YL-10 200-H5 BK-16 109-E10 RD-6 101-E1 RD-4 322-A63 GY-18 200-A61 BK-18 322-P2 GY-18 200-P1 BK-18 200-A61 BK-18 322-A63 GY-18 200-A70 BK-18 404-A3 YL-18 200-A70 BK-18 200-A69 BK-16 A752-A13 BR-16 M906-A34 BU-16 M907-A35 GY-16 200-A68 BK-16 447-A15 PK-18 200-A66 BK-18 JACKET WATER HEATER ATTACH L998-A42 OR-18 L998-A41 OR-18 L999-A40 GN-18 L999-A39 GN-18 P980-A52 OR-18 P981-A53 PU-18 P978-A50 GN-18 P979-A51 YL-18 A958-A22 WH-18 H416-A20 GN-18 H416-A20 GN-18 202-A103 BK-18 P996-M7 GN-18 CONN 22 P994-M6 BU-18 P997-M3 BR-18 P997-M4 BR-18 P982-M5 BU-18 P997-M1 BR-14 P982-M5 BU-18 P996-M7 GN-18 P994-M6 BU-18 P994-M6 BU-18 P996-M7 GN-18 P982-M5 BU-18 P997-M9 BR-18 P997-M9 BR-18 P988-M8 OR-18 975-M2 WH-18 782-L1 GY-18 781-L2 PK-18 197-L8 GN-18 197-L9 GN-18 114-L4 RD-18 322-L5 GY-18 200-A94 BK-18 203-A97 BK-18 200-A94 BK-18 112-A36 PU-6 618-C90 YL-18 306-E8 GN-18 308-A62 YL-14 200-A60 BK-18 109-E11 RD-10 306-E8 GN-18 306-E6 GN-18 202-E18 BK-18 202-E18 BK-18 202-E19 BK-18 202-E19 BK-18 202-E19 BK-18 306-E6 GN-18 306-E8 GN-18 306-E12 GN-18 308-E2 YL-18 403-E5 GN-18 C444-E4 YL-18 101-E1 RD-4 200-E14 BK-18 110-E15 GN-18 406-E16 PU-18 405-E17 GY-18 200-E13 BK-18 202-E3 BK-18 327-E21 PK-14 327-E21 PK-14 109-E20 RD-14 109-E20 RD-14 109-E20 RD-14 109-A4 RD-6 101-A54 RD-12 101-E1 RD-4 109-A4 RD-6 614-V3 PU-18 200-V2 BK-18 118-V1 GY-18 STOP/TAIL LAMP ATTACH STOP/TAIL LAMP ATTACH 168-7574 (120V) IMPLEMENT DETENT 124-C50 GN-14 H1 H1 H1 H2 H2 H2 H3 H3 H3 H3 H3 H4 H4 H4 H4 H5 H5 H5 H6 H6 H6 H6 H6 H7 H7 H7 H8 H8 H8 H9 H9 H9 110-C65 GN-18 P993-C62 OR-18 619-C108 GN-18 619-C108 GN-18 619-C108 GN-18 619-C108 GN-18 102-C26 RD-16 102-C26 RD-16 102-C26 RD-16 102-C26 RD-16 102-A14 RD-16 102-A14 RD-16 102-A14 RD-16 102-A14 RD-16 102-A14 RD-16 618-K6 YL-18 618-K6 YL-18 606-K5 GY-18 606-K5 GY-18 606-K8 GY-18 606-K8 GY-18 200-K4 BK-16 200-K4 BK-16 321-K3 BR-18 321-K3 BR-18 617-K2 BR-18 617-K2 BR-18 605-K1 YL-18 605-K1 YL-18 605-K7 YL-18 605-K7 YL-18 619-A91 GN-18 619-A91 GN-18 619-A91 GN-18 619-A91 GN-18 617-K13 BR-18 617-K13 BR-18 618-K15 YL-18 618-K15 YL-18 200-K9 BK-16 200-K17 BK-18 200-K17 BK-18 200-K18 BK-18 200-K18 BK-18 200-K18 BK-18 605-K10 YL-18 605-K10 YL-18 605-K10 YL-18 605-K10 YL-18 606-K11 GY-18 606-K11 GY-18 606-K11 GY-18 617-K12 BR-18 617-K12 BR-18 617-K12 BR-18 617-K12 BR-18 618-K14 YL-18 618-K14 YL-18 618-K14 YL-18 619-K16 GN-18 619-K16 GN-18 619-K19 GN-18 619-K19 GN-18 619-K20 GN-18 619-K20 GN-18 619-K20 GN-18 L987-C19 WH-18 200-K9 BK-16 606-K11 GY-18 605-K10 YL-18 618-K14 YL-18 619-K16 GN-18 619-K16 GN-18 617-K12 BR-18 200-K9 BK-16 619-K16 GN-18 L987-F94 WH-18 L987-F92 WH-18 L987-F94 WH-18 L987-F92 WH-18 L987-C19 WH-18 L987-C19 WH-18 L987-C19 WH-18 L987-A104 WH-18 L987-A104 WH-18 L987-A104 WH-18 L987-A105 WH-18 L987-A105 WH-18 L987-A105 WH-18 102-A95 RD-18 102-A14 RD-16 124-C50 GN-14 124-C50 GN-14 200-N1 BK-16 A752-N2 BR-16 M906-N3 BU-16 M907-N4 GY-16 200-N8 BK-16 200-W6 BK-16 A752-W9 BR-16 200-W7 BK-16 200-W7 BK-16 A752-W8 BR-16 A752-W8 BR-16 110-A25 GN-18 C444-C33 YL-18 C444-C33 YL-18 C444-C33 YL-18 NOTE D NOTE D NOTE D: BOTH THE LEFT AND RIGHT SIDE HANDLES ARE SHOWN WITH TWO DIFFERENT CONFIGURATIONS. A BLANK HANDLE 113-8224 IS A THIRD POSSIBLE HANDLE CONFIGURATION. 200-W1 BK-16 200-W1 BK-16 200-W5 BK-16 200-W5 BK-16 200-W5 BK-16 A752-W2 BR-16 A752-W2 BR-16 M906-W3 BU-16 M906-W3 BU-16 M906-W3 BU-16 M907-W4 GY-16 M907-W4 GY-16 M907-W4 GY-16 200-W6 BK-16 A752-W9 BR-16 604-K21 OR-18 604-K21 OR-18 604-K22 OR-18 604-K22 OR-18 604-K23 OR-18 604-K23 OR-18 110-A107 GN-18 110-A107 GN-18 110-A107 GN-18 110-A108 GN-18 110-A108 GN-18 110-A108GN-18 618-H13YL-18 YL-18 618-H13 YL-18 618-H14 618-H14 YL-18 200-H12 BK-18 200-H12 110-A25 GN-18 110-Y1 GN-18 110-Y1 GN-18 A309-Y4 GY-18 327-Y2 PK-16 327-Y2 PK-16 200-Y3 BK-18 200-Y3 BK-18 A309-Y4 GY-18 110-K24 GN-18 C576-G1 BU-18 604-G3 OR-18 C457-G2 BU-18 C457-G2 BU-18 604-G3 OR-18 200-K27 BK-16 200-K27 BK-16 200-K28 BK-18 200-K9 BK-16 200-K9 BK-16 C576-G1 BU-18 110-K24 GN-18 200-G5 BK-18 200-G5 BK-18 110-G6 GN-18 110-G4 GN-18 110-G4 GN-18 200-K28 BK-18 110-K24 GN-18 NOTE E NOTE E NOTE E: USE REAR LAMP JUMPER HARNESSES WITH ATTACHMENT REAR LAMPS. NOTE E NOTE E CONN 4 CONNECTS TO REAR LH JUMPER (LOC I-12) CONNECTS CONN 1 CONN 1 TO REAR RH JUMPER (LOC A-12) 202-A109 BK-18 202-A109 BK-18 202-A110 BK-18 202-A110 BK-18 L998-A106 OR-18 L998-A106 OR-18 110-G7 GN-18 321-K3 BR-18 110-G7 GN-18 604-G3 OR-18 200-G5 BK-18 110-G6 GN-18 NOTE C: RIGHT HAND TRAFFIC ROADING LAMPS SHOWN (RH DIPPED). LEFT HAND TRAFFIC ROADING USE 3E-7585 LAMPS (LH DIPPED). NOTE C NOTE C C-C5 1249636 FRONT HORN 7T-0635 HOUR METER 161-3934 SIG - + +B SIGNAL GND ALT R TERM BR-18 BK-18 GN-18 HOUR METER FILTER 141-7556 BR-18 GN-18 BK-18 ST ON OFF B S C R KEY START SW 142-8858 YL-16 PU-16 OR-16 BR-16 NEG POS BATTERY 153-5656 20A LIGHTING BRKR 147-1773 BEACON 1 128-6985 DOME LAMP 084-4277 LH REAR FLOOD 146-6366 RH REAR FLOOD 146-6366 + BATTERY - BATTERY ARMREST/SEAT STATUS LAMP PARKING BRAKE SOL IMPL PILOT SOL XMSN SOL ARMREST SWITCH (N/C) ARMREST SW (N/O)/ SEAT SW IMPL LOCKOUT SW KEY SW IN START RELAY RELAY RETURN COMMON PARKING BRAKE LAMP OPERATOR INTERLOCK CONTROL 154-4233 PARKING BRAKE SW + BATTERY GROUND H2 SOLENOID - CDL + CDL H1 SOLENOID A SOLENOID SOURCE INTERLOCK OVERRIDE LAMP INTERLOCK OVERRIDE SWITCH H2 SWITCH H1 SWITCH PARKING BRAKE SWITCH ARMREST SW (N/0)/SEAT SW ARMREST SW (N/C) PROPORTIONAL "A" SNSR RET IMPLEMENT LOCKOUT SWITCH PROPORTIONAL +8V SUPPLY PROPORTIONAL SIGNAL AUX HYD CTRL NON-PROP SOFTWARE 186-0089 H SOLENOID SOURCE A1 SOLENOID A2 SOLENOID CONTINUOUS FLOW SW A2 SWITCH LH FLOOD LAMP 152-8180 RH FLOOD LAMP 152-8180 LOWER FRAME GND 2 M10 GND STUD BEACON SOCKET 117-2311 HIGH FLOW SOL 144-1644 BACKUP ALARM 1 138-4946 REAR LAMP RH 142-7503 TAIL STOP YL OR BK REAR LAMP LH 2 142-8634 TURN TAIL STOP BK OR YL GY 2 3 4 1 FILTER BYPASS SW 7X-8549 2 3 4 1 H-C4 1552272 D1 D2 D3 D4 D5 C1 C2 C3 C4 C5 E1 E2 E3 E4 E5 F1 F2 F3 F4 F5 A1 A2 A3 A4 A5 B1 B2 B3 B4 B5 C-C9 1129609 BEACON SW 142-9327 FLASHER 7T-4848 OUT (LAMP) + BATTERY GROUND 1 2 3 4 5 6 7 8 F-C6 1429117 9 10 REAR WORKING LAMPS SW 142-9326 HAZARD SW 142-9331 1 2 3 4 5 6 7 8 F-C3 1429117 9 10 1 2 3 4 5 6 7 8 F-C4 1429117 9 10 ROADING LAMP SW 142-9329 1 2 3 4 5 6 7 8 F-C7 1429117 9 10 TURN SIGNAL SW 142-9332 FRONT WORKING LAMPS SW 142-9328 NOT USED HYD OIL FILTER RH TURN SIGNAL BATTERY LH TURN SIGNAL GROUND ROADING LAMP B+ LAMP GP FUNCTION 144-9931 F-C8 1429117 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 F-C16 1429117 9 10 HYD OIL TEMP COOLANT TEMP OIL PRESSURE INTERLOCK OVERRIDE ARM REST PARKING BRAKE POWER IN GROUND EXTRA OUT EXTRA IN LAMP GP ACTION 144-9930 1 2 3 4 5 6 7 8 9 10 11 12 F-C19 1552252 3 6 5 8 4 7 2 1 F-C2 1552264 1 2 3 4 5 6 7 8 F-C17 1429117 9 10 1 2 3 4 5 6 7 8 F-C20 1429117 9 10 1 2 3 4 5 6 7 8 F-C21 1429117 9 10 1 2 3 4 5 6 7 8 F-C22 1429117 9 10 1 2 3 4 5 6 7 8 F-C10 1429117 9 10 1 2 3 4 5 6 7 8 F-C9 1429117 9 10 START AID GROUND NOT USED B+ YL BU YL BU LAMP GP 2 144-9933 YL-18 WH-18 BK-18 BU-18 HEAD TURN LAMP LH 3E-7584 ROADING MARKER TURN RD-18 (RH DIPPED) WH-18 YL-18 RD-18 BU-18 HEAD TURN LAMP RH 3E-7584 ROADING MARKER TURN BK-18 (RH DIPPED) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 F-C12 1030213 PARKING BRAKE SW 142-9320 INTLK OVRD SW 142-8630 HIGH FLOW SW 142-8631 TOOL SW 142-8633 CONTINUOUS FLOW SW 142-8869 1 2 3 4 F-C15 1552272 C-C8 9X4391 1 3 11 13 24 29 42 47 58 60 62 64 66 68 70 C-C2 1506764 2 4 5 6 7 8 9 10 12 14 15 16 17 18 19 20 21 22 23 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 48 49 50 51 52 53 54 55 56 57 59 61 63 65 67 69 1 2 C-C3 1552269 MAIN PWR RLY 168-7908 10A KEY SW 15A RR FL/BEACON 10A COLD START/HYD FIL 10A RH TAIL LAMP HYD FILTER LAMP 146-4323 C1 RLY 146-4323 C2 RLY 146-4323 ARMREST LAMP 146-4323 CAB GND M10 GND STUD PARK BRAKE LAMP 146-4323 10A MISC PWR 10A LH TAIL LAMP 10A GAUGE 10A FUEL SHUTOFF 15A WIPER 10A INTERLOCK CTRL ARMREST SW 162-0223 1 2 A-C8 1552269 1 2 A-C9 1552269 1 2 3 4 A-C11 1552272 F-C13 1552267 A B C XMSN SOL 159-0748 1 2 3 4 5 6 7 8 F-C11 1429117 9 10 AUTO LEVELER SW 142-9116 1 2 F-C18 1552272 3 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 J-C1 1506765 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 1 2 L-C2 1552273 3 4 5 6 1 2 3 4 5 6 CONN 23 CONN 23 1 2 M-C3 1552269 PARK BRAKE SOL 159-0748 IMPL PILOT SOL 159-0748 1 2 3 4 5 6 7 8 A-C14 CONN 10 1552264 1 2 A-C2 CONN 15 CONN 16 1552273 3 4 5 6 1 2 H-C1 3E3382 3 4 5 6 MAIN BREAKER 9S-0174 60A 1 2 A-C24 1552264 3 4 5 6 7 8 L-C1 3E3388 CONN 20 UPPER FRAME GND M10 GND STUD LOWER FRAME GND M10 GND STUD 1 2 A-C15 1552272 3 4 G S MTR BAT MOTOR STARTER 144-9955 START RELAY 115-1615 ENGINE OIL SW 7W-1238 Tº COOLANT SW 159-1752 1 2 E-C4 1003320 1 2 A-C17 1552252 3 4 5 6 7 8 9 10 11 12 J-C2 3E5179 1 2 A-C12 1552269 1 2 A-C7 1552269 1 2 A-C6 1552269 1 2 A-C18 CONN 18 CONN 19 3E5179 3 4 5 6 7 8 9 10 11 12 J-C3 1552252 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 A-C1 1130580 C-C1 3E6286 E-C5 9X1054 1 2 3 4 5 1 2 3 4 5 6 M-C1 3E3382 1 2 A-C19 1552269 COLD START RELAY 115-1615 A-C16 9X1054 2 3 4 1 5 1 2 3 4 5 6 7 8 N-C1 3E3388 AUTO LEVELER SOL 142-9206 FUEL SHUTDOWN 172-7209 FUEL LEVEL SNDR 142-8824 BK-18 BK-18 (216/226/228) BK-18 BK-18 HYD OIL TEMP SW 142-9804 Tº 2 1 F-C1 1237615 GROUND +BATTERY KEYSW(RUN) HEATER UNIT 146-6372 BK-18 RD OR BK BK-18 SEAT SW 154-3986 IMPL LOCKOUT SW 142-8632 1 2 3 4 5 6 7 8 9 10 F-C5 1429117 COLD START SW 142-9325 BK-18 BK-18 BACKUP PRESS 192-0836 IGN SEND GRD FUEL LEVEL 153-0455 VALVE GP 152-1123 HANDLE LH 159-5750 C2 SWITCH C1 SWITCH HORN RD-18 GY-18 BU-18 YL-18 GN-18 BK-18 A B C F-C14 1552267 U-C1 3E3370 A B C GND B+ P T MOTOR L YL-16 GN-16 BK-16 RD-16 WIPER MOTOR 161-7522 A B C D E F G H J A-C23 9W1951 123 E-C2 1073134 1 3 2 A B N-C2 1561460 CONN 26 C D E F G H T O O L 1 2 U-C4 1237615 4 CAB GND STRAP 7G-1060 1 2 3 4 5 6 7 8 C-C6 1552264 A-C3 3E3388 1 2 A-C25 3E3364 RESISTOR 167-7801 BK-18 BK-18 1 2 J-C4 1552269 MOTOR WASHER MOTOR 152-1800 GLOW PLUGS 164-7631 A-C21 1552267 A B C 1 2 A-C22 1552269 P-C1 3E3364 ARC SUPPRESSOR 105-3542 HANDLE RH 159-5751 A1 SWITCH A2 SWITCH RD-18 BK-18 GY-18 BU-18 HORN YL-18 GN-18 HANDLE HORN LH 159-5749 A1 SOL 169-5779 A2 SOL 169-5779 E-C3 1552267 A B C E-C6 9X1054 1 2 3 4 5 FUEL SHUTDOWN RELAY 115-1615 1 2 A-C13 3E3364 V-C1 3E3370 CONN 24 CONN 25 V-C2 1552267 1 2 L-C3 1552269 A-C20 1552273 6 6 5 M-C2 1552273 1 2 3 4 6 5 1 2 3 4 REAR LAMP RH 2 142-8634 TURN TAIL STOP GY YL OR BK 1 4 3 2 REAR LAMP LH 142-7503 TAIL STOP YL OR BK A-C5 1116795 4 2 5 AUX HYD CONTROL PROP SOFTWARE 173-9465 A B C C-C4 1552267 1 2 C-C10 3E3376 3 4 UPPER FRAME GND 2 M10 GND STUD FRAME GND STRAP 8M-4963 1 2 3 4 5 6 7 8 U-C3 1117898 WIPER WASHER SW 138-4883 3 1 U-C2 1552272 4 2 B+ ALTERNATOR 144-9954 LIP 154-3988(236/246/248) 1 2 E-C1 3E5179 3 4 5 6 7 8 9 10 11 12 1 4 3 2 H-C3 1552272 1 2 C-C7 1552264 3 4 5 6 7 8 K-C1 CONN 6 CONN 7 CONN 8 1552273 K-C2 3E3382 C-C11 CONN 13 CONN 14 1552269 3 4 K-C4 1552273 5 6 1 2 1 2 K-C5 1552273 3 4 5 6 ENGINE GROUND M10 GND STUD ENGINE GND STRAP 7G-1060 10A BACKUP ALARM 20A HEATER 15A TOOLS 15A 4TH FUNCTION 10A FWD HORN 10A AUX HYD CTRL 1 2 W-C3 1552269 MOTOR WATER PUMP 161-7290 CHRG PRESS SW 173-3837 BK-18 BK-18 1 2 Y-C3 1552269 W-C2 3E3388 W-C1 1552264 A-C4 CONN 9 1552252 AUX HYD CONTROL HARDWARE 168-8238 A B K-C7 1552267 C 1 2 K-C6 3E3364 1 2 K-C3 3E3376 3 4 A-C26 1552272 H-C2 1552269 LICENSE LAMP 6C-7581 Y-C2 CONN 2 3E3370 A B C Y-C1 1552267 A B C STOP PRESS SW1 184-1564 BK-18 BK-18 STOP PRESS SW2 184-1564 BK-18 BK-18 1 2 G-C2 1552269 1 2 G-C3 1552269 G-C1 3E3370 STOP LAMP RLY 115-1615 G-C4 9X1054 1 2 3 4 5 REAR RH JUMPER 183-7117 GY-18 YL-18 OR-18 BK-18 1 4 3 2 1 2 3 4 CONNECTS TO H-C3 (LOC A-12) 1 2 A-C27 1552269 PRESS REL SOL 159-0748 REAR LH JUMPER 186-0239 GY-18 YL-18 OR-18 BK-18 1 2 3 4 1 2 3 4 CONNECTS TO H-C4 (LOC I-12) CONN 4 GY-18 YL-18 OR-18 BK-18 YL-18 BK-18 CONN 4 CONN 1 CONN 5 CONN 11 CONN 12 CONN 21 CONN 22 LICENSE LAMP 6C-7581 RETURN OUTPUT SIGNAL (PWM) POWER SUPPLY (+8 V) PROPORTIONAL LEVER 160-4320 PROP HANDLE RH BK-14 RD-14 RELAY SOCKET EMPTY SPARE IDENT PART NO CHG LOC DESCRIPTION HARNESS AS. A 142-8645 10 C-3 PLATFORM C 142-8639 06 C-5 LOWER CAB E 142-9112 07 B-6 ENGINE F 142-7497 00 E-5 UPPER CAB G 180-3008 03 A-6 STOP LAMP SW H 142-8640 01 A-6 DOOR J 142-9105 03 C-2 AUX HYDRAULIC CONTROL K 173-7798 01 A-6 ROADING LAMP L 150-8538 02 D-2 JOYSTICK LEFT M 150-8539 03 B-2 JOYSTICK RIGHT N 142-9333 01 E-6 WORK TOOLS P 152-4859 01 E-5 WIRE AS. - HORN U 142-9128 03 E-1 DOOR V 142-9127 01 E-2 WIPER / WASHER AUX W 165-4894 02 E-6 WATER PUMP Y 175-3545 01 B-7 CHARGE PRESS SW CABLE AS. CA 142-7517 02 B-7 MACHINE GROUND CC 142-7514 00 BATTERY TO DISCONNECT CE 173-7799 00 DISCONNECT TO GROUND CF 173-7800 00 B-6 ENGINE GROUND CG 142-7513 01 B-7 BATTERY TO STARTER TO ENGINE GROUND BK-16
