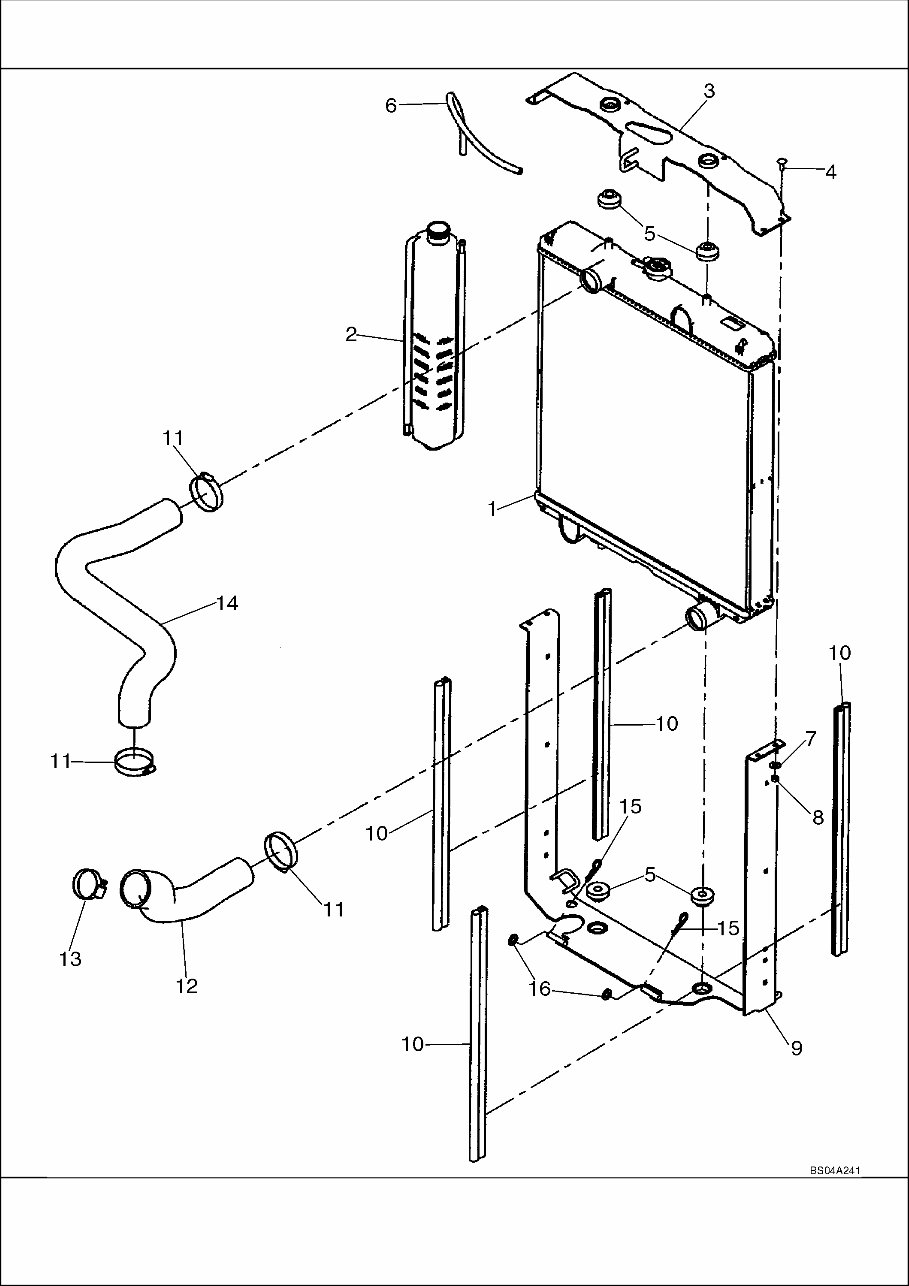

Ref Part Number Qty Description 445 SKID STEER (3/04- ) 02-01 RADIATOR - COOLANT RECOVERY SYSTEM 1 87013856 1 RADIATOR, Incl. 1A, 1B 1A 87032485 1 FITTING, Drain 1B 87032486 1 CAP, RADIATOR, 2 87020980 1 RESERVOIR, COOLANT EXPNSN, Incl. Cap 257884A1 257884A1 1 PLUG, 3 87459340 1 FRAME, Upper Radiator; Component Parts Not Serviced Separately; Replaces 87024337 4 280638 4 BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G5, Full Thd, 5 87017045 4 CUSHION, 6 87023941 1 HOSE, Coolant Recovery 7 322357 4 WASHER, SPRING, Belleville, M6, 8 7770 4 NUT, 1/4"-20, G5, 9 87436062 1 FRAME ASSY, Lower Radiator 9 87393454 1 FRAME, Lower Radiator; Replaces 87436062 10 87033635 4 SEAL, 11 86050202 3 CLAMP, #32, 1.56/2.50 Type F Worm, 12 87037868 1 HOSE ASSY., Lower Radiator 13 86625031 1 CLAMP, #40, 2.06/3.00 Type F Worm, 14 87040170 1 HOSE ASSY., Upper Radiator 15 216698 2 PIN, SPLIT (COTTER), If Used 16 895-11010 2 WASHER, M10 x 20 x 2, If Used
445 SKID STEER (3/04- ) 02-02 FAN - FAN BELT

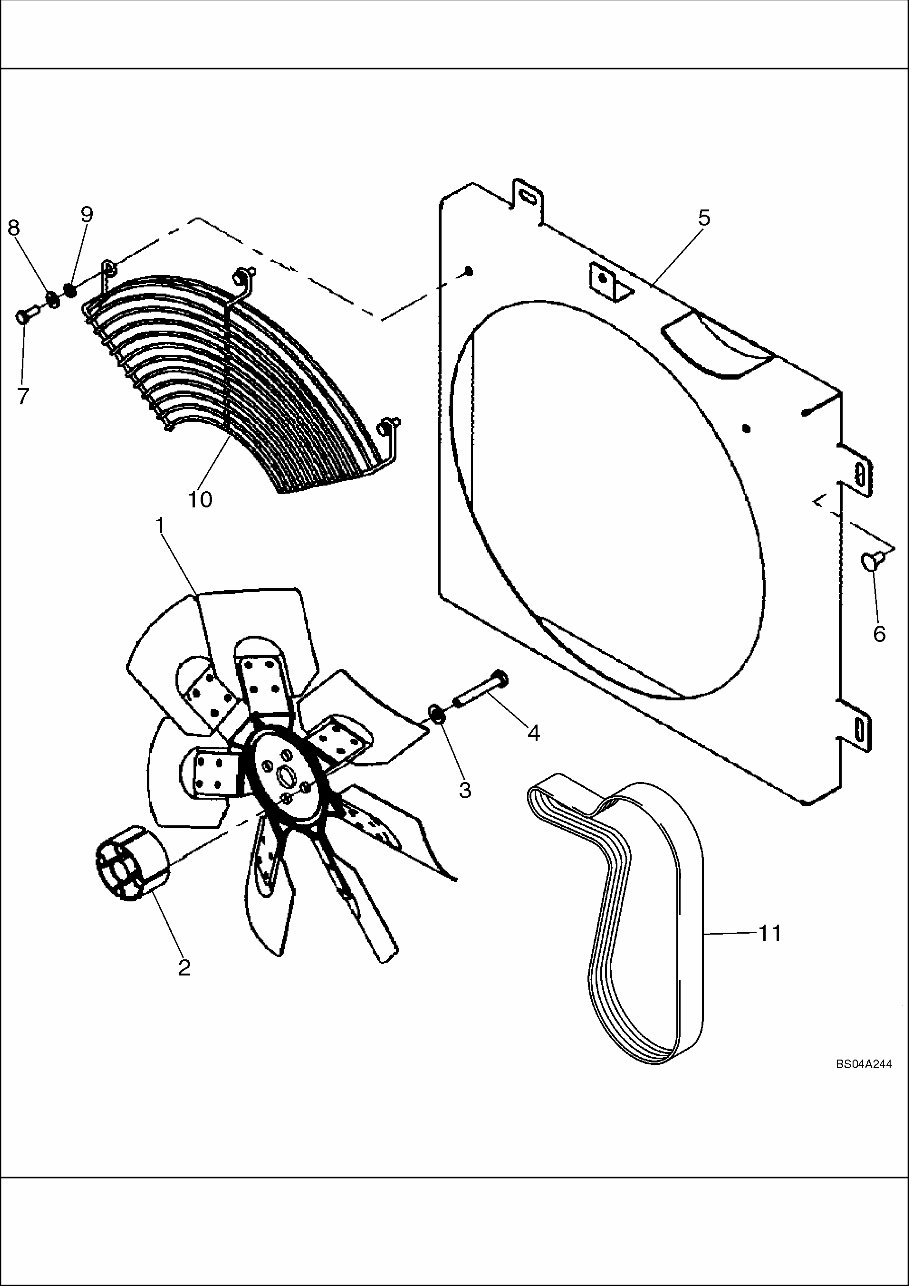

Ref Part Number Qty Description 445 SKID STEER (3/04- ) 02-02 FAN - FAN BELT 1 87025470 1 FAN, 480 mm; If Used 1 238344A1 1 FAN, 518 mm; If Used 2 A184545 1 SPACER, 3 140045 4 WASHER, SPRING, Belleville, M10, 4 814-10070 4 BOLT, Hex, M10 x 70, 8.8, 5 87046890 1 SHROUD ASSY., Used With 480 mm Fan; If Used 5 87461514 1 SHROUD ASSY., Used With 518 mm Fan; If Used 6 434-612 4 BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5, Full Thd, 7 120104 3 SCREW, Hex, M8 x 20, 8.8, 8 322358 3 WASHER, SPRING, Belleville, M8, 9 x 16 x 1.6 mm 9 86624184 3 WASHER, M8 x 16 x 1.6, 10 87046887 1 GUARD, Fan 11 86982450 1 V-BELT, Fan Belt

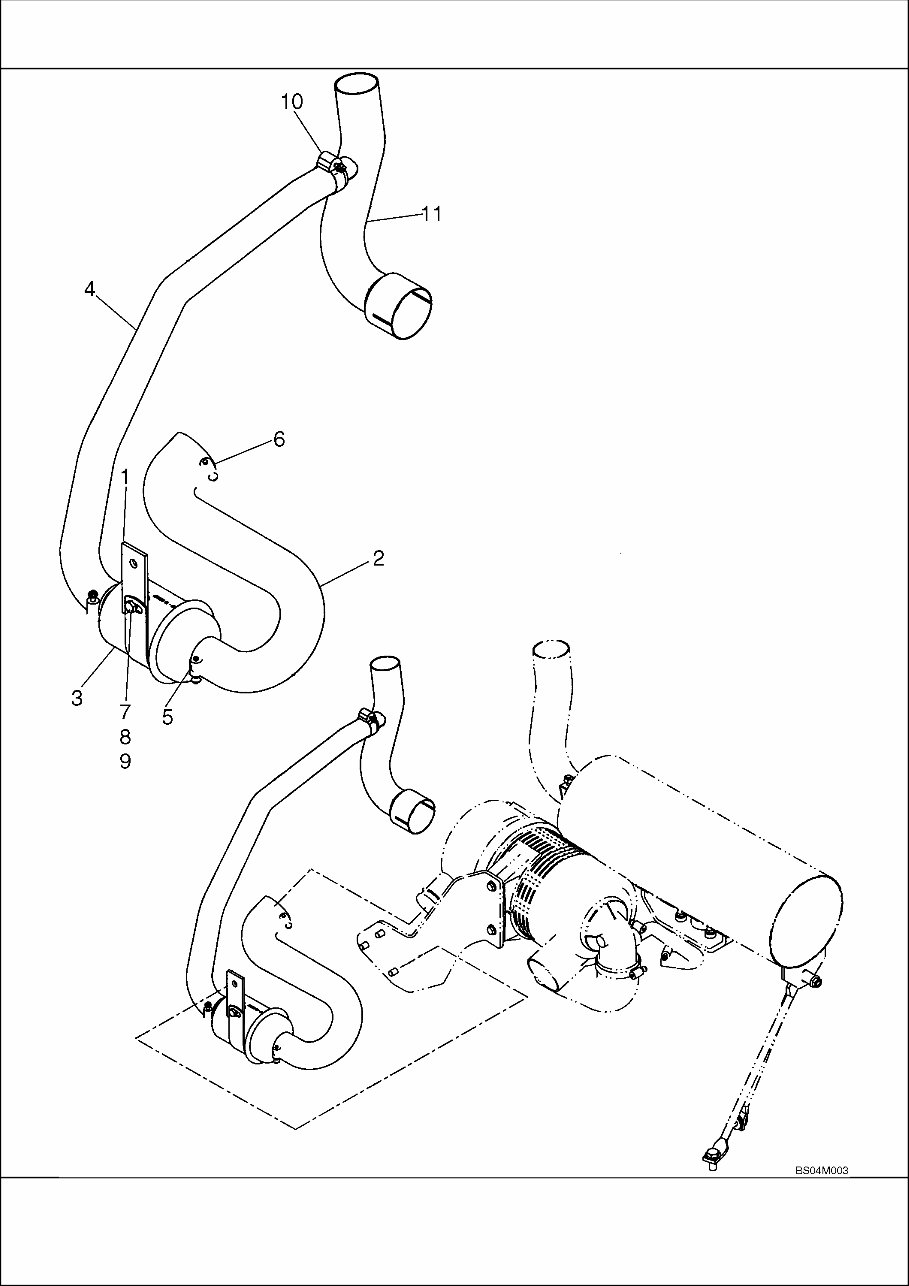

445 SKID STEER (3/04- ) 02-03 EXHAUST SYSTEM

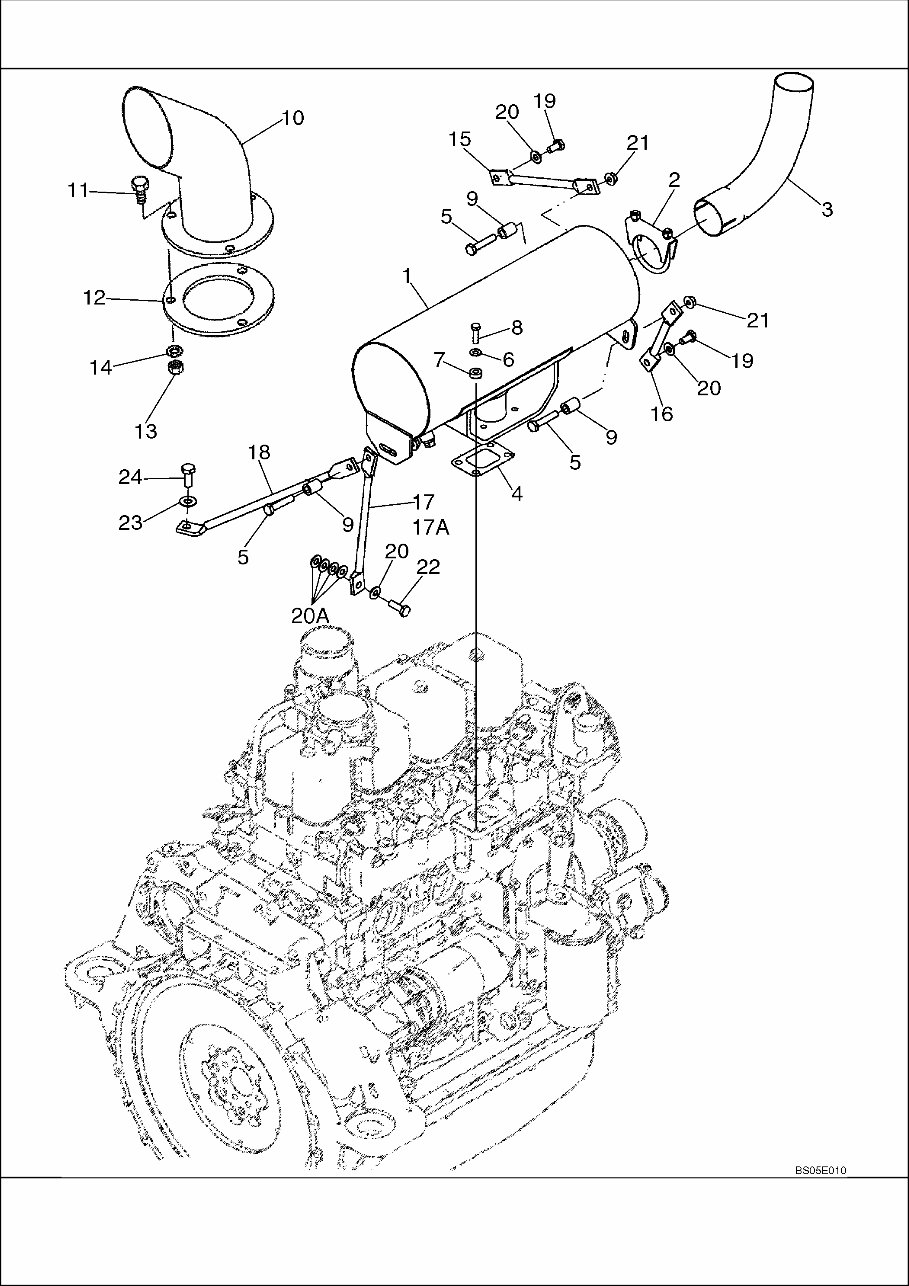

Ref Part Number Qty Description 445 SKID STEER (3/04- ) 02-03 EXHAUST SYSTEM 1 87040452 1 MUFFLER, Assy 2 A13240 1 CLAMP, Muffler 2 87461995 1 CLAMP, Muffler; Replaces A13240 3 87040455 1 TUBE, Tailpipe 4 87021302 1 GASKET, Muffler Inlet Pipe 5 827-10050 3 BOLT, Hex, M10 x 50, 10.9, 6 322358 4 WASHER, SPRING, Belleville, M8, 7 86633393 4 SPACER, 8 614-8030 4 BOLT, Hex, M8 x 30, 8.8, 9 256690A1 3 SPACER, 10 304811A1 1 TUBE, Exhaust Extension 10 87381264 1 PIPE, Replaces 304811A1 11 43127 3 BOLT, Hex, M8 x 25, 8.8, 12 247026A1 1 PLATE, LARGE, Exhaust Doubler 13 832-41408 3 NUT, LOCK, M8 x 1.25, Cl 10, 14 895-15008 8 WASHER, M8 x 20 x 1.6, 15 87040820 1 ROD, Muffler Support 16 87040819 1 ROD, Muffler Support 17 87040818 1 ROD, Muffler Support; 352.1 mm (13.86 in), If Used 17A 87043605 1 ROD, Muffler Support; 354.9 mm (13.97 in), If Used 18 87040817 1 ROD, Muffler Support 19 614-10020 2 BOLT, Hex, M10 x 20, 8.8, Full Thd, 20 140045 6 WASHER, SPRING, Belleville, M10, 20A 140045 4 WASHER, SPRING, Belleville, M10, Used with Ref 17 21 411345A1 3 NUT, Flange, Spiral Lock, M10 22 614-10030 1 BOLT, Hex, M10 x 30, 8.8, 23 140046 1 WASHER, SPRING, Belleville, M12, 24 9706687 1 SCREW, Hex, M12 x 30, 8.8,
This Complete Case 445 Skid Steer Loader Illustrated Parts Catalog provides comprehensive part information and numbers for your Case Skid Steer. It contains all the factory parts information required to accurately lookup correct part numbers for the entire machine, including engine parts.

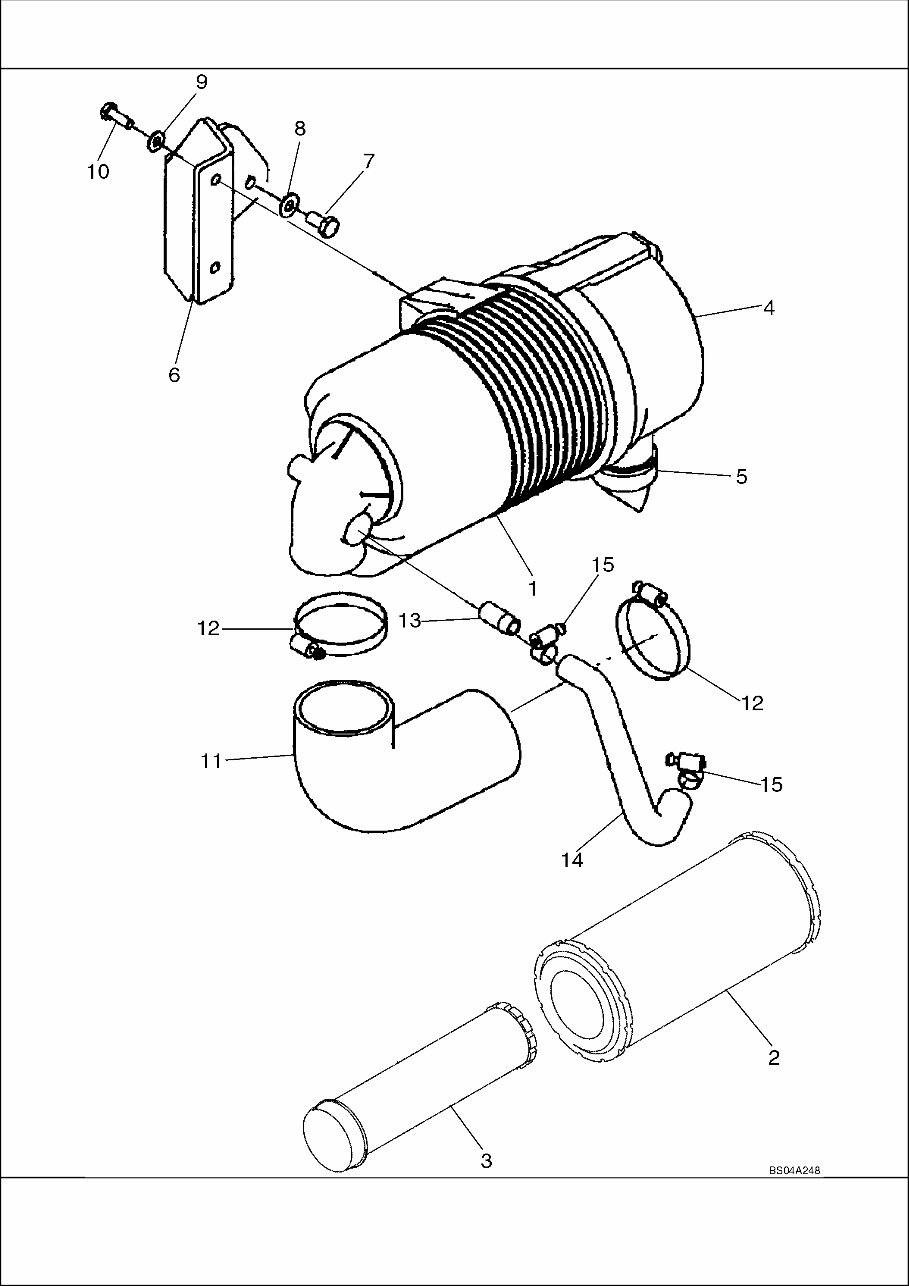

The Parts Catalog features detailed illustrations and exploded views, making it ideal for disassembly, repair, and reassembly of the Skid Steer. The exploded parts diagrams are essential for examining the parts and will assist in servicing, rebuilding, teardowns, overhauls, repairs, and adjustments.
Additionally, this manual is completely searchable and bookmarked, allowing for easy navigation and quick access to the required information. The ability to search makes finding what you need as easy as typing a word.
Furthermore, this manual includes part numbers and illustrations for the Engine, Fuel System, Electrical System, Power Train, Brakes, Hydraulics, Chassis, Accessories, and CE Attachments.
Having a parts catalog at your disposal saves time, money, and ensures you are well-informed when ordering parts. This manual can be viewed on any computer, zoomed, printed, and easily accessed.
Additional Information: Documents may require the newest version of Acrobat Reader to display correctly. Should you encounter any issues reading your document, please attempt to upgrade to the latest version of Adobe Acrobat Reader.
For any inquiries about other manuals, feel free to email me as I have a wide selection available.
