Sakai SW300-1,SW320-1,SW330-1 shop manual

SHOP MANUAL Series

PREFACE To make a machine working to maximum efficiency over a long period of time without any machine troubles, correct OPERATION, PREVENTIVE MAINTE- NANCE, TROUBLE-SHOOTING and REPAIR are of vital importance. This shop manual provides instructions, for the most part, on GENERAL INFORMATION, STRUCTURE/FUNCTION, CHECKING/ADJUSTMENT, and TROUBLE-SHOOTING of the SAKAI SW300 Series Vibrating Rollers. This manual is designed to serve as a guide for the operator and maintenance personnel to acquire correct information and repair procedure on these machines in order to give a correct decision on problems which the machines will confront, thus leading to quality repair. Fully understand the contents of the manual and make the best of it. We will make utmost efforts to make this manual more useful for you through revisions. Your opinions and advices will be particularly welcome and will be carefully considered.

CONTENTS ■ SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-001 ■ STRUCTURE & OPERATION ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-001 ■ INSPECTION & ADJUSTMENT ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3-001 ■ TROUBLE-SHOOTING ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-001

SPECIFICATIONS

1-001 SPECIFICATIONS 1. External Views and Specifications ■ 1-1. SW300 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-002 ■ 1-2. SW320 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-003 ■ 1-3. SW330 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-004

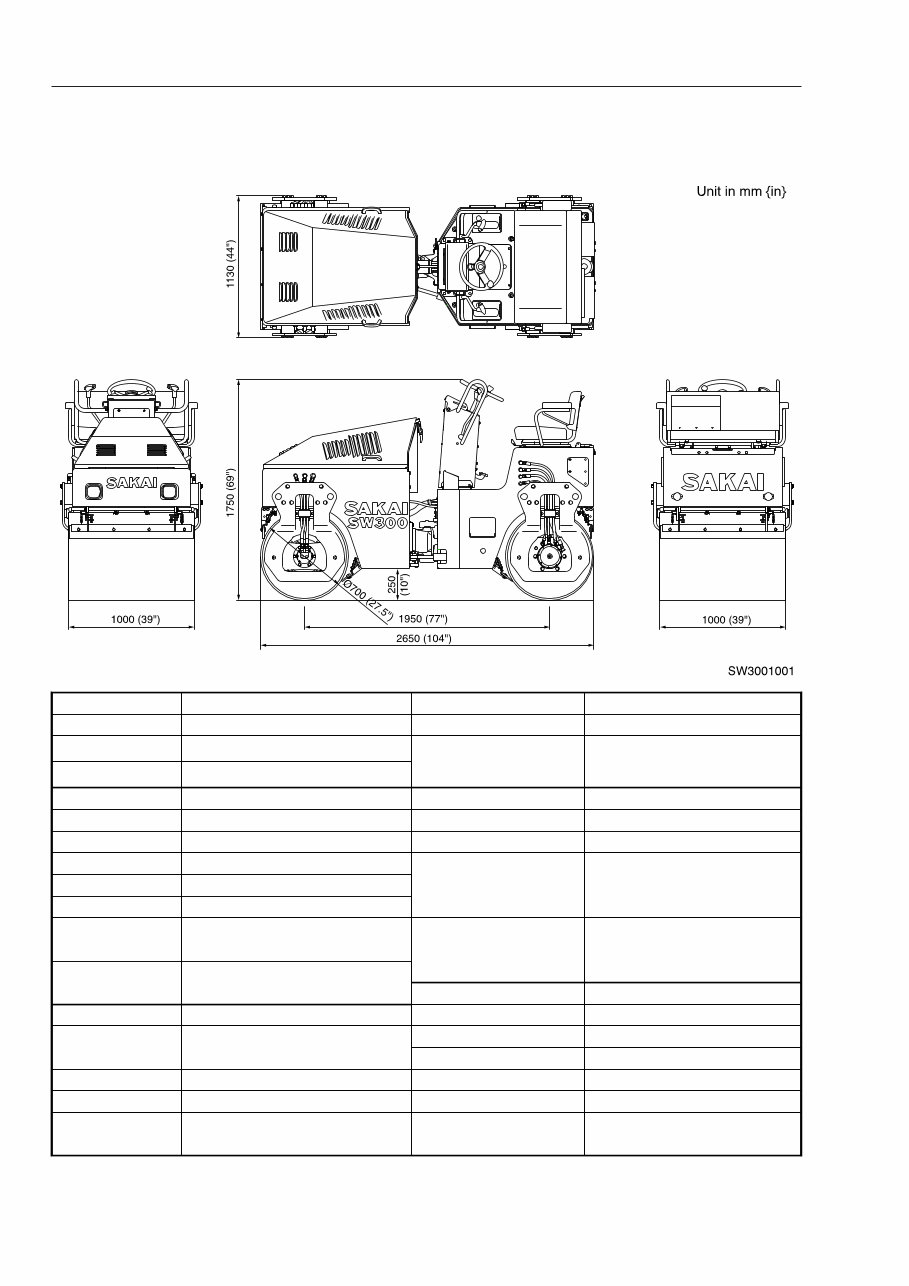

1-002 SPECIFICATIONS 1. External Views and Specifications 1-1. SW300 Model SW300 Vibrating power: Weight: Frequency 66.7 Hz {4,000 vpm} Gross weight 2,700 kg {5,955 lbs} Centrifugal force 27.5 kN (6,175 lbs) {2,800 kgf} Empty weight 2,525 kg {5,570 lbs} Fuel tank Dimension: Engine: Overall length 2,650 mm {104"} Model KUBOTA “D1703” Diesel Engine Overall width 1,130 mm {44"} Total displacement 1,647 cc {100.5 cu.in} Overall height 1,750 mm {69"} Rated output 25.4 kW/2,800 rpm (34.5 PS/2,800 rpm) {34.0 HP/2,800 rpm} Wheelbase 1,950 mm {77"} Wheel Front Roll (width x dia.) 1,000 x 700 mm {39" x 28"} Max. torque 108 N•m/1,600 rpm (11.0 kgf•m/1,600 rpm) {79.6 lbf•ft/1,600 rpm} Rear Roll (width x dia.) 1,000 x 700 mm {39" x 28"} Performance: 50 liters {13.2 gal} Travel speed (forward/reverse) 0 ~ 12 km/h {0 ~ 7.5mile/h} Hydraulic tank 42 liters {11.1 gal} Sprinkler tank 180 liters {48 gal} NOTE: Gradability is the calculated value. It may vary with ground surface conditions. Gradability 24 degrees Rolling width 1,000 mm {39"} Minimum turning radius 3.7 m {146"} Tank capacity:
