VIBRATORY COMPACTION
ROLLER

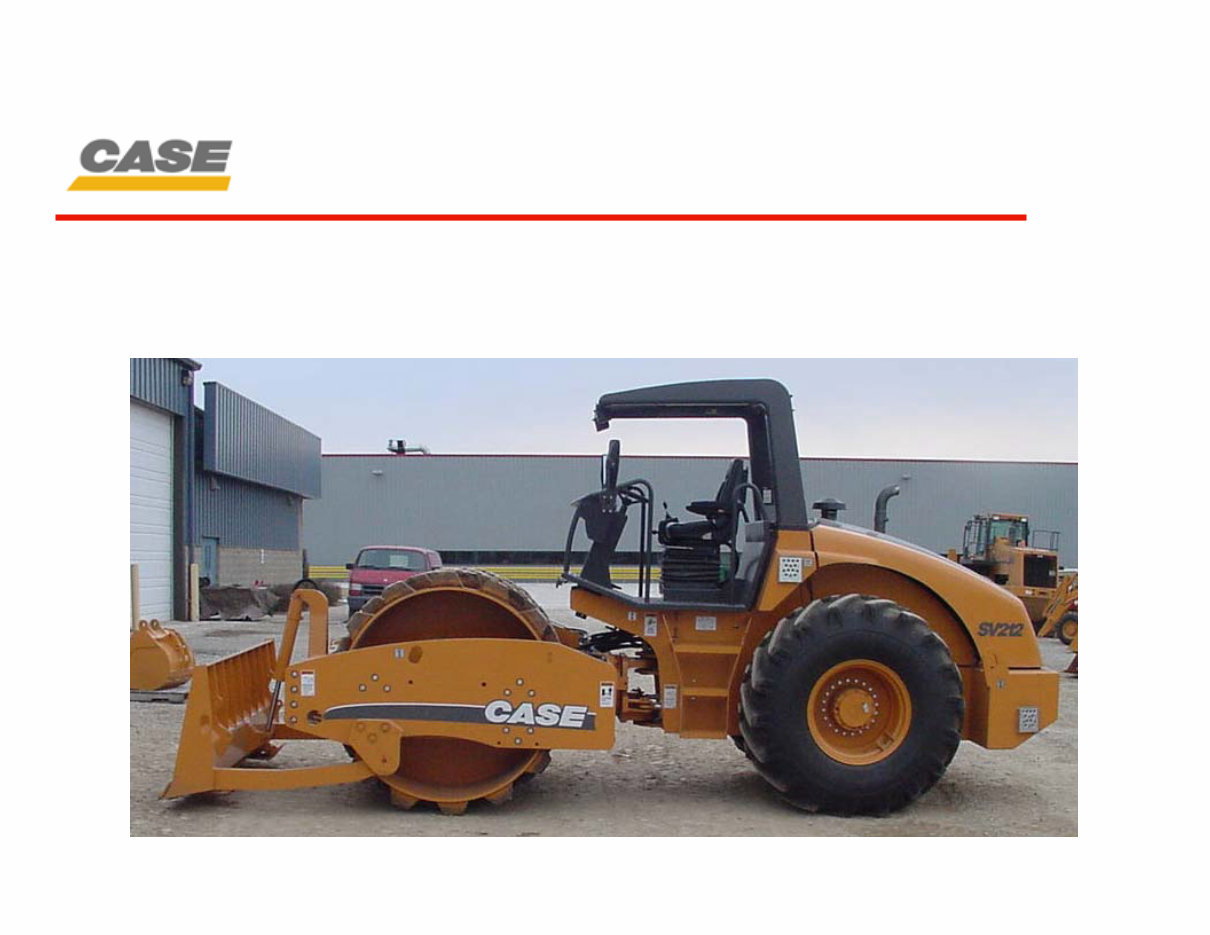

SV212 (24,442 lb, 11,097 kg)
SV216 (31,553 lb, 14,325 kg)

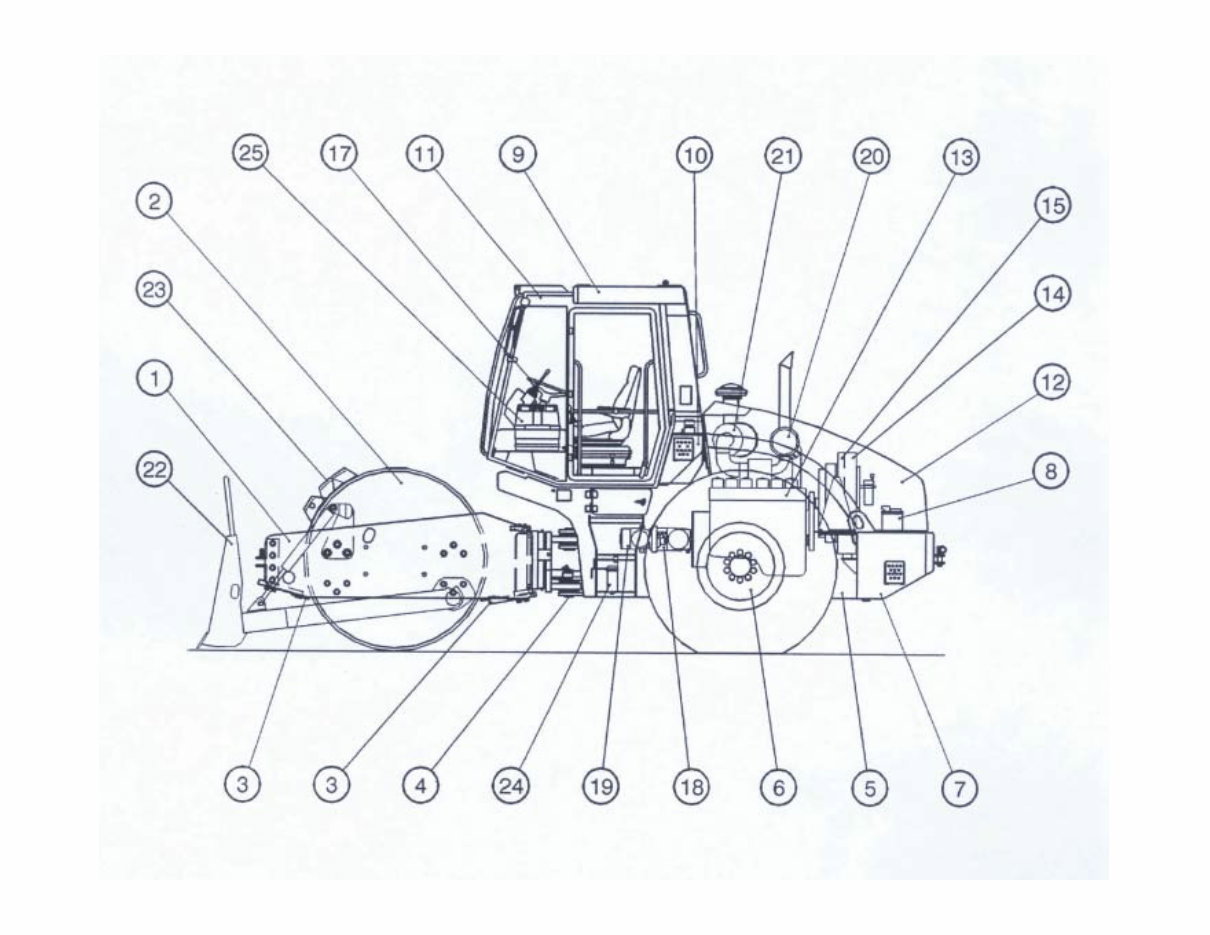

1 - Drum Frame 13 - Engine
2 - Vibratory Drum 14 - Hydraulic oil cooler
3 - Scraper 15 - Engine radiator
4 - Articulated joint 17 - Driver’s workplace
5 - Tractor Frame 18 - Travel pump
6 - Axle 19 - Vibration pump
7 - Fuel Tank 20 - Exhaust muffler
8 - Batteries 21 - Air filter
9 - ROPS frame 22 - Dozer blade
10 - Hydraulic oil tank 23 - Pad foot segments
11 - Cabin 24 - Hydraulic pressure filter
12 - Hood 25 - Air condition system
SV216 With
Smooth Drum, Cab,
Driving & Directional
Lights

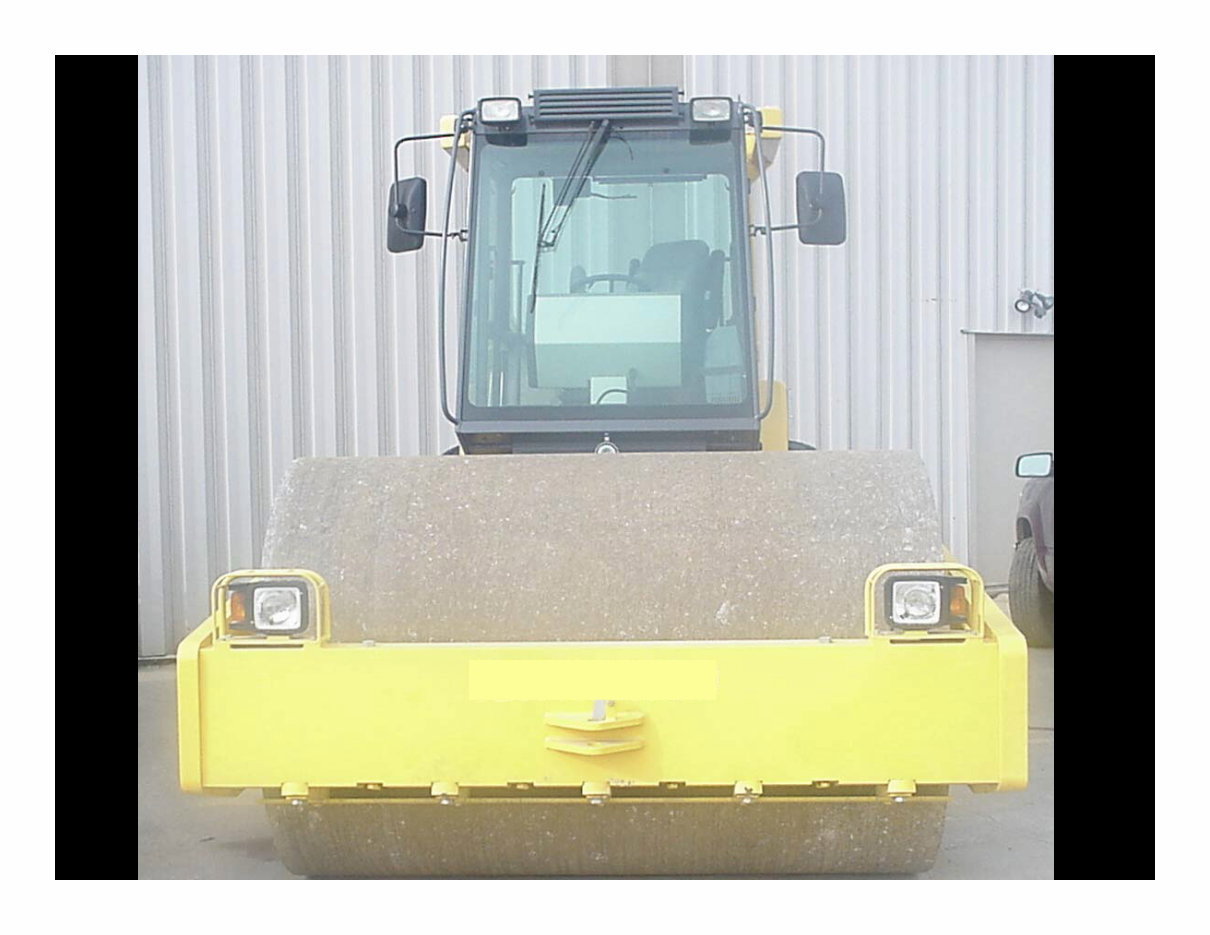

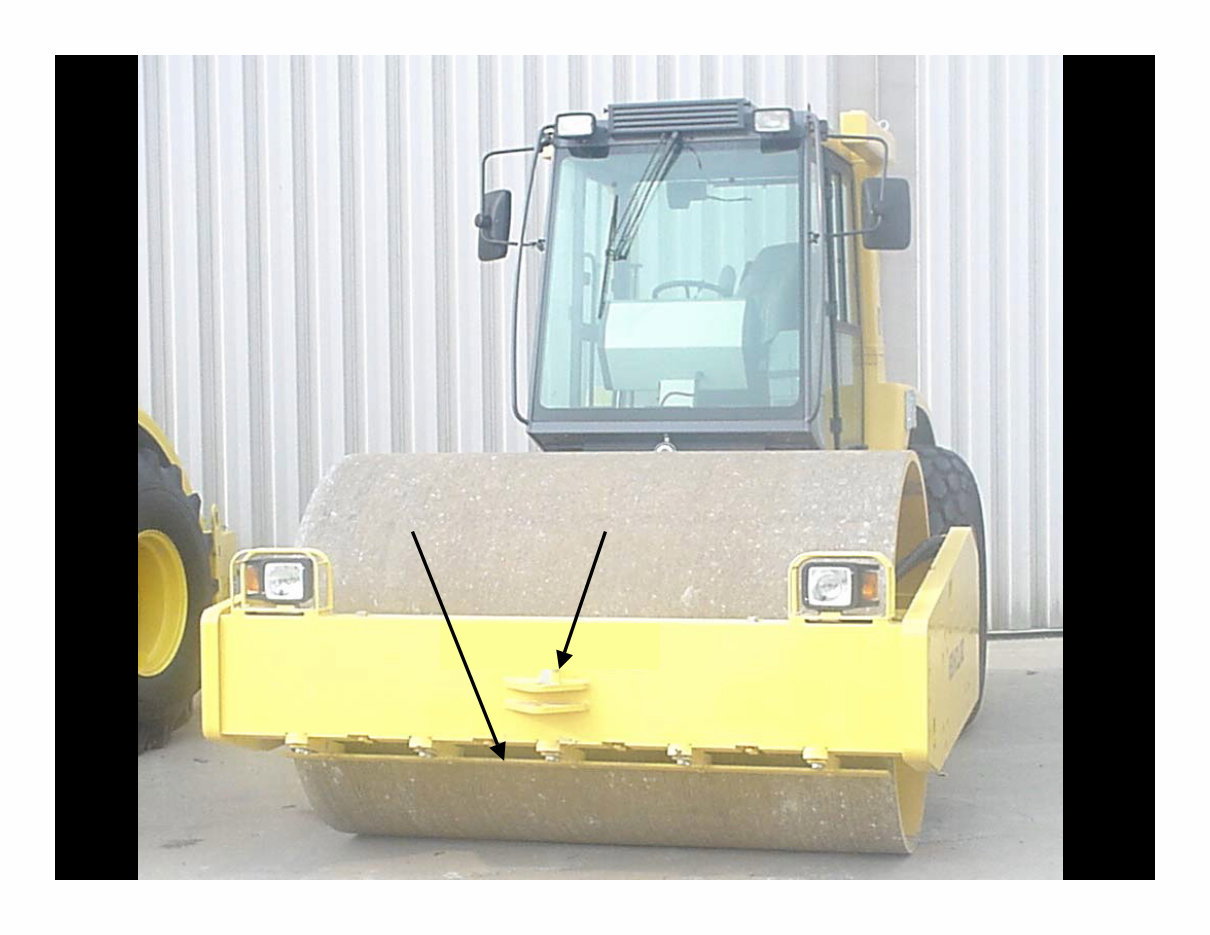

Drum Scraper Towing Hitch
Brake Release for Emergency Towing
Release Clamp with 5mm Hex Key

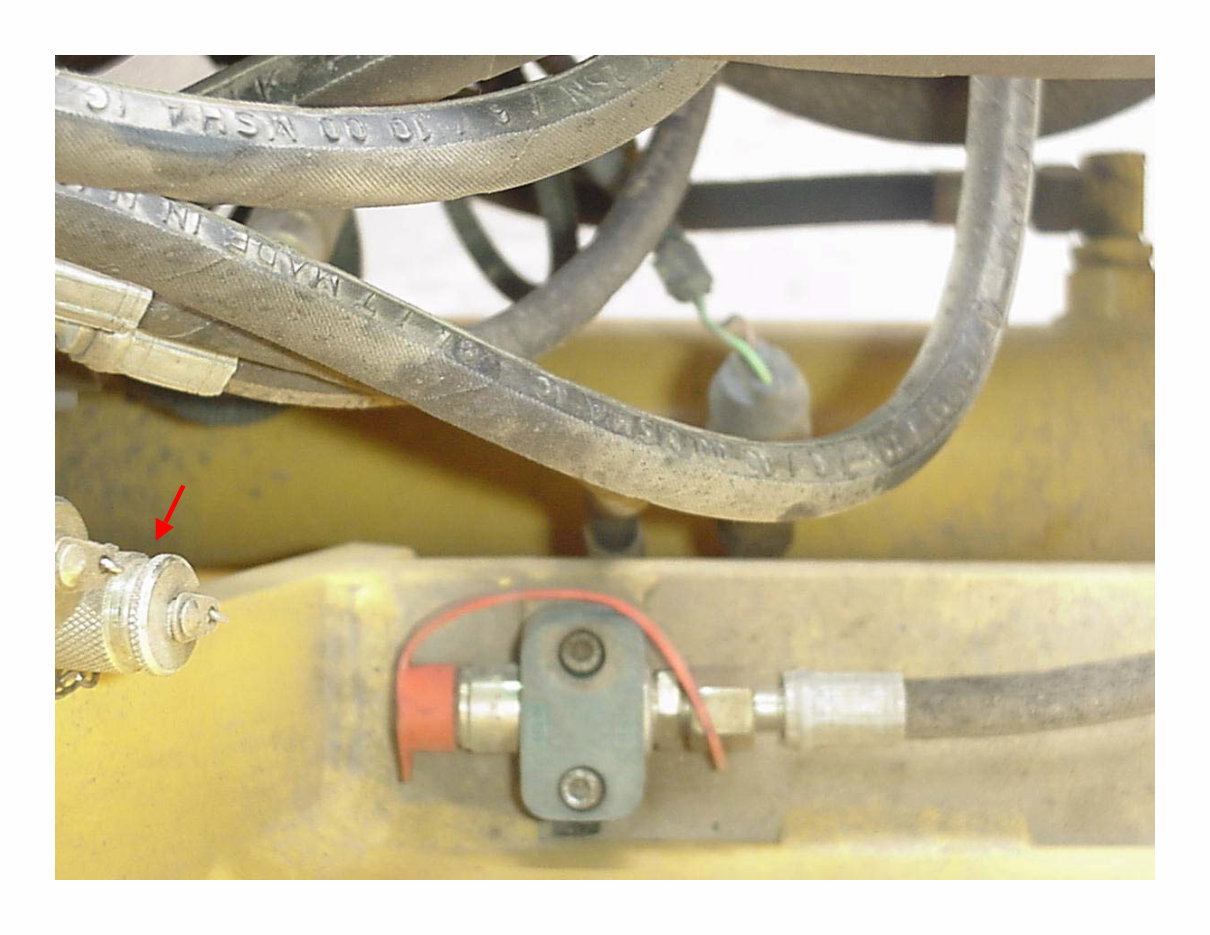

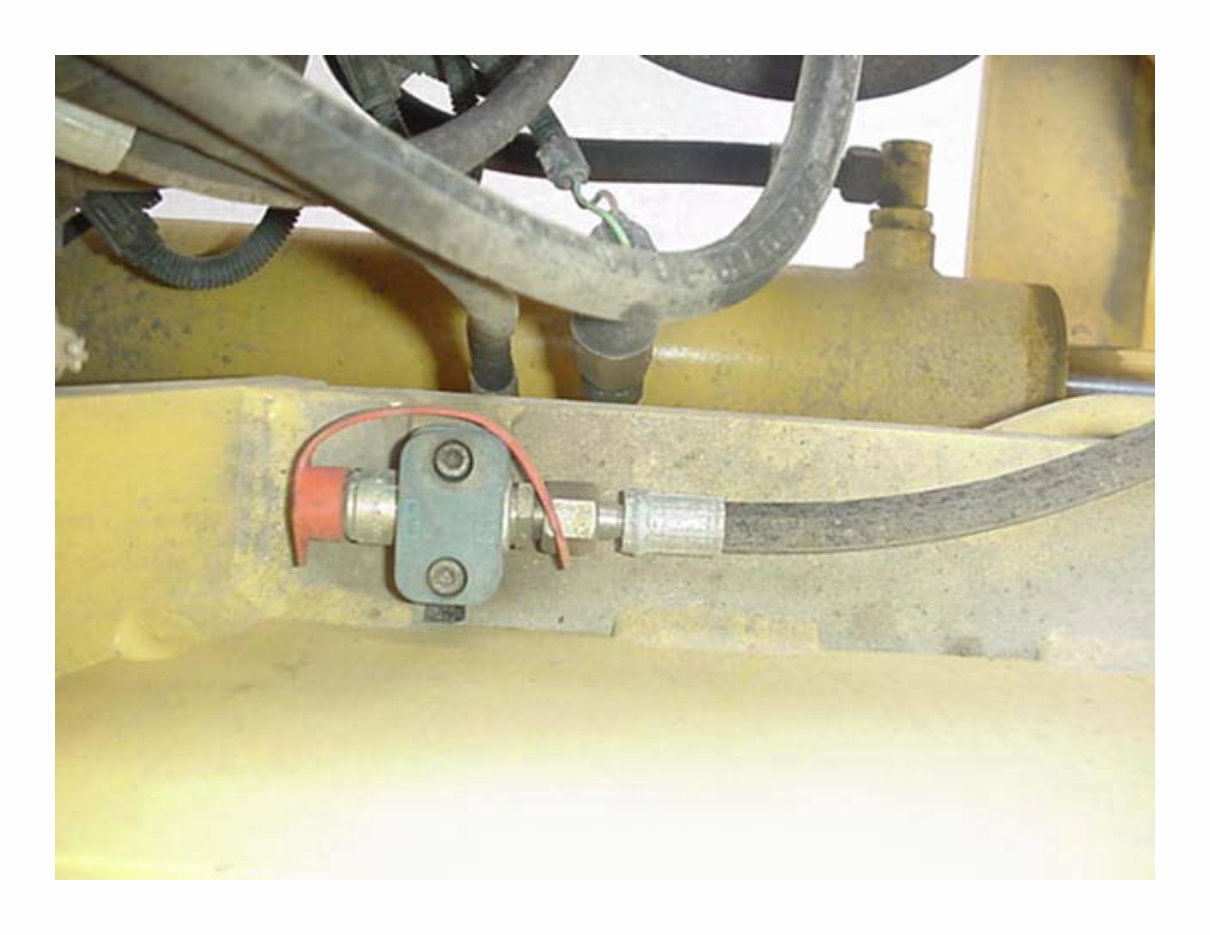

Pressure Check Port

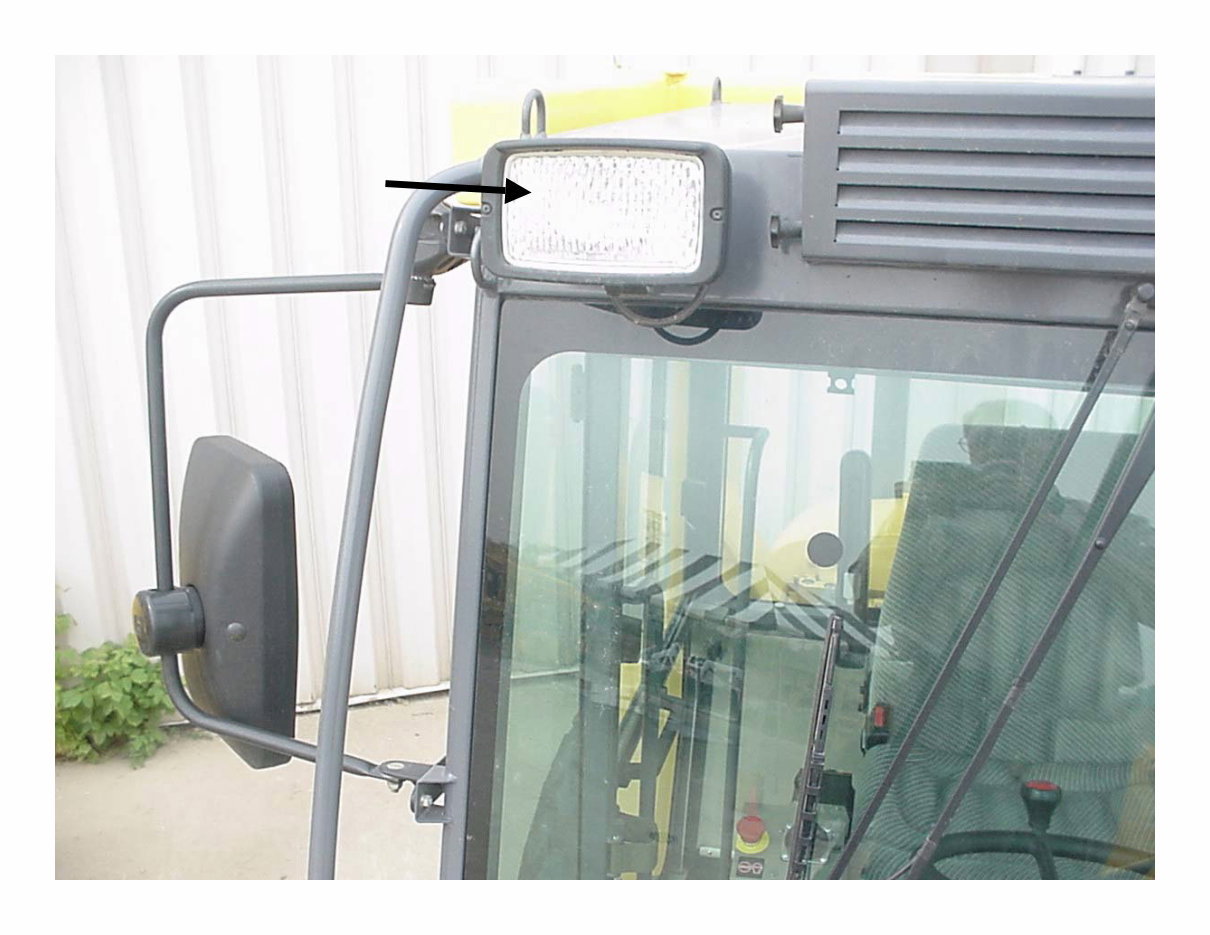

Head Light

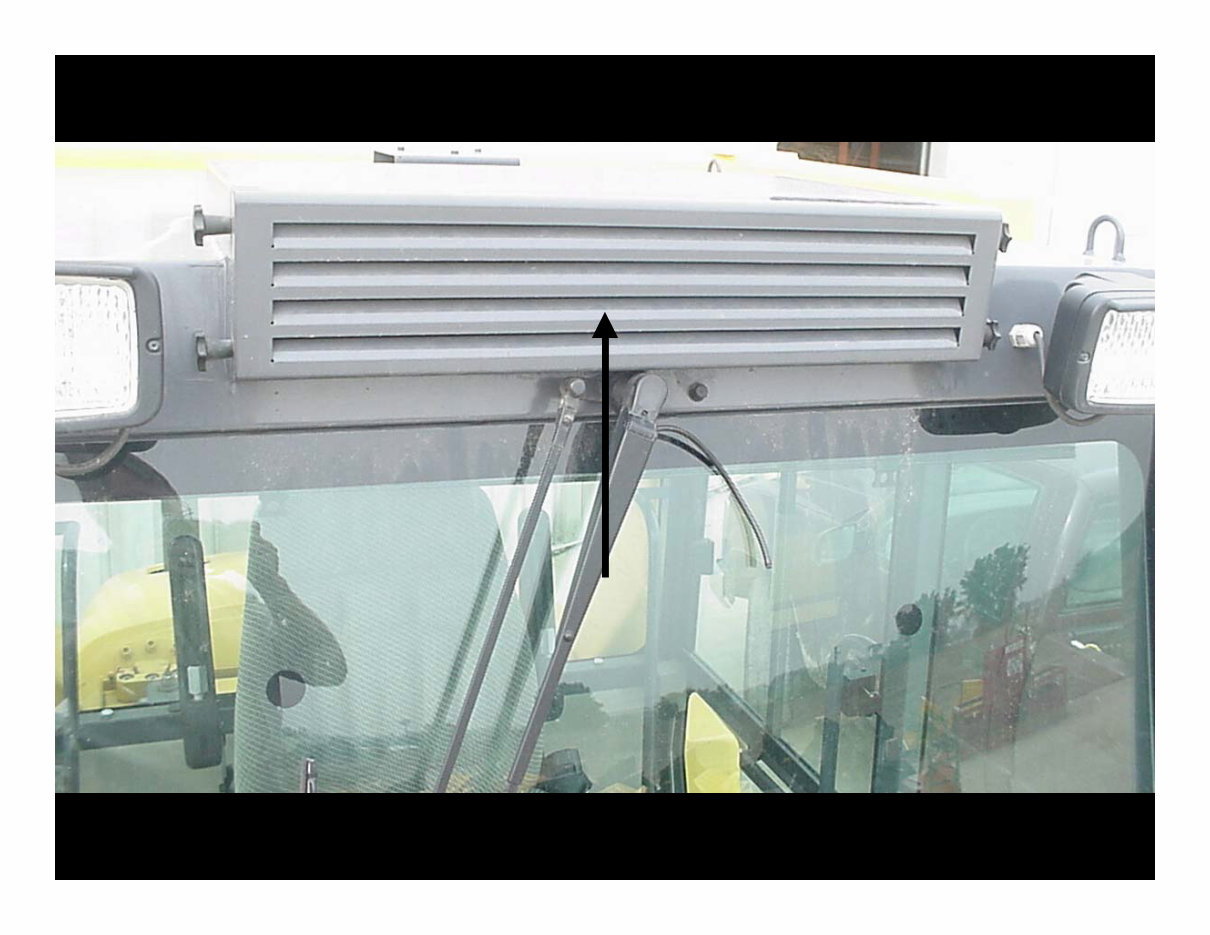

Fresh Air Intake & Filter
