Bomag BW85 T Trench compactor Service Parts Catalogue Manual SN101720020101-101720021550

BW 85 T 101720020101 -> 101720021550 (00815204) BW 85 Page 1 from 2

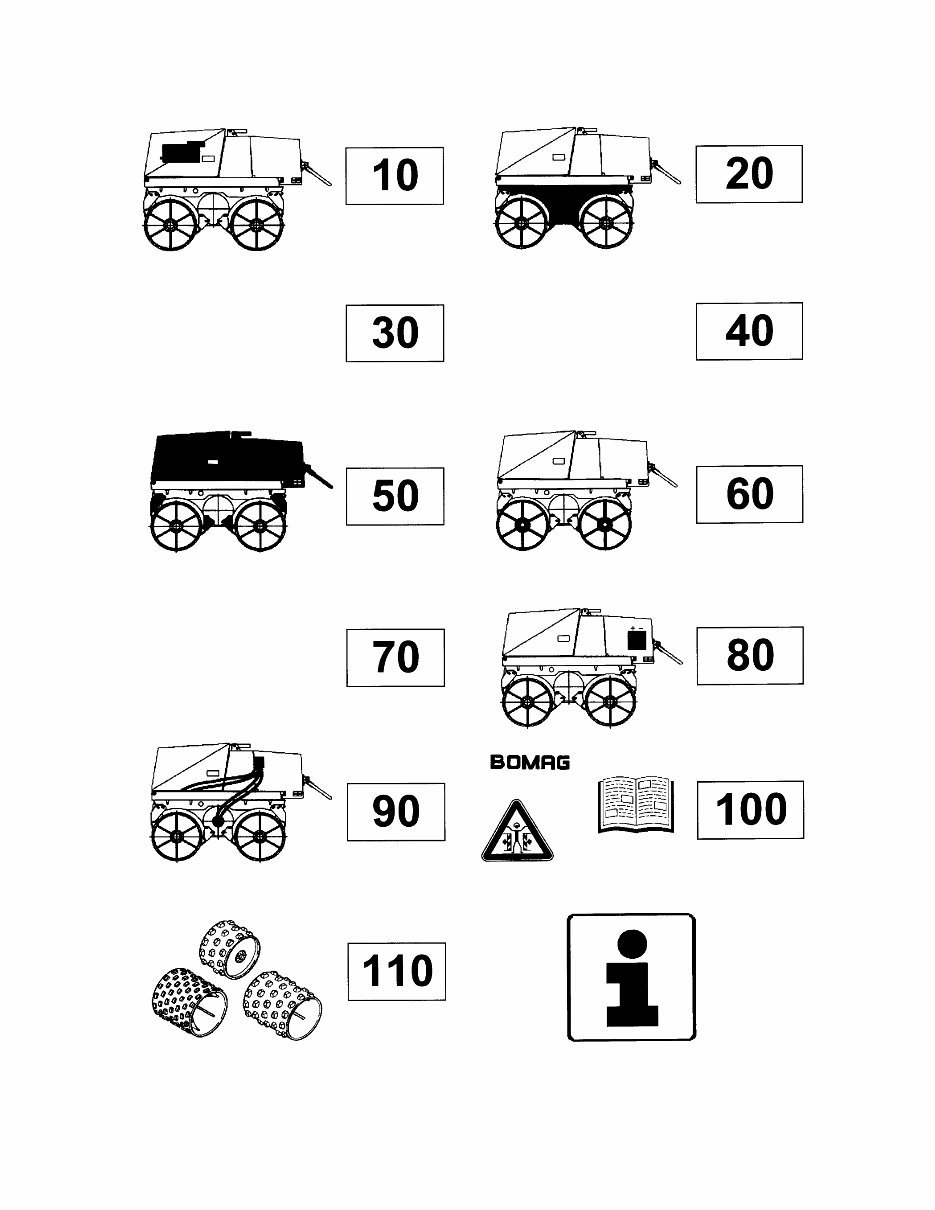

BW 85 T 101720020101 -> 101720021550 (00815204) BW 85 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

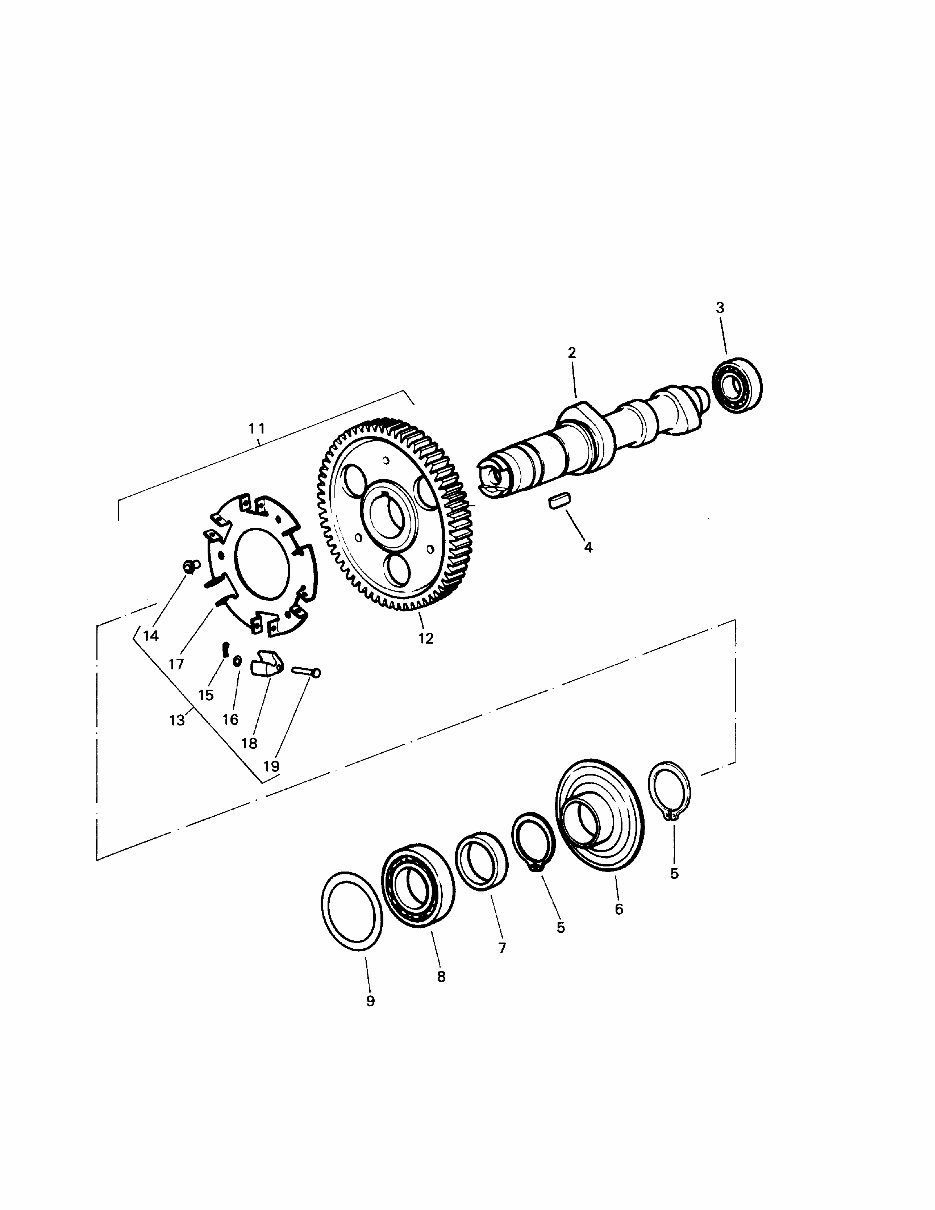

11.09 7654324 7935193 05701508 CAMSHAFT BW 85 Page 1 from 2

11.09 7654324 7935193 05701508 CAMSHAFT BW 85 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05715759 Camshaft 1,000 3 001 05114053 Ball bearing,grooved 1,000 4 001 09181203 Fitting key 1,000 5 001 09211900 Circlip,external 2,000 6 001 05715517 Control cup 1,000 7 001 05715507 Stop bush 1,000 8 001 05113056 Ball bearing,grooved 1,000 9 001 05715490 Shim 6,000 11 001 05715649 Gear wheel 1,000 13 001 05715516 Fastening disc 1,000 14 001 05715697 Rivet 3,000 15 001 09170104 Cotter pin 3,000 16 001 08510307 Washer 3,000 17 001 05715700 Fastening disc 1,000 18 001 05715698 Centrifugal weight 3,000 19 001 05715699 Axle 3,000 Page 2 from 2

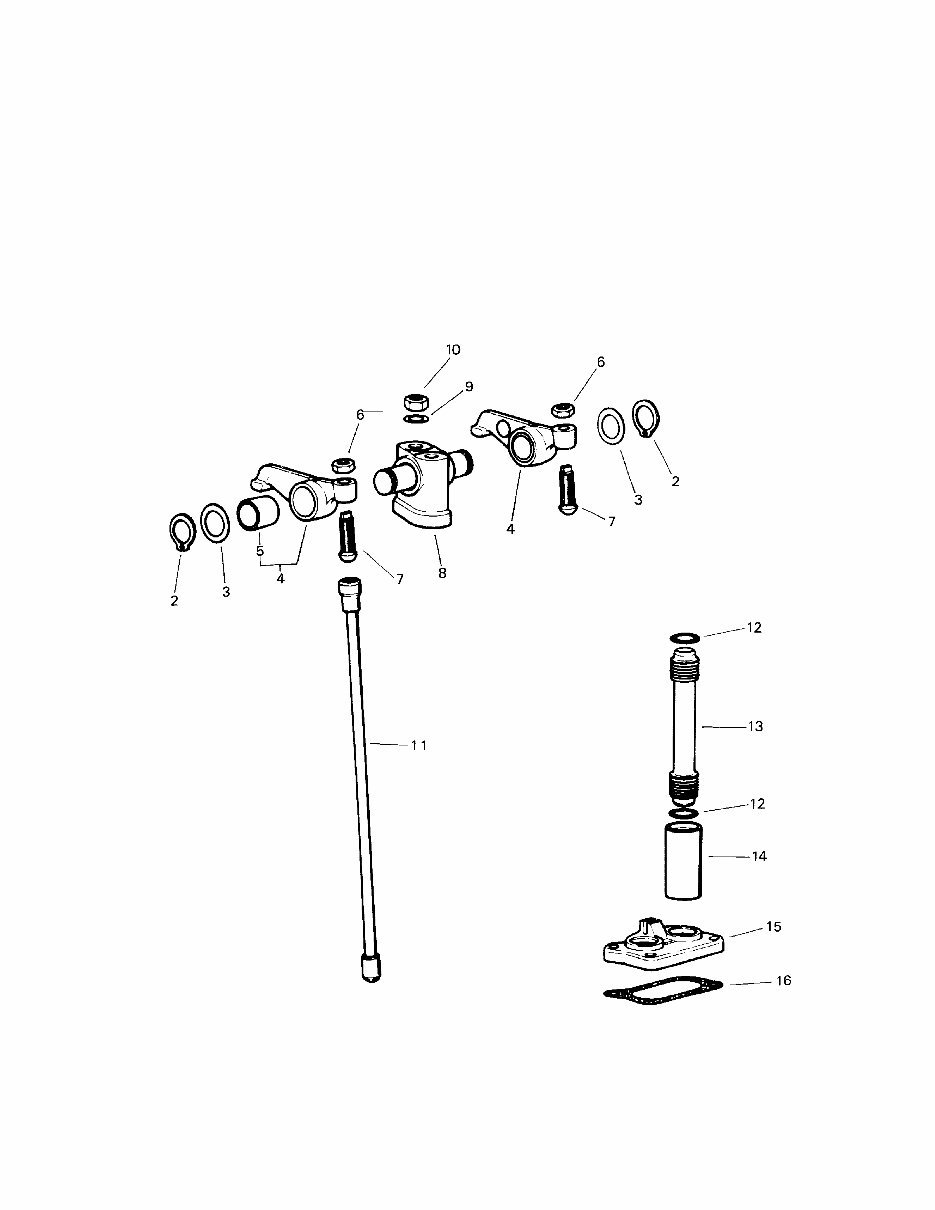

11.10 7654324 7935193 05701508 CONTROL PIECES BW 85 Page 1 from 2

11.10 7654324 7935193 05701508 CONTROL PIECES BW 85 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 09210400 Circlip 2,000 3 001 05715715 Disc 2,000 4 001 05715782 Rocker lever 2,000 5 001 05715443 Bearing bush 2,000 6 001 08120810 Hexagon nut 2,000 7 001 05715427 Screw 2,000 8 001 05715481 Rocker bracket 1,000 9 001 08510817 Washer 2,000 10 001 08110813 Hexagon nut 2,000 11 001 05715645 Push rod 2,000 12 001 05715483 Gasket 4,000 13 001 05715646 Protection tube 2,000 14 001 05715428 Tappet 2,000 16 001 05715563 Gasket 1,000 Page 2 from 2

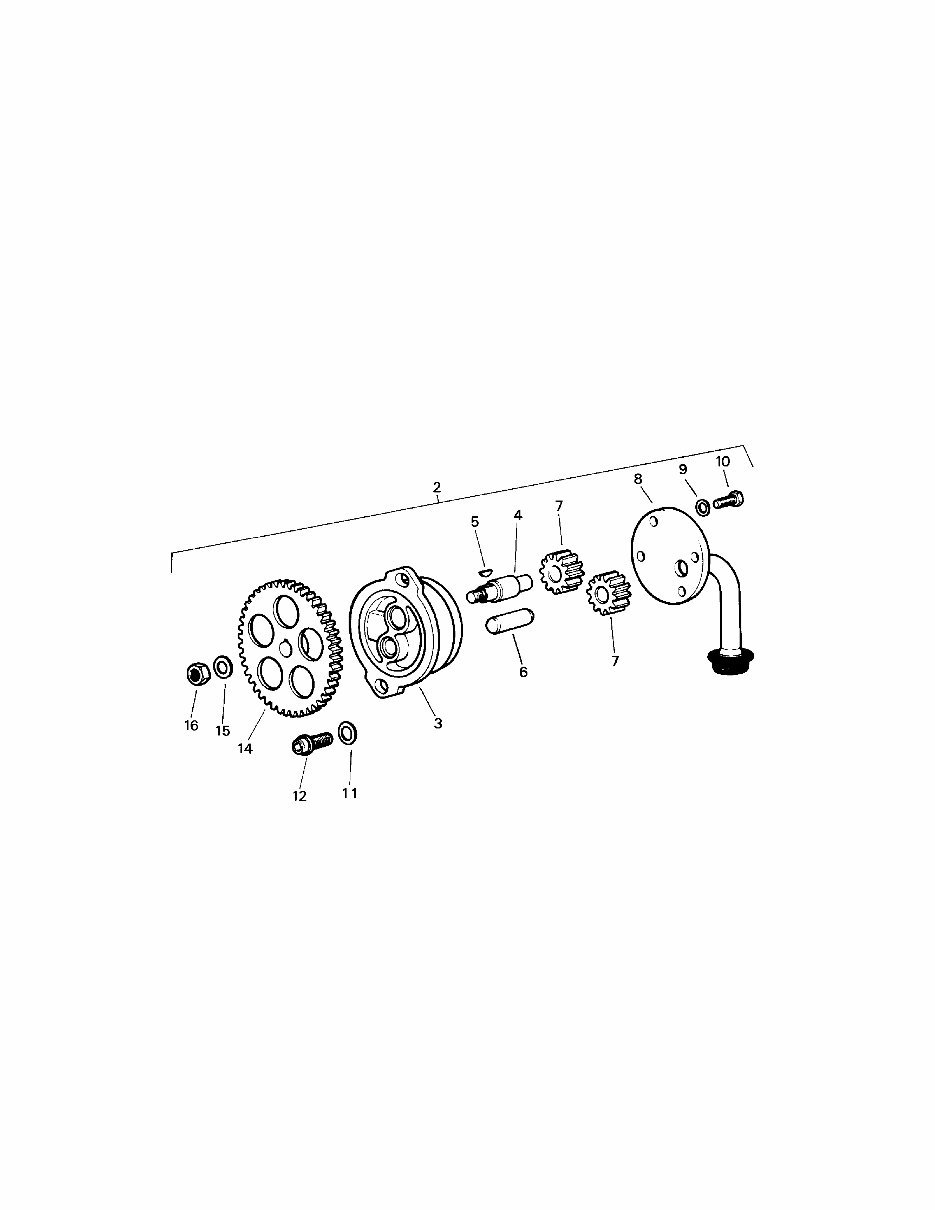

11.11 7654324 7935193 05701508 LUBRICATION OIL PUMP BW 85 Page 1 from 2

11.11 7654324 7935193 05701508 LUBRICATION OIL PUMP BW 85 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05715650 Oil pump 1,000 3 001 05715682 Pump housing 1,000 4 001 05715683 Gear wheel shaft 1,000 5 001 09190301 Woodruff key 1,000 6 001 09127004 Pin,cylindric 1,000 7 001 05715684 Gear wheel 2,000 9 001 05719686 Washer 4,000 10 001 07140626 Hexagon bolt 4,000 11 001 08642085 Spring washer 2,000 12 001 05715686 Socket-head cap screw 2,000 14 001 05715634 Gear wheel 1,000 15 001 08642085 Spring washer 1,000 16 001 08110813 Hexagon nut 1,000 Page 2 from 2

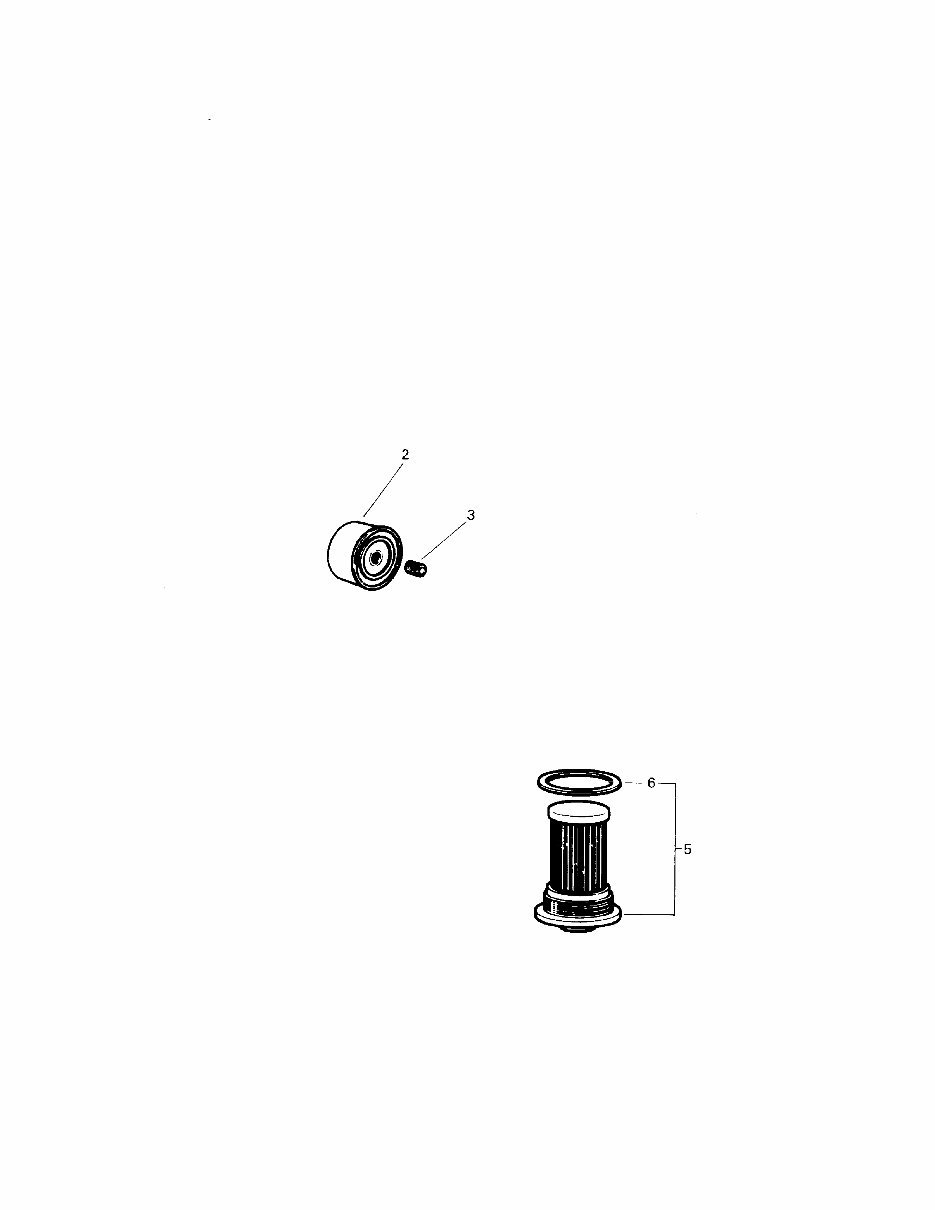

11.12 7654324 7935193 05701508 OIL AND FUEL FILTER BW 85 Page 1 from 2

11.12 7654324 7935193 05701508 OIL AND FUEL FILTER BW 85 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05715464 Filter cartridge,eng.oil 1,000 3 001 05715689 Tapped bush 1,000 5 001 05715460 Filter element,fuel 1,000 6 001 05715407 Gasket 1,000 Page 2 from 2
