Bomag BW 219 DH-4 Single drum vibratory rollers Service Parts Catalogue Manual SN101584041001 - 101584049999
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
BW 219 DH-4 101584041001 -> 101584049999 (00818857) BW 219-4 WZ
Page 1 from 2
BW 219 DH-4 101584041001 -> 101584049999 (00818857) BW 219-4 WZ

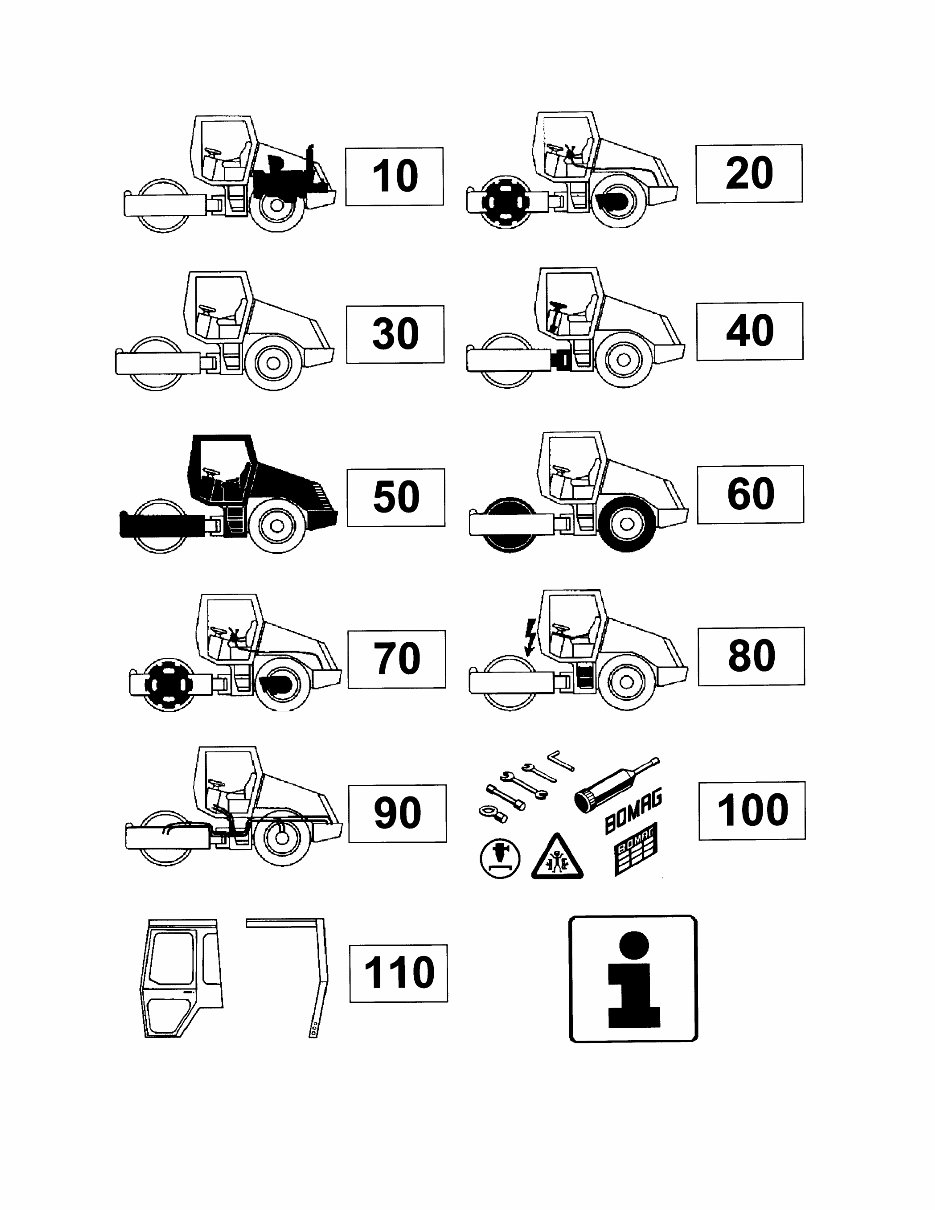

Description Assembly group
Engine / Fitting Parts 10.00
Power Transmission / Actuation 20.00
Steering System 40.00
Frame with Attachment Parts 50.00
Drum / Tyres 60.00
Electrical System 80.00
Hydraulic 90.00
Accessories 100.00
Special Equipment 110.00
Frequently used parts VT
Page 2 from 2
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
Page 1 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

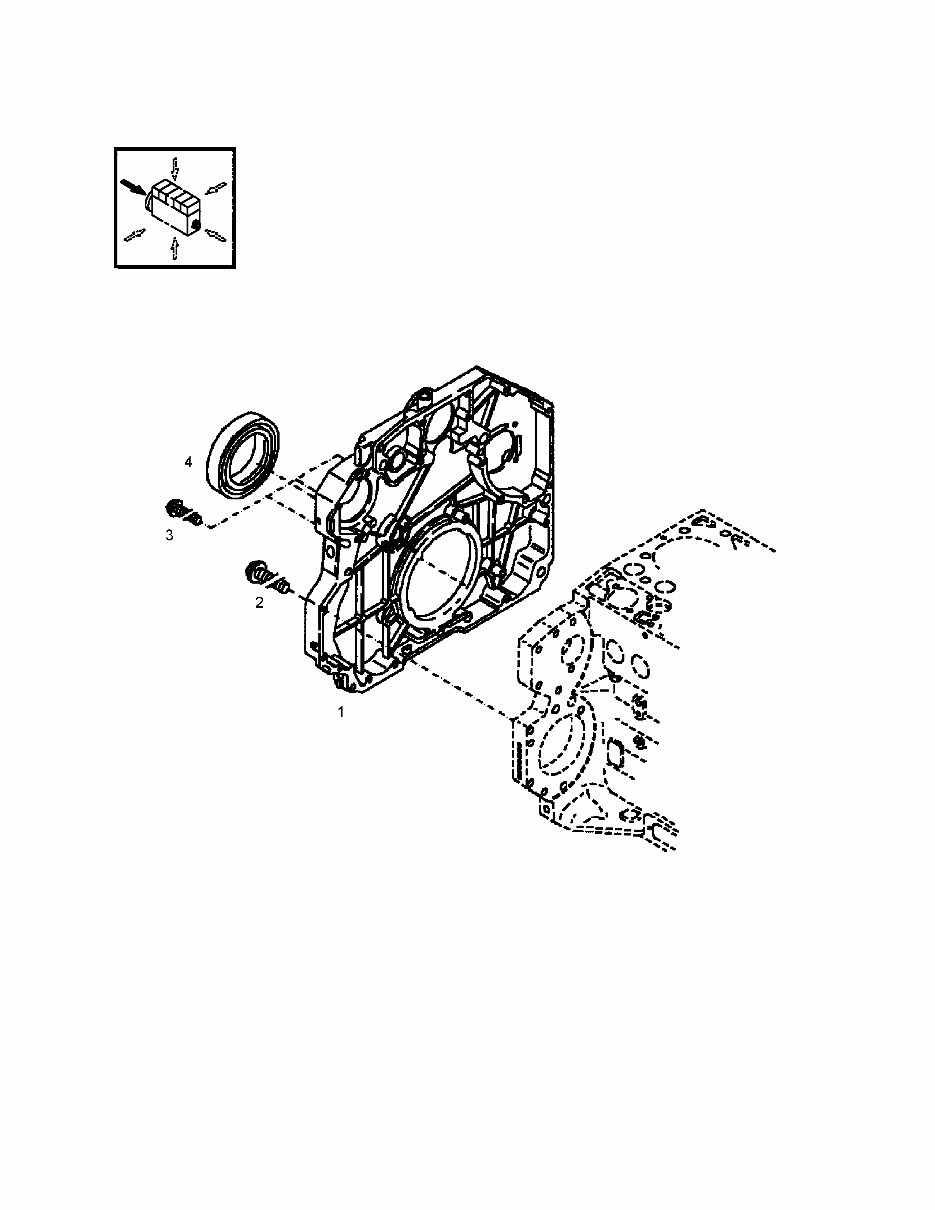

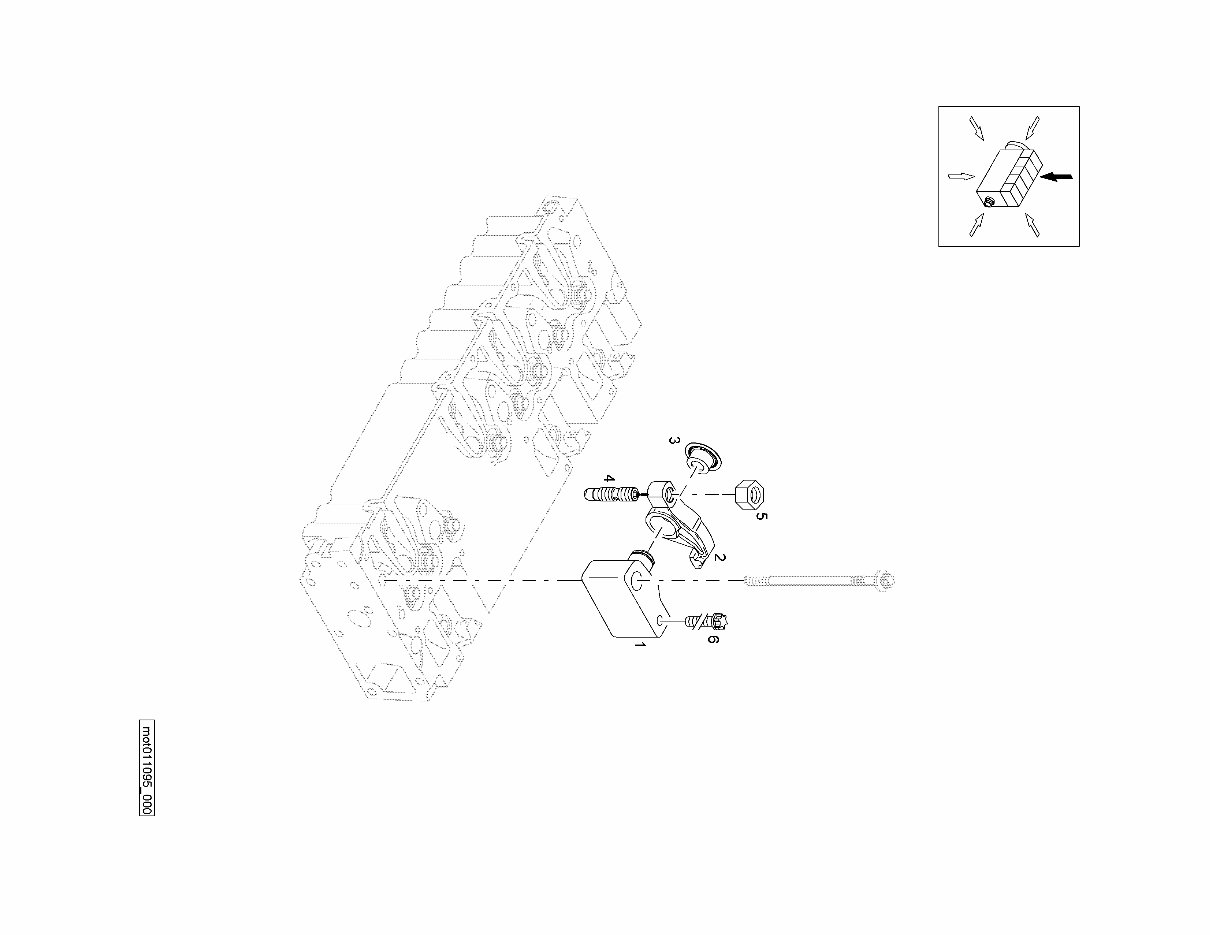

1 001 05718125 Gear housing 1
2 001 05712561 Hexagon bolt 12
3 001 05714670 Hexagon bolt 3
4 001 05719798 Radial seal 1
Page 2 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
Page 3 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

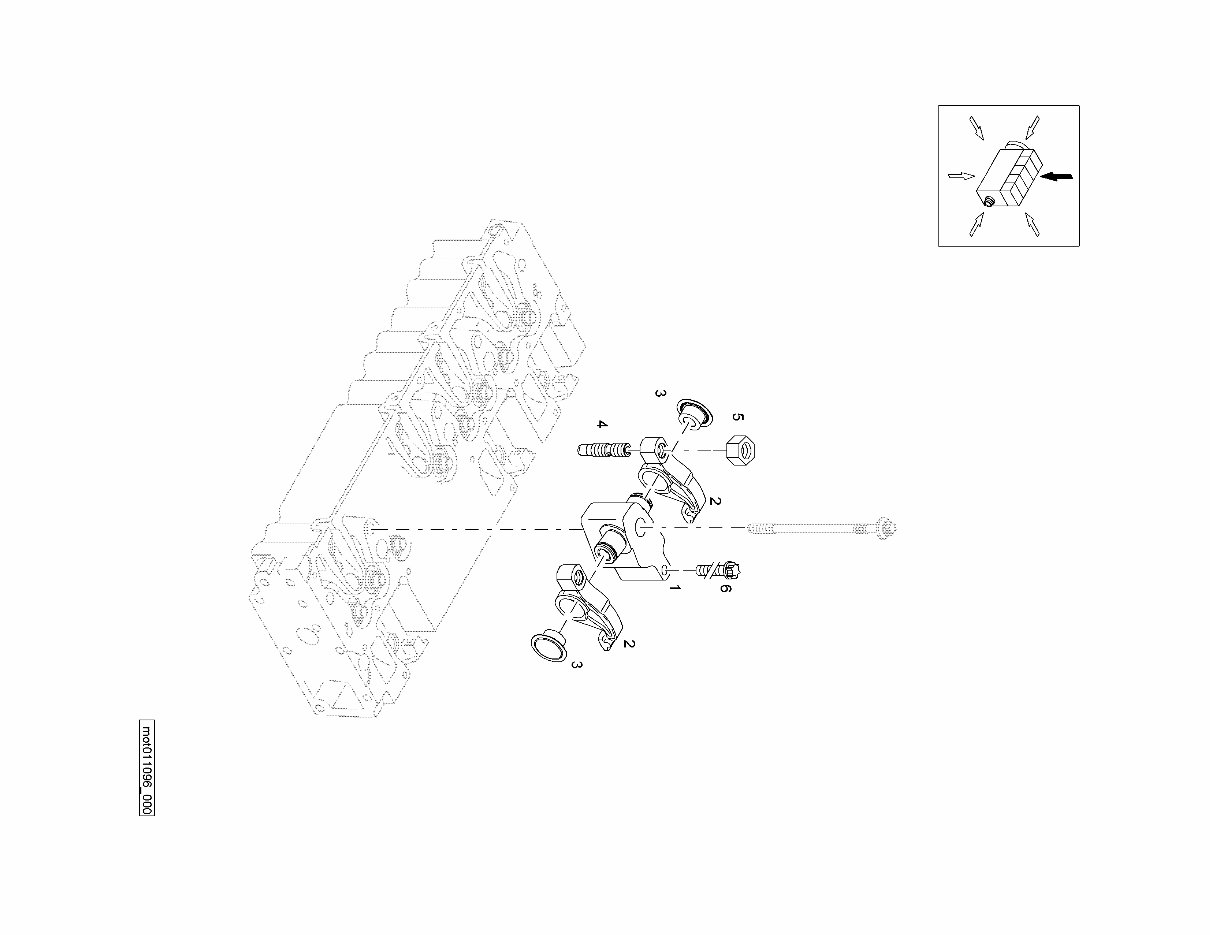

1 002 05719266 Rocker bracket 1
2 002 05729354 Rocker arm 1
3 002 05717942 Safety washer 1
4 002 05729076 Setscrew 1
5 002 05711486 Hexagon nut 1
6 002 05729396 Torx-head bolt 1
Page 4 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
Page 5 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

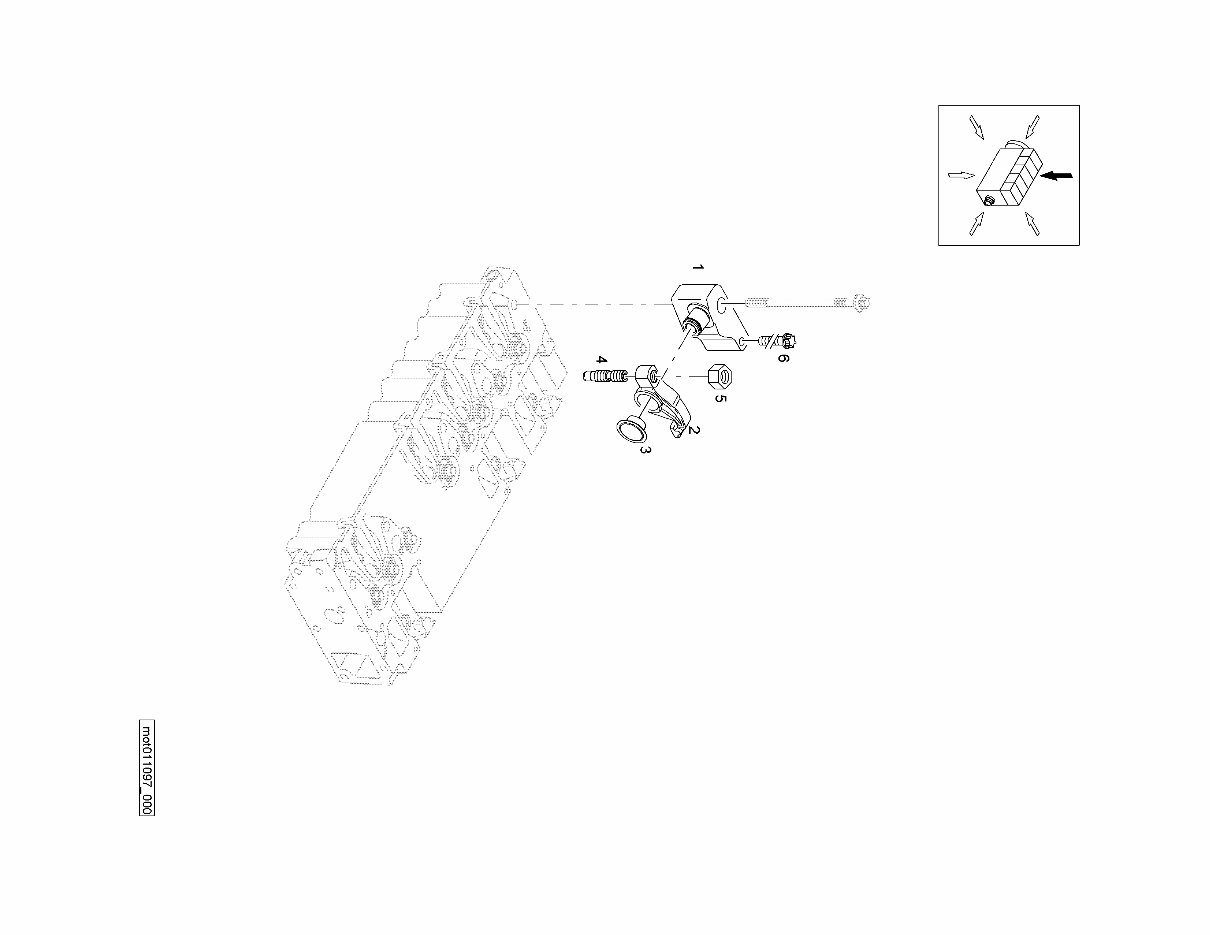

1 003 05717944 Rocker bracket 1
2 003 05729354 Rocker arm 2
3 003 05717942 Safety washer 2
4 003 05729076 Setscrew 2
5 003 05711486 Hexagon nut 2
6 003 05729396 Torx-head bolt 1
Page 6 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
Page 7 from 11
11.10 10936600 99999999 05702513 Control Pieces BW 219-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
1 004 05719267 Rocker bracket 1
2 004 05729354 Rocker arm 1
3 004 05717942 Safety washer 1
4 004 05729076 Setscrew 1
5 004 05711486 Hexagon nut 1
6 004 05729396 Torx-head bolt 1
Page 8 from 11
