Bomag BW 213 D US Single drum vibratory rollers Service Parts Catalogue Manual SN101400260101 - 101400260226

BW 213 D US 101400260101 -> 101400260226 (00810037) BW 213 Page 1 from 2

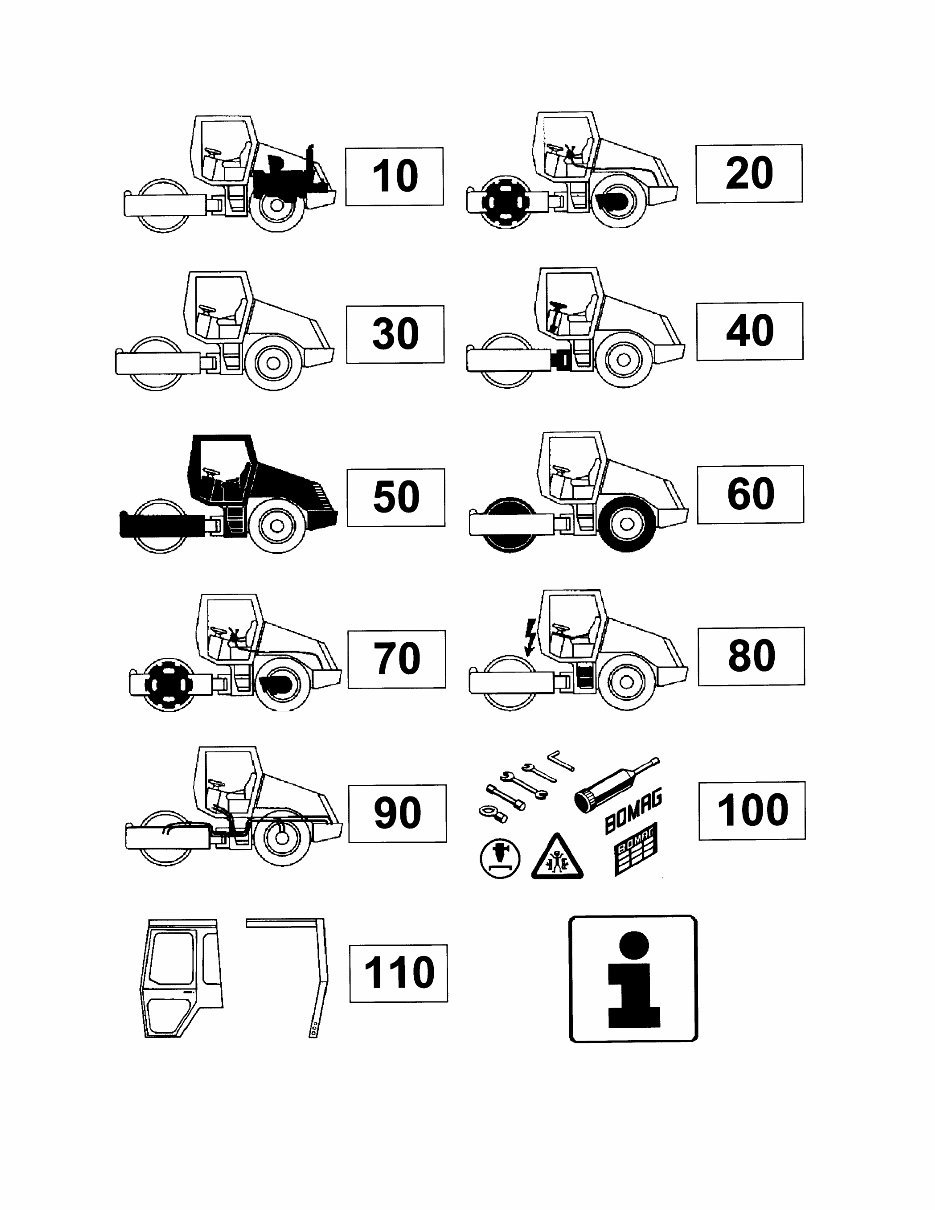

BW 213 D US 101400260101 -> 101400260226 (00810037) BW 213 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 BRAKE SYSTEM 30.00 STEERING SYSTEM 40.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 . 70.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

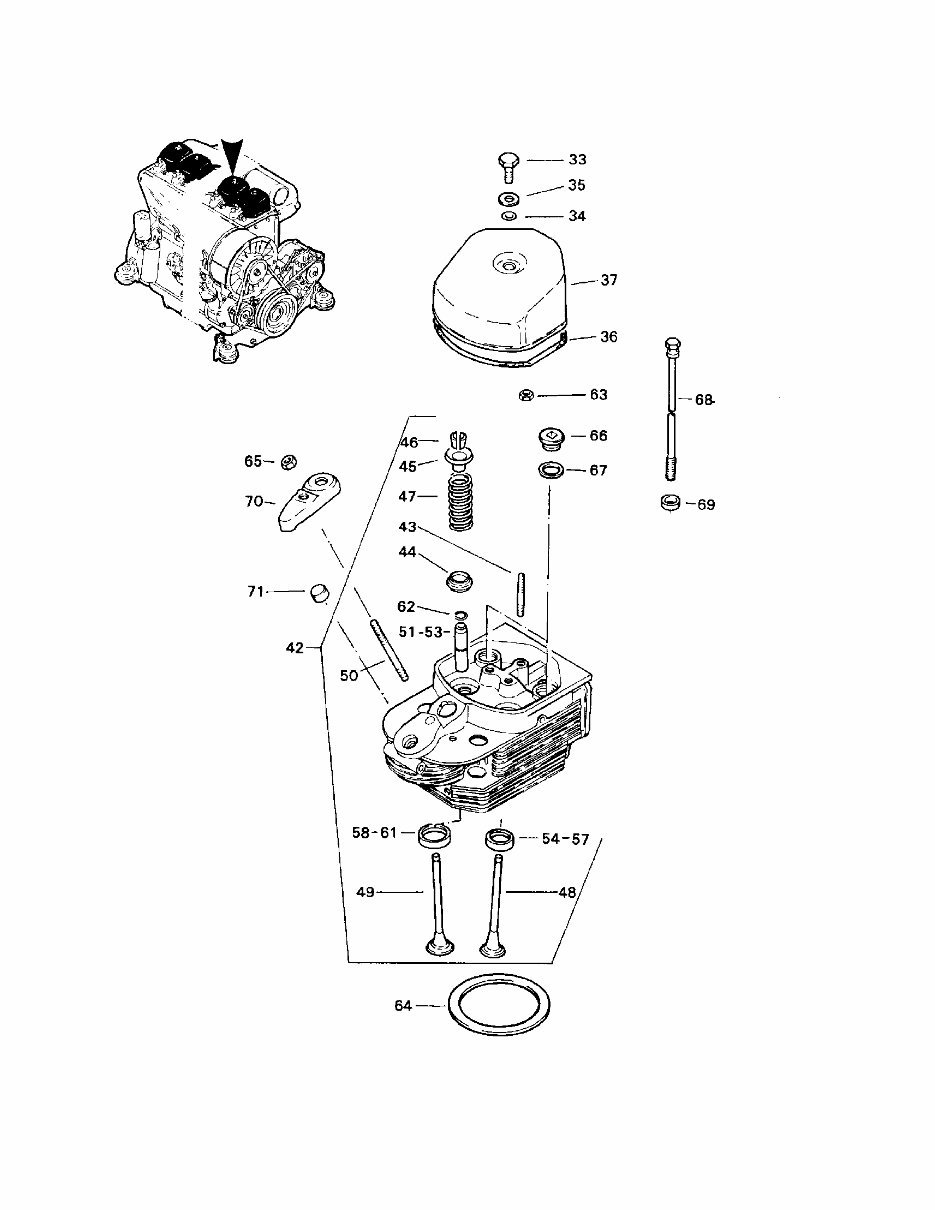

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 213 Page 1 from 3

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 213 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 33 001 07140842 Hexagon bolt 6,000 34 001 05712438 Sealing ring 6,000 35 001 08510817 Washer 6,000 36 001 05710325 Gasket 6,000 37 001 05710432 Cylinder head cover 6,000 42 001 05714731 Cylinder head 6,000 43 001 07510845 Pin screw 18,000 44 001 05714243 Valve rotator 12,000 45 001 05710415 Spring cup 12,000 46 001 05719863 Taper collet half 24,000 47 001 05716855 Valve spring 12,000 48 001 05716973 Outlet valve 6,000 49 001 05714301 Inlet valve 6,000 50 001 05710435 Stud 6,000 51 001 05710419 Valve guide 12,000 15,00MM 52 001 05710422 Valve guide 0,000 15,25MM 53 001 05710437 Valve guide 0,000 15,50MM 54 001 05710418 Valve seat ring 6,000 40,16MM 55 001 05710417 Valve seat ring 0,000 40,26MM 56 001 05710425 Valve seat ring 0,000 40,36MM 57 001 05710408 Valve seat ring 0,000 40,46MM 58 001 05716975 Valve seat ring 6,000 45,66MM 59 001 05710430 Valve seat ring 0,000 45,76MM 60 001 05710433 Valve seat ring 0,000 45,86MM 61 001 05710405 Valve seat ring 0,000 45,96MM 62 001 05712373 Spring ring 12,000 63 001 08110813 Hexagon nut 18,000 Page 2 from 3

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 213 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 64 001 05714716 Shim 6,000 65 001 08111016 Hexagon nut 6,000 66 001 05716953 Screw plug 12,000 67 001 09331238 Sealing ring DIN 7603-A26X31-CU 12,000 68 001 05716976 Hexagon bolt 24,000 69 001 05710403 Washer 24,000 70 001 05710440 Bow 6,000 71 001 05710439 Washer 6,000 Page 3 from 3

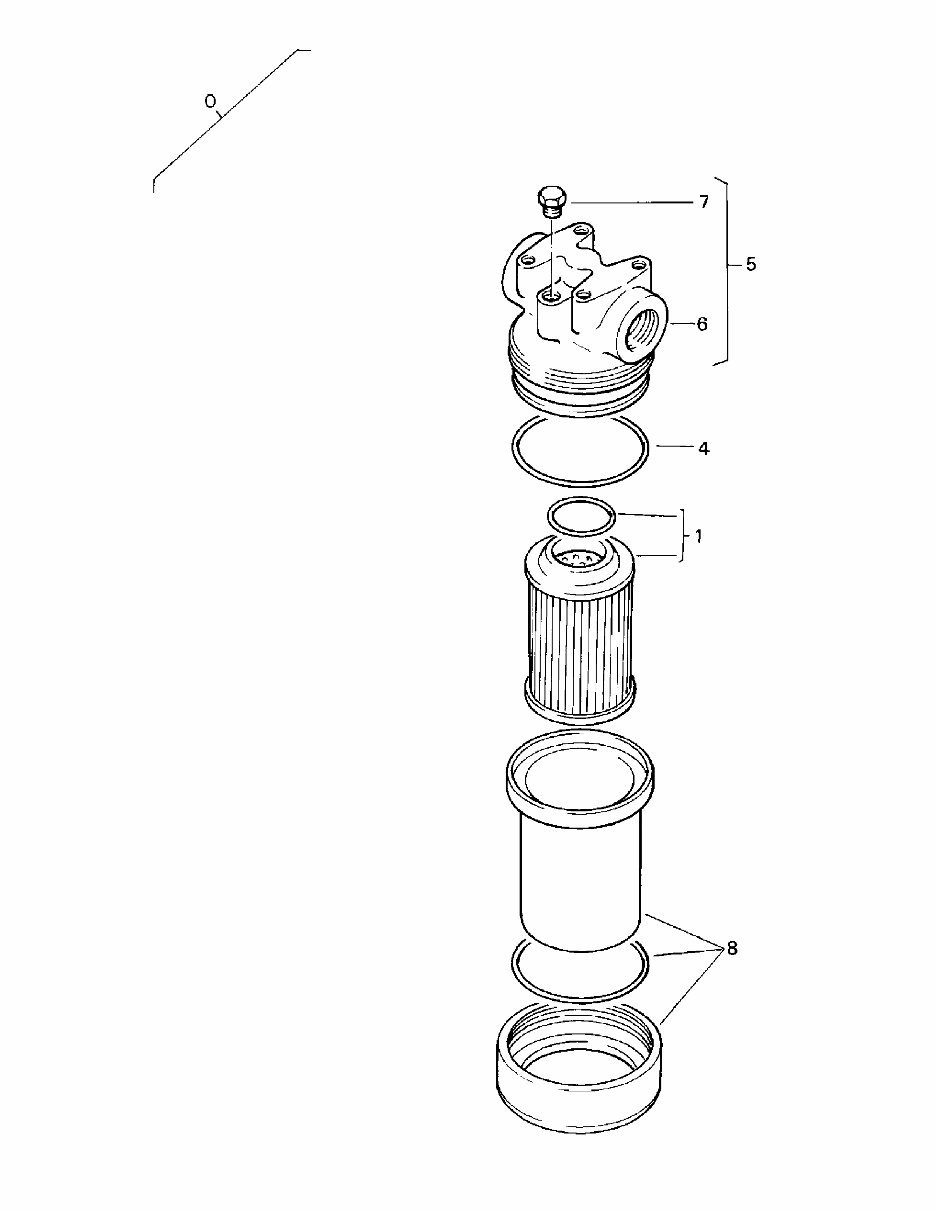

26.08 101400260217 101400260226 HYDRAULIC OIL FILTER BW 213 Page 1 from 2

26.08 101400260217 101400260226 HYDRAULIC OIL FILTER BW 213 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 0 001 40145049 Filter 1,000 1 001 07993014 Hydraulic Oil Filter Element 1,000 4 001 06220882 Loop ring 1,000 6 001 07993205 Filter head 1,000 7 001 07993201 Plug 1,000 8 001 07993203 Filter housing 1,000 Page 2 from 2

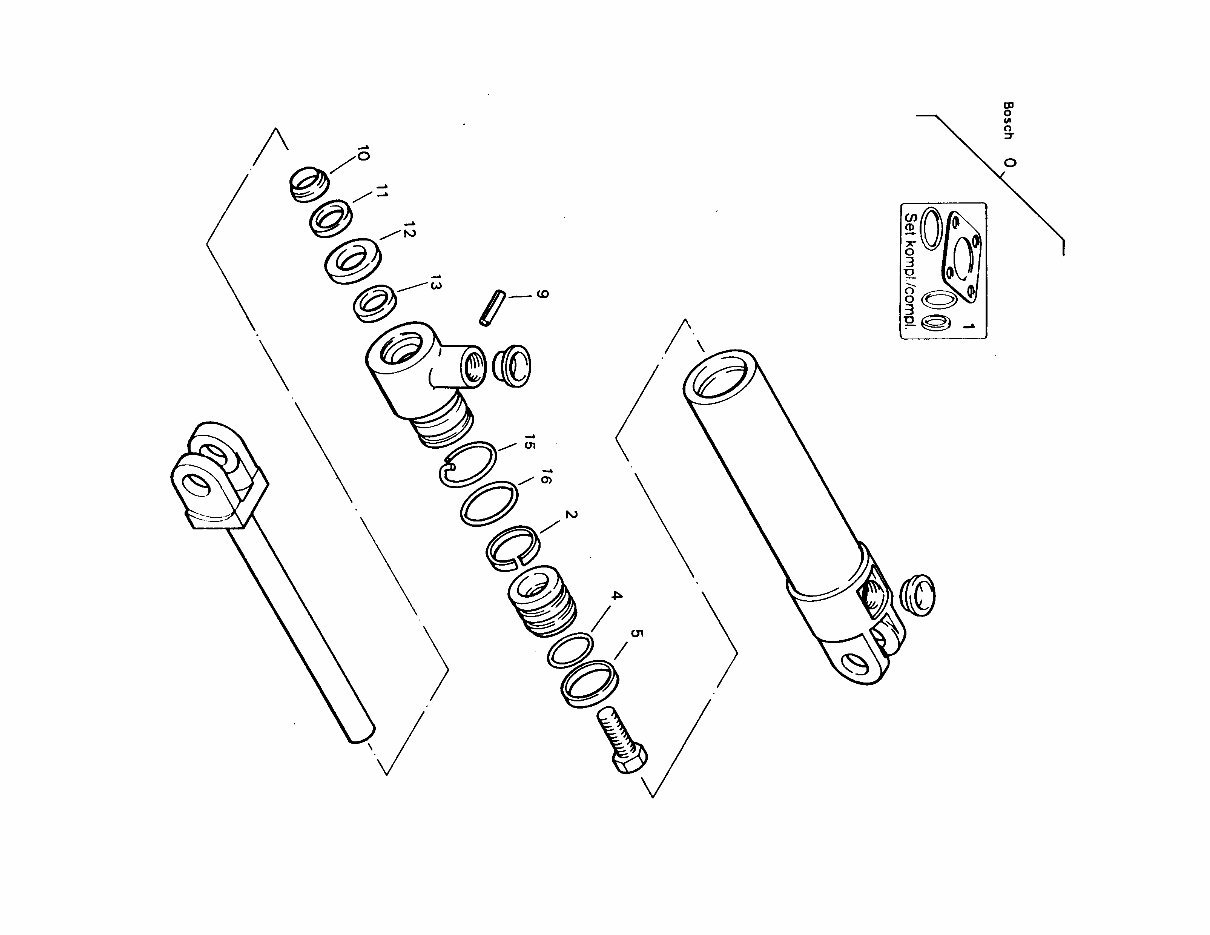

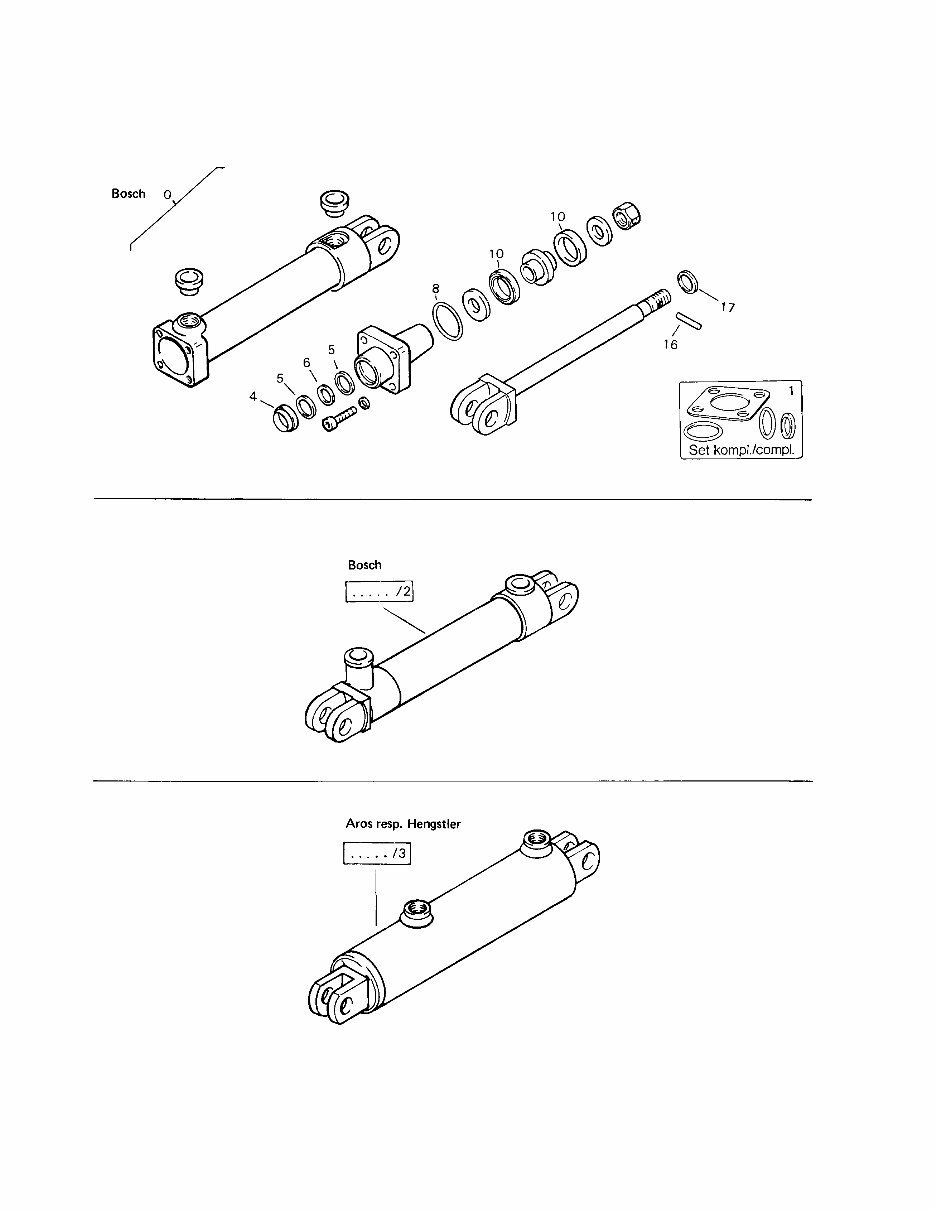

26.11 101400260101 101400260226 HYDRAULIC CYLINDER BW 213 Page 1 from 6

26.11 101400260101 101400260226 HYDRAULIC CYLINDER BW 213 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 0 001 05850020 Hydraulic cylinder 1,000 BOSCH NO. 0 530 316 036 REPLACED BY / ERSETZT DURCH / REMPLACE PAR 001 0 530 317 078 REPLACED BY / ERSETZT DURCH / REMPLACE PAR 001 BUETER 001 SEE NEXT PAGE / NAECHSTE SEITE / PAGE SUIVANTE Page 2 from 6

26.11 101400260101 101400260226 HYDRAULIC CYLINDER BW 213 Page 3 from 6
