Bomag BW 212 D-2 Single drum vibratory rollers Service Parts Catalogue Manual SN101400870389 - 101400870567

BW 212 D-2 101400870389 -> 101400870567 (00810663) BW 212-2 Page 1 from 2

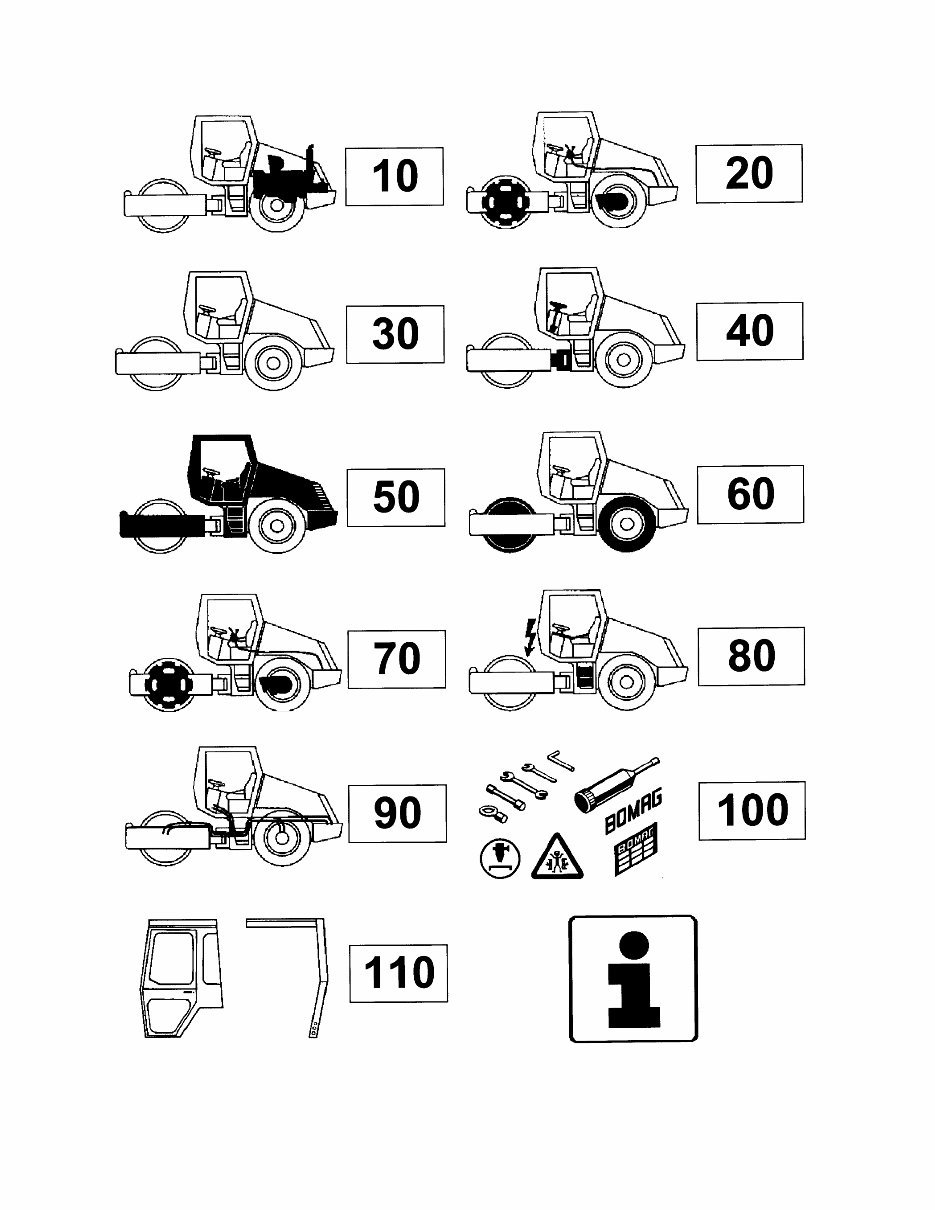

BW 212 D-2 101400870389 -> 101400870567 (00810663) BW 212-2 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 BRAKE SYSTEM 30.00 STEERING SYSTEM 40.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 . 70.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

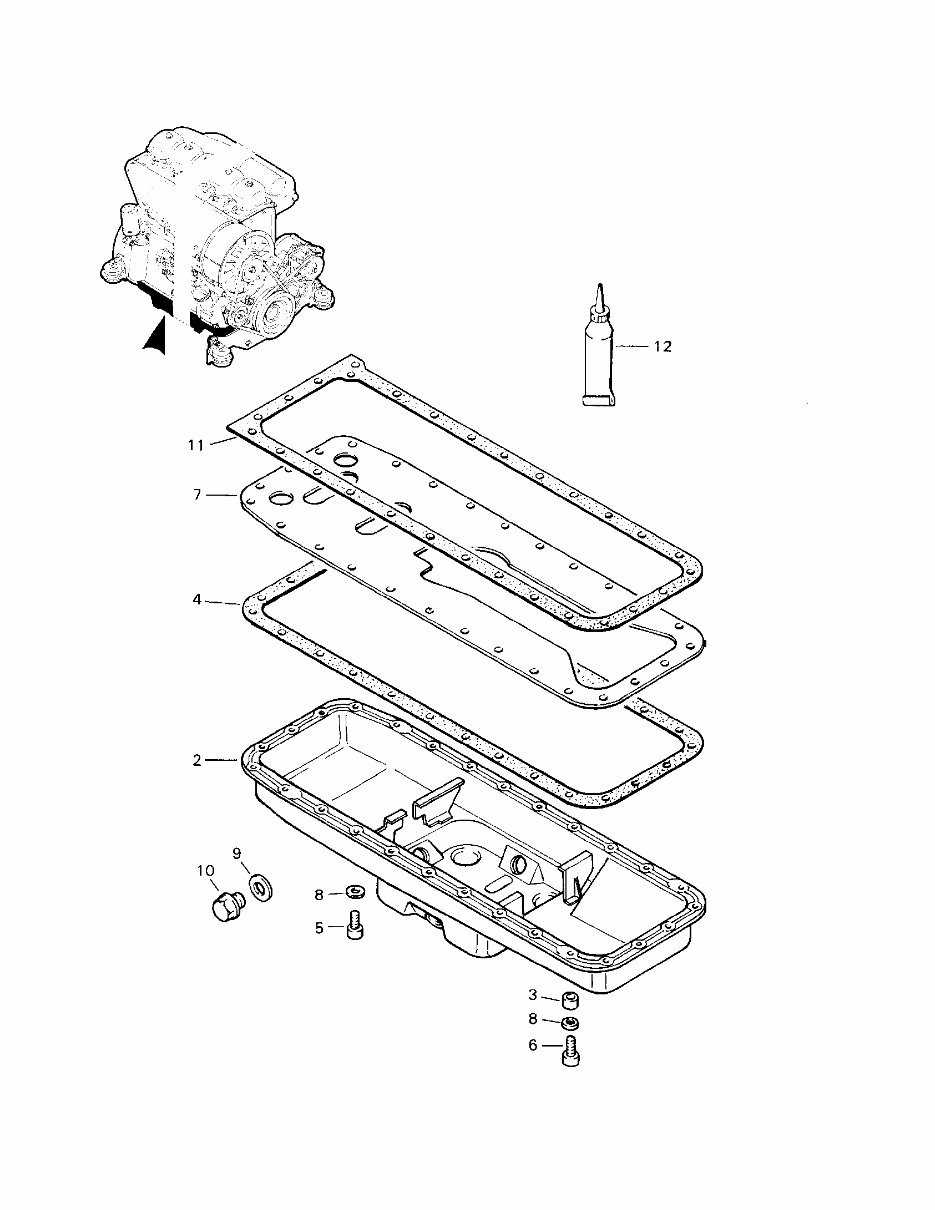

11.04 8452946 9999999 05702175 OIL PAN BW 212-2 Page 1 from 2

11.04 8452946 9999999 05702175 OIL PAN BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05712098 Oil pan 1,000 3 001 05712426 Bushing 1,000 4 001 05716410 Gasket 1,000 5 001 07230806 Socket-head cap screw 26,000 6 001 07230819 Socket-head cap screw 1,000 7 001 05710204 Intermediate base plate 1,000 8 001 08650817 Washer 27,000 9 001 09331278 Sealing ring 1,000 10 001 05712337 Screw plug 1,000 11 001 05714345 Gasket 1,000 12 001 05714081 Sealing compound 1,000 Page 2 from 2

60.00 ROLLER DRUM / TYRES BW 212-2 Page 1 from 2

60.00 ROLLER DRUM / TYRES BW 212-2 Description Assembly group VIBR.ROLLER DRUM,SMOOTH 61.02 101400870389 101400870403 VIBR.ROLLER DRUM,SMOOTH 61.02 101400870404 101400870567 PROFILED TYRE REAR 63.03 101400870389 101400870567 Page 2 from 2

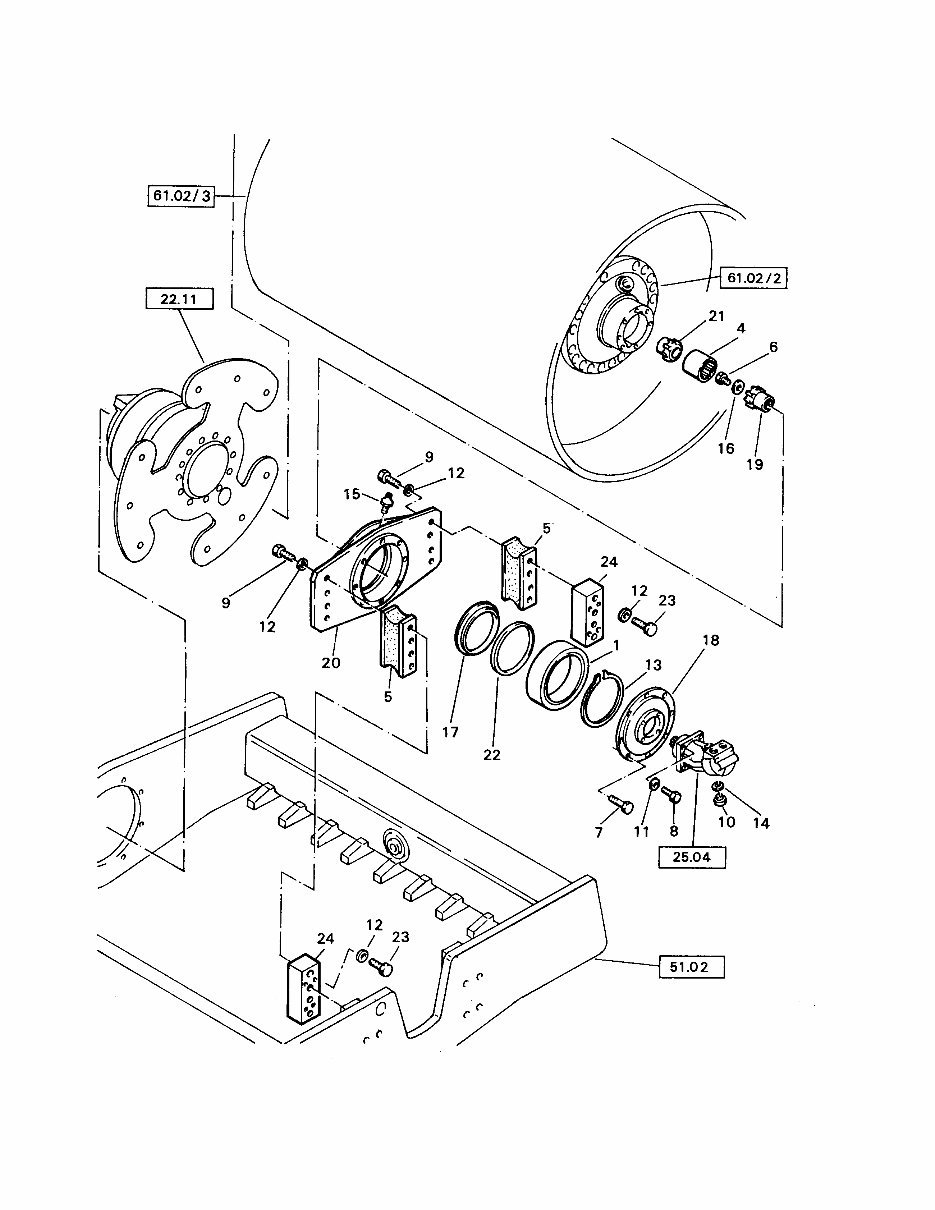

61.02 101400870389 101400870403 VIBR.ROLLER DRUM,SMOOTH BW 212-2 Page 1 from 8

61.02 101400870389 101400870403 VIBR.ROLLER DRUM,SMOOTH BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 05269067 Cylinder roller bearing 1,000 4 001 05614265 Coupling sleeve 1,000 5 001 06180114 Rubber buffer 2,000 6 001 07141234 Hexagon bolt 1,000 7 001 07231019 Socket-head cap screw 8,000 8 001 07141242 Hexagon bolt 4,000 9 001 07141627 Hexagon bolt 8,000 10 001 07621815 Screw plug 1,000 11 001 08511324 Washer 4,000 12 001 08511730 Washer 16,000 13 001 09217600 Circlip,external 1,000 14 001 09331168 Sealing ring 1,000 15 001 09411001 Grease nipple 1,000 16 001 08501335 Washer 1,000 17 001 40212102 Spacer ring 1,000 18 001 40212412 Flange engine/motor 1,000 19 001 40003430 Coupling hub 1,000 20 001 40012201 Side piece 1,000 21 001 05614278 Coupling hub 1,000 22 001 05337320 Nilos ring 1,000 23 001 07131634 Hexagon bolt 8,000 24 001 40012101 Spacer piece 2,000 Page 2 from 8

61.02 101400870389 101400870403 VIBR.ROLLER DRUM,SMOOTH BW 212-2 Page 3 from 8

61.02 101400870389 101400870403 VIBR.ROLLER DRUM,SMOOTH BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 002 07141224 Hexagon bolt 6,000 2 002 08511324 Washer 6,000 3 002 40211403 Cover 1,000 4 002 40211404 Gasket 1,000 5 002 06211418 U-seal 4,000 7 002 06224705 Loop ring 470X4B AEH.D3770-NBR 1,000 8 002 07131633 Hexagon bolt 18,000 10 002 07141620 Hexagon bolt 2,000 11 002 07141636 Hexagon bolt 4,000 12 002 07241203 Socket-head cap screw 4,000 13 002 07621215 Screw plug 1,000 14 002 07623016 Magnetic plug 1,000 16 002 08511730 Washer 24,000 17 002 09313317 Radial seal 2,000 18 002 09331108 Sealing ring 1,000 19 002 09331278 Sealing ring 1,000 20 002 40012801 Flanged hub 1,000 24 002 05224375 Cylinder roller bearing 2,000 25 002 09182405 Fitting key 1,000 26 002 09182406 Fitting key 1,000 28 002 09215100 Circlip,external 1,000 29 002 09227150 Circlip,internal 2,000 30 002 40003762 Inner ring 2,000 32 002 40012803 Flanged housing 1,000 33 002 06221074 Loop ring 107,54X3,53AE.D3770-VIT.8 0 1,000 Page 4 from 8
