Bomag BW 212 D-2 Single drum vibratory rollers Service Parts Catalogue Manual SN101400280755 - 101400280755

BW 212 D 101400240177 -> 101400240631 (00810135) BW 212 Page 1 from 2

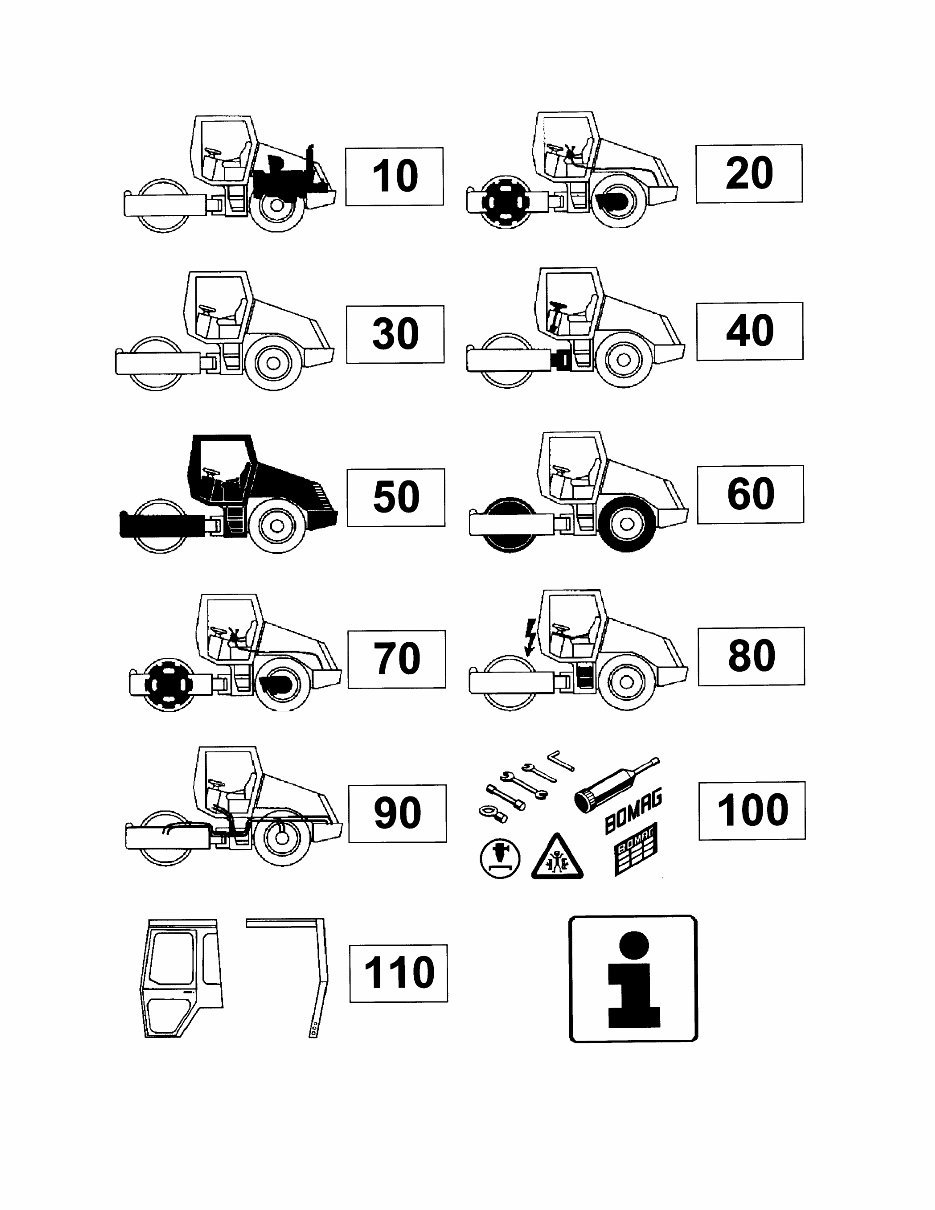

BW 212 D 101400240177 -> 101400240631 (00810135) BW 212 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 BRAKE SYSTEM 30.00 STEERING SYSTEM 40.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 . 70.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

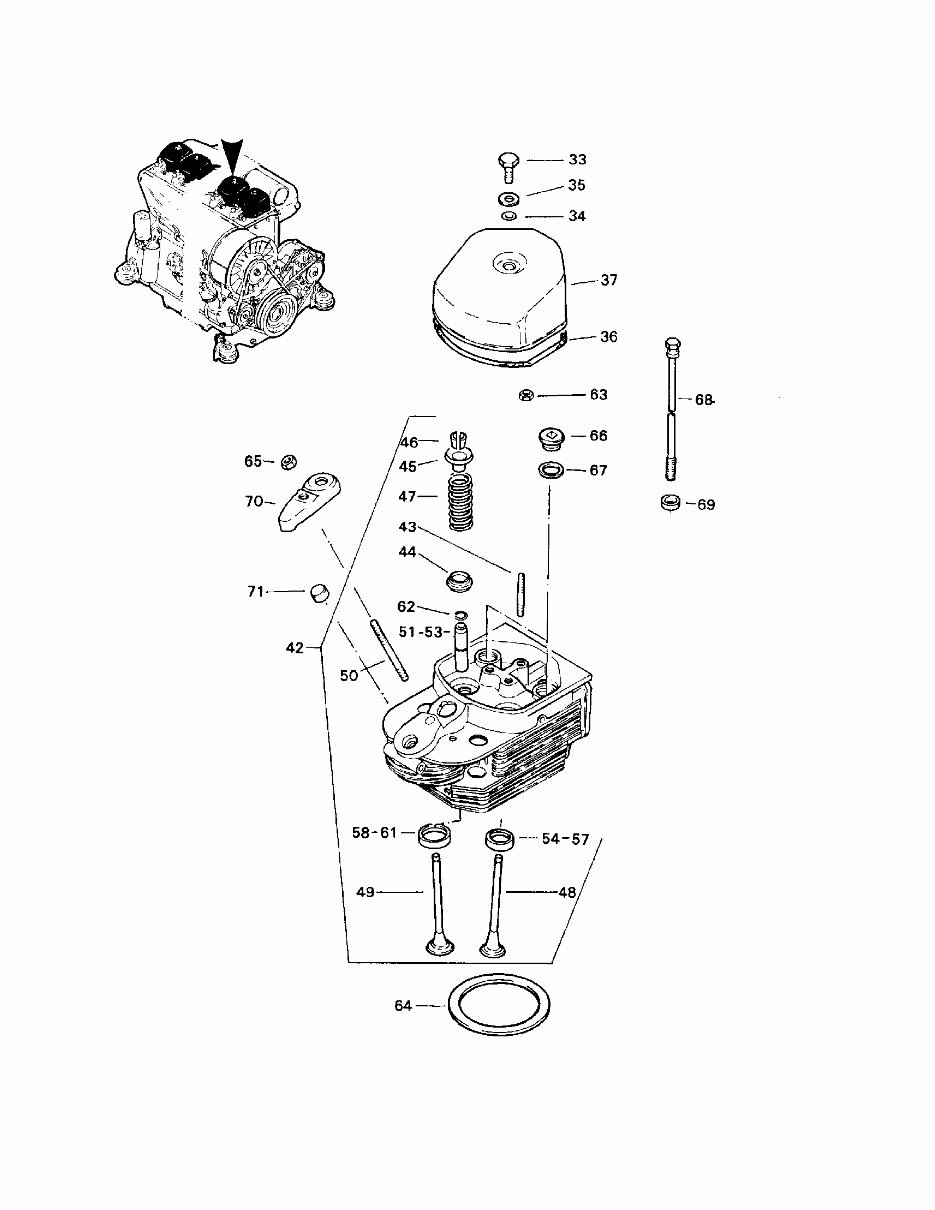

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 212 Page 1 from 3

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 212 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 33 001 07140842 Hexagon bolt 6,000 34 001 05712438 Sealing ring 6,000 35 001 08510817 Washer 6,000 36 001 05710325 Gasket 6,000 37 001 05710432 Cylinder head cover 6,000 42 001 05714731 Cylinder head 6,000 43 001 07510845 Pin screw 18,000 44 001 05714243 Valve rotator 12,000 45 001 05710415 Spring cup 12,000 46 001 05719863 Taper collet half 24,000 47 001 05716855 Valve spring 12,000 48 001 05716973 Outlet valve 6,000 49 001 05714301 Inlet valve 6,000 50 001 05710435 Stud 6,000 51 001 05710419 Valve guide 12,000 15,00MM 52 001 05710422 Valve guide 0,000 15,25MM 53 001 05710437 Valve guide 0,000 15,50MM 54 001 05710418 Valve seat ring 6,000 40,16MM 55 001 05710417 Valve seat ring 0,000 40,26MM 56 001 05710425 Valve seat ring 0,000 40,36MM 57 001 05710408 Valve seat ring 0,000 40,46MM 58 001 05716975 Valve seat ring 6,000 45,66MM 59 001 05710430 Valve seat ring 0,000 45,76MM 60 001 05710433 Valve seat ring 0,000 45,86MM 61 001 05710405 Valve seat ring 0,000 45,96MM 62 001 05712373 Spring ring 12,000 63 001 08110813 Hexagon nut 18,000 Page 2 from 3

11.08 7286544 9999999 05702147 CYLINDER HEAD BW 212 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 64 001 05714716 Shim 6,000 65 001 08111016 Hexagon nut 6,000 66 001 05716953 Screw plug 12,000 67 001 09331238 Sealing ring DIN 7603-A26X31-CU 12,000 68 001 05716976 Hexagon bolt 24,000 69 001 05710403 Washer 24,000 70 001 05710440 Bow 6,000 71 001 05710439 Washer 6,000 Page 3 from 3

100.00 ACCESSORIES BW 212 Page 1 from 2

100.00 ACCESSORIES BW 212 Description Assembly group SUPPLIES 101.01 101400240177 101400240630 DECALS / MANUALS 101.02 101400240177 101400240487 DECALS / MANUALS 101.02 101400240488 101400240630 Page 2 from 2

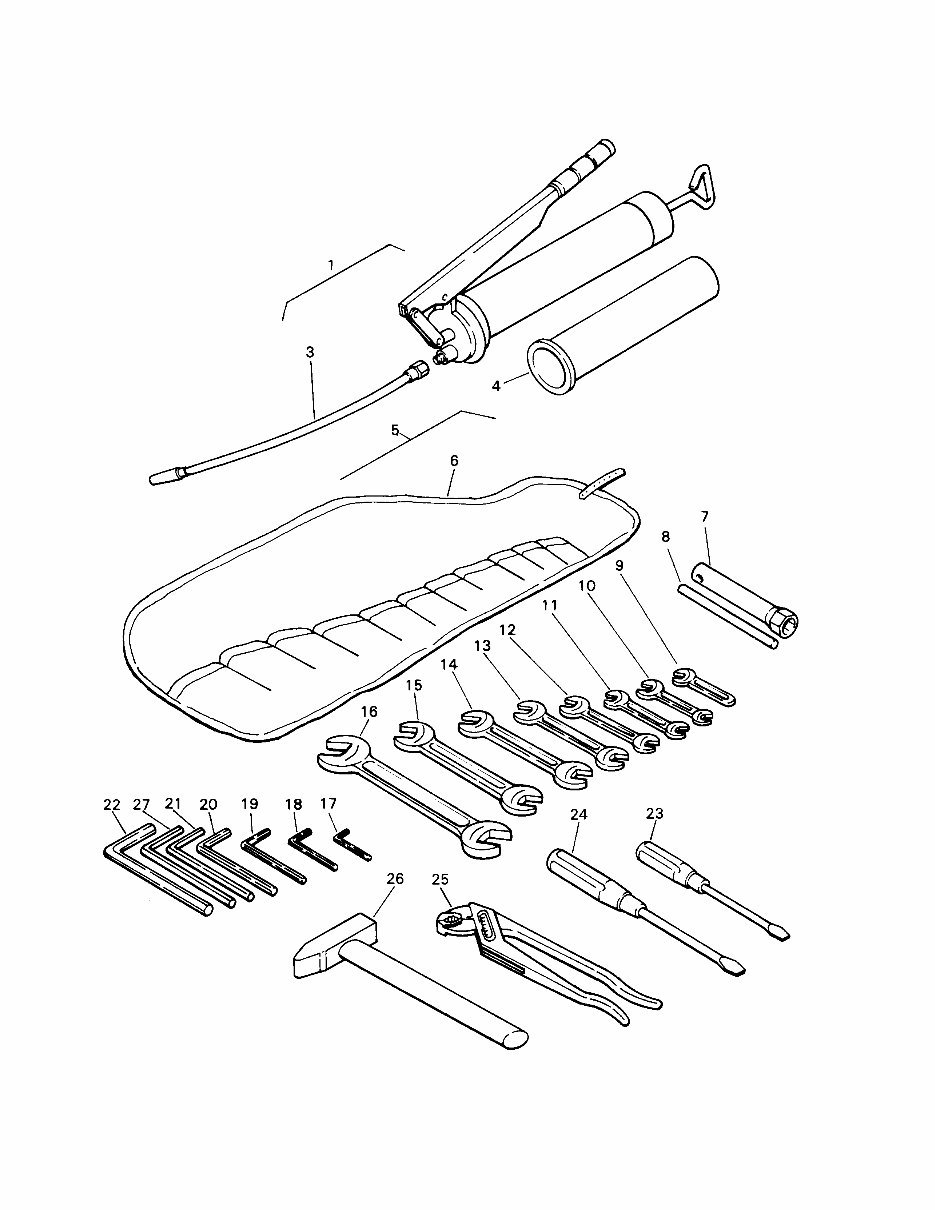

101.01 101400240177 101400240630 SUPPLIES BW 212 Page 1 from 2

101.01 101400240177 101400240630 SUPPLIES BW 212 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 05941000 High pressure hand press 1,000 3 001 05941012 Hose 1,000 4 001 05943001 Grease cartridge 1,000 5 001 07902112 Tool case 1,000 7 001 07923030 Socket wrench 1,000 8 001 07929140 Mandrel 1,000 9 001 07932010 Open-end spanner 1,000 10 10 001 07933124 Open-end spanner 1,000 12X14 11 001 07933137 Open-end spanner 1,000 13X17 12 001 07933192 Open-end spanner 1,000 19X22 13 001 07933247 Open-end spanner 1,000 24X27 14 001 07933302 Open-end spanner 1,000 30X32 15 001 07933361 Open-end spanner 1,000 36X41 16 001 07933460 Open-end spanner 1,000 46X50 17 001 07941005 Allen key 1,000 5 18 001 07941006 Allen key 1,000 6 19 001 07941008 Allen key 1,000 8 20 001 07941010 Allen key 1,000 10 21 001 07941012 Allen key 1,000 12 22 001 07941022 Pin key 1,000 22 23 001 07950450 Screw driver 1,000 4MM 24 001 07950700 Screw driver 1,000 25 001 07961000 Gland nut pliers 1,000 26 001 07970500 Hammer 1,000 27 001 07941017 Allen key 1,000 17 Page 2 from 2

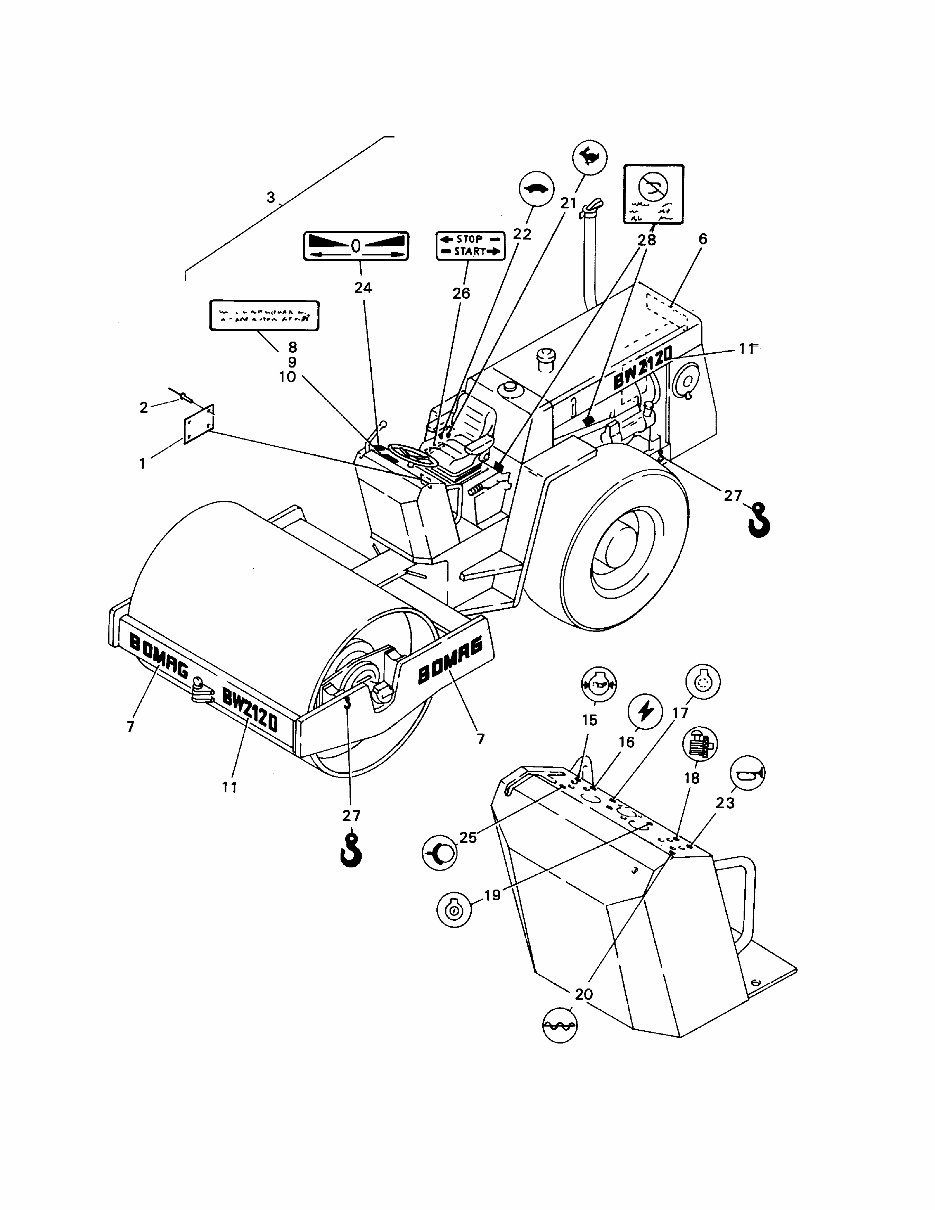

101.02 101400240177 101400240487 DECALS / MANUALS BW 212 Page 1 from 4
