BW 212-2 101400080239 -> 101400080284 (00811608) BW 212-2 Page 1 from 2

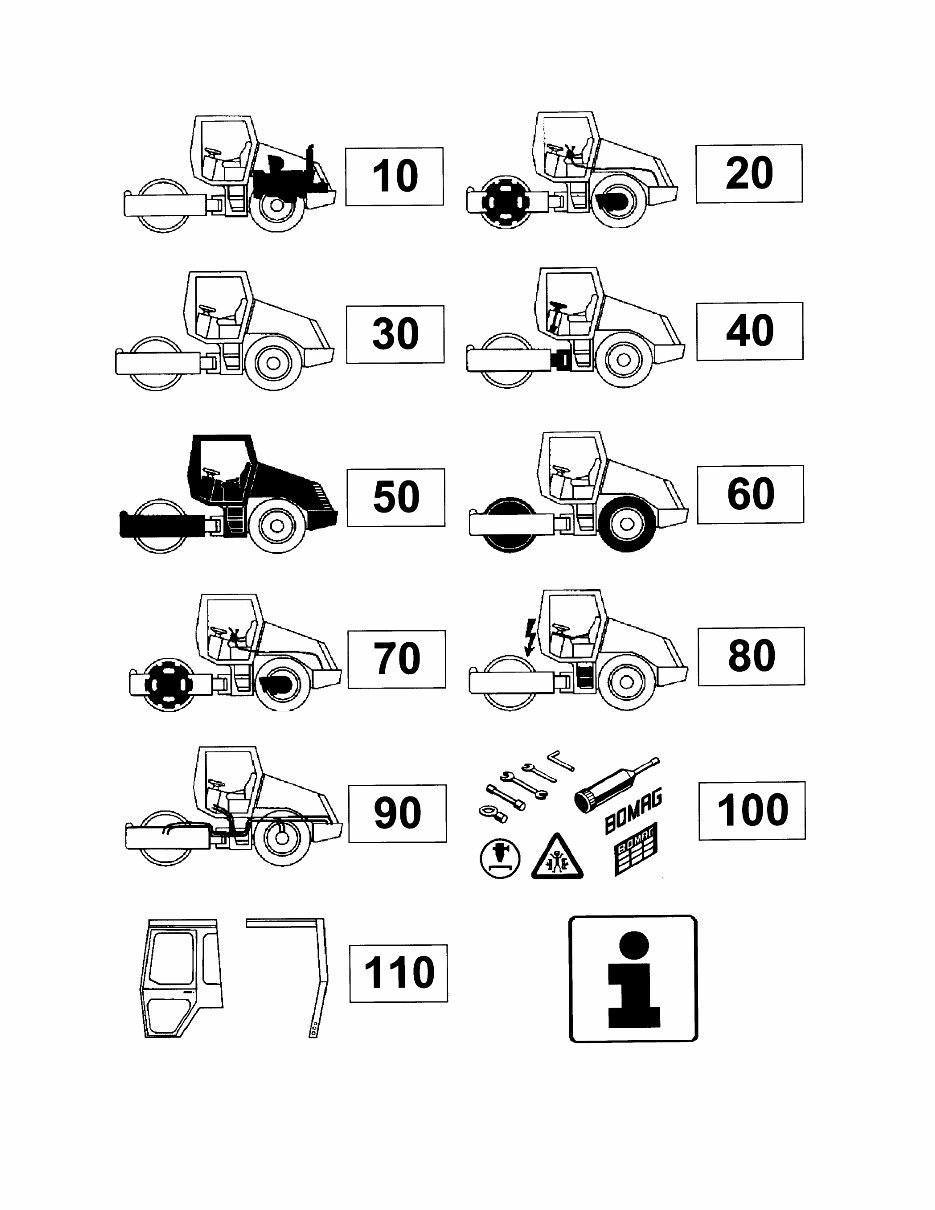

BW 212-2 101400080239 -> 101400080284 (00811608) BW 212-2 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 BRAKE SYSTEM 30.00 STEERING SYSTEM 40.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 . 70.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

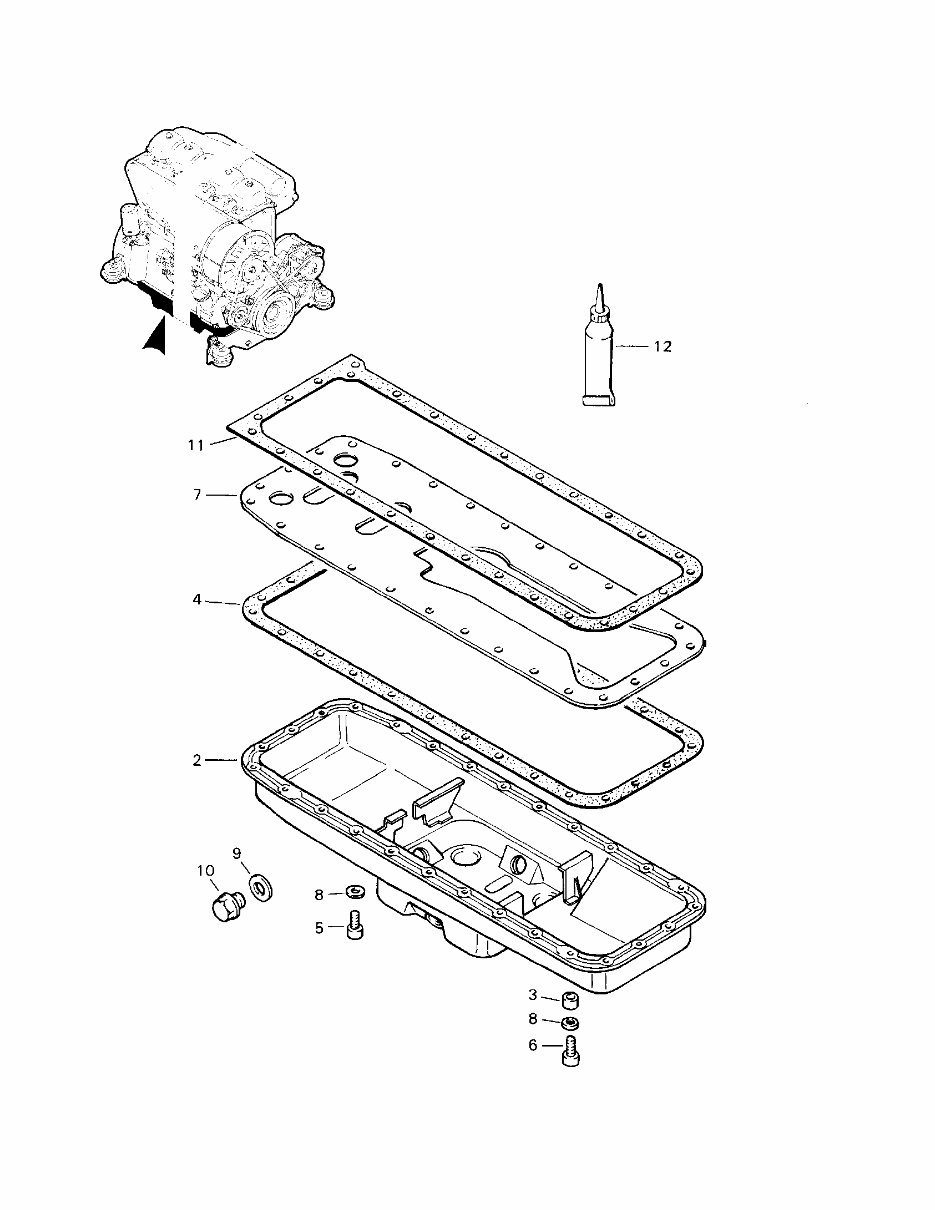

11.04 8452946 9999999 05702175 OIL PAN BW 212-2 Page 1 from 2

11.04 8452946 9999999 05702175 OIL PAN BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05712098 Oil pan 1,000 3 001 05712426 Bushing 1,000 4 001 05716410 Gasket 1,000 5 001 07230806 Socket-head cap screw 26,000 6 001 07230819 Socket-head cap screw 1,000 7 001 05710204 Intermediate base plate 1,000 8 001 08650817 Washer 27,000 9 001 09331278 Sealing ring 1,000 10 001 05712337 Screw plug 1,000 11 001 05714345 Gasket 1,000 12 001 05714081 Sealing compound 1,000 Page 2 from 2

55.02 101400080239 101400080284 HYDRAULIC OIL TANK BW 212-2 Page 1 from 2

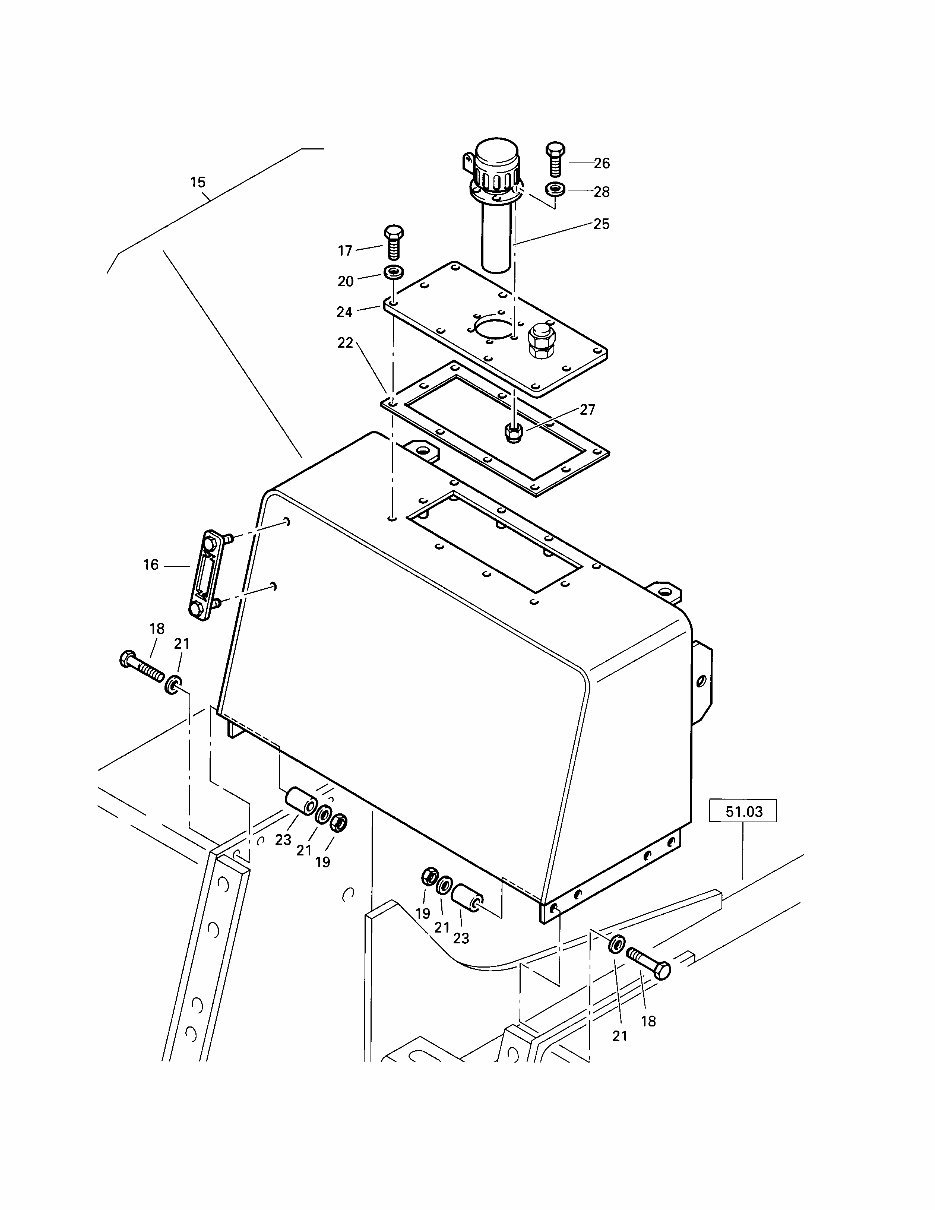

55.02 101400080239 101400080284 HYDRAULIC OIL TANK BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 15 001 40081000 Oil tank 1,000 16 001 05973103 Fluid level gauge 1,000 17 001 07140834 Hexagon bolt 10,000 18 001 07161232 Hexagon bolt 8,000 19 001 08161217 Hexagon nut 8,000 20 001 08510817 Washer 10,000 21 001 08711324 Washer 16,000 22 001 16040130 Gasket 1,000 23 001 40080207 Tube 8,000 24 001 40081002 Tank cover 1,000 25 001 05824010 Filling strainer 1,000 26 001 07140532 Hexagon bolt 6,000 27 001 08130508 Safety nut 6,000 28 001 08751053 Spring washer 6,000 Page 2 from 2

60.00 ROLLER DRUM / TYRES BW 212-2 Page 1 from 2

60.00 ROLLER DRUM / TYRES BW 212-2 Description Assembly group VIBR.ROLLER DRUM,SMOOTH 61.02 101400080239 101400080244 VIBR.ROLLER DRUM,SMOOTH 61.02 101400080245 101400080250 VIBR.ROLLER DRUM,SMOOTH 61.02 101400080251 101400080284 PROFILED TYRE REAR 63.03 101400080239 101400080255 PROFILED TYRE REAR 63.03 101400080256 101400080284 Page 2 from 2

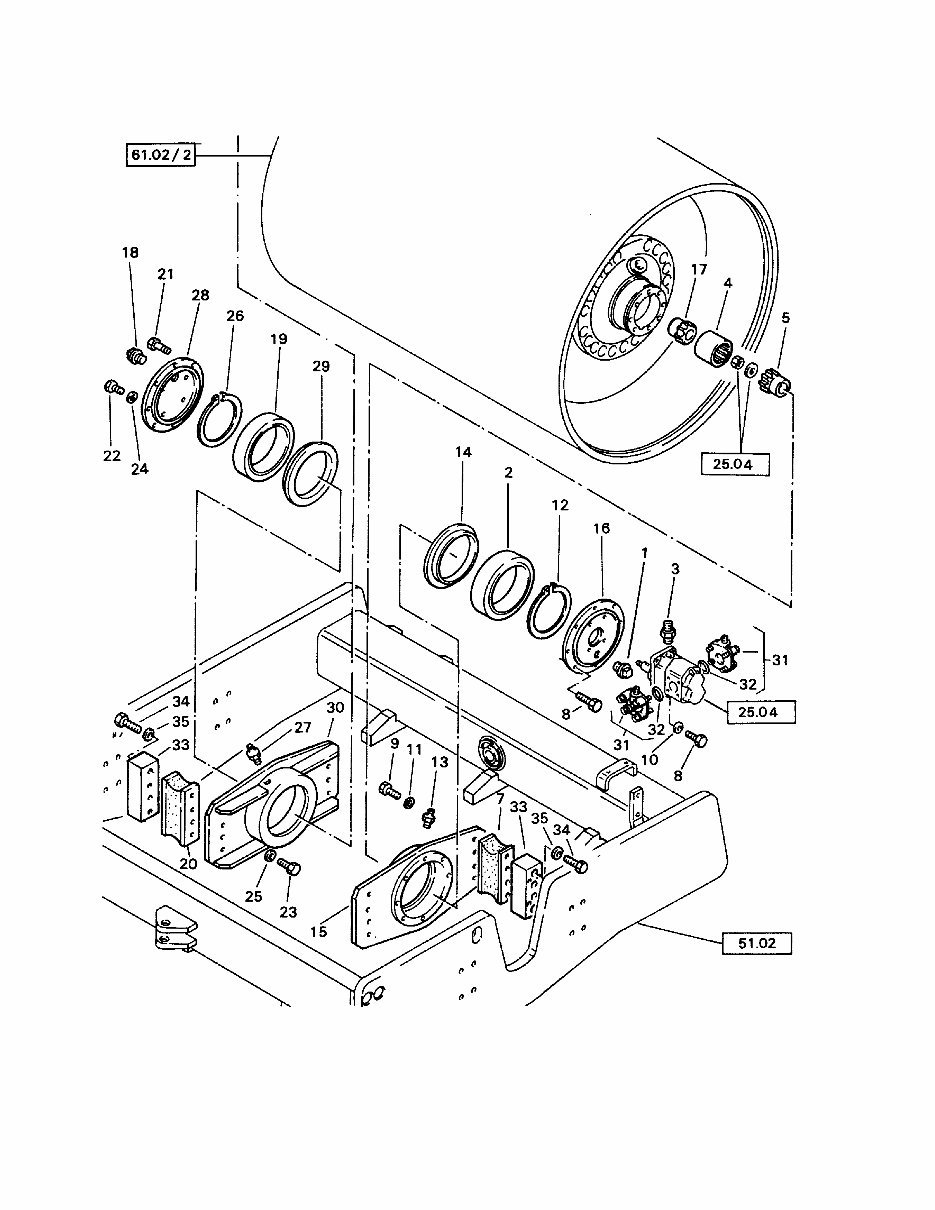

61.02 101400080239 101400080244 VIBR.ROLLER DRUM,SMOOTH BW 212-2 Page 1 from 9

61.02 101400080239 101400080244 VIBR.ROLLER DRUM,SMOOTH BW 212-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 02650306 Screw plug 1,000 2 001 05269067 Cylinder roller bearing 1,000 3 001 05540037 Double-ended union 1,000 4 001 05614265 Coupling sleeve 1,000 5 001 05614270 Coupling hub 1,000 7 001 06180114 Rubber buffer 2,000 8 001 07141030 Hexagon bolt 12,000 9 001 07141627 Hexagon bolt 8,000 10 001 08511021 Washer 4,000 11 001 08511730 Washer 8,000 12 001 09217600 Circlip,external 1,000 13 001 09411001 Grease nipple 1,000 14 001 40212102 Spacer ring 1,000 15 001 40012201 Side piece 1,000 16 001 40211501 Engine cover 1,000 17 001 05614278 Coupling hub 1,000 18 001 02650306 Screw plug 1,000 19 001 05269067 Cylinder roller bearing 1,000 20 001 06180114 Rubber buffer 2,000 21 001 07141030 Hexagon bolt 8,000 22 001 07141208 Hexagon bolt 4,000 23 001 07141627 Hexagon bolt 8,000 24 001 08511324 Washer 4,000 25 001 08511730 Washer 8,000 26 001 09217600 Circlip,external 1,000 27 001 09411001 Grease nipple 1,000 28 001 18010605 Cover 1,000 Page 2 from 9
