Bomag BW 211 D-3 Single drum vibratory rollers Service Parts Catalogue Manual SN101580371411 - 101580379999

BW 211 D-3 101580371411 -> 101580379999 (00817520) BW 211-3 WZ Page 1 from 2

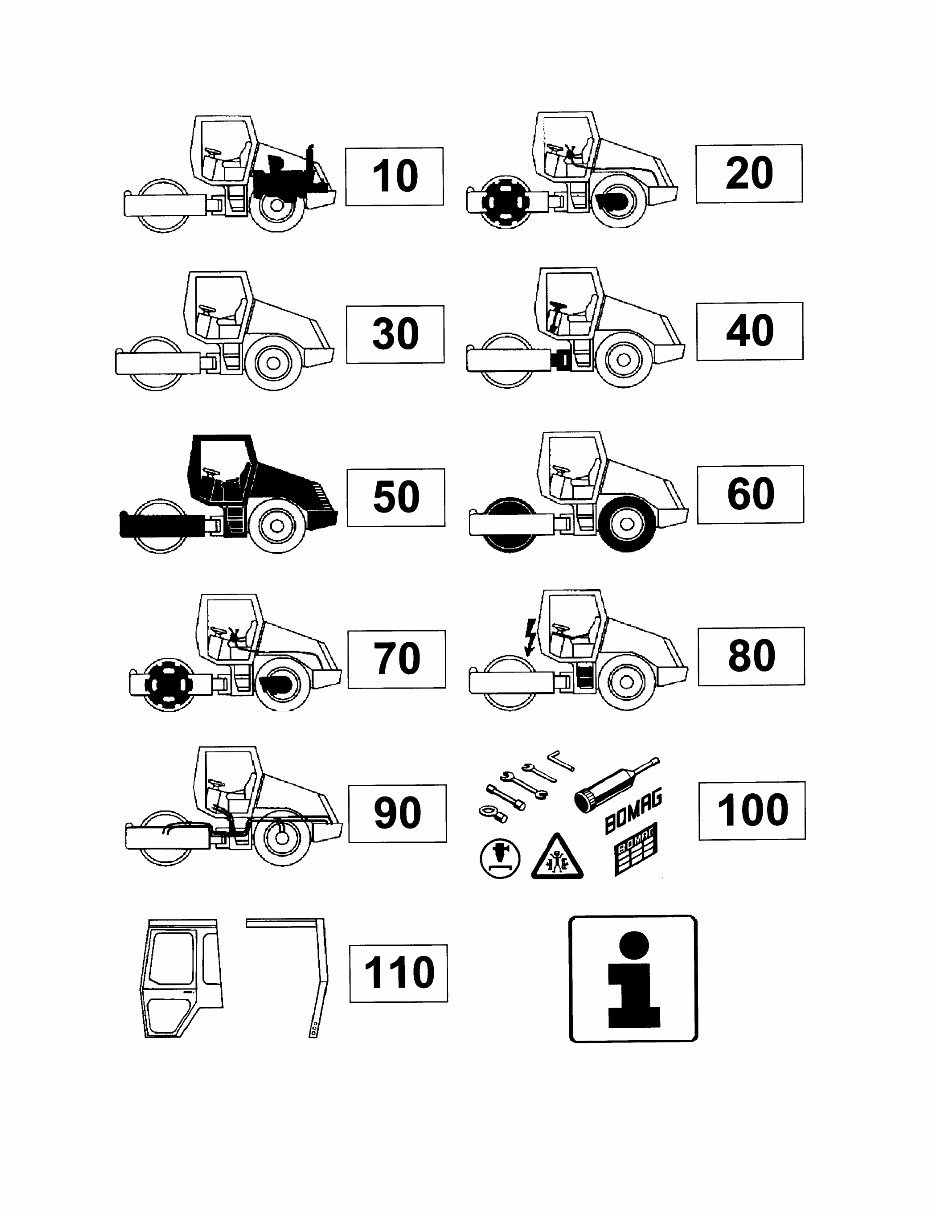

BW 211 D-3 101580371411 -> 101580379999 (00817520) BW 211-3 WZ Description Assembly group Engine / Fitting Parts 10.00 Power Transmission / Actuation 20.00 Steering System 40.00 Frame with Attachment Parts 50.00 Drum / Tyres 60.00 Electrical System 80.00 Hydraulic 90.00 Accessories 100.00 Special Equipment 110.00 Frequently used parts VT Page 2 from 2

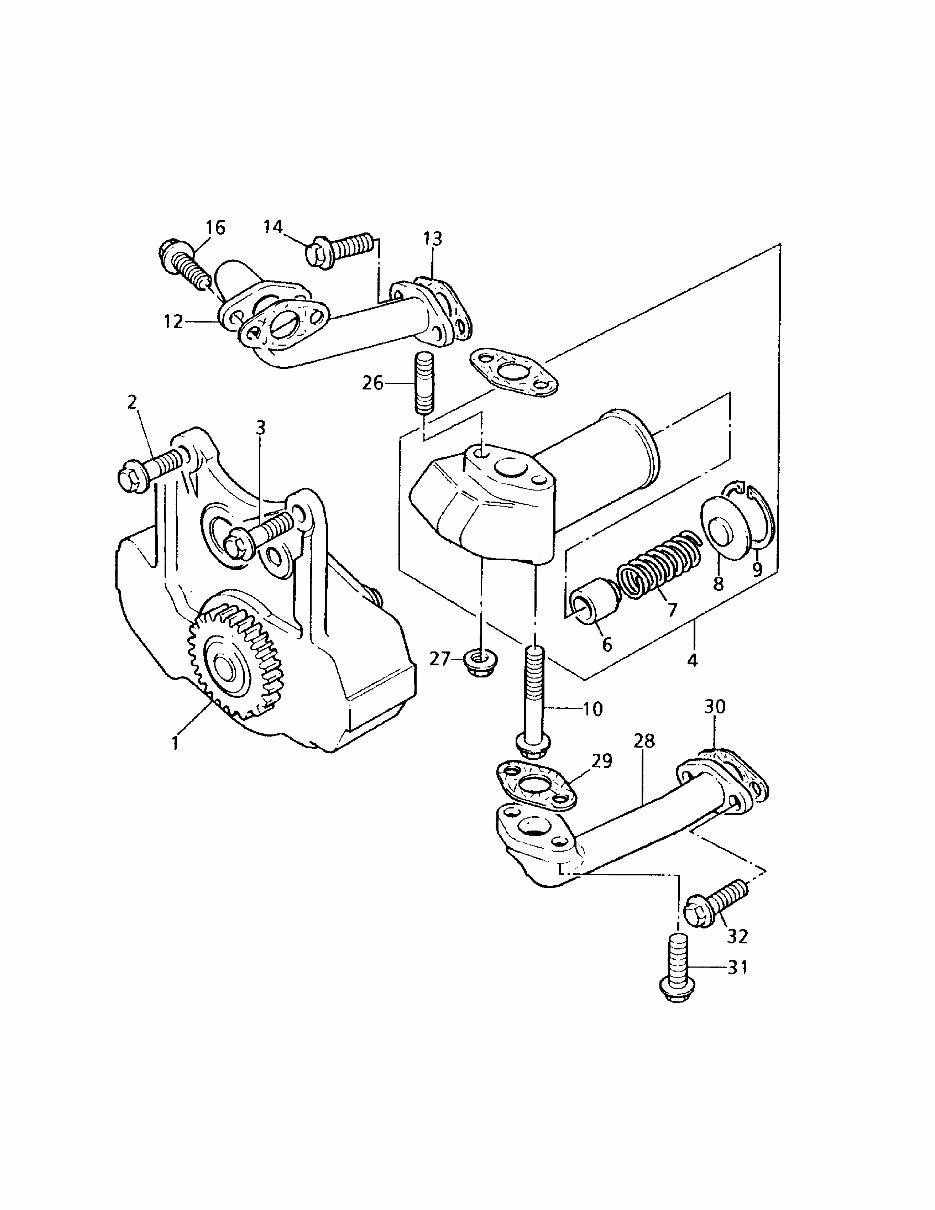

11.11 YH81073*U747971G YH81073*U771855H 31400002 Lubrication Oil Pump BW 211-3 WZ Page 1 from 2

11.11 YH81073*U747971G YH81073*U771855H 31400002 Lubrication Oil Pump BW 211-3 WZ M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 31400573 Oil pump 1 2 001 31400240 Screw 2 3 001 31400261 Screw 1 4 001 31400262 Pressure relief valve 1 6 001 31400263 Piston 1 < 7 001 31400264 Spring 1 < 8 001 31400265 Seat 1 < 9 001 31400266 Circlip 1 < 10 001 31400267 Screw 2 12 001 31400269 Oil tube 1 14 001 31400240 Screw 2 16 001 31400240 Screw 2 26 001 31400404 Stud 1 27 001 31400249 Nut 1 28 001 31400270 Oil tube 1 29 001 31400520 Gasket 1 30 001 31400519 Gasket 1 31 001 31400273 Screw 2 32 001 31400274 Screw 2 Page 2 from 2

80.00 Electrical System BW 211-3 WZ Description Assembly group Instruments 81.03 101580371411 101580371540 Instruments 81.03 101580371541 101580371698 Instruments 81.03 101580371699 101580371788 Instruments 81.03 101580371789 2105803710080 Instruments 81.03 2105803710081 2105803710090 Instruments 81.03 2105803710091 2105803710104 Instruments 81.03 2105803710105 2105803719999 Central electric 81.04 101580371411 101580371772 Central electric 81.04 101580371773 2105803710104 Central electric 81.04 2105803710105 2105803719999 Wiring Harness 88.01 101580371411 2105803719999 Page 1 from 1

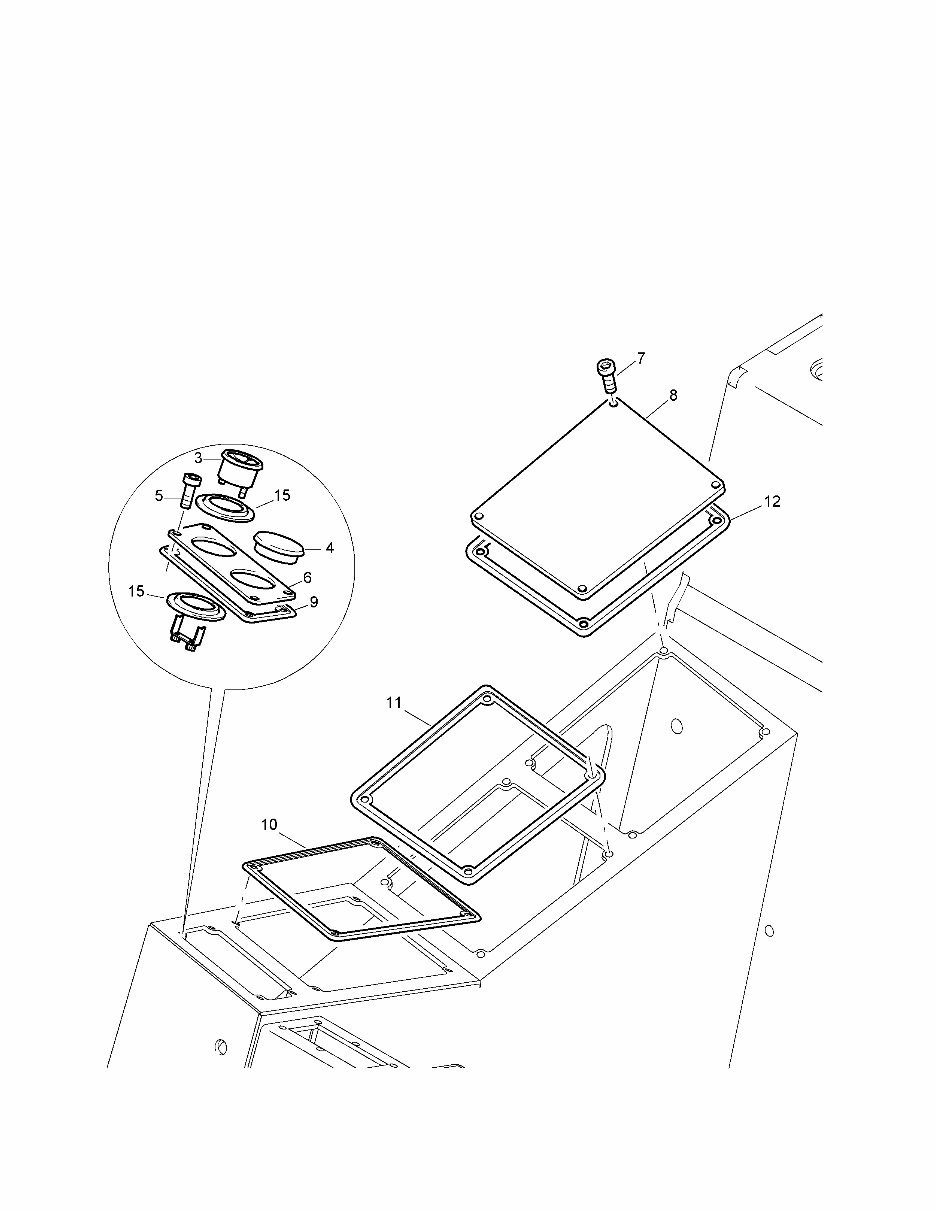

81.03 101580371411 101580371540 Instruments BW 211-3 WZ Page 1 from 5

81.03 101580371411 101580371540 Instruments BW 211-3 WZ M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 3 001 05971061 Hourmeter 1 4 001 06510303 Cover 1 5 001 07210699 Lens head screw 4 6 001 58250104 Decal,operation 1 7 001 07210699 Lens head screw 4 8 001 58250101 Decal 1 9 001 58250156 Gasket 1 10 001 58250157 Gasket 1 11 001 58250158 Gasket 1 12 001 58250159 Gasket 1 15 001 05971057 Extension ring 2 Page 2 from 5

81.03 101580371411 101580371540 Instruments BW 211-3 WZ Page 3 from 5

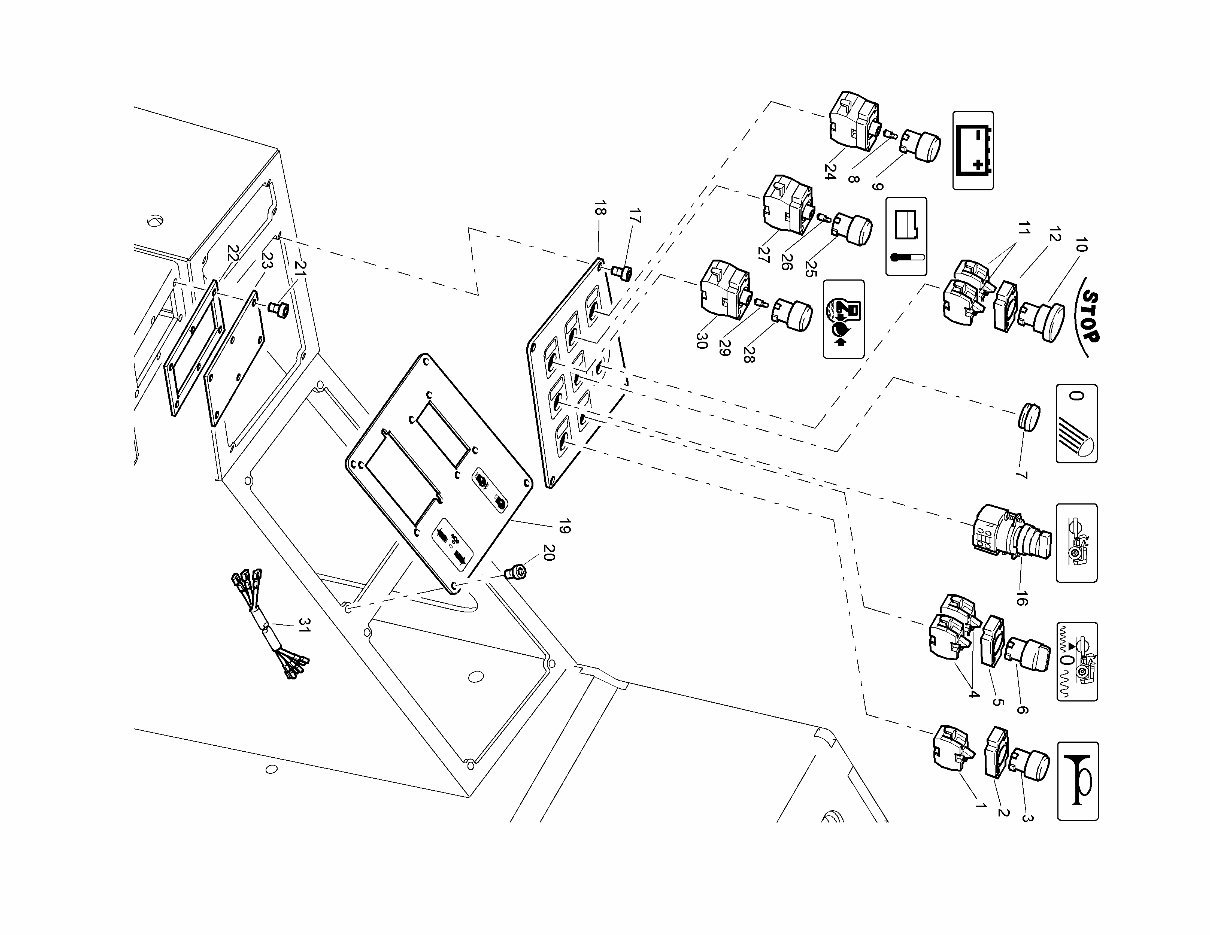

81.03 101580371411 101580371540 Instruments BW 211-3 WZ M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 002 05762208 Switch,normally open 1 2 002 05762210 Fastening flange 1 3 002 05762211 Front element 1 4 002 05762208 Switch,normally open 2 5 002 05762210 Fastening flange 1 6 002 05762214 Front element 1 7 002 06510177 Cover 1 W ea r pa rt 8 002 05762202 Incandescent bulb 1 9 002 05762219 Front element 1 10 002 05762206 Front element 1 11 002 05762209 Switch,normally closed 2 12 002 05762210 Fastening flange 1 16 002 05755171 Switch 1 17 002 07210699 Lens head screw 4 18 002 00832510 Decal,operation 1 19 002 00832436 Decal,operation 1 20 002 07210699 Lens head screw 4 21 002 07814222 Parker screw 6 22 002 58250118 Gasket 1 23 002 58250122 Plate 1 24 002 05762201 Lower part 1 25 002 05762204 Front element 1 Page 4 from 5

81.03 101580371411 101580371540 Instruments BW 211-3 WZ M Ite m No. Pag e Part No. Description Quant. Uni t Remarks W ea r pa rt 26 002 05762202 Incandescent bulb 1 27 002 05762201 Lower part 1 28 002 05762204 Front element 1 W ea r pa rt 29 002 05762202 Incandescent bulb 1 30 002 05762201 Lower part 1 31 002 58260137 Wiring 1 Page 5 from 5
