BW 177 D-4 101583271001 -> 101583279999 (00818451) BW 177-4 WZ
Page 1 from 2
BW 177 D-4 101583271001 -> 101583279999 (00818451) BW 177-4 WZ

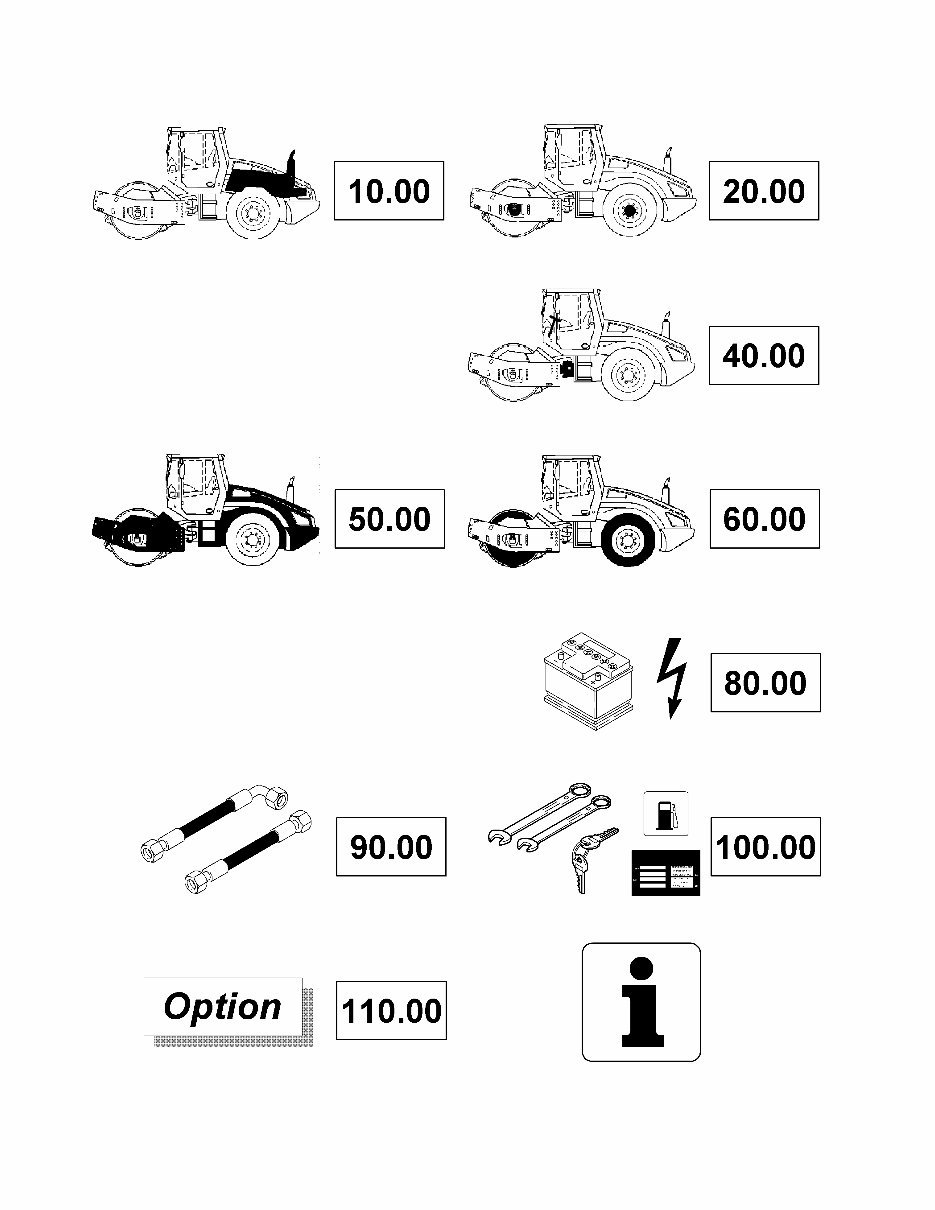

Description Assembly group
Engine / Fitting Parts 10.00
Power Transmission / Actuation 20.00
Steering System 40.00
Frame with Attachment Parts 50.00
Drum / Tyres 60.00
Electrical System 80.00
Hydraulic 90.00
Accessories 100.00
Special Equipment 110.00
Frequently used parts VT
Page 2 from 2
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
Page 1 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

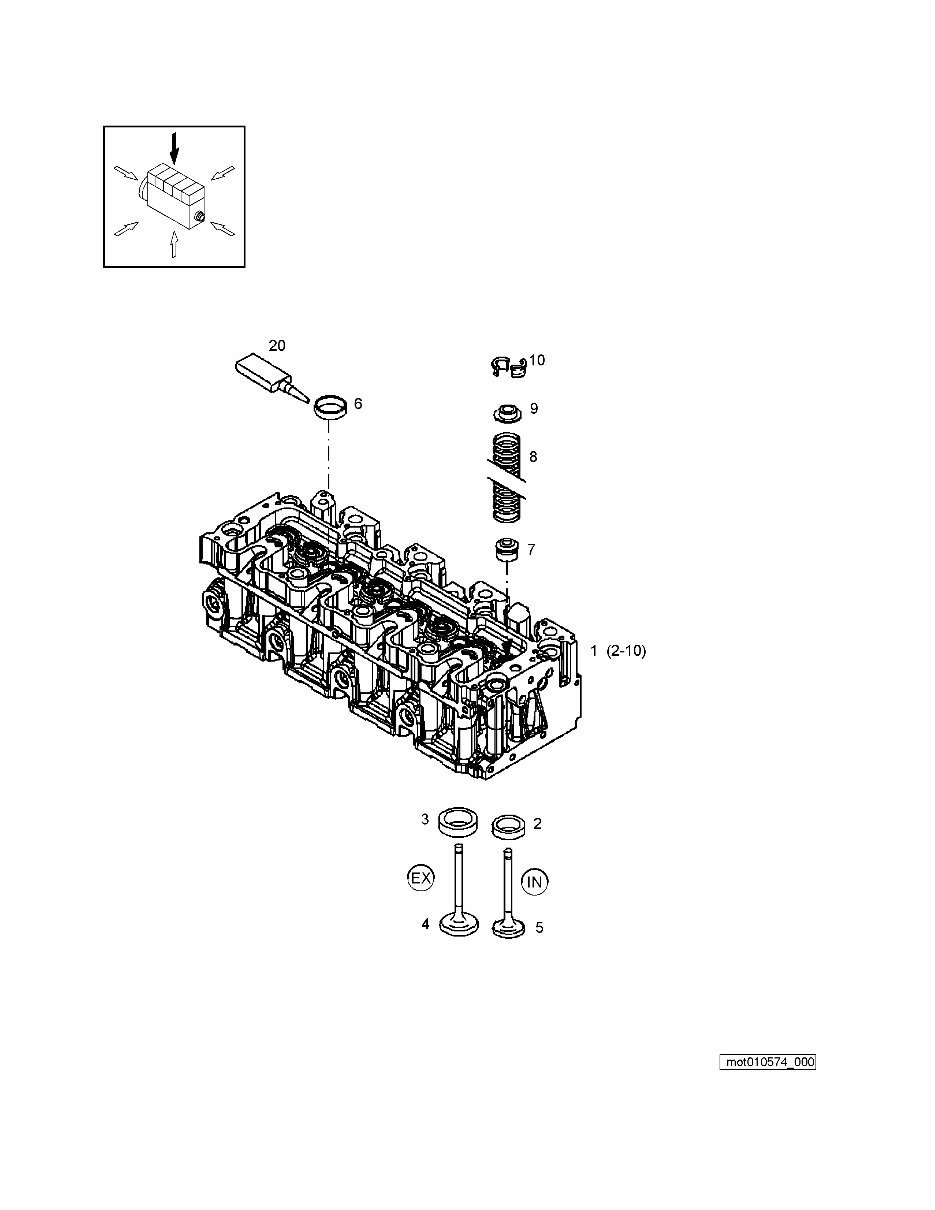

1 001 05729248 Cylinder head 1
2 001 05714593 Valve seat ring 4 <
3 001 05716345 Valve seat ring 4 <
4 001 05713721 Outlet valve 4 <
5 001 05713720 Inlet valve 4 <
6 001 08520116 Cover 3 <
7 001 05712523 Valve stem seal 8 <
8 001 05711391 Pressure spring 8 <
9 001 05716346 Spring cup 8 <
10 001 05711494 Valve collet 16 <
20 001 00978006 Screw lock, middle strength 1 kg Auxiliaries
Page 2 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
Page 3 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

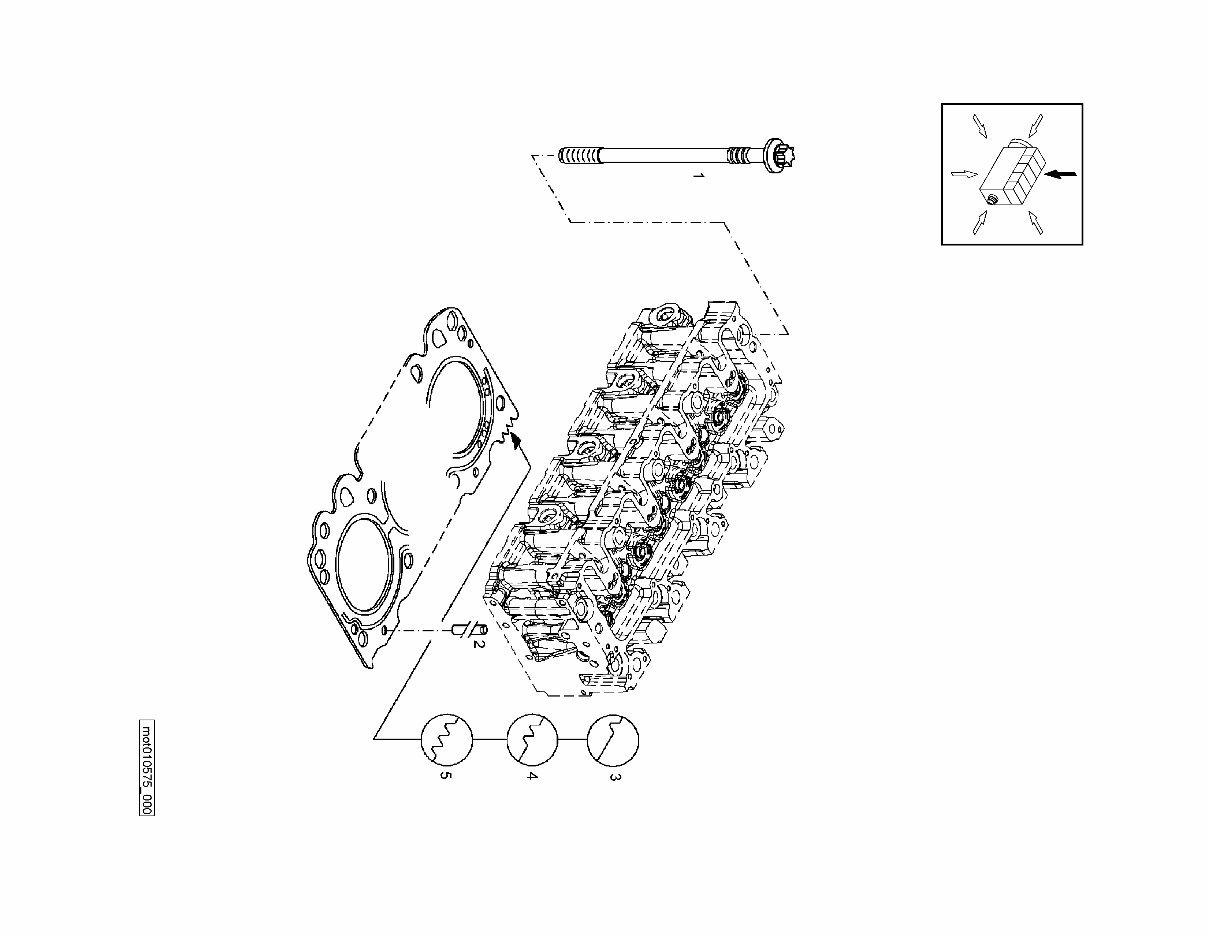

1 002 05711560 Cylinder head bolt 10
2 002 05711561 Spiral dowel pin 2
3 002 05729249 Cylinder head gasket 1
002 1,47mm ±0,09
4 002 05729250 Cylinder head gasket 1
002 1,52mm ±0,09
5 002 05729251 Cylinder head gasket 1
002 1,57mm ±0,09
Page 4 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
Page 5 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

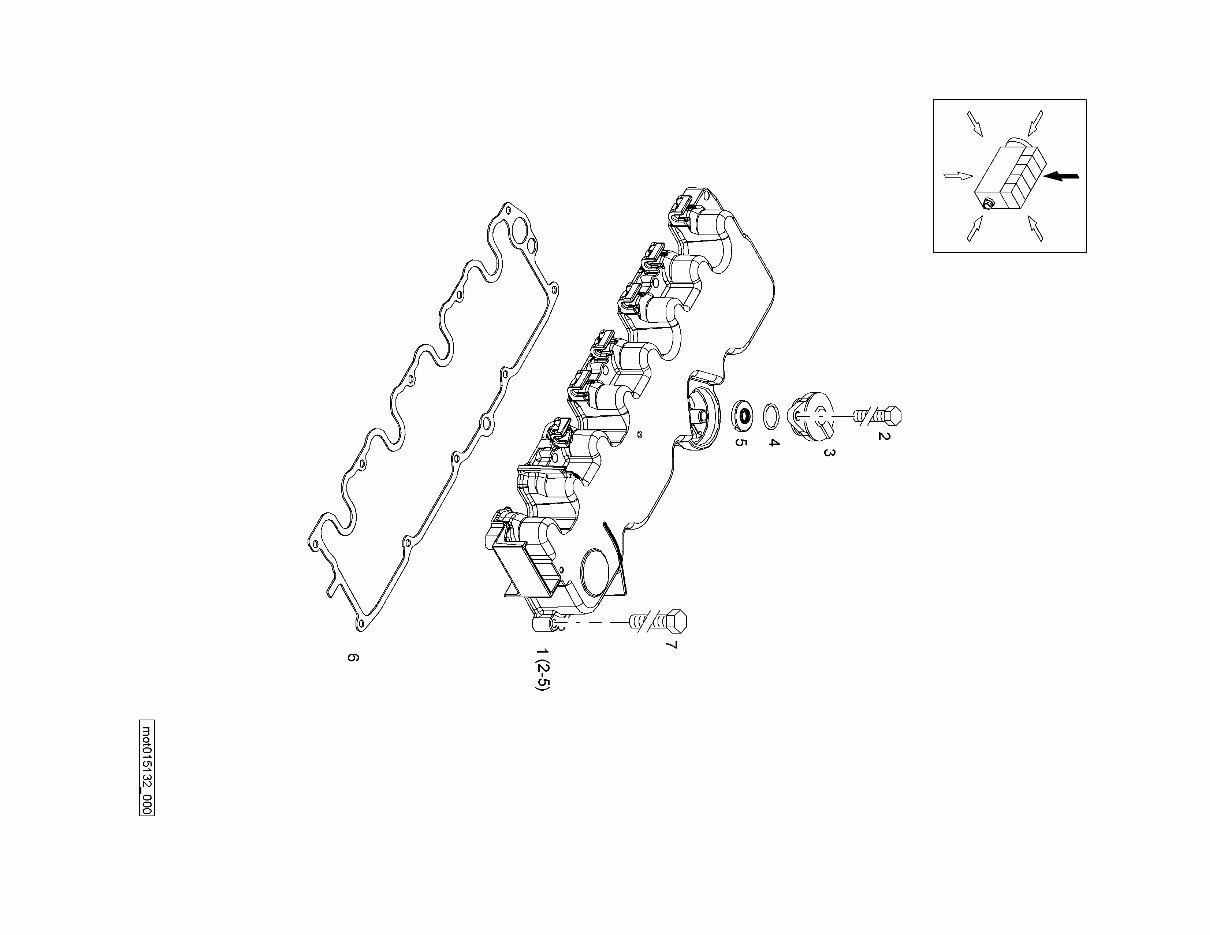

1 003 05729713 Cylinder head cover 1
2 003 05719660 Hexagon bolt 1 <
3 003 05716831 Ventilation valve 1 <
4 003 05714656 Loop ring 1 <
5 003 05719210 Oil separator 1 <
6 003 05719181 Gasket 1
7 003 05719688 Hexagon bolt 10
Page 6 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
Page 7 from 8
11.08 10834658 11135808 05702585 Cylinder Head BW 177-4 WZ
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks

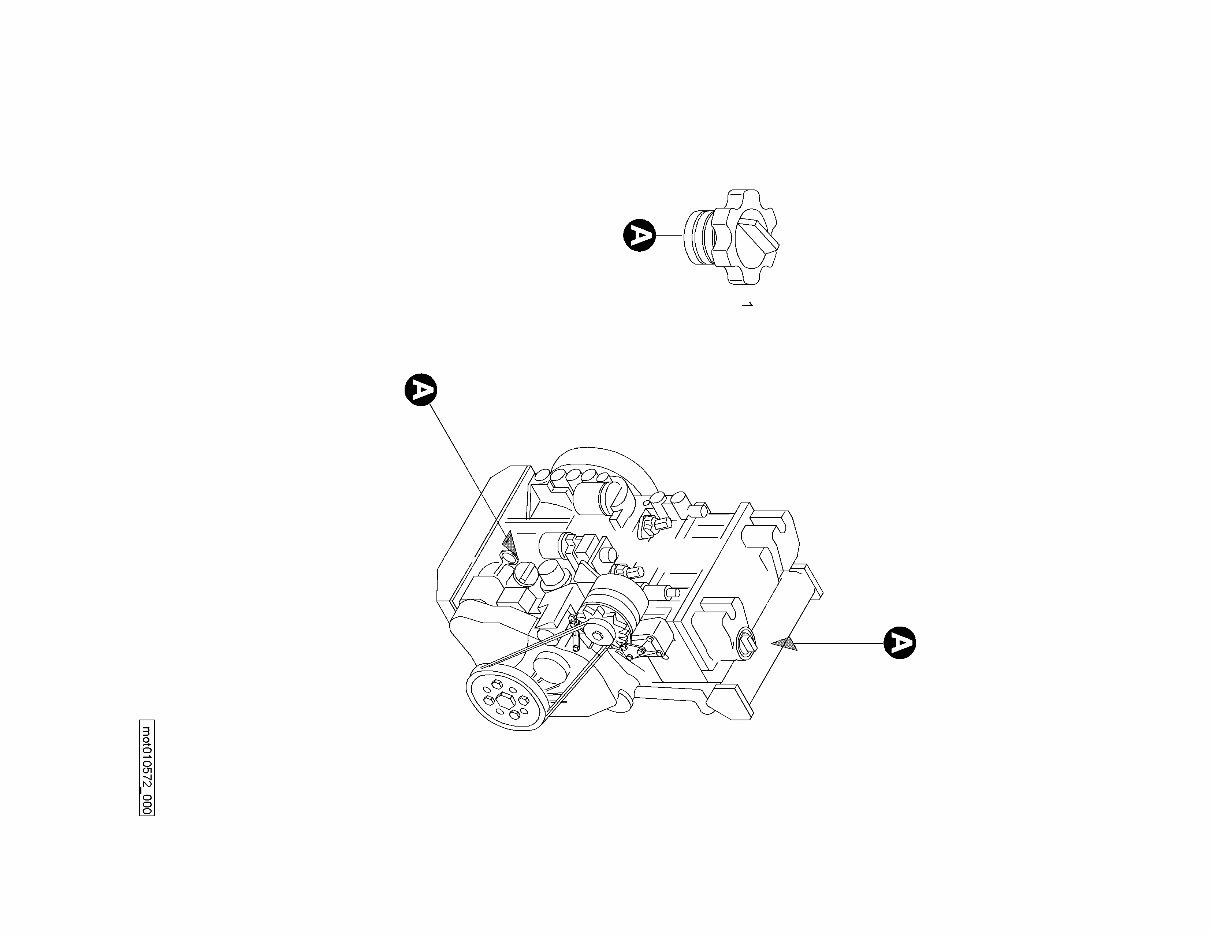

1 004 05712452 Filler cap 1
Page 8 from 8
