BW 177 D-3 101580100101 -> 101580101189 (00815310) BW 177-3
Page 1 from 2
BW 177 D-3 101580100101 -> 101580101189 (00815310) BW 177-3

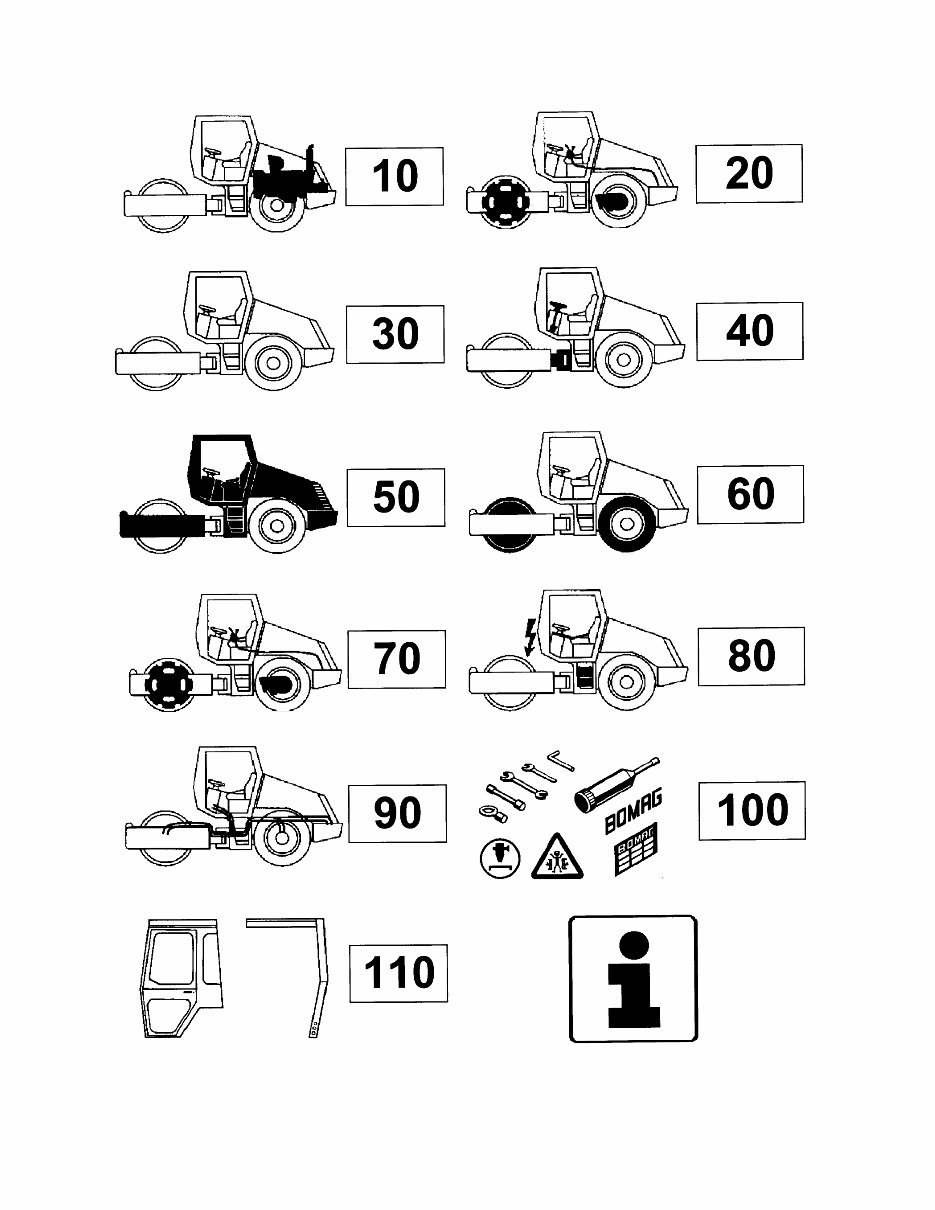

Description Assembly group
ENGINE/ATTACHMENT PARTS 10.00
POWER TRANSM.AND ACTUAT. 20.00
STEERING SYSTEM 40.00
FRAME AND ATTACHM.PARTS 50.00
ROLLER DRUM / TYRES 60.00
ELECTRIC 80.00
HYDRAULIC 90.00
ACCESSORIES 100.00
SPECIAL CONSTRUCTIONS 110.00
VT
Page 2 from 2

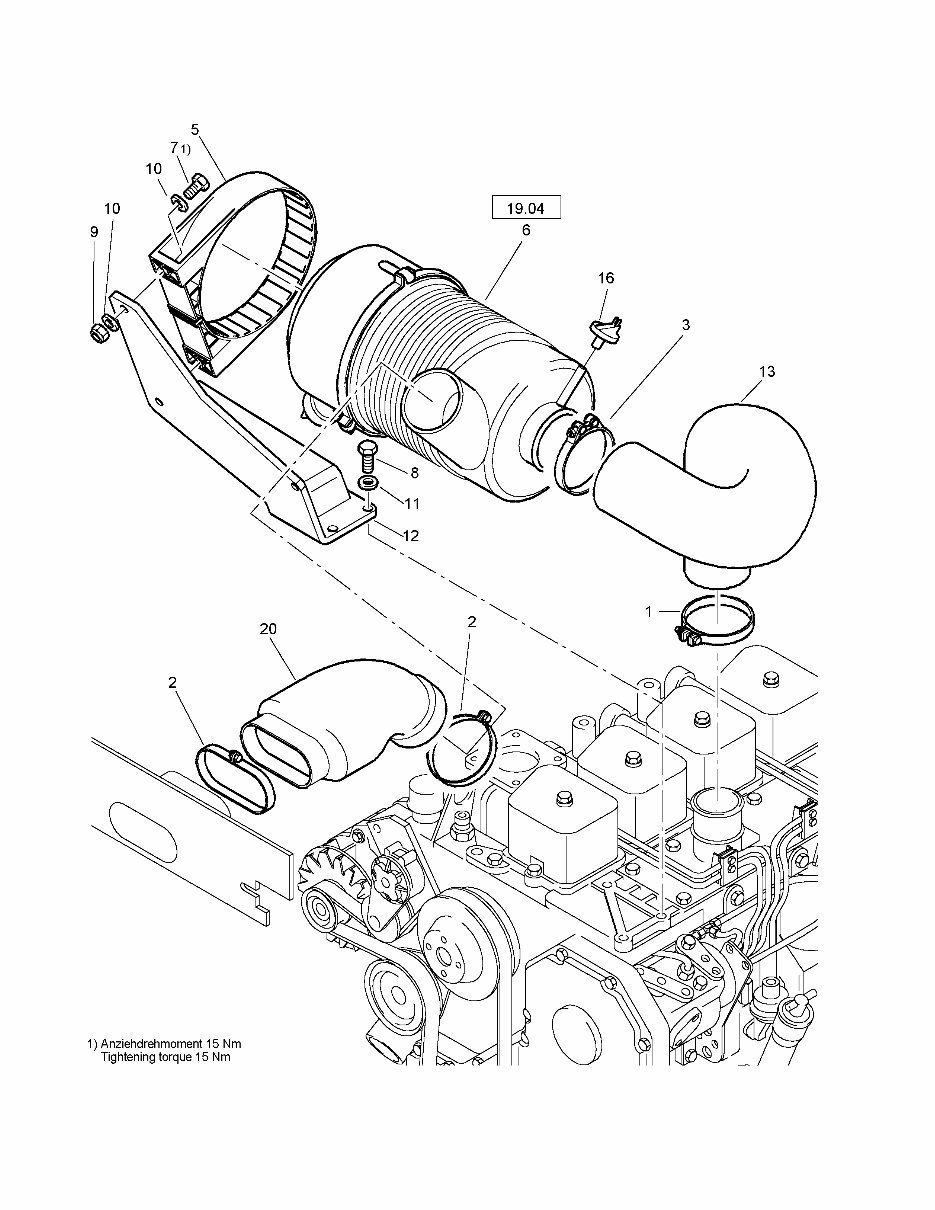

12.73 101580100101 101580101189 AIR DUCT BW 177-3
Page 1 from 2
12.73 101580100101 101580101189 AIR DUCT BW 177-3
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
1 001 05551476 Hose clip 1,000
2 001 05551478 Hose clip 2,000
3 001 05552569 Hose clip 1,000
5 001 05733031 Assembling clamp 1,000
6 001 05730018 Dry air filter 1,000
7 001 07140846 Hexagon bolt 2,000
8 001 07141027 Hexagon bolt 3,000
9 001 08130813 Safety nut 2,000
10 001 08500823 Round anchor plate 4,000
11 001 08511021 Washer 3,000
12 001 58220115 Holder 1,000
13 001 58220118 Hose 1,000
16 001 05821071 Switch,maintenance 1,000
20 001 58220119 Hose 1,000
Page 2 from 2

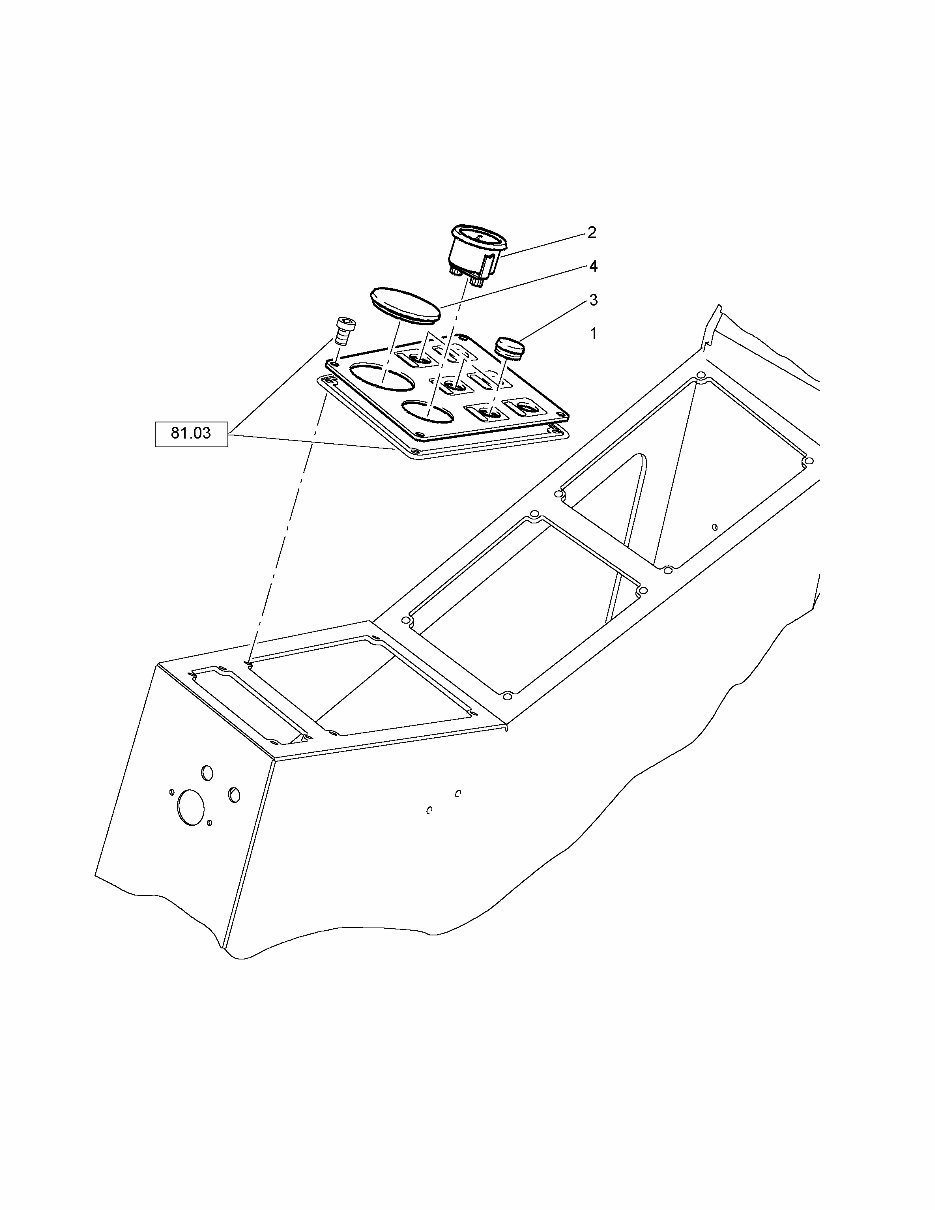

182.05 101580100101 101580101189 RPM INDICATOR BW 177-3
Page 1 from 2
182.05 101580100101 101580101189 RPM INDICATOR BW 177-3
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
1 001 00832417 Decal,operation 1,000
2 001 05971056 Rpm-meter 1,000
3 001 06510177 Cover 3,000
4 001 06510302 Cover 1,000
Page 2 from 2

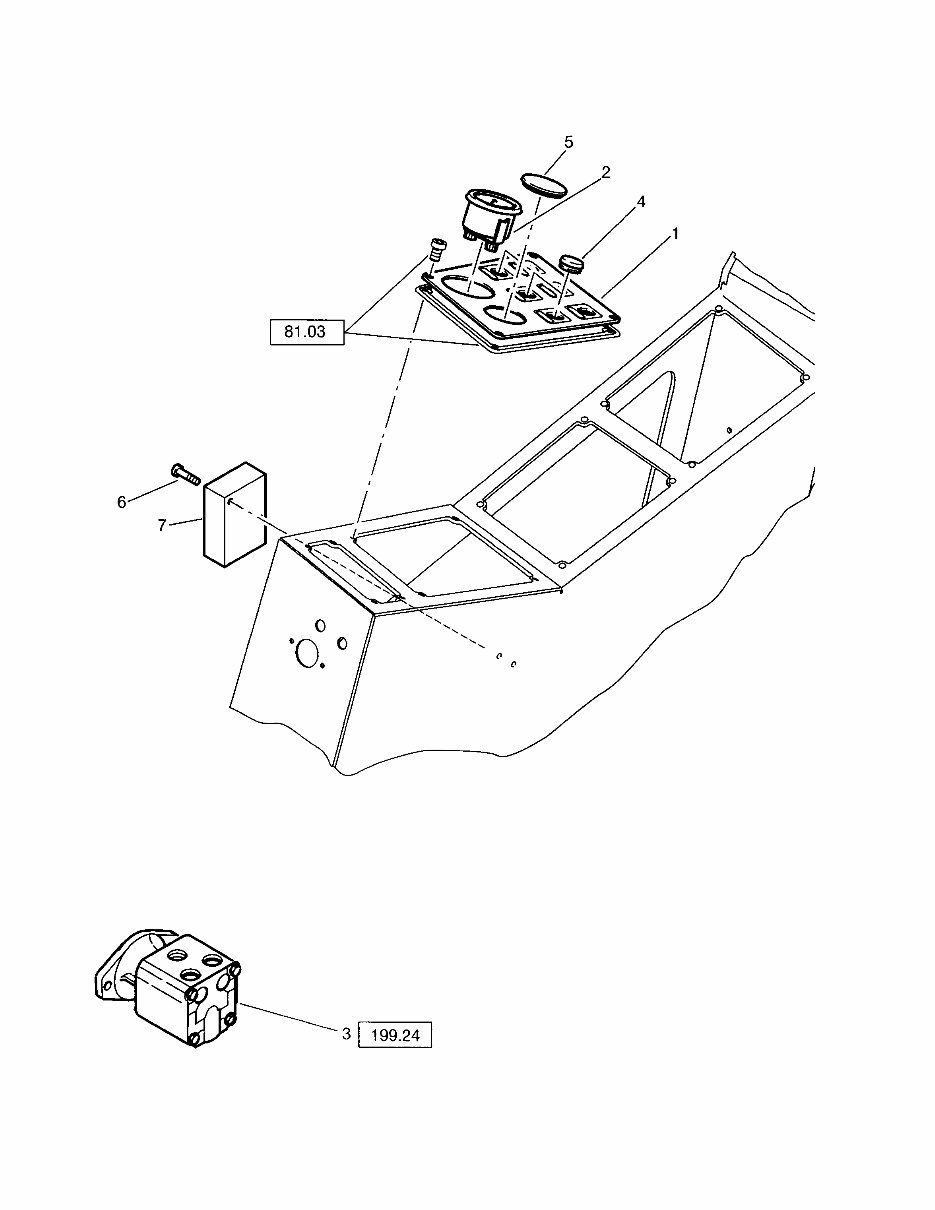

182.06 101580100101 101580101189 VIBR.FREQUENCY INDICATOR BW 177-3
Page 1 from 2
182.06 101580100101 101580101189 VIBR.FREQUENCY INDICATOR BW 177-3
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
1 001 00832417 Decal,operation 1,000
2 001 05750319 Indicator 1,000
3 001 05817042 Vibration motor 1,000
4 001 06510177 Cover 3,000
5 001 06510303 Cover 1,000
6 001 07230533 Socket-head cap screw 2,000
7 001 58003424 Module 1,000
Page 2 from 2

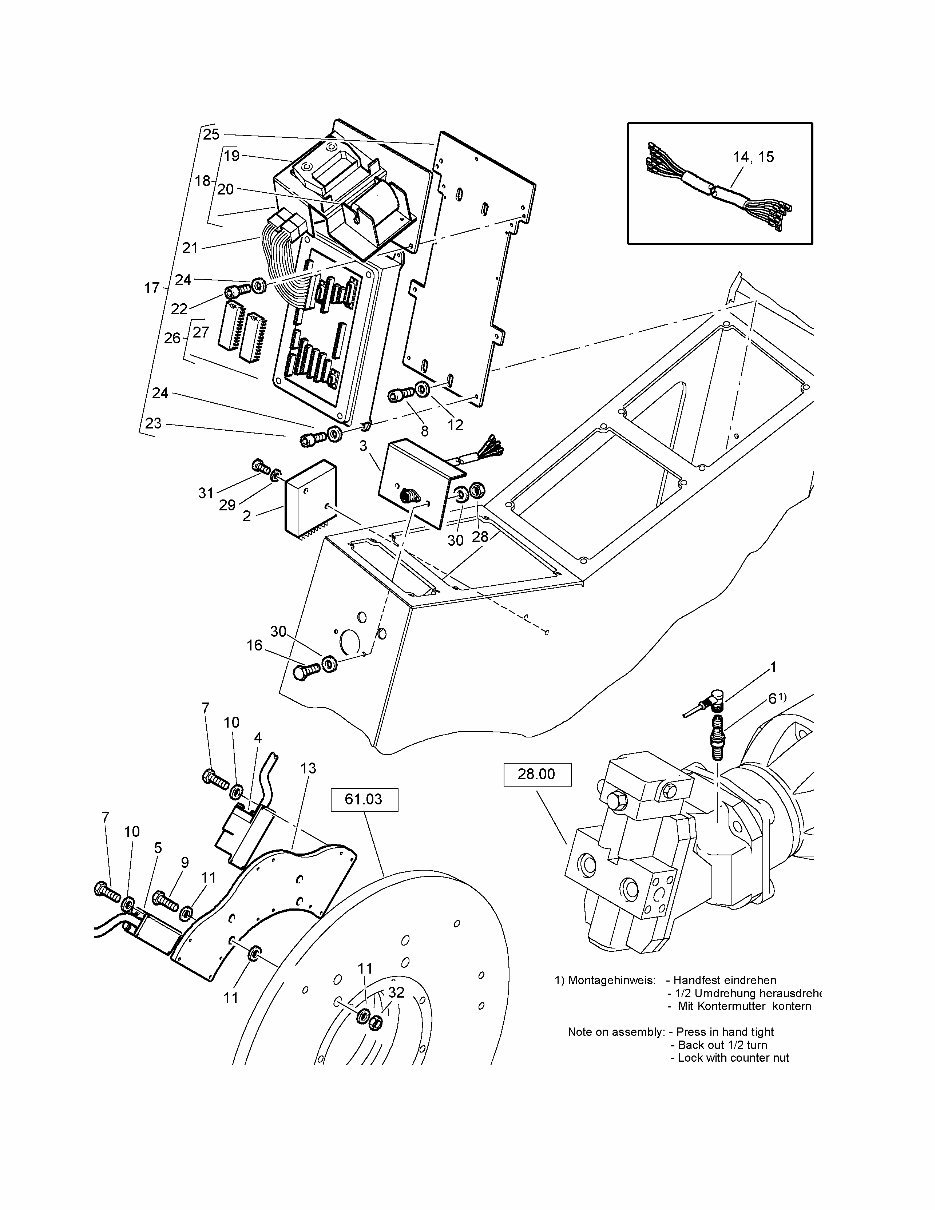

182.11 101580100101 101580101189 TERRAMETER BW 177-3
Page 1 from 8
182.11 101580100101 101580101189 TERRAMETER BW 177-3
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
1 001 05755561 Transducer cable 1,000
2 001 05766480 Module 1,000
3 001 05766514 Interface 1,000
4 001 05766534 Transducer unit 1,000
5 001 05766535 Transducer unit 1,000
6 001 05817373 Recorder 1,000
7 001 07140626 Hexagon bolt 8,000
8 001 07230811 Socket-head cap screw 4,000
9 001 07141248 Hexagon bolt 4,000
10 001 08751064 Spring washer 8,000
11 001 08511324 Washer 12,000
12 001 08752084 Spring washer 4,000
13 001 58003011 Holder 1,000
14 001 58003022 Wire harness 1,000 POWER SUPPLY
15 001 58003025 Wire harness 1,000 CIRCUIT BOARD
16 001 07140633 Hexagon bolt 2,000
17 001 58003050 Electronic 1,000
18 001 05766520 Output unit 1,000
19 001 05766011 Ribbon casette 1,000
20 001 05766012 Paper roller 1,000
21 001 05766521 Connecting cable 1,000
22 001 07140618 Hexagon bolt 3,000
23 001 07230602 Socket-head cap screw 4,000
24 001 08751064 Spring washer 7,000
25 001 58003086 Plate 1,000
26 001 05766503 Electronic 1,000
27 001 05766516 Program 1,000
Page 2 from 8
