Bomag BW172 D-2A Single drum vibratory rollers Service Parts Catalogue Manual SN101520600132-101520600480

BW 172 D-2A 101520600132 -> 101520600480 (00811588) BW 172-2 Page 1 from 2

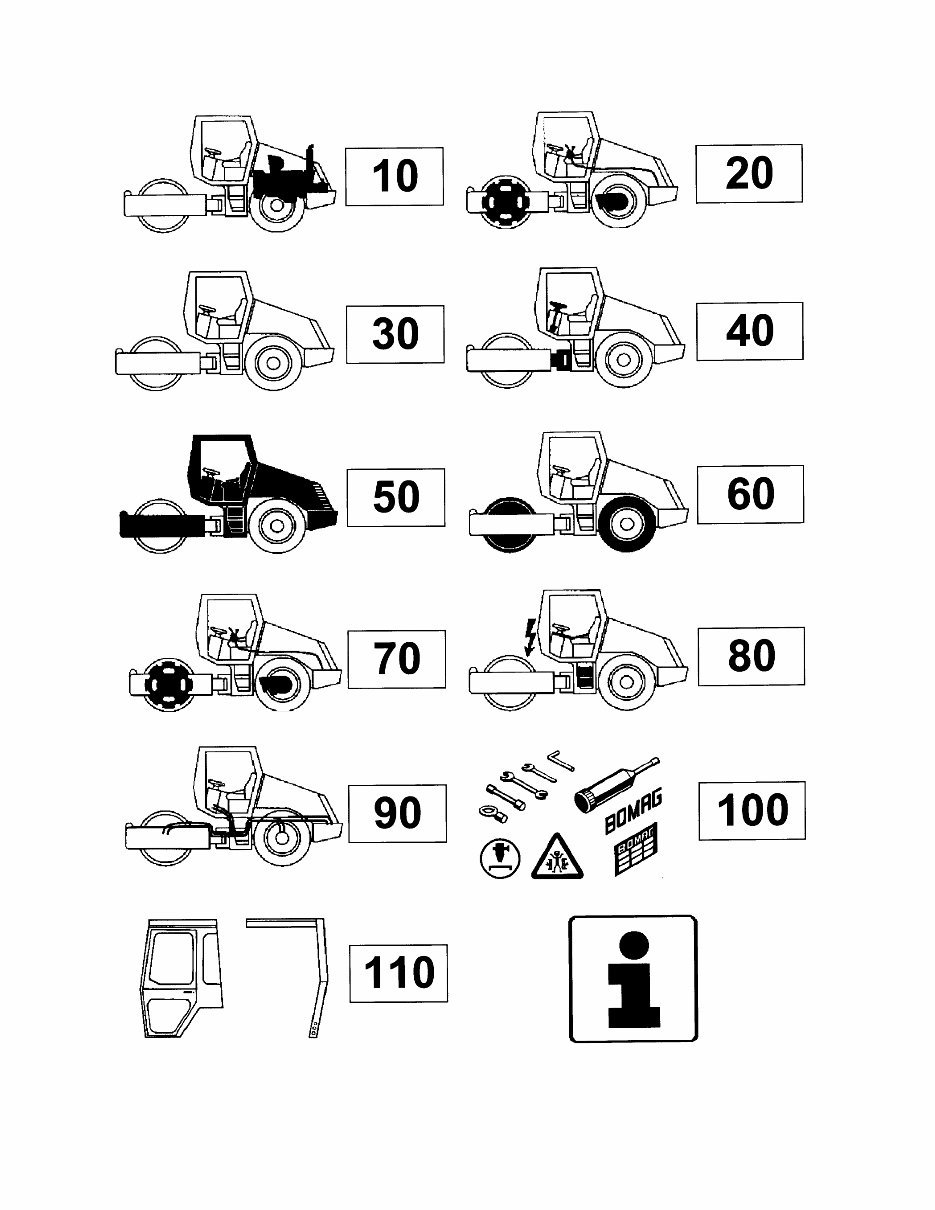

BW 172 D-2A 101520600132 -> 101520600480 (00811588) BW 172-2 Description Assembly group ENGINE/ATTACHMENT PARTS 10.00 POWER TRANSM.AND ACTUAT. 20.00 BRAKE SYSTEM 30.00 STEERING SYSTEM 40.00 FRAME AND ATTACHM.PARTS 50.00 ROLLER DRUM / TYRES 60.00 . 70.00 ELECTRIC 80.00 ACCESSORIES 100.00 SPECIAL CONSTRUCTIONS 110.00 VT Page 2 from 2

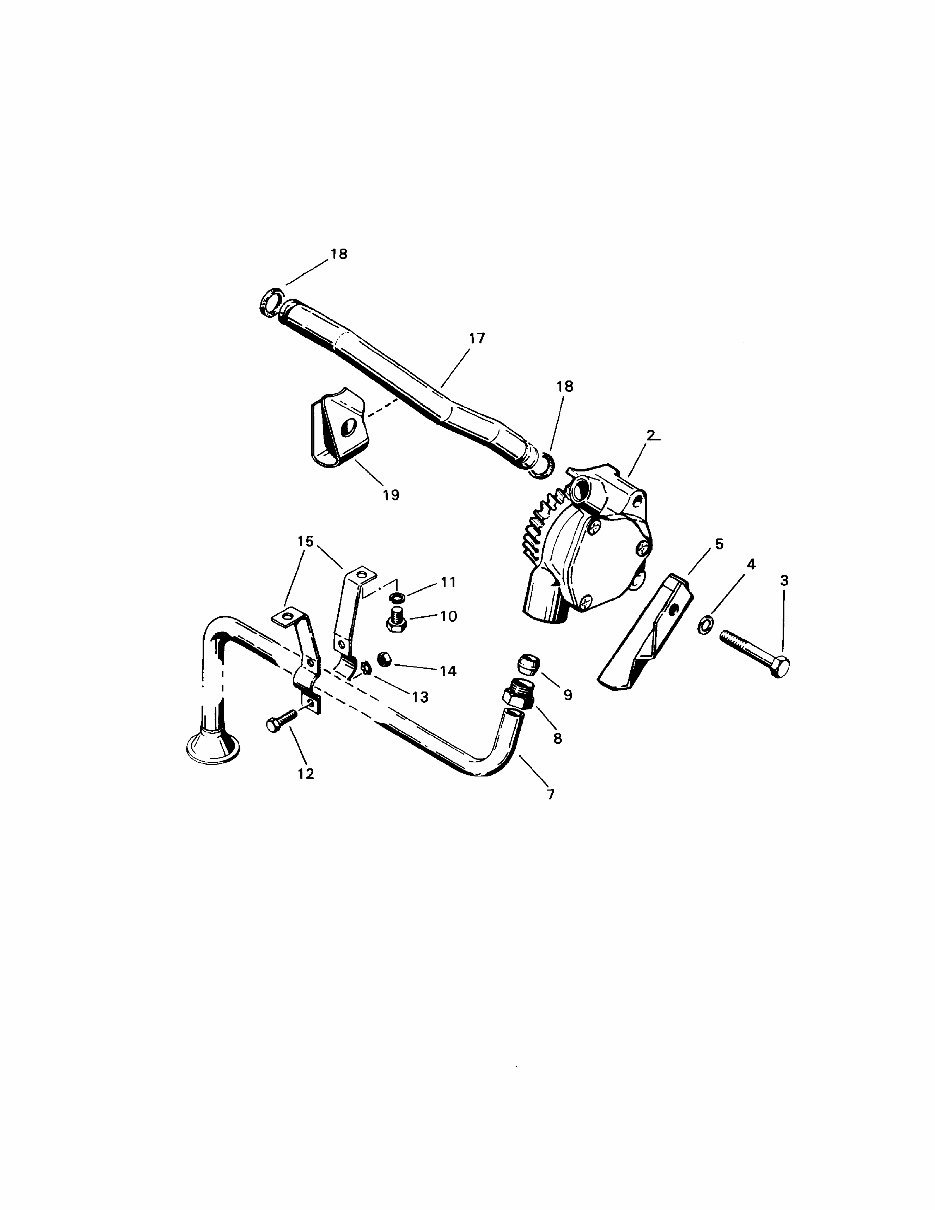

11.11 7257027 9999999 05702140 LUBRICATION OIL PUMP BW 172-2 Page 1 from 2

11.11 7257027 9999999 05702140 LUBRICATION OIL PUMP BW 172-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 2 001 05714231 Lubrication oil pump 1,000 3 001 07130835 Hexagon bolt 2,000 4 001 05719706 Washer 2,000 5 001 05710203 Screen 1,000 7 001 05716448 Suction pipe 1,000 8 001 05712463 Cap nut 1,000 9 001 05712461 Duplex ring 1,000 10 001 07140814 Hexagon bolt 2,000 11 001 05710848 Washer 2,000 12 001 07140626 Hexagon bolt 2,000 13 001 08661064 Star lock washer 2,000 14 001 08110620 Hexagon nut 2,000 15 001 05710671 Tube clamp 2,000 17 001 05710718 Oil pipe 1,000 18 001 05710719 Loop ring 2,000 19 001 05710670 Spring 1,000 Page 2 from 2

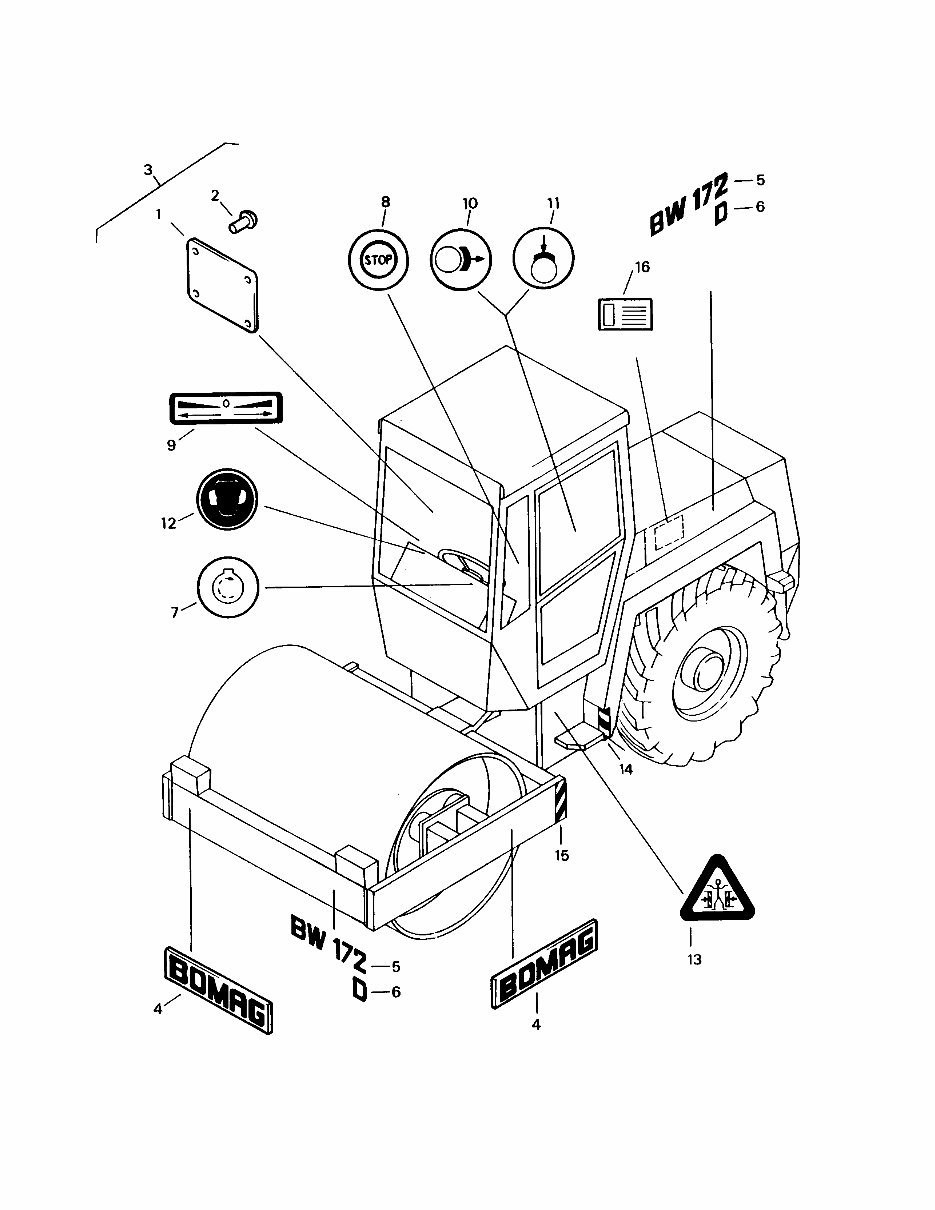

101.02 101520600132 101520600480 DECALS / MANUALS BW 172-2 Page 1 from 2

101.02 101520600132 101520600480 DECALS / MANUALS BW 172-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 3 001 00839012 Decal kit 1,000 CONSISTING OF NO. 4 TO 16 4 001 00830003 Decal 4,000 5 001 00830175 Type designation 3,000 BW 172 6 001 00830176 Type designation 3,000 D 7 001 00832003 Decal,indication 1,000 ENGINE START 8 001 00832009 Decal,indication 1,000 ENGINE STOP 9 001 00832027 Decal,operation 1,000 TRAVEL ACTUATION 10 001 00832033 Decal,indication 1,000 LOOSEN BRAKE 11 001 00832034 Decal,indication 1,000 BRAKING 12 001 00832046 Decal,indication 1,000 USE EAR PROTECTION 13 001 00832047 Decal,indication 2,000 ARTICULATED JOINT 14 001 00835002 Danger warning tape 1,000 RIGHT HAND 15 001 00835003 Danger warning tape 1,000 LEFT HAND 16 001 00832120 Decal,indication 2,000 STEAM CLEANER Page 2 from 2

110.00 SPECIAL CONSTRUCTIONS BW 172-2 Page 1 from 2

110.00 SPECIAL CONSTRUCTIONS BW 172-2 Description Assembly group PROTECTION ROOF/SUN ROOF 111.01 101520600132 101520600480 ROPS-FOPS 111.02 101520600132 101520600140 ROPS-FOPS 111.02 101520600141 101520600150 ROPS-FOPS 111.02 101520600151 101520600181 ROPS-FOPS 111.02 101520600182 101520600480 CAB 111.03 101520600132 101520600140 CAB 111.03 101520600141 101520600480 HEATING 111.04 101520600132 101520600480 LIGHTING 111.07 101520600132 101520600150 LIGHTING 111.07 101520600151 101520600480 TYRES 111.24 101520600132 101520600480 CAB 111.59 101520600132 101520600480 HYDR.MOTOR,TRAVEL SYSTEM 111.80 101520600132 101520600480 HYDR.MOTOR WITHOUT BRAKE 111.81 101520600132 101520600480 TWO TRAVEL-SPEEDS 112.24 101520600132 101520600480 FRONT ROLL.DR.DRIVE WO.BR 112.30 101520600132 101520600480 BALLAST 150.07 101520600141 101520600480 ROTARY BEACON 180.08 101520600132 101520600381 ROTARY BEACON 180.08 101520600382 101520600480 VIBRATION AUTOMATIC 182.09 101520600141 101520600480 SERVICE KIT 1000 H 194.02 101520600132 101520600480 Page 2 from 2

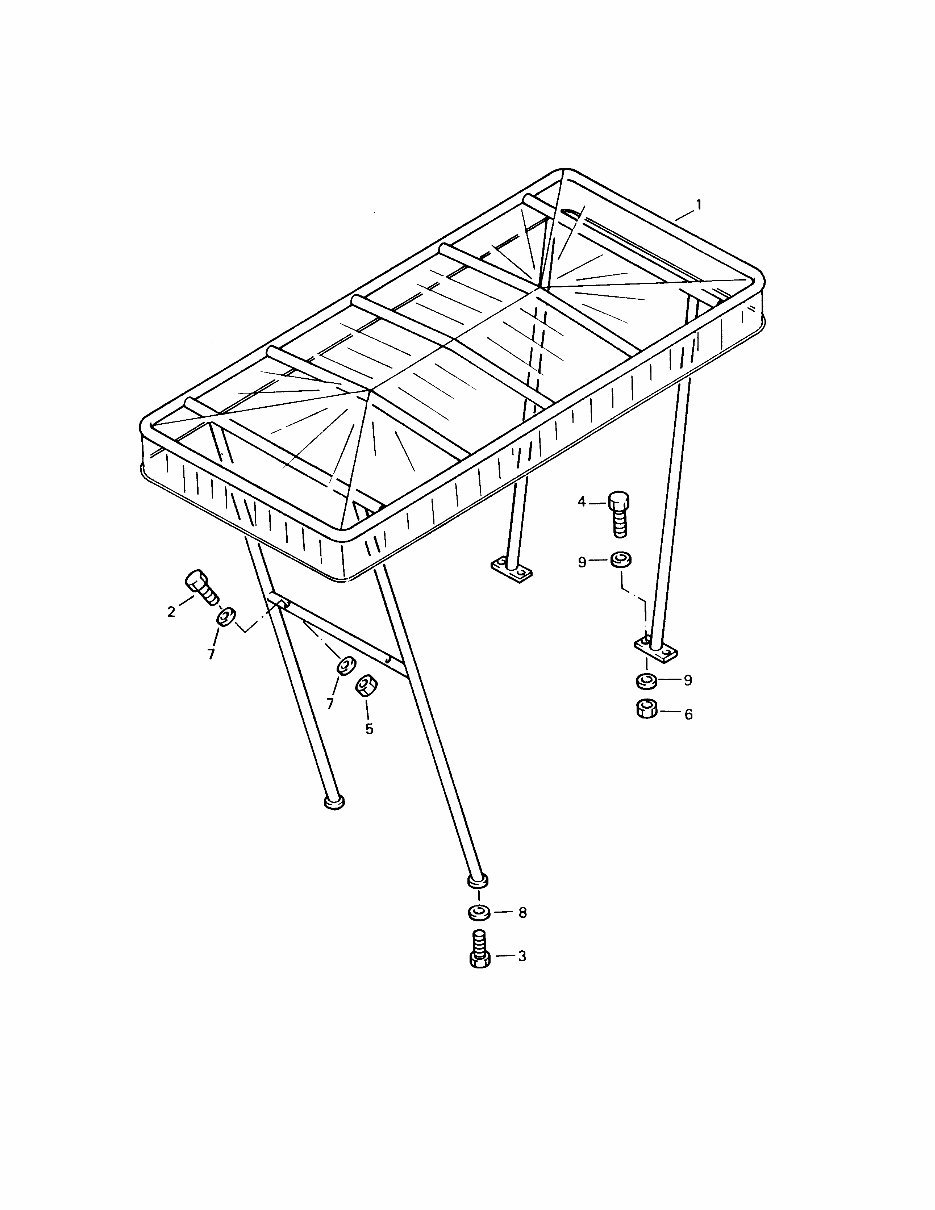

111.01 101520600132 101520600480 PROTECTION ROOF/SUN ROOF BW 172-2 Page 1 from 2

111.01 101520600132 101520600480 PROTECTION ROOF/SUN ROOF BW 172-2 M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 05571066 Sun roof 1,000 2 001 07130829 Hexagon bolt 2,000 3 001 07141017 Hexagon bolt 2,000 4 001 07141238 Hexagon bolt 4,000 5 001 08130813 Safety nut 2,000 6 001 08131218 Safety nut 4,000 7 001 08590820 Washer 4,000 8 001 08511021 Washer 2,000 9 001 08511324 Washer 8,000 Page 2 from 2
