BW 172 D-2 136520121001 -> 136520129999 (00811590) BW 172-2
Page 1 from 2
BW 172 D-2 136520121001 -> 136520129999 (00811590) BW 172-2

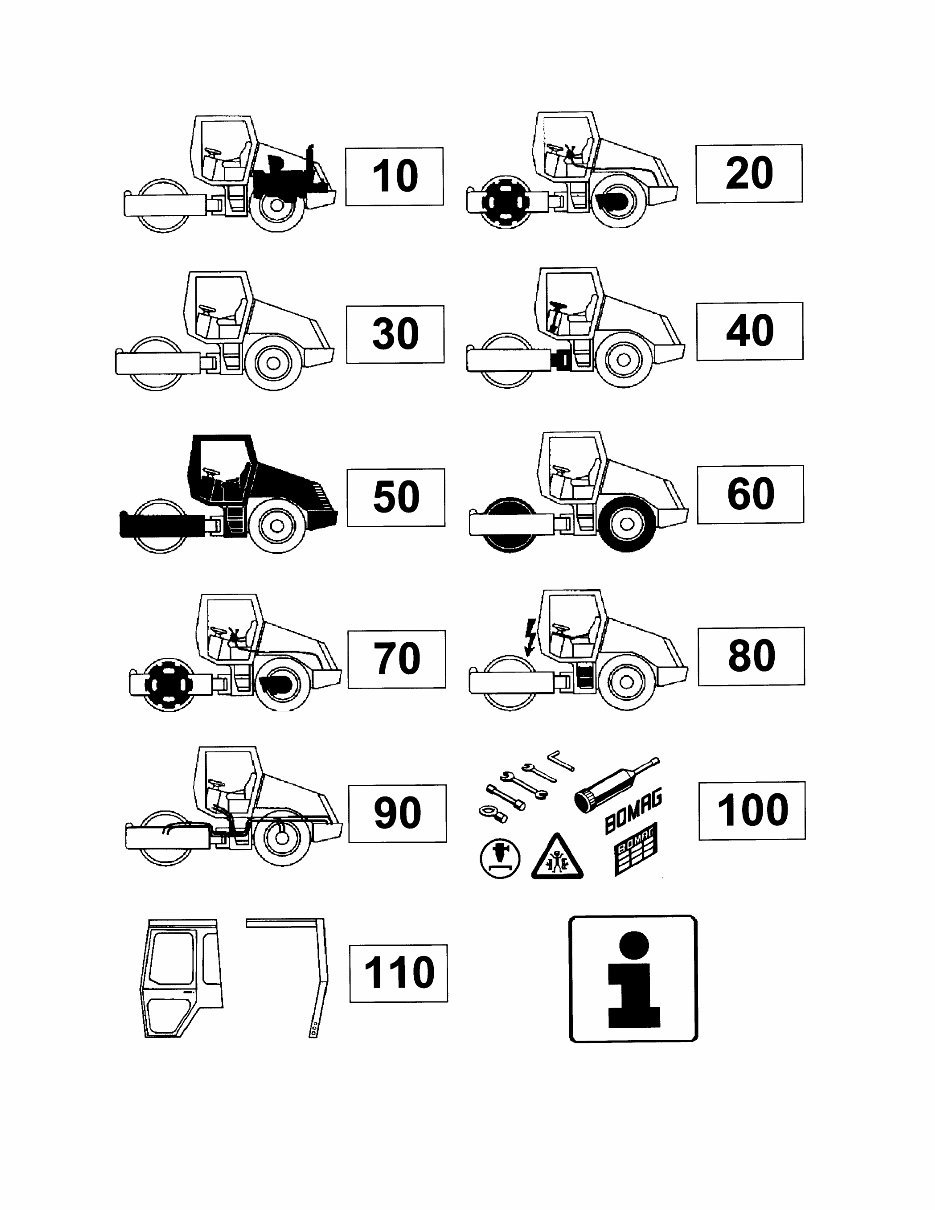

Description Assembly group
ENGINE/ATTACHMENT PARTS 10.00
POWER TRANSM.AND ACTUAT. 20.00
STEERING SYSTEM 40.00
FRAME AND ATTACHM.PARTS 50.00
ROLLER DRUM / TYRES 60.00
ELECTRIC 80.00
HYDRAULIC 90.00
ACCESSORIES 100.00
SPECIAL CONSTRUCTIONS 110.00
VT
Page 2 from 2

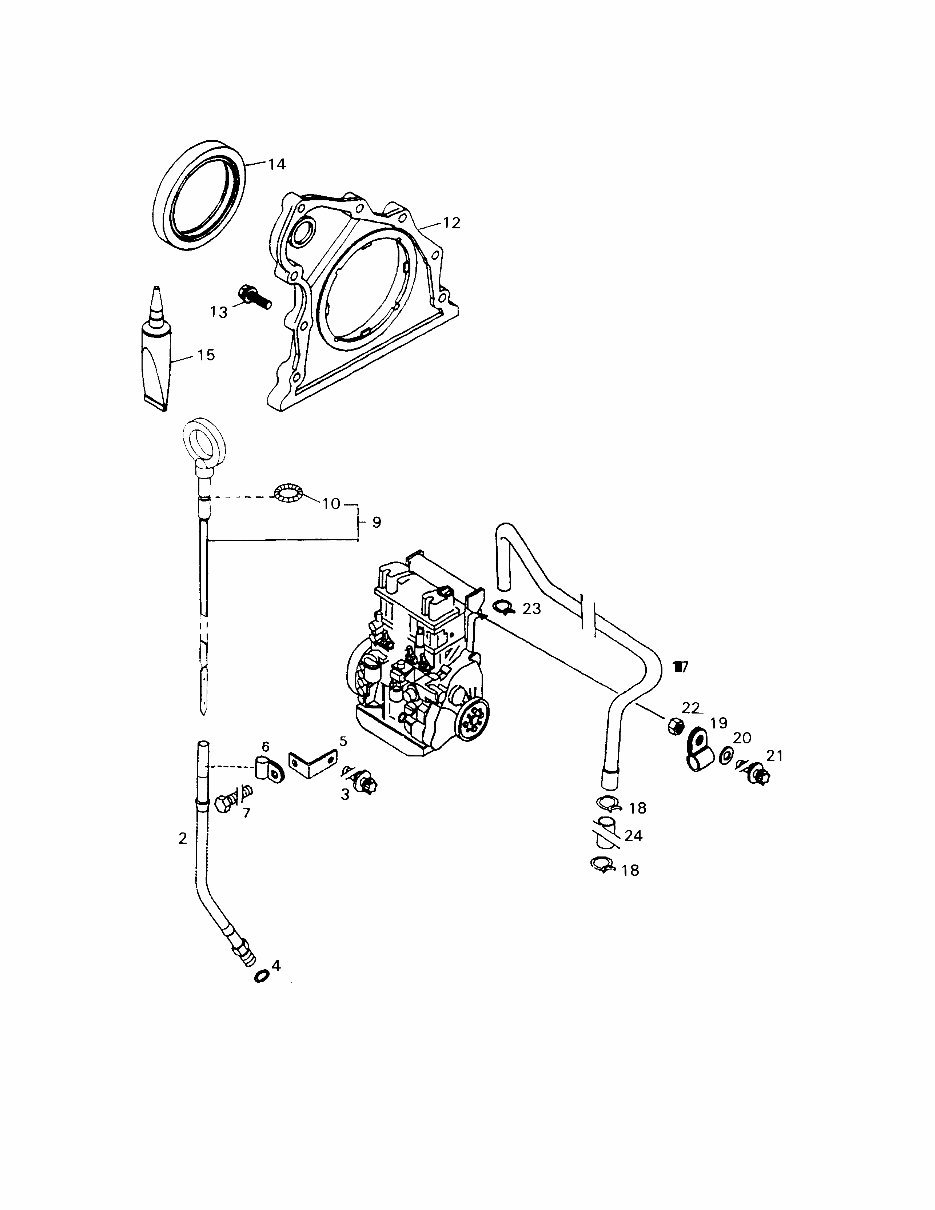

11.01 8022500 99999999 05701005 CRANKCASE 0118408 > > 0129040 BW 172-2
Page 1 from 2
11.01 8022500 99999999 05701005 CRANKCASE 0118408 > > 0129040 BW 172-2
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
2 003 05713337 Guiding tube 1,000
3 003 05719058 Torx-head bolt 1,000
4 003 09331708 Sealing ring 1,000
5 003 05712553 Holder 1,000
6 003 05713338 Tube clamp 1,000
7 003 05719088 Hexagon bolt 1,000
9 003 05712555 Oil dip stick 1,000
10 003 06220050 Loop ring 1,000
12 003 05710007 Rear cover 1,000
13 003 05719696 Hexagon bolt 8,000
14 003 05711428 Radial seal 1,000
15 003 05714092 Sealing compound 1,000
17 003 05712204 Ventilation pipe 1,000
18 003 05710009 Hose clip 2,000
19 003 05712205 Tube clamp 1,000
20 003 05710265 Washer 1,000
21 003 05719071 Torx-head bolt 1,000
22 003 08110813 Hexagon nut 1,000
23 003 05712206 Hose clip 1,000
24 003 05712207 Hose 1,000
Page 2 from 2

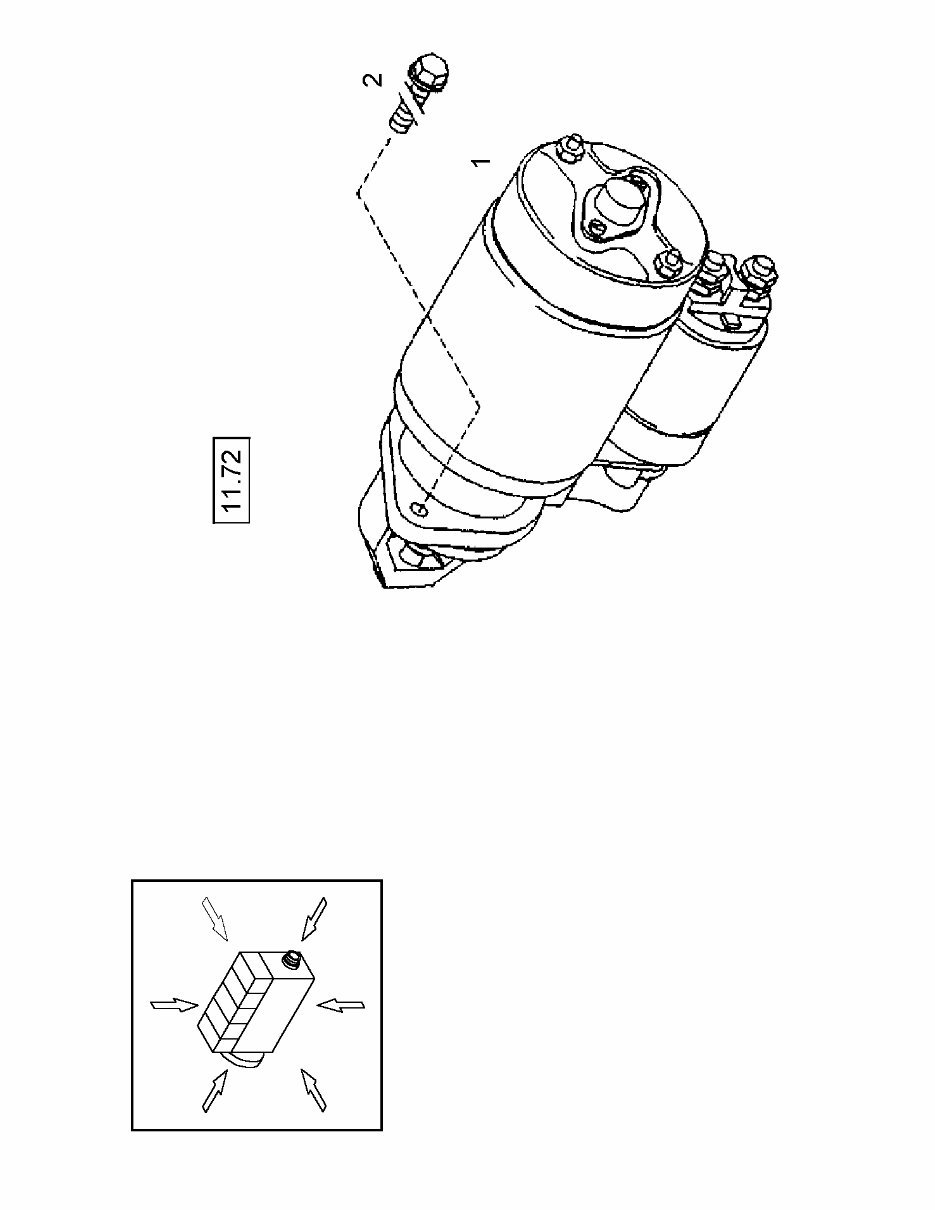

11.34 8022500 99999999 05701005 GENERATOR AND STARTER 0100126 > BW 172-2
Page 1 from 2
11.34 8022500 99999999 05701005 GENERATOR AND STARTER 0100126 > BW 172-2
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
2 001 05710969 Starter 0,000
3 001 05719057 Hexagon bolt 2,000
Page 2 from 2
11.34 8022500 99999999 05701005 GENERATOR AND STARTER 8022500 > >
0096226
BW 172-2
Page 1 from 2
11.34 8022500 99999999 05701005 GENERATOR AND STARTER 8022500 > >
0096226
BW 172-2
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
2 001 05710947 Starter 0,000
3 001 05719057 Hexagon bolt 2,000
Page 2 from 2

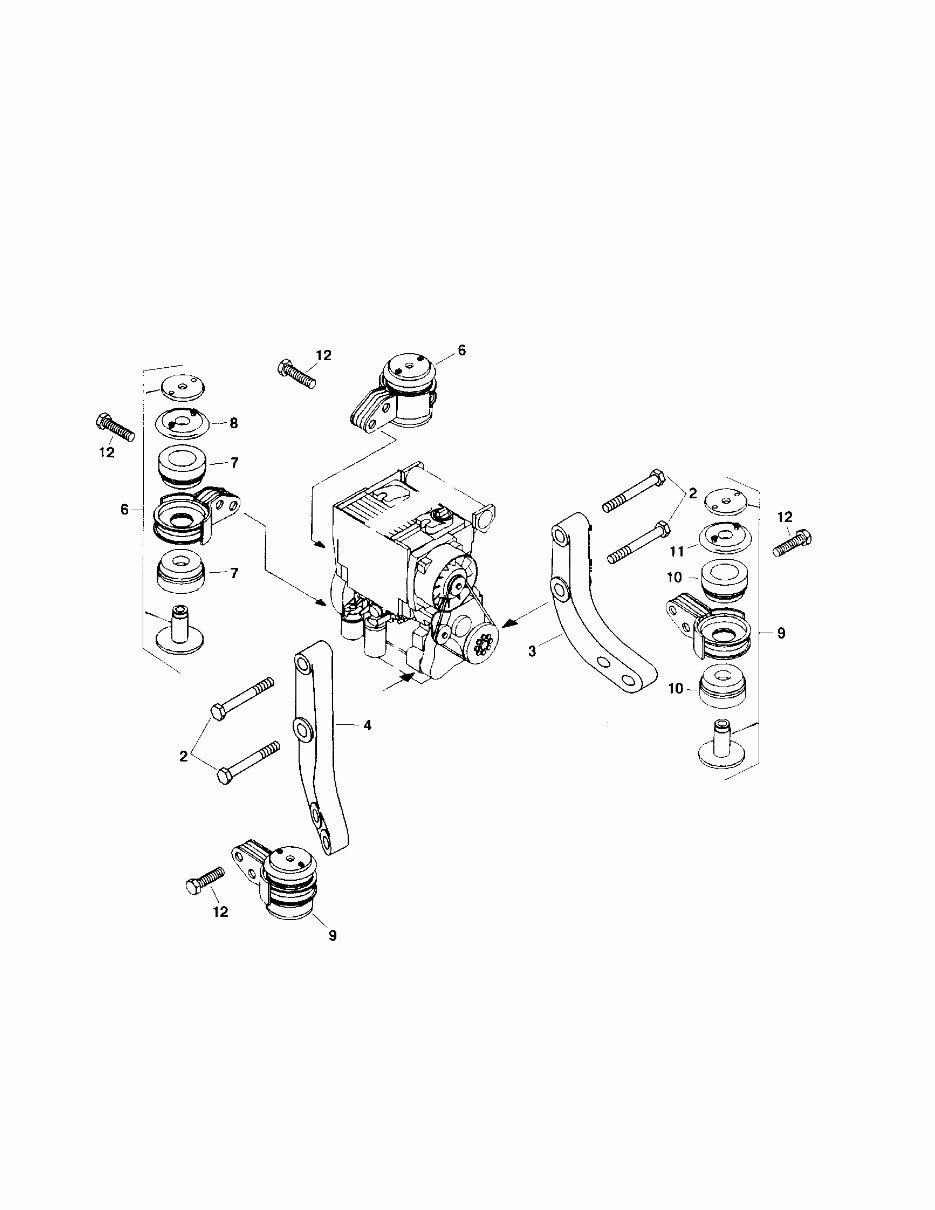

11.35 8022500 99999999 05701005 ENGINE HOLDER 8022500 > > 0005415 BW 172-2
Page 1 from 2
11.35 8022500 99999999 05701005 ENGINE HOLDER 8022500 > > 0005415 BW 172-2
M Ite
m
No.
Pag
e
Part No. Description Quant. Uni
t
Remarks
2 001 07131417 Hexagon bolt 0,000
3 001 05711450 Engine support 0,000
4 001 05711451 Engine support 0,000
6 001 05711449 Mounting foot 0,000
7 001 05711091 Rubber ring 0,000
8 001 05711140 Protection cover 0,000
9 001 05711448 Mounting foot 0,000
10 001 05711091 Rubber ring 0,000
11 001 05711140 Protection cover 0,000
12 001 07131417 Hexagon bolt 0,000
Page 2 from 2
