Bomag BMP8500 Trench compactor Service Parts Catalogue Manual SN101720111001-101720119999

BMP 8500 101720111001 -> 101720119999 (00818667) BMP 8500 TC Page 1 from 2

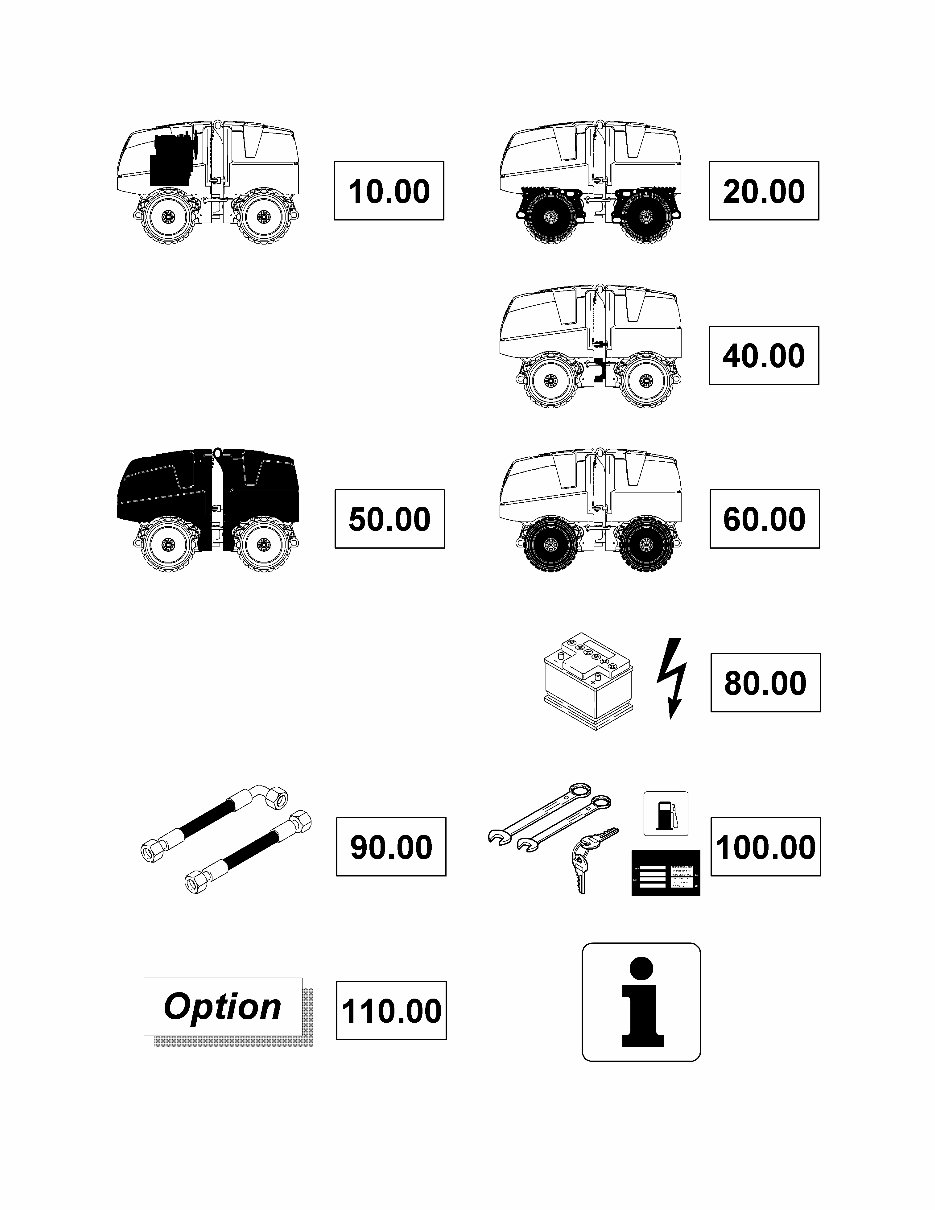

BMP 8500 101720111001 -> 101720119999 (00818667) BMP 8500 TC Description Assembly group Engine / Fitting Parts 10.00 Power Transmission / Actuation 20.00 Steering System 40.00 Frame with Attachment Parts 50.00 Drum / Tyres 60.00 Electrical System 80.00 Hydraulic 90.00 Accessories 100.00 Special Equipment 110.00 Frequently used parts VT Page 2 from 2

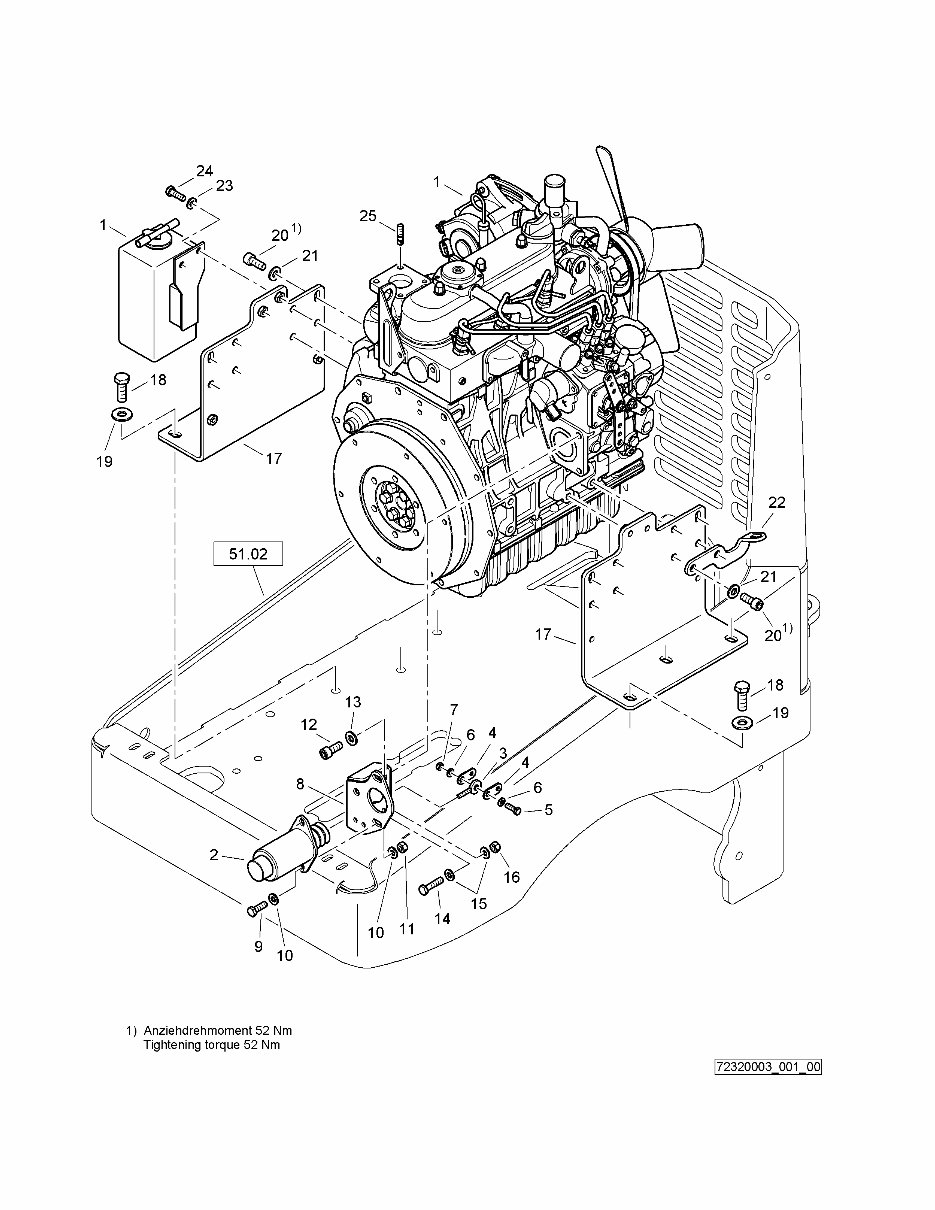

12.13 101720111005 101720111034 Engine BMP 8500 TC Page 1 from 5

12.13 101720111005 101720111034 Engine BMP 8500 TC M Ite m No. Pag e Part No. Description Quant. Uni t Remarks Re pa ir pa rt 1 001 05701616 Diesel engine 1 2 001 05712910 Magneto 1 3 001 05920110 Clevis joint 1 4 001 58340107 Plate 2 5 001 07140633 Hexagon bolt 2 6 001 08510612 Washer 4 7 001 08130611 Safety nut 2 8 001 72320225 Holder 1 9 001 07140834 Hexagon bolt 2 10 001 08510817 Washer 4 11 001 08130813 Safety nut 2 12 001 07231113 Socket-head cap screw 1 13 001 08511021 Washer 1 14 001 07140846 Hexagon bolt 1 15 001 08510817 Washer 2 16 001 08130813 Safety nut 1 17 001 72320226 Plate 2 18 001 07141238 Hexagon bolt 6 19 001 08752130 Spring washer 6 20 001 07231113 Socket-head cap screw 16 21 001 08511021 Washer 16 22 001 72420105 Holder 1 23 001 08510817 Washer 2 Page 2 from 5

12.13 101720111005 101720111034 Engine BMP 8500 TC M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 24 001 07140818 Hexagon bolt 2 25 001 07580808 Pin screw 4 Page 3 from 5

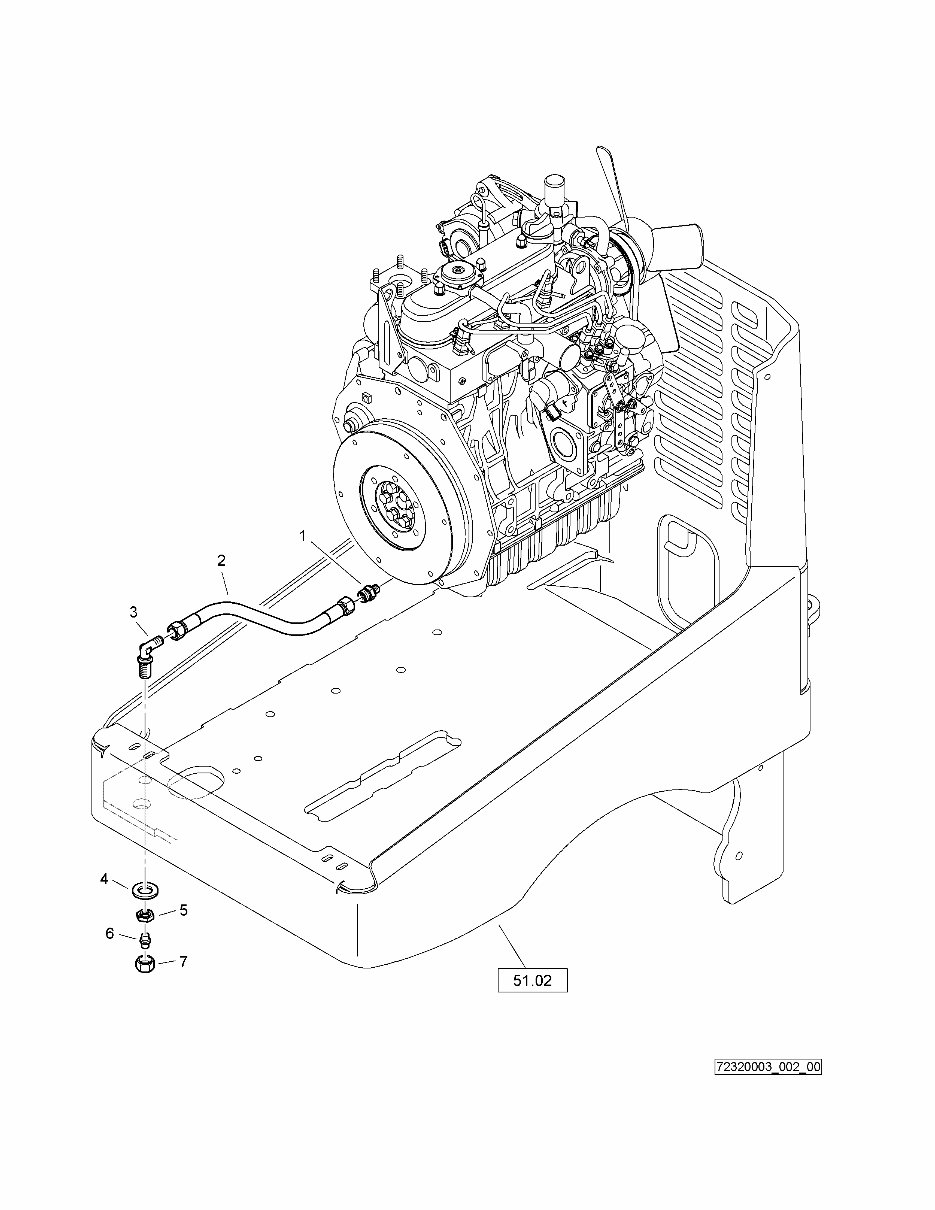

12.13 101720111005 101720111034 Engine BMP 8500 TC Page 4 from 5

12.13 101720111005 101720111034 Engine BMP 8500 TC M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 002 72320220 Double-ended union 1 2 002 05555861 Hose assy.ac.WN3111 1 3 002 05542654 Angular union 1 4 002 08512136 Washer 1 5 002 05542918 Nut 1 6 002 05542704 Plug 1 7 002 05545022 Cap nut 1 Page 5 from 5

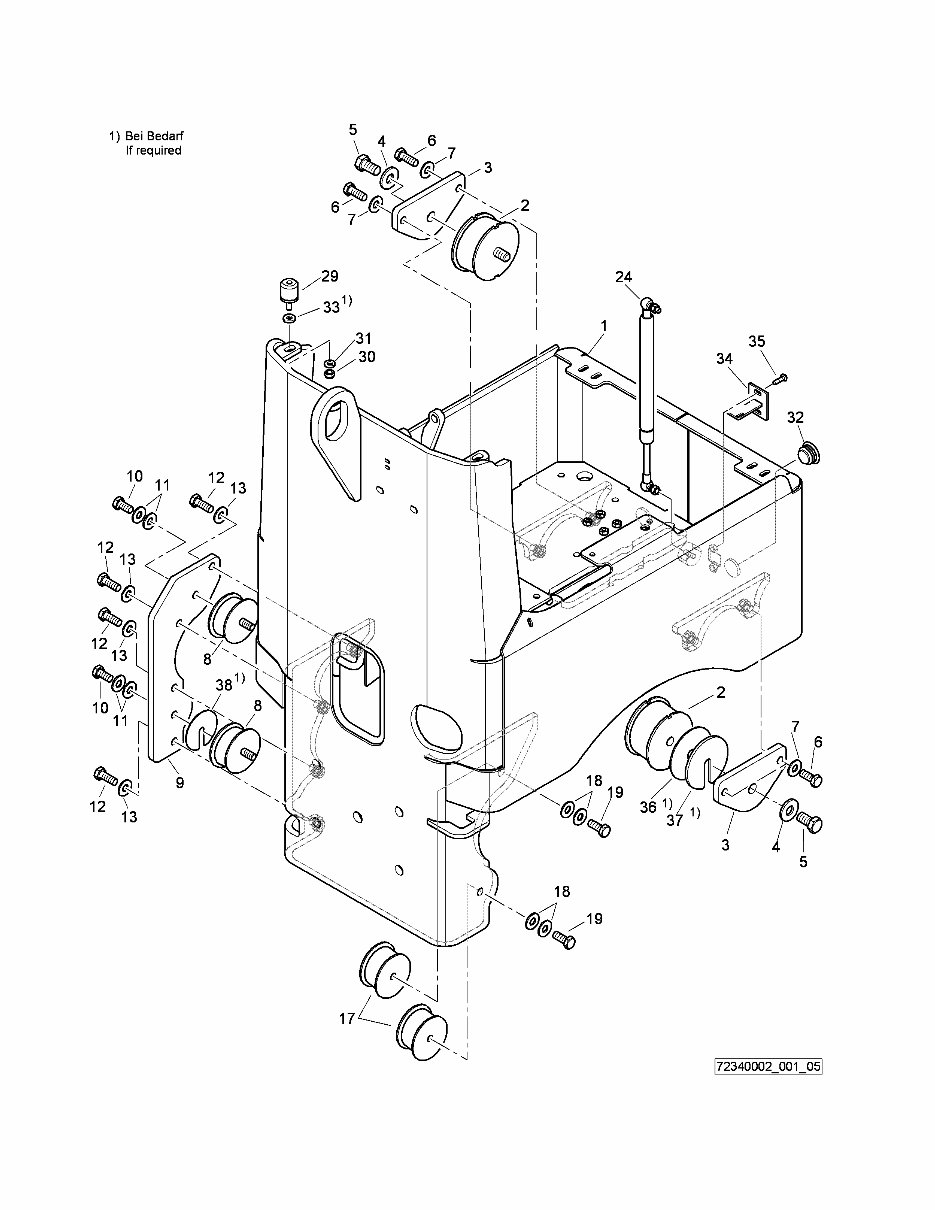

51.03 101720111294 101720111649 Rear Frame BMP 8500 TC Page 1 from 5

51.03 101720111294 101720111649 Rear Frame BMP 8500 TC M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 1 001 72340248 Rear frame 1 W ea r pa rt 2 001 06128815 Rubber buffer 2 3 001 72340131 Plate 2 4 001 08752170 Spring washer 2 5 001 07141632 Hexagon bolt 2 6 001 07141242 Hexagon bolt 4 7 001 08752130 Spring washer 4 W ea r pa rt 8 001 06127525 Rubber buffer 2 9 001 72340136 Tension plate 1 10 001 07141234 Hexagon bolt 2 11 001 08752130 Spring washer 4 12 001 07141242 Hexagon bolt 4 13 001 08752130 Spring washer 4 W ea r pa rt 17 001 06127525 Rubber buffer 2 18 001 08752130 Spring washer 4 19 001 07141234 Hexagon bolt 2 Page 2 from 5

51.03 101720111294 101720111649 Rear Frame BMP 8500 TC M Ite m No. Pag e Part No. Description Quant. Uni t Remarks 24 001 05581188 Gas spring 1 29 001 72340210 Stop buffer 2 30 001 08131016 Safety nut 2 31 001 08511021 Washer 2 32 001 06510201 Plug 2 33 001 08621105 Washer 2 34 001 72350299 Holder 1 35 001 07210616 Lens head screw 2 36 001 48230106 Shim 2 37 001 48230105 Shim 1 38 001 69030240 Shim 4 Page 3 from 5
